mp-24411/K2LiAlH6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-24411.tar.gz

Harmonic properties

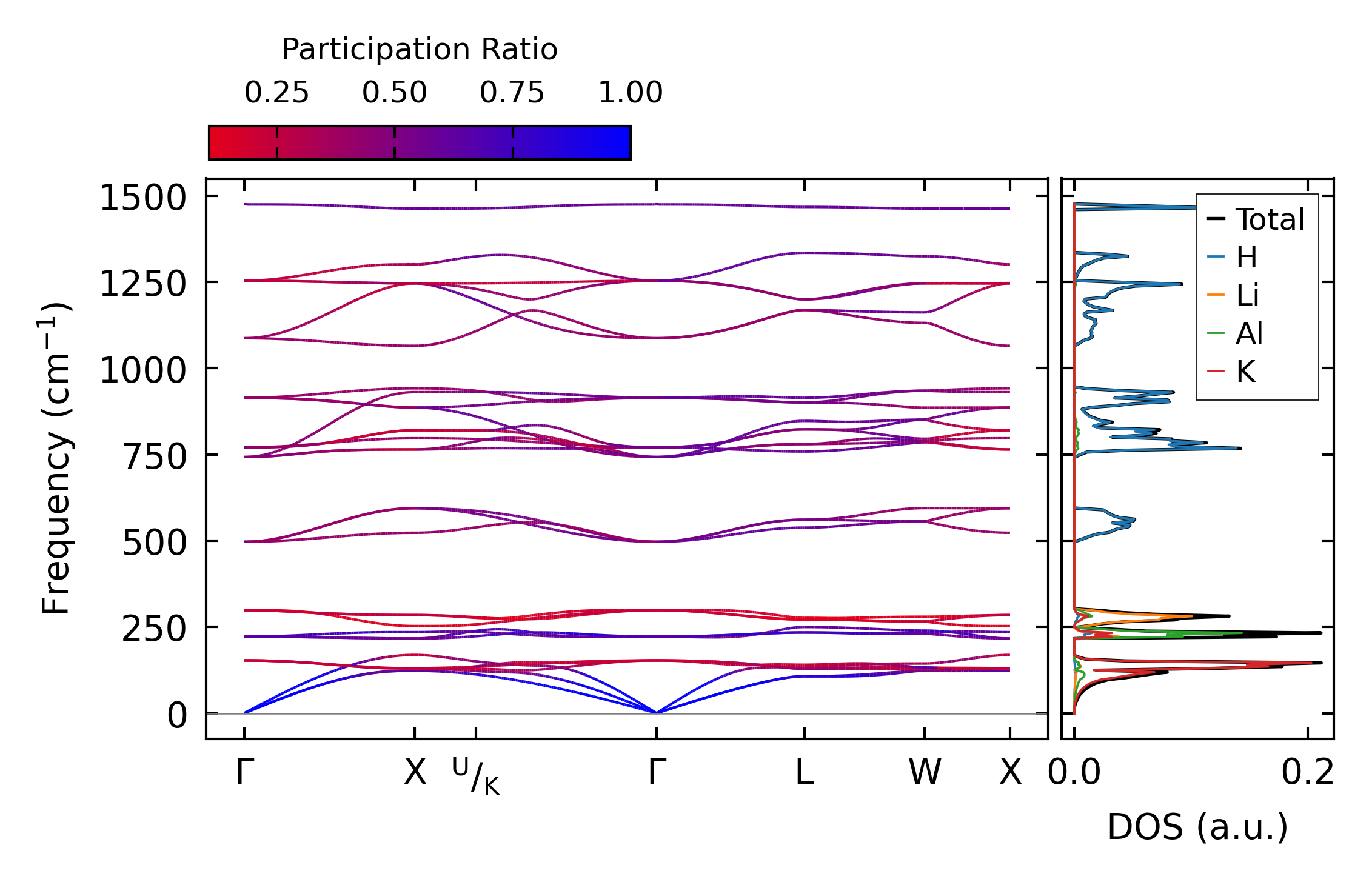

../../_images/fig_bandos_pr12407.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12407.png — (b) Thermodynamic properties

Grüneisen parameters

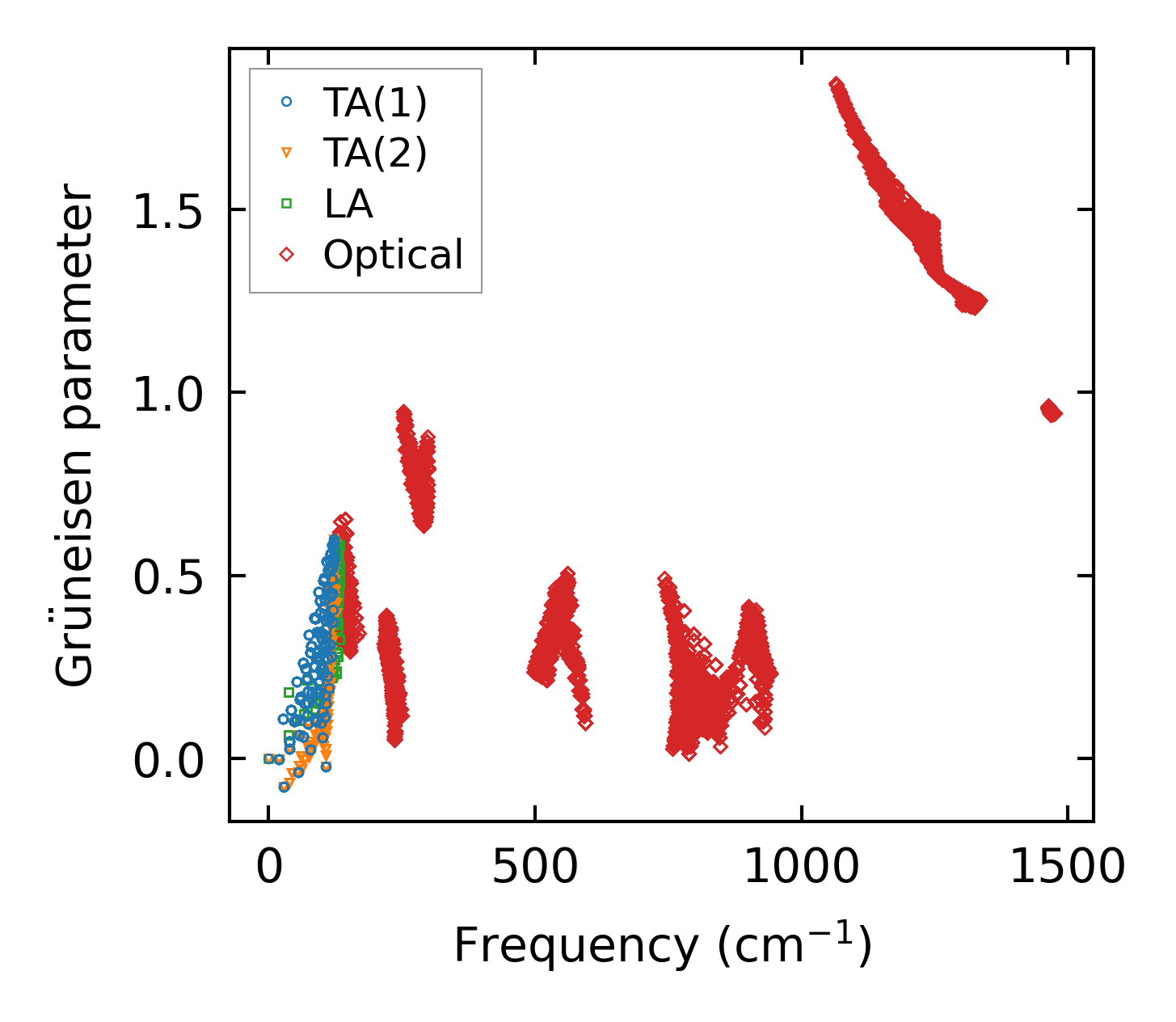

../../_images/fig_gru_all5157.png — (a) Grüneisen parameters

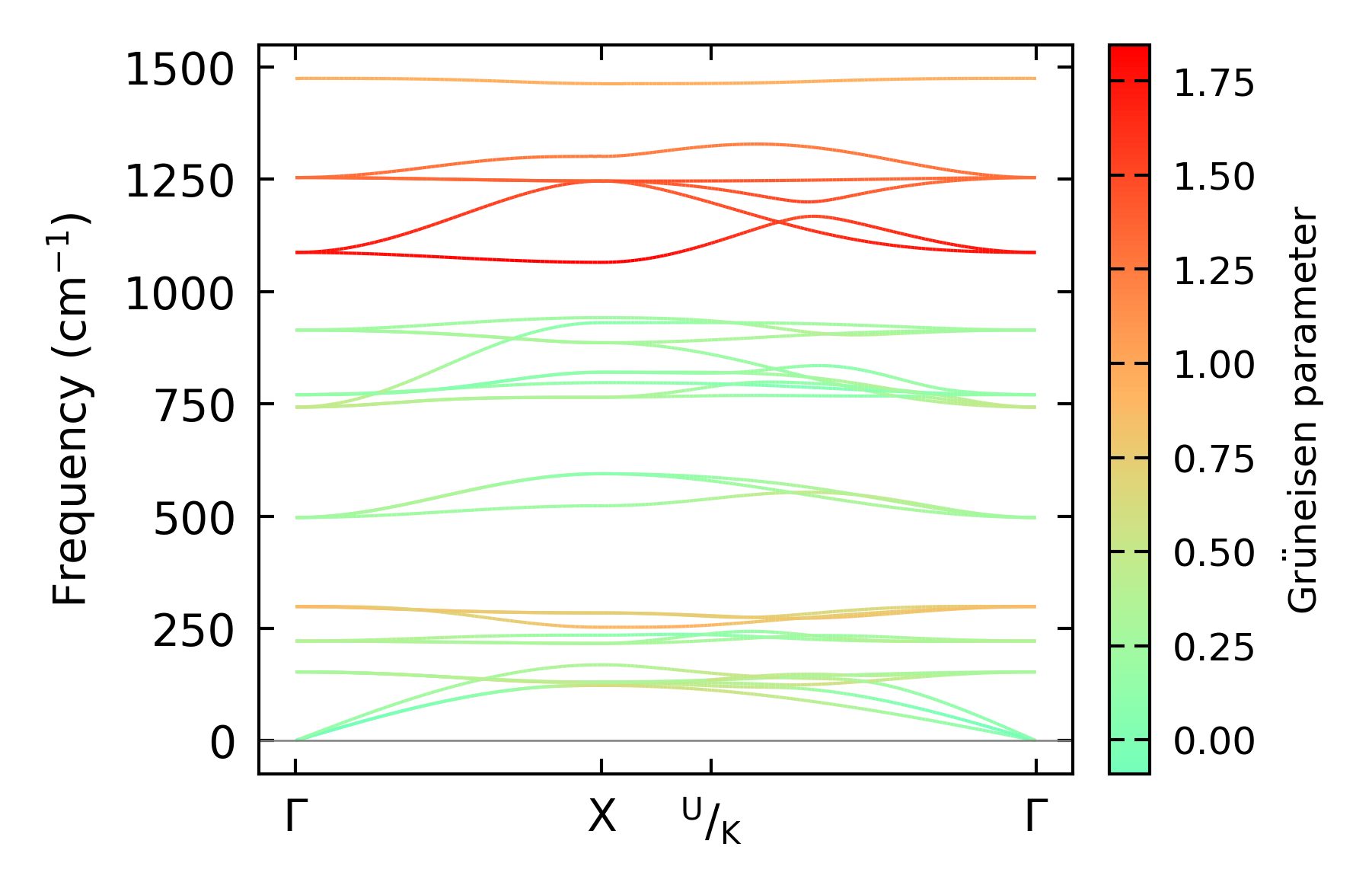

../../_images/fig_gruneisen5157.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

../../_images/fig_kappa9699.png — (a) Temperature-dependent lattice thermal conductivity

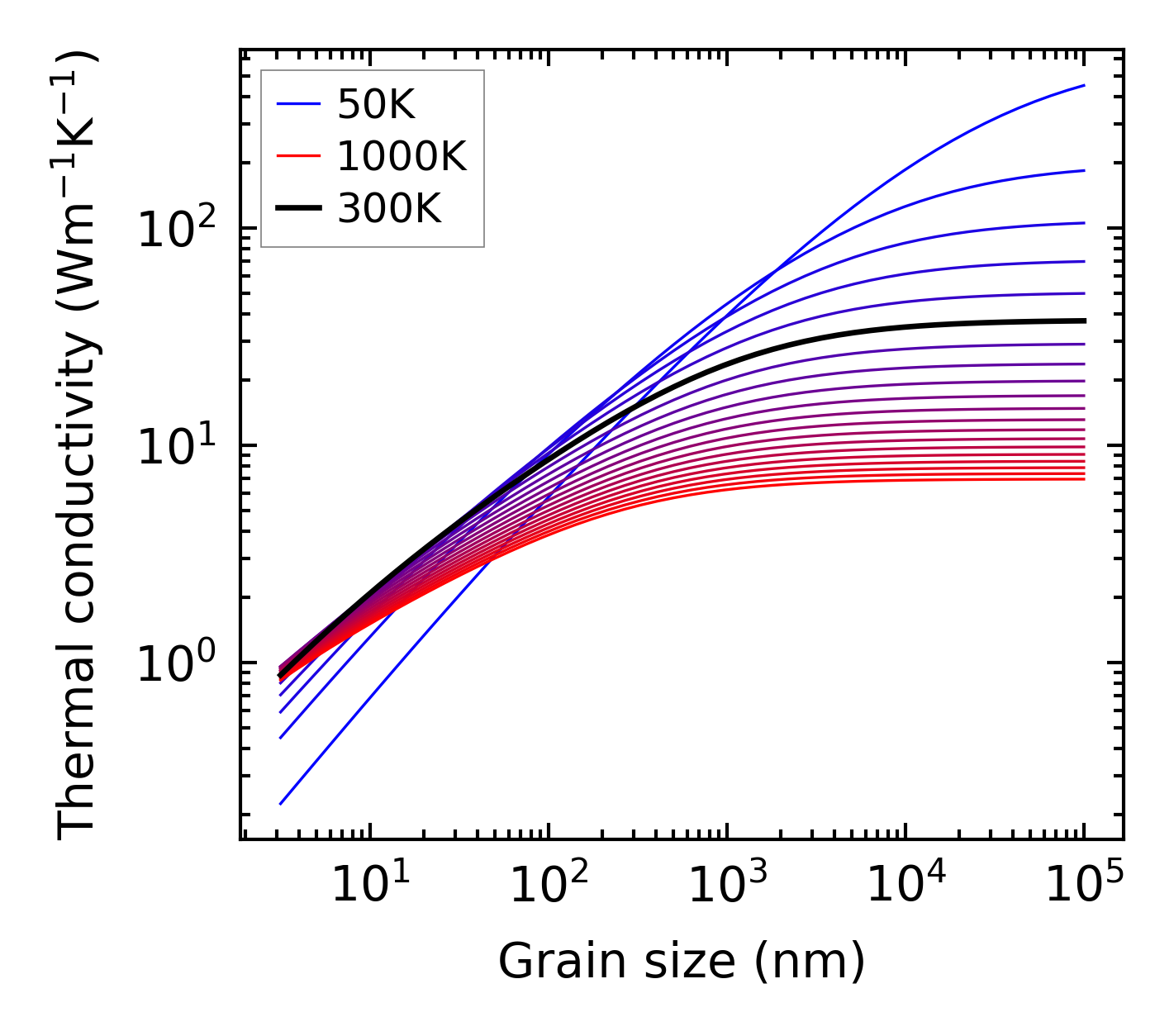

../../_images/fig_kappa_vs_grain_size5217.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5106.png — (a) Phonon lifetime due to phonon-phonon scattering

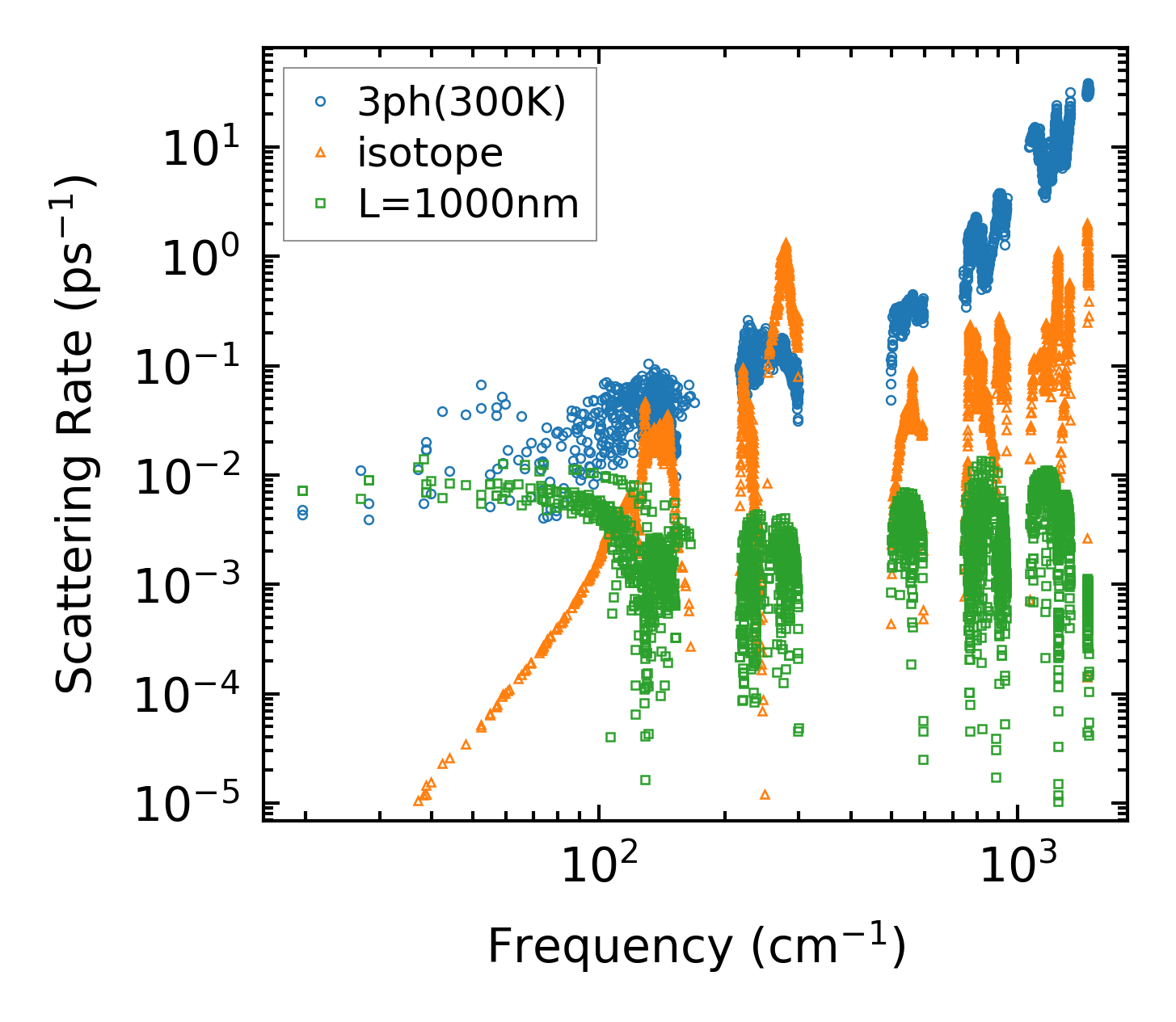

../../_images/fig_scat_rates5105.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

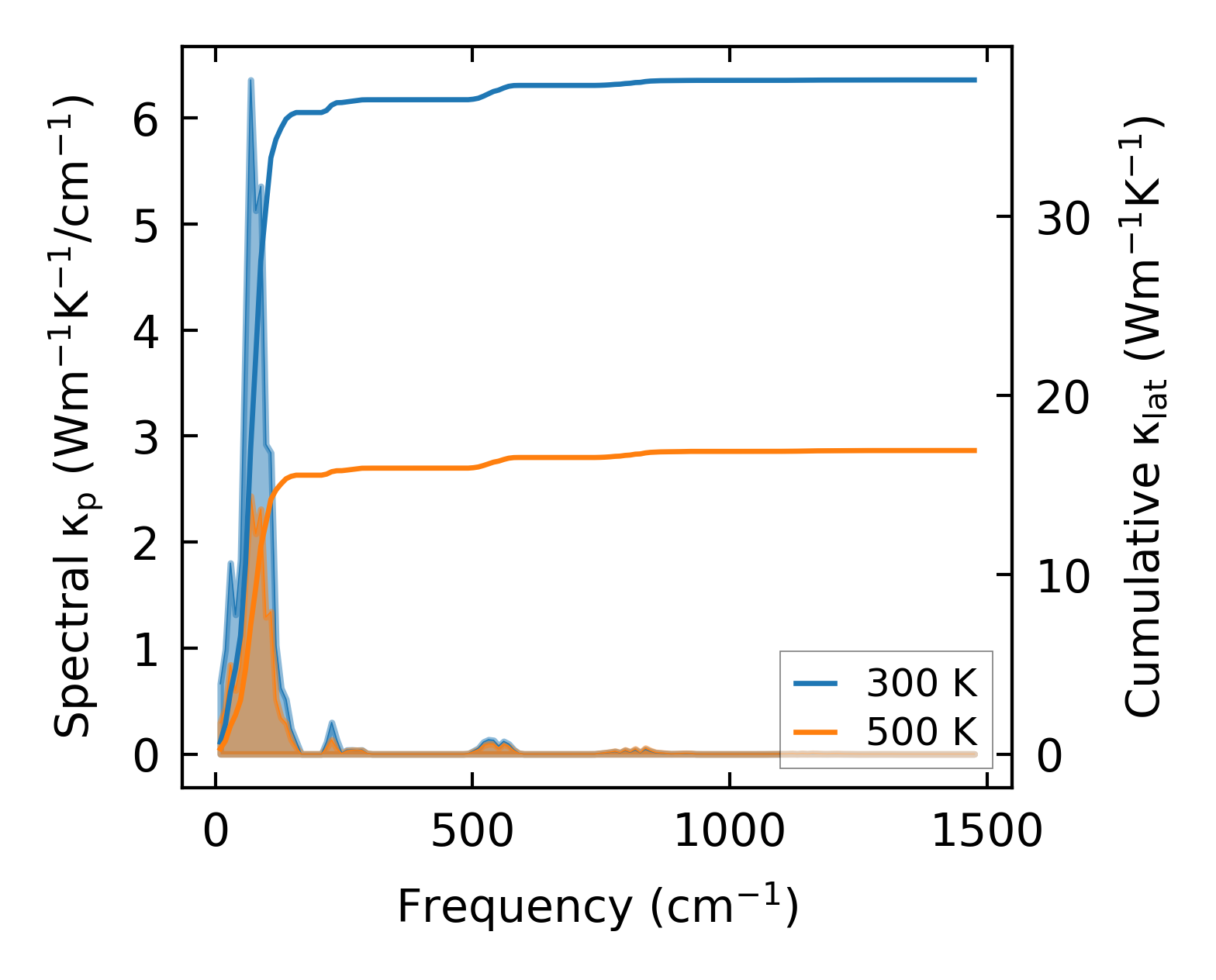

../../_images/fig_cumu_frequency5106.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

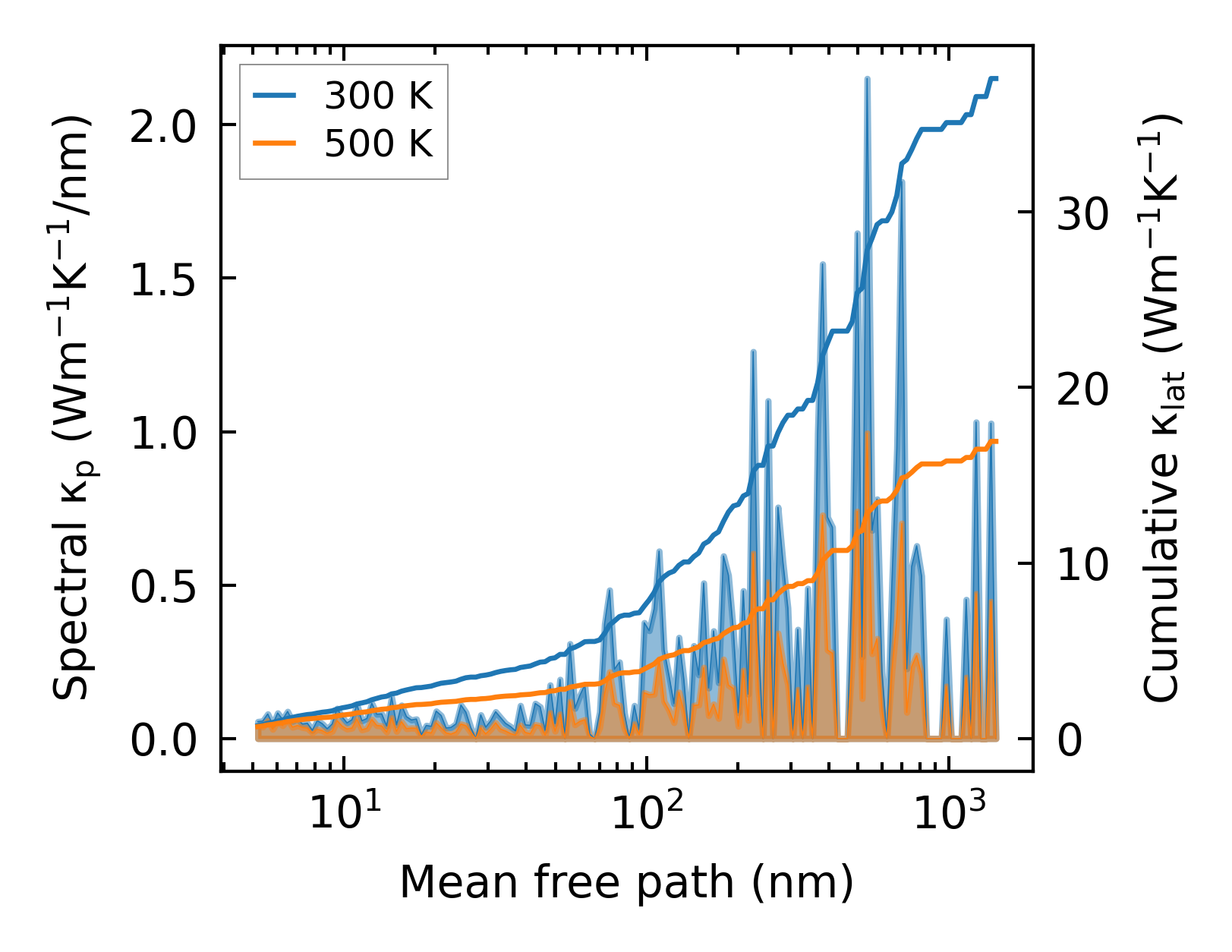

../../_images/fig_cumu_mfp5105.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212106.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9700.png — (a) Temperature-dependent lattice thermal conductivity

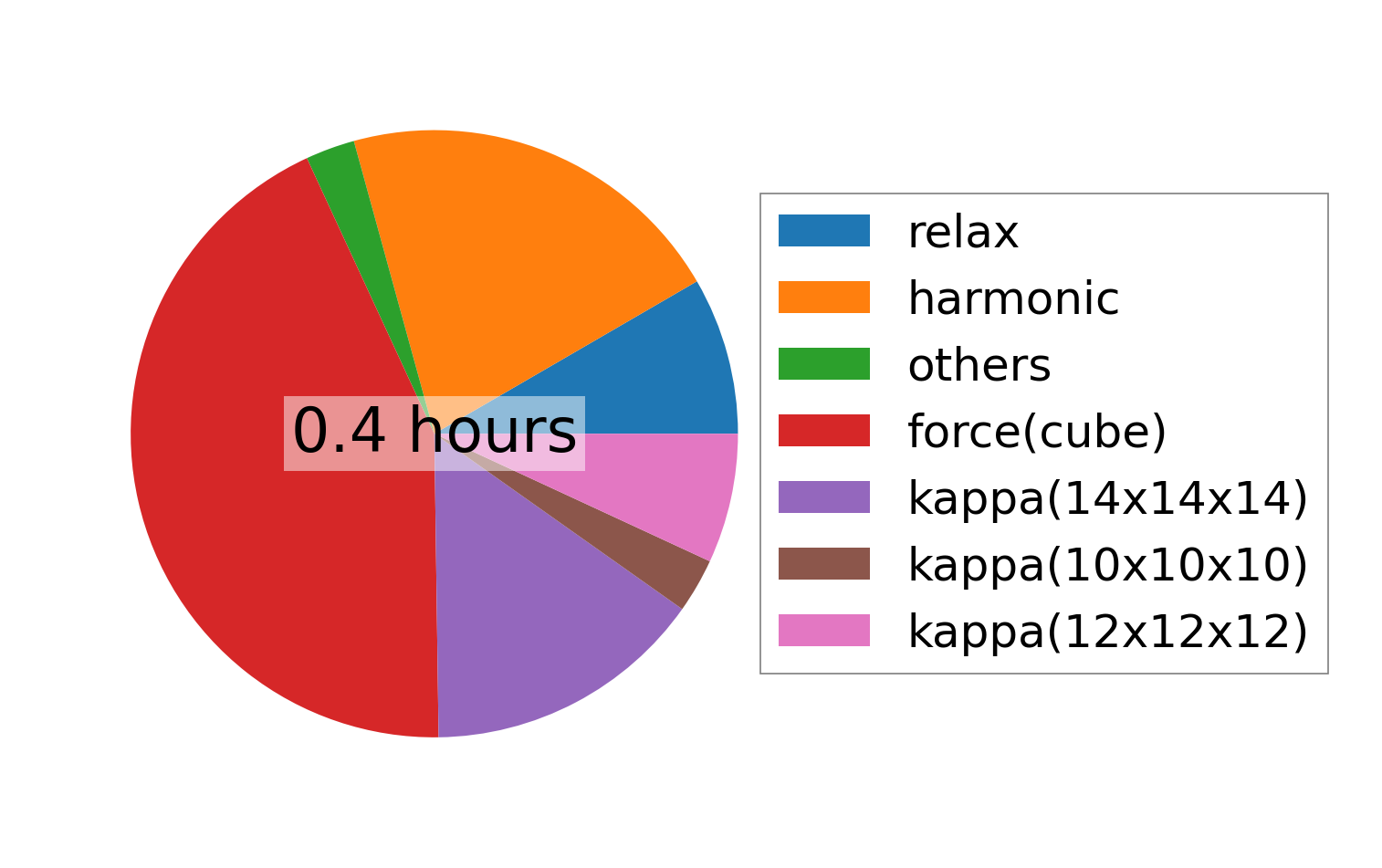

../../_images/fig_times21080.png — (b) Computation time
