mp-24205/SrHI/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-24205.tar.gz

Harmonic properties

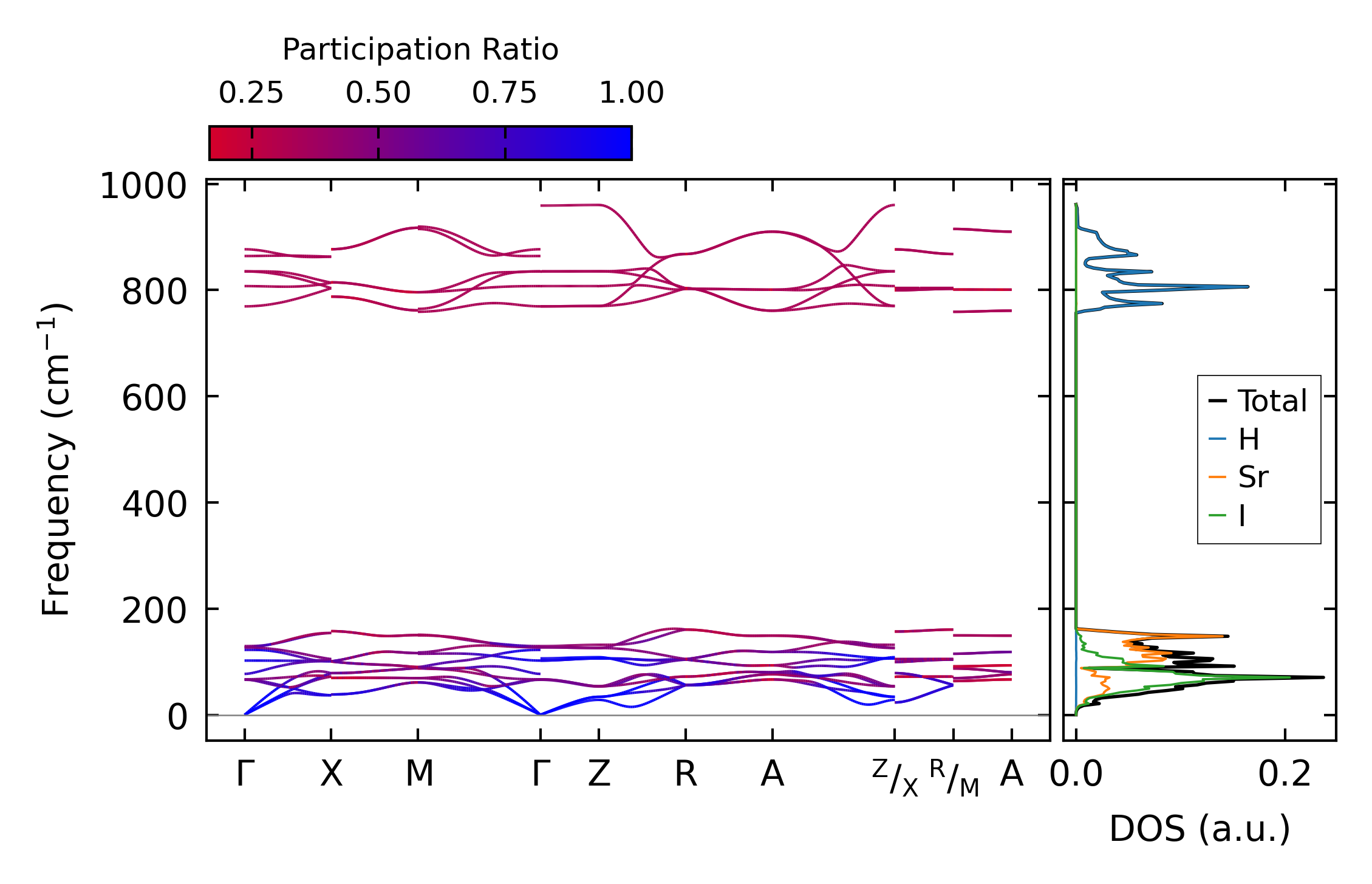

../../_images/fig_bandos_pr12365.png — (a) Phonon dispersion with participation ratio and DOS

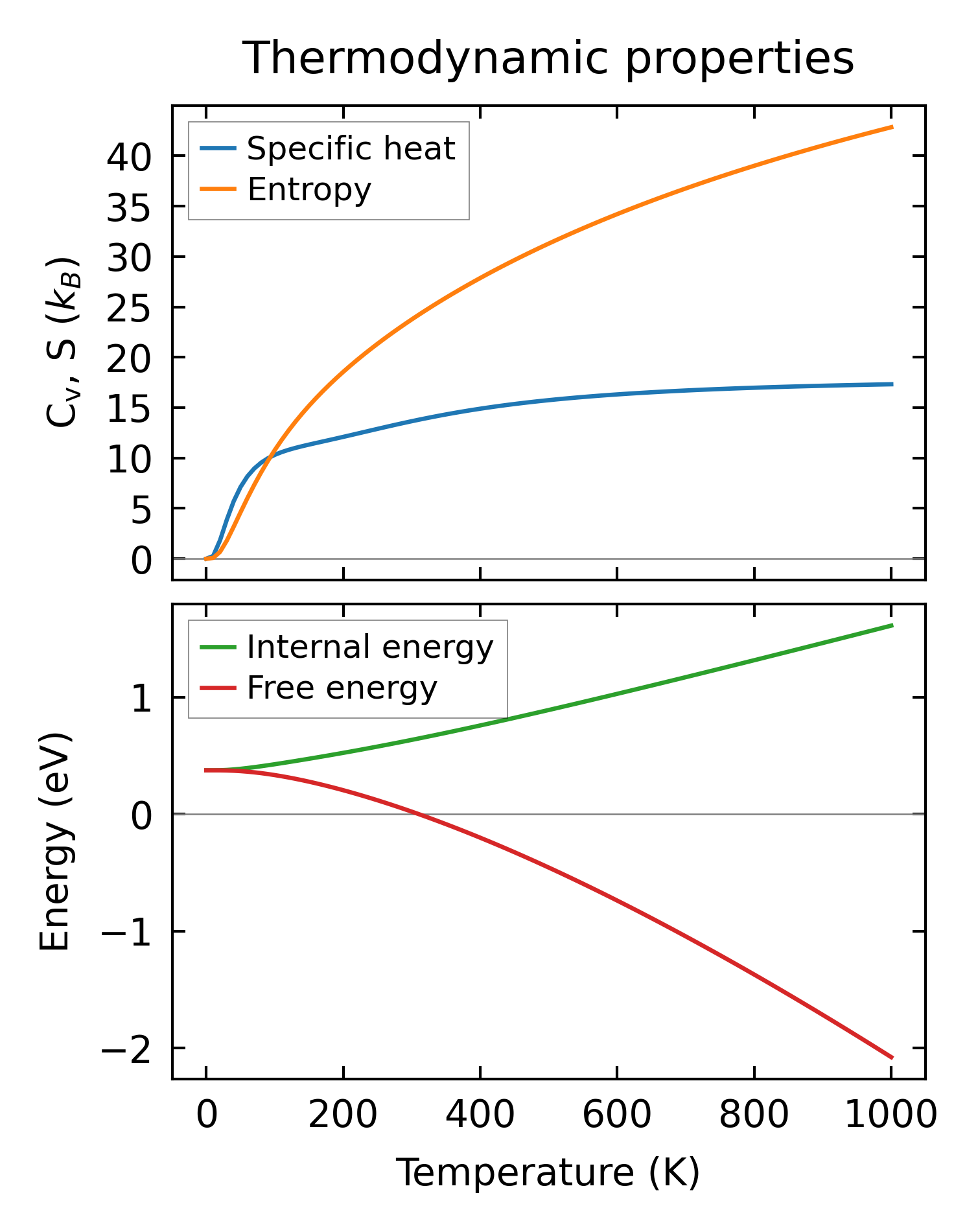

../../_images/fig_thermo12365.png — (b) Thermodynamic properties

Grüneisen parameters

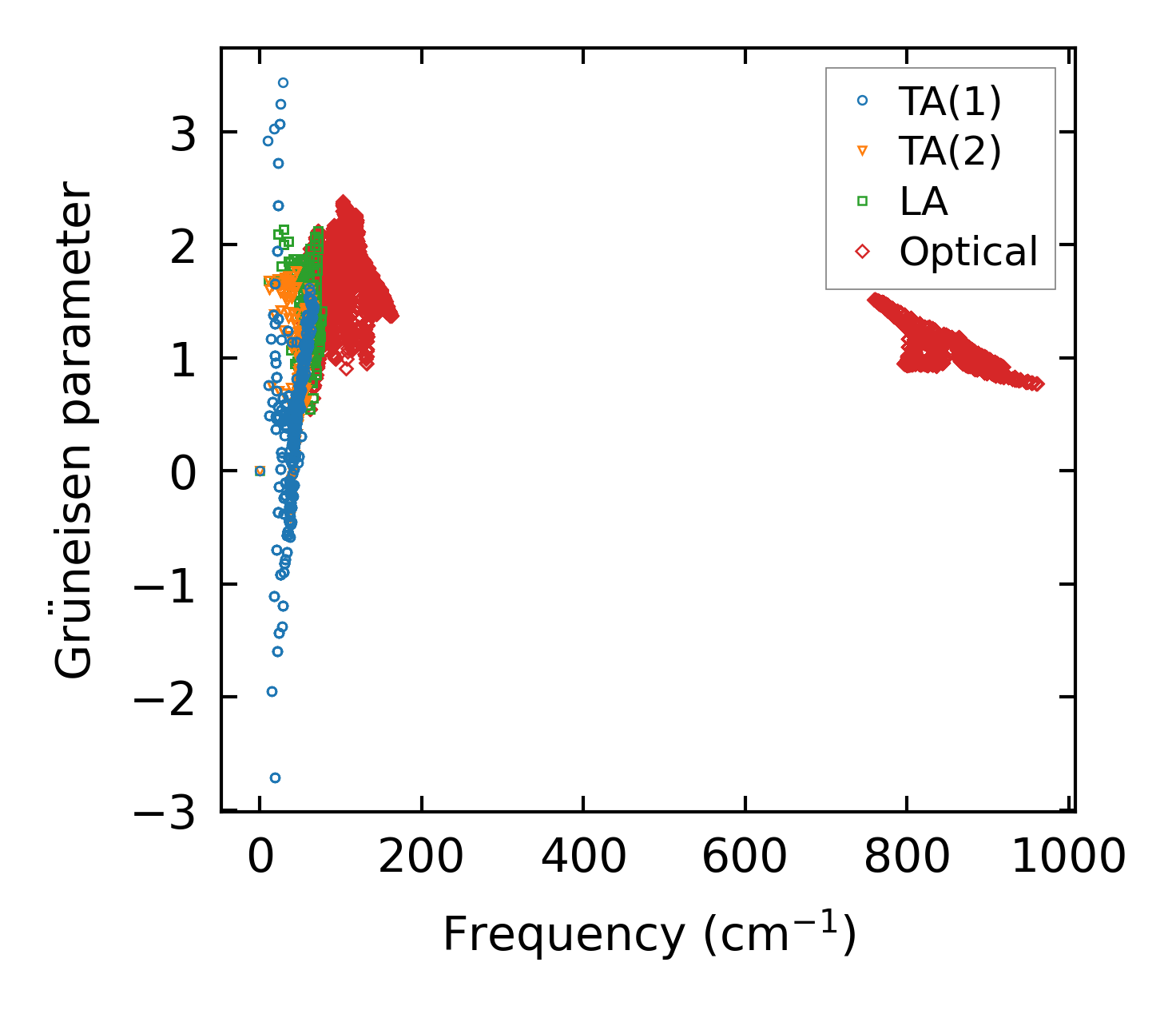

../../_images/fig_gru_all5144.png — (a) Grüneisen parameters

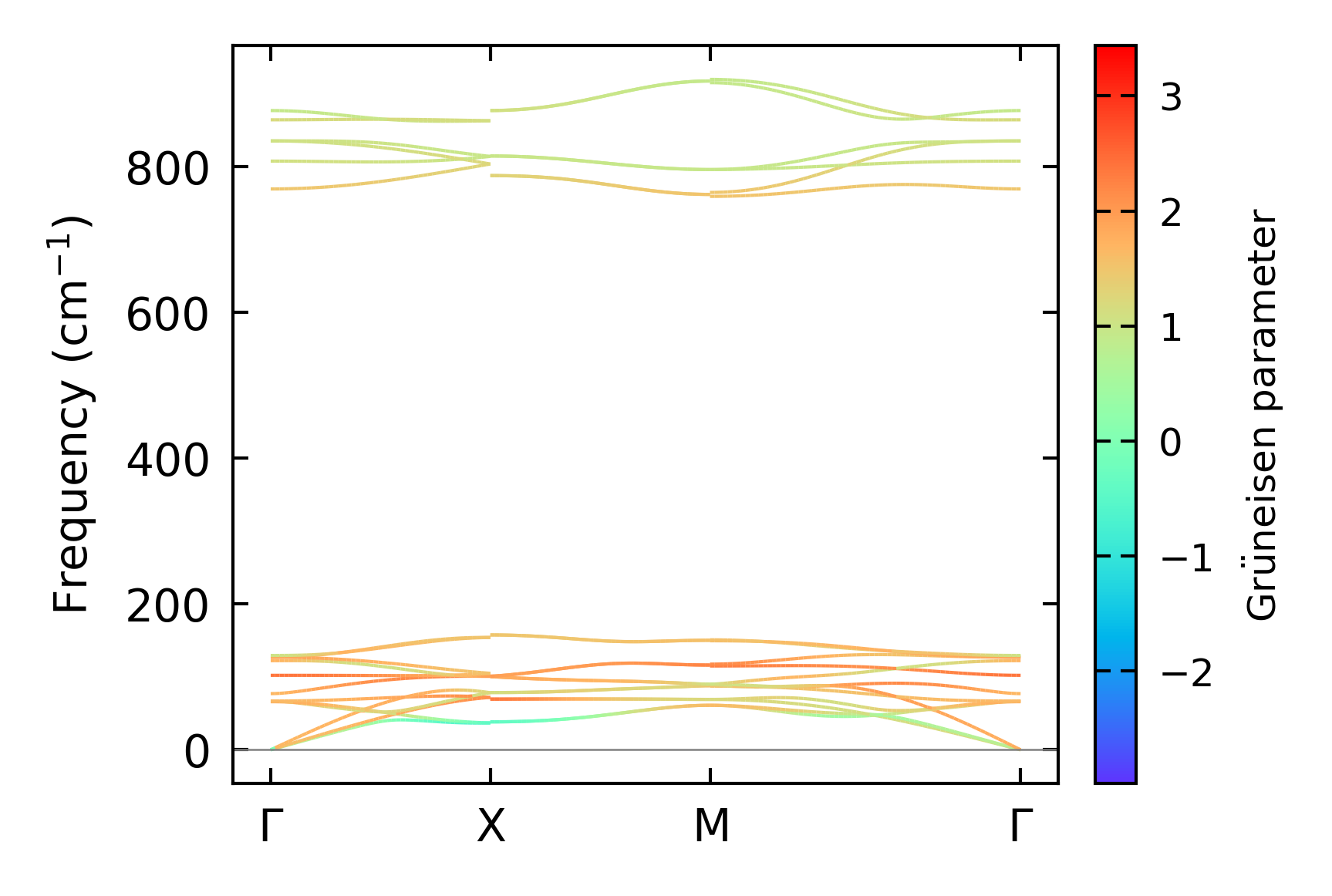

../../_images/fig_gruneisen5144.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x8, supercell: 3x3x2

../../_images/fig_kappa9676.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5204.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

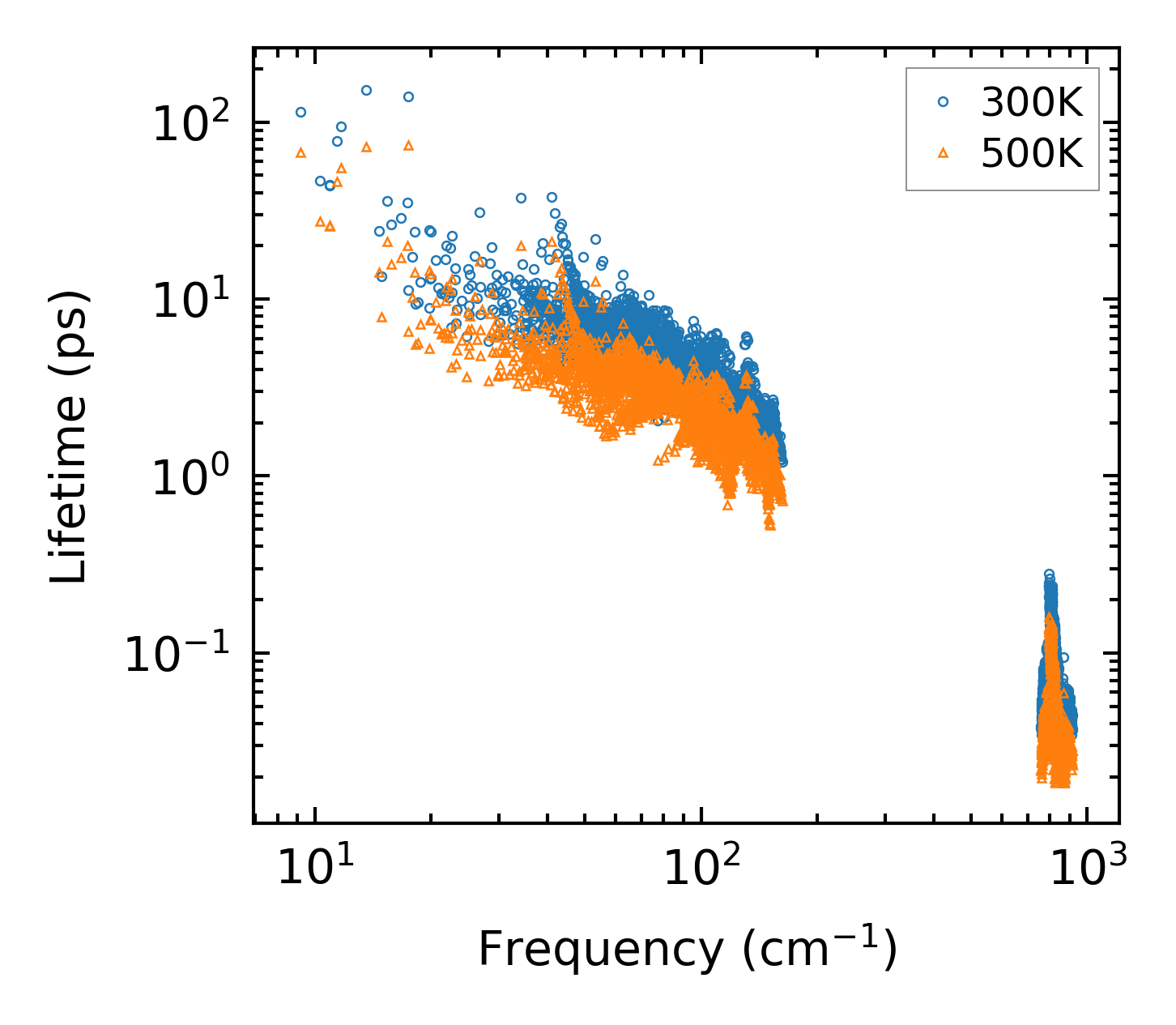

../../_images/fig_lifetime5093.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5092.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5093.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5092.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

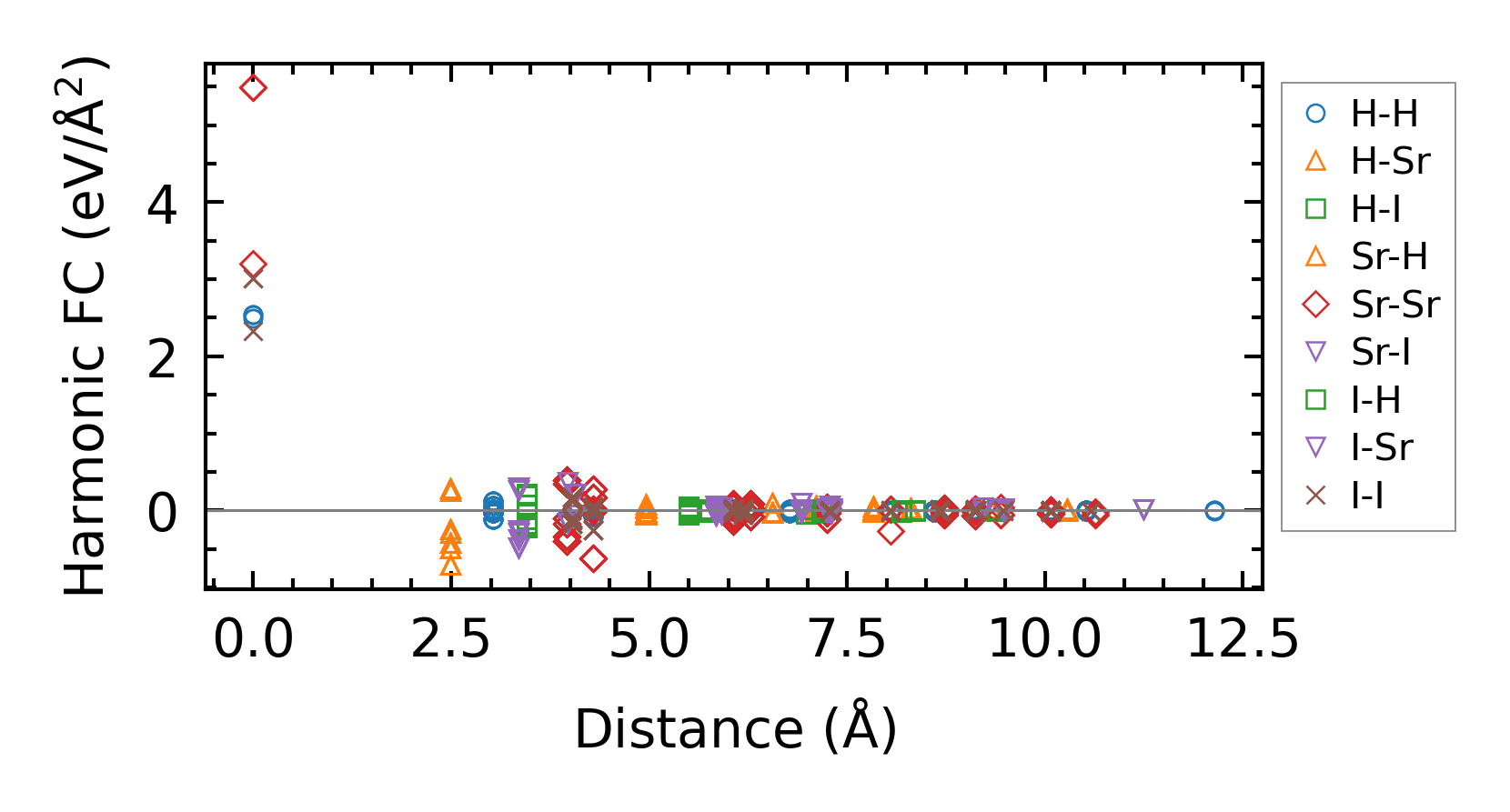

../../_images/fig_fc212064.png — (a) Force constants w.r.t atomic distance

Summary

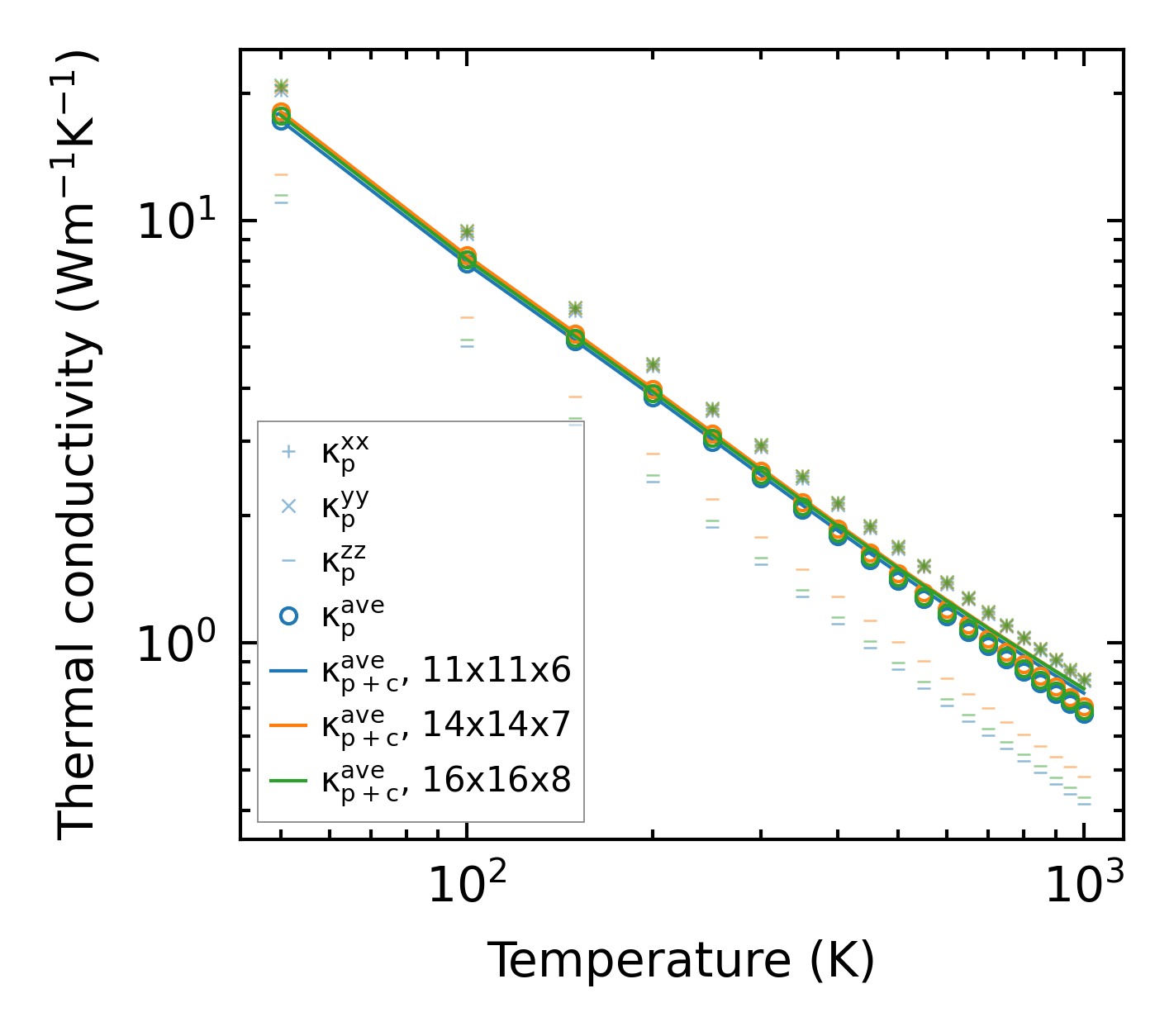

../../_images/fig_kappa9677.png — (a) Temperature-dependent lattice thermal conductivity

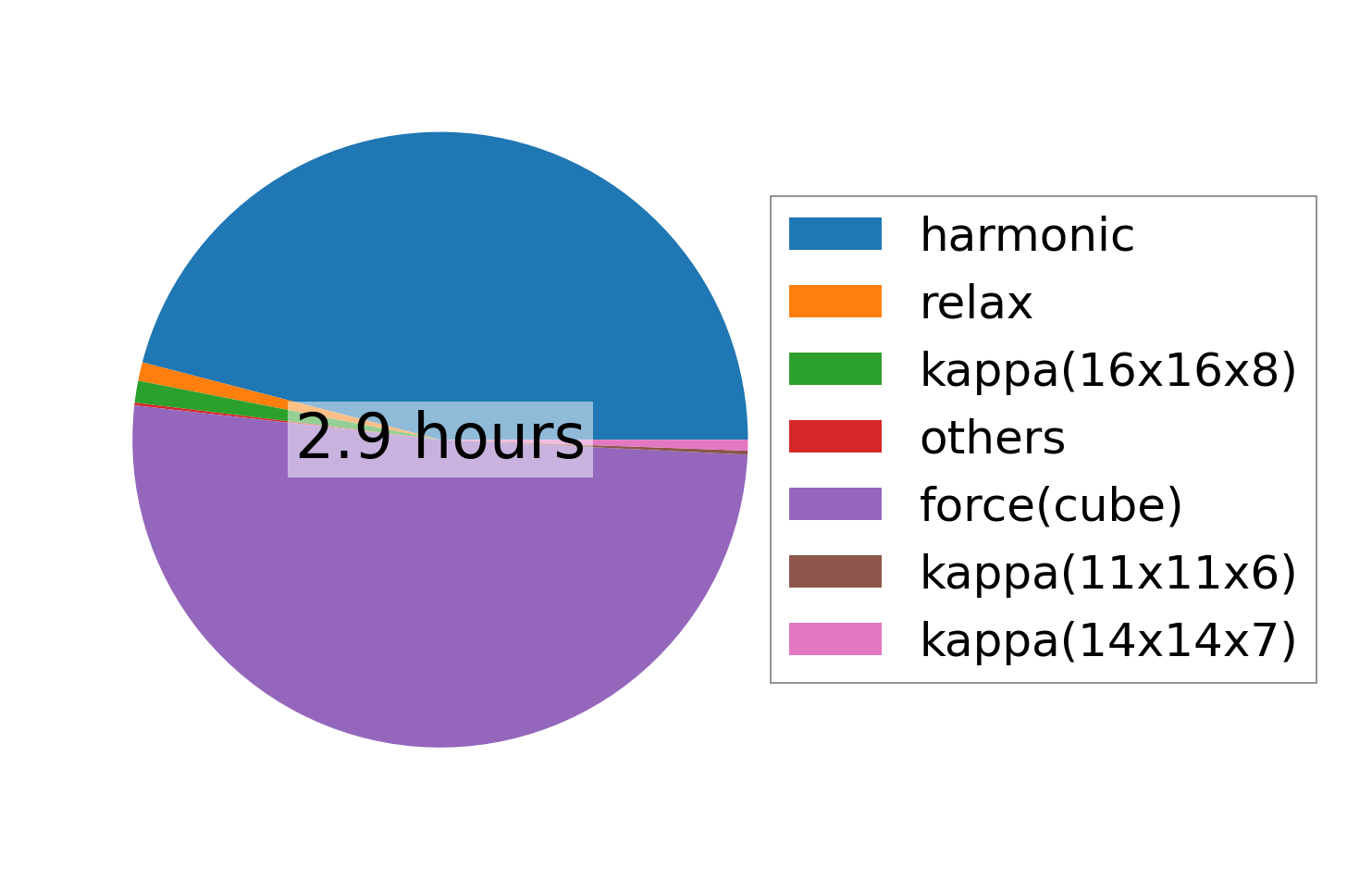

../../_images/fig_times20983.png — (b) Computation time
