mp-24084/KH/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-24084.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12625.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12625.png — (b) Thermodynamic properties

Grüneisen parameters

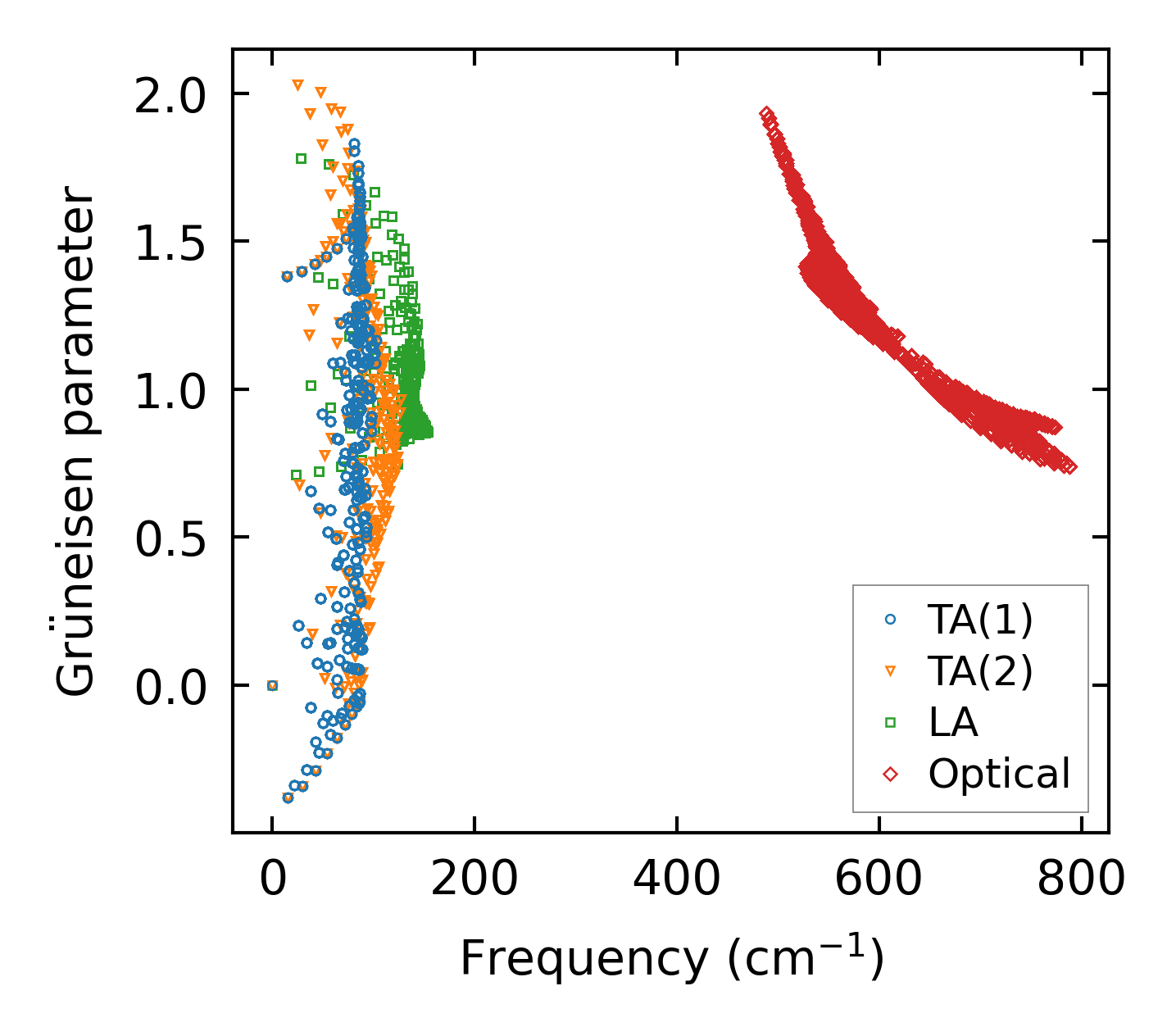

../../_images/fig_gru_all5228.png — (a) Grüneisen parameters

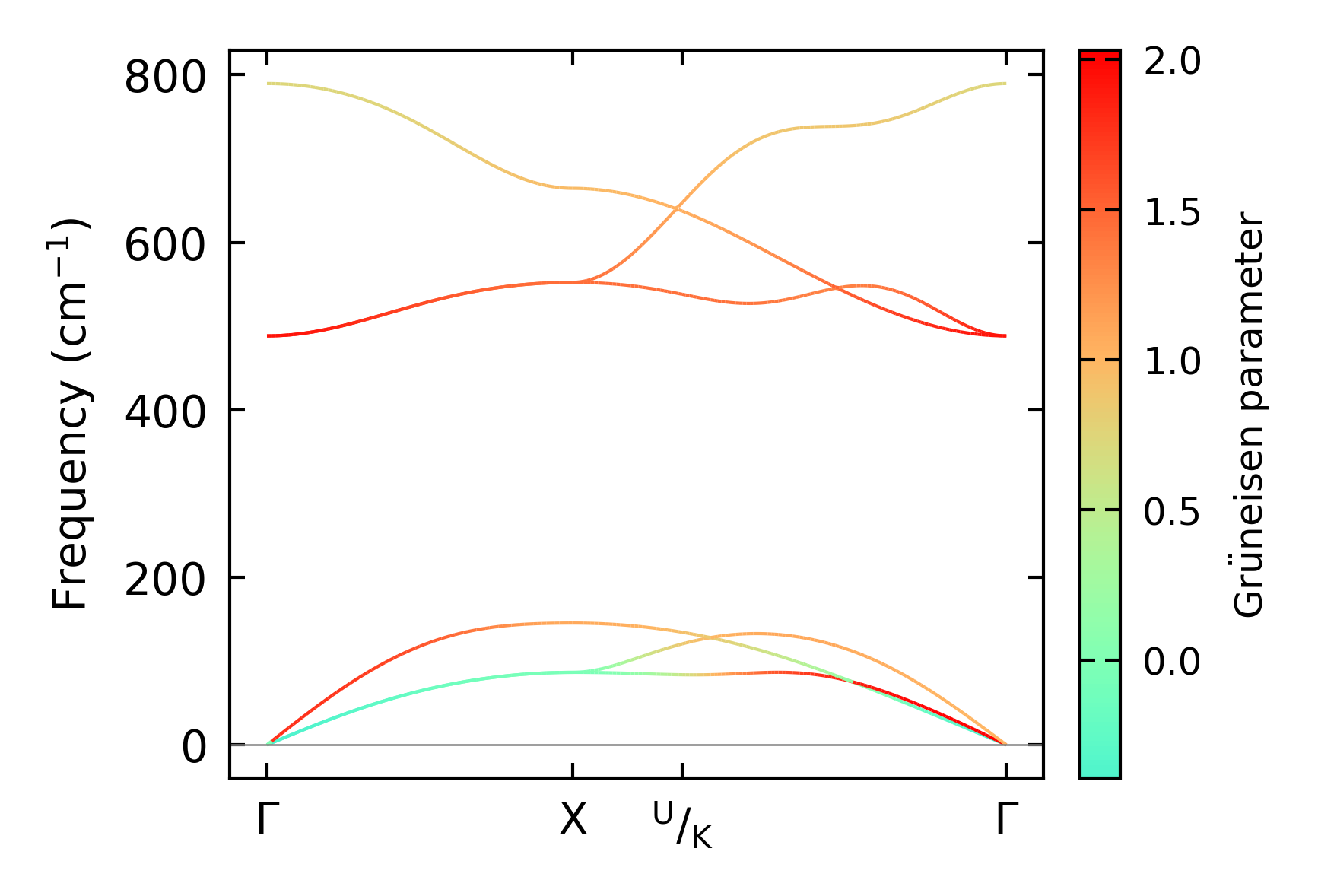

../../_images/fig_gruneisen5228.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 20x20x20, supercell: 2x2x2

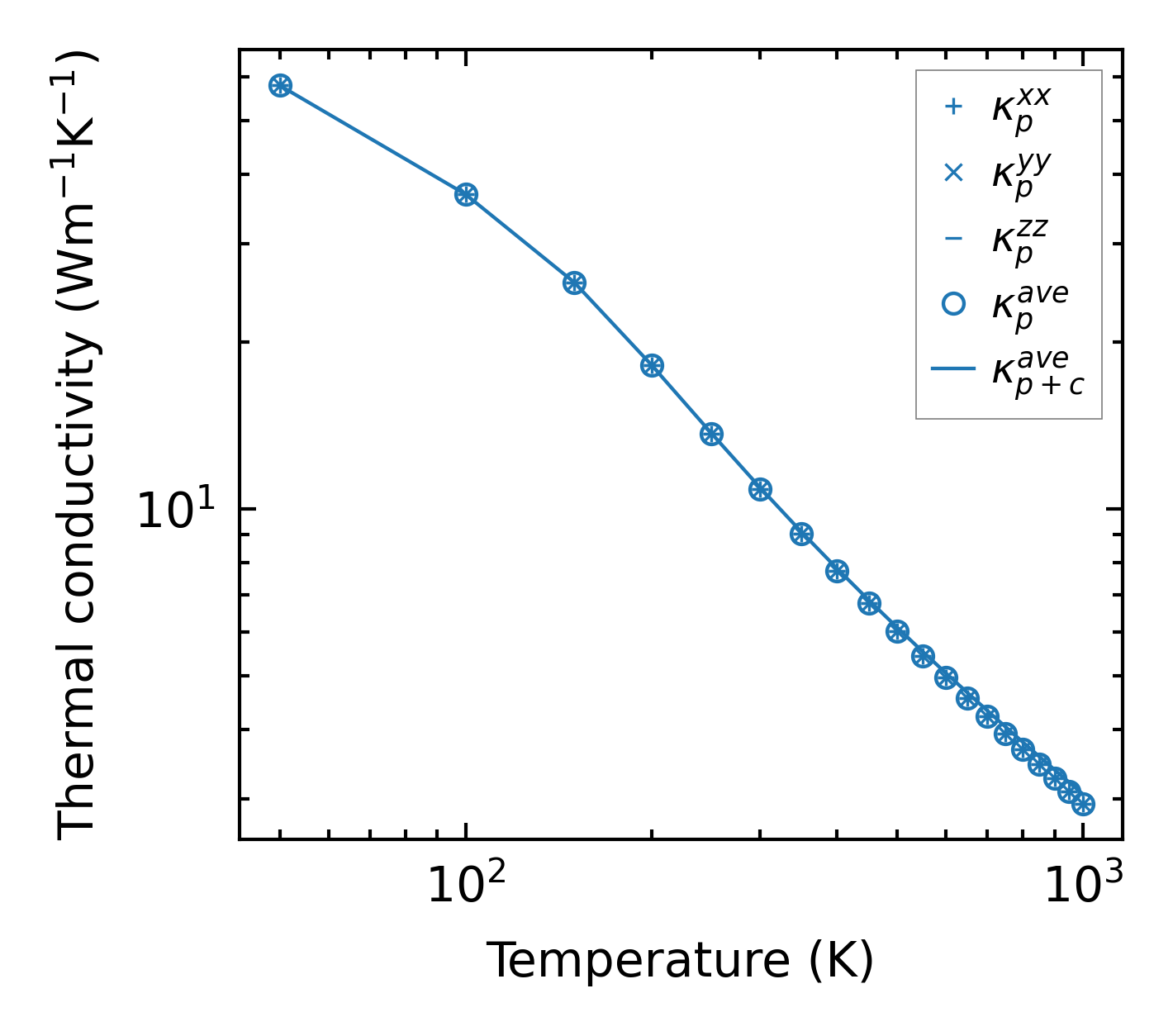

../../_images/fig_kappa9828.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5290.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

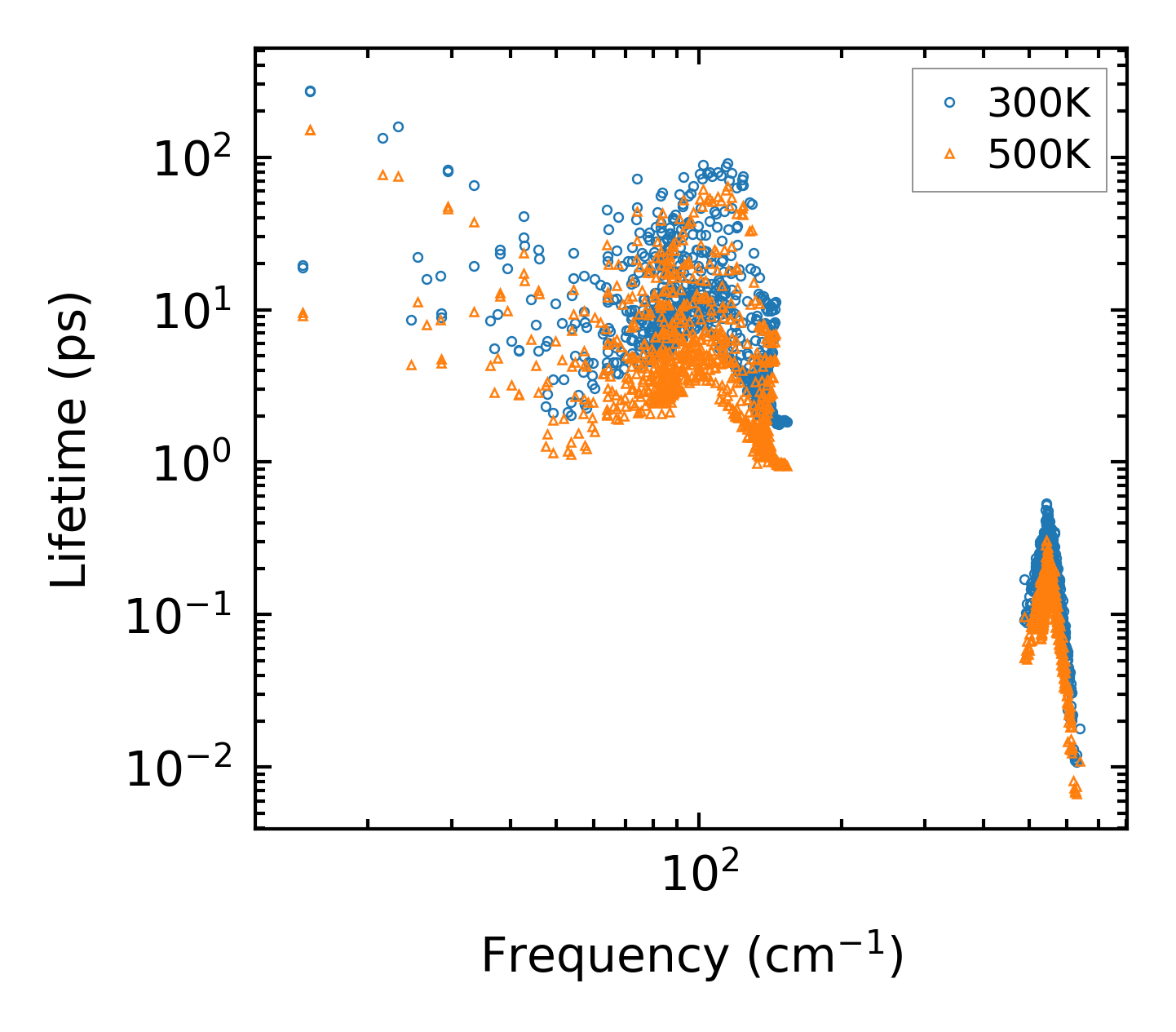

../../_images/fig_lifetime5177.png — (a) Phonon lifetime due to phonon-phonon scattering

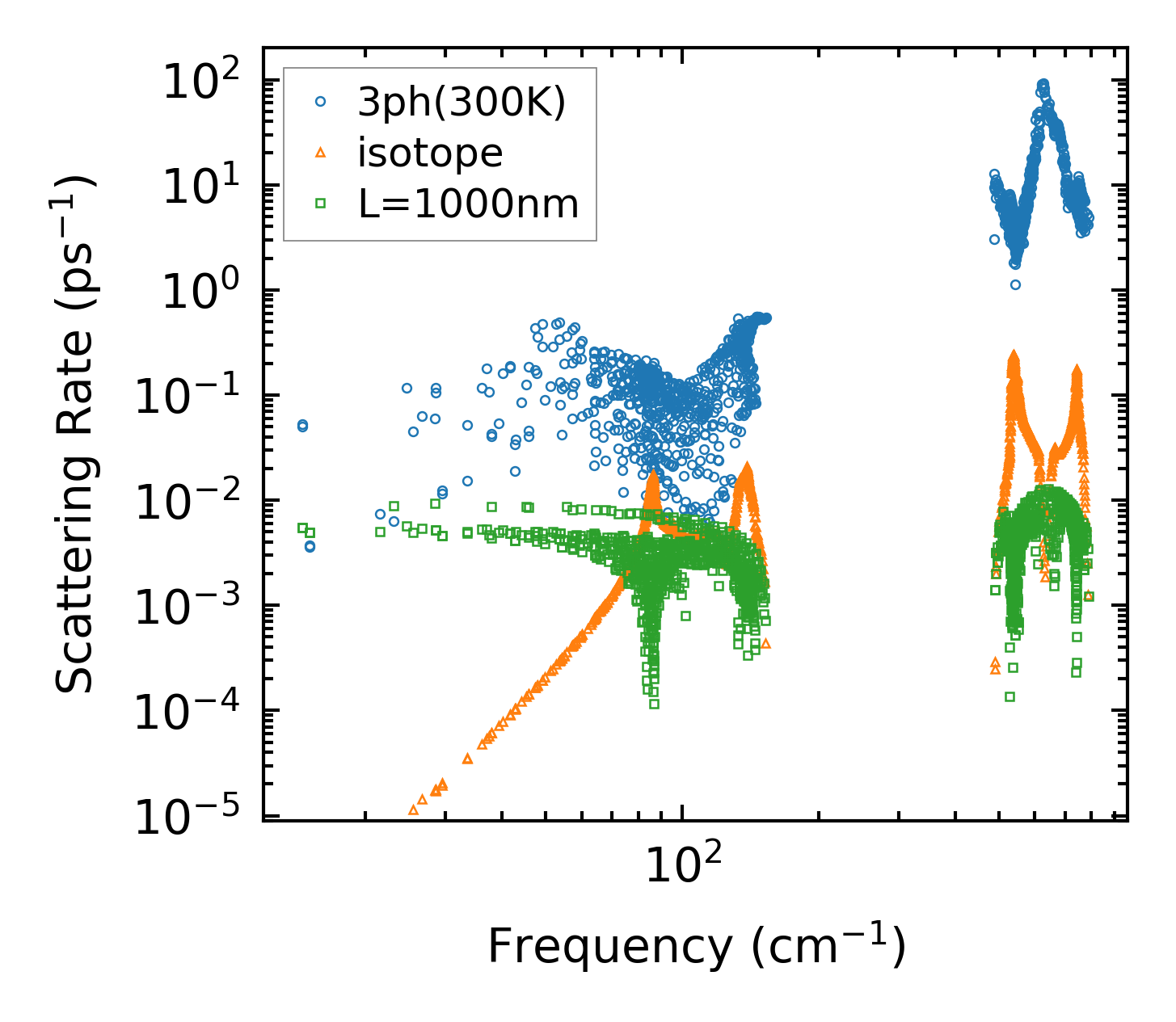

../../_images/fig_scat_rates5176.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5177.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5176.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3303.png — (a) Force constants w.r.t atomic distance

Summary

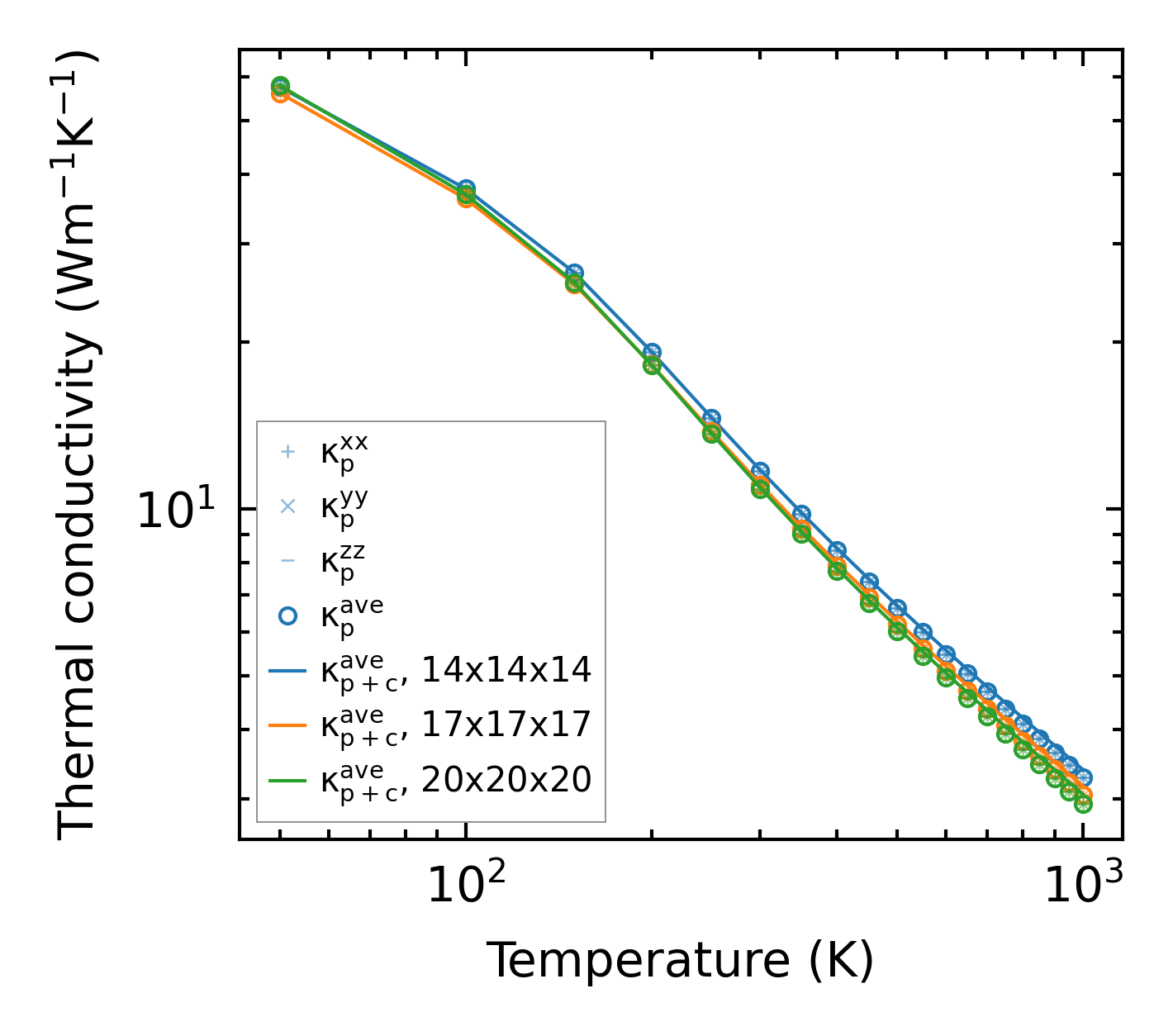

../../_images/fig_kappa9829.png — (a) Temperature-dependent lattice thermal conductivity

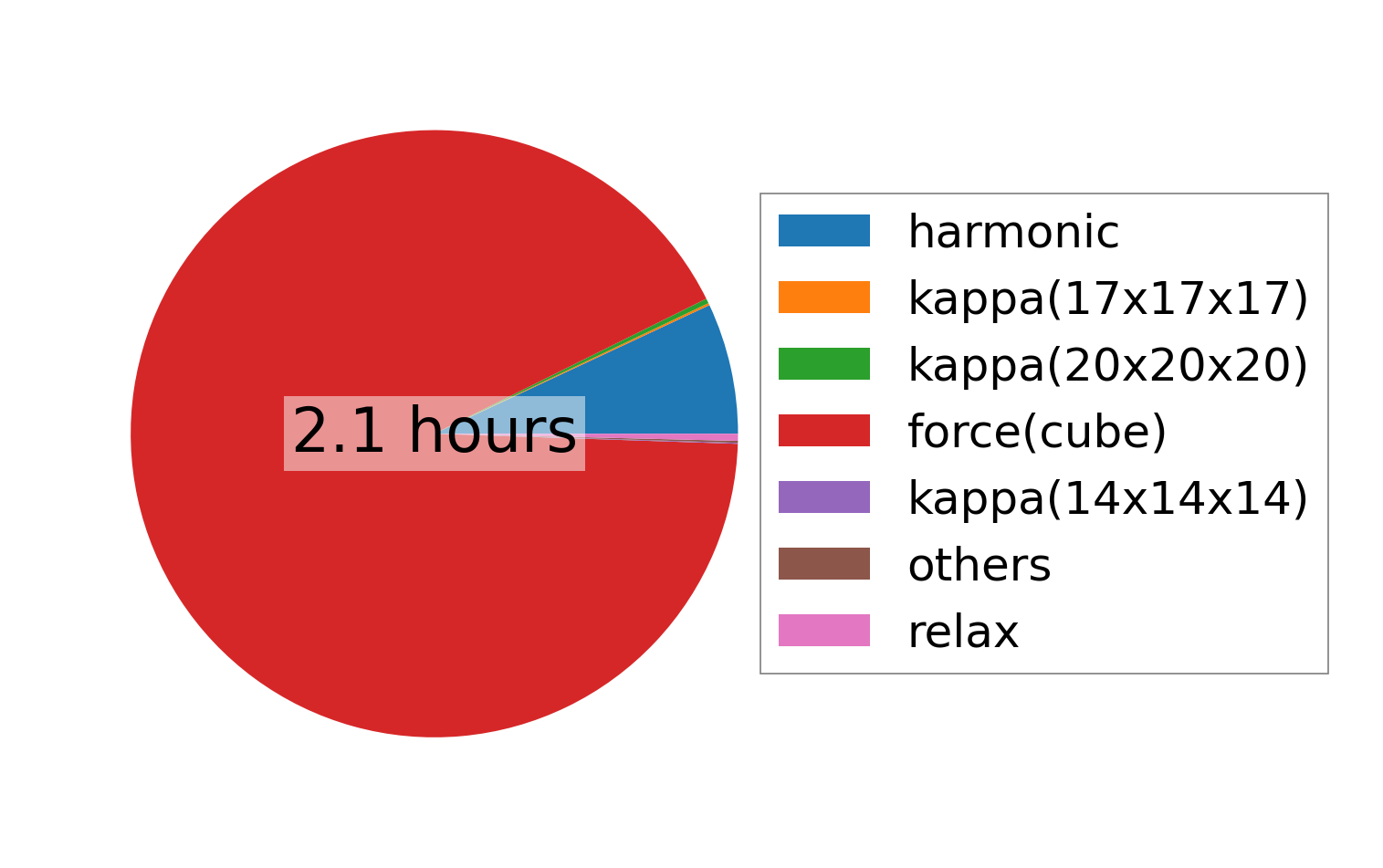

../../_images/fig_times21453.png — (b) Computation time
