mp-24563/Ga2P3H3O9/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-24563.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12440.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12440.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5167.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5167.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x10, supercell: 1x1x2

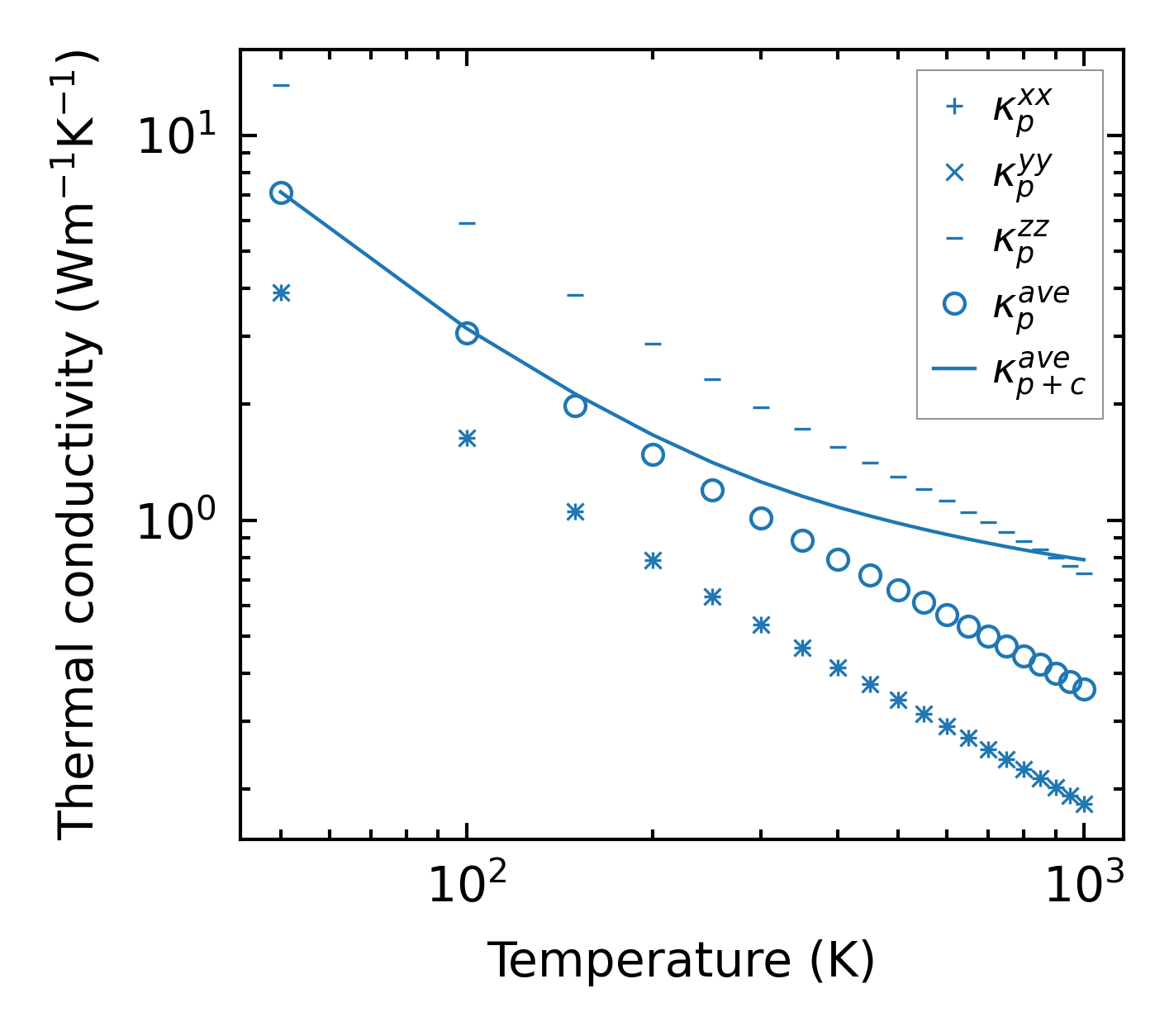

../../_images/fig_kappa9718.png — (a) Temperature-dependent lattice thermal conductivity

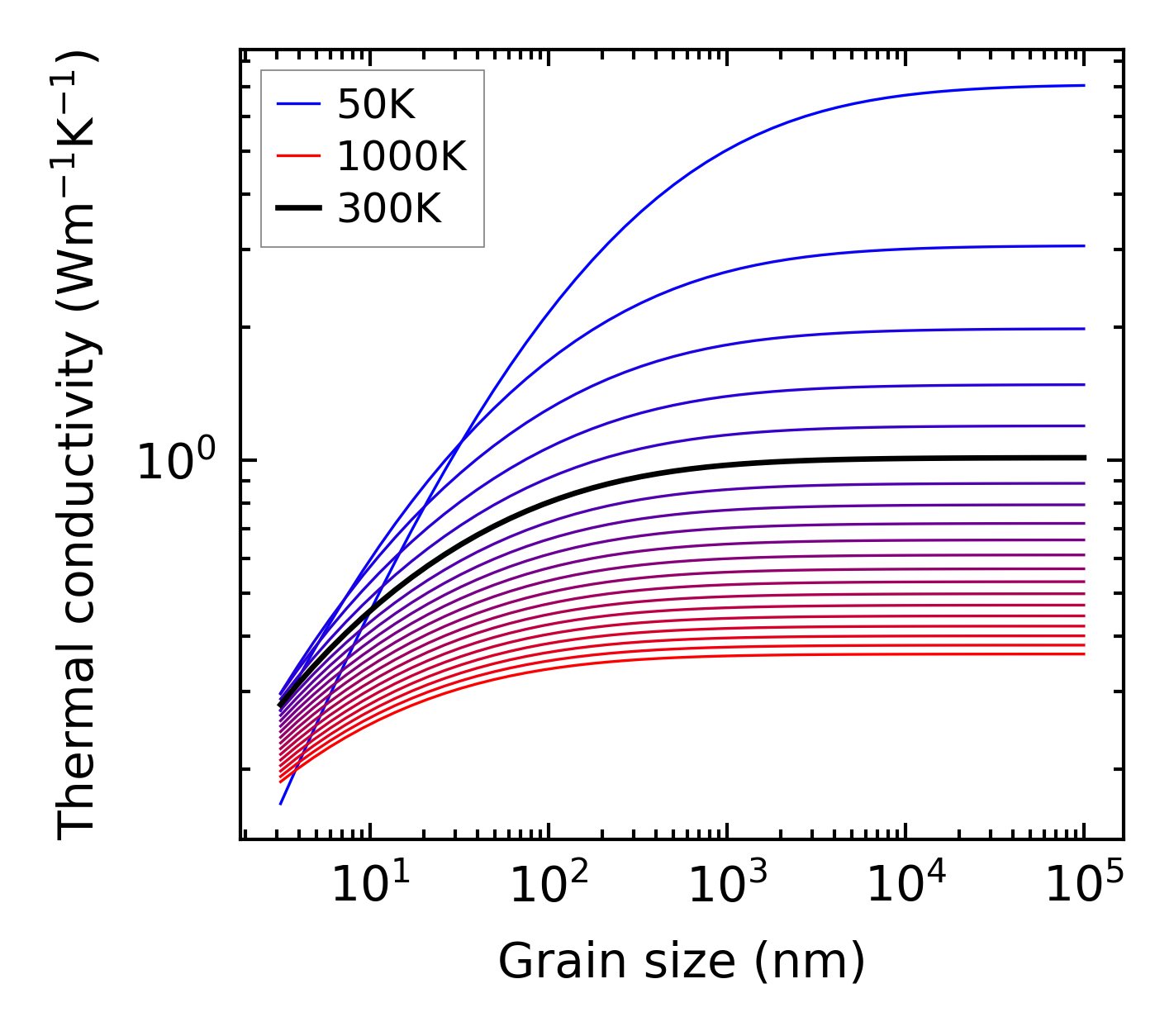

../../_images/fig_kappa_vs_grain_size5227.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

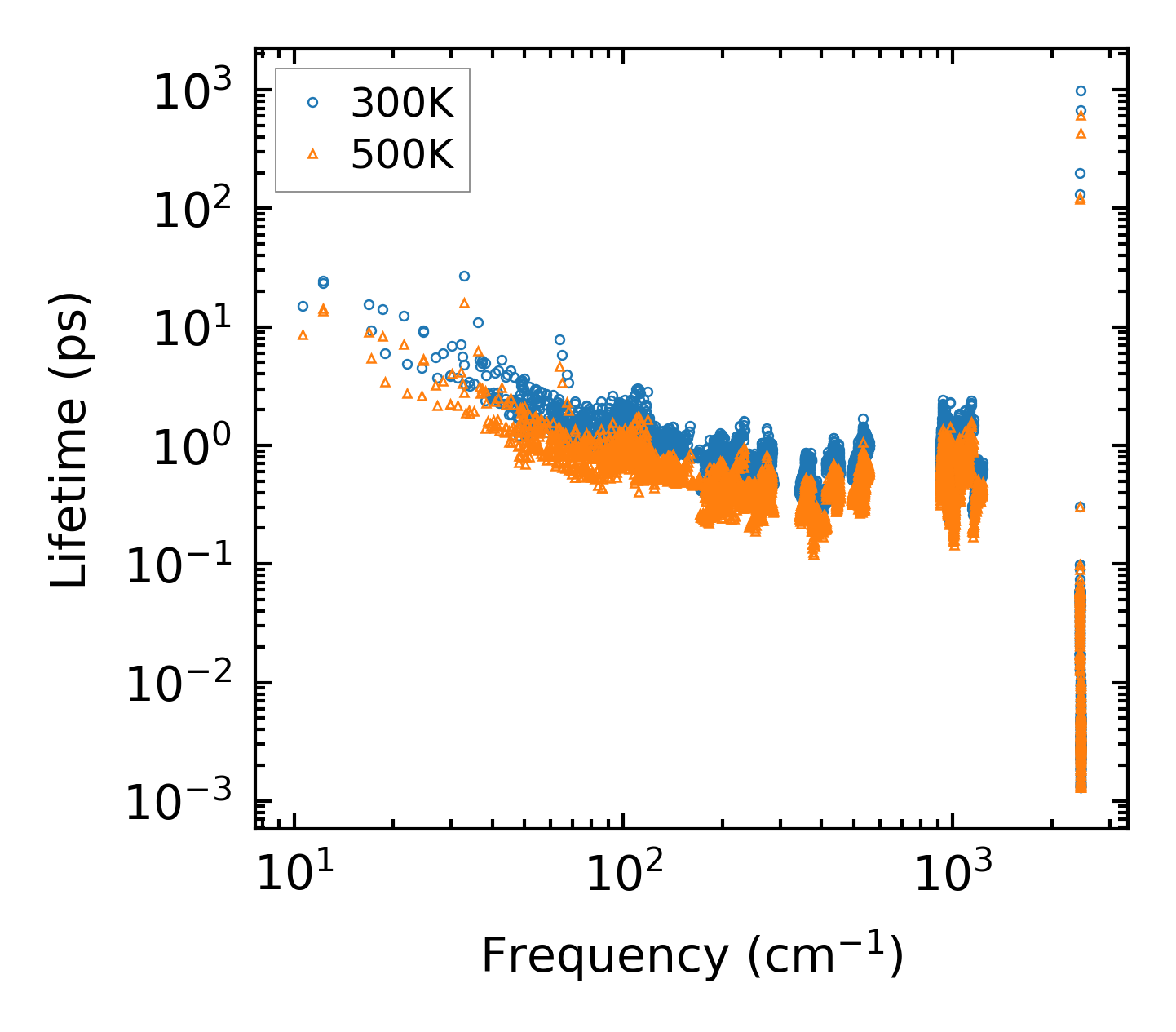

../../_images/fig_lifetime5116.png — (a) Phonon lifetime due to phonon-phonon scattering

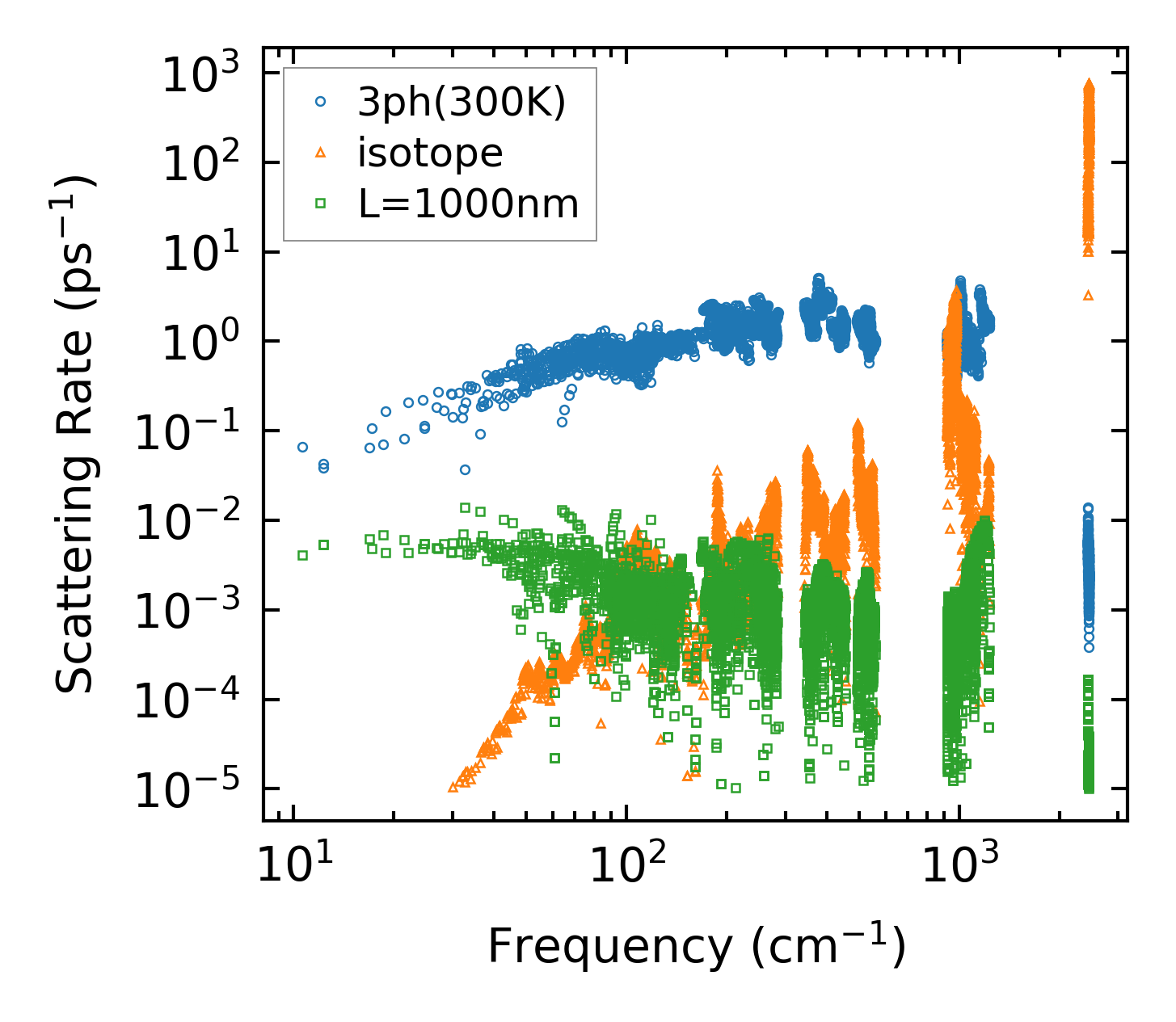

../../_images/fig_scat_rates5115.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5116.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

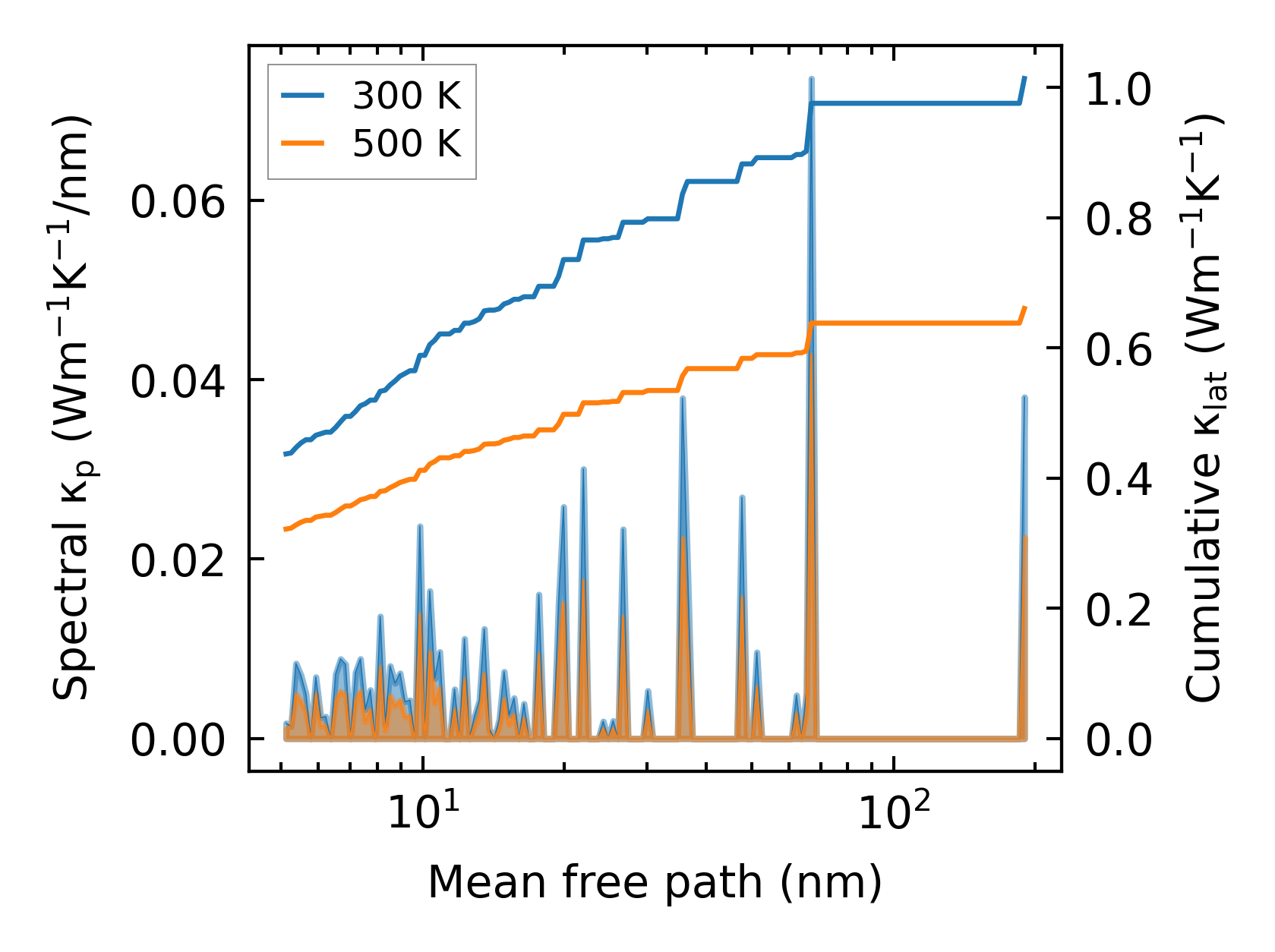

../../_images/fig_cumu_mfp5115.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

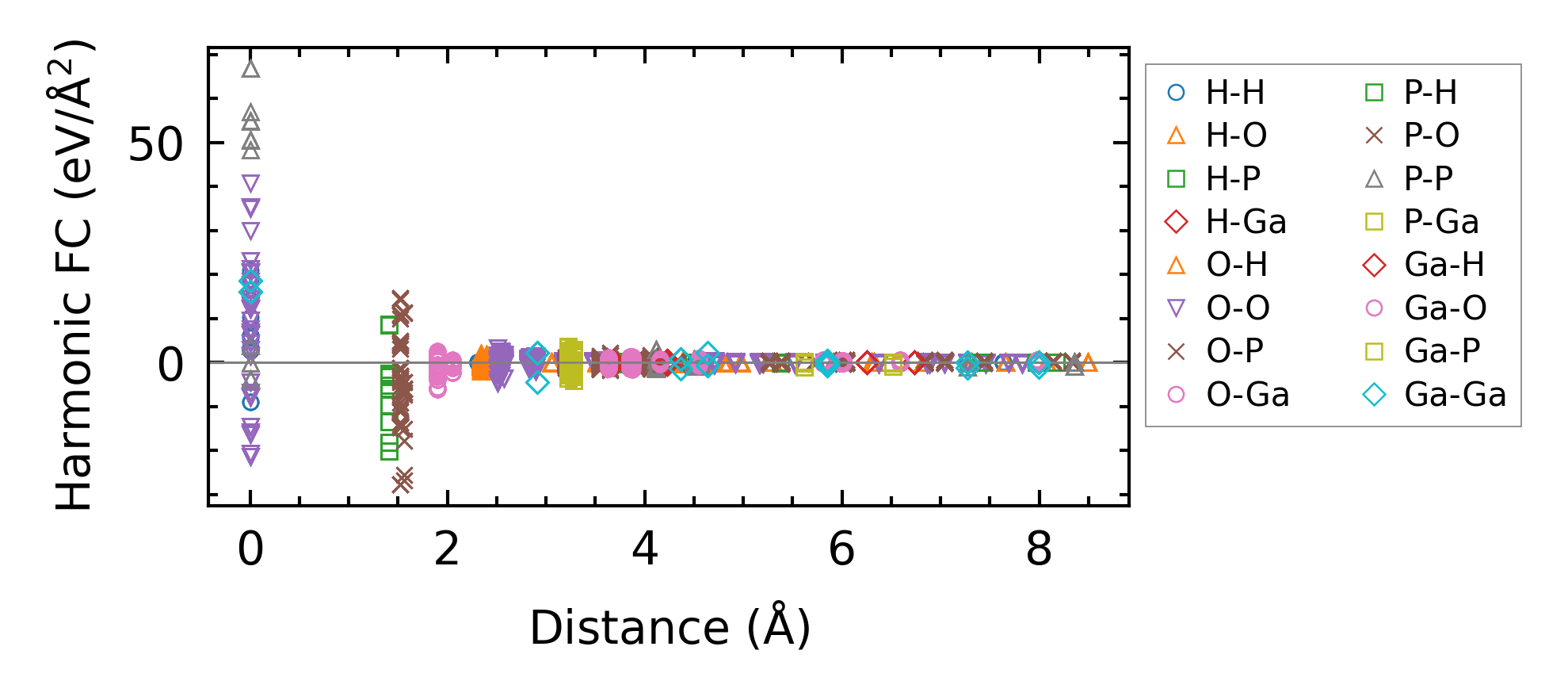

../../_images/fig_fc212139.png — (a) Force constants w.r.t atomic distance

Summary

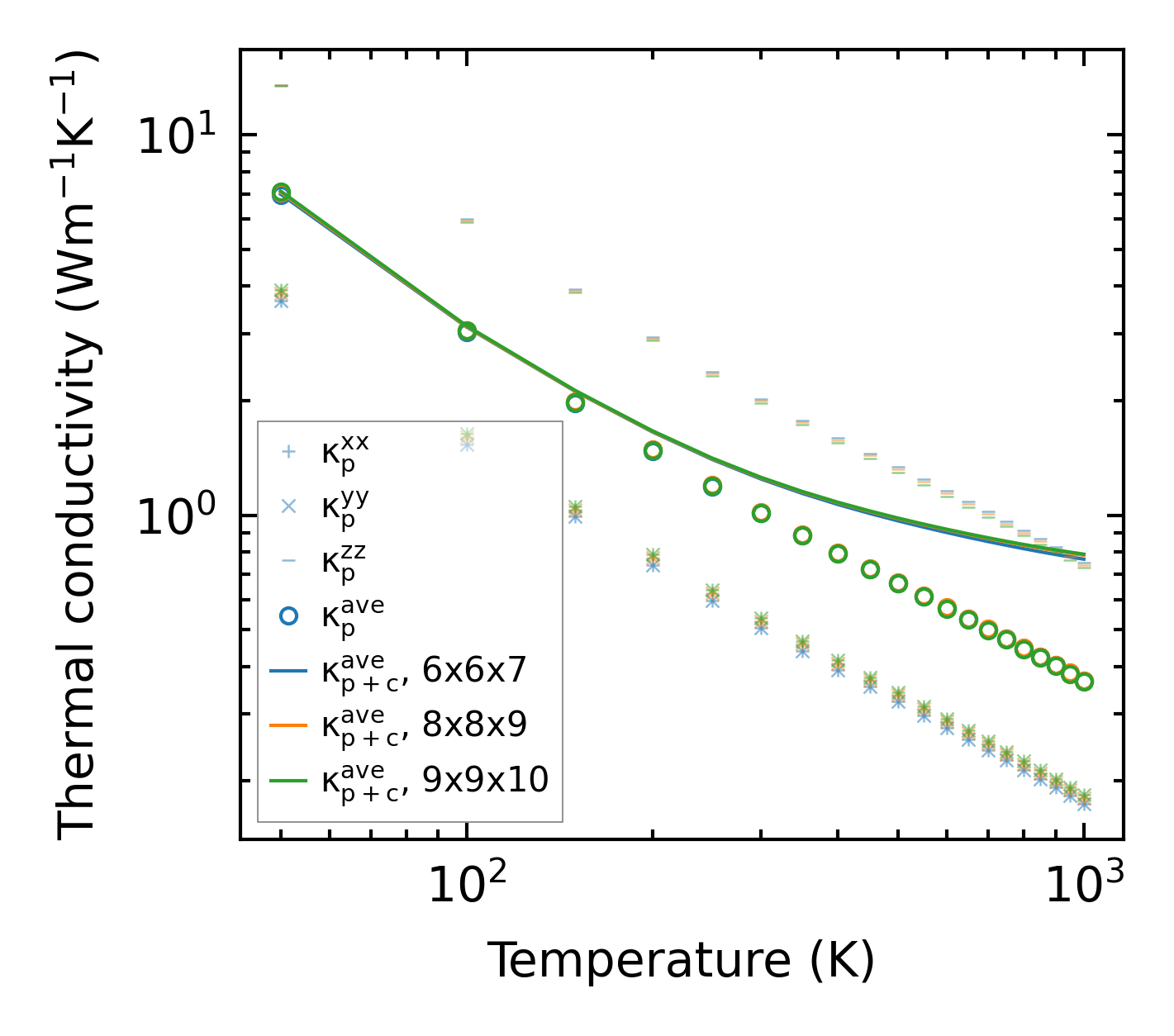

../../_images/fig_kappa9719.png — (a) Temperature-dependent lattice thermal conductivity

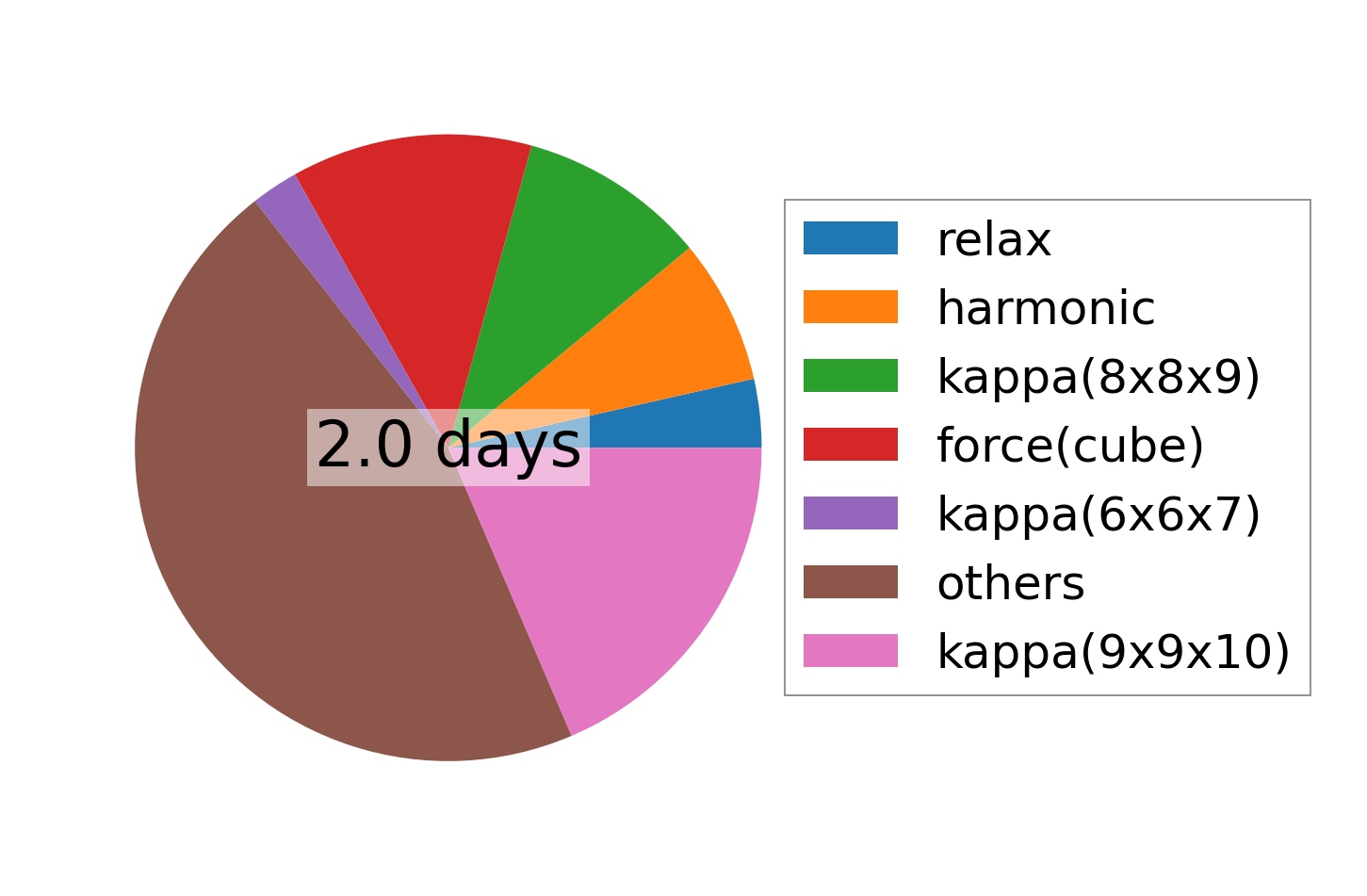

../../_images/fig_times21140.png — (b) Computation time
