mp-570817/Cu2P8Se3I2/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-570817.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6862.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6862.png — (b) Thermodynamic properties

Grüneisen parameters

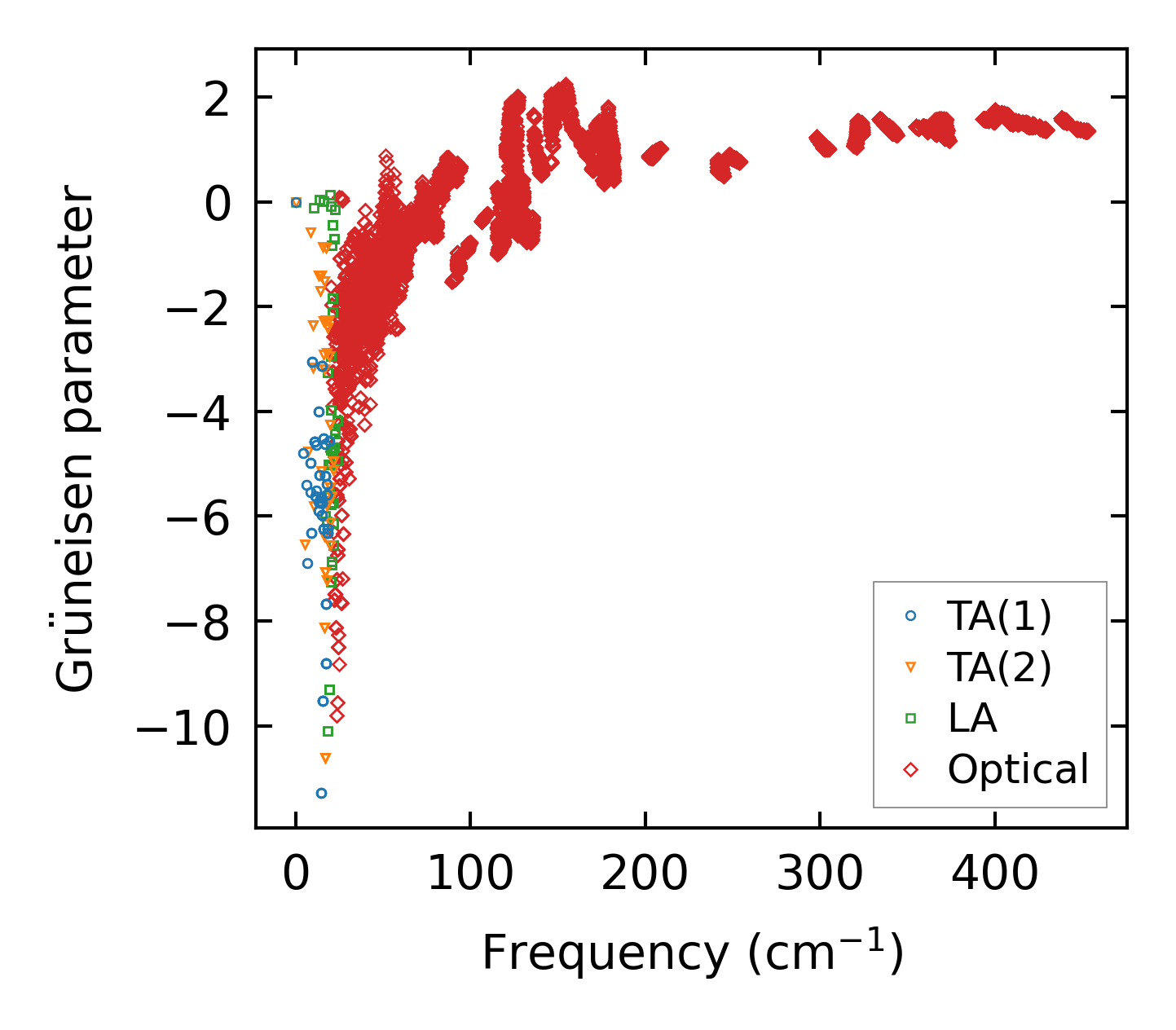

../../_images/fig_gru_all2829.png — (a) Grüneisen parameters

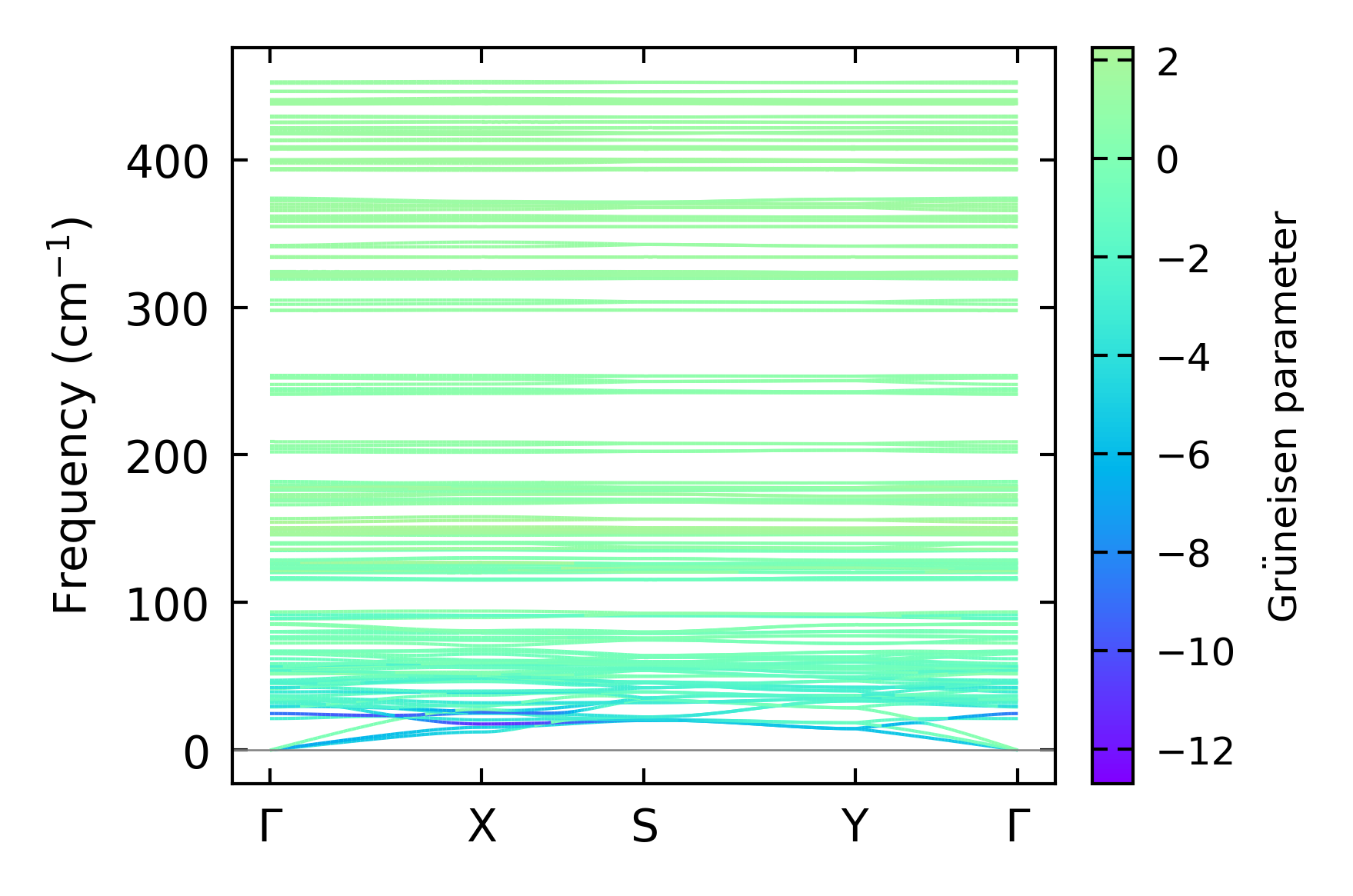

../../_images/fig_gruneisen2829.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x5x5, supercell: 2x1x1

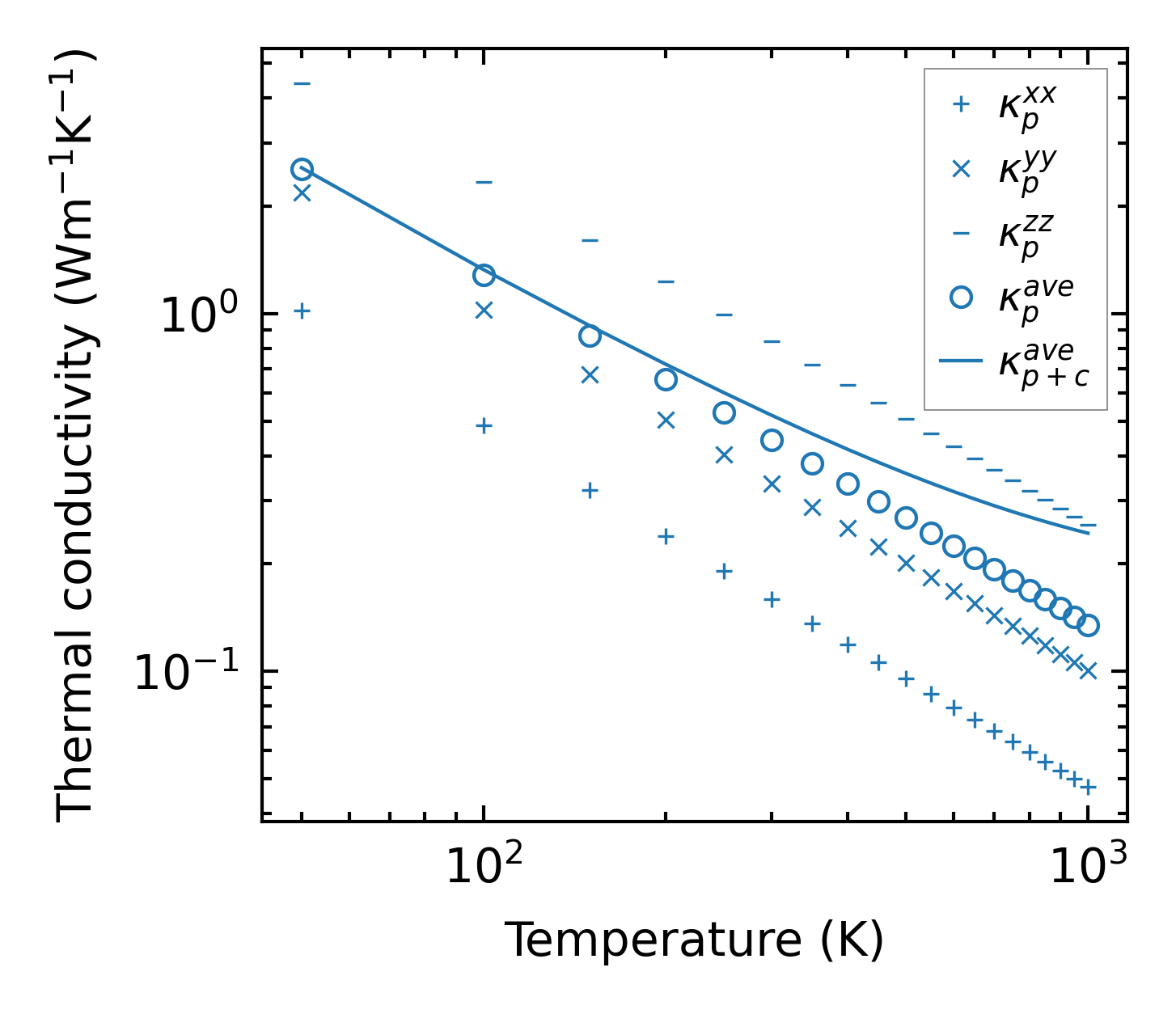

../../_images/fig_kappa5372.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2870.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2805.png — (a) Phonon lifetime due to phonon-phonon scattering

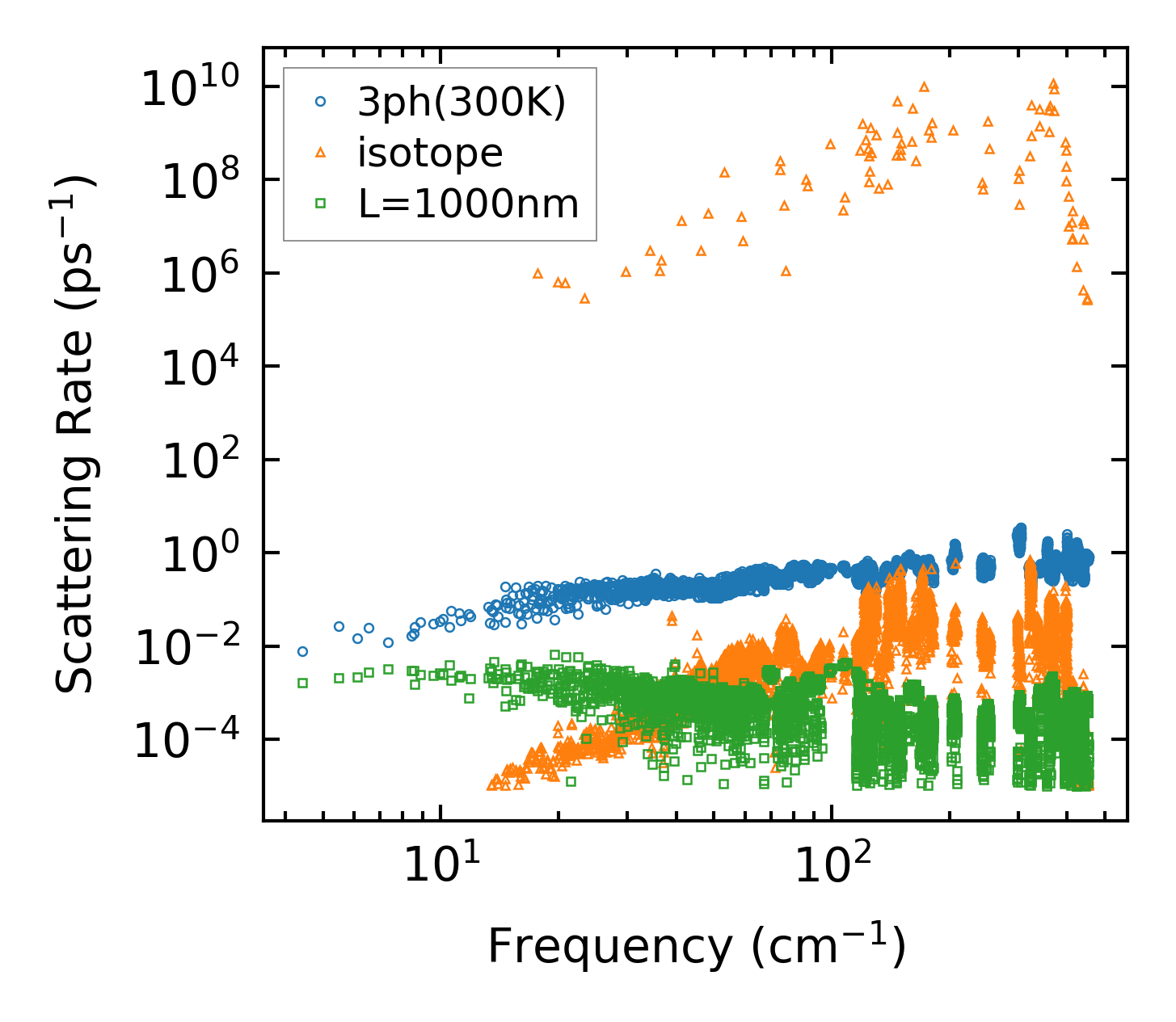

../../_images/fig_scat_rates2804.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

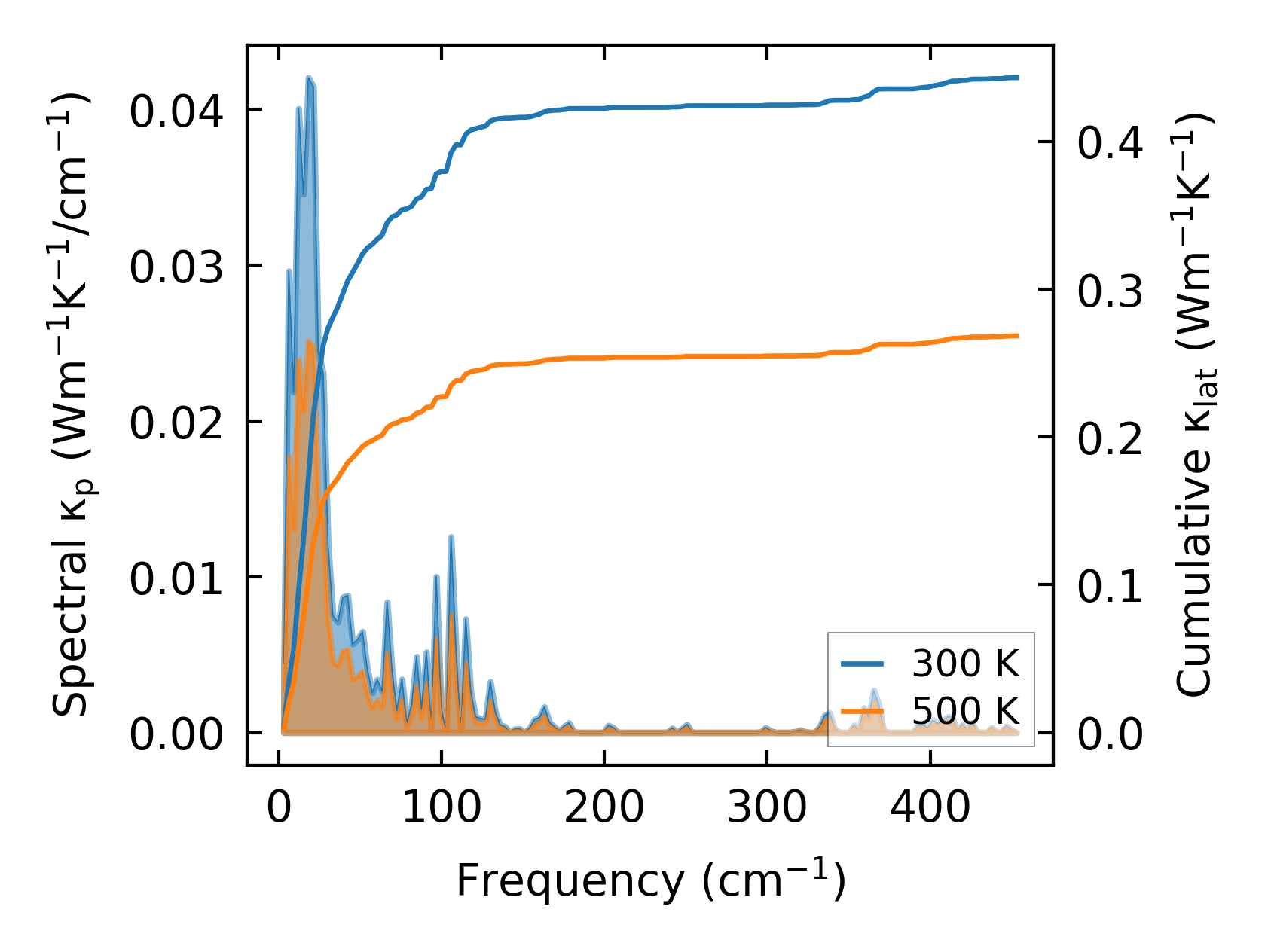

../../_images/fig_cumu_frequency2805.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

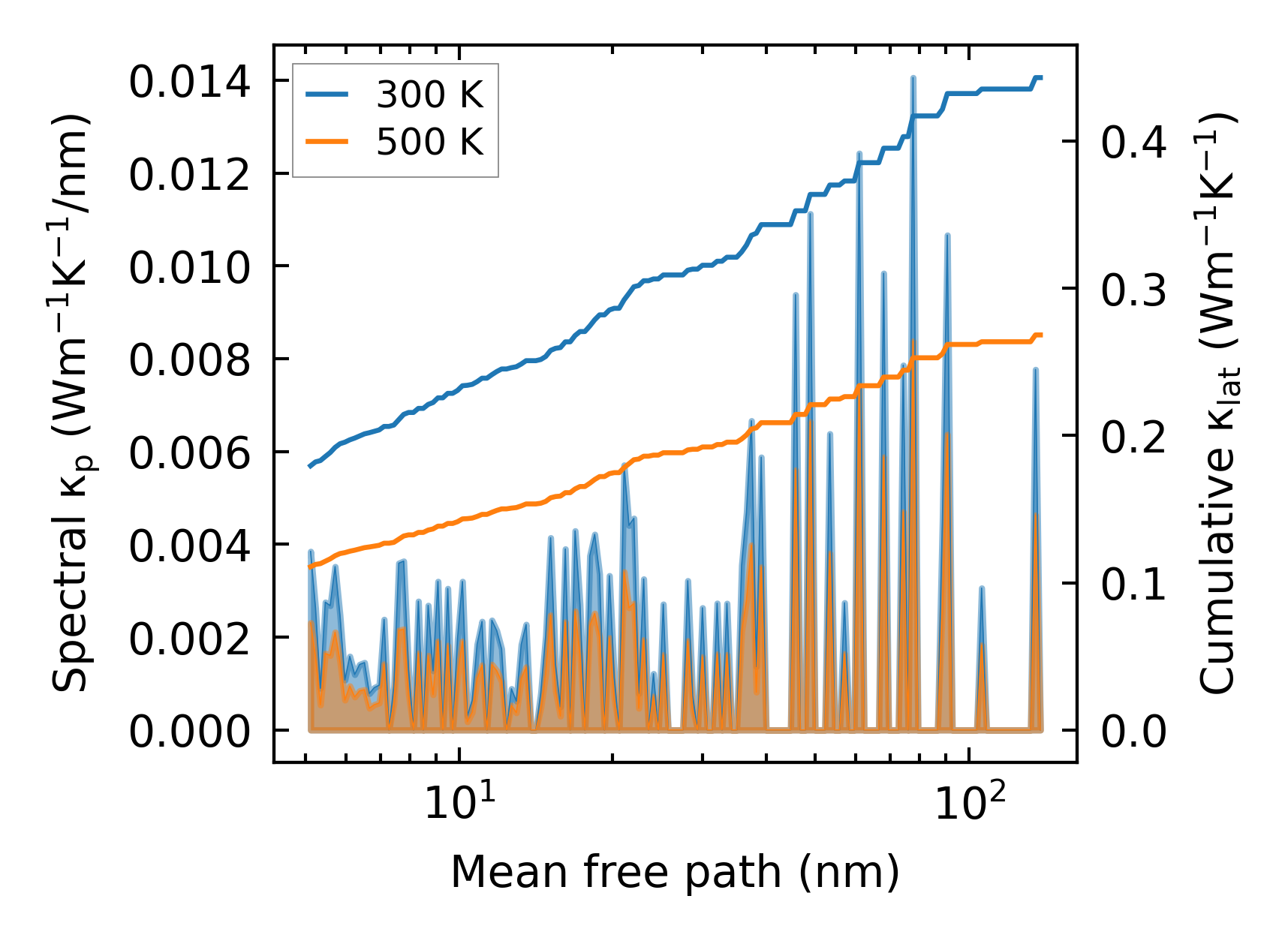

../../_images/fig_cumu_mfp2804.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

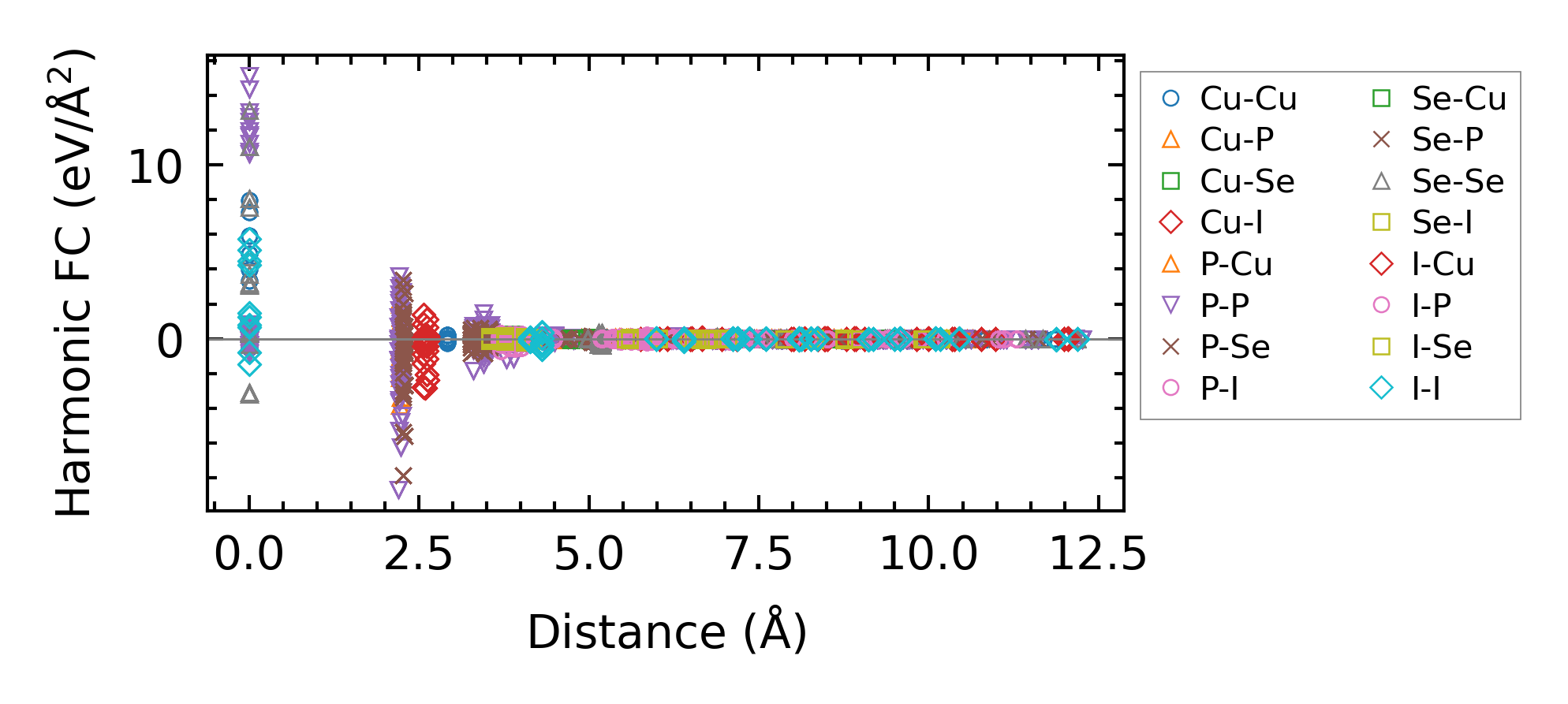

../../_images/fig_fc26645.png — (a) Force constants w.r.t atomic distance

Summary

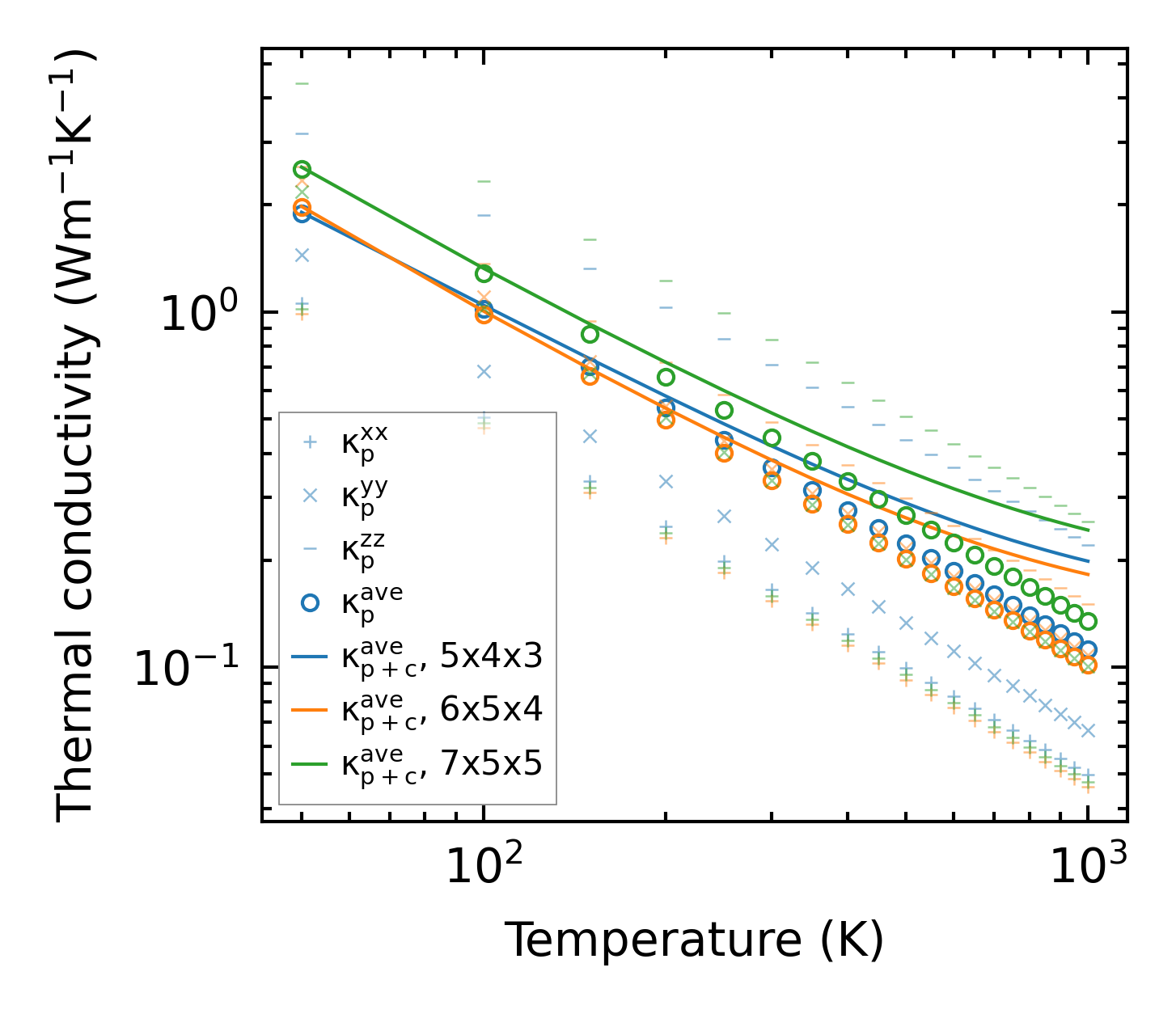

../../_images/fig_kappa5373.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12316.png — (b) Computation time
