mp-570132/Mg8B5IN10/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-570132.tar.gz

Harmonic properties

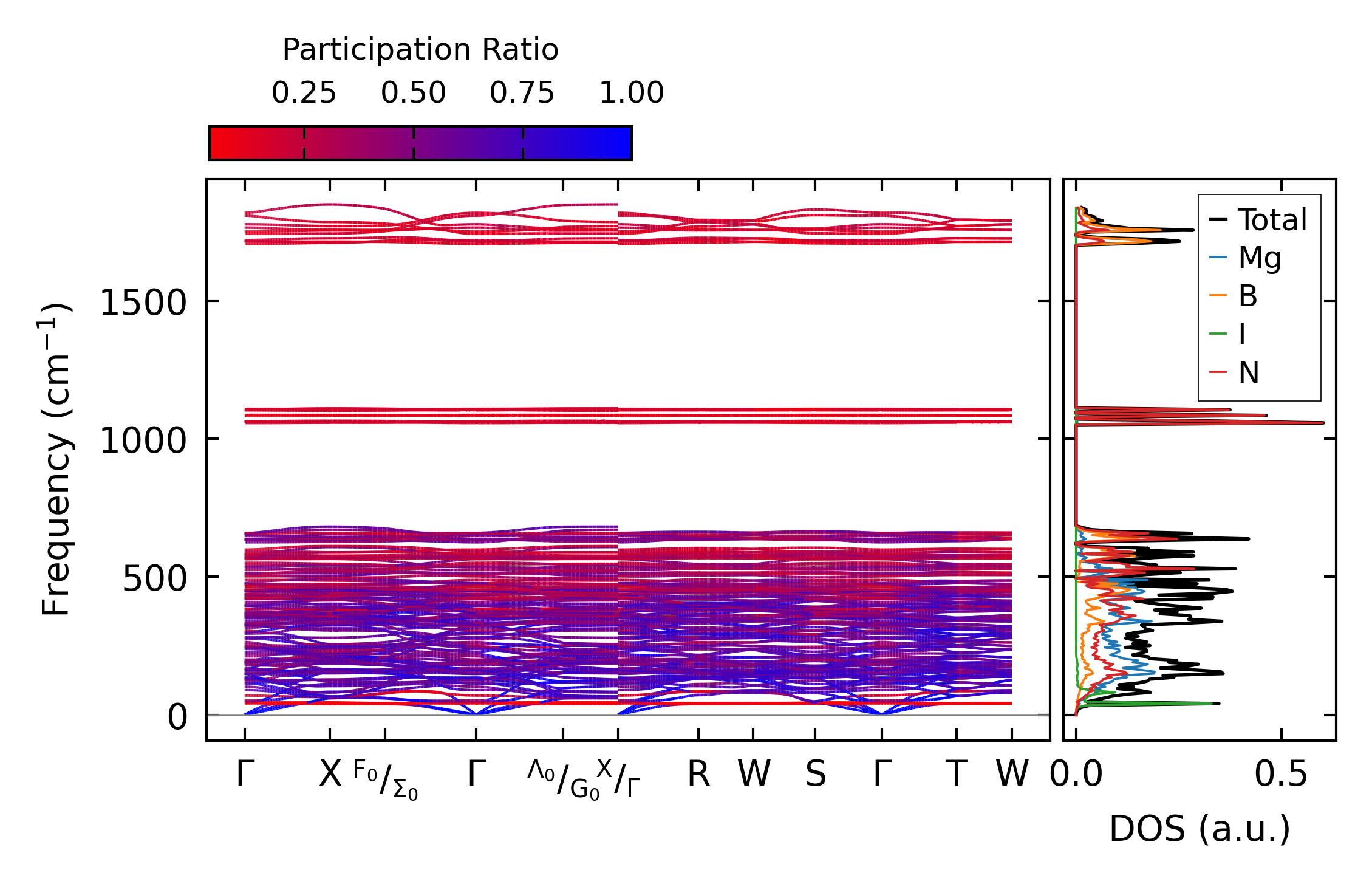

../../_images/fig_bandos_pr7104.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7104.png — (b) Thermodynamic properties

Grüneisen parameters

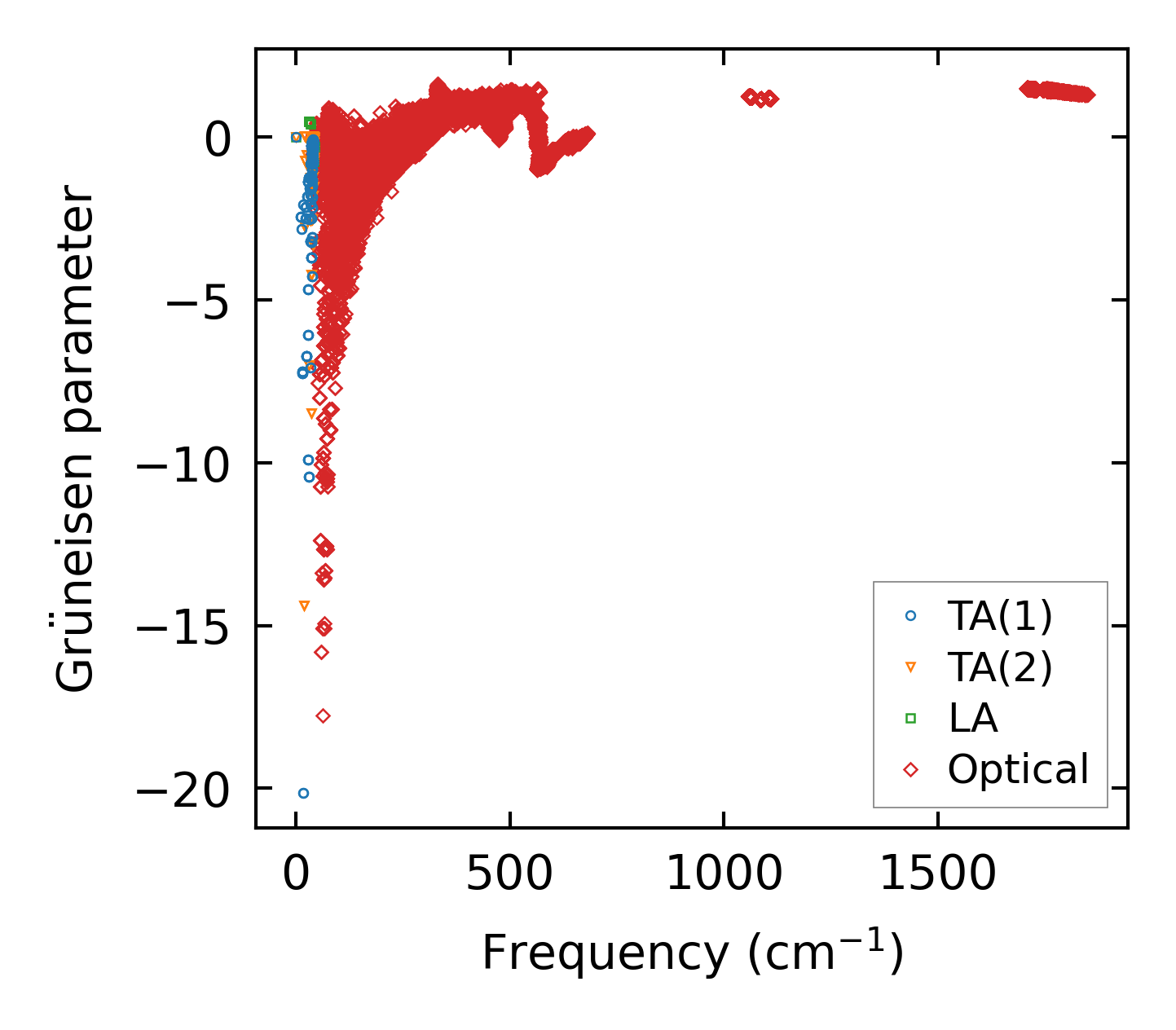

../../_images/fig_gru_all2969.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2969.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

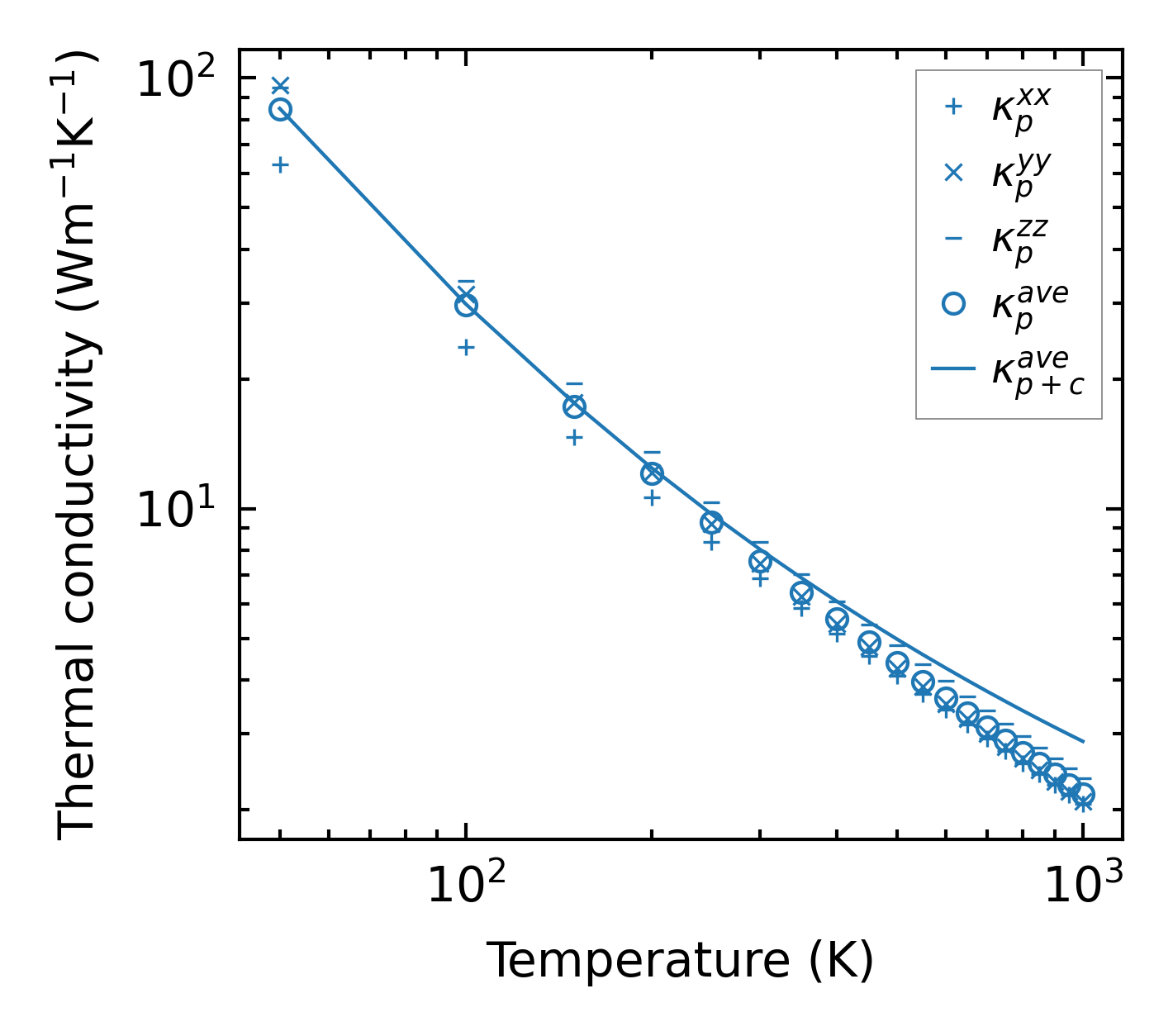

../../_images/fig_kappa5629.png — (a) Temperature-dependent lattice thermal conductivity

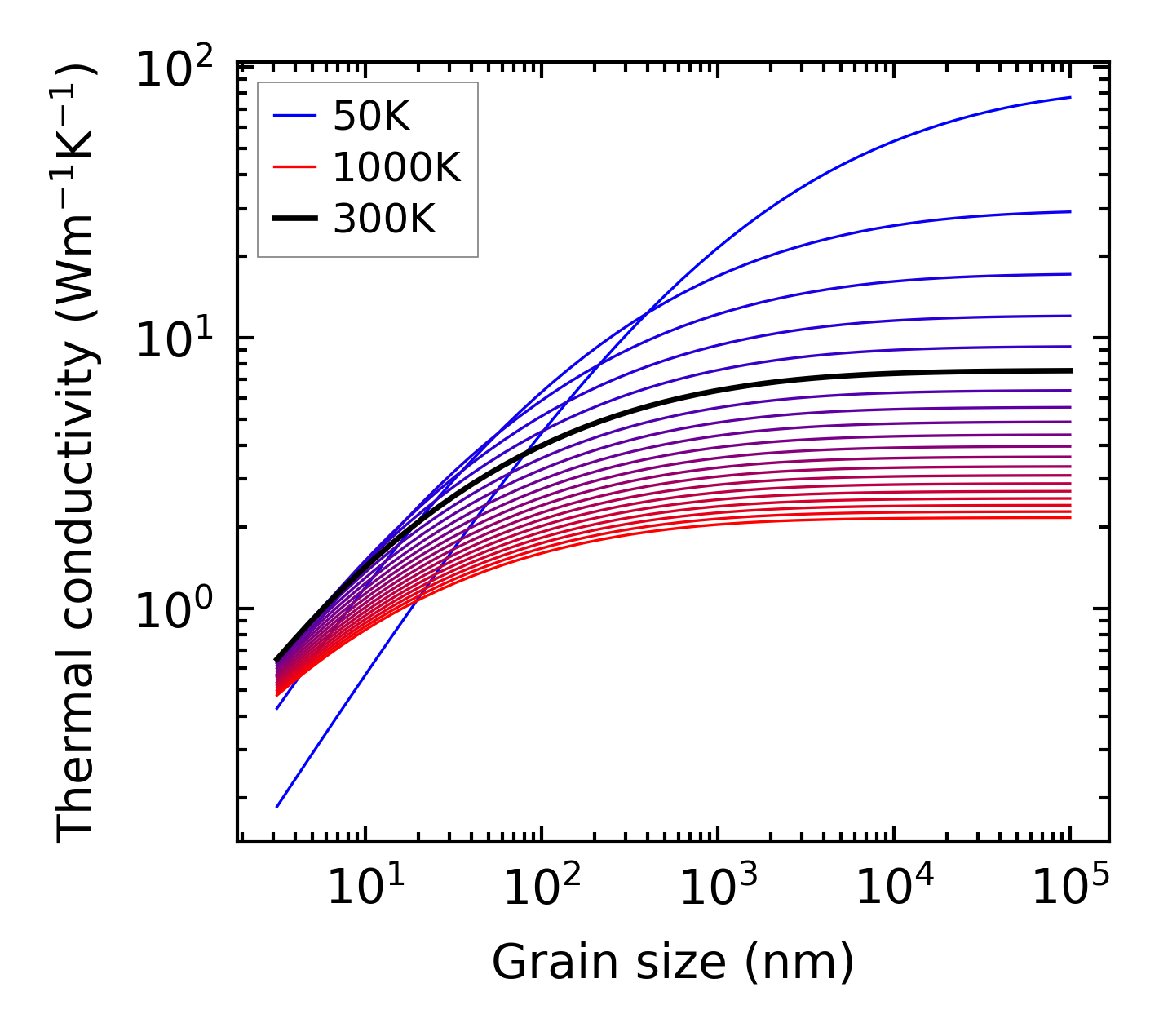

../../_images/fig_kappa_vs_grain_size3011.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

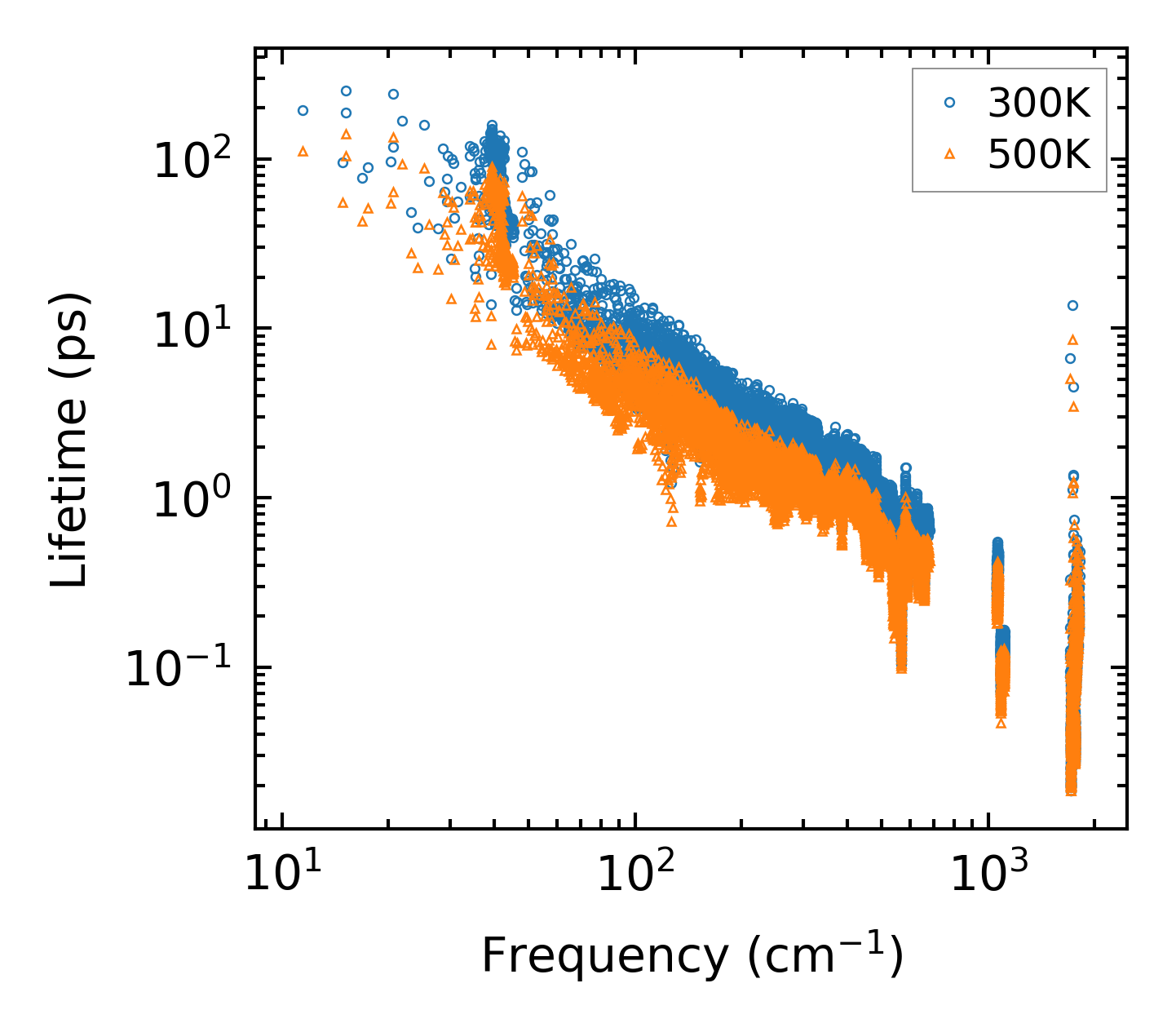

../../_images/fig_lifetime2944.png — (a) Phonon lifetime due to phonon-phonon scattering

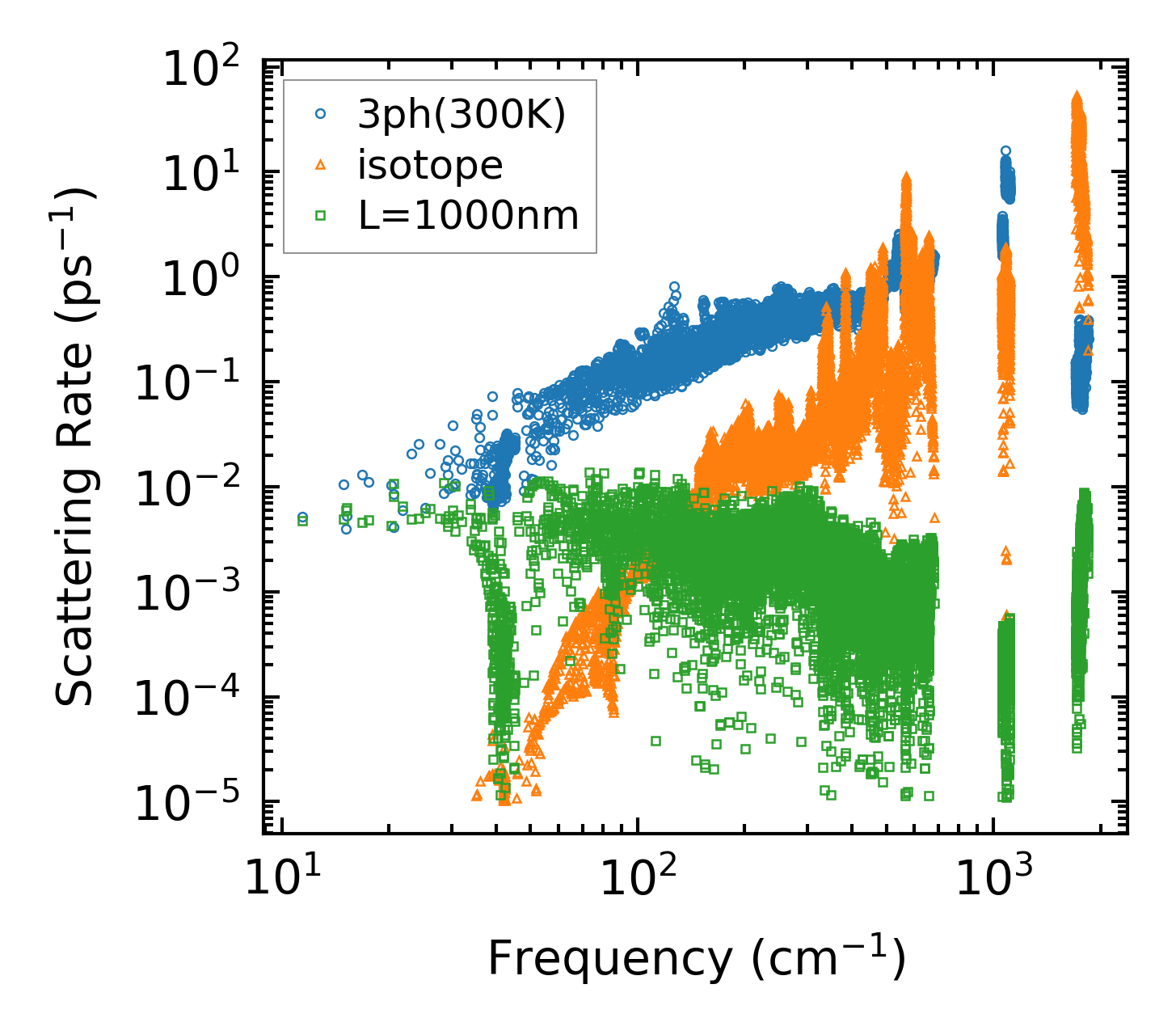

../../_images/fig_scat_rates2943.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2944.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

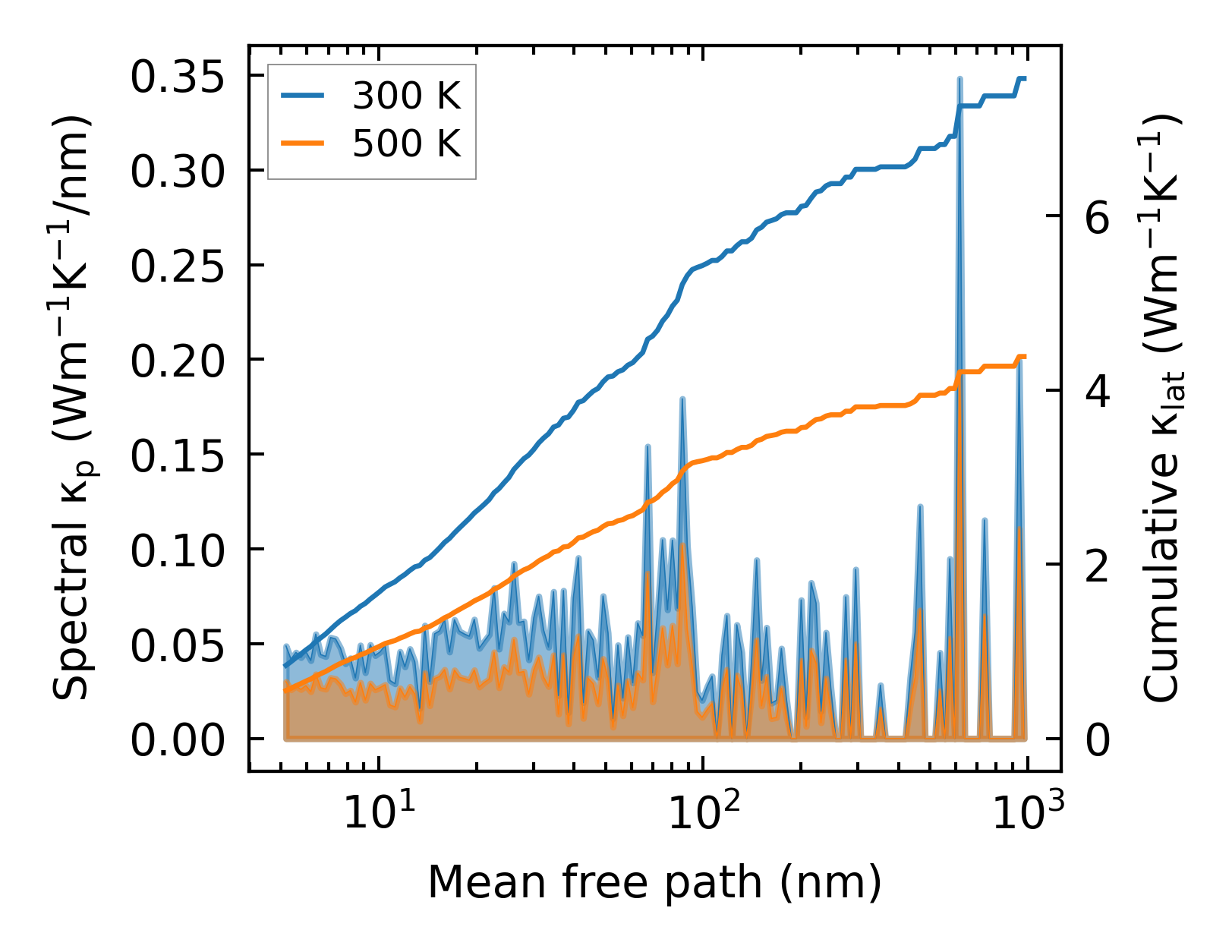

../../_images/fig_cumu_mfp2943.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26878.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5630.png — (a) Temperature-dependent lattice thermal conductivity

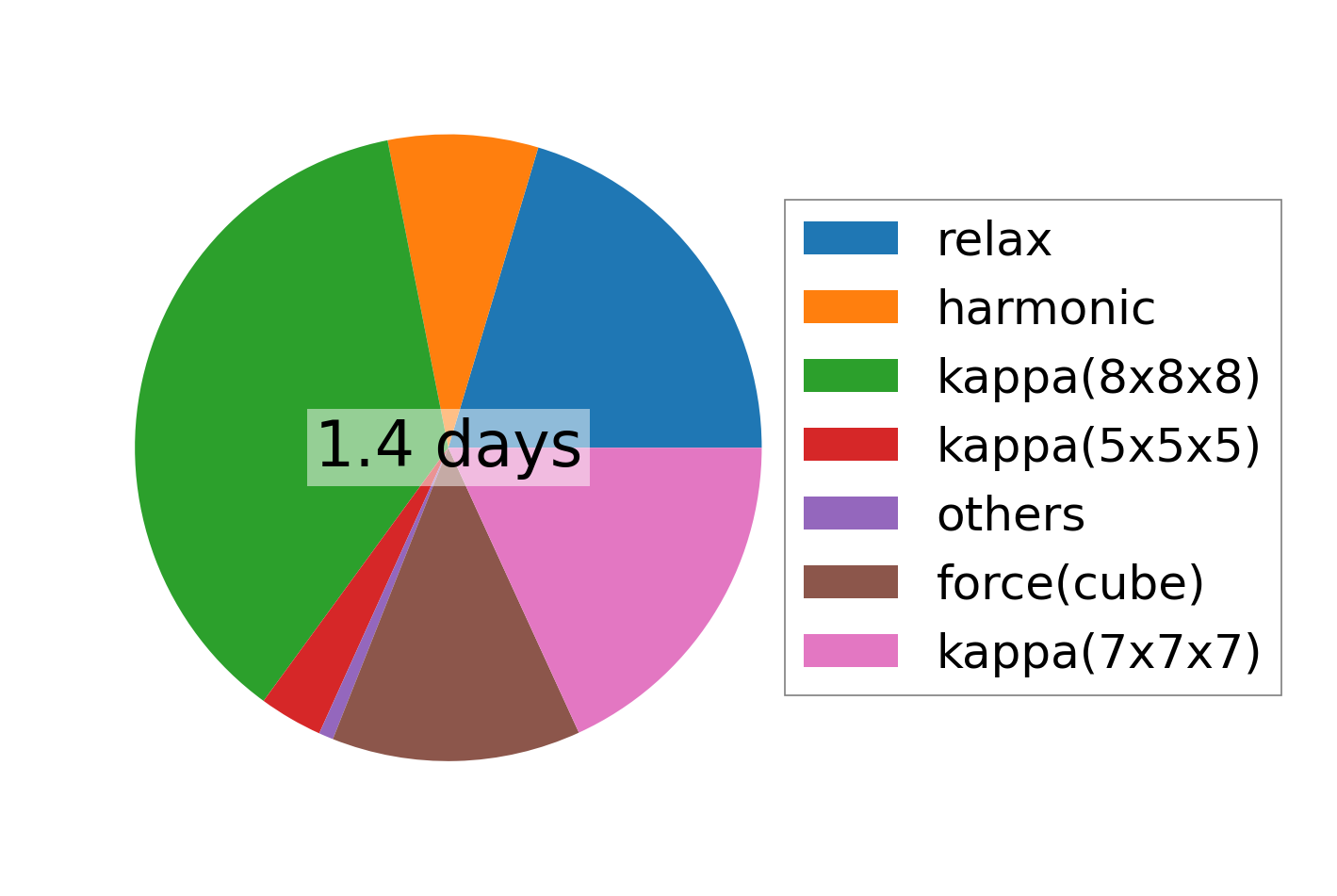

../../_images/fig_times12671.png — (b) Computation time
