mp-570536/Rb2AgAu3I8/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-570536.tar.gz

Harmonic properties

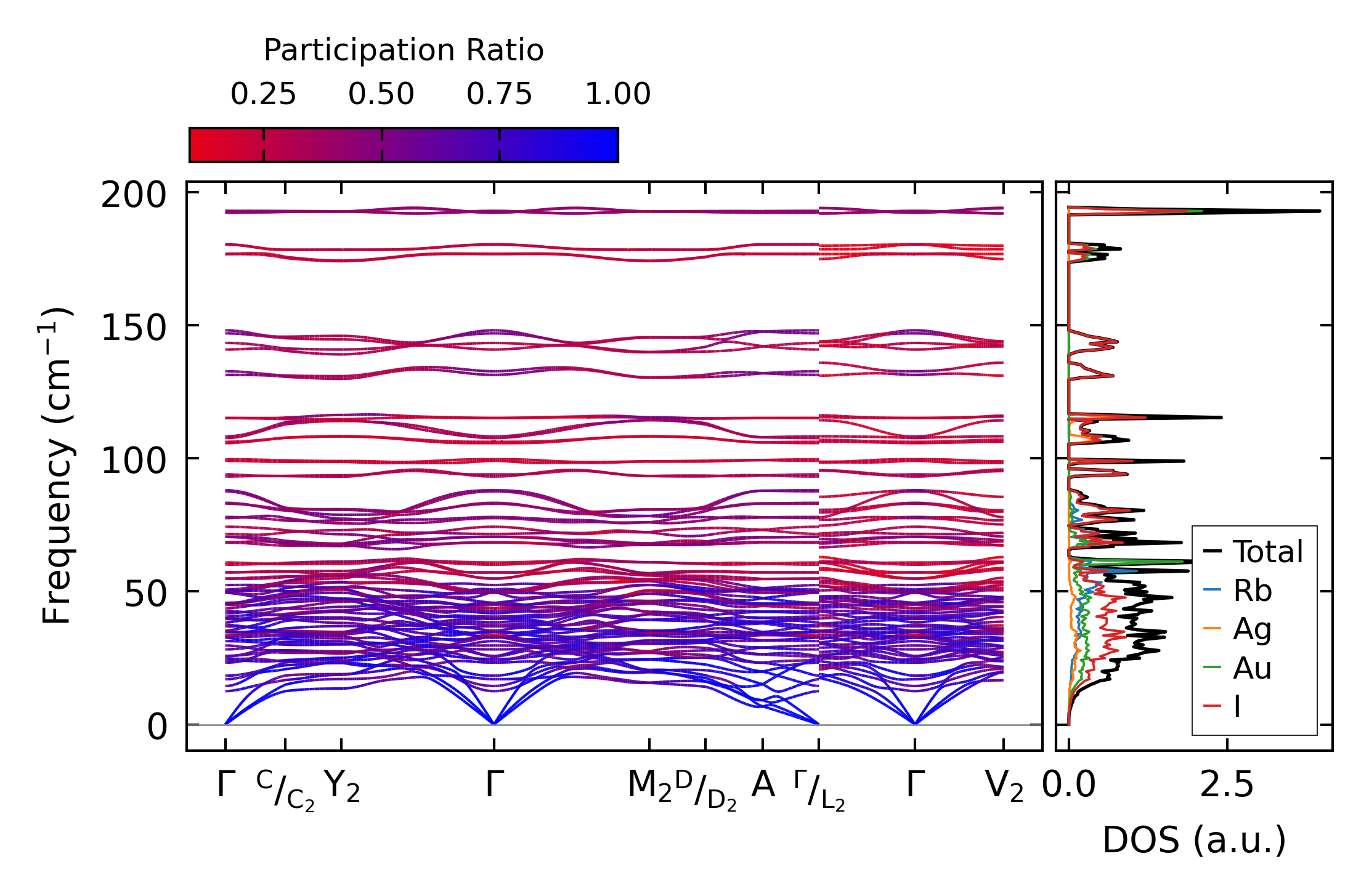

../../_images/fig_bandos_pr6818.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6818.png — (b) Thermodynamic properties

Grüneisen parameters

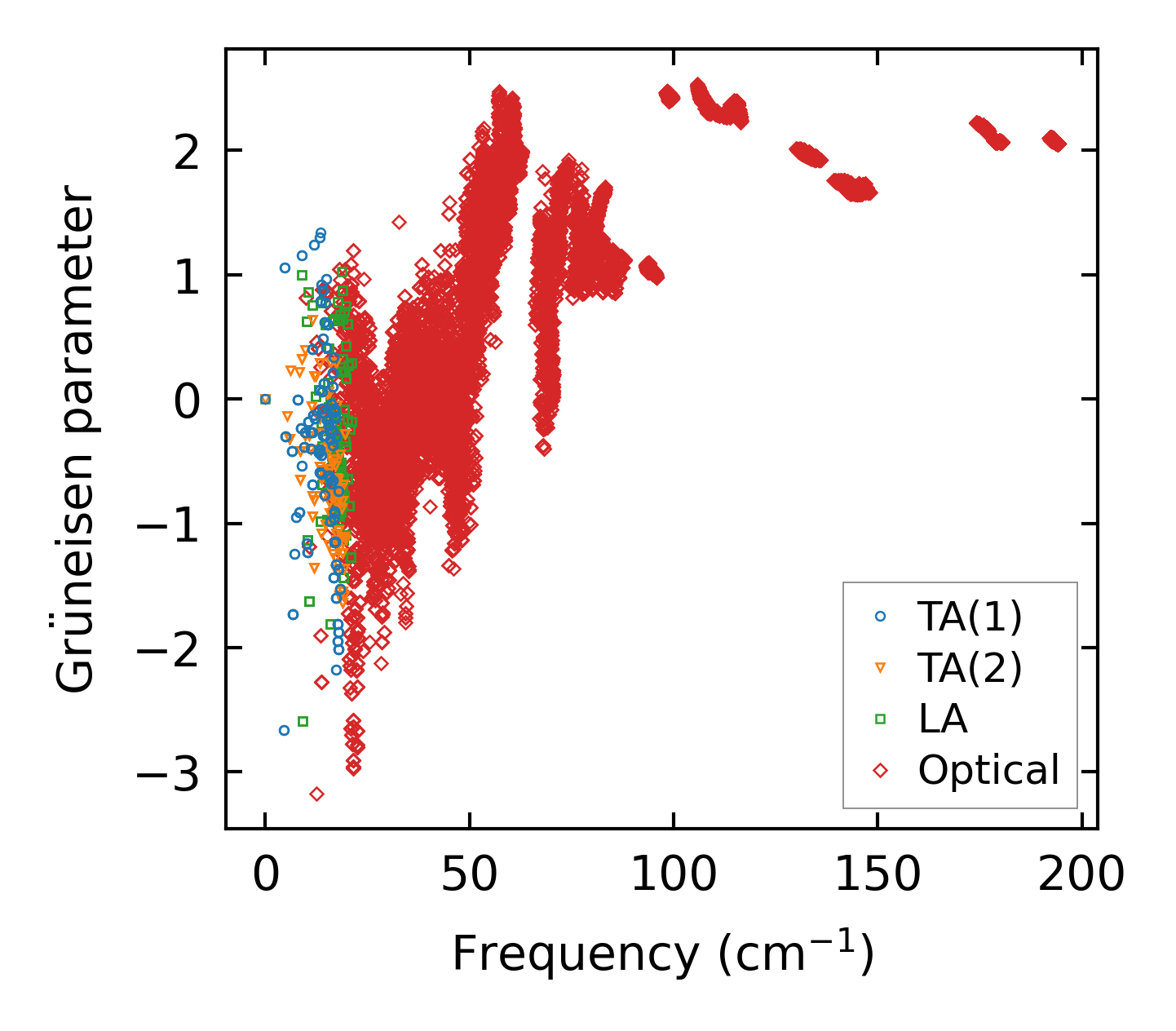

../../_images/fig_gru_all2806.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2806.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x3, supercell: 1x2x1

../../_images/fig_kappa5330.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2847.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

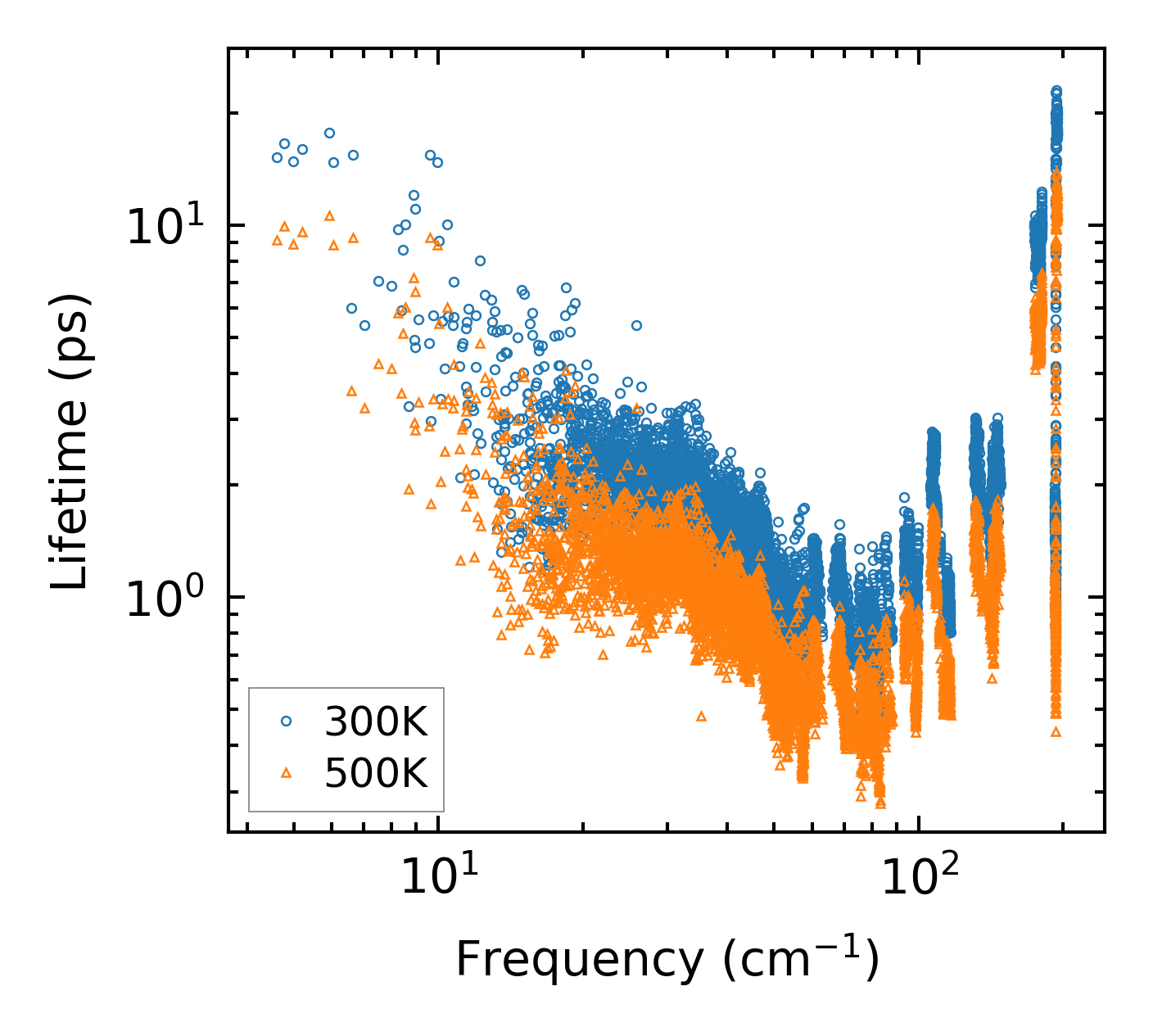

../../_images/fig_lifetime2782.png — (a) Phonon lifetime due to phonon-phonon scattering

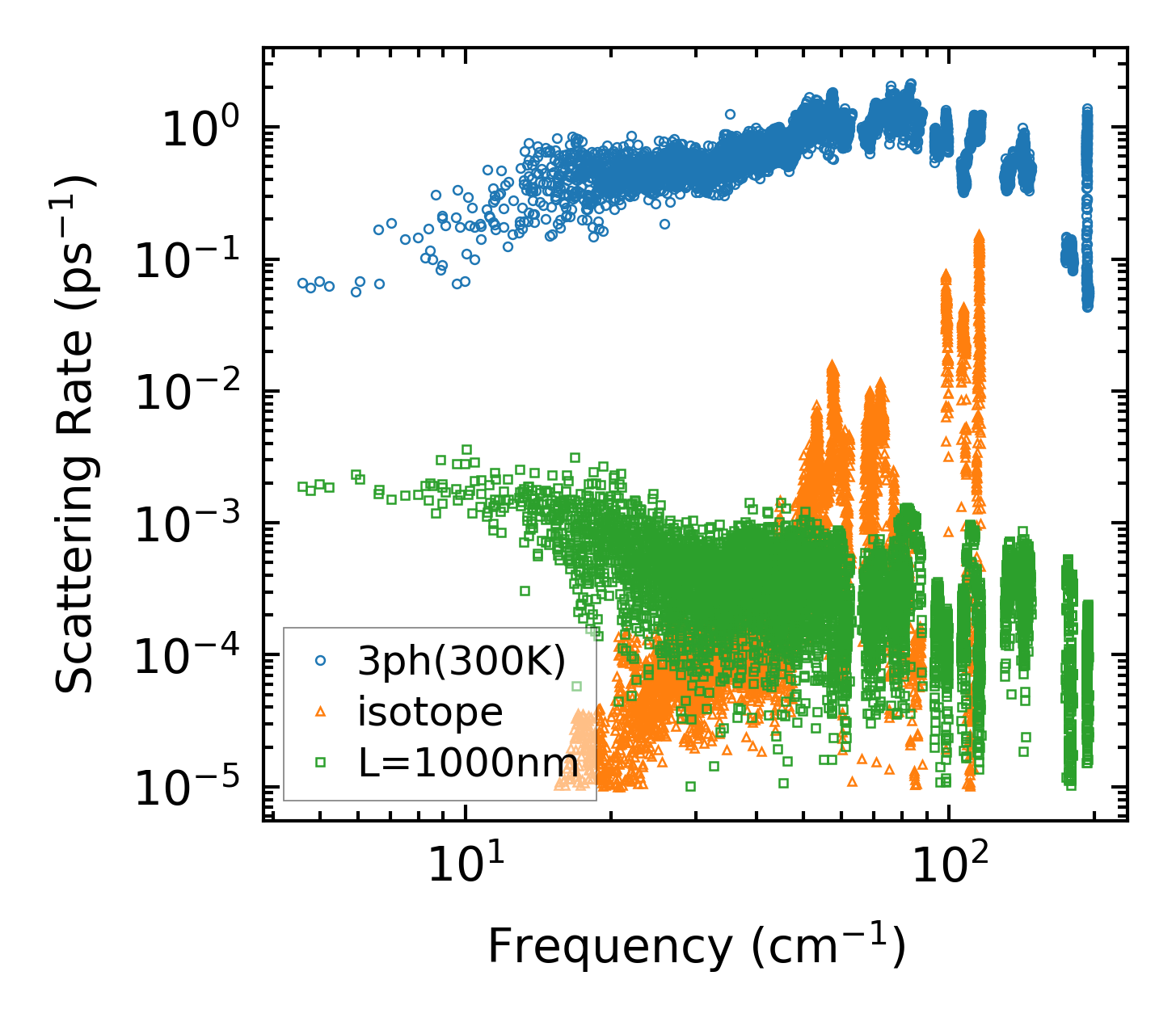

../../_images/fig_scat_rates2781.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

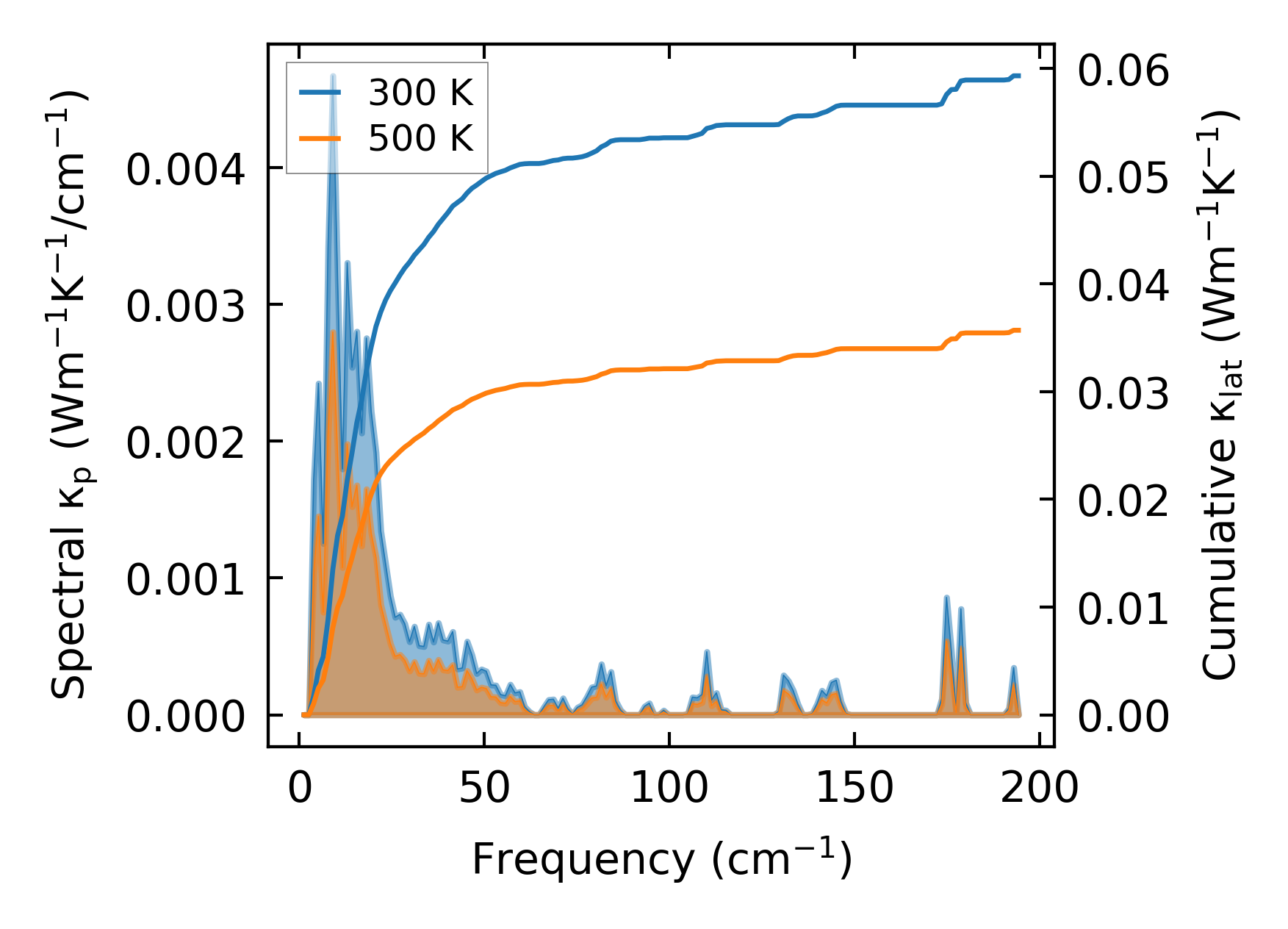

../../_images/fig_cumu_frequency2782.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

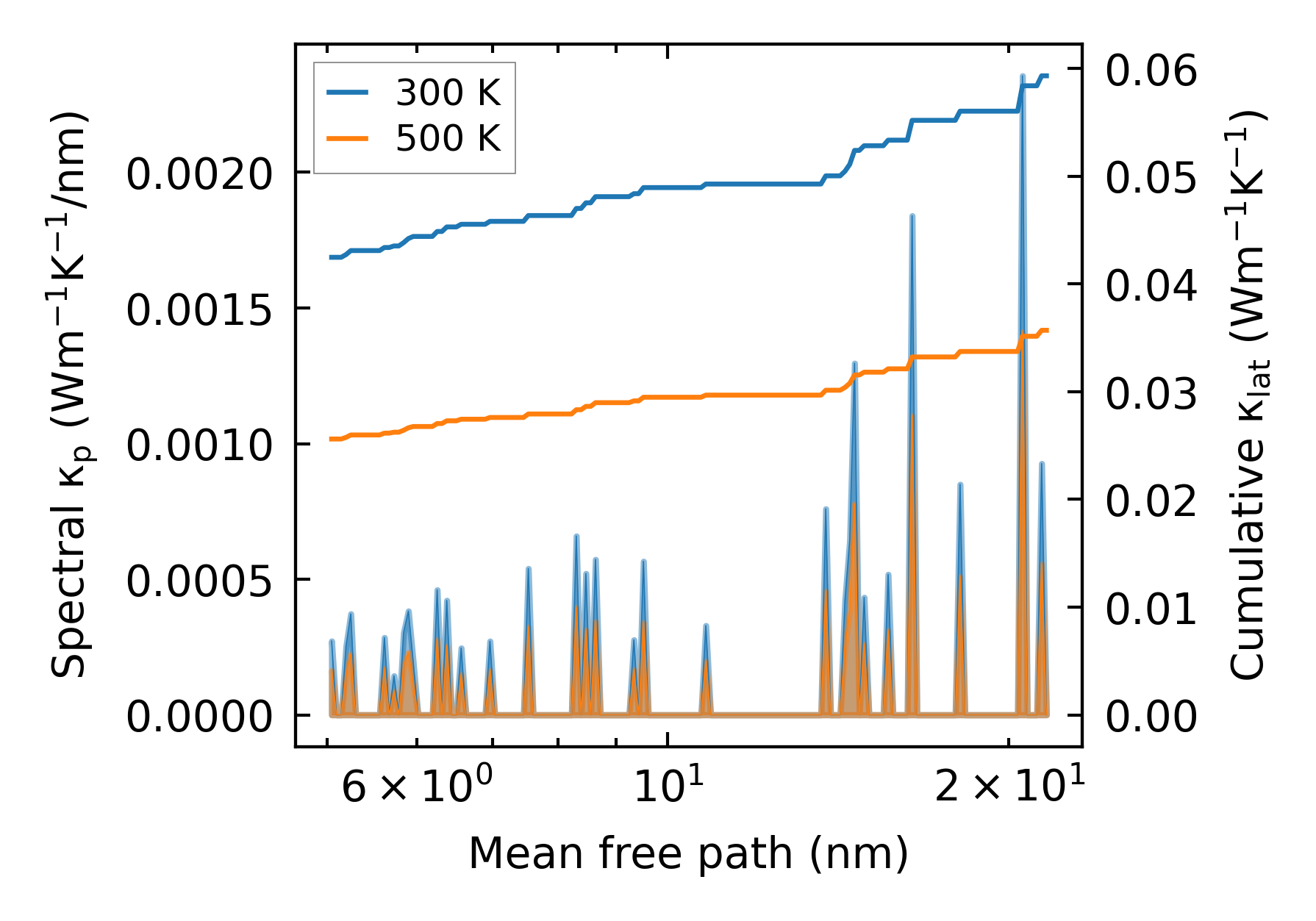

../../_images/fig_cumu_mfp2781.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

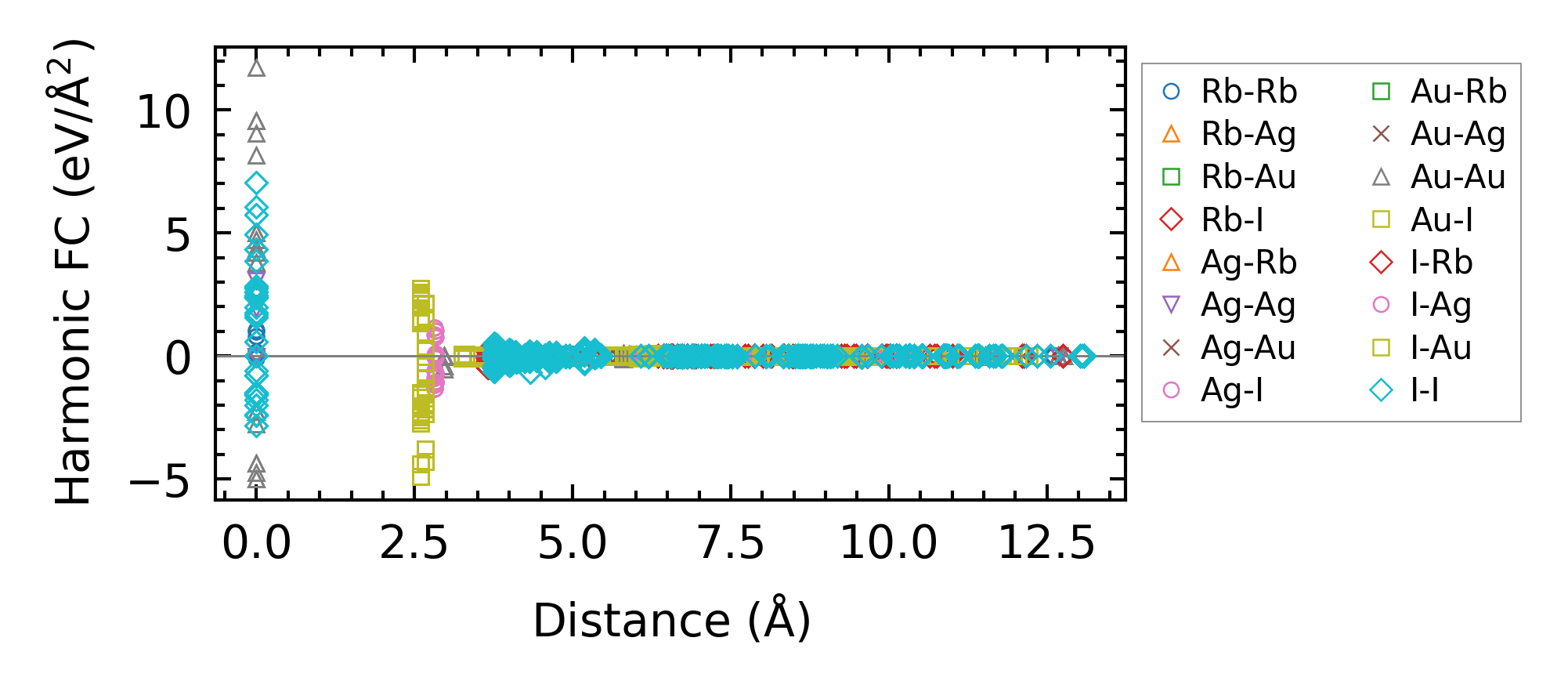

../../_images/fig_fc26603.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5331.png — (a) Temperature-dependent lattice thermal conductivity

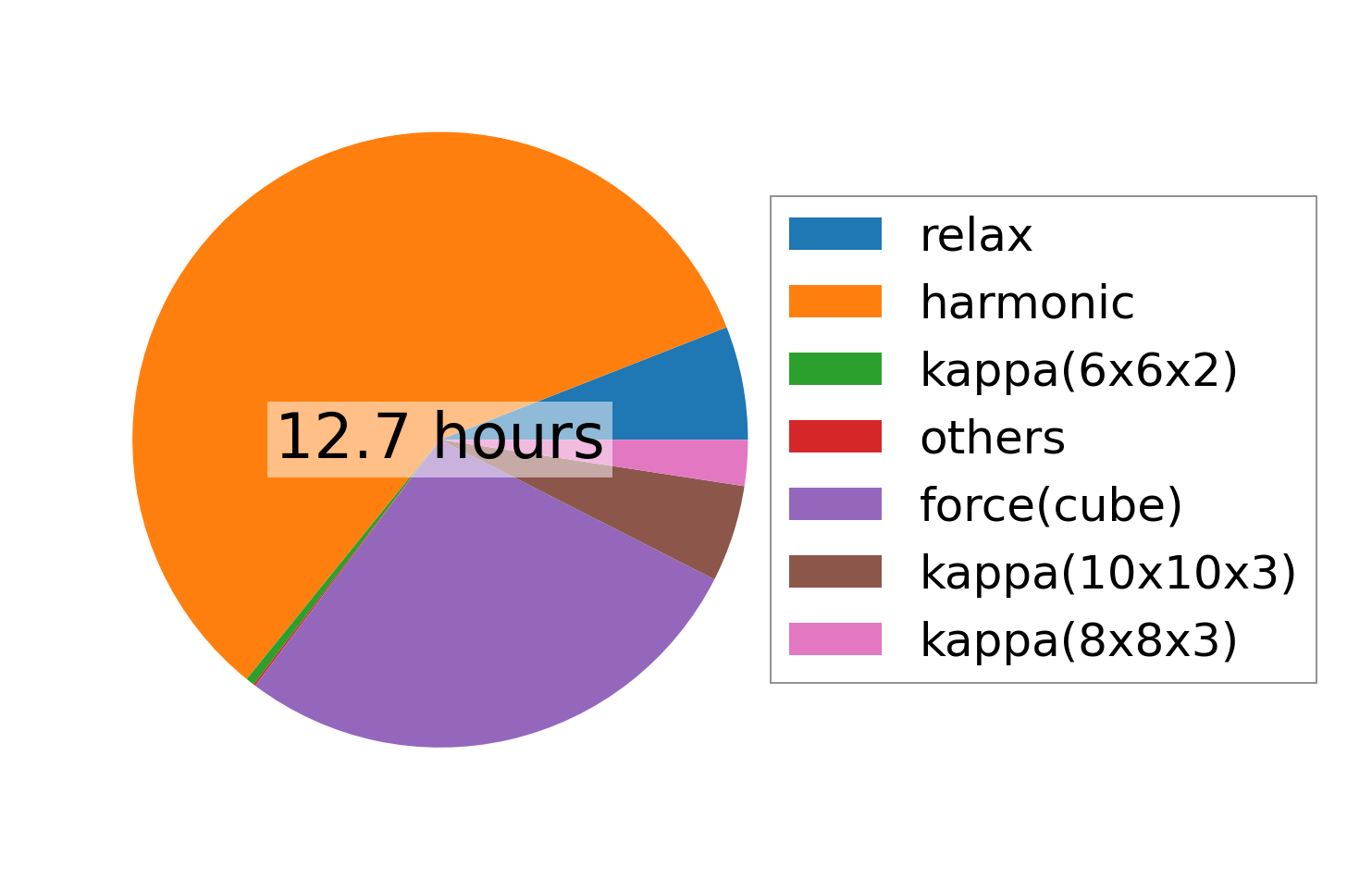

../../_images/fig_times12236.png — (b) Computation time
