mp-570229/ThBr4/anharm

Space group: I4_1/a (88)
Link: Materials Project
Download: mp-570229.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6786.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6786.png — (b) Thermodynamic properties

Grüneisen parameters

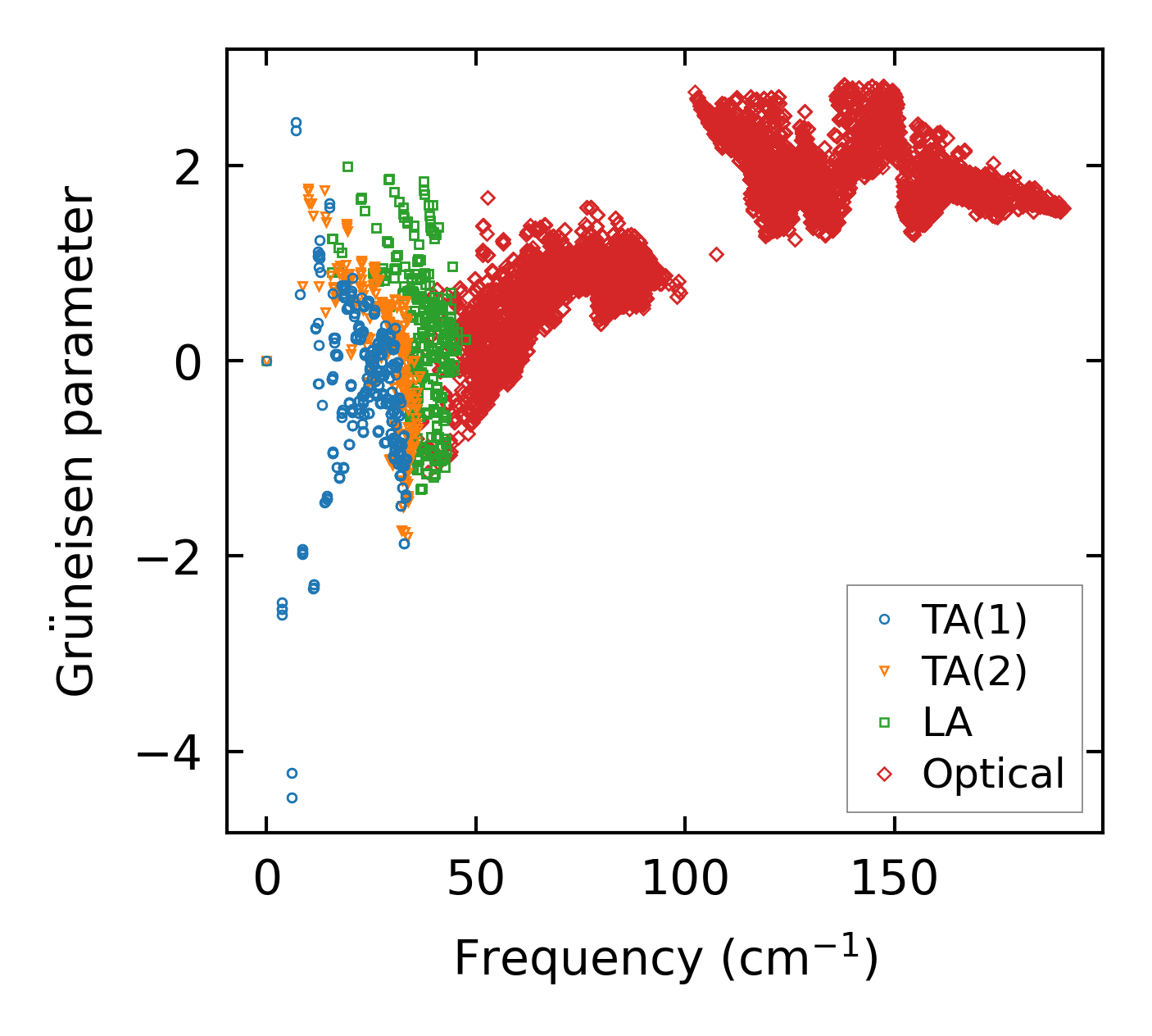

../../_images/fig_gru_all2786.png — (a) Grüneisen parameters

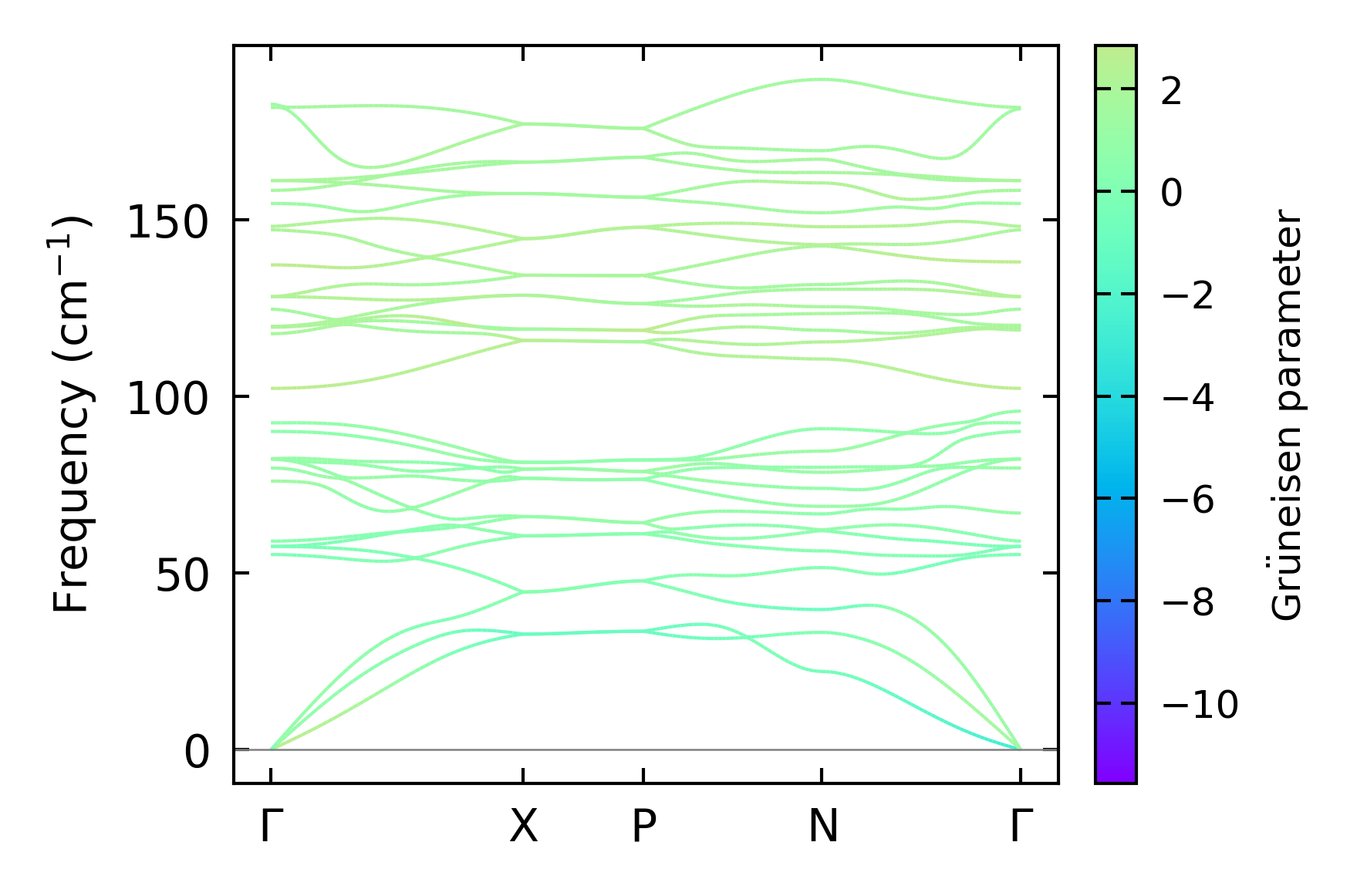

../../_images/fig_gruneisen2786.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x2x1

../../_images/fig_kappa5293.png — (a) Temperature-dependent lattice thermal conductivity

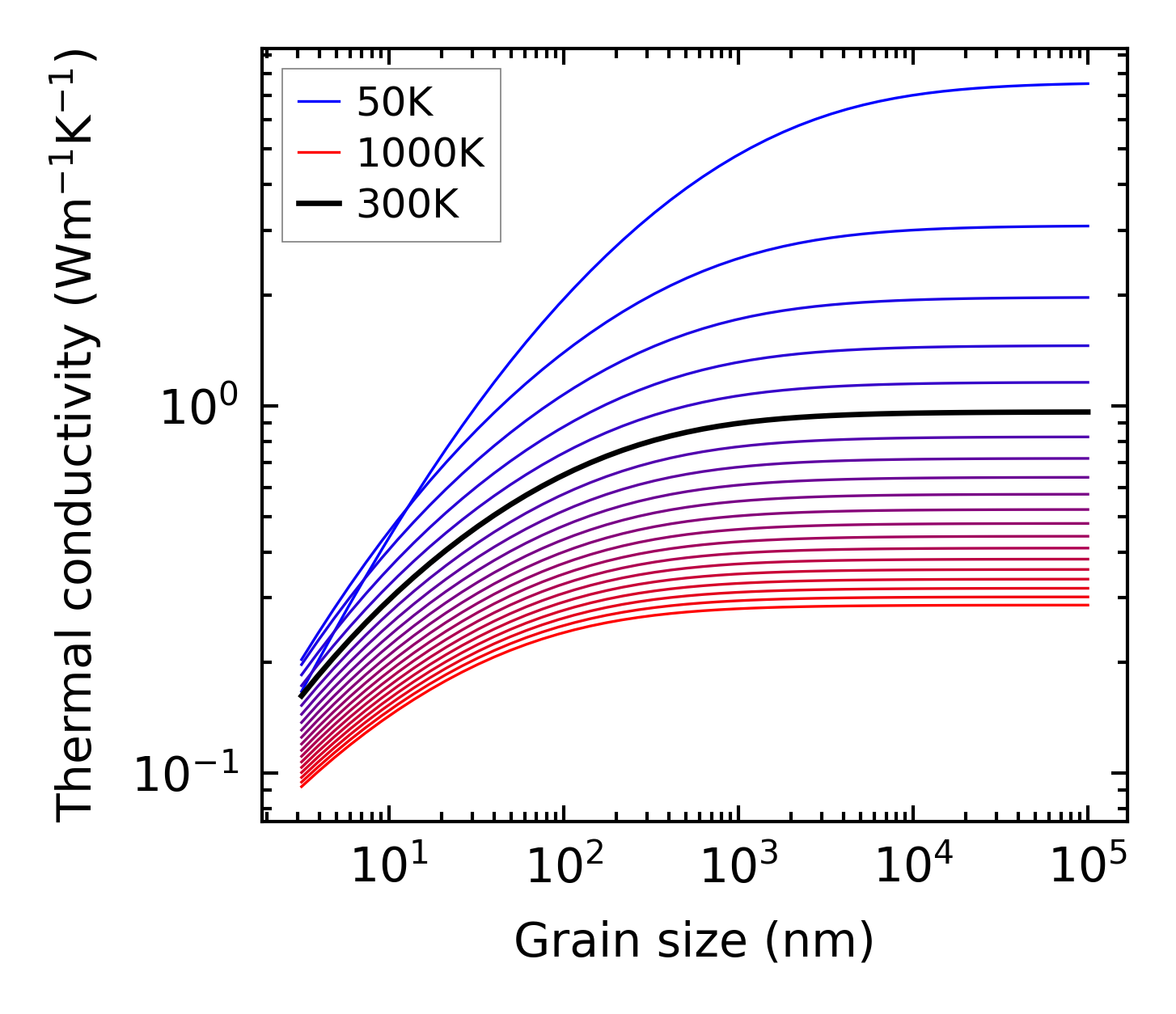

../../_images/fig_kappa_vs_grain_size2827.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2762.png — (a) Phonon lifetime due to phonon-phonon scattering

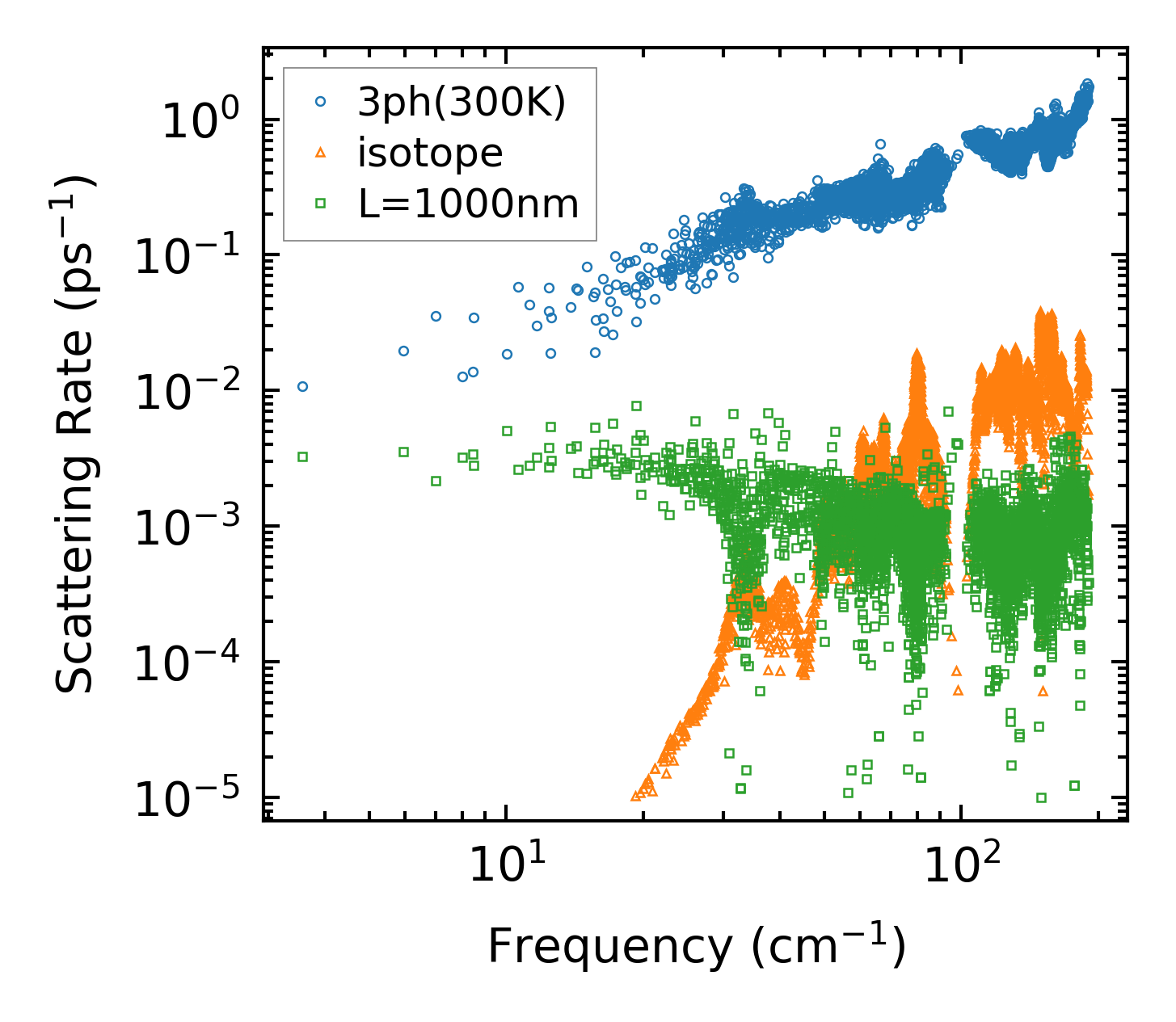

../../_images/fig_scat_rates2761.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2762.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

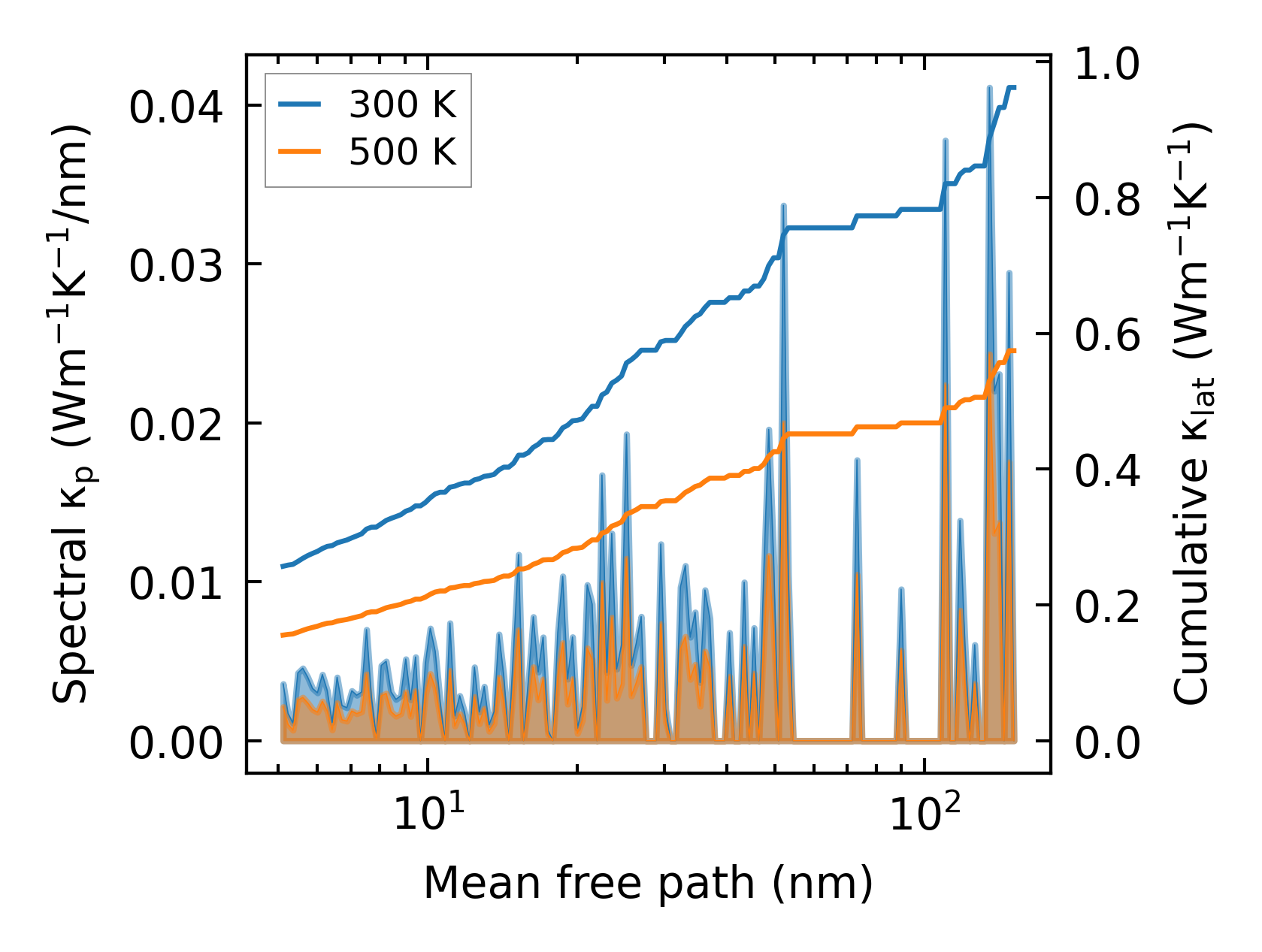

../../_images/fig_cumu_mfp2761.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

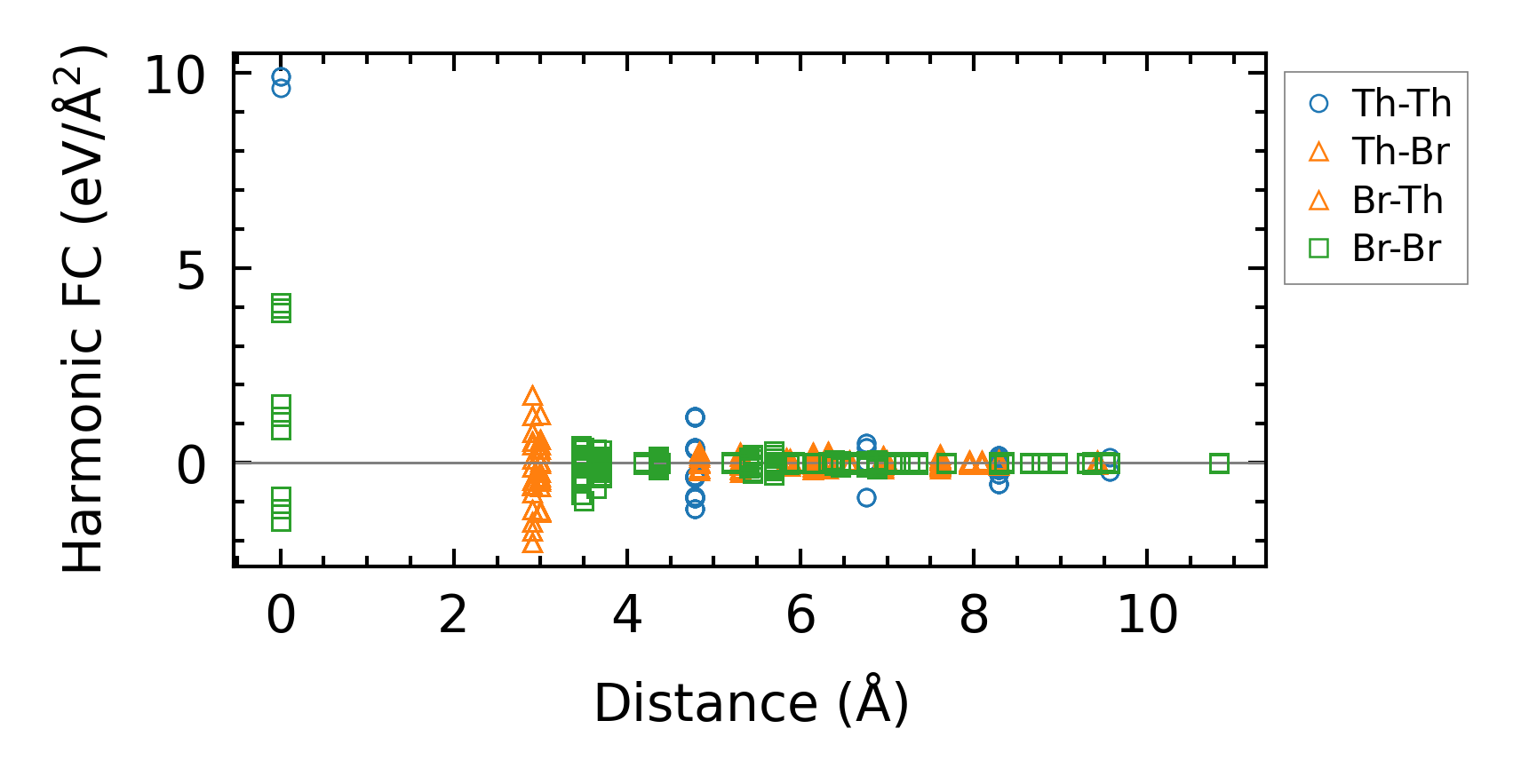

../../_images/fig_fc26573.png — (a) Force constants w.r.t atomic distance

Summary

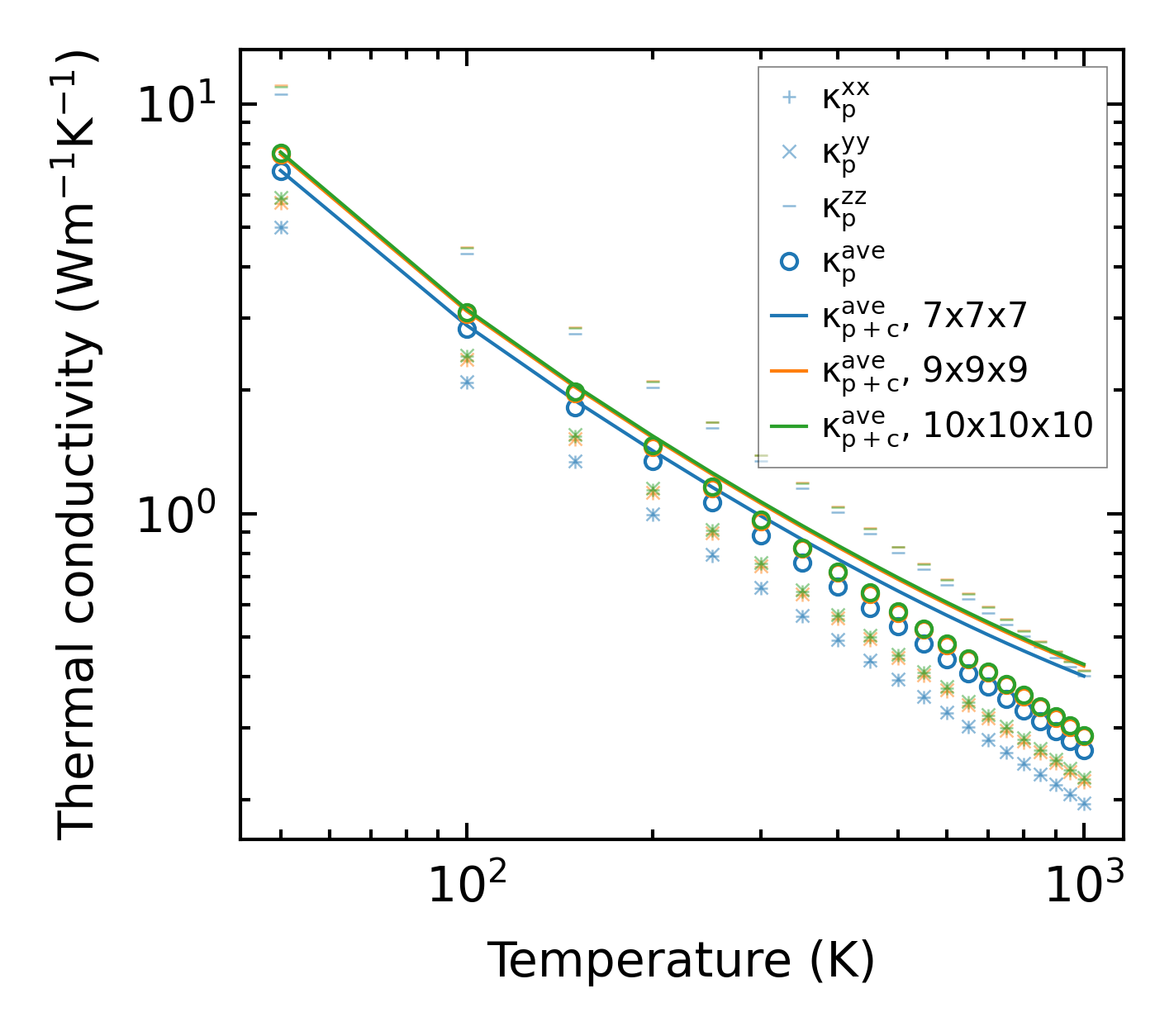

../../_images/fig_kappa5294.png — (a) Temperature-dependent lattice thermal conductivity

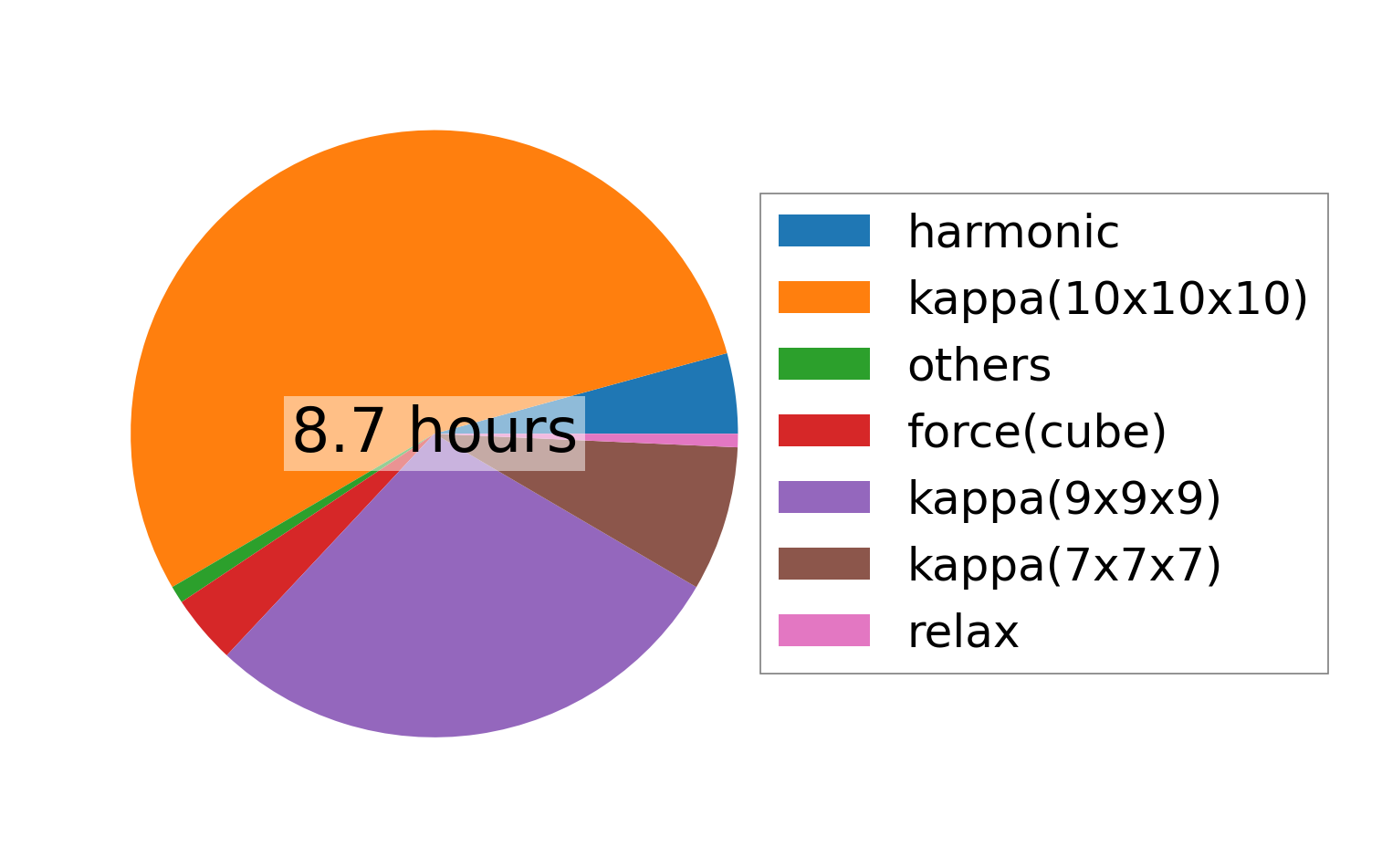

../../_images/fig_times12177.png — (b) Computation time
