mp-570623/Pr4Te3N2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-570623.tar.gz

Harmonic properties

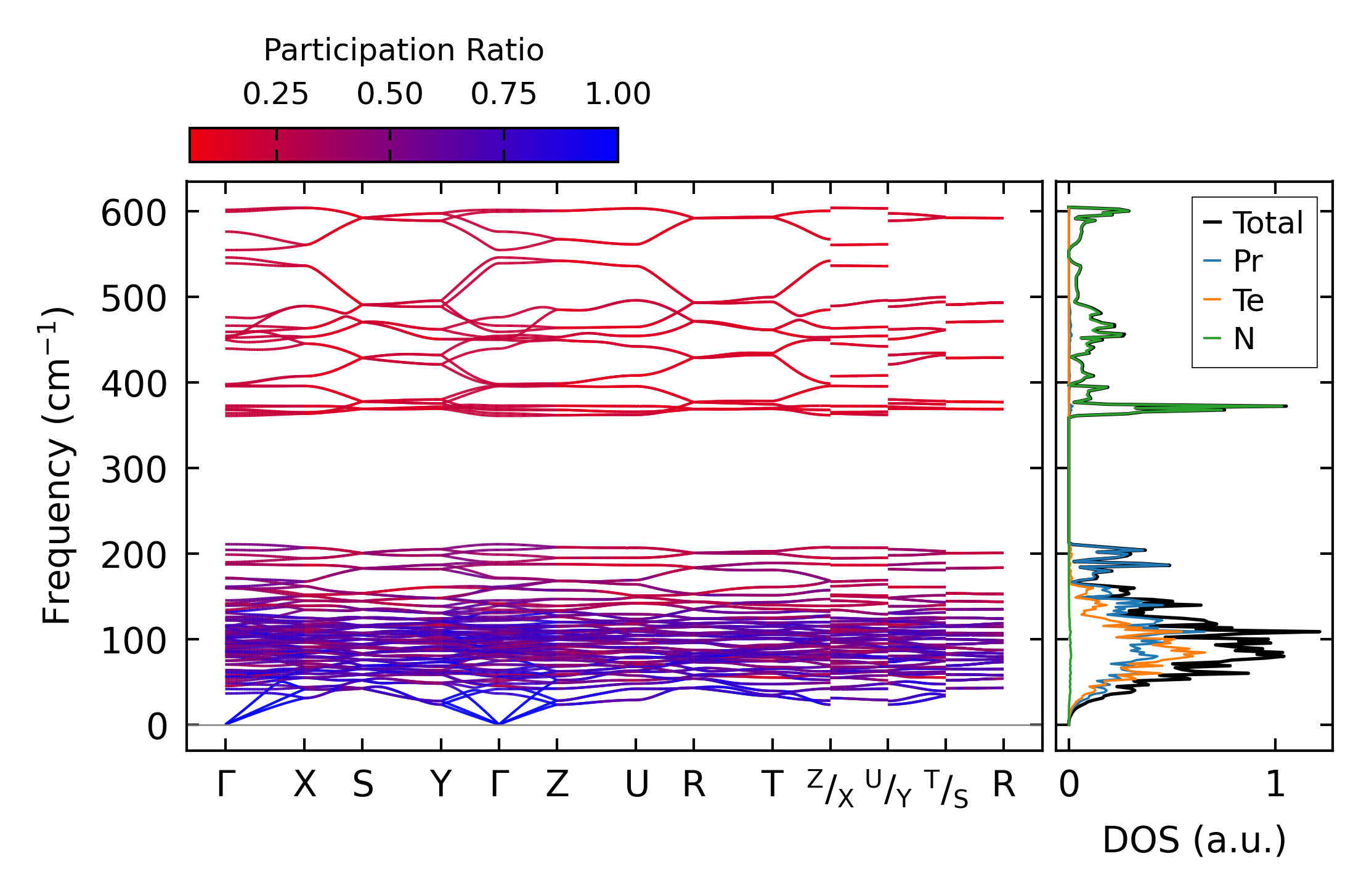

../../_images/fig_bandos_pr6845.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6845.png — (b) Thermodynamic properties

Grüneisen parameters

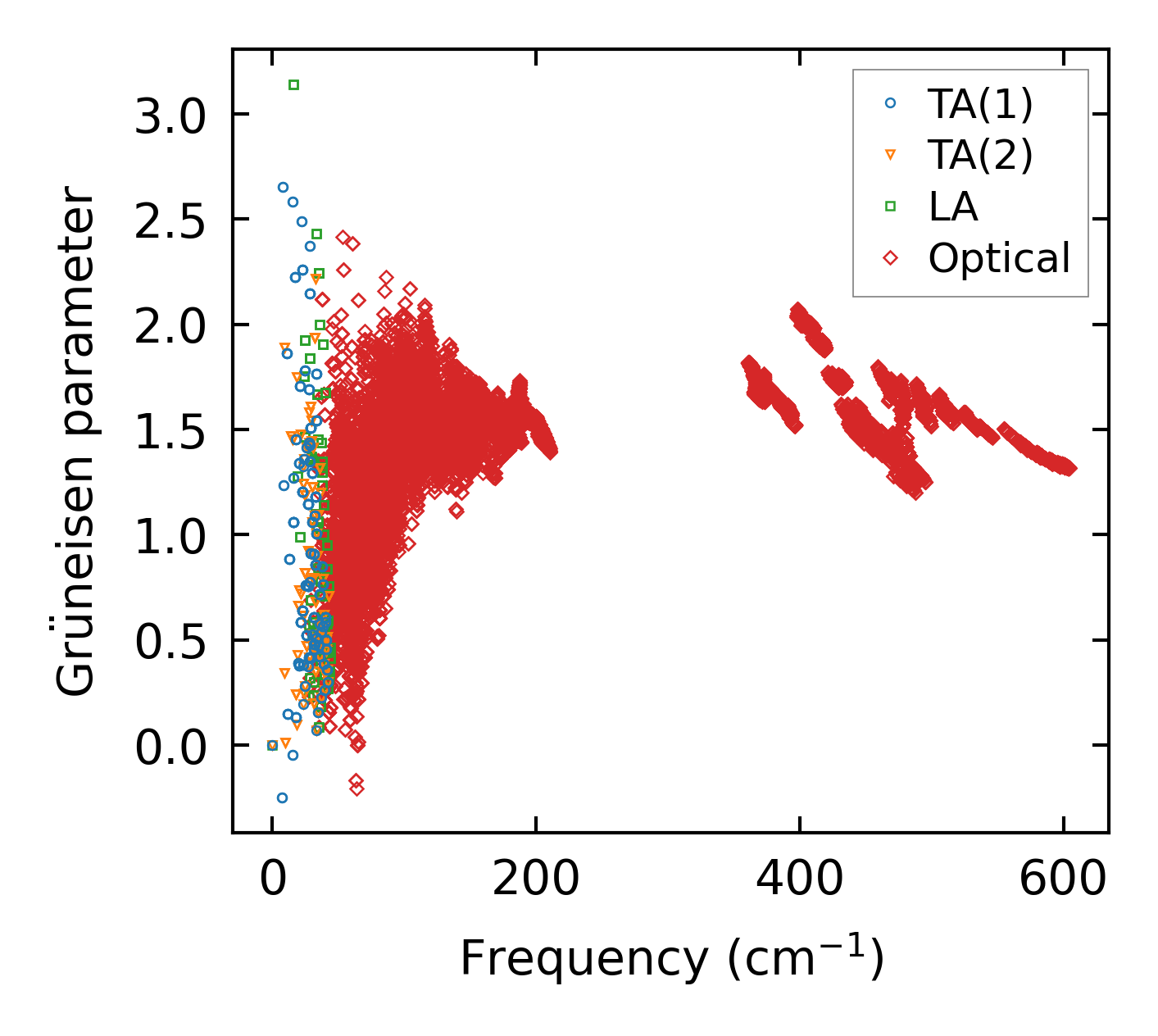

../../_images/fig_gru_all2818.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2818.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x6x6, supercell: 2x1x2

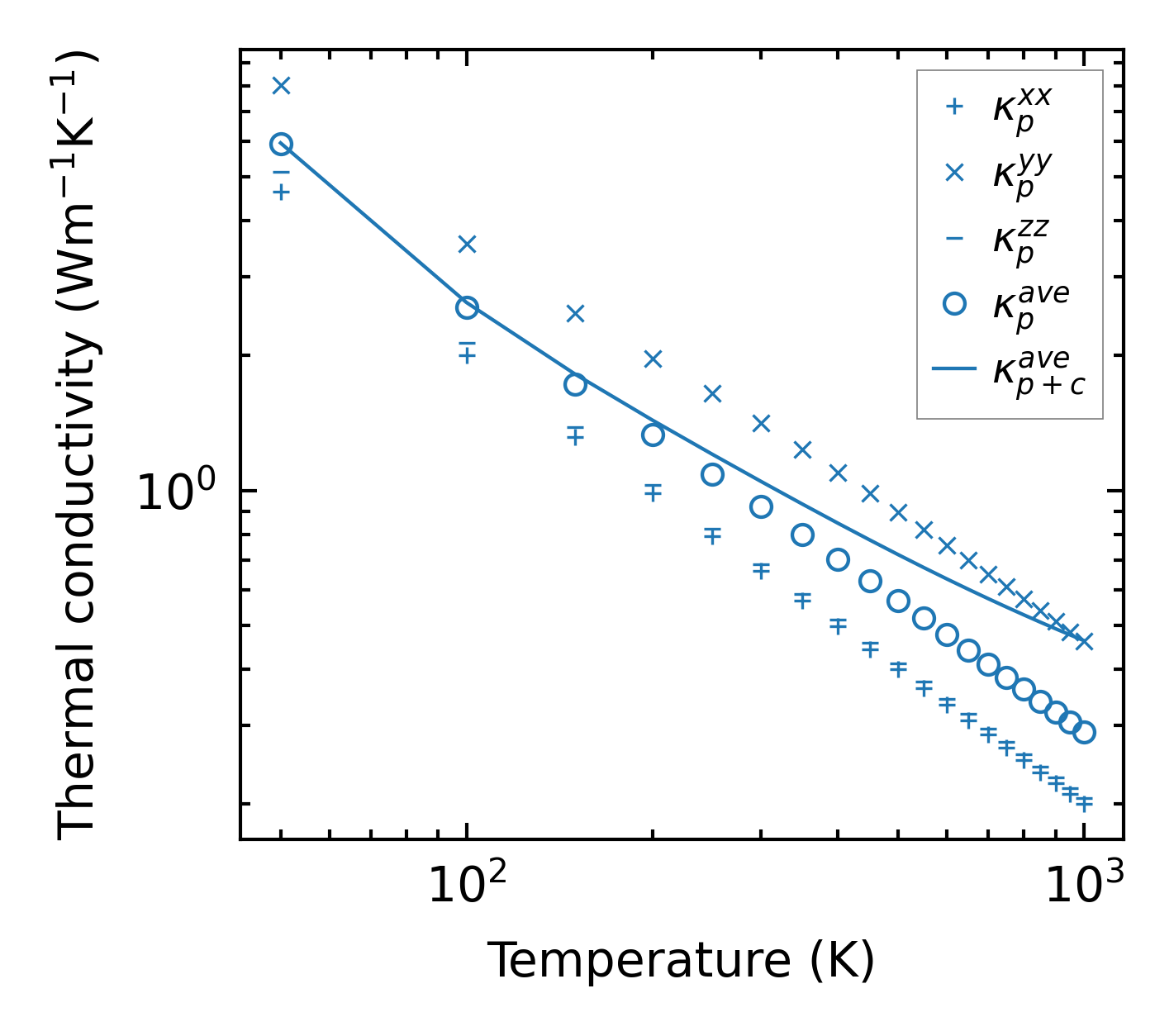

../../_images/fig_kappa5350.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2859.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2794.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2793.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

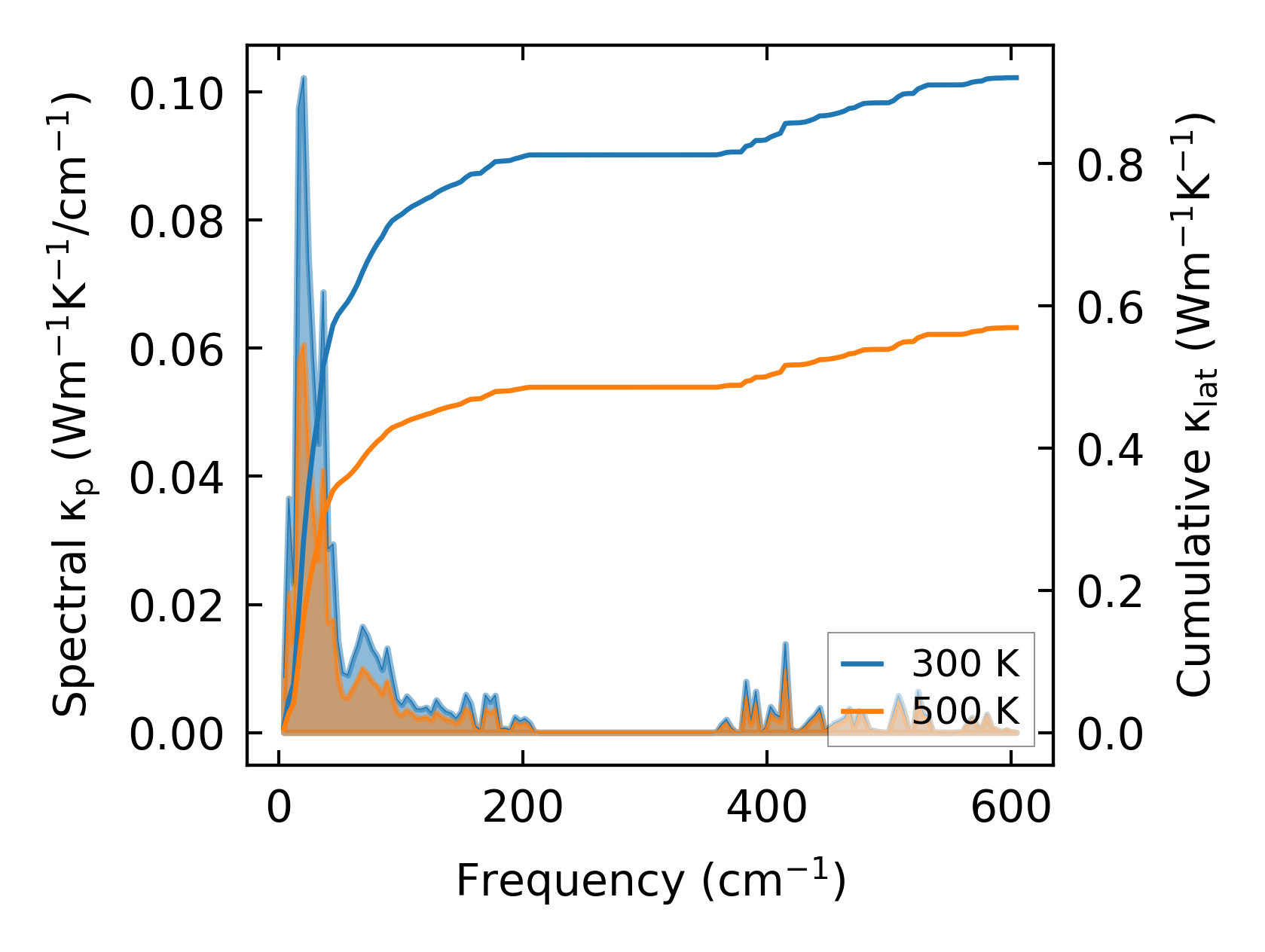

../../_images/fig_cumu_frequency2794.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

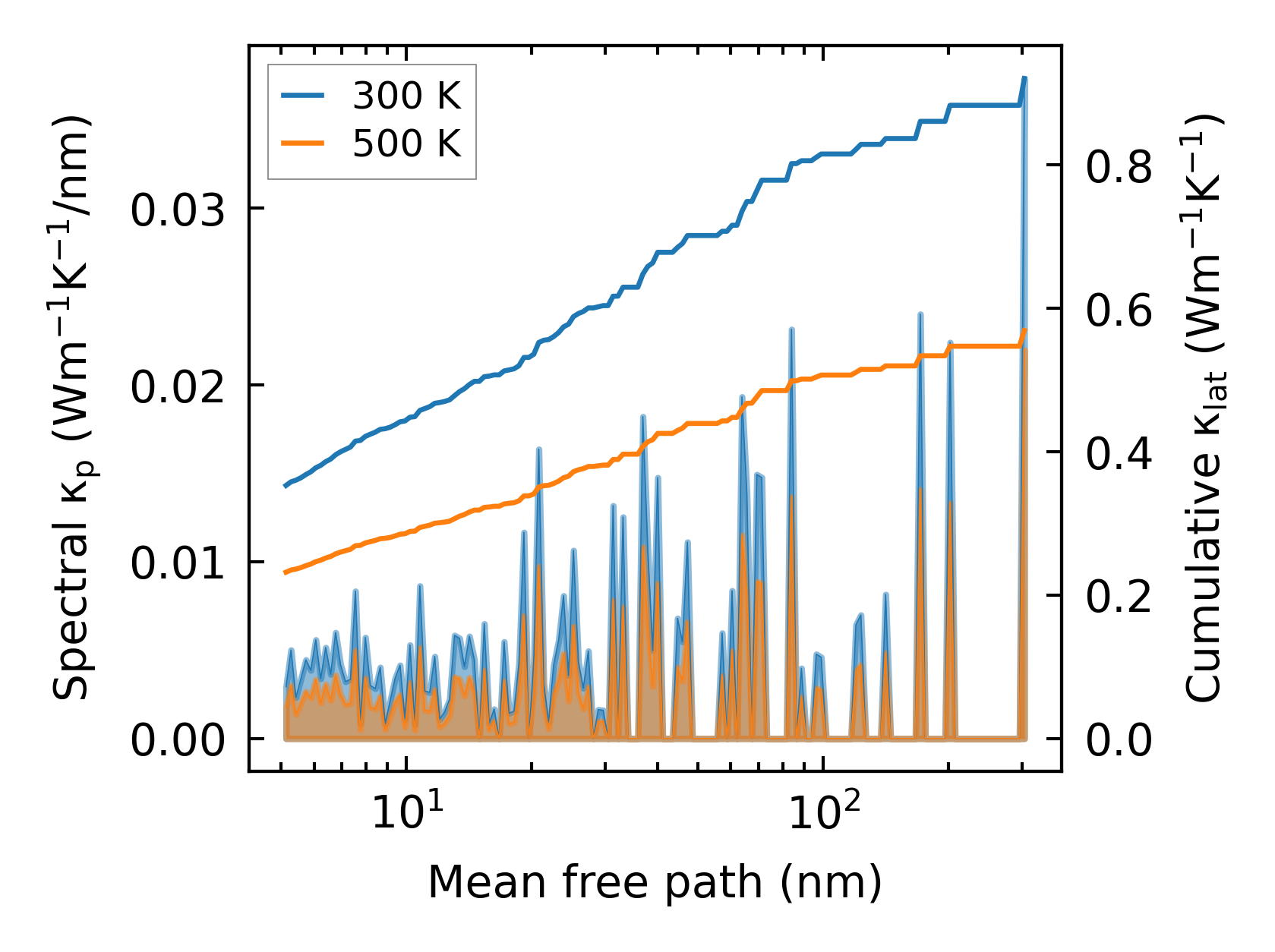

../../_images/fig_cumu_mfp2793.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

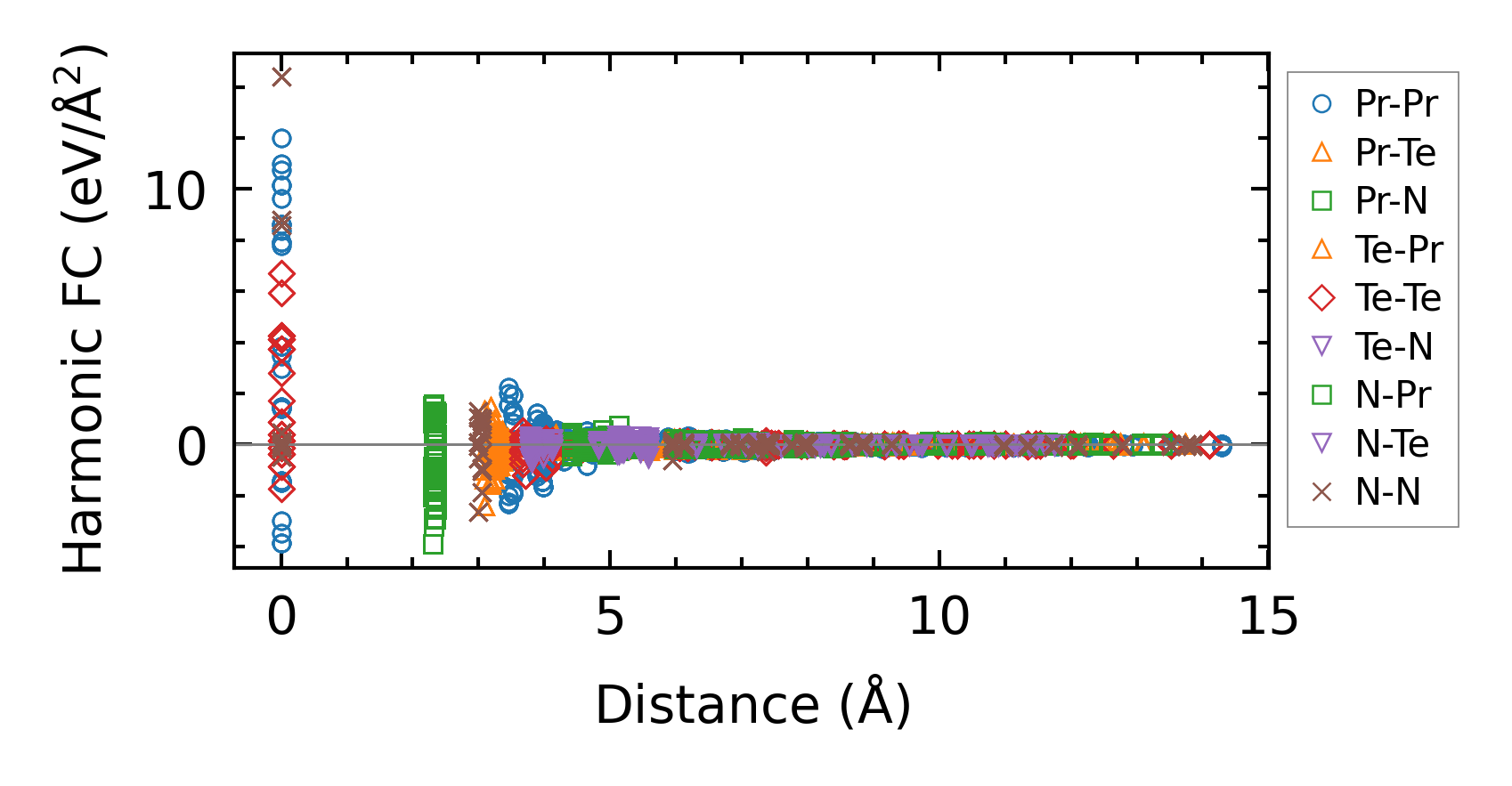

../../_images/fig_fc26629.png — (a) Force constants w.r.t atomic distance

Summary

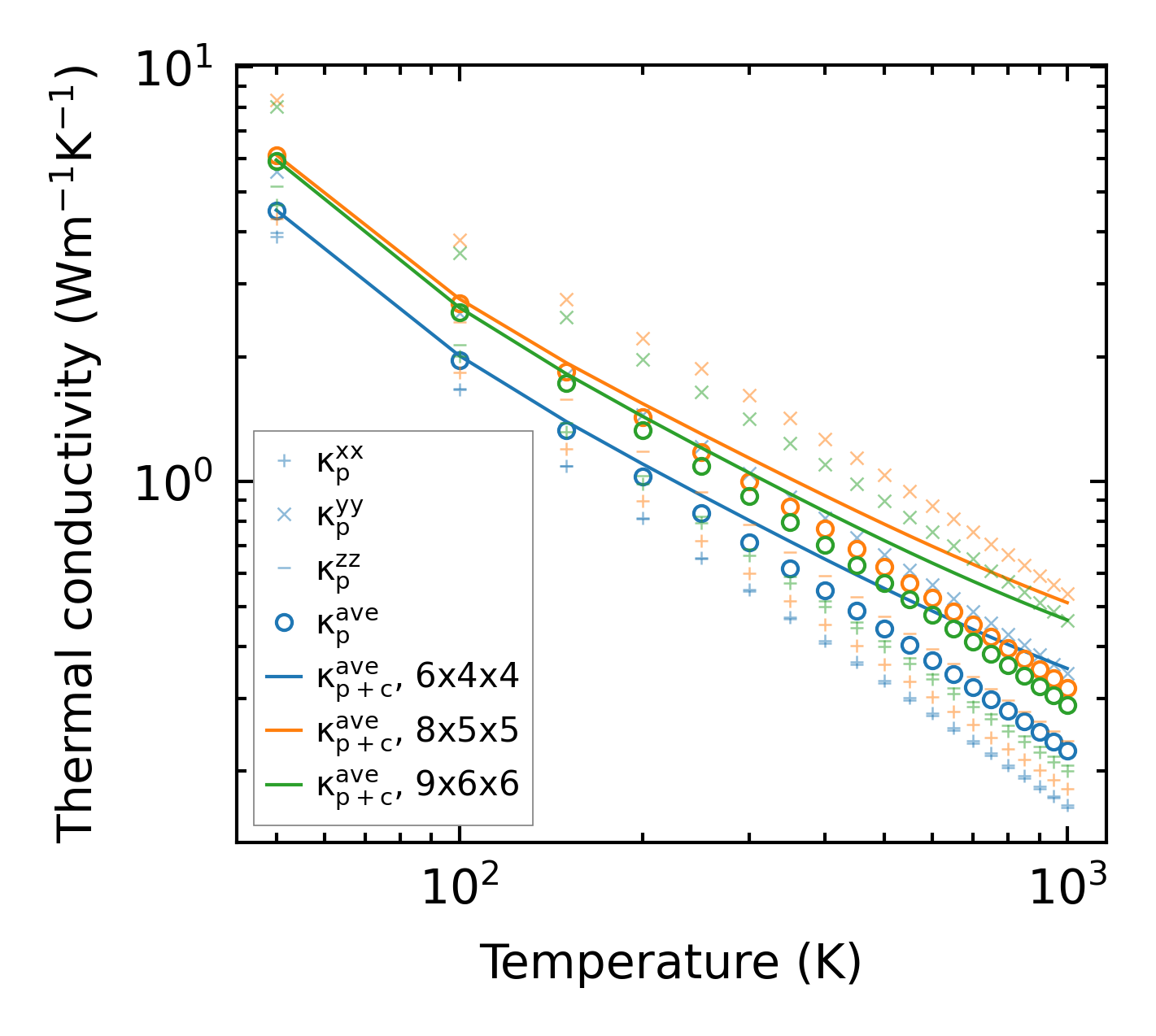

../../_images/fig_kappa5351.png — (a) Temperature-dependent lattice thermal conductivity

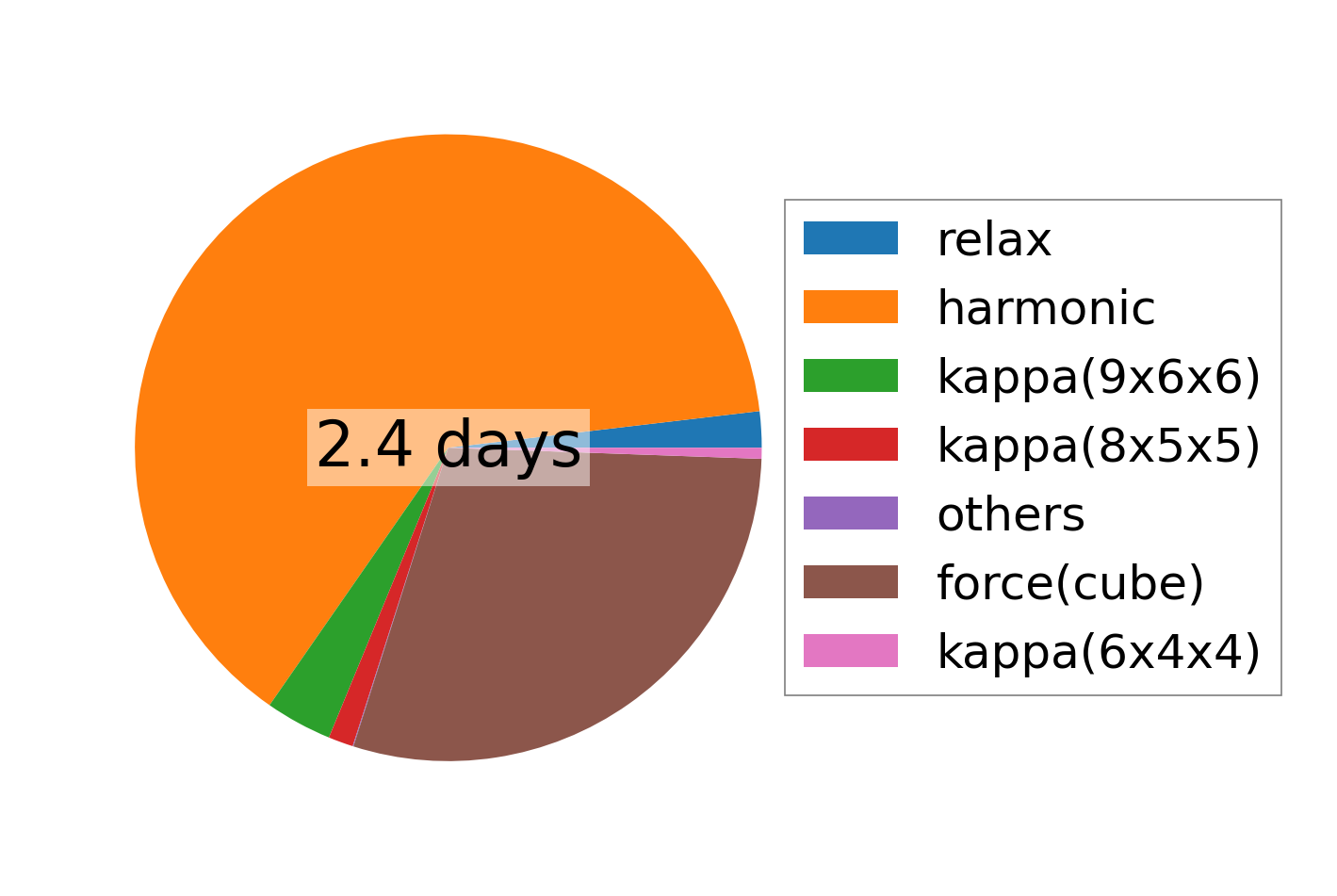

../../_images/fig_times12277.png — (b) Computation time
