mp-570747-2/N2/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-570747-2.tar.gz

Equation of state

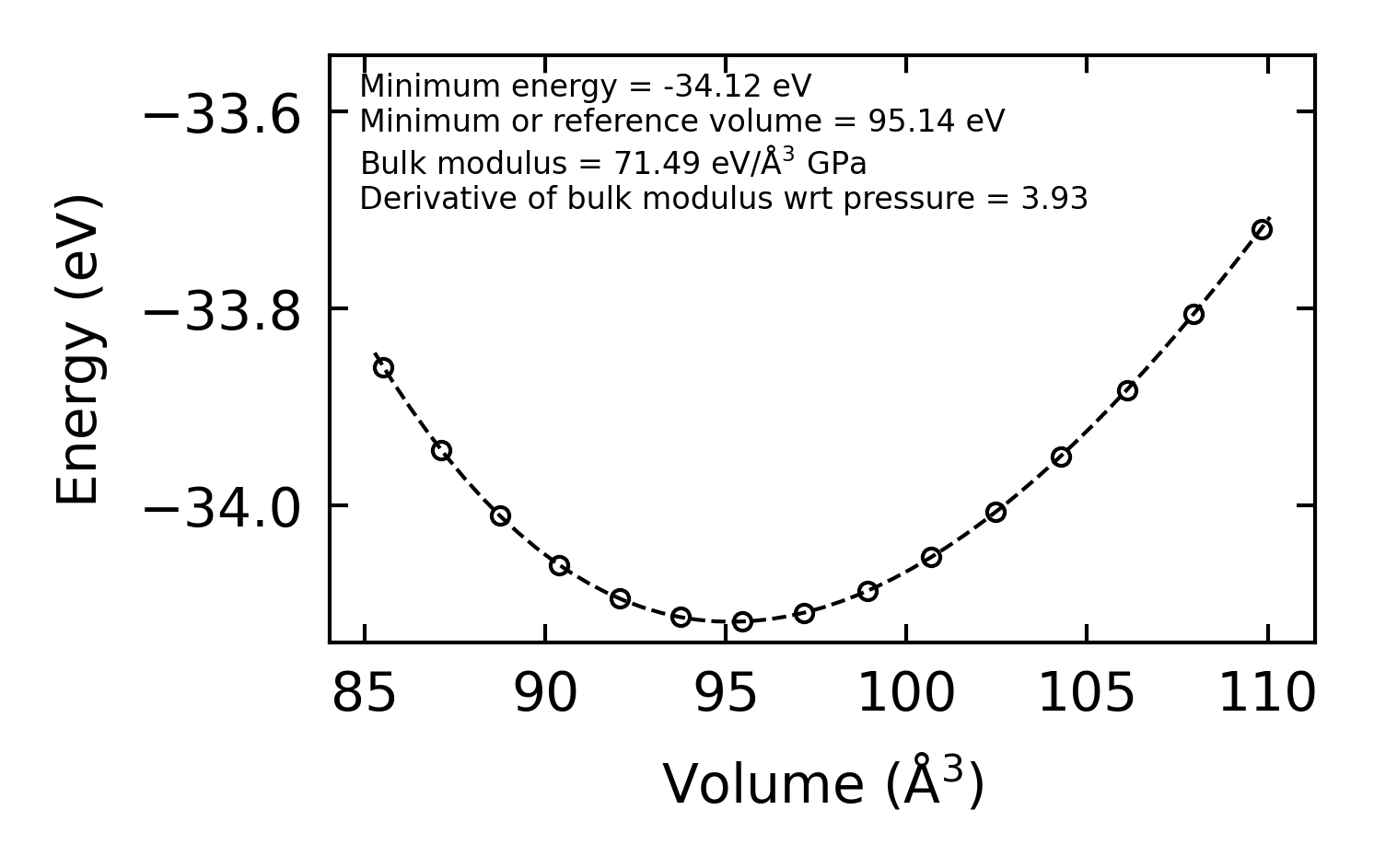

../../_images/fig_bm3670.png — (a) Equation of state

Harmonic properties

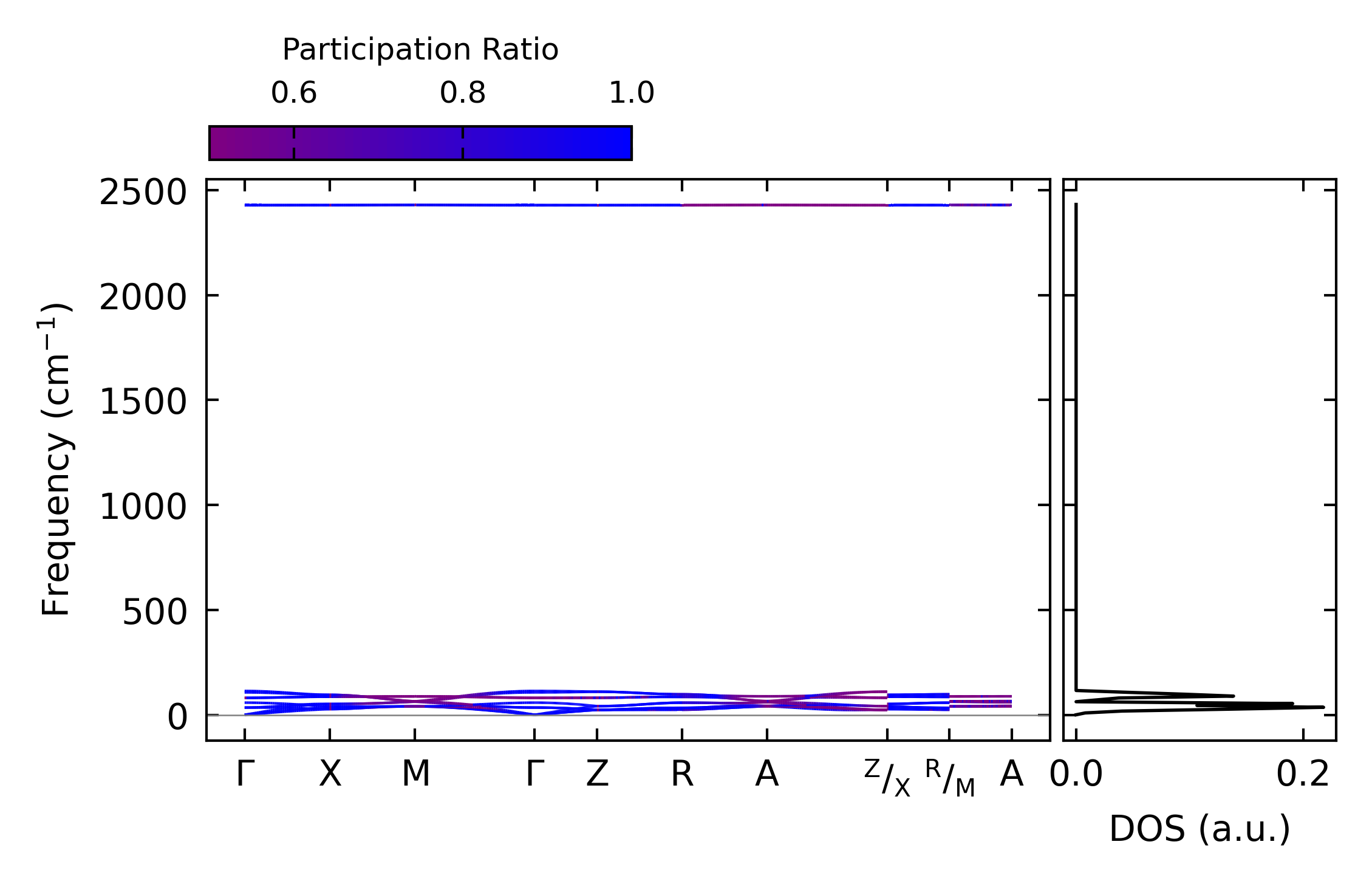

../../_images/fig_bandos_pr6854.png — (a) Phonon dispersion with participation ratio and DOS

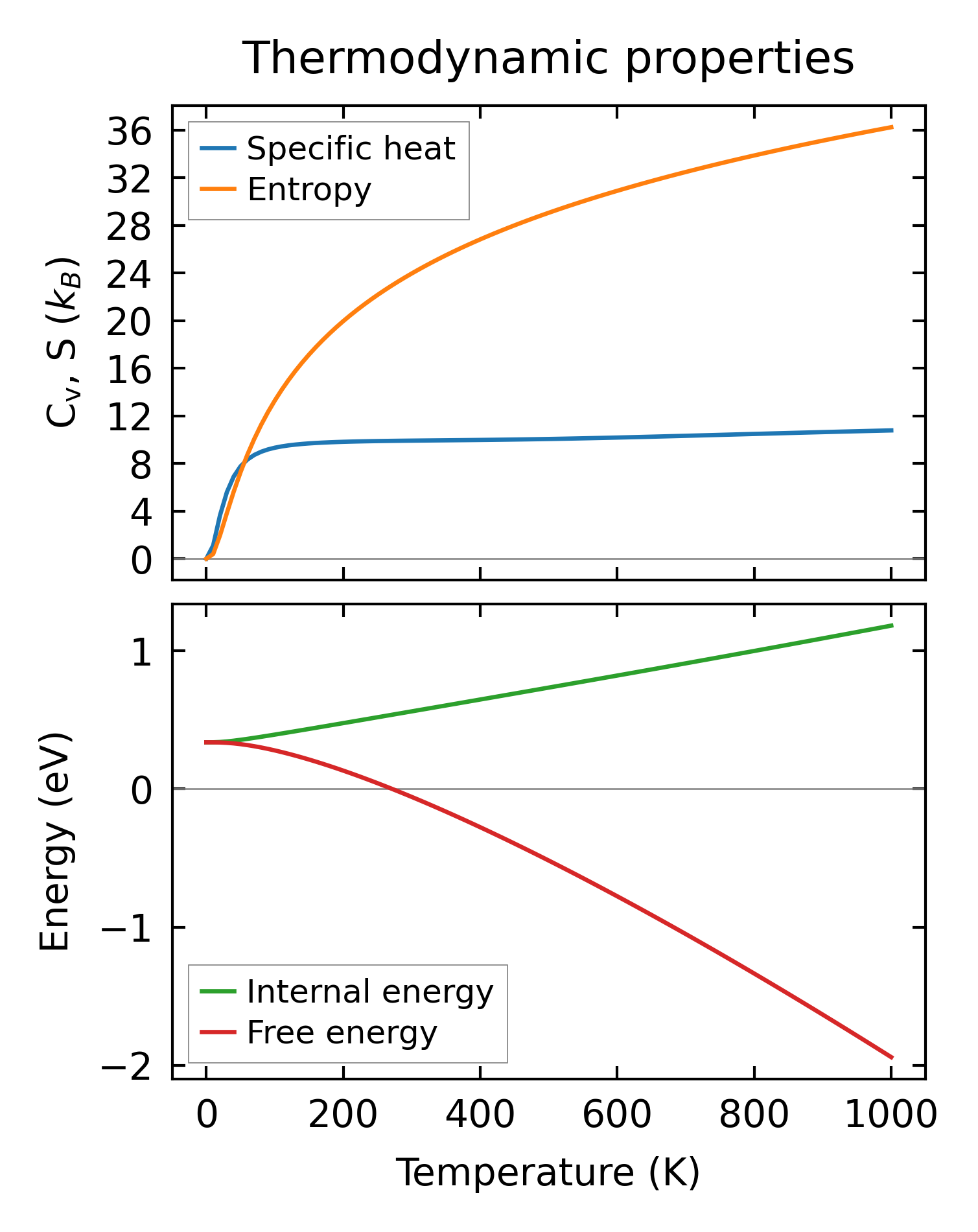

../../_images/fig_thermo6854.png — (b) Thermodynamic properties

Grüneisen parameters

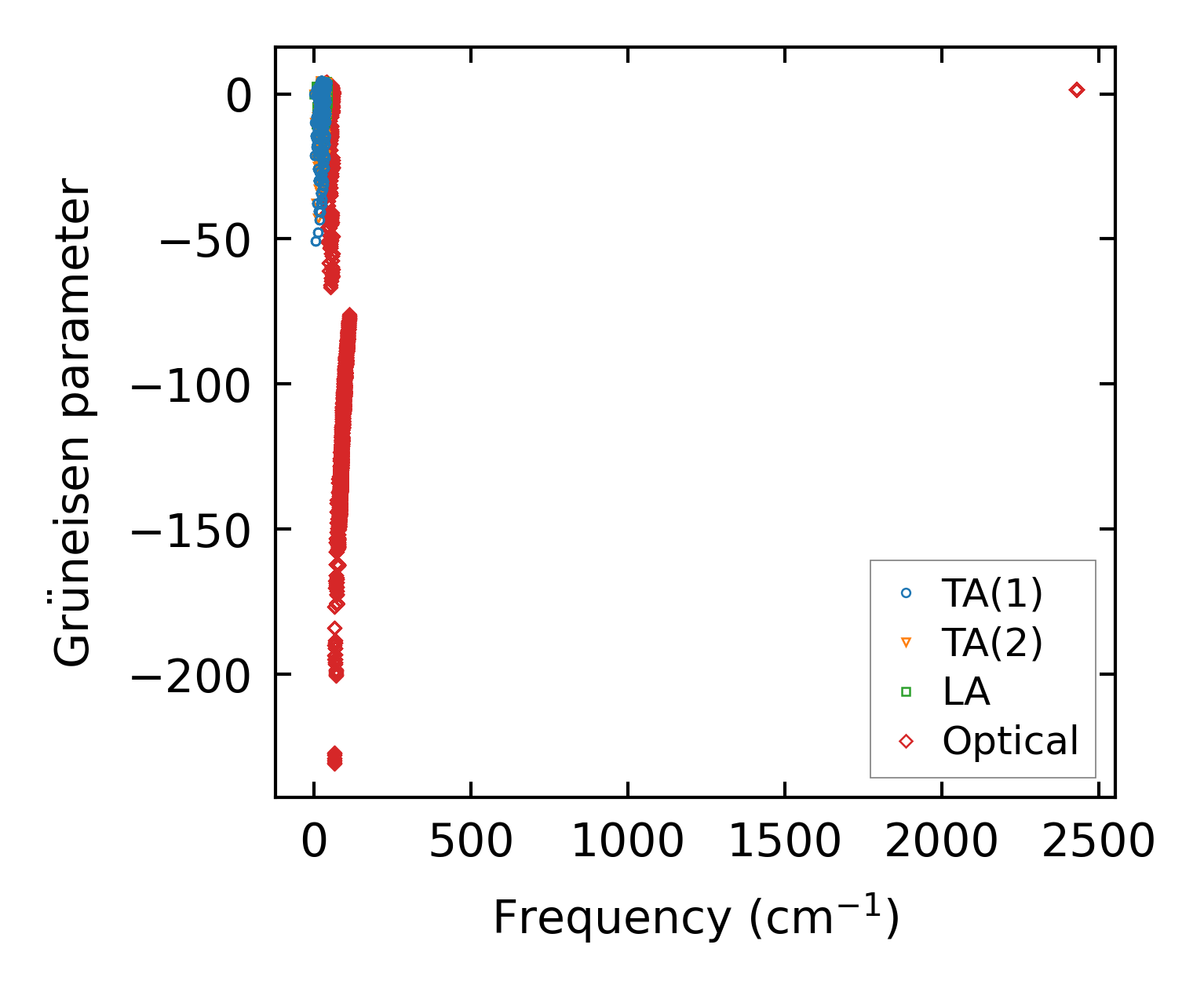

../../_images/fig_gru_all2824.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2824.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 17x17x12, supercell: 3x3x3

../../_images/fig_kappa5362.png — (a) Temperature-dependent lattice thermal conductivity

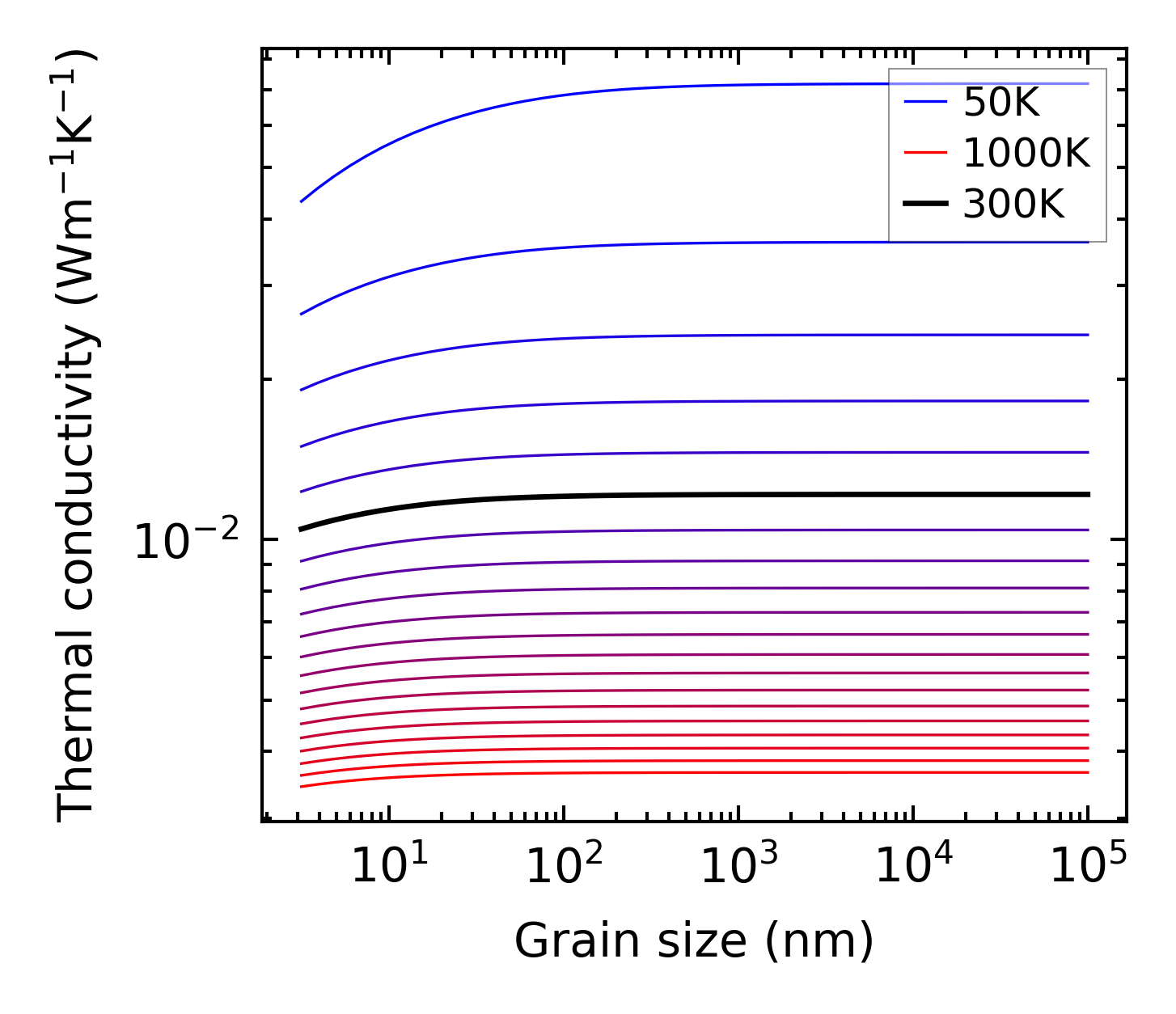

../../_images/fig_kappa_vs_grain_size2865.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

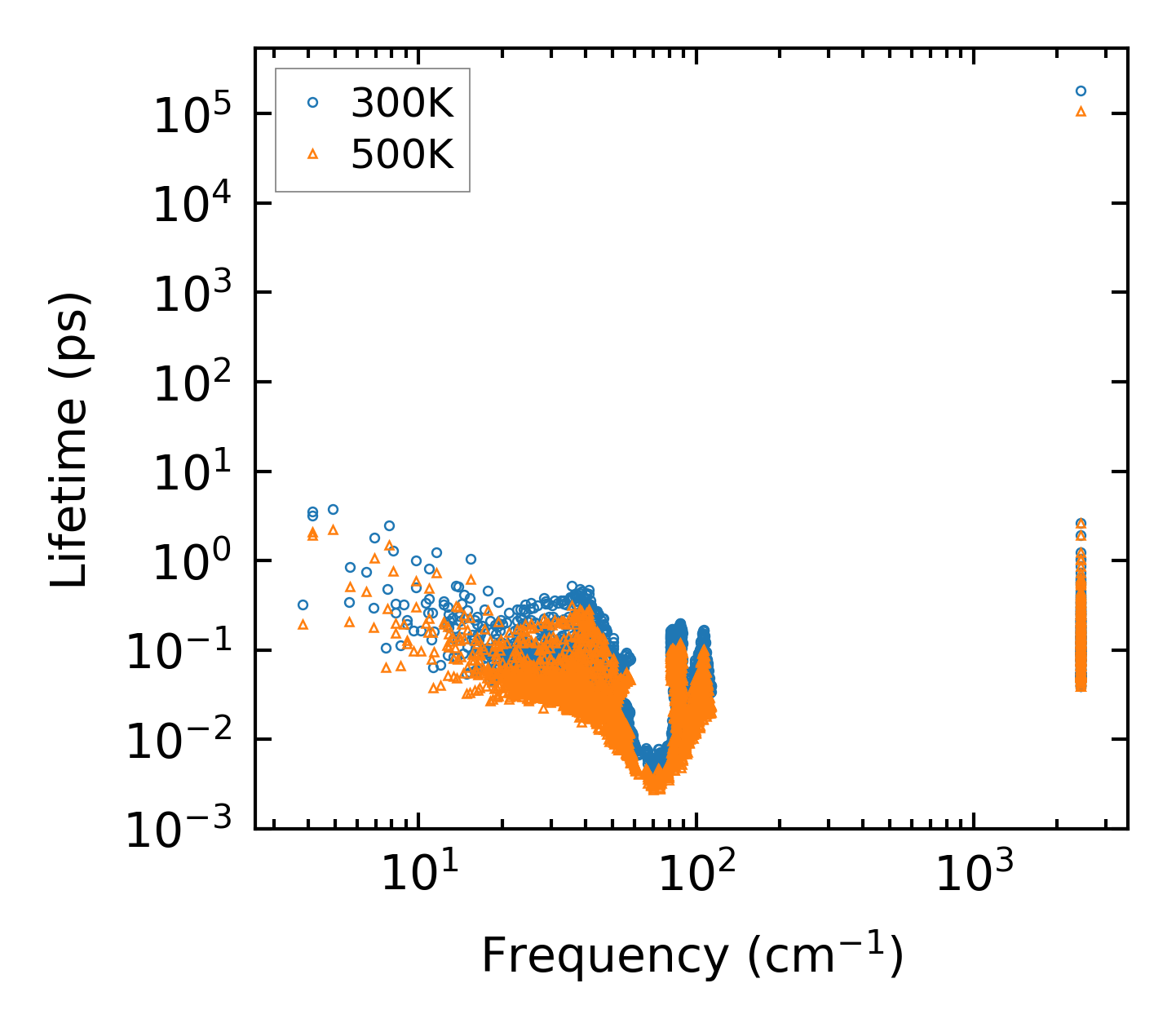

../../_images/fig_lifetime2800.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2799.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2800.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2799.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

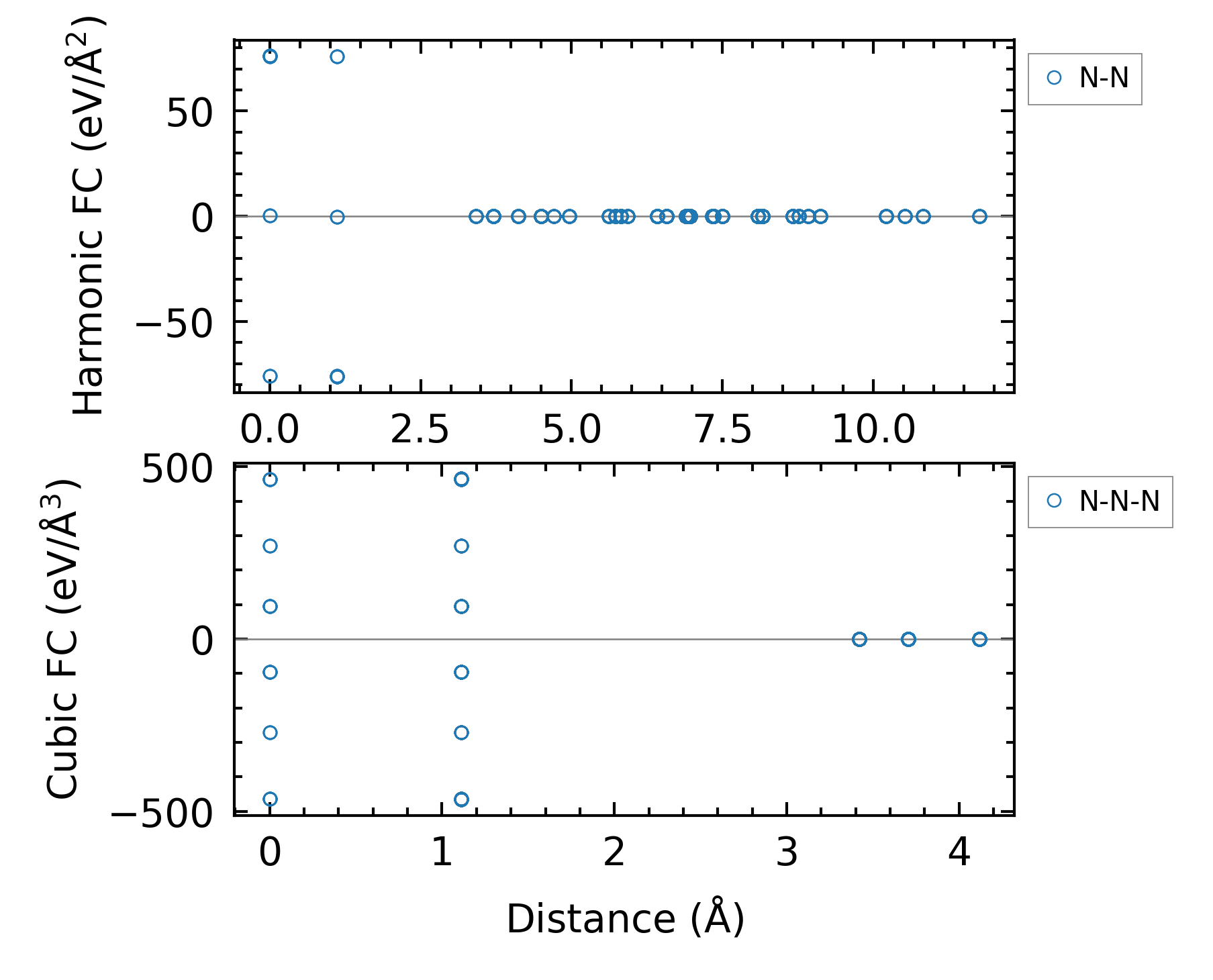

../../_images/fig_fc3216.png — (a) Force constants w.r.t atomic distance

Summary

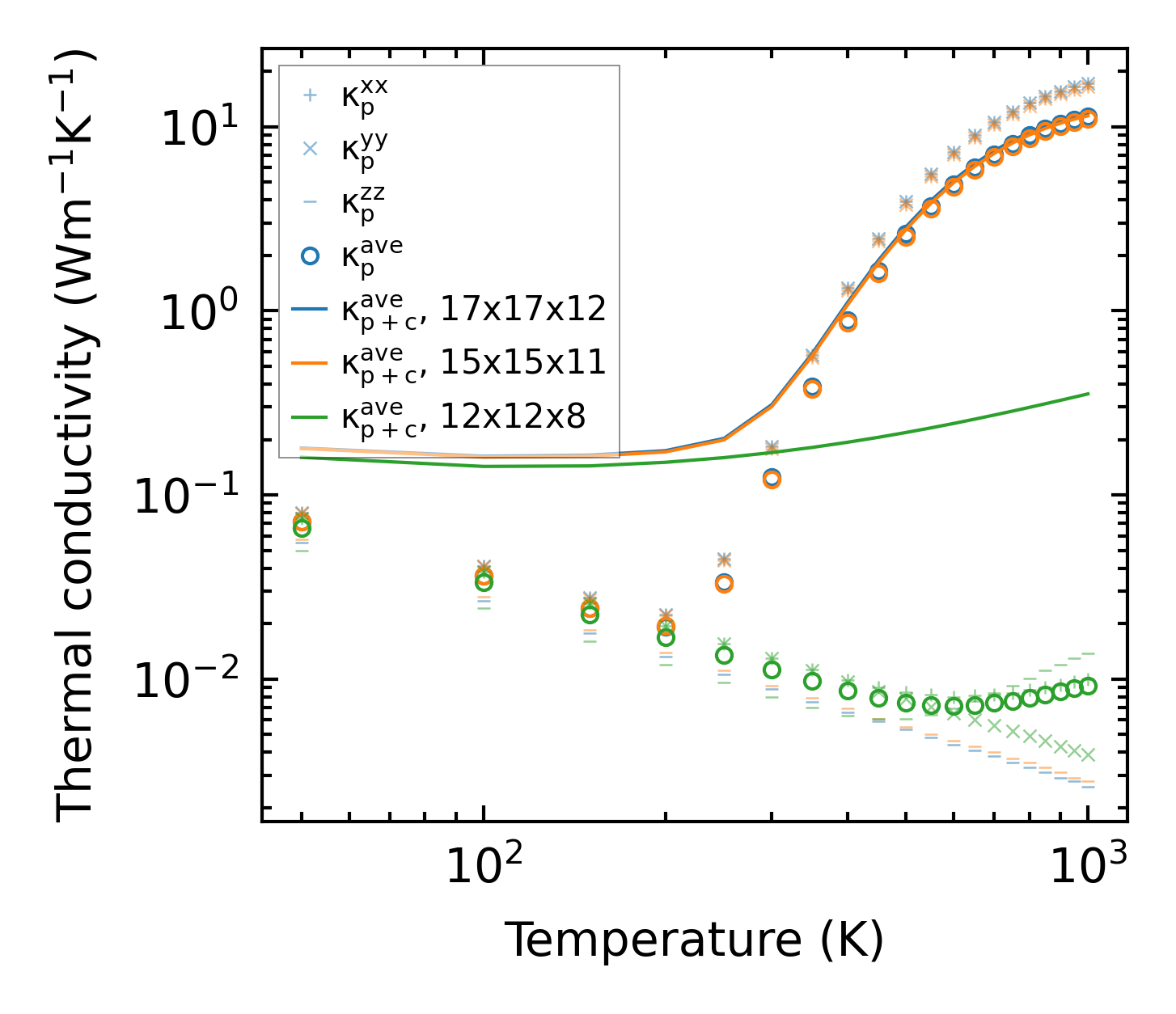

../../_images/fig_kappa5363.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12302.png — (b) Computation time
