mp-570370/SnPSe3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-570370.tar.gz

Harmonic properties

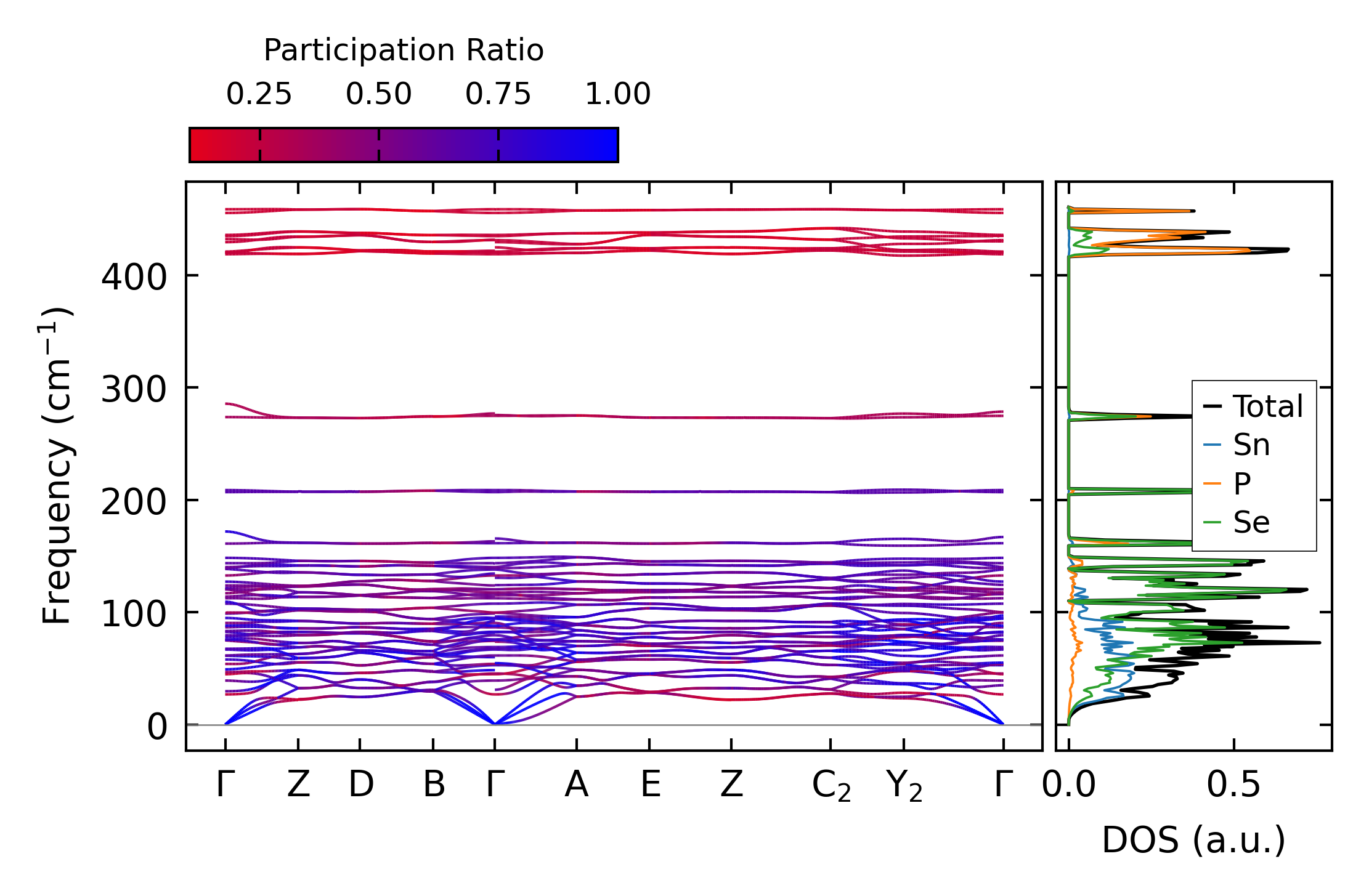

../../_images/fig_bandos_pr6801.png — (a) Phonon dispersion with participation ratio and DOS

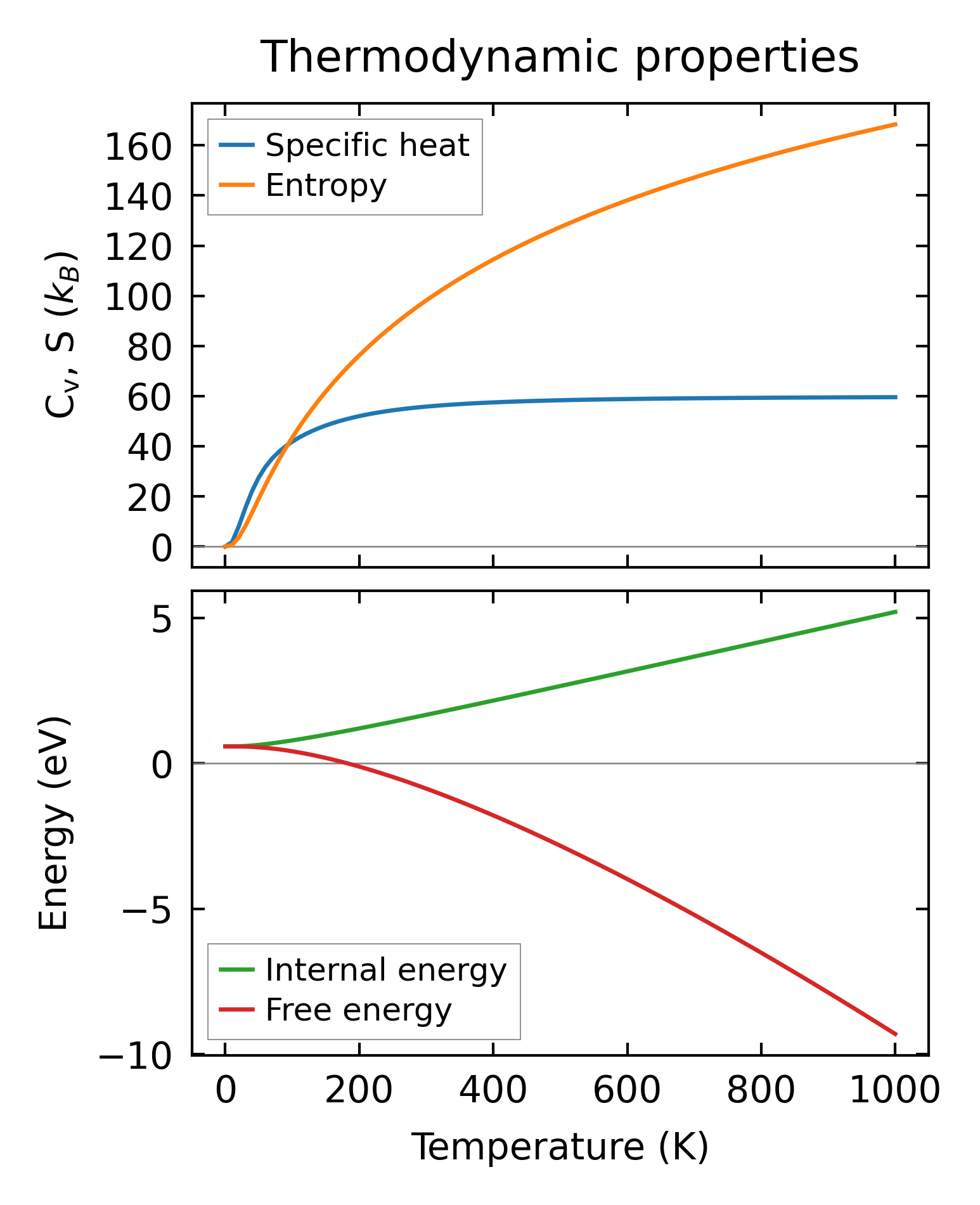

../../_images/fig_thermo6801.png — (b) Thermodynamic properties

Grüneisen parameters

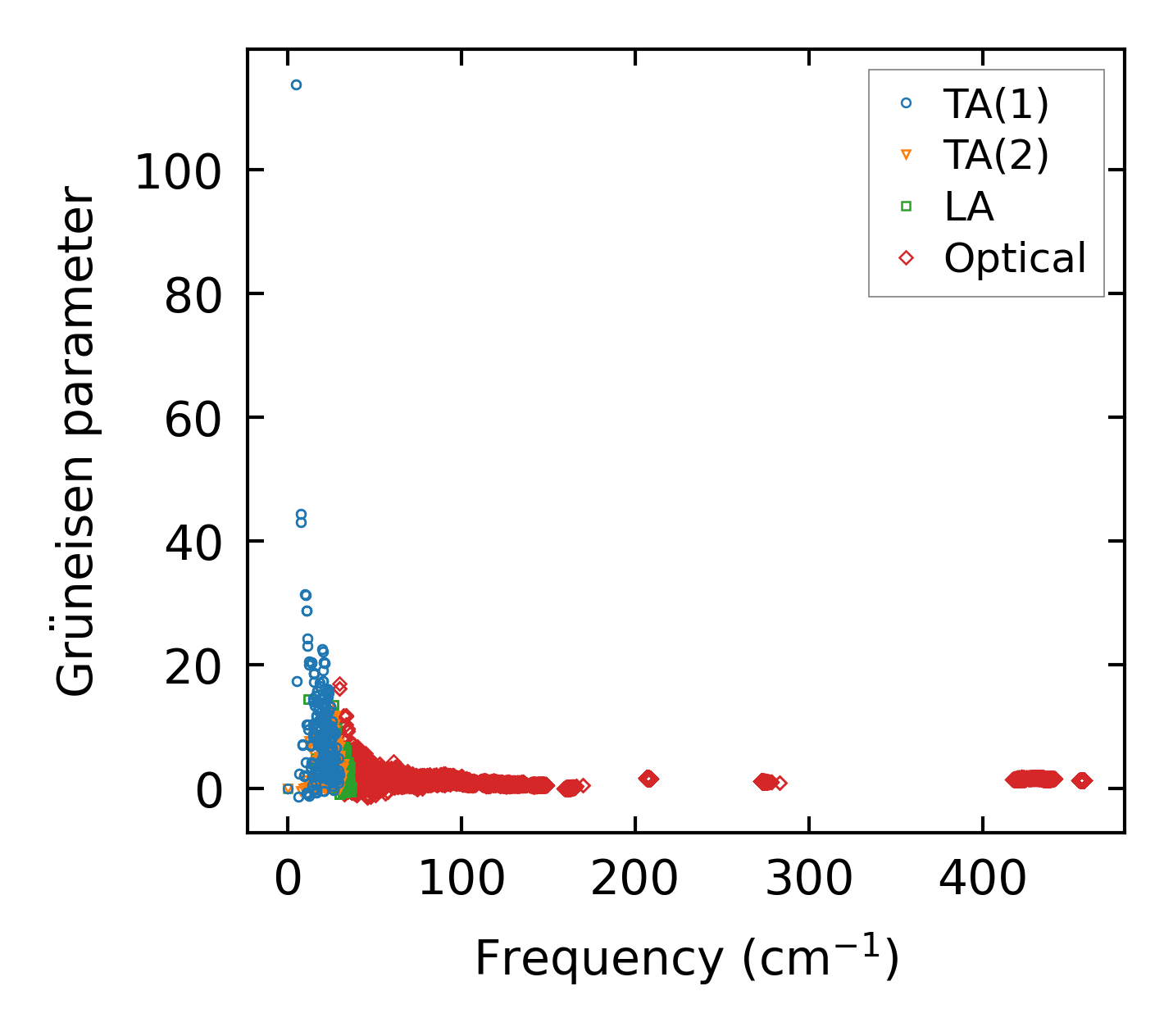

../../_images/fig_gru_all2794.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2794.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x10x6, supercell: 2x2x1

../../_images/fig_kappa5308.png — (a) Temperature-dependent lattice thermal conductivity

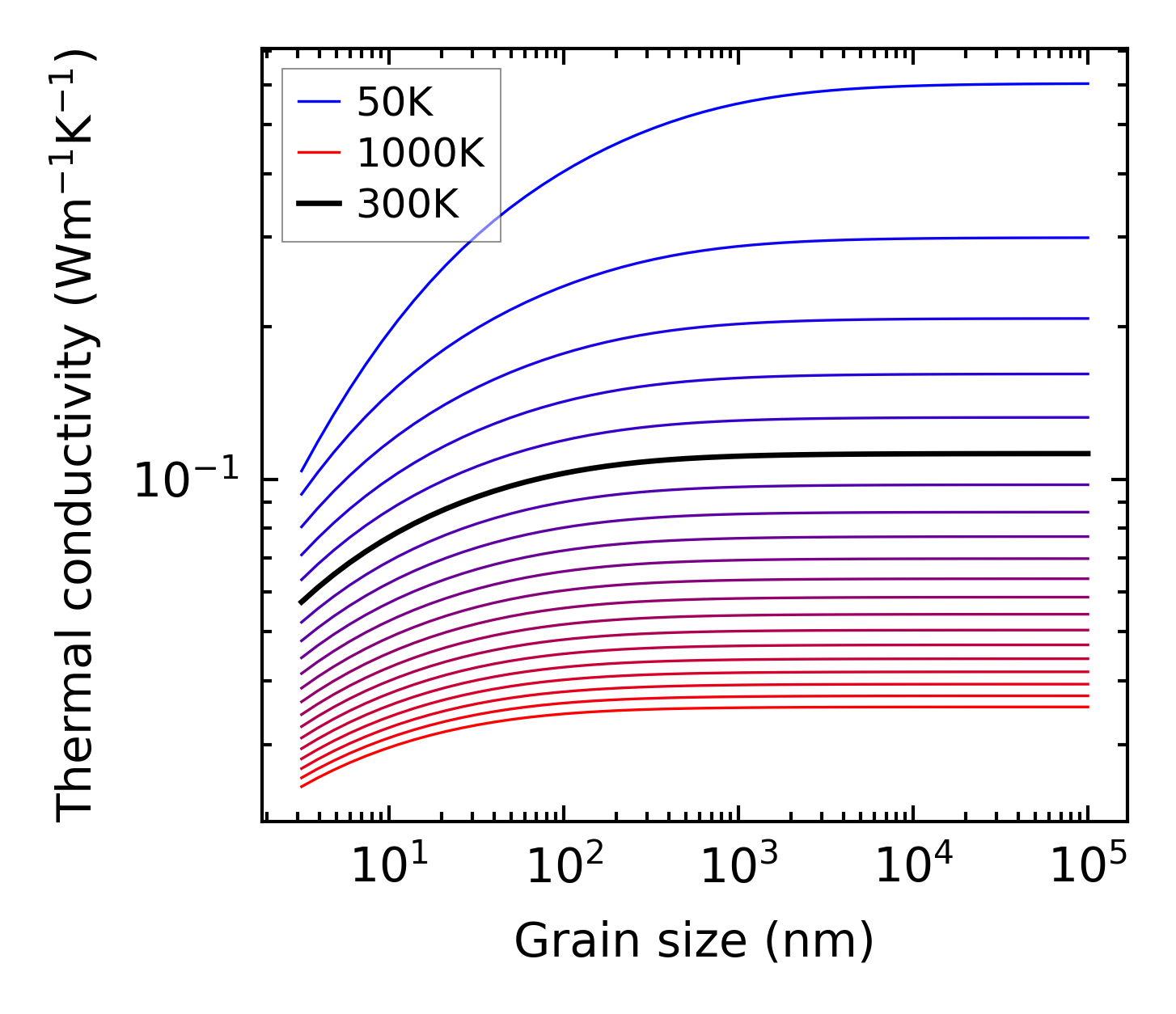

../../_images/fig_kappa_vs_grain_size2835.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

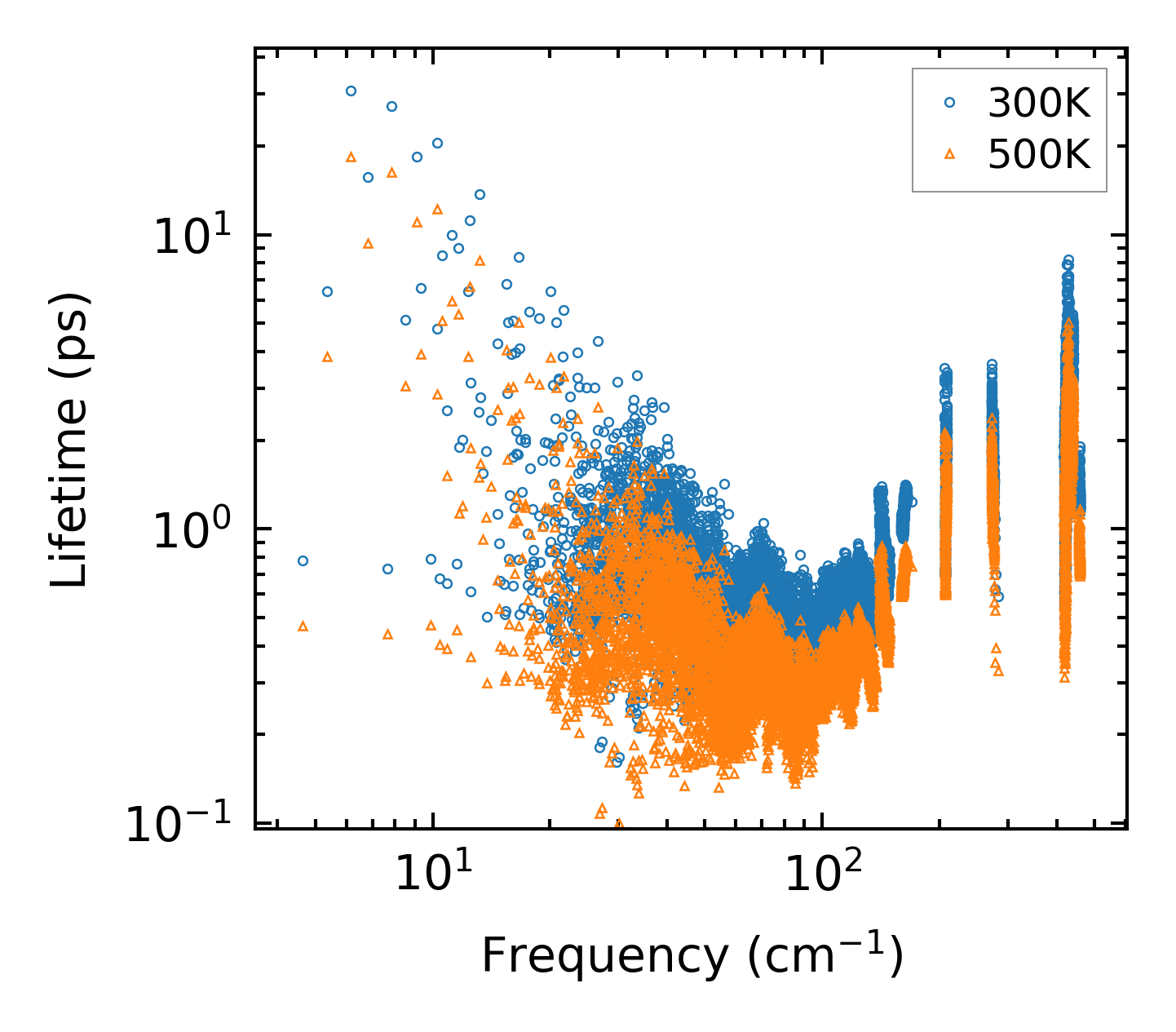

../../_images/fig_lifetime2770.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2769.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

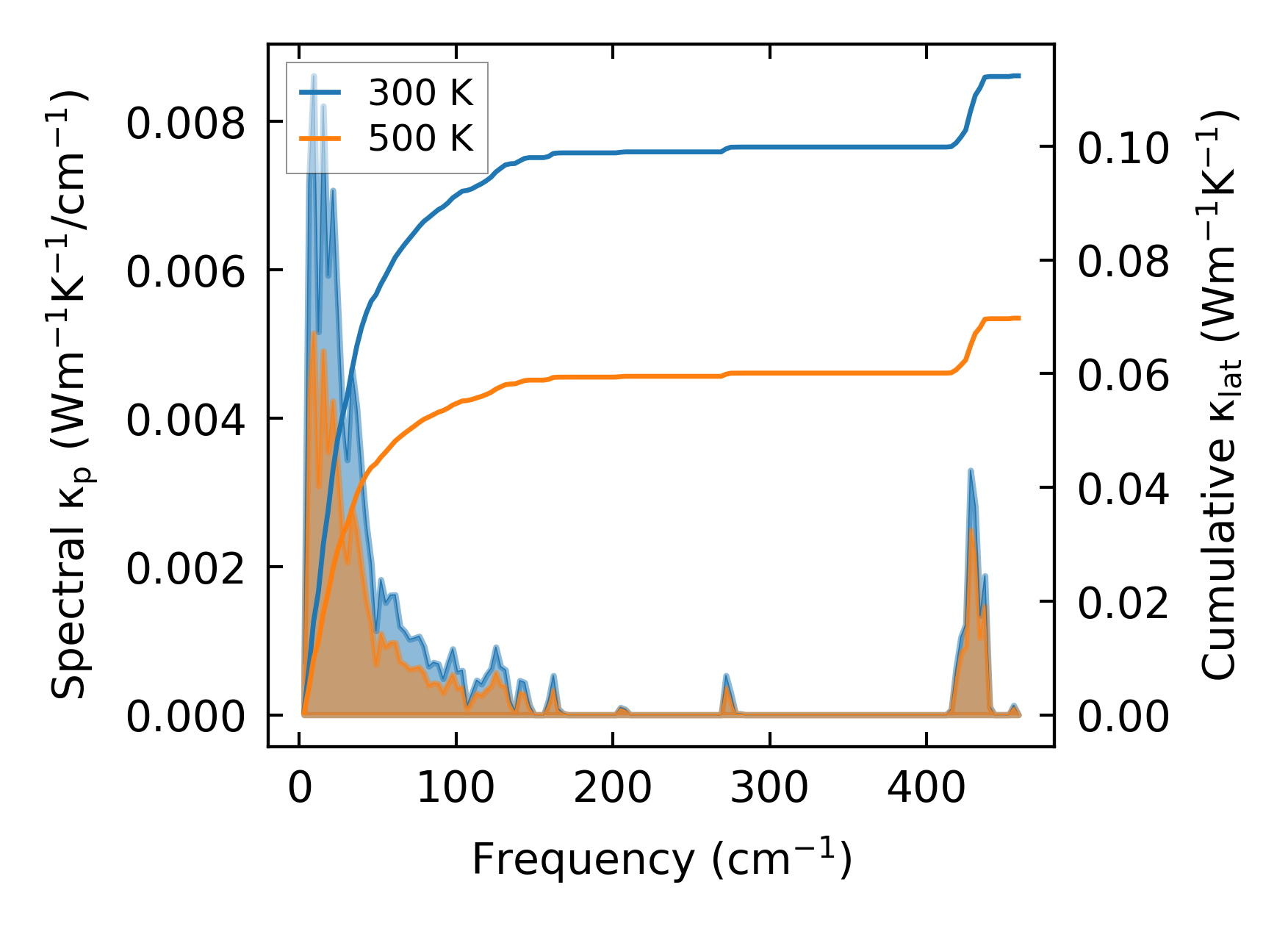

../../_images/fig_cumu_frequency2770.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

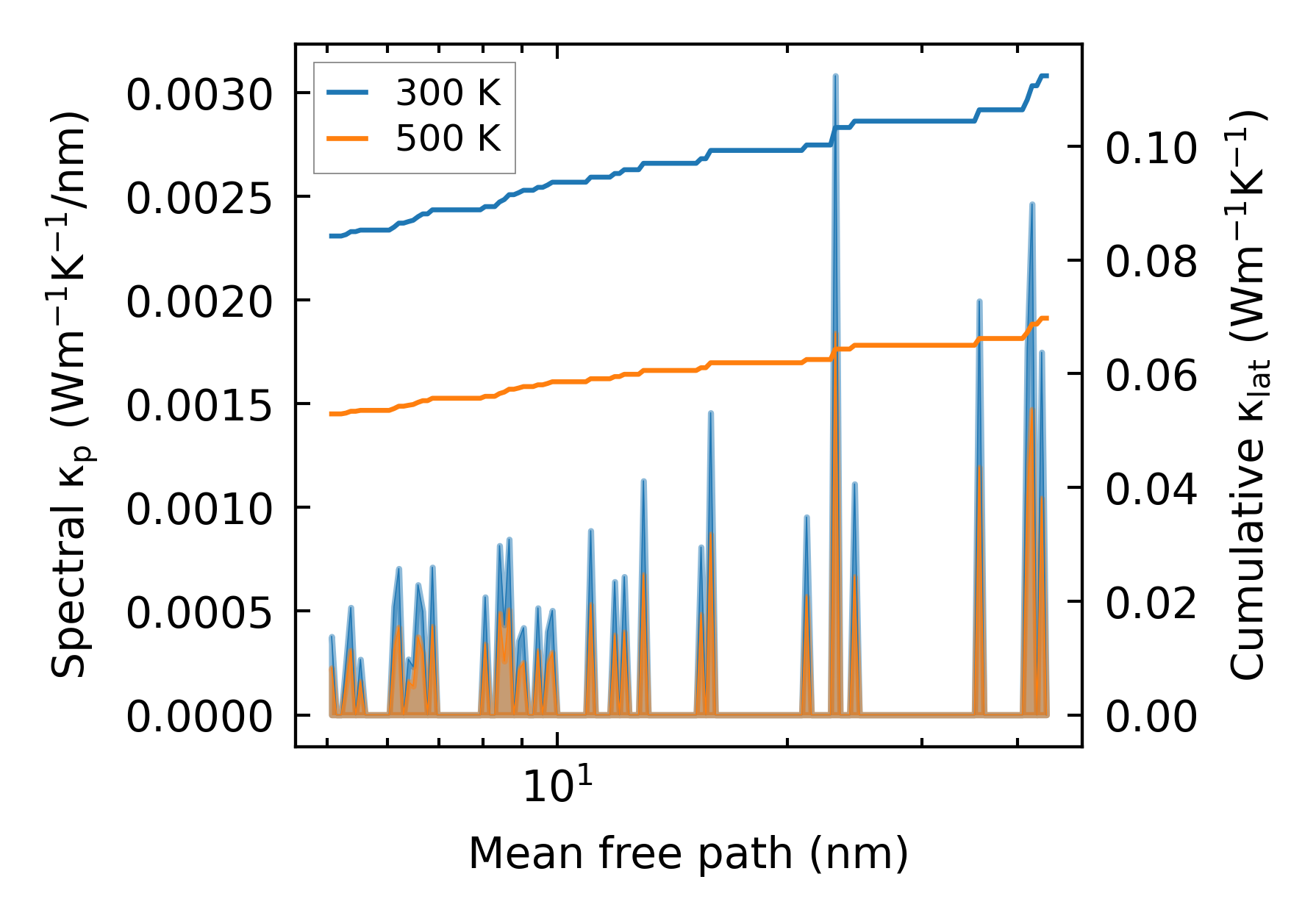

../../_images/fig_cumu_mfp2769.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26588.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5309.png — (a) Temperature-dependent lattice thermal conductivity

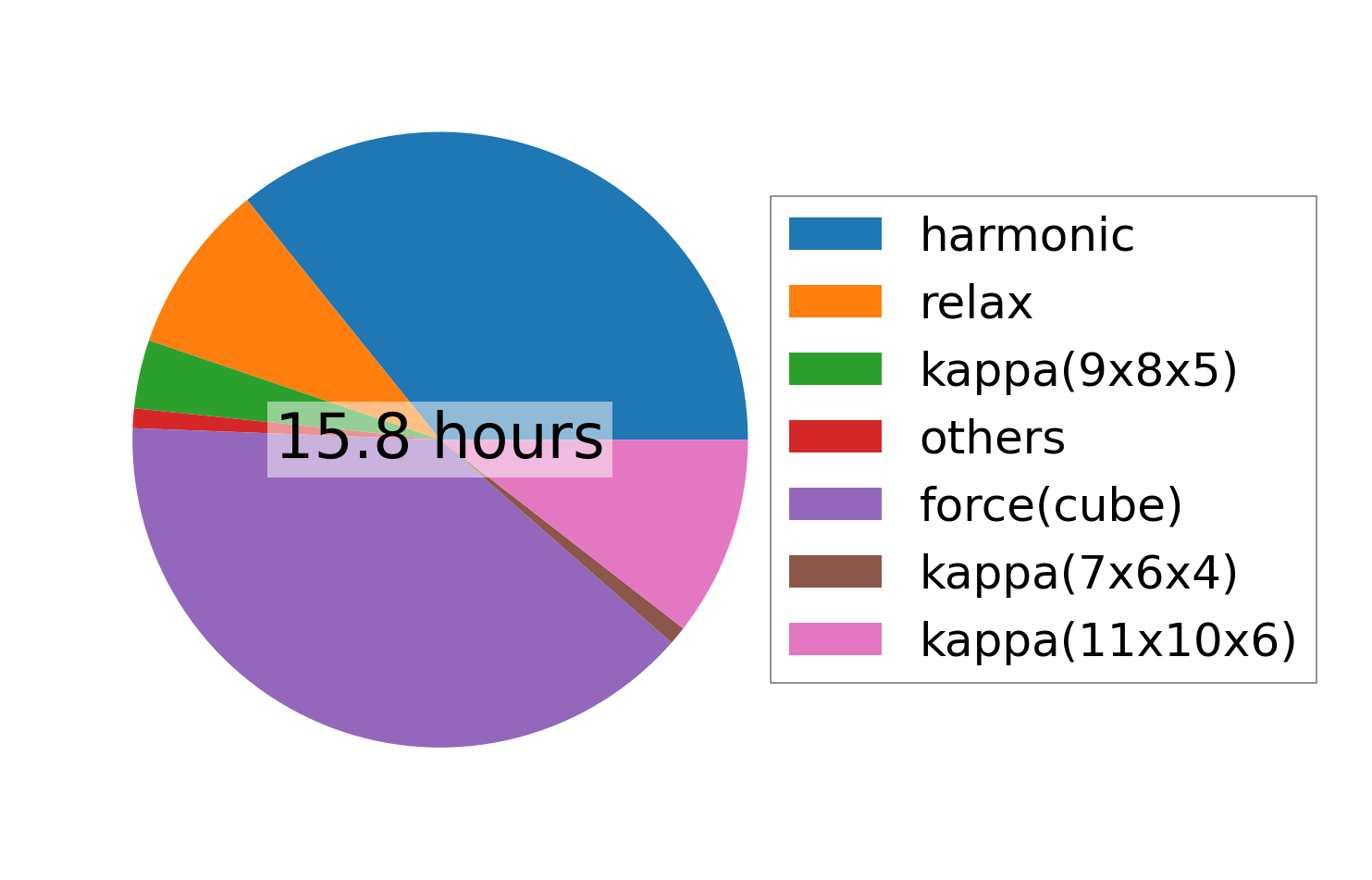

../../_images/fig_times12206.png — (b) Computation time
