mp-570553-2/FeP4/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-570553-2.tar.gz

Equation of state

../../_images/fig_bm3651.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr6826.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6826.png — (b) Thermodynamic properties

Grüneisen parameters

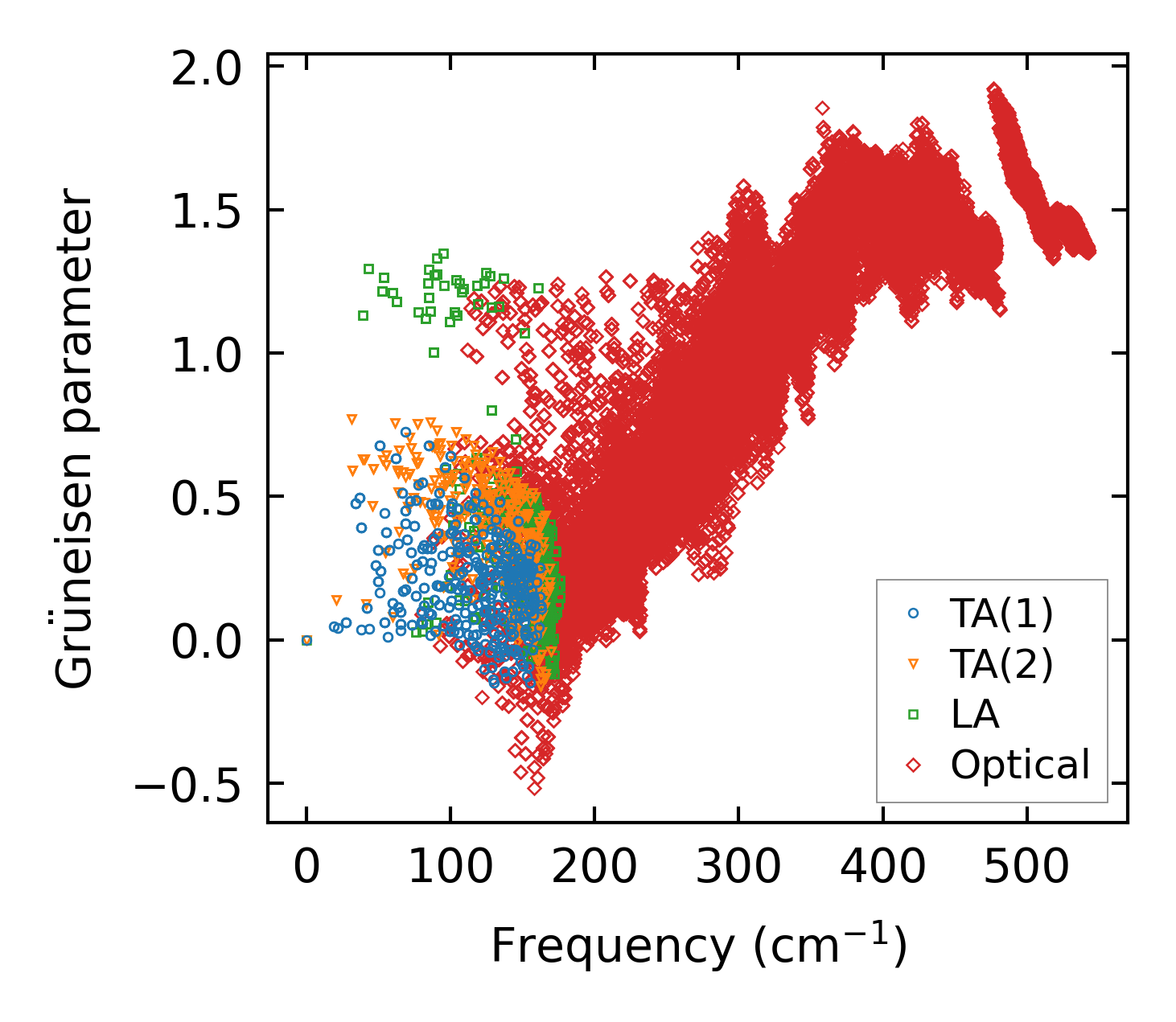

../../_images/fig_gru_all2810.png — (a) Grüneisen parameters

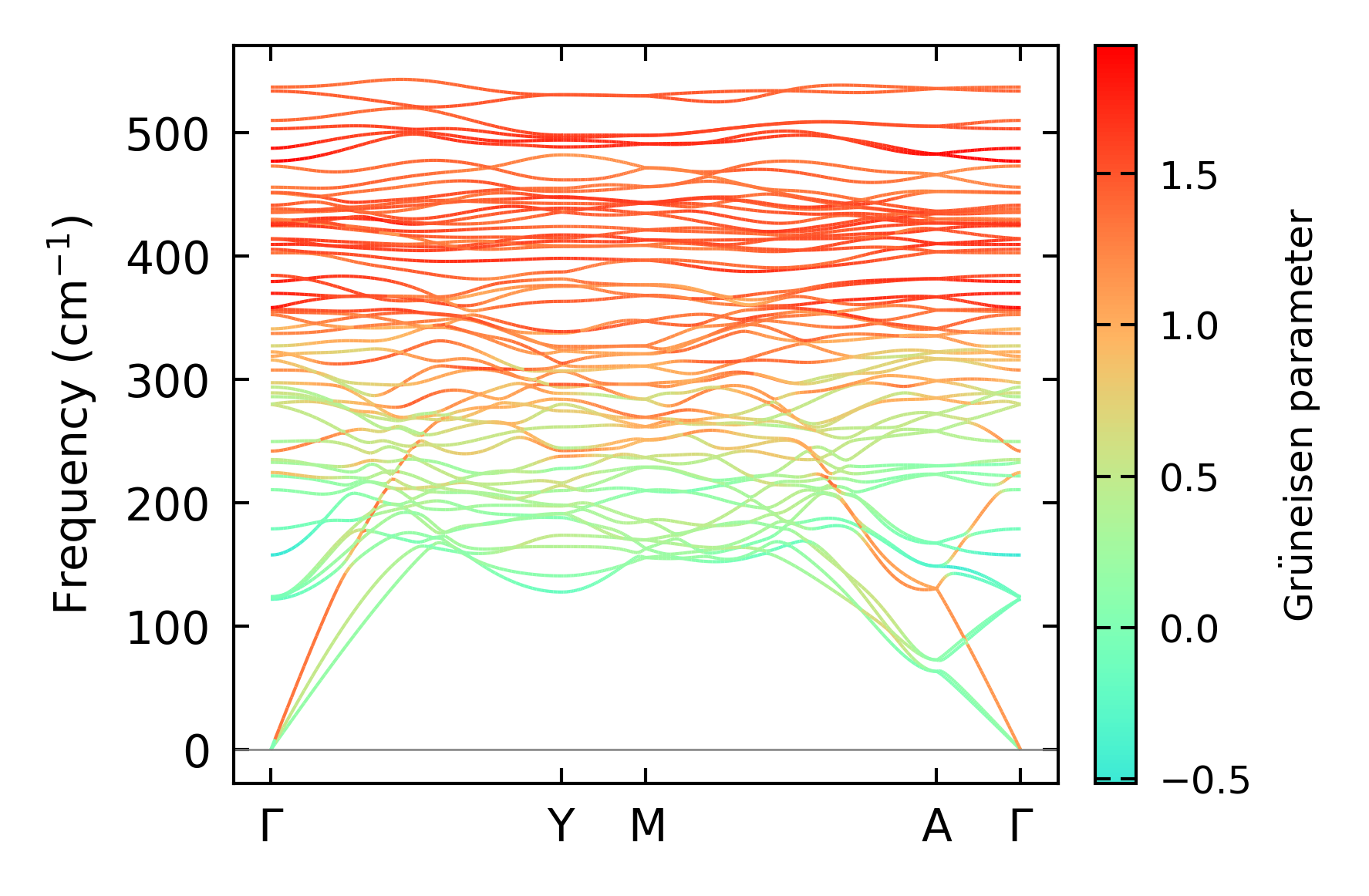

../../_images/fig_gruneisen2810.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x7, supercell: 3x1x1

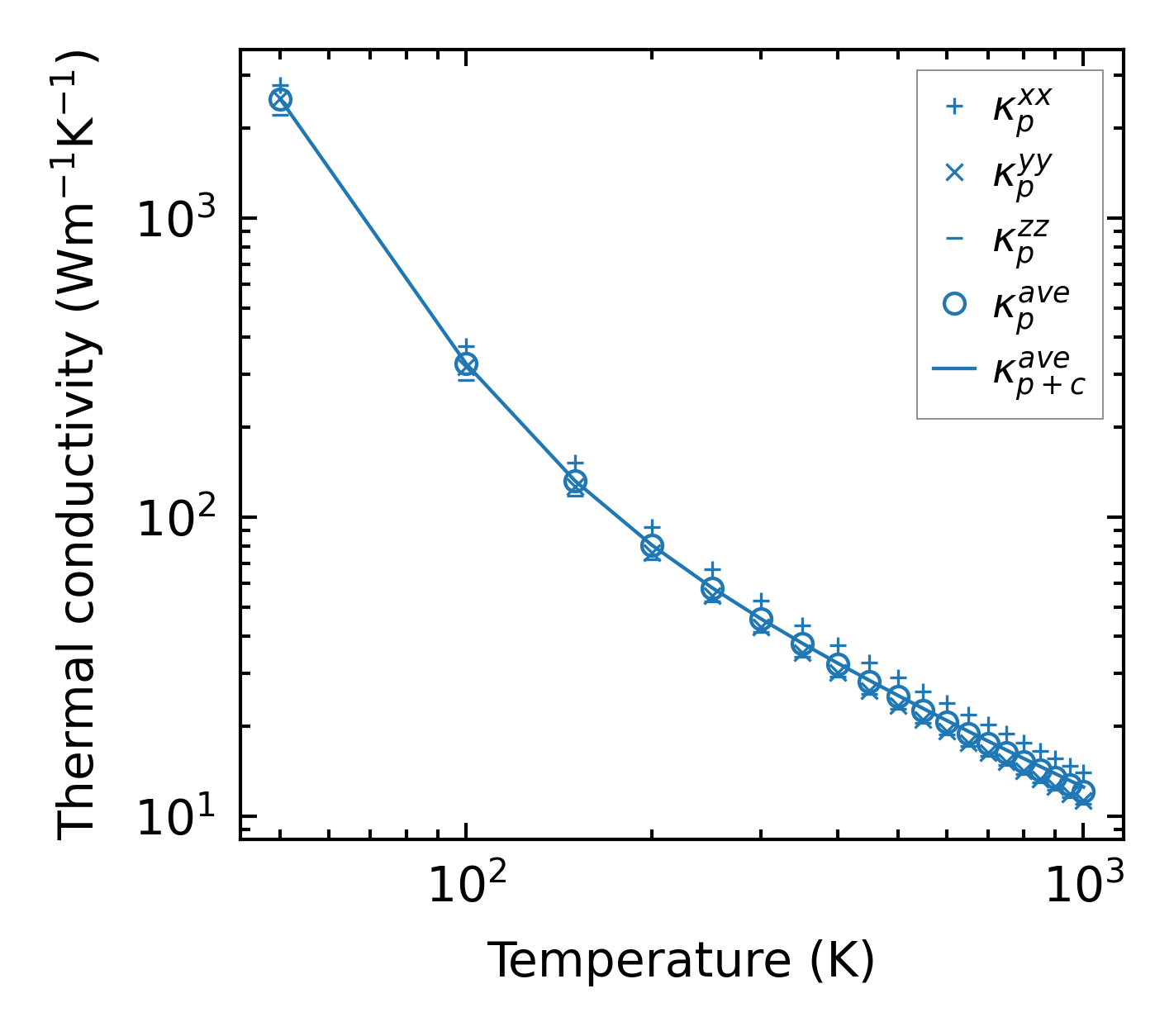

../../_images/fig_kappa5337.png — (a) Temperature-dependent lattice thermal conductivity

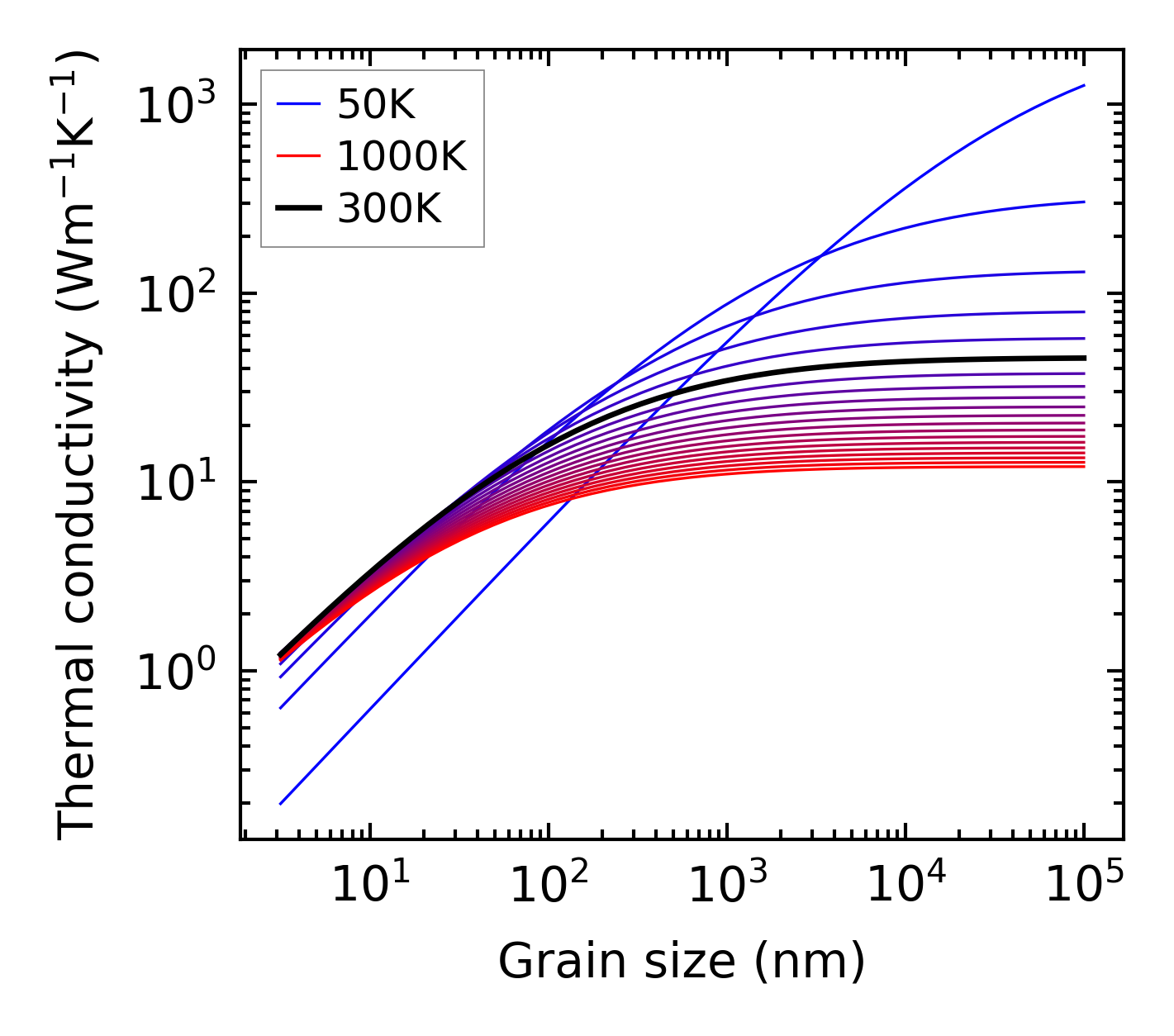

../../_images/fig_kappa_vs_grain_size2851.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

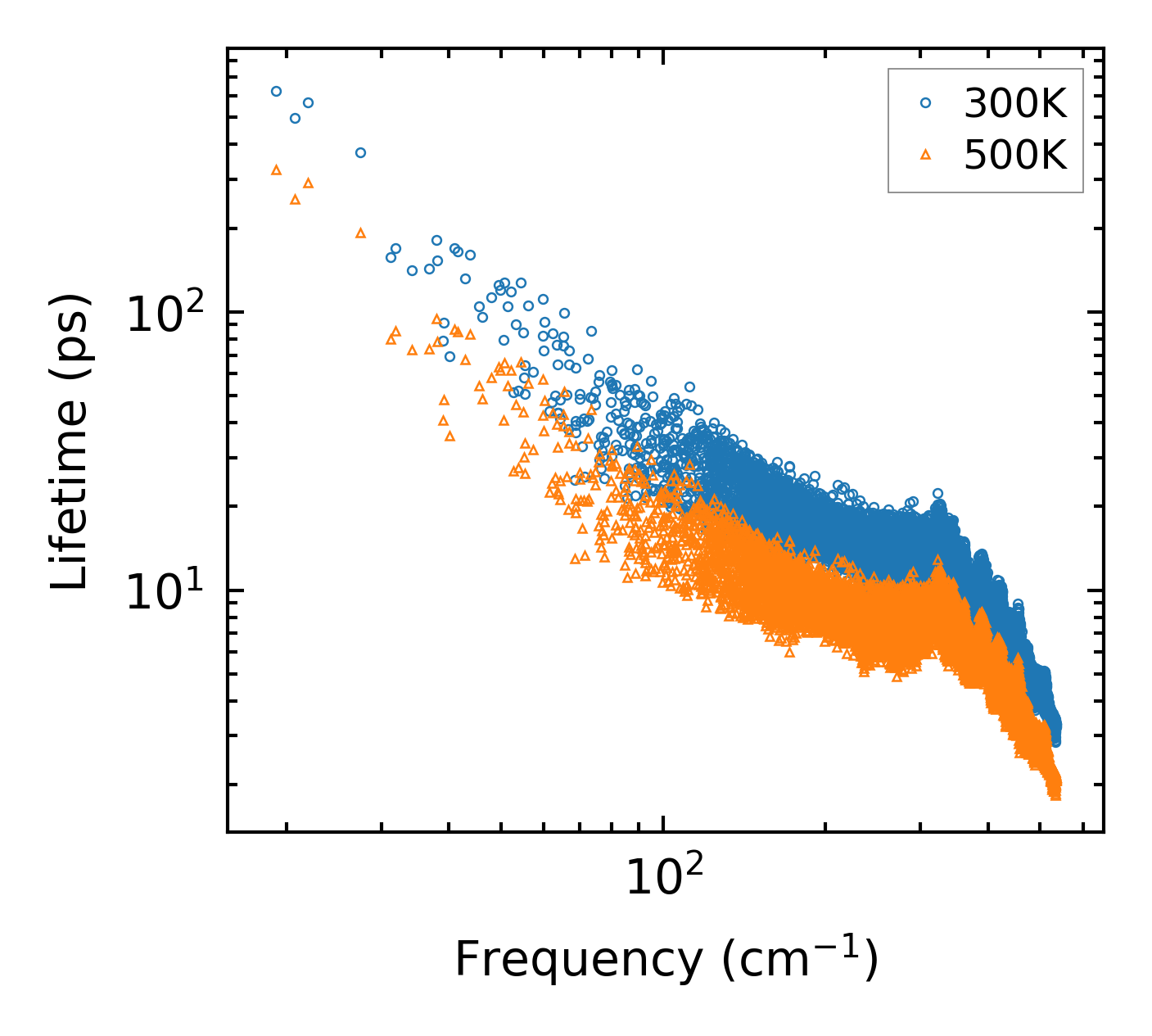

../../_images/fig_lifetime2786.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2785.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

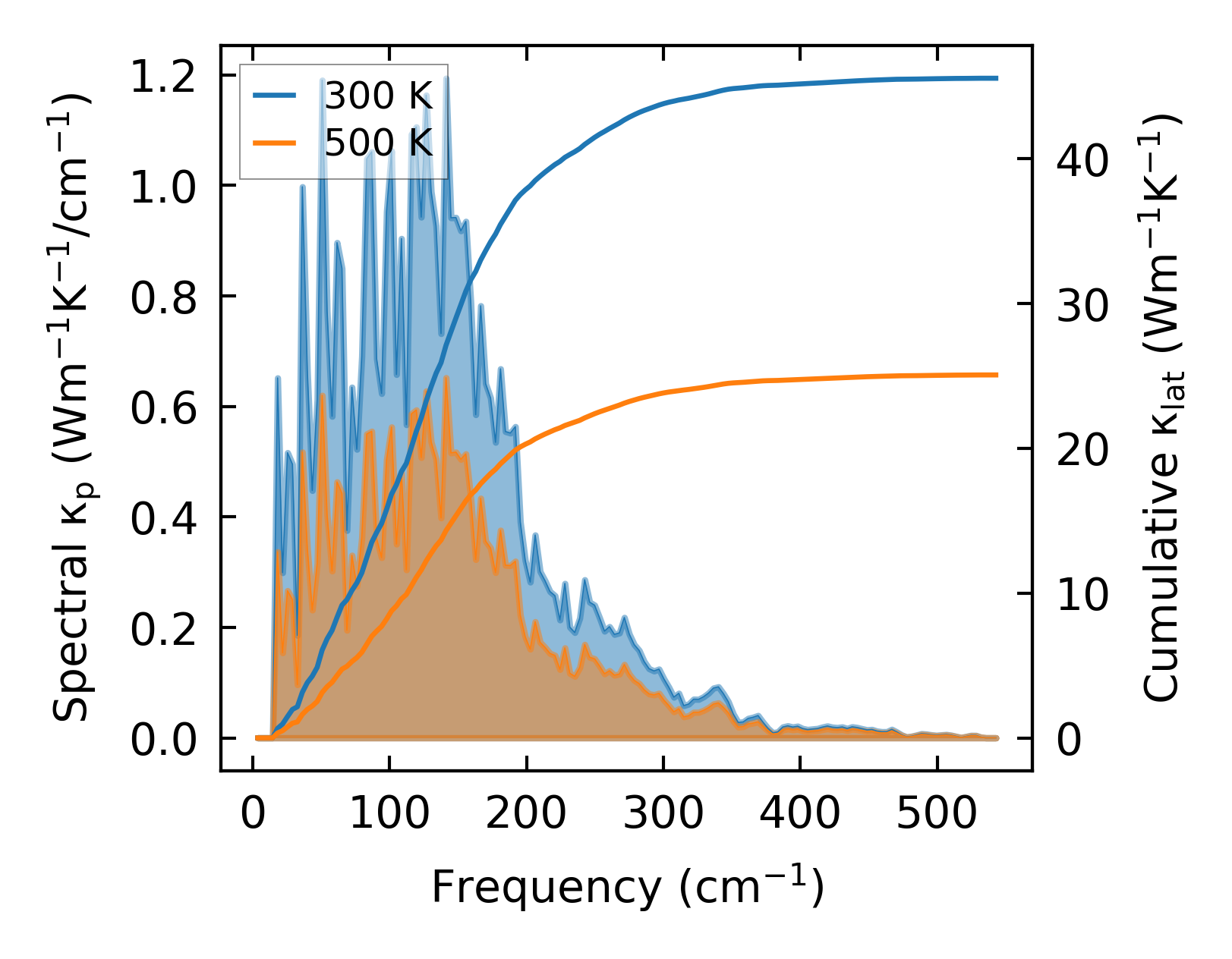

../../_images/fig_cumu_frequency2786.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

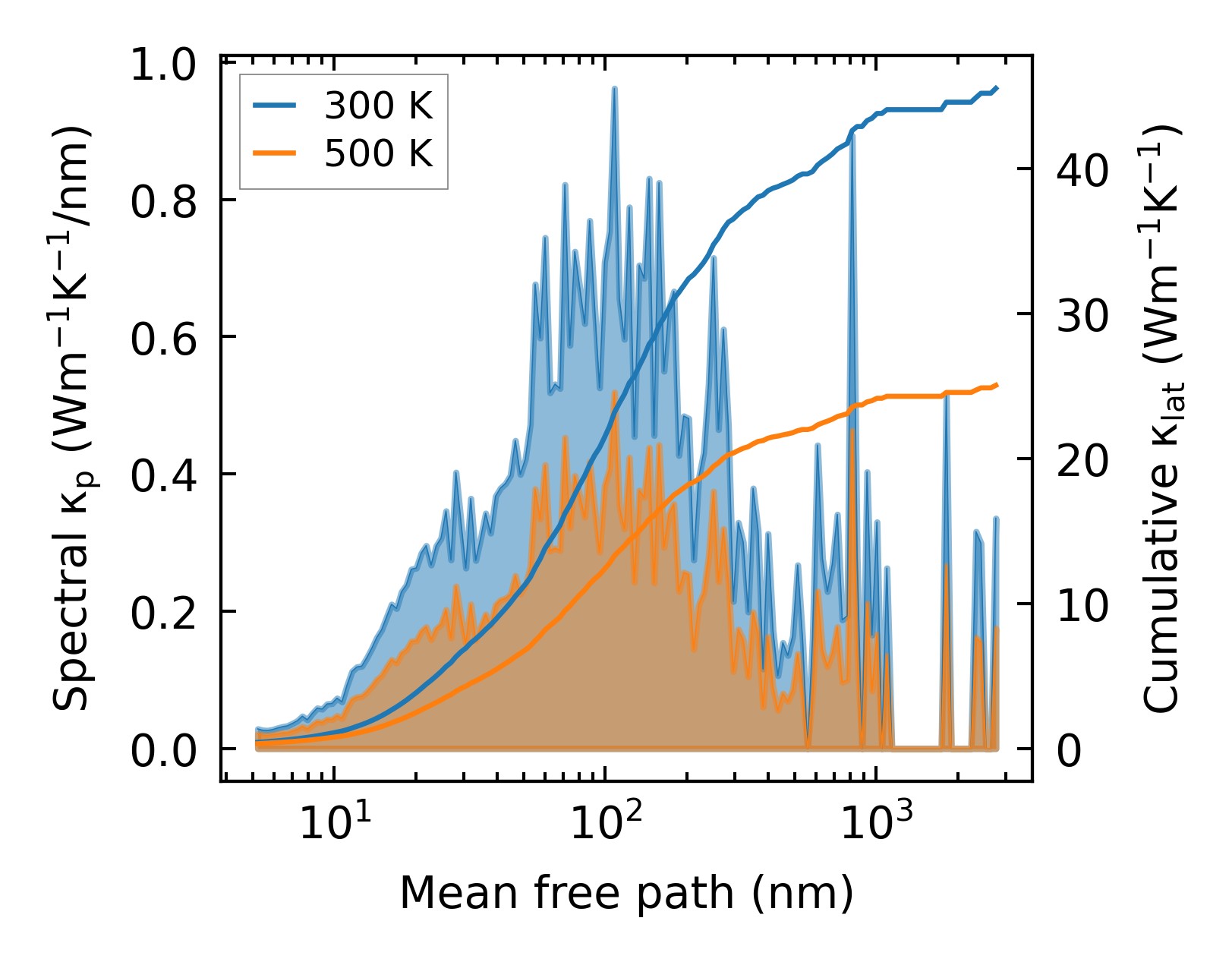

../../_images/fig_cumu_mfp2785.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26611.png — (a) Force constants w.r.t atomic distance

Summary

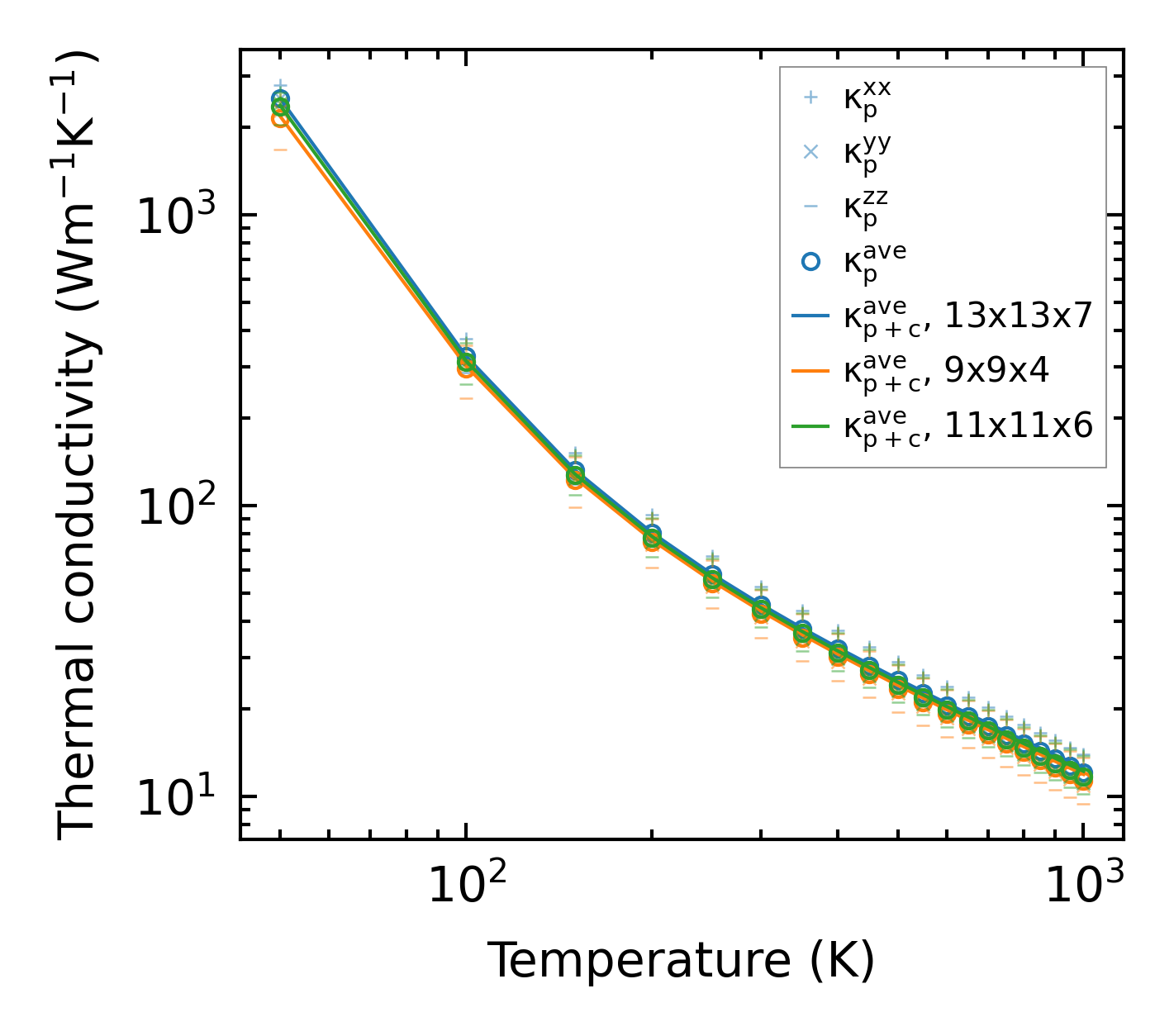

../../_images/fig_kappa5338.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12247.png — (b) Computation time
