mp-570645/Ca2Si5N8/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-570645.tar.gz

Harmonic properties

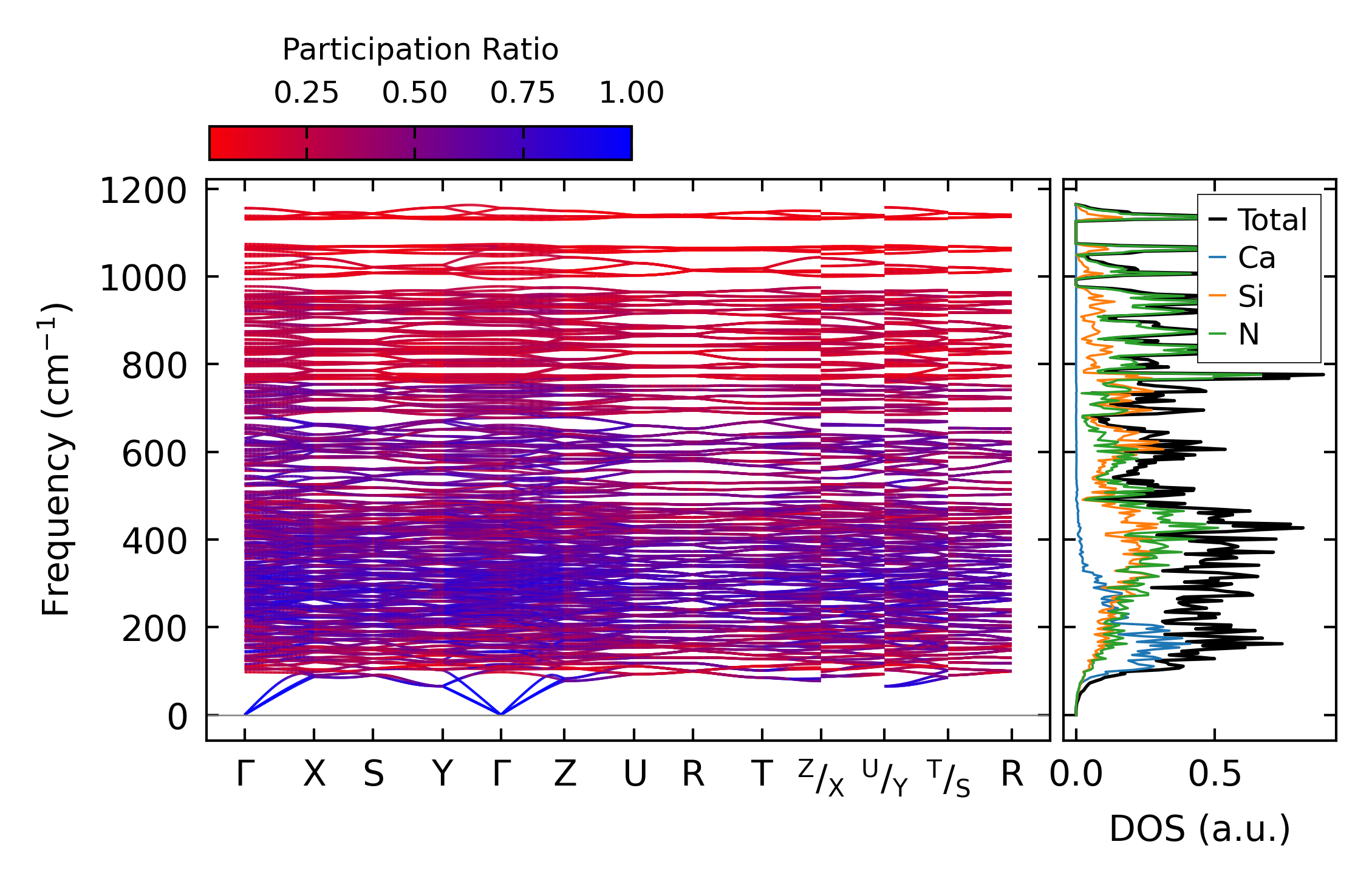

../../_images/fig_bandos_pr6847.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6847.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2820.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2820.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x5x6, supercell: 1x1x1

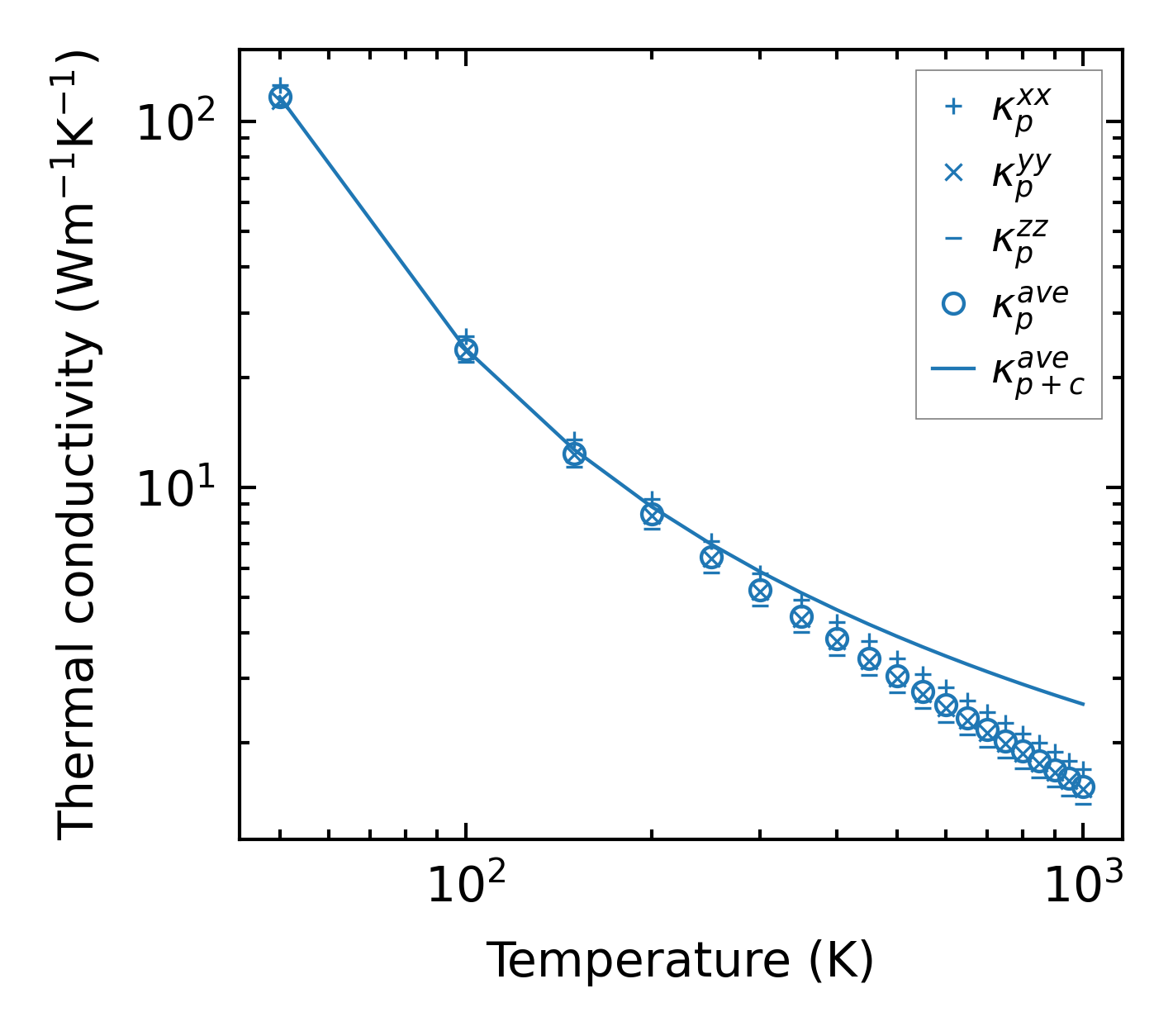

../../_images/fig_kappa5354.png — (a) Temperature-dependent lattice thermal conductivity

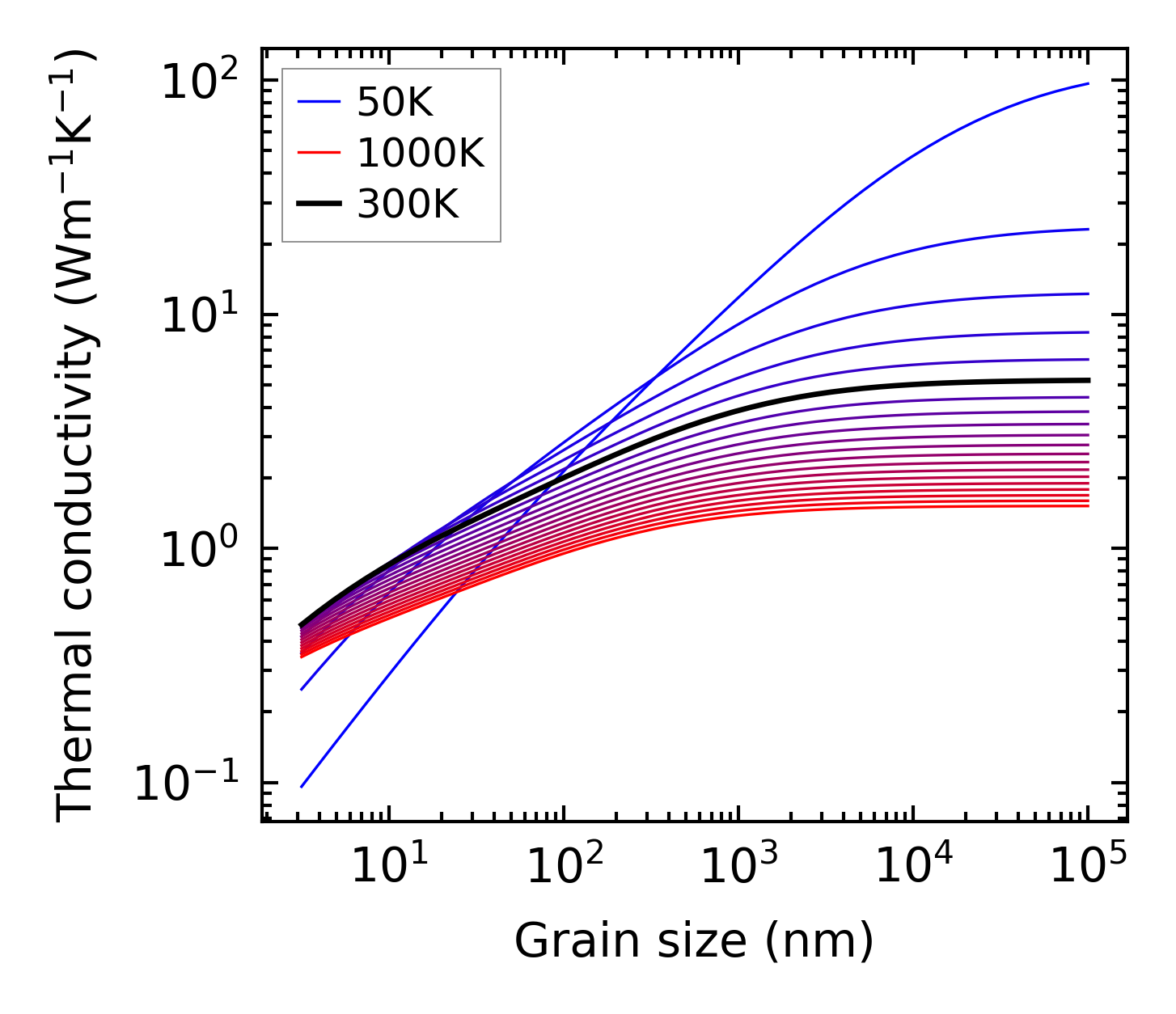

../../_images/fig_kappa_vs_grain_size2861.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

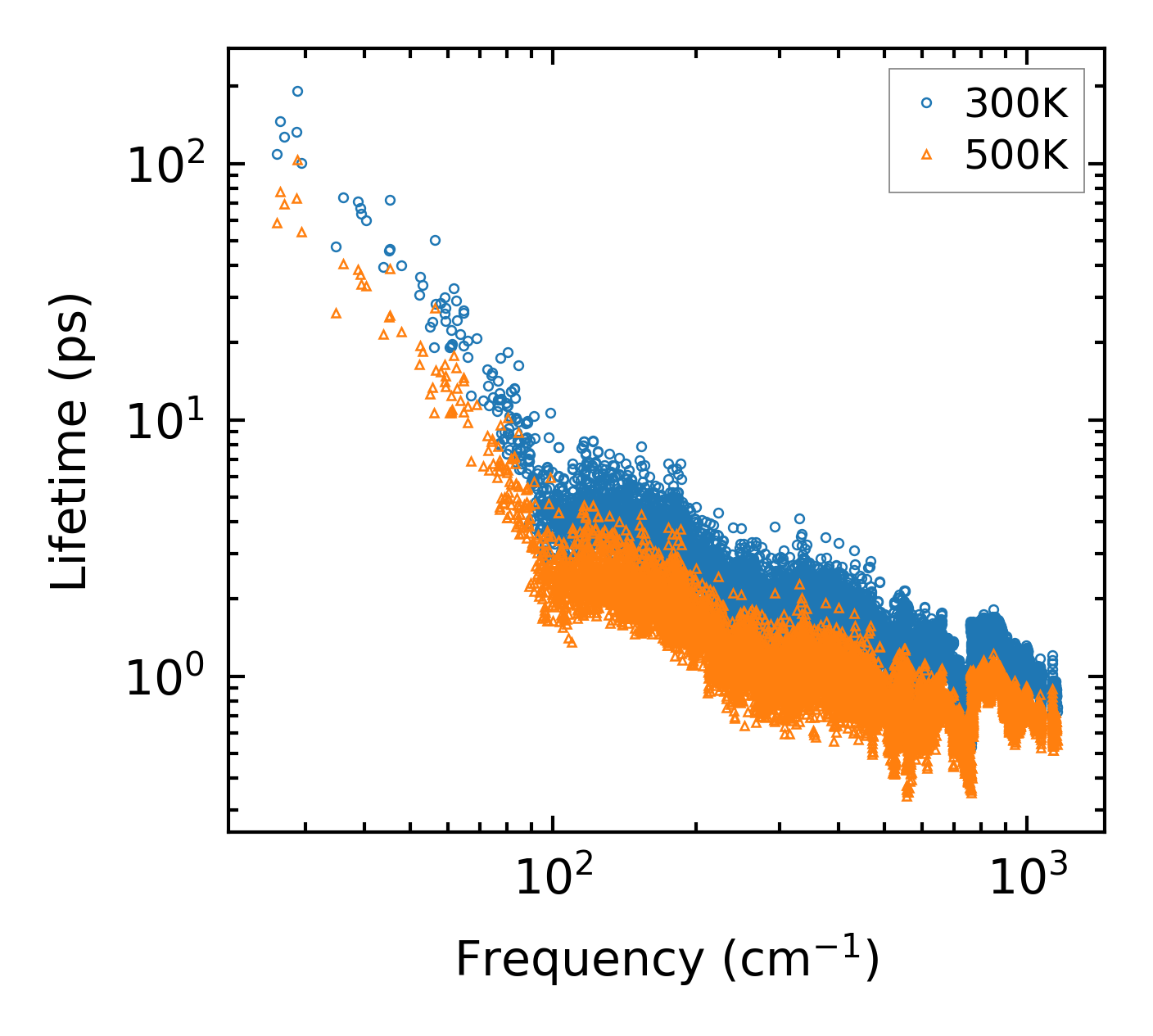

../../_images/fig_lifetime2796.png — (a) Phonon lifetime due to phonon-phonon scattering

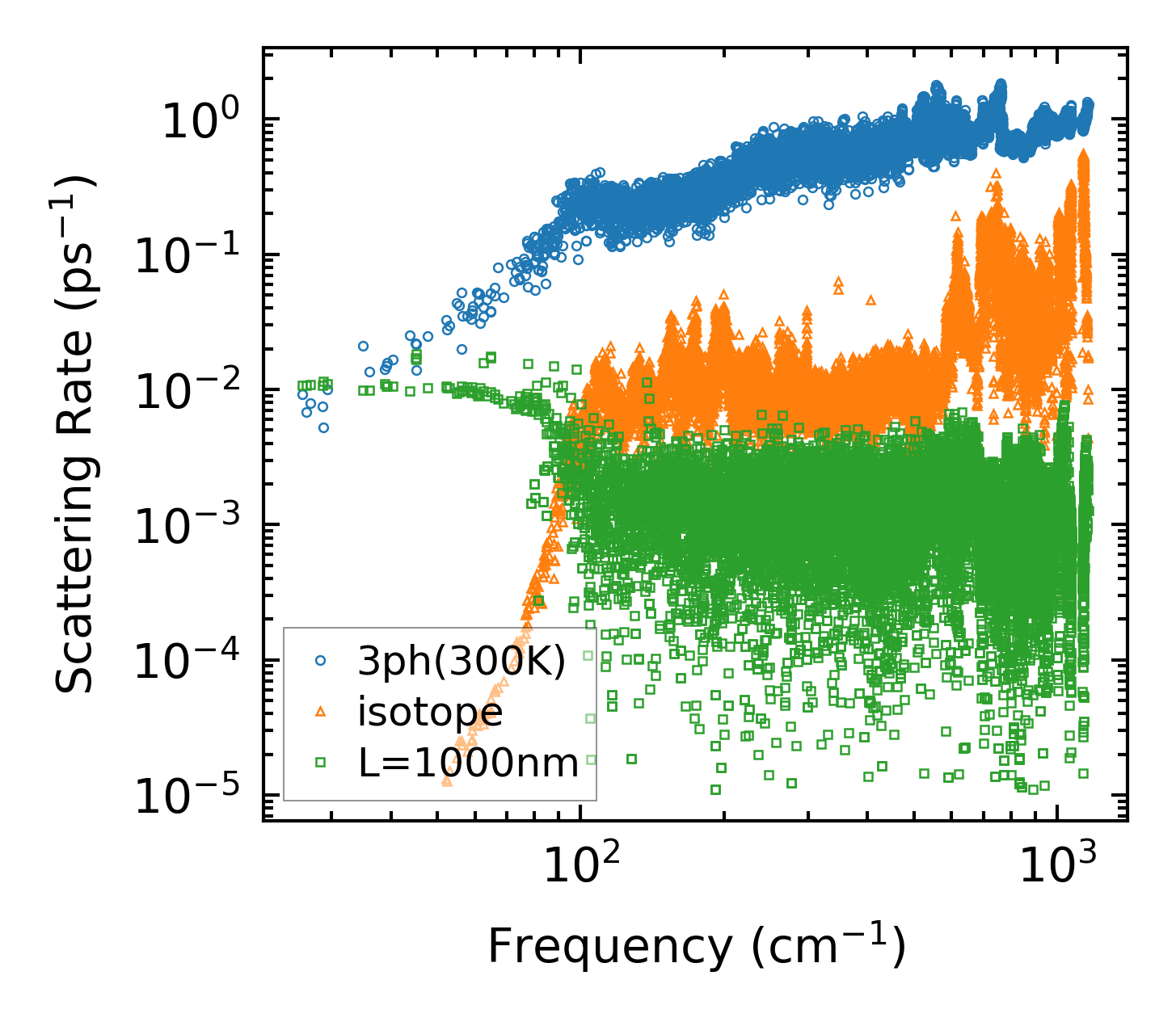

../../_images/fig_scat_rates2795.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

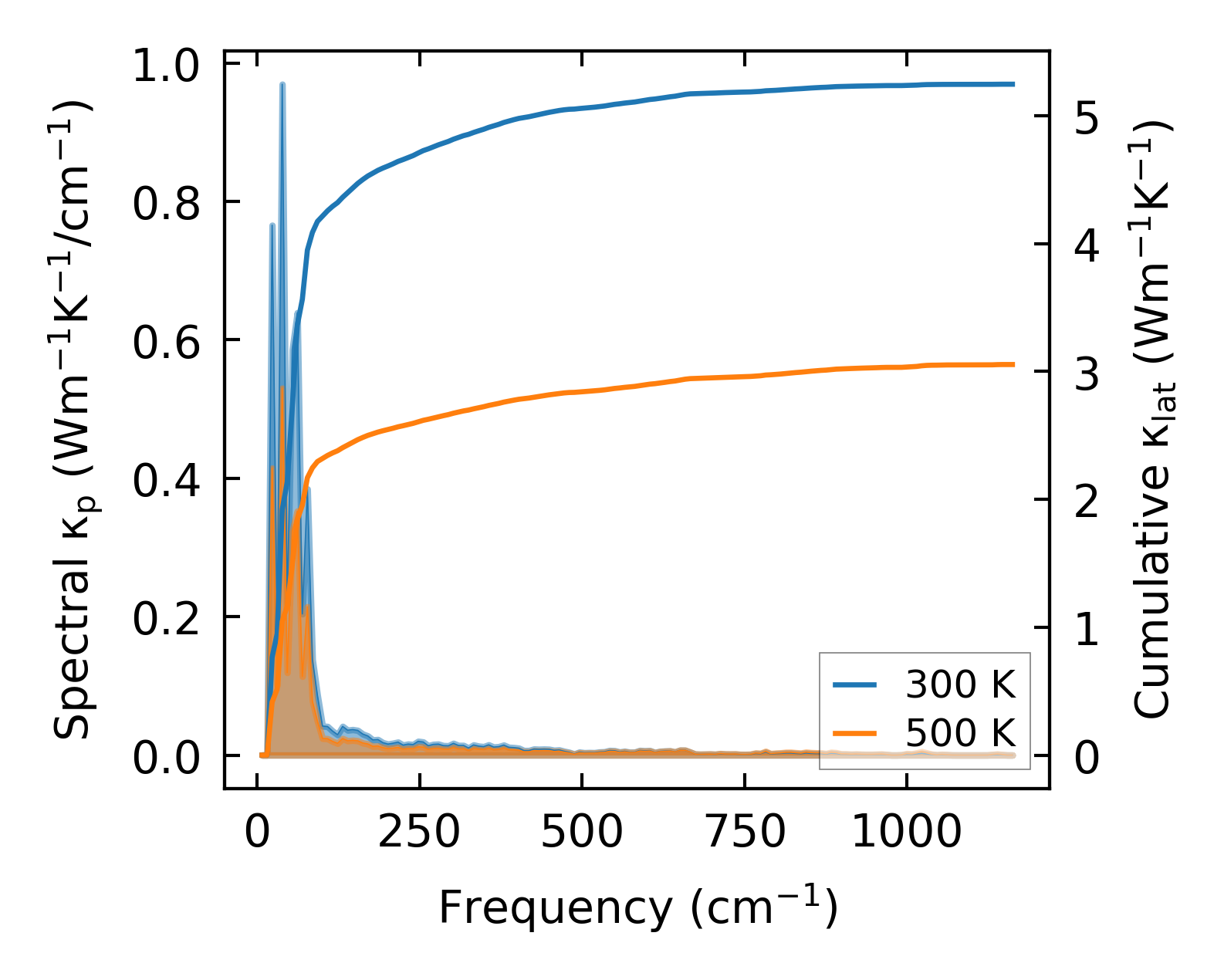

../../_images/fig_cumu_frequency2796.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

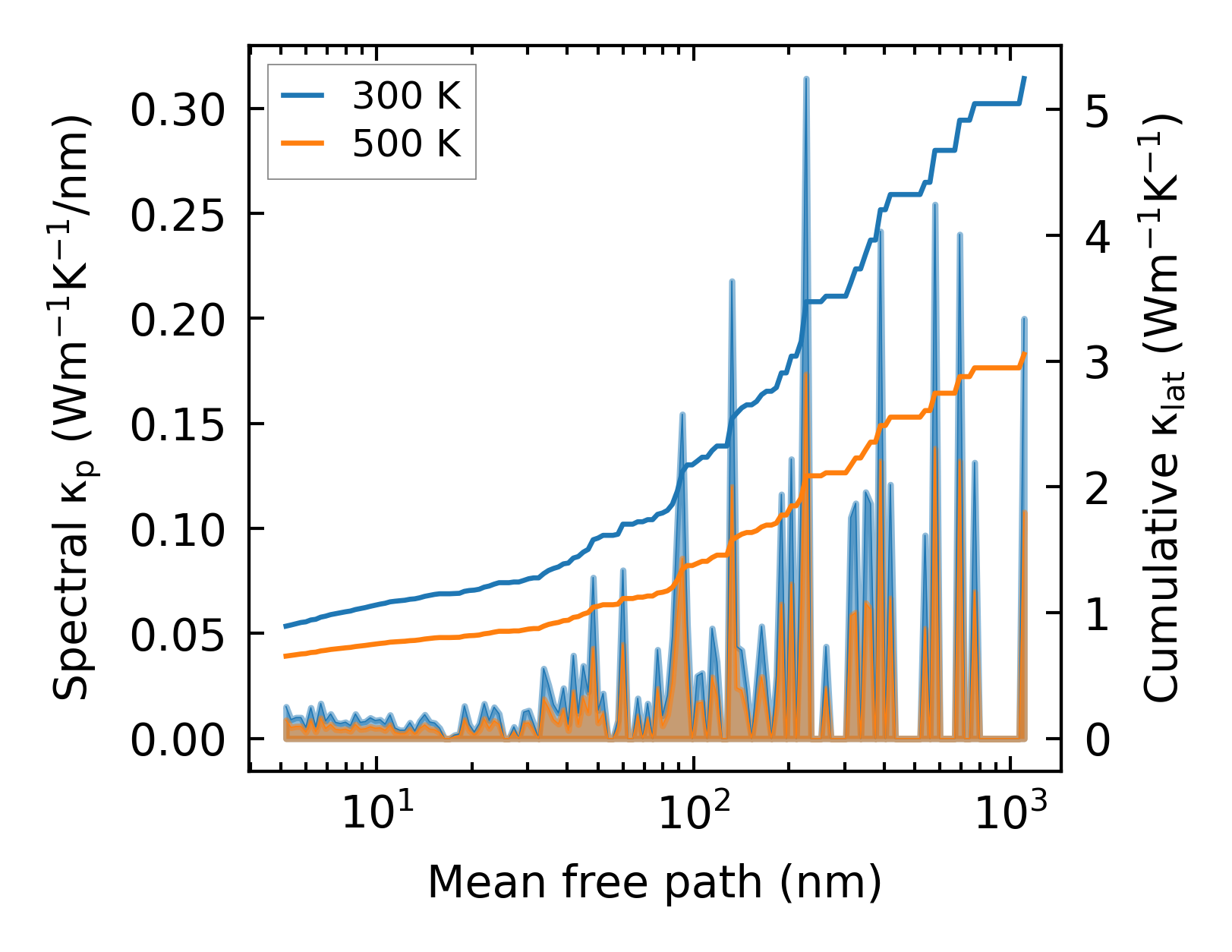

../../_images/fig_cumu_mfp2795.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26631.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5355.png — (a) Temperature-dependent lattice thermal conductivity

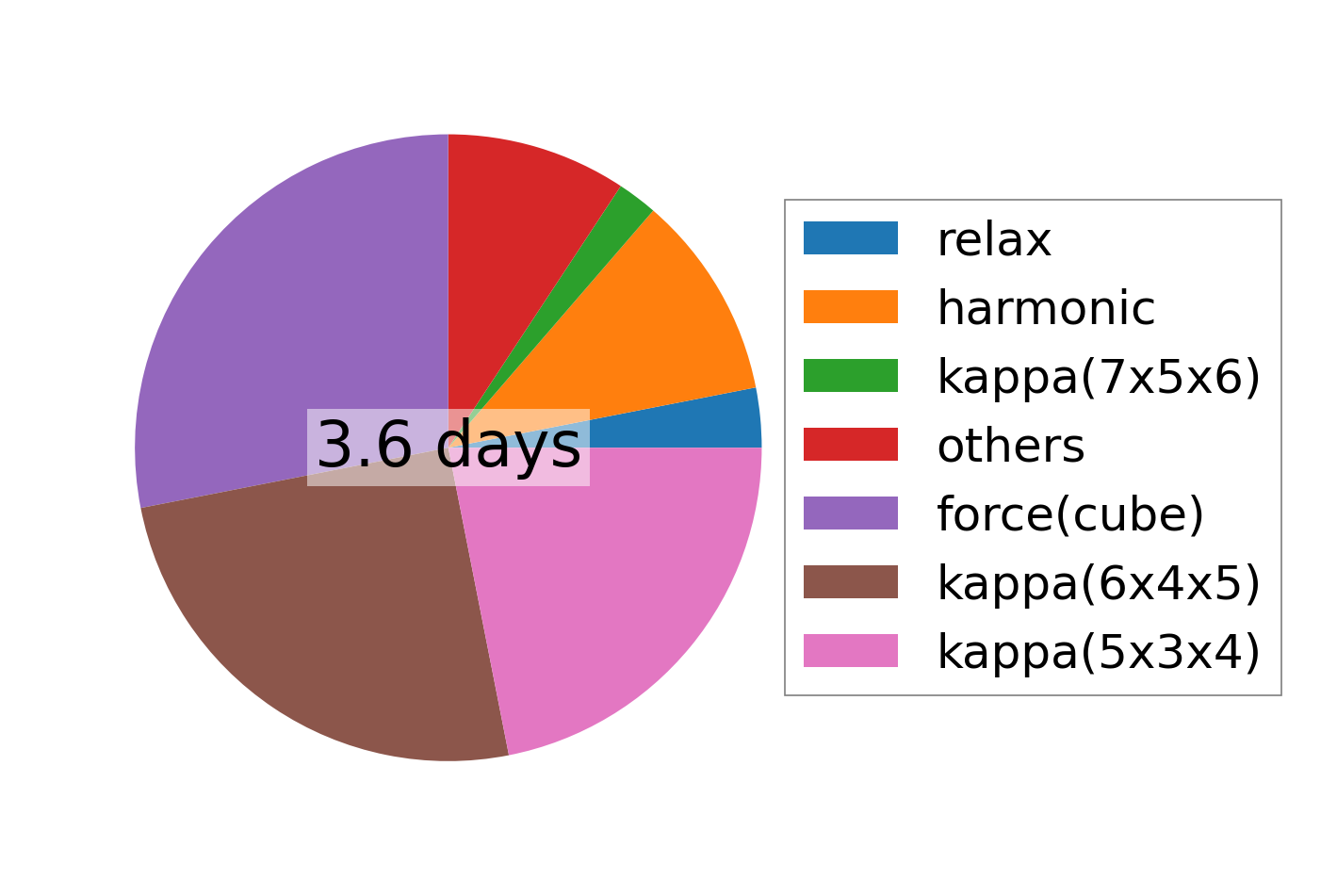

../../_images/fig_times12279.png — (b) Computation time
