mp-556000/ZnS/anharm

Space group: P3m1 (156)
Link: Materials Project
Download: mp-556000.tar.gz

Harmonic properties

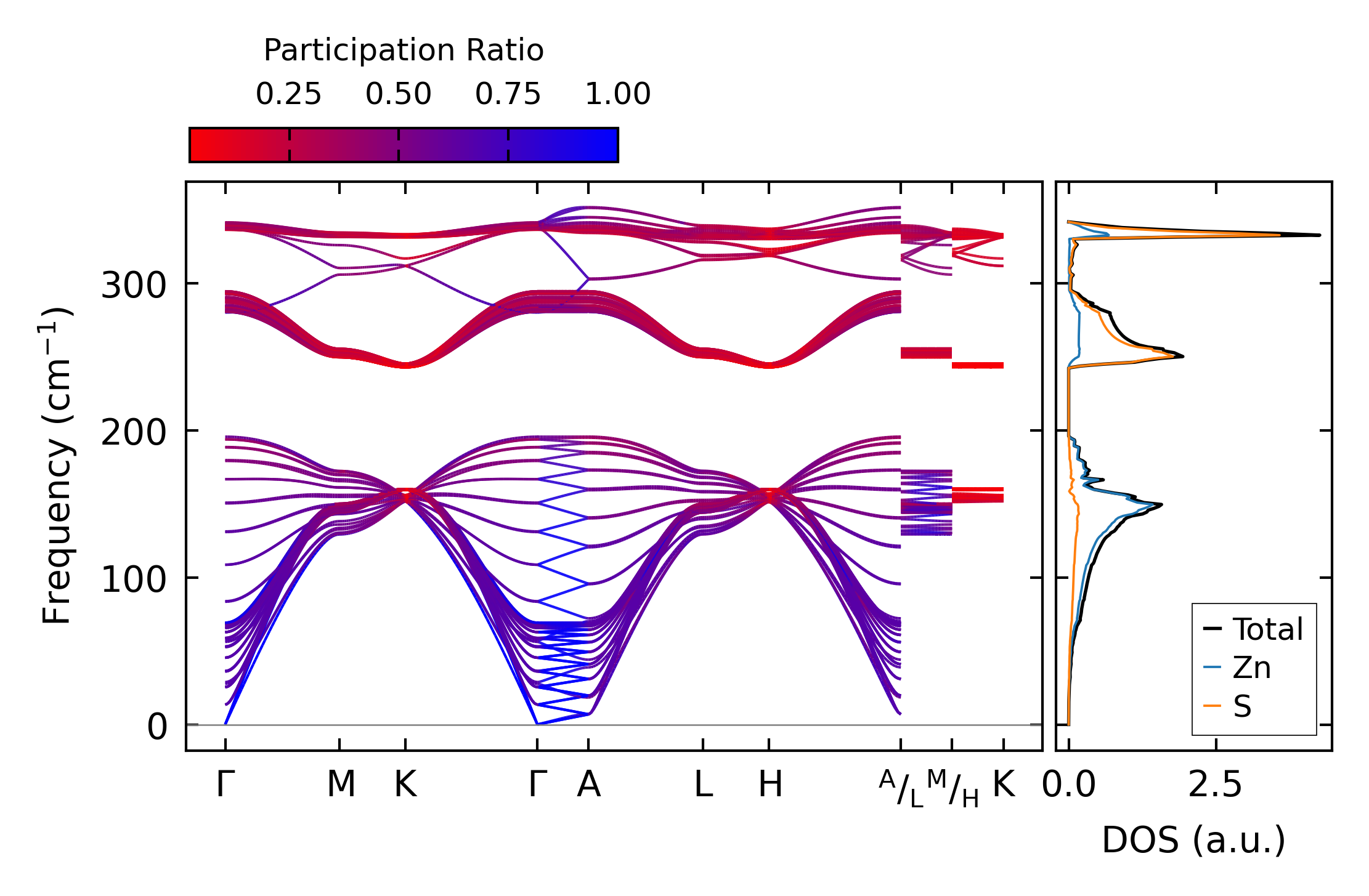

../../_images/fig_bandos_pr8731.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8731.png — (b) Thermodynamic properties

Grüneisen parameters

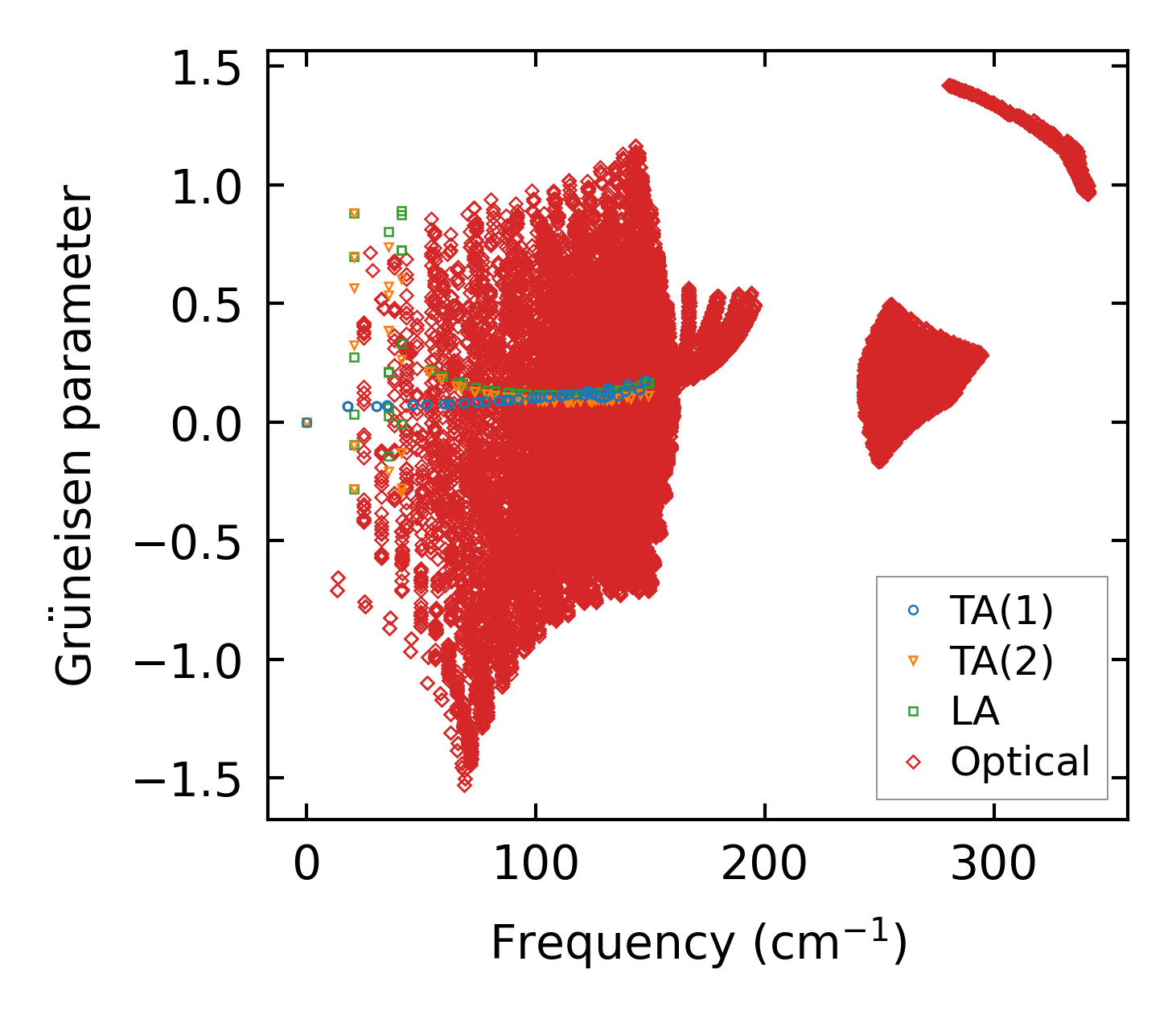

../../_images/fig_gru_all3526.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3526.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x1, supercell: 1x1x1

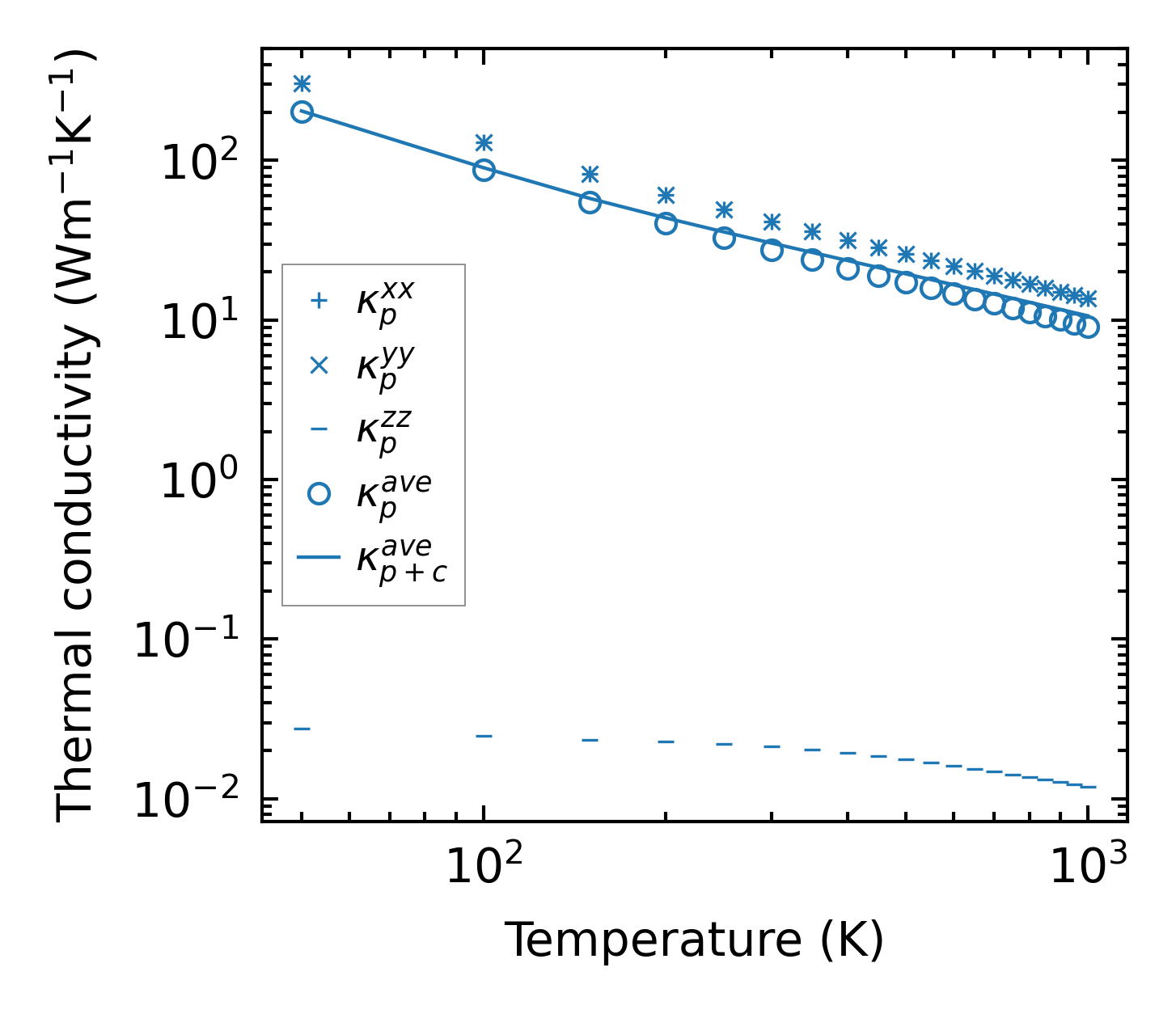

../../_images/fig_kappa6667.png — (a) Temperature-dependent lattice thermal conductivity

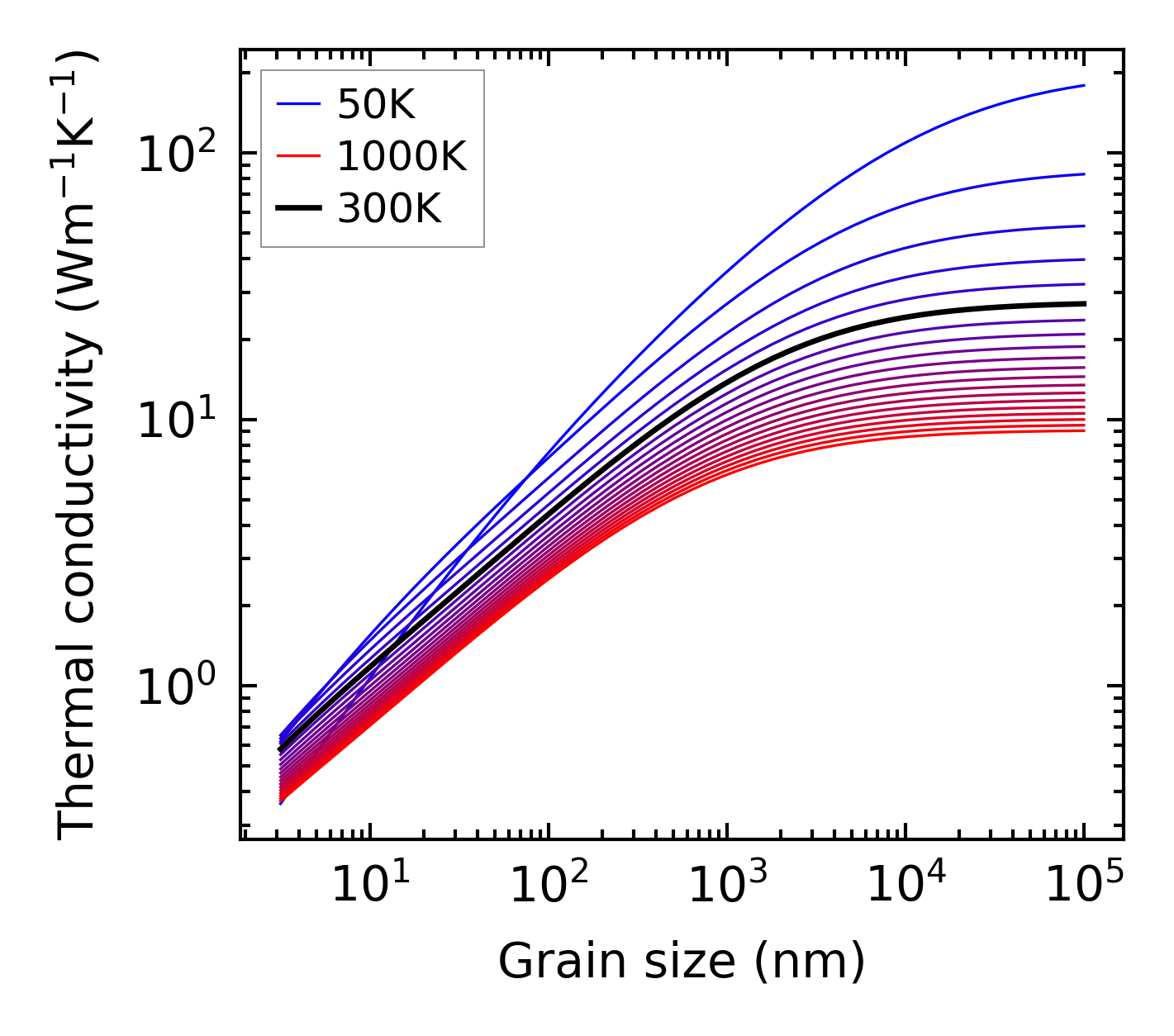

../../_images/fig_kappa_vs_grain_size3570.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3493.png — (a) Phonon lifetime due to phonon-phonon scattering

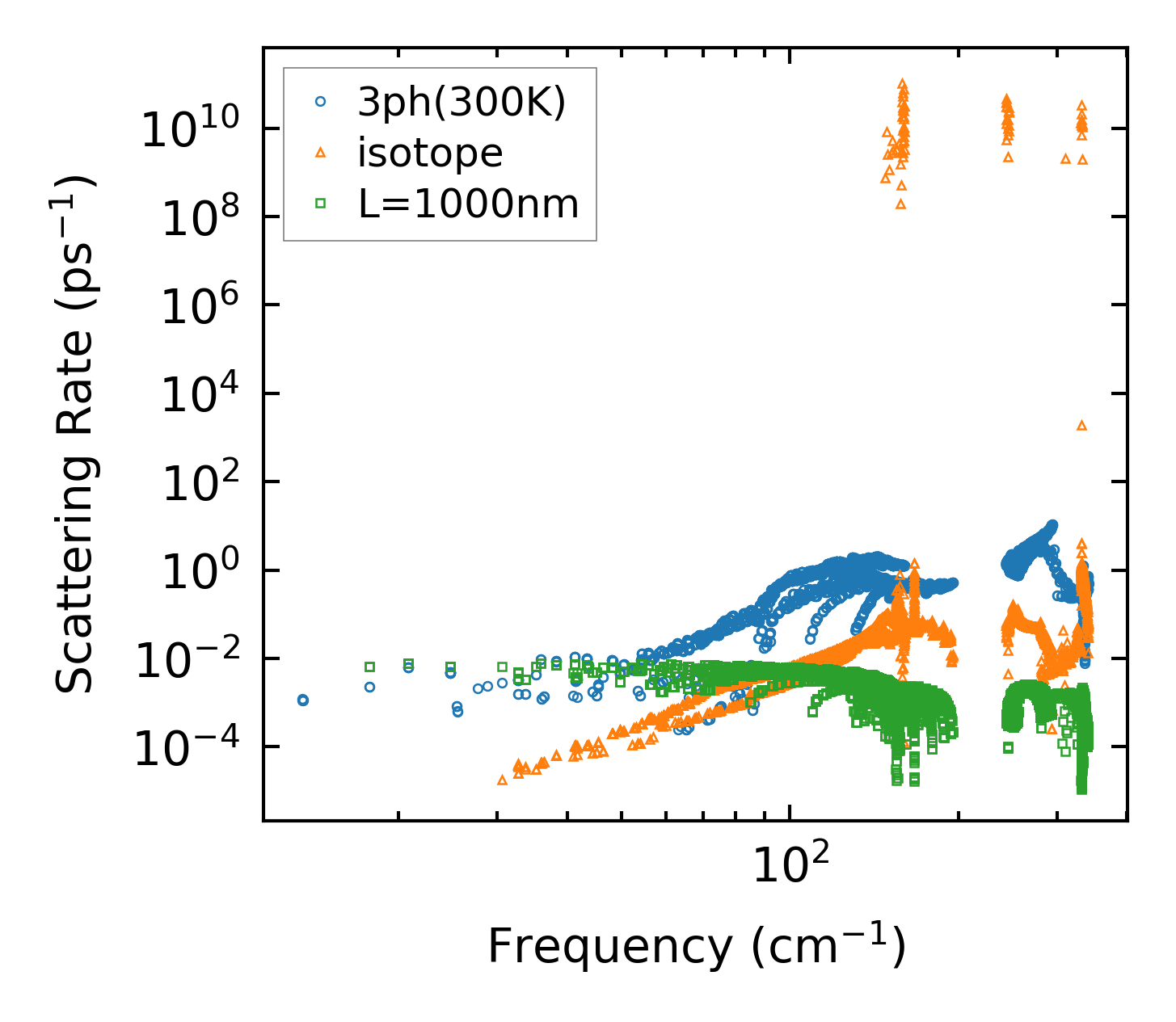

../../_images/fig_scat_rates3492.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3493.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

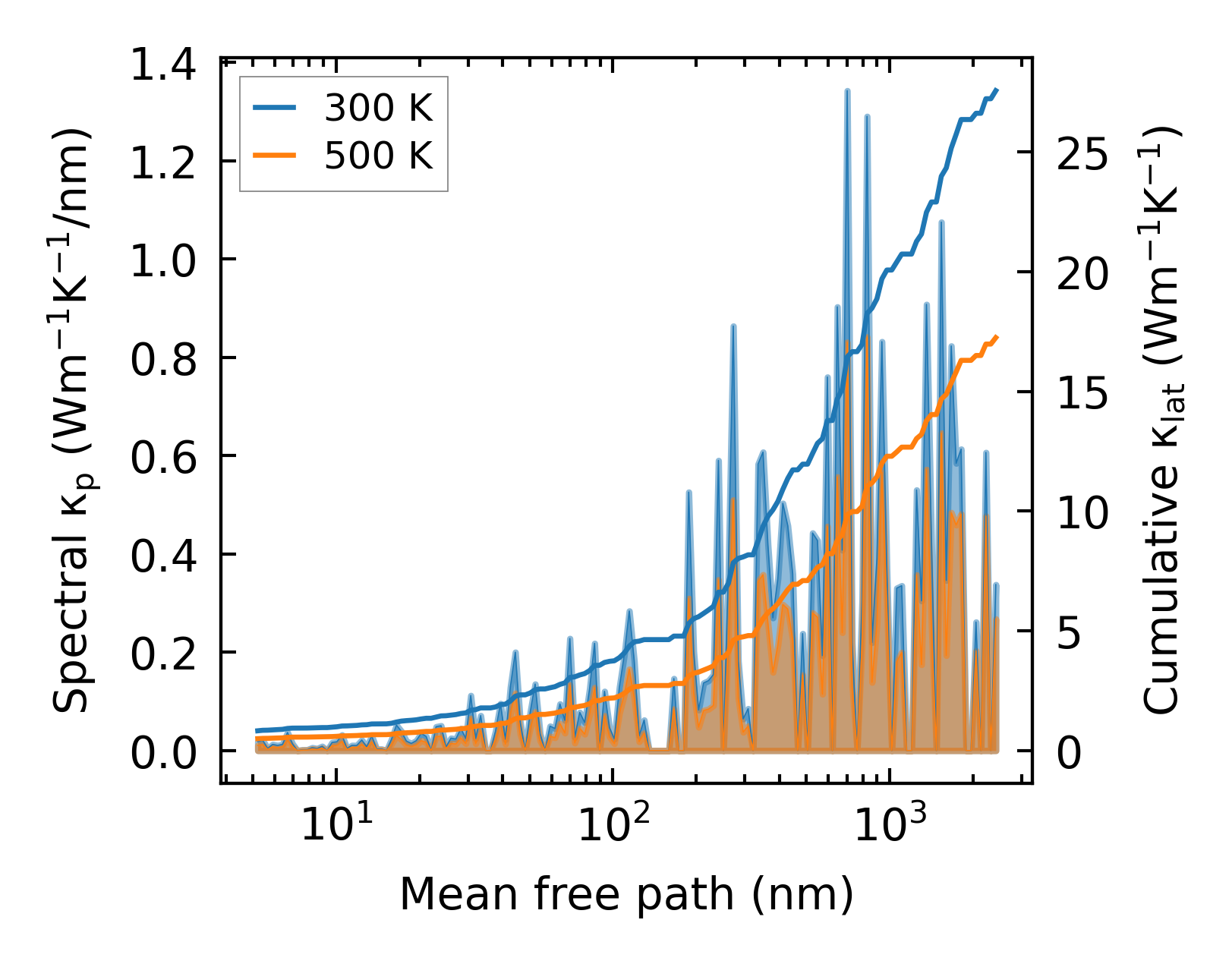

../../_images/fig_cumu_mfp3492.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

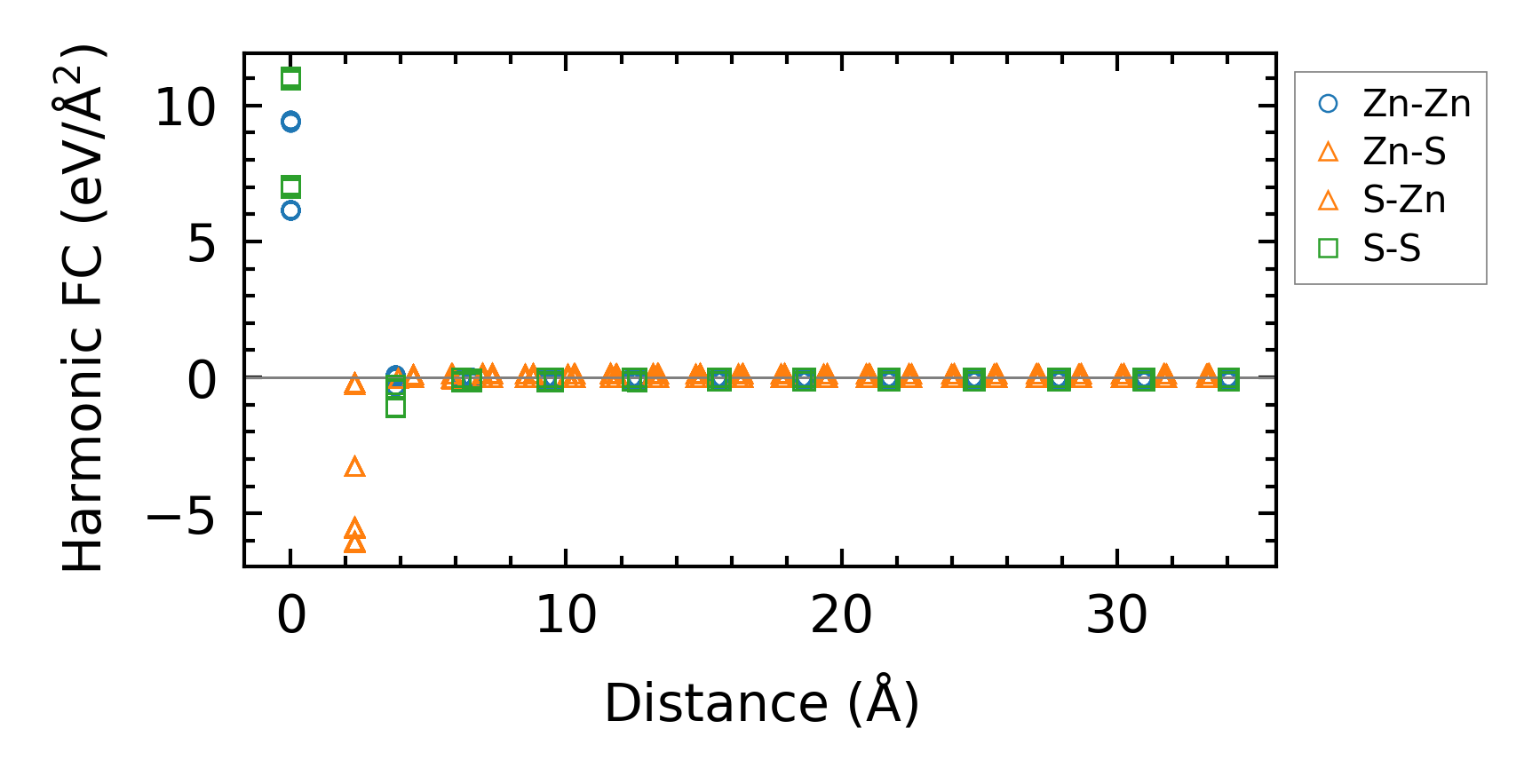

../../_images/fig_fc28492.png — (a) Force constants w.r.t atomic distance

Summary

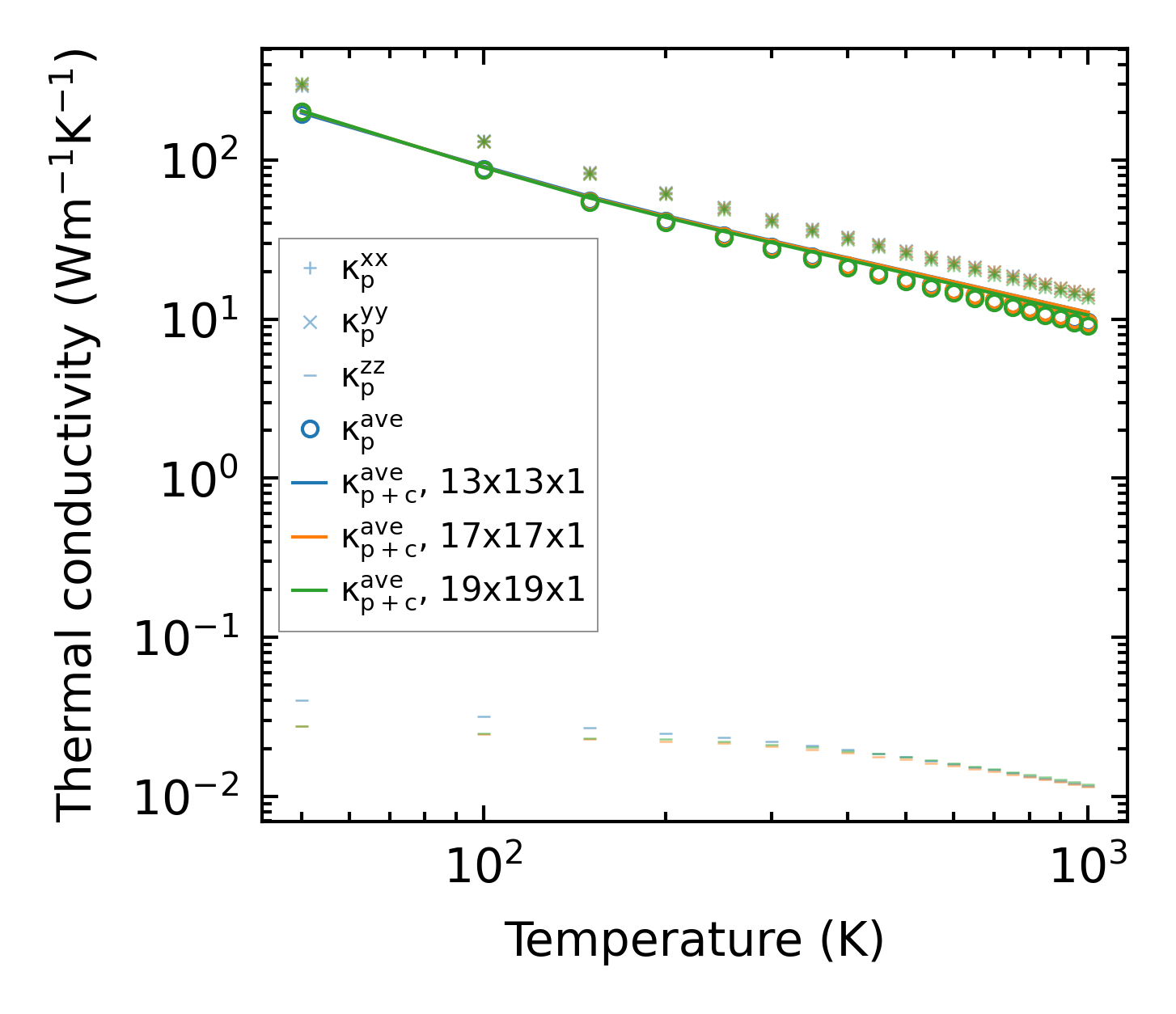

../../_images/fig_kappa6668.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15298.png — (b) Computation time
