mp-555184-2/SmTiClO3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-555184-2.tar.gz

Equation of state

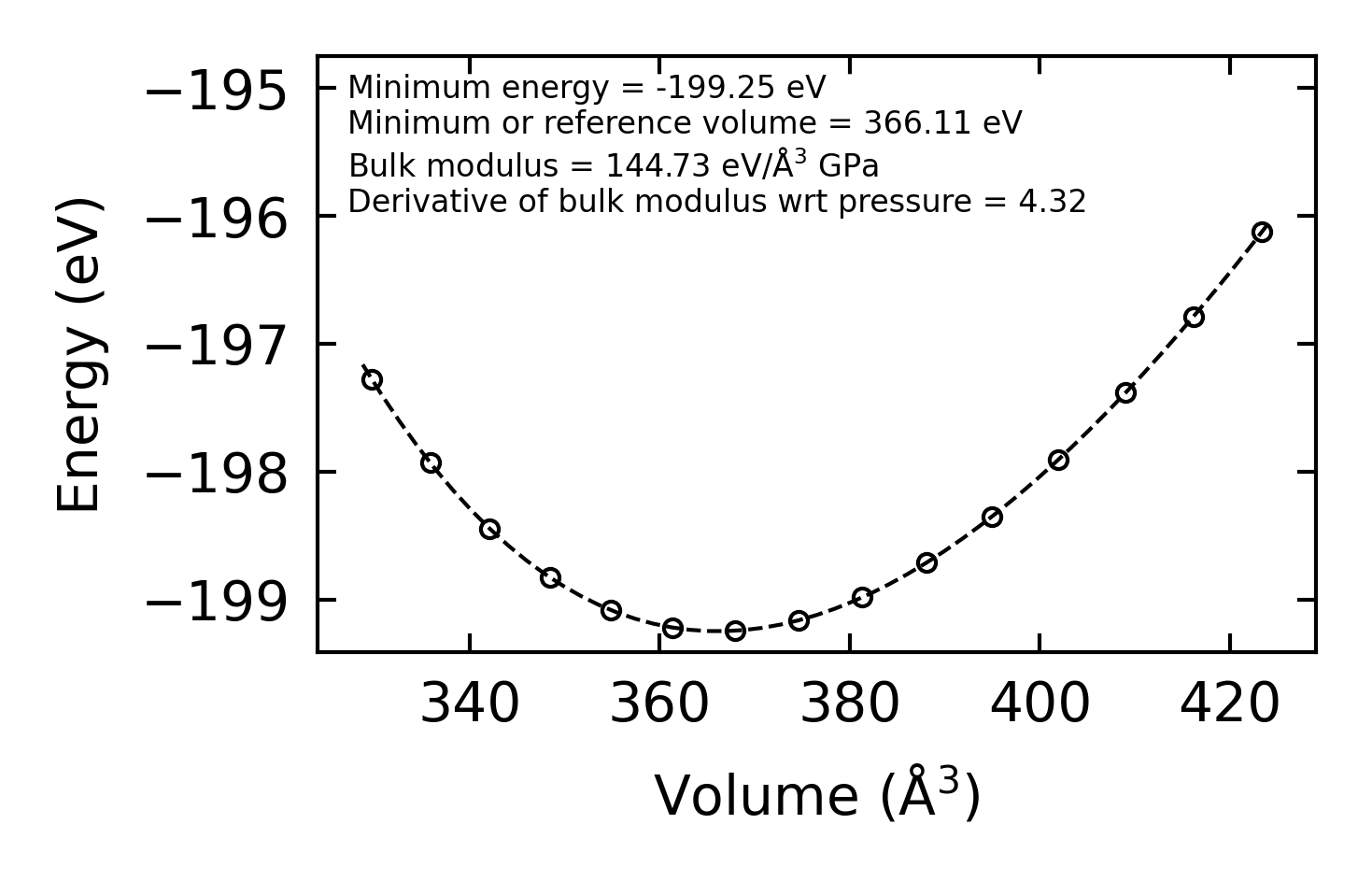

../../_images/fig_bm4475.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr8864.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos12497.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8864.png — (c) Thermodynamic properties

Grüneisen parameters

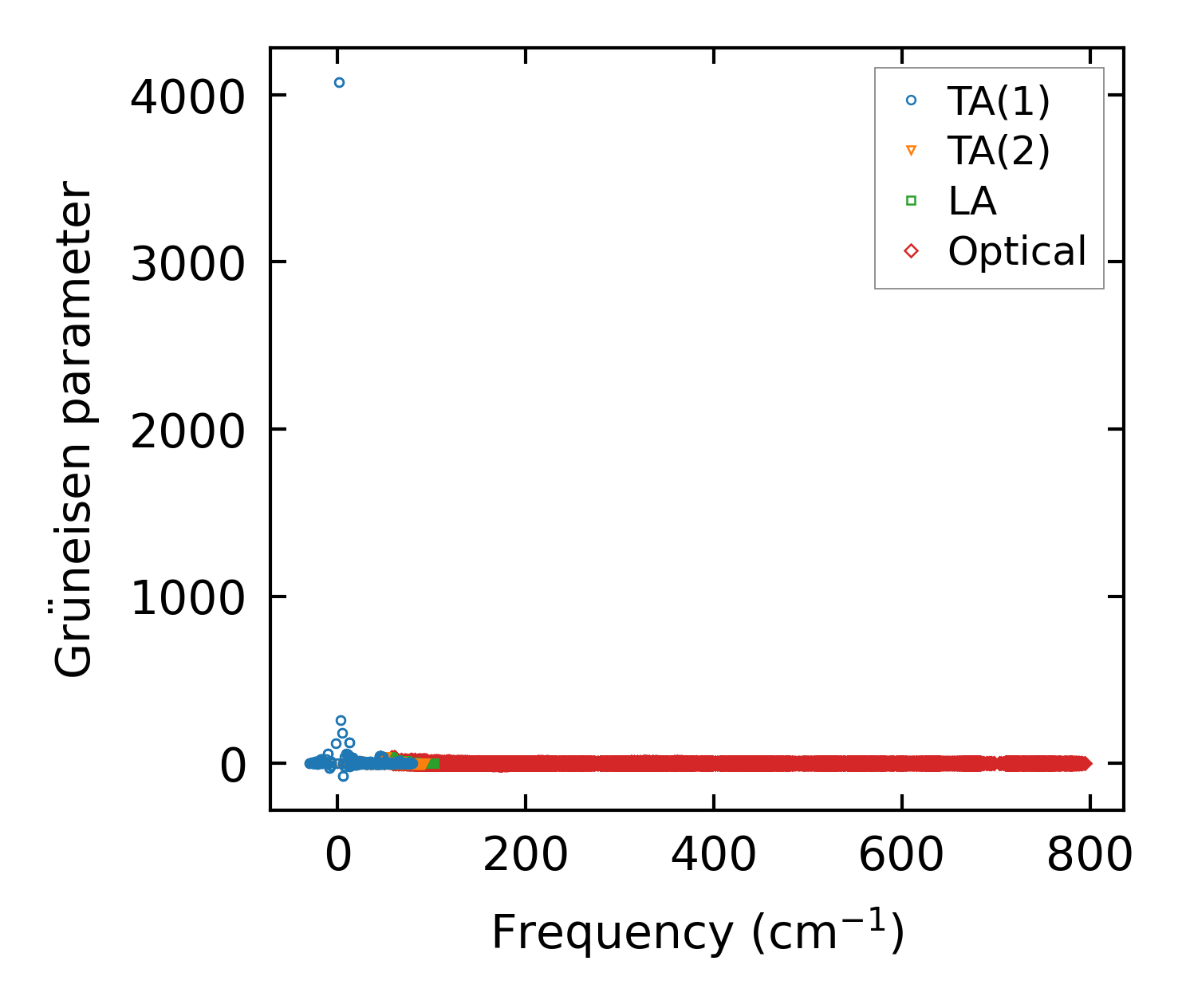

../../_images/fig_gru_all3562.png — (a) Grüneisen parameters

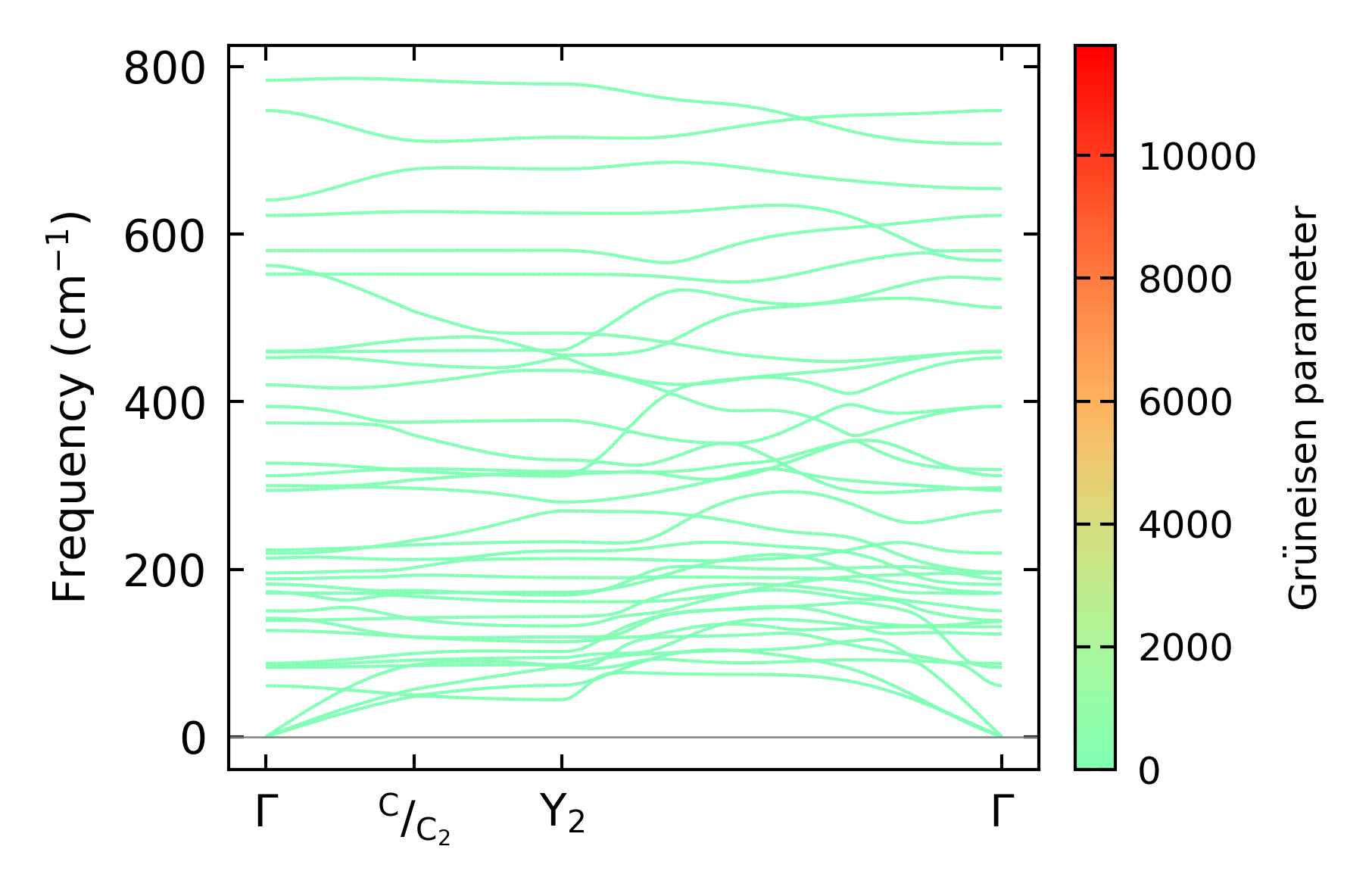

../../_images/fig_gruneisen3562.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x3x2 — q-mesh: 15x15x8, supercell: 2x3x2

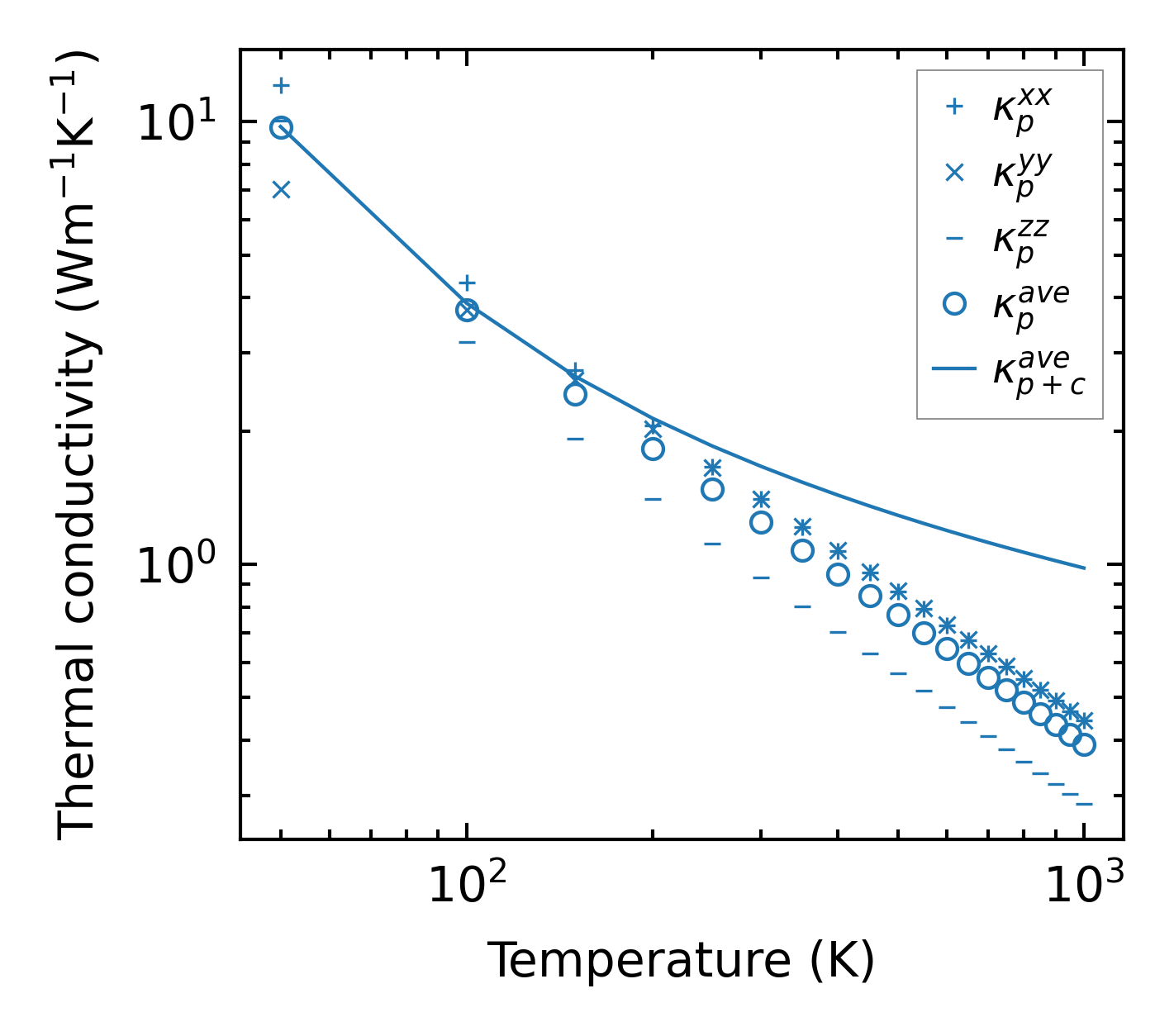

../../_images/fig_kappa6732.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3607.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

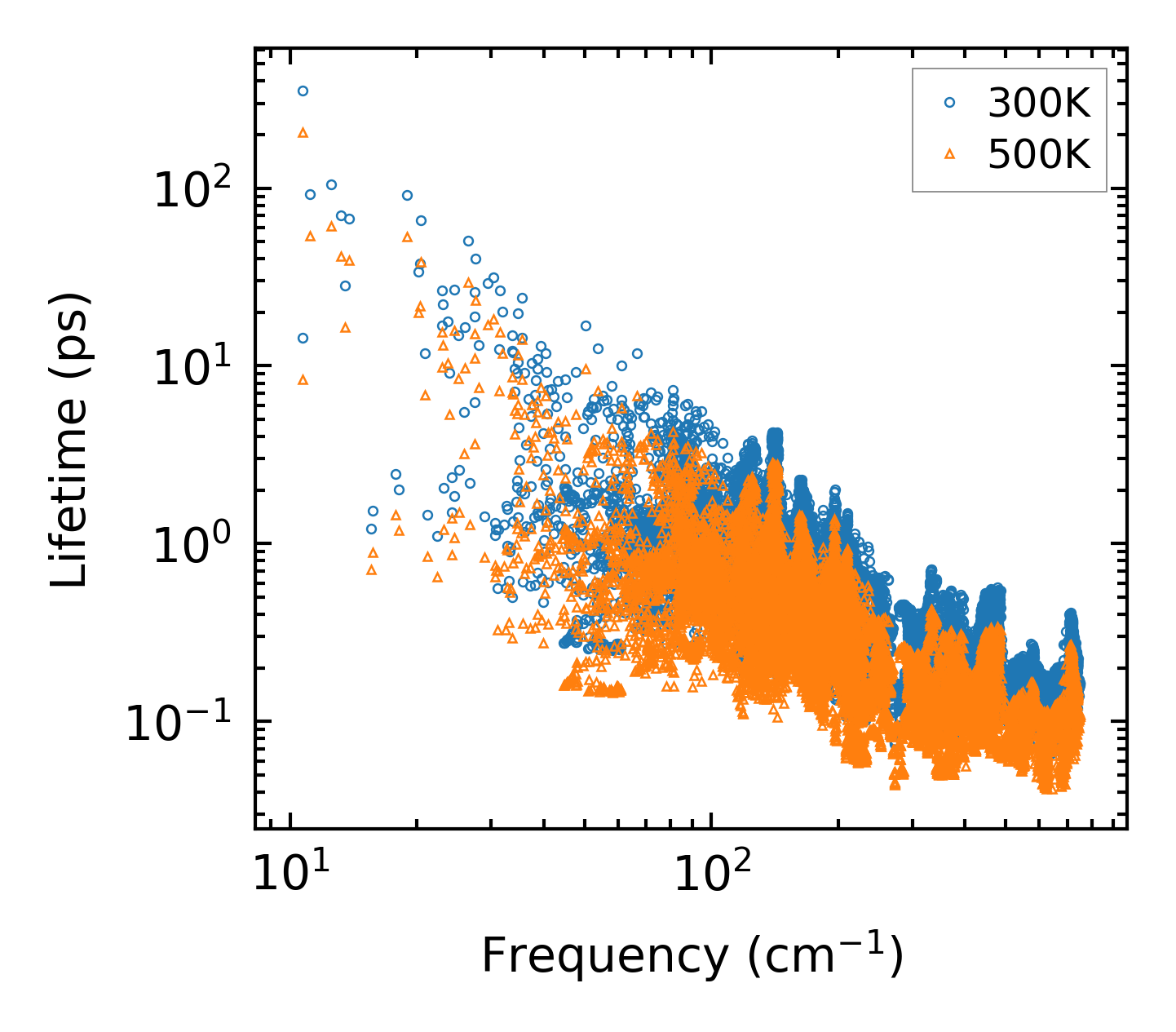

../../_images/fig_lifetime3529.png — (a) Phonon lifetime due to phonon-phonon scattering

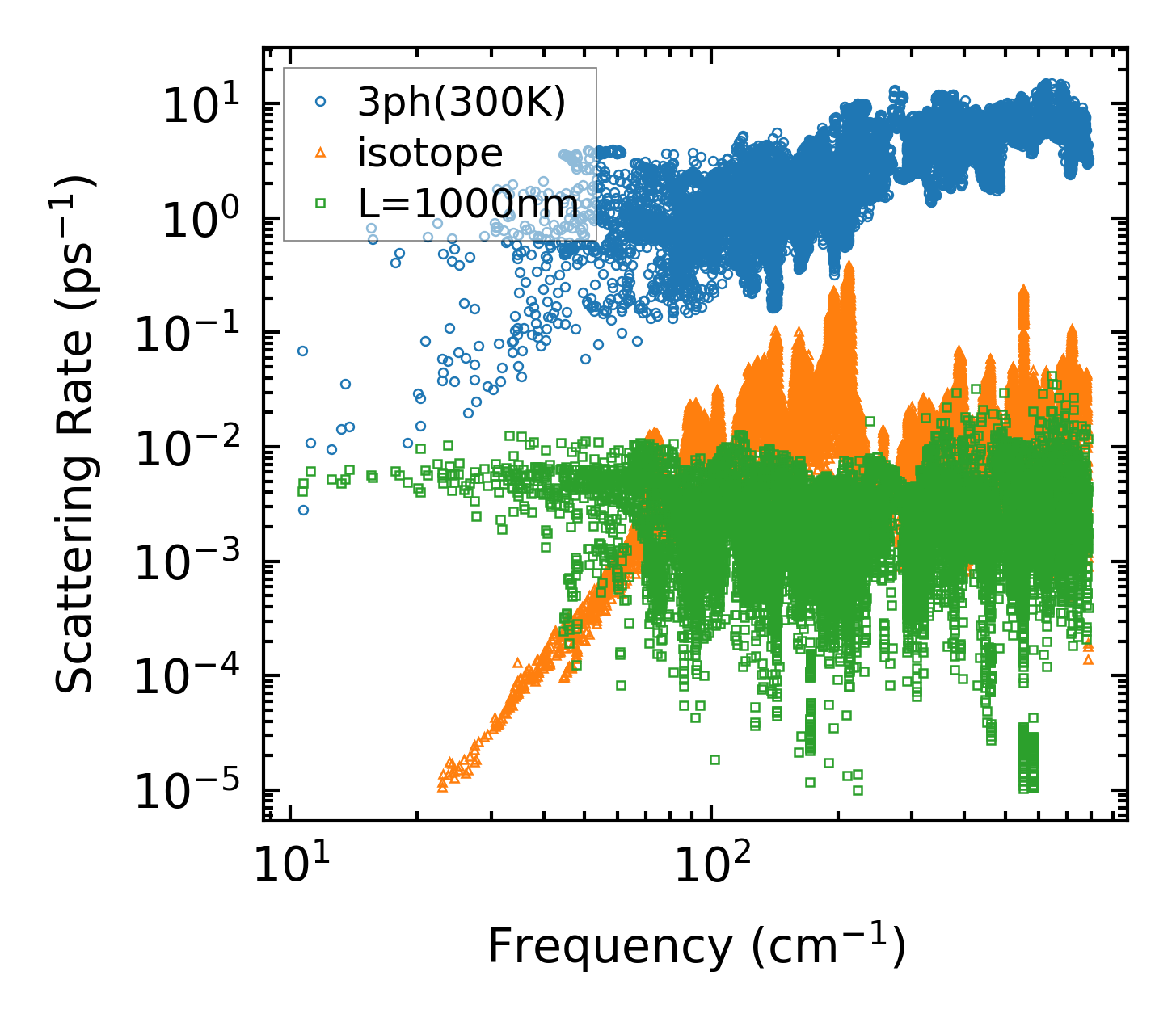

../../_images/fig_scat_rates3528.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

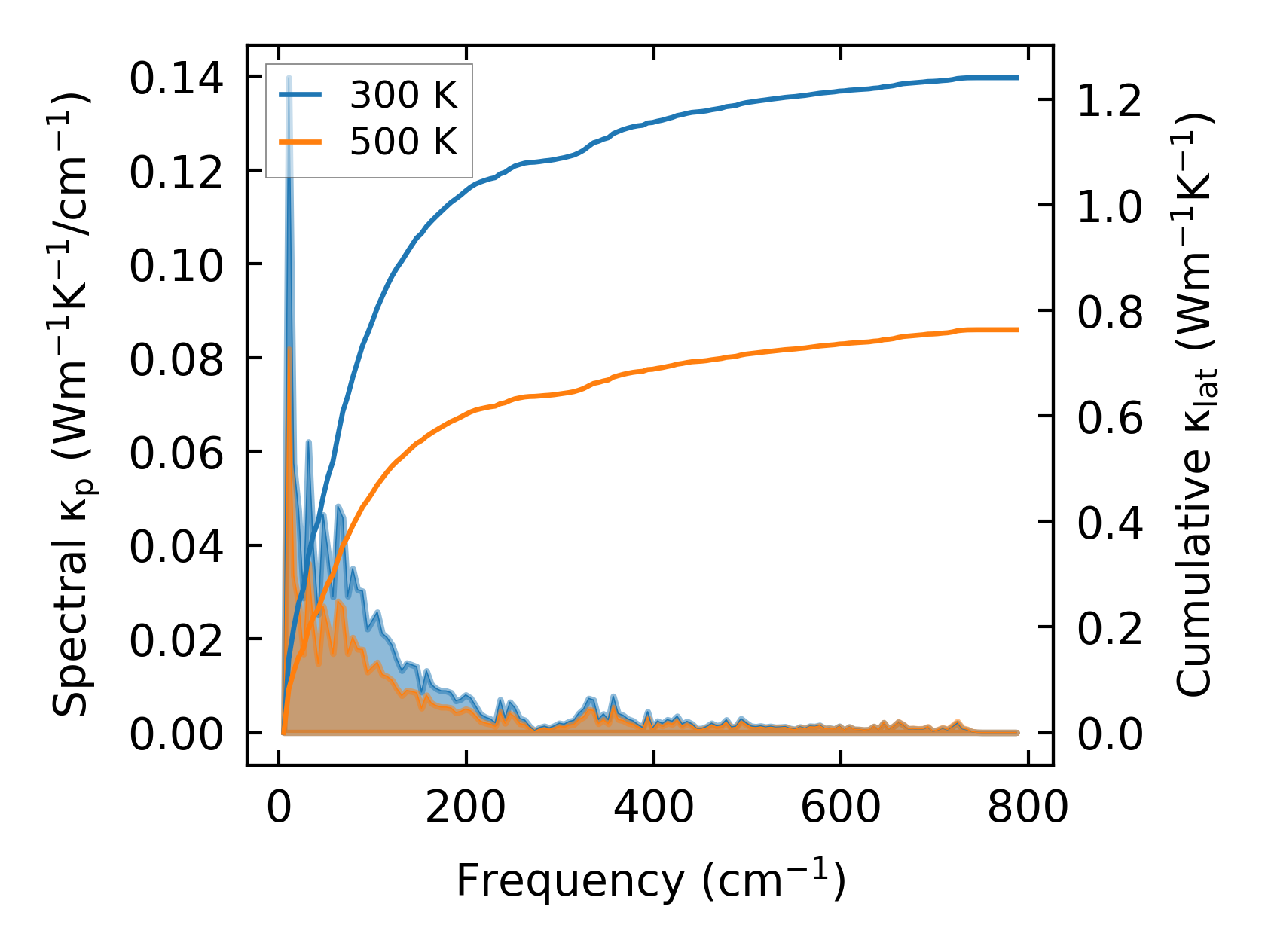

../../_images/fig_cumu_frequency3529.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

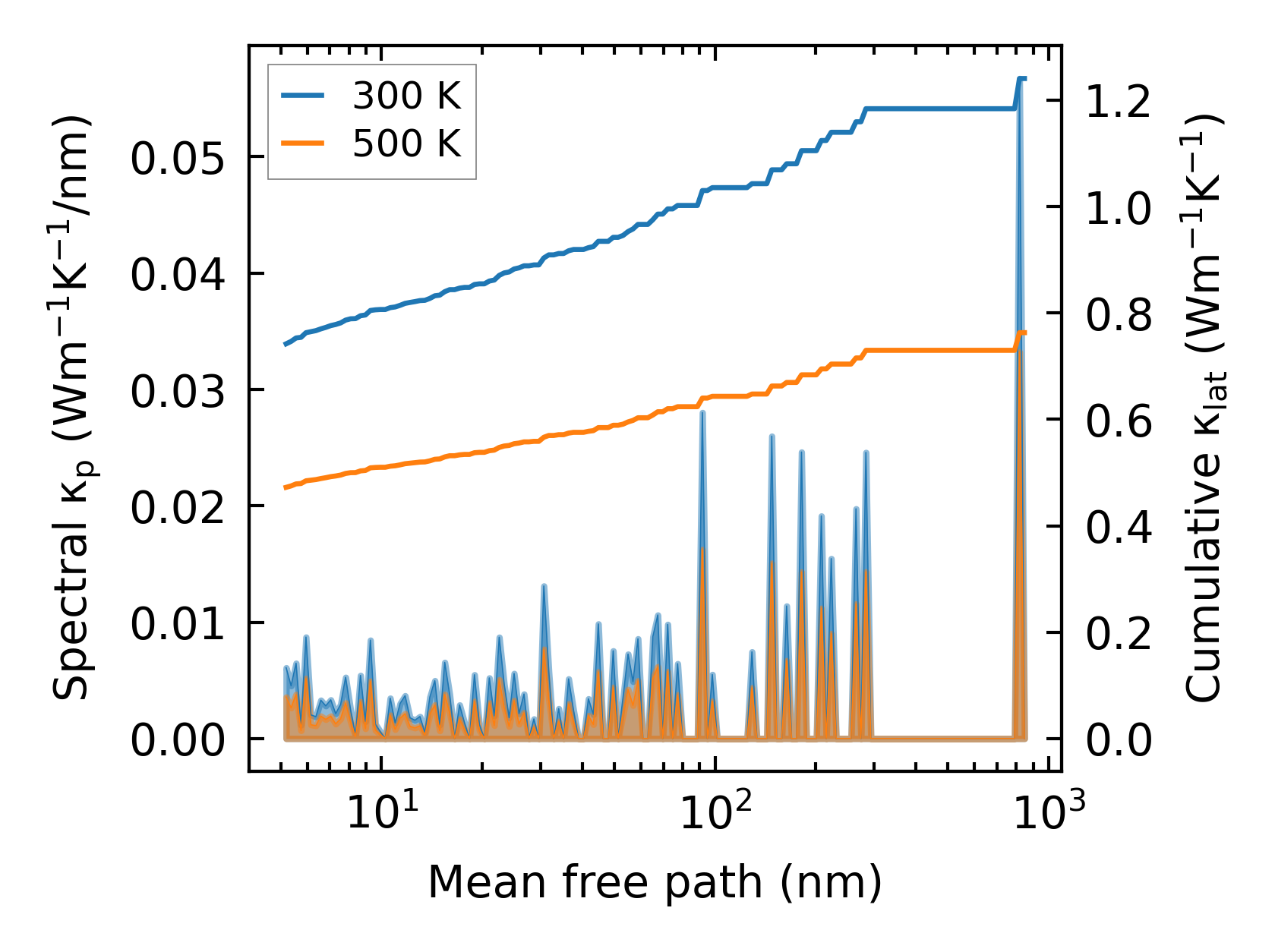

../../_images/fig_cumu_mfp3528.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28625.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times15549.png — (a) Computation time
