mp-555932/RbEr3F10/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-555932.tar.gz

Harmonic properties

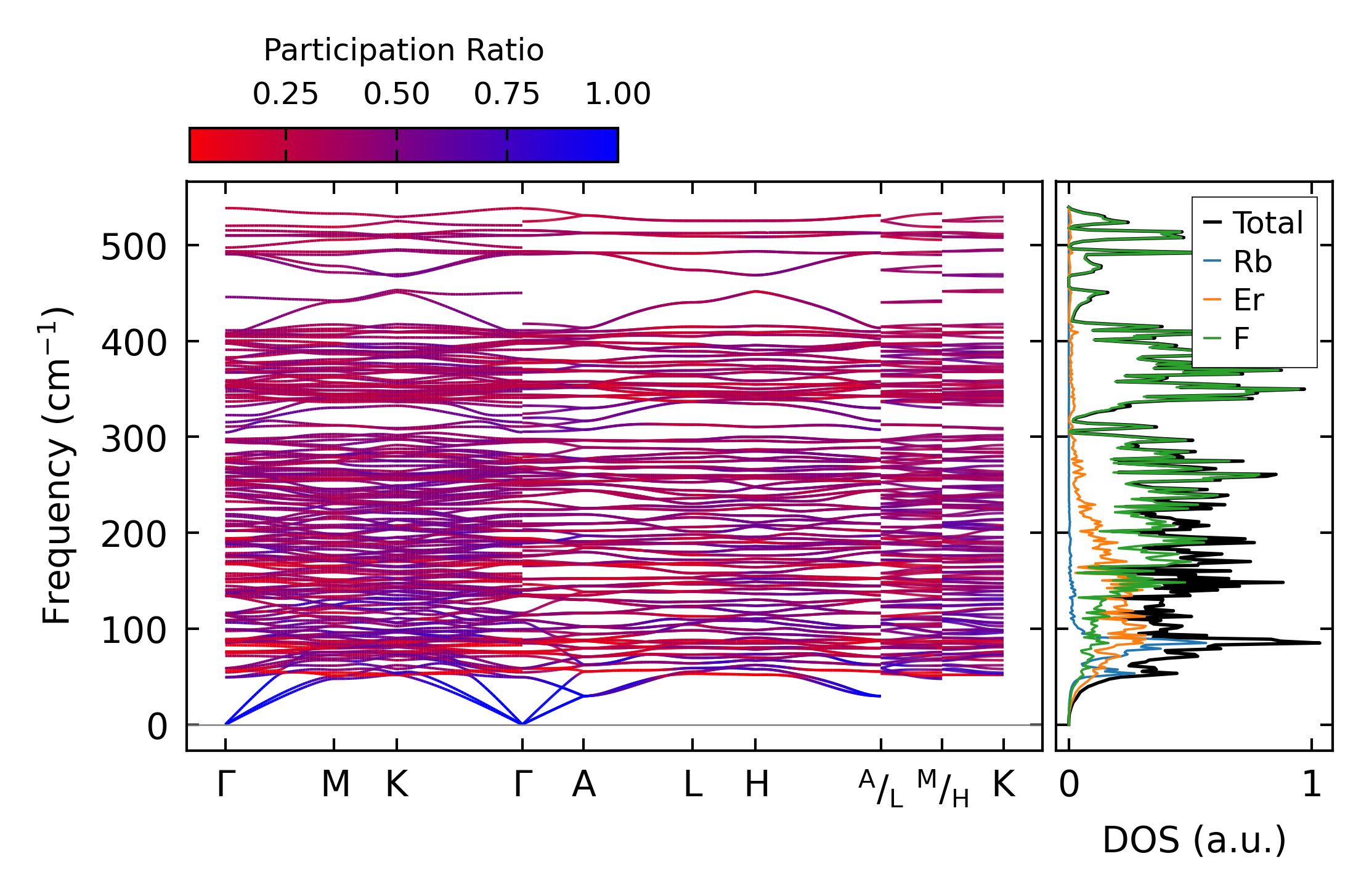

../../_images/fig_bandos_pr8709.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8709.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3516.png — (a) Grüneisen parameters

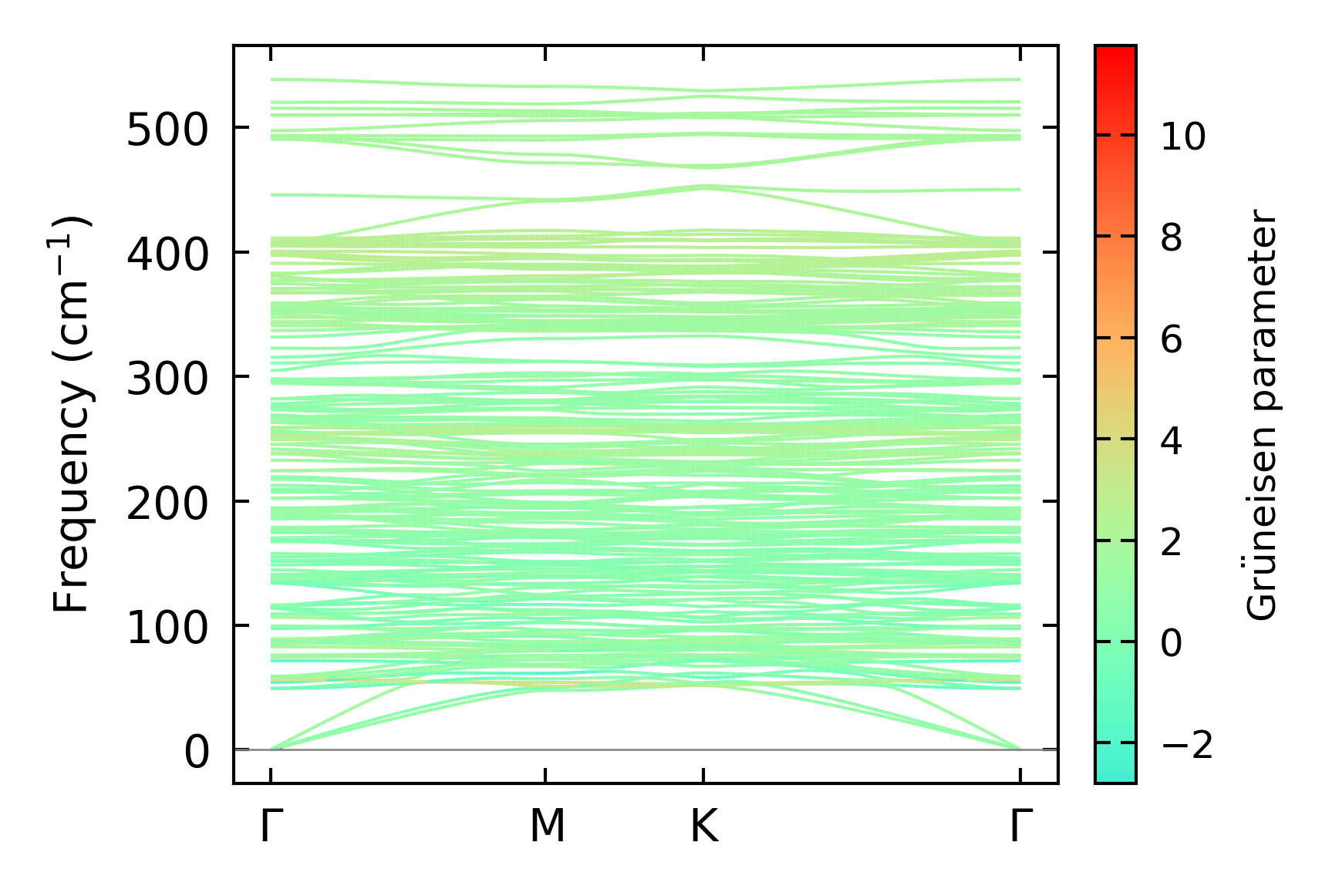

../../_images/fig_gruneisen3516.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x5, supercell: 1x1x1

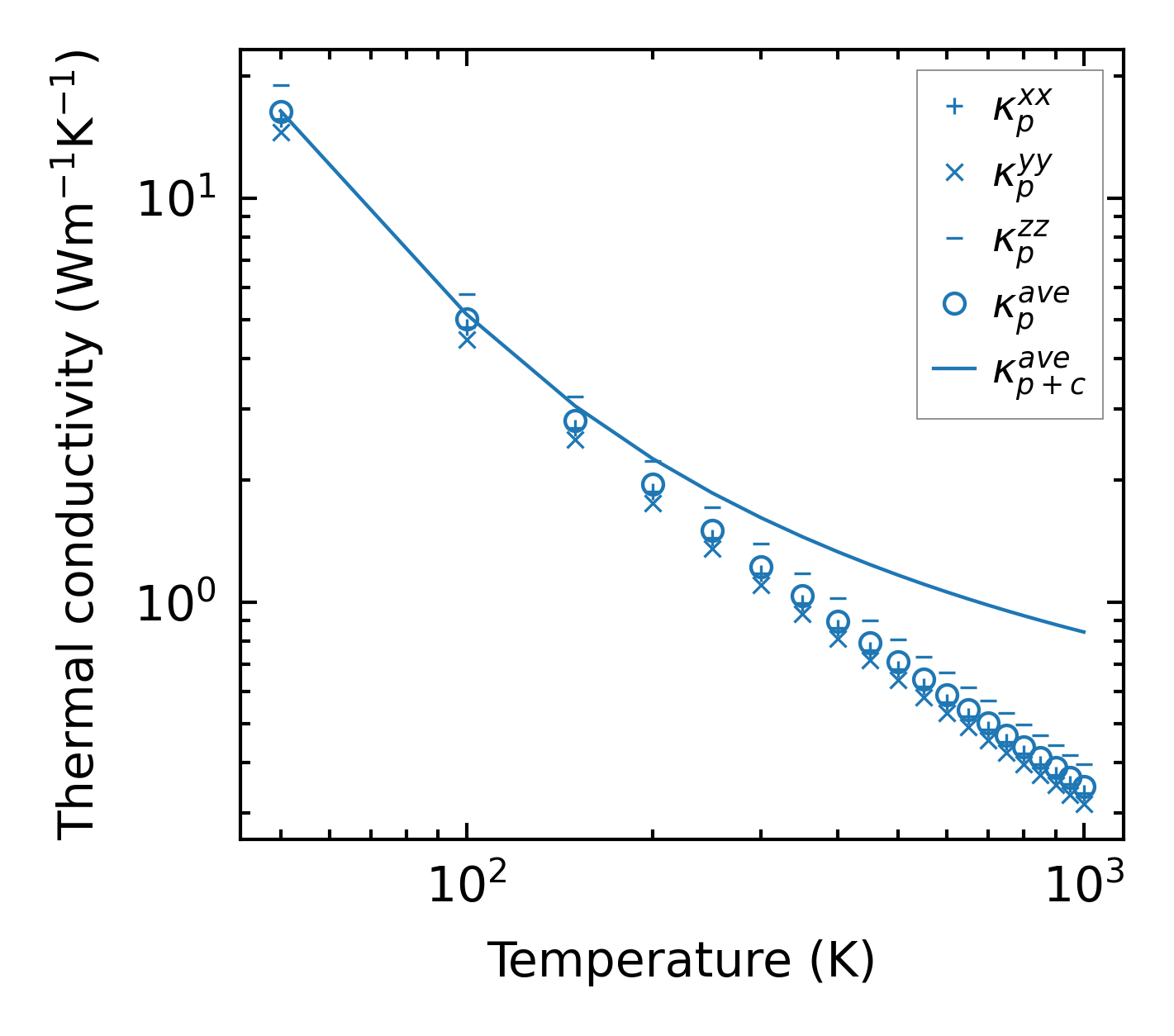

../../_images/fig_kappa6650.png — (a) Temperature-dependent lattice thermal conductivity

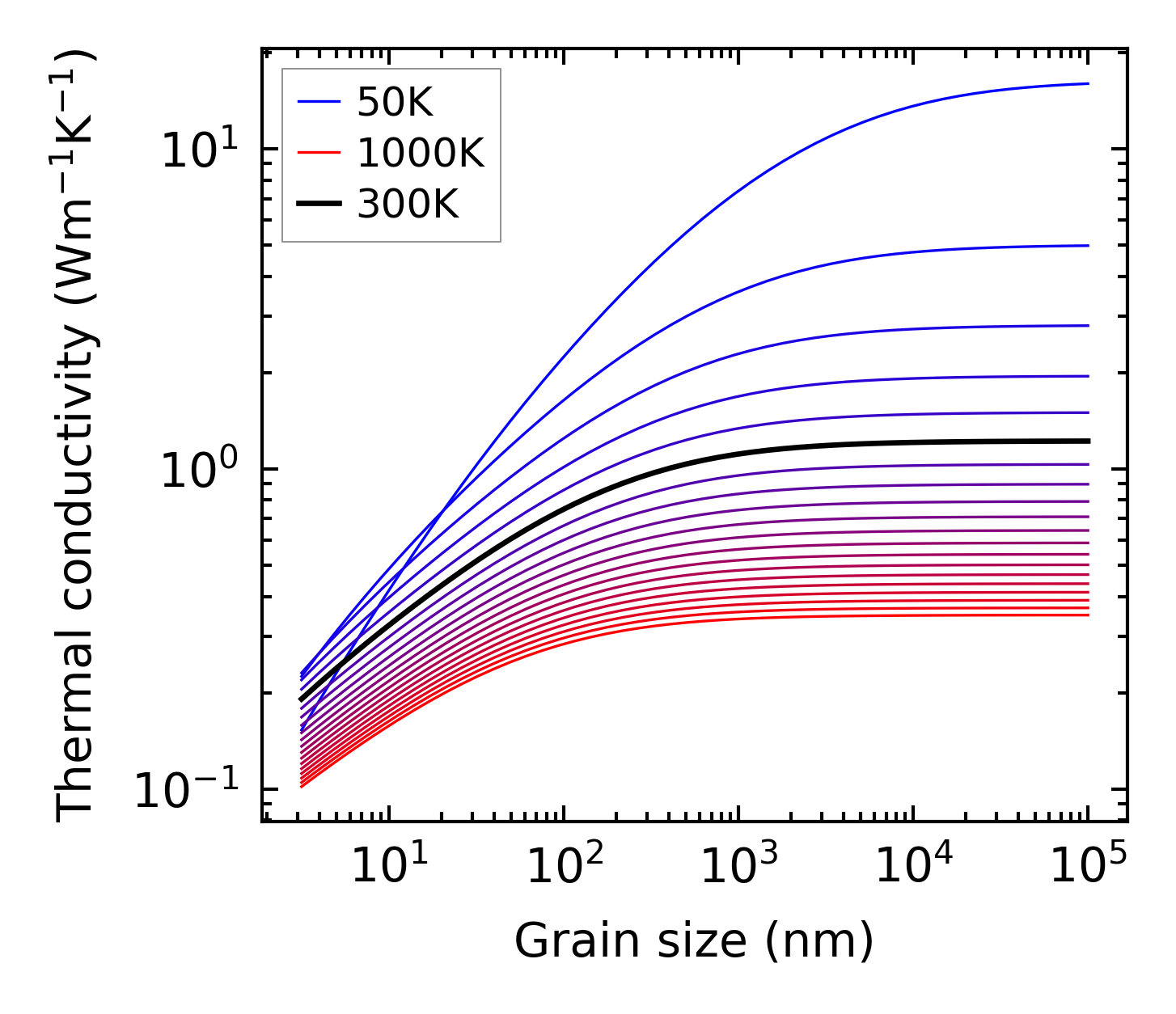

../../_images/fig_kappa_vs_grain_size3560.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

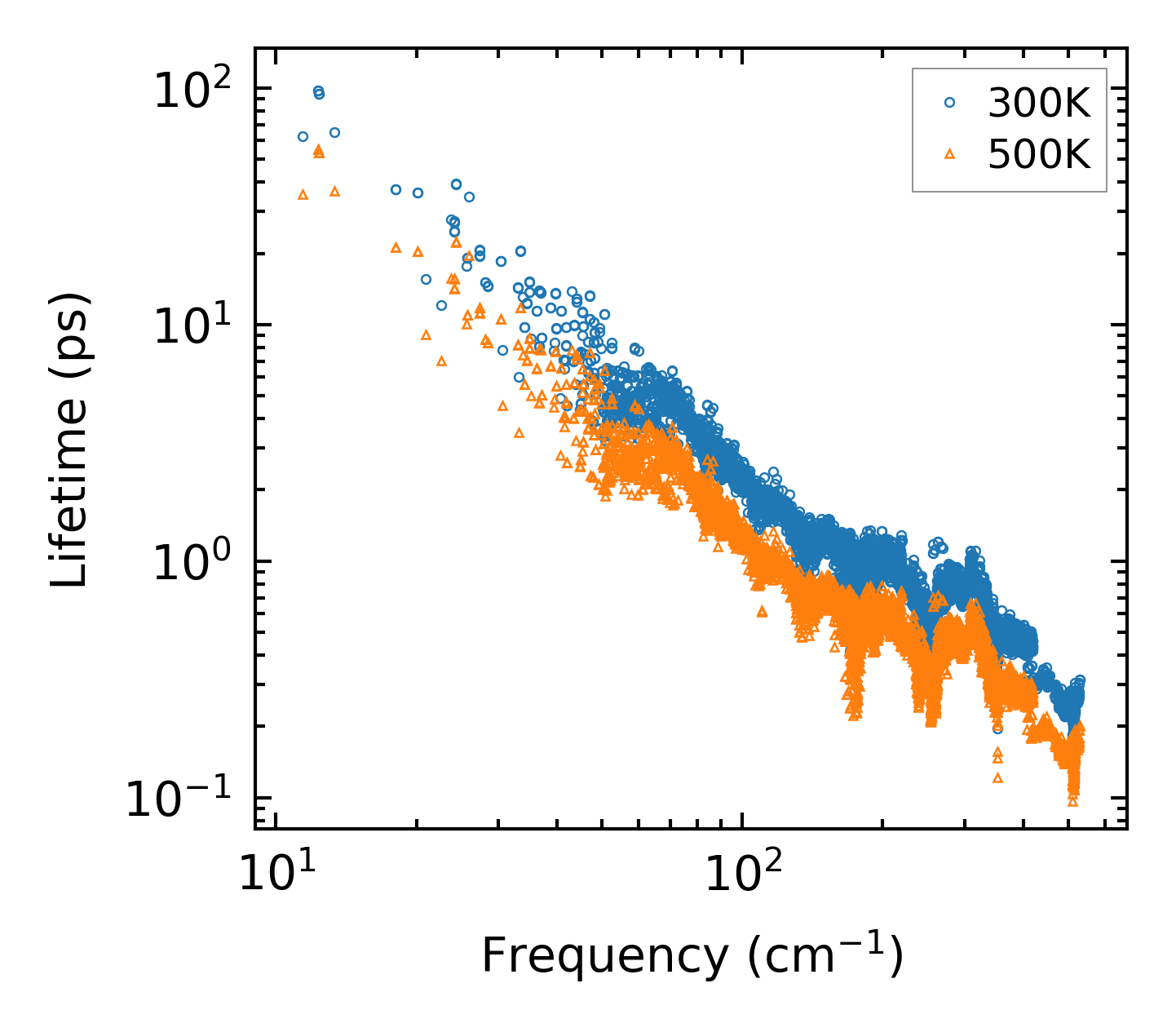

../../_images/fig_lifetime3483.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3482.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

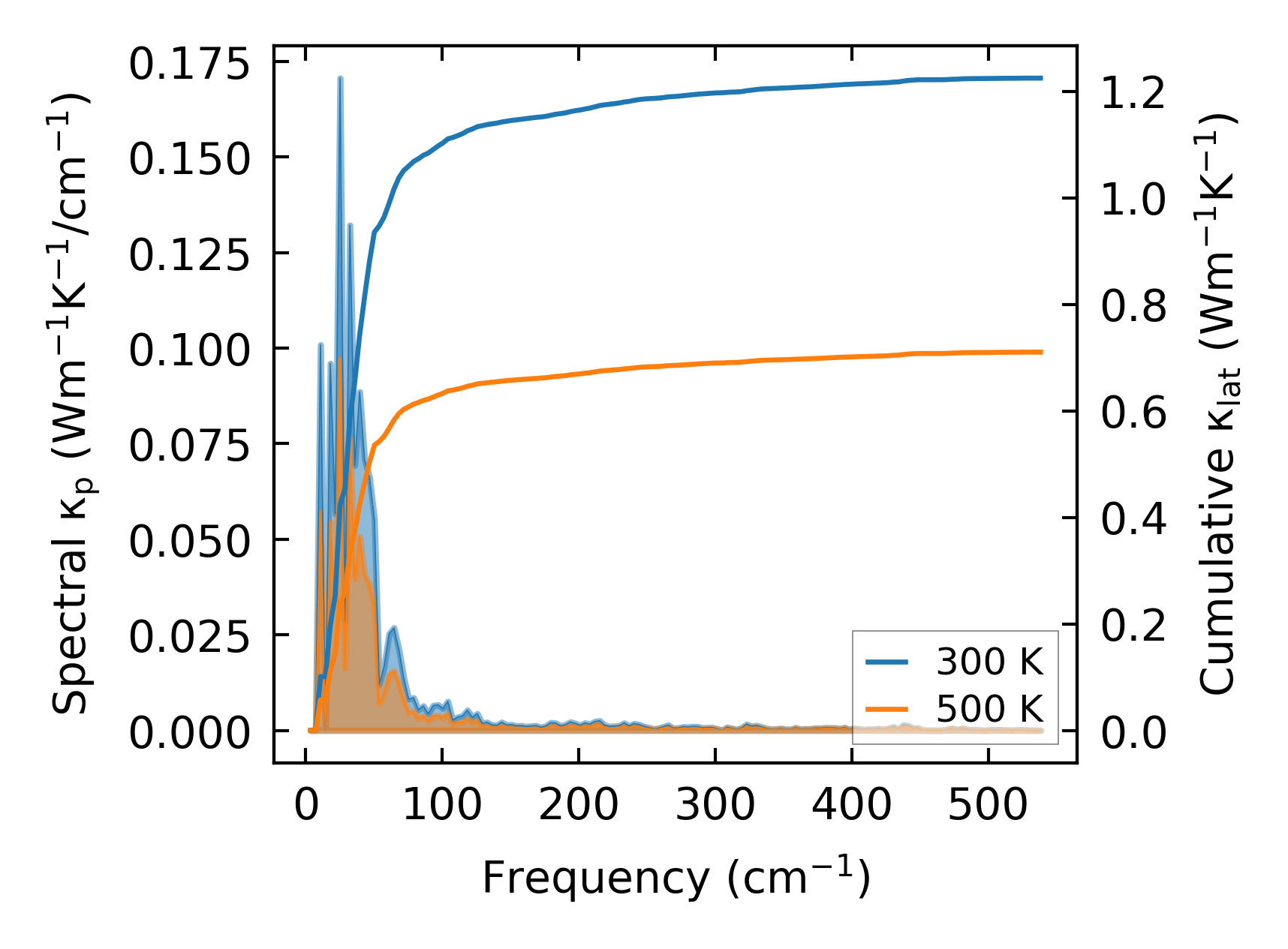

../../_images/fig_cumu_frequency3483.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

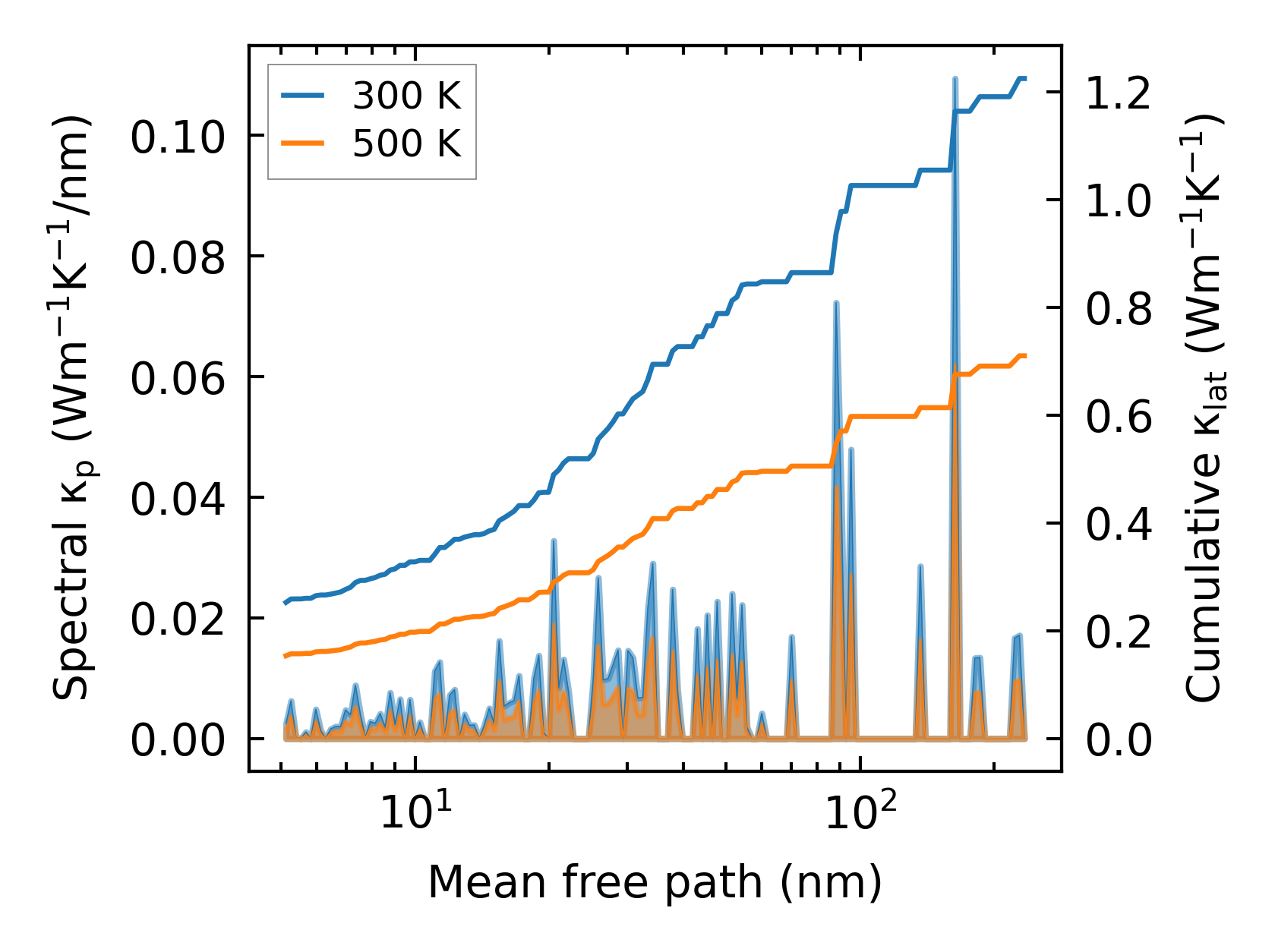

../../_images/fig_cumu_mfp3482.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28470.png — (a) Force constants w.r.t atomic distance

Summary

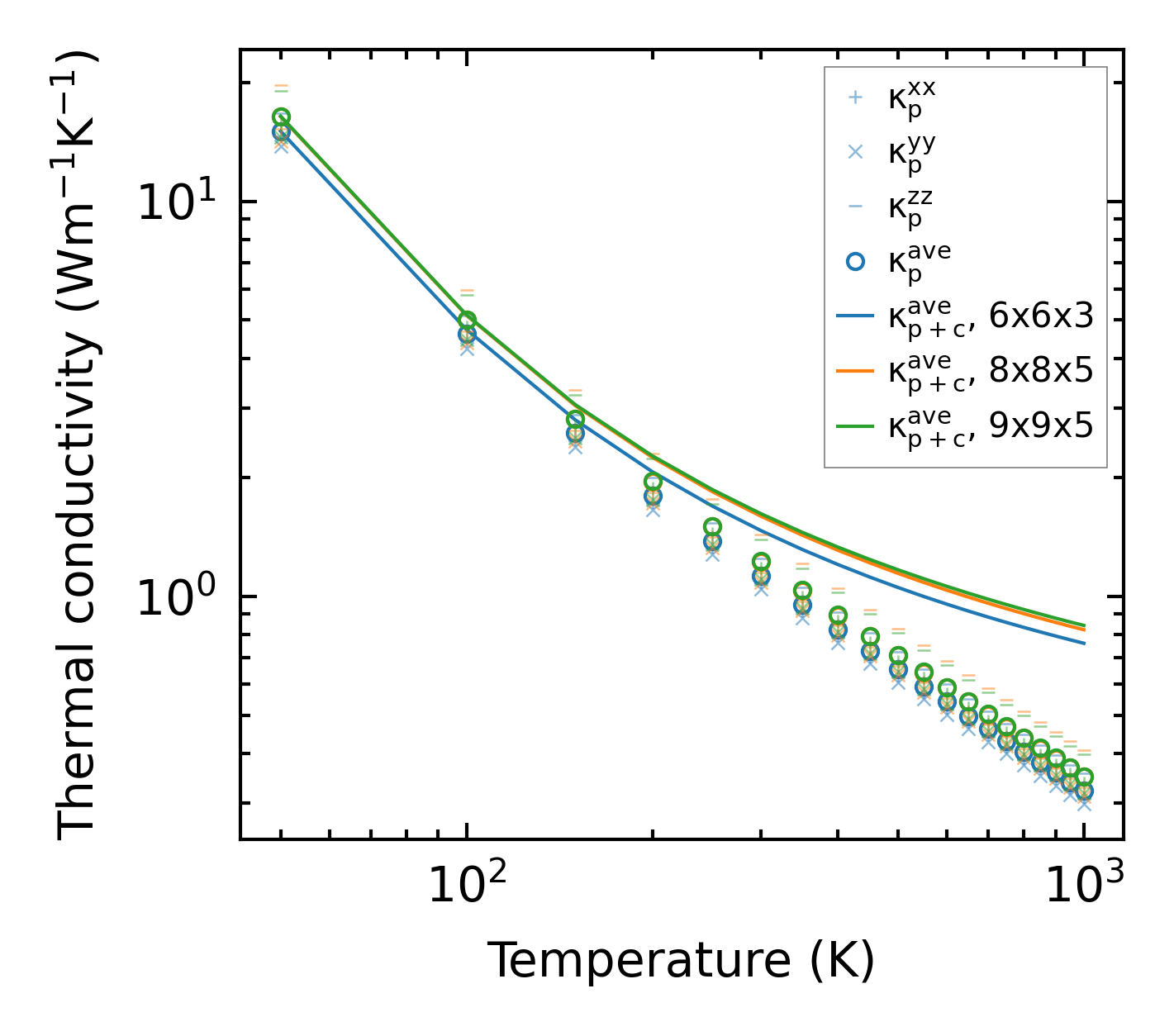

../../_images/fig_kappa6651.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15258.png — (b) Computation time
