mp-555942-2/Er3SiSe2O10F/anharm

Space group: Pnna (52)
Link: Materials Project
Download: mp-555942-2.tar.gz

Equation of state

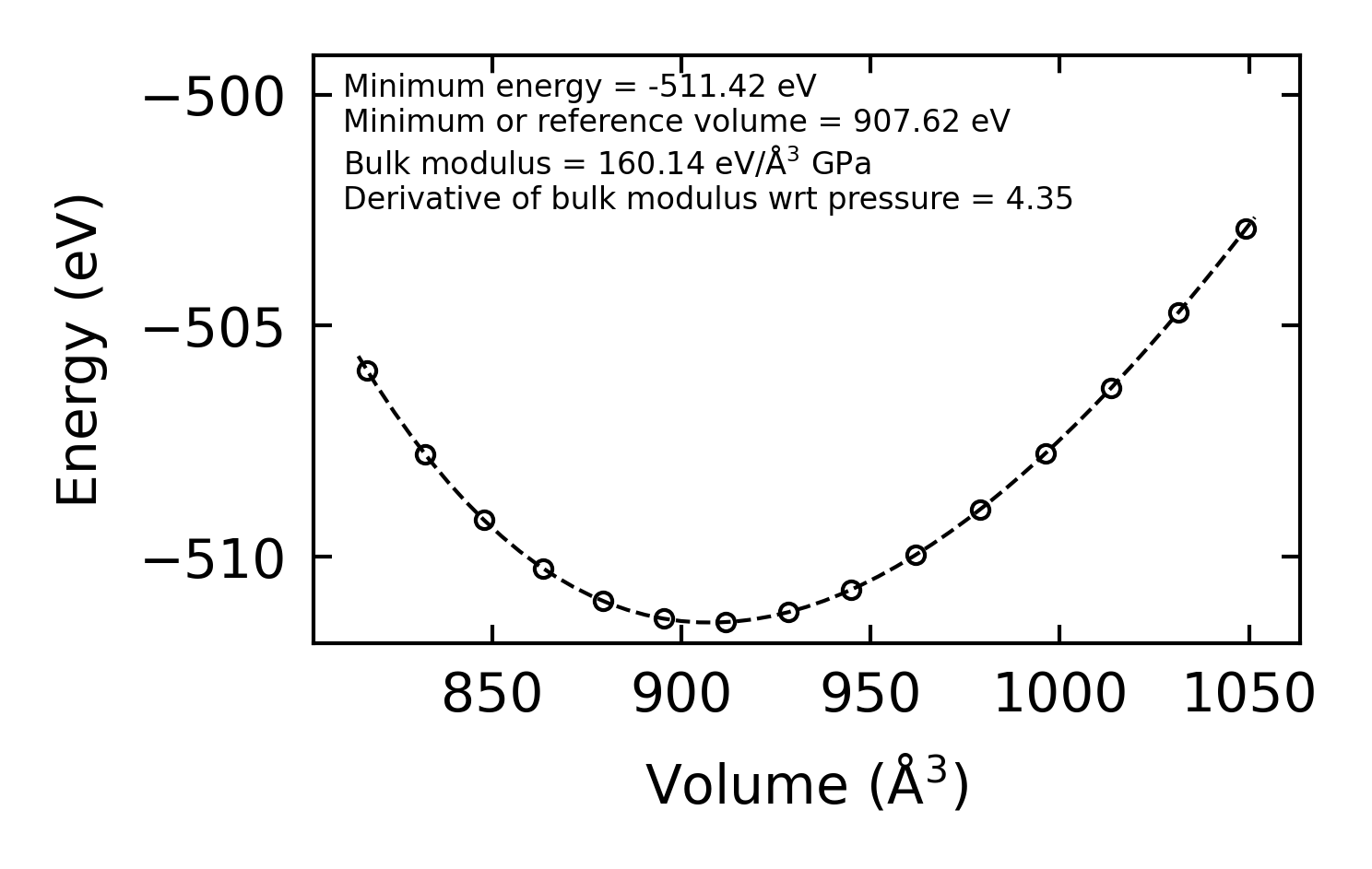

../../_images/fig_bm4395.png — (a) Equation of state

Harmonic properties

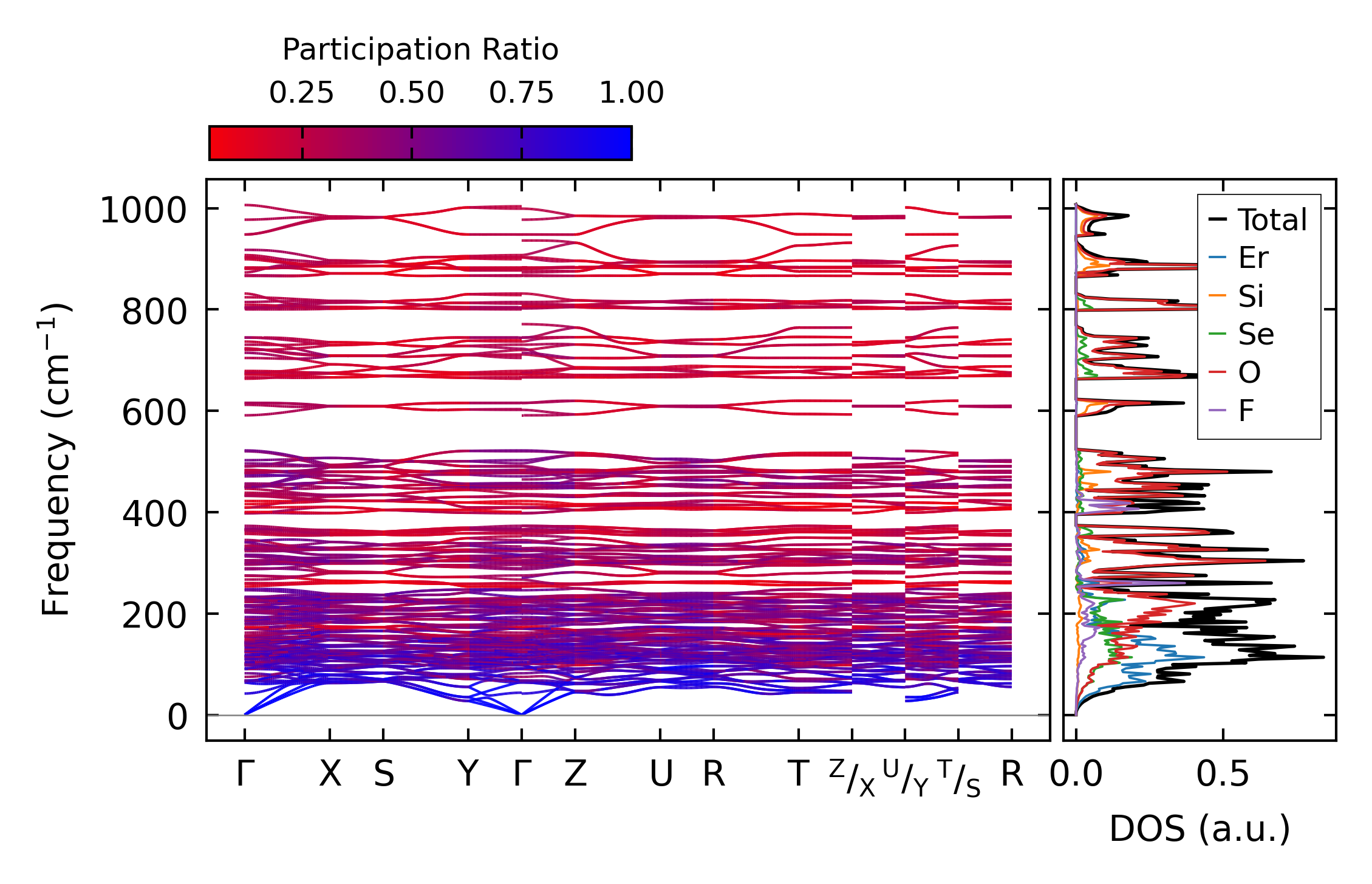

../../_images/fig_bandos_pr8712.png — (a) Phonon dispersion with participation ratio and DOS

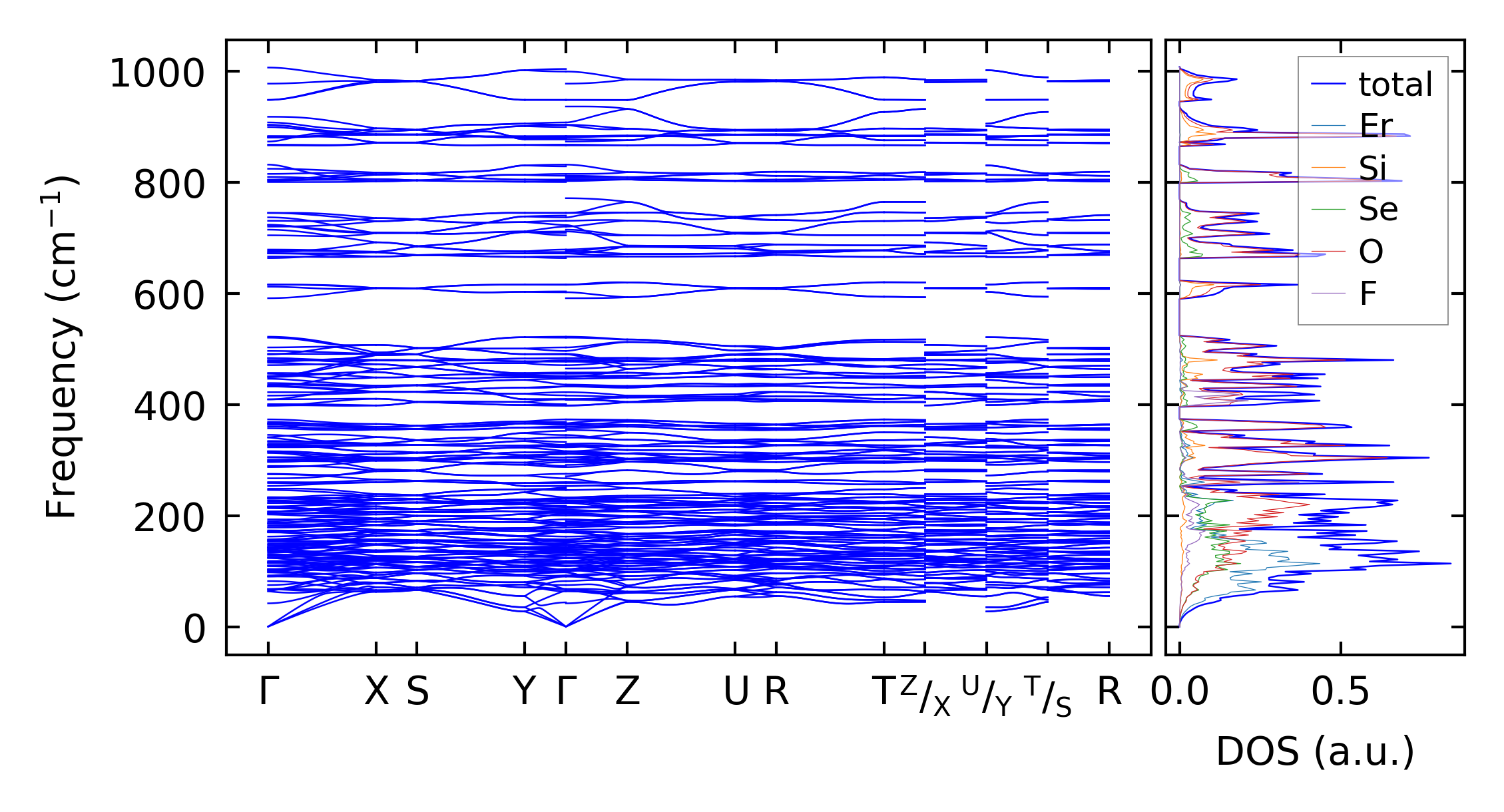

../../_images/fig_bandos12243.png — (b) Phonon dispersion and DOS

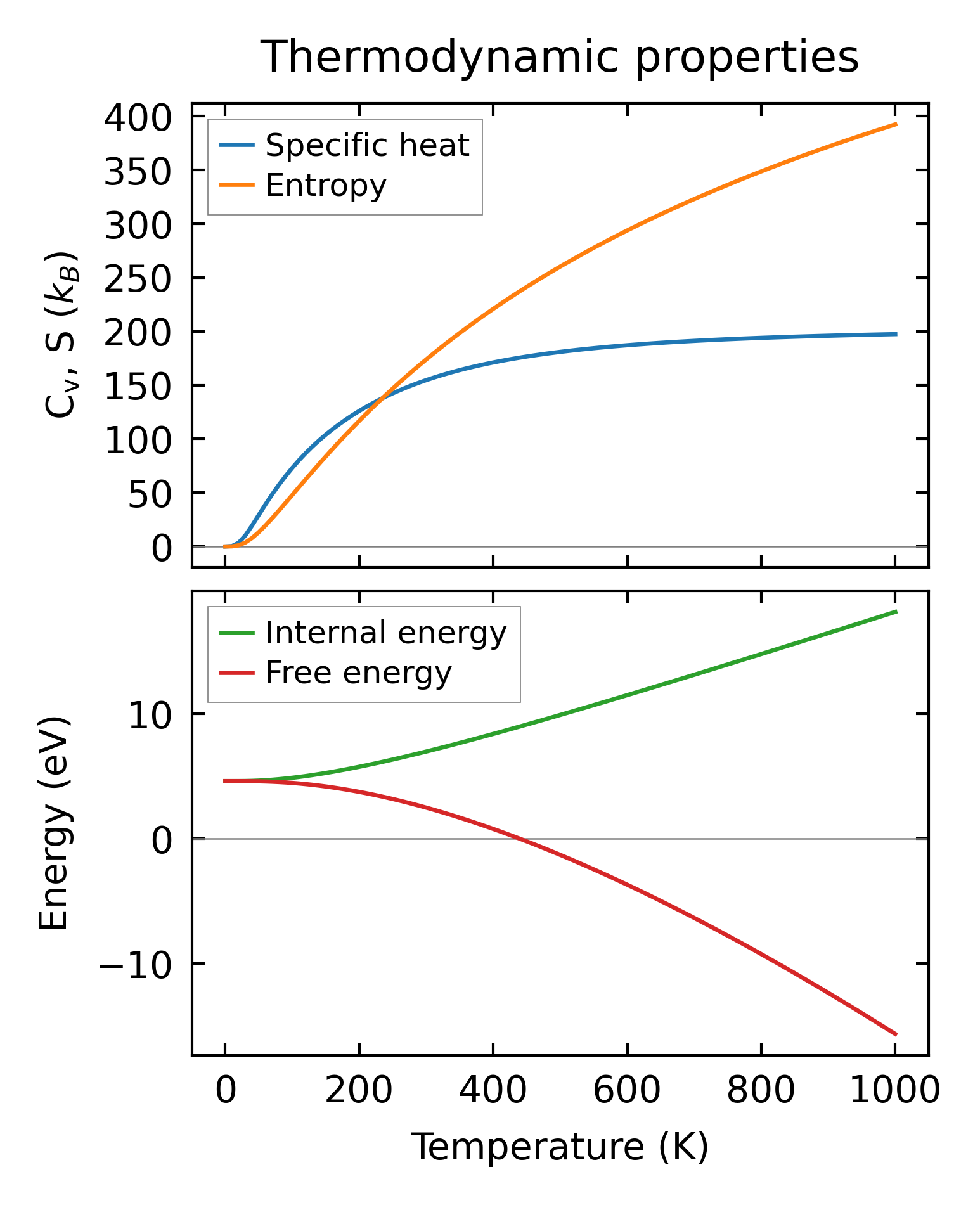

../../_images/fig_thermo8712.png — (c) Thermodynamic properties

Grüneisen parameters

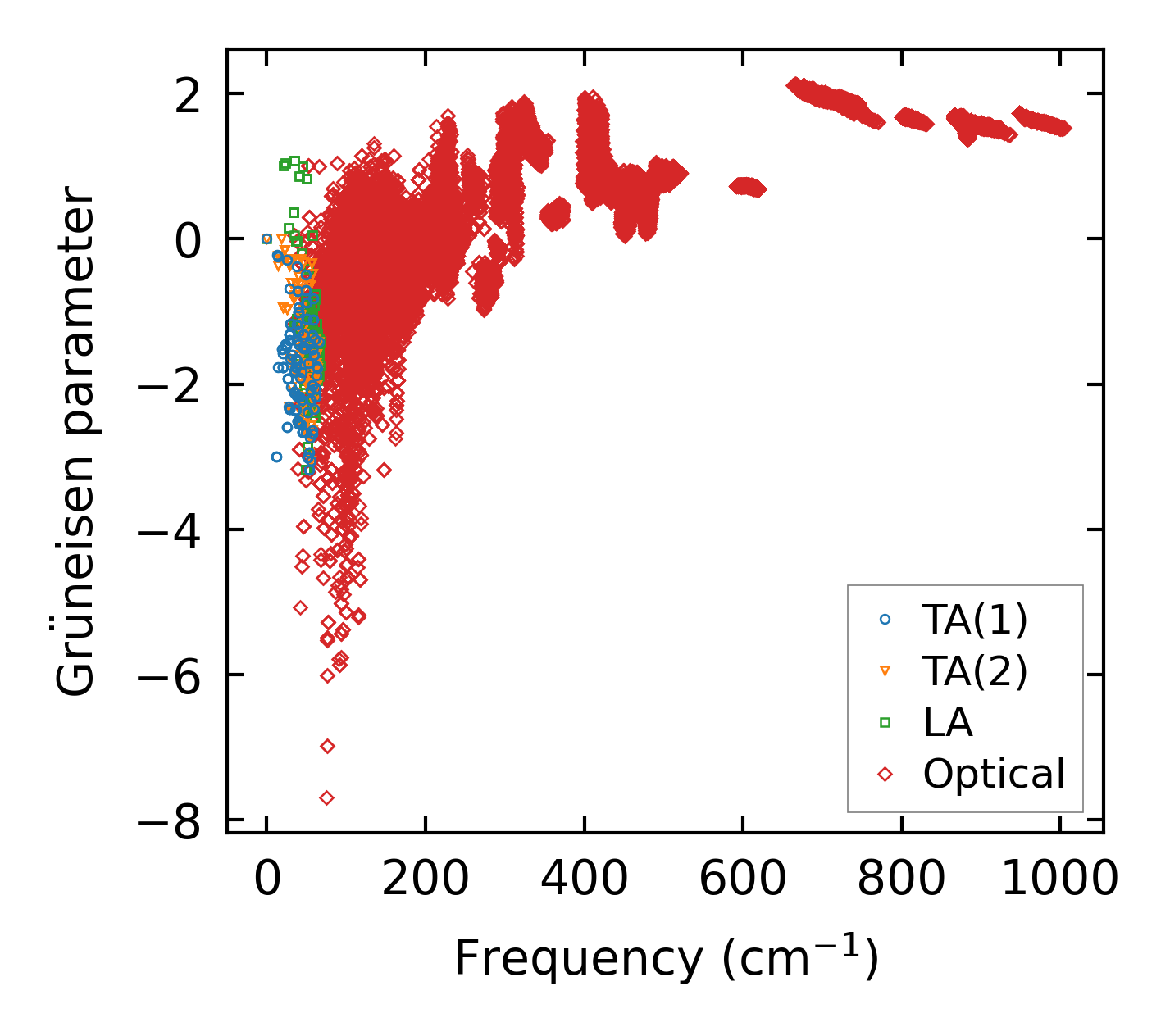

../../_images/fig_gru_all3519.png — (a) Grüneisen parameters

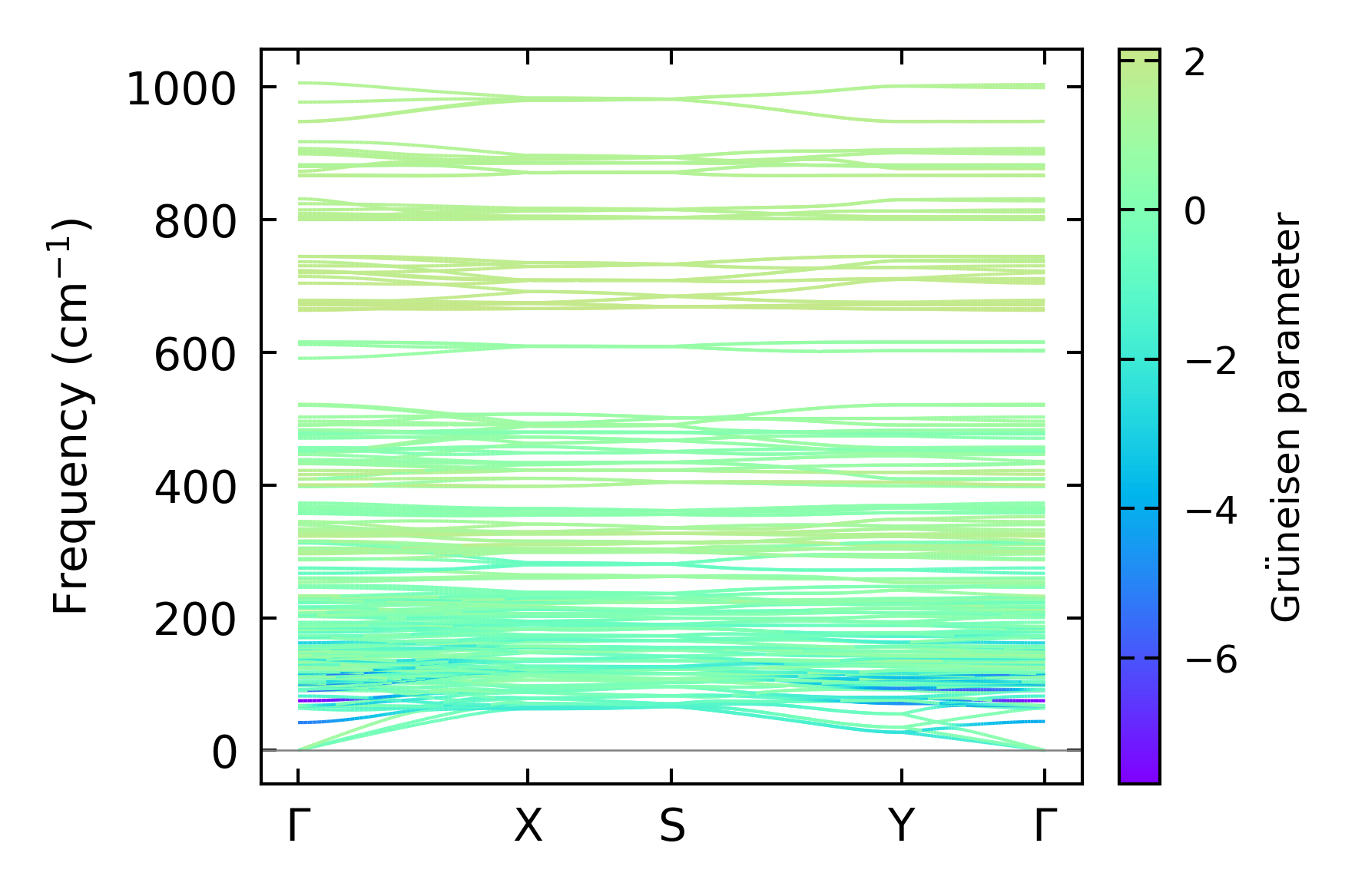

../../_images/fig_gruneisen3519.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x4x7, supercell: 2x1x1

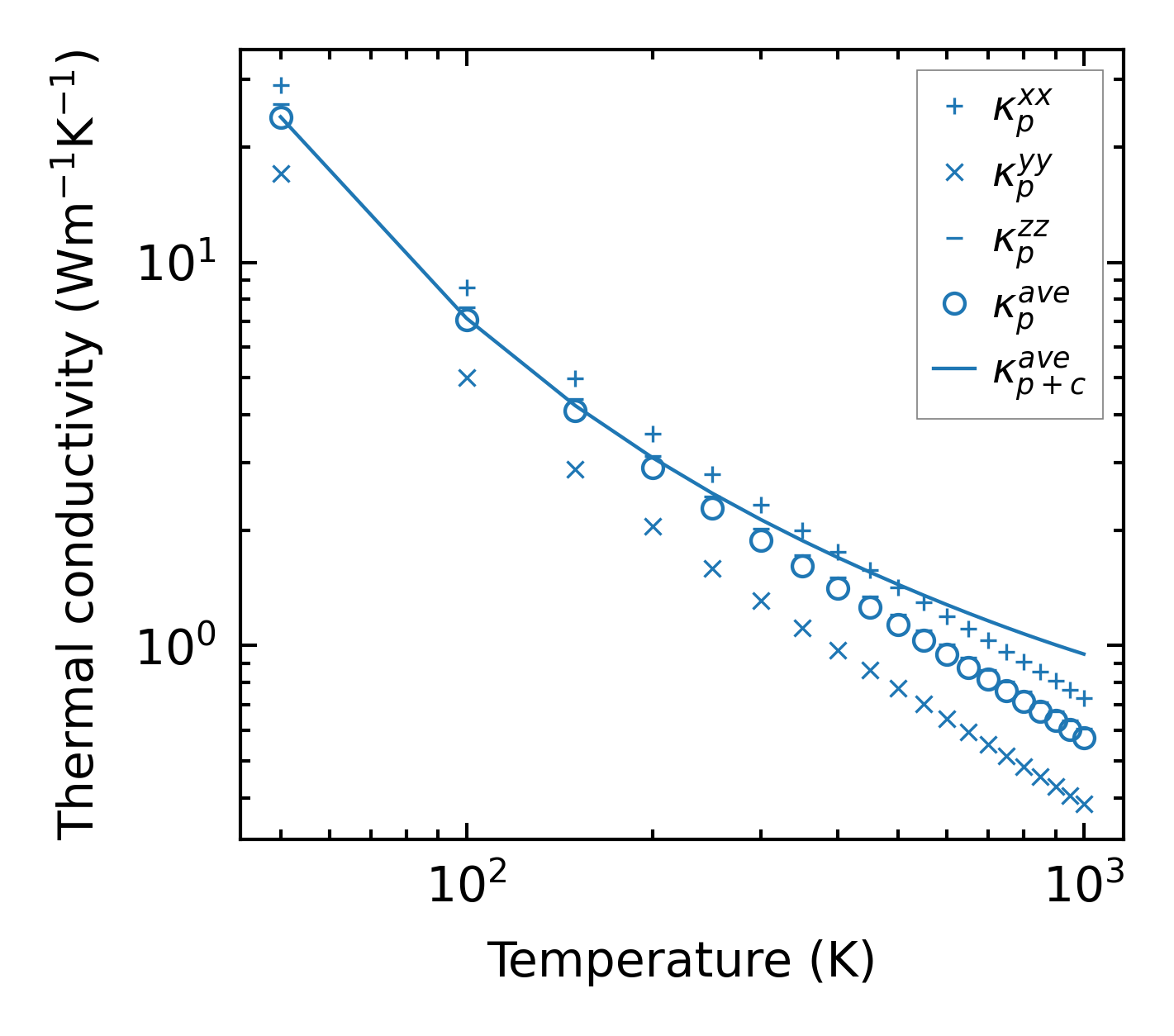

../../_images/fig_kappa6656.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3563.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

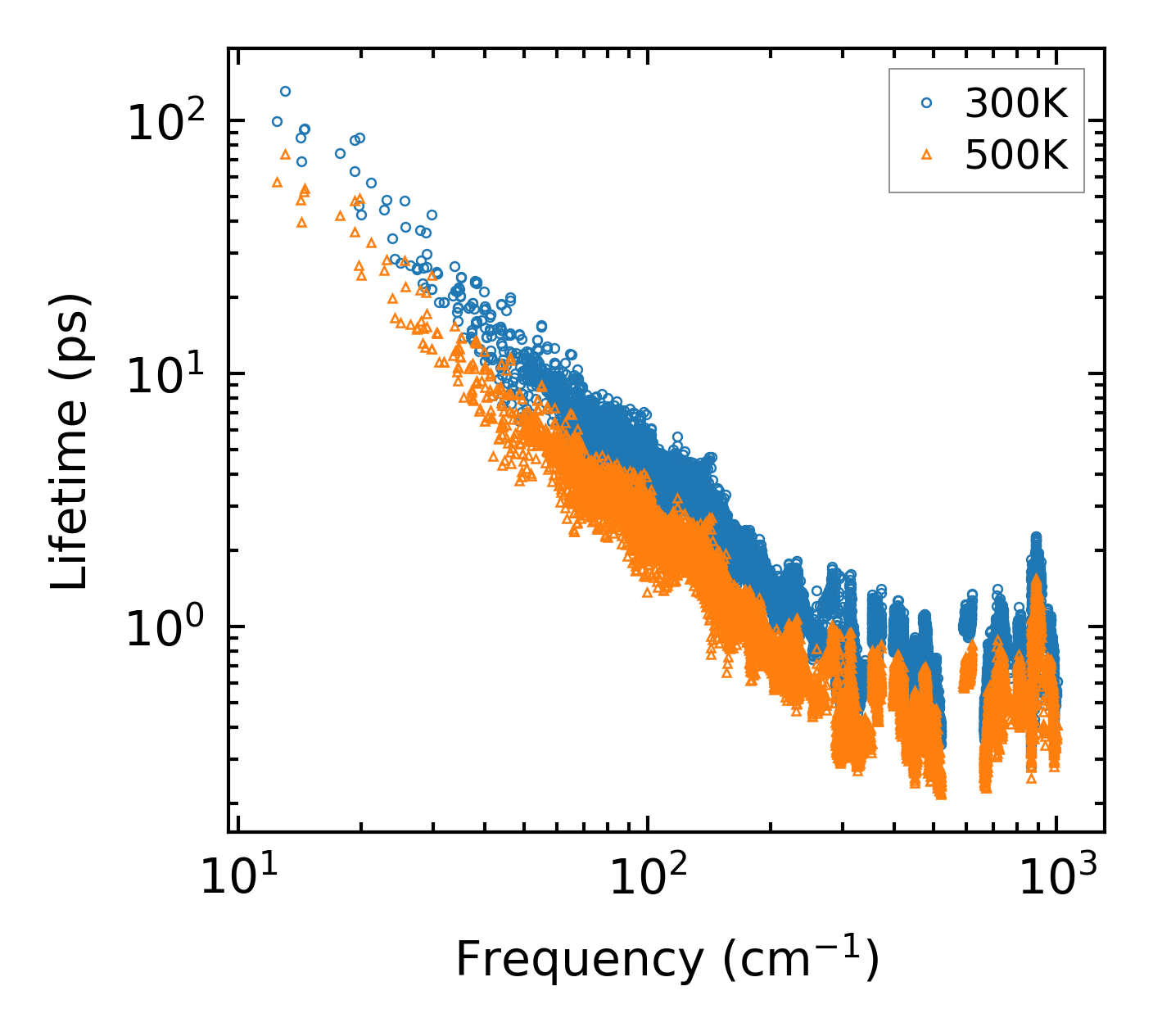

../../_images/fig_lifetime3486.png — (a) Phonon lifetime due to phonon-phonon scattering

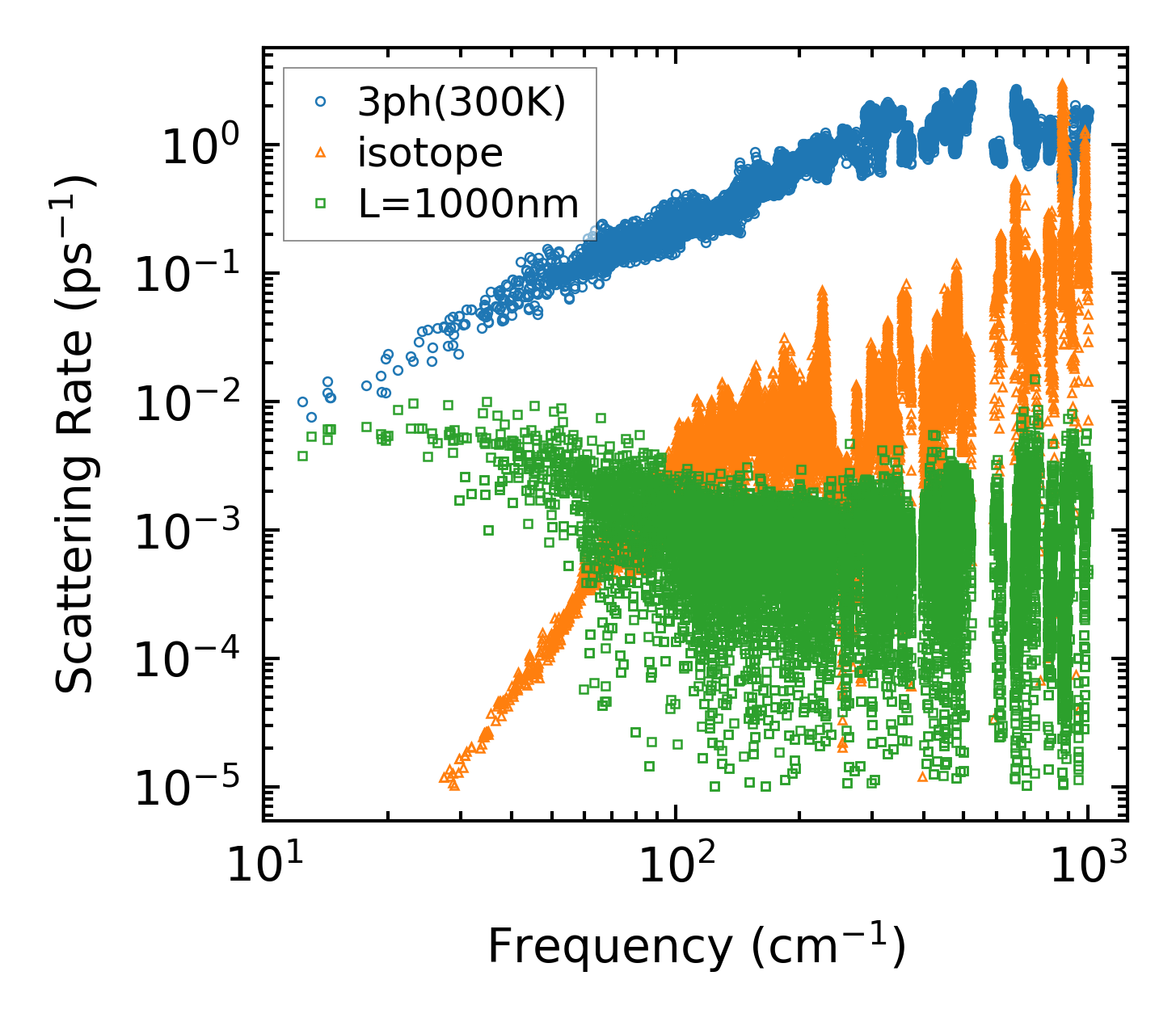

../../_images/fig_scat_rates3485.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

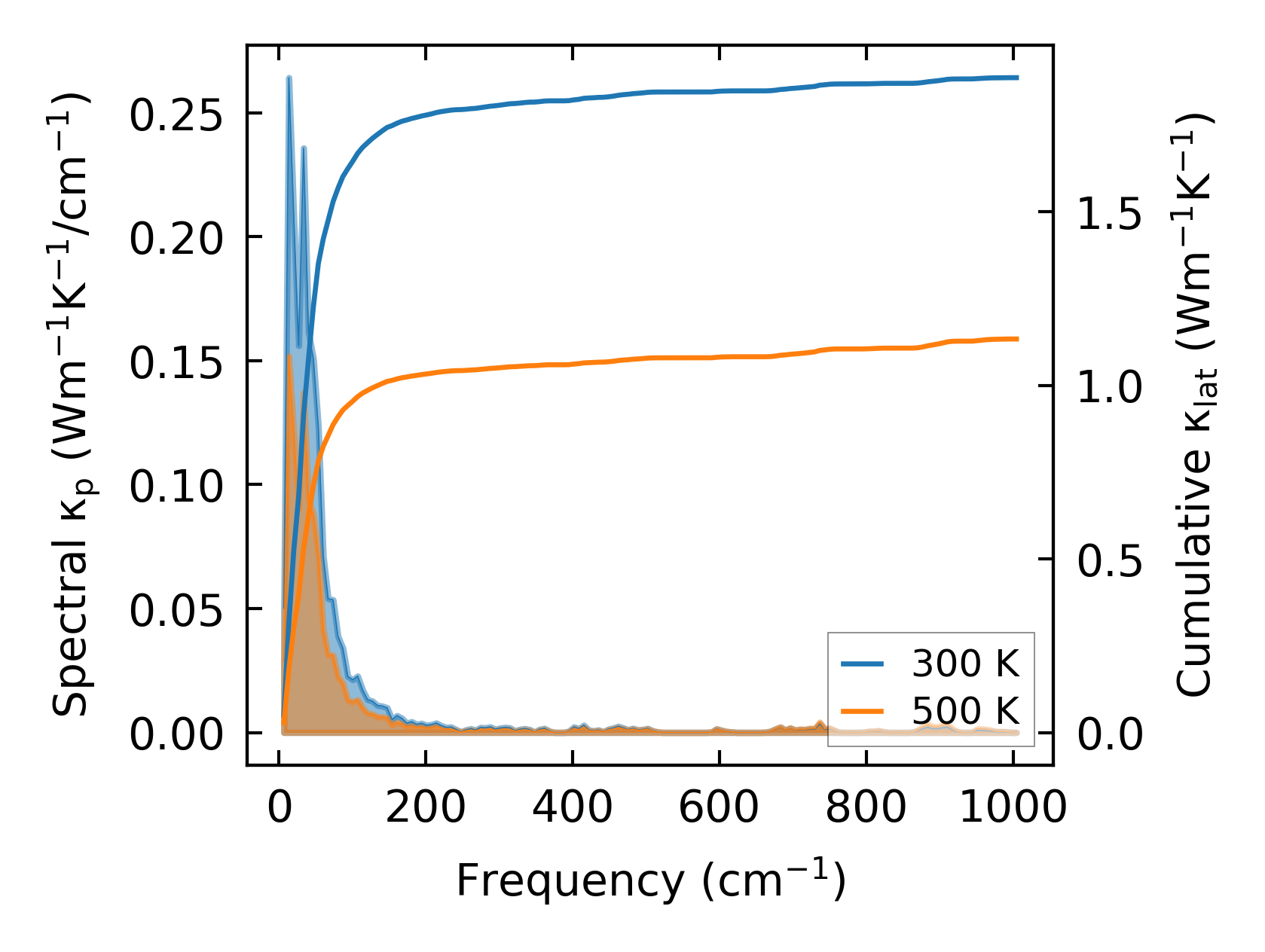

../../_images/fig_cumu_frequency3486.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

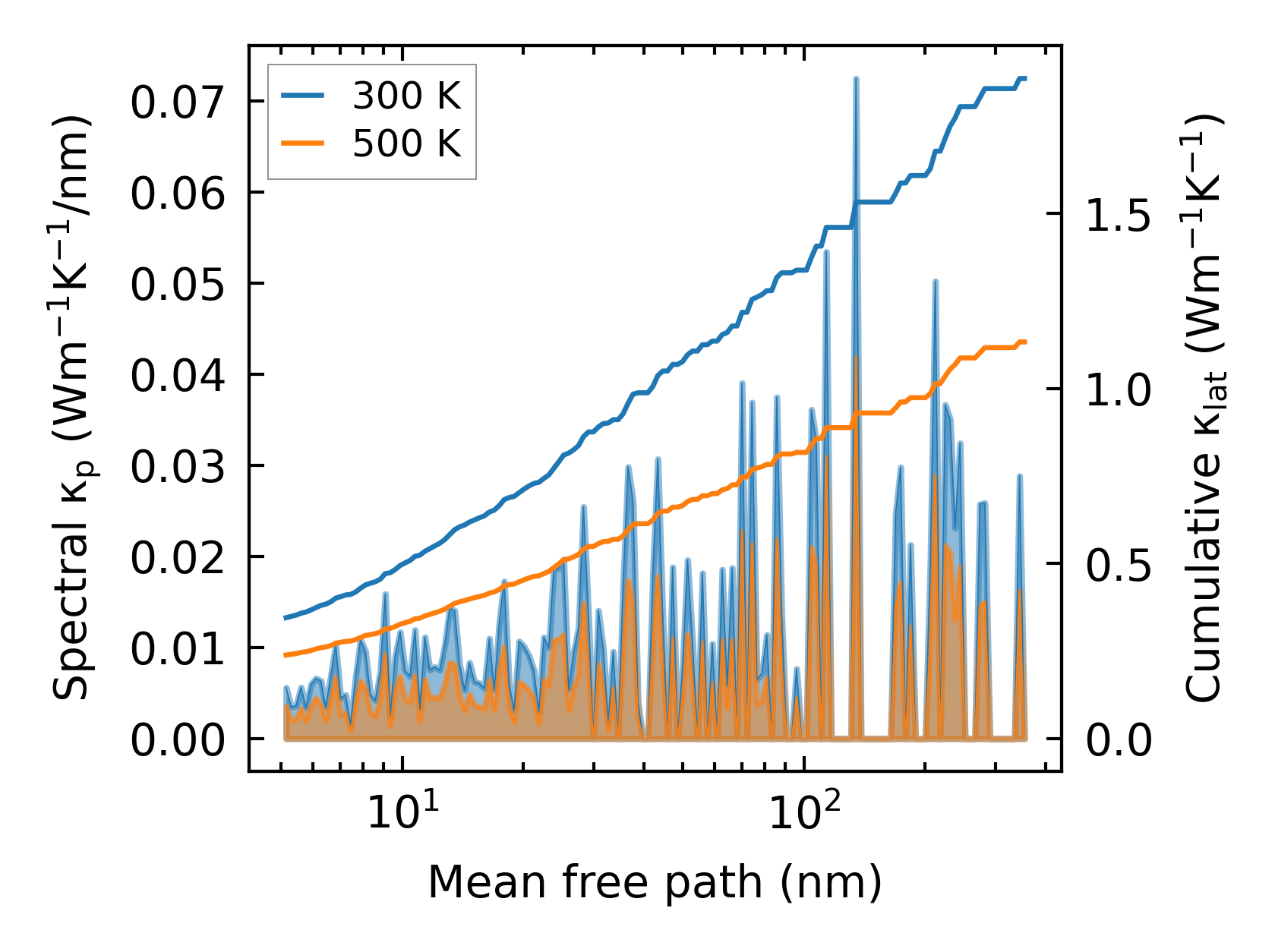

../../_images/fig_cumu_mfp3485.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

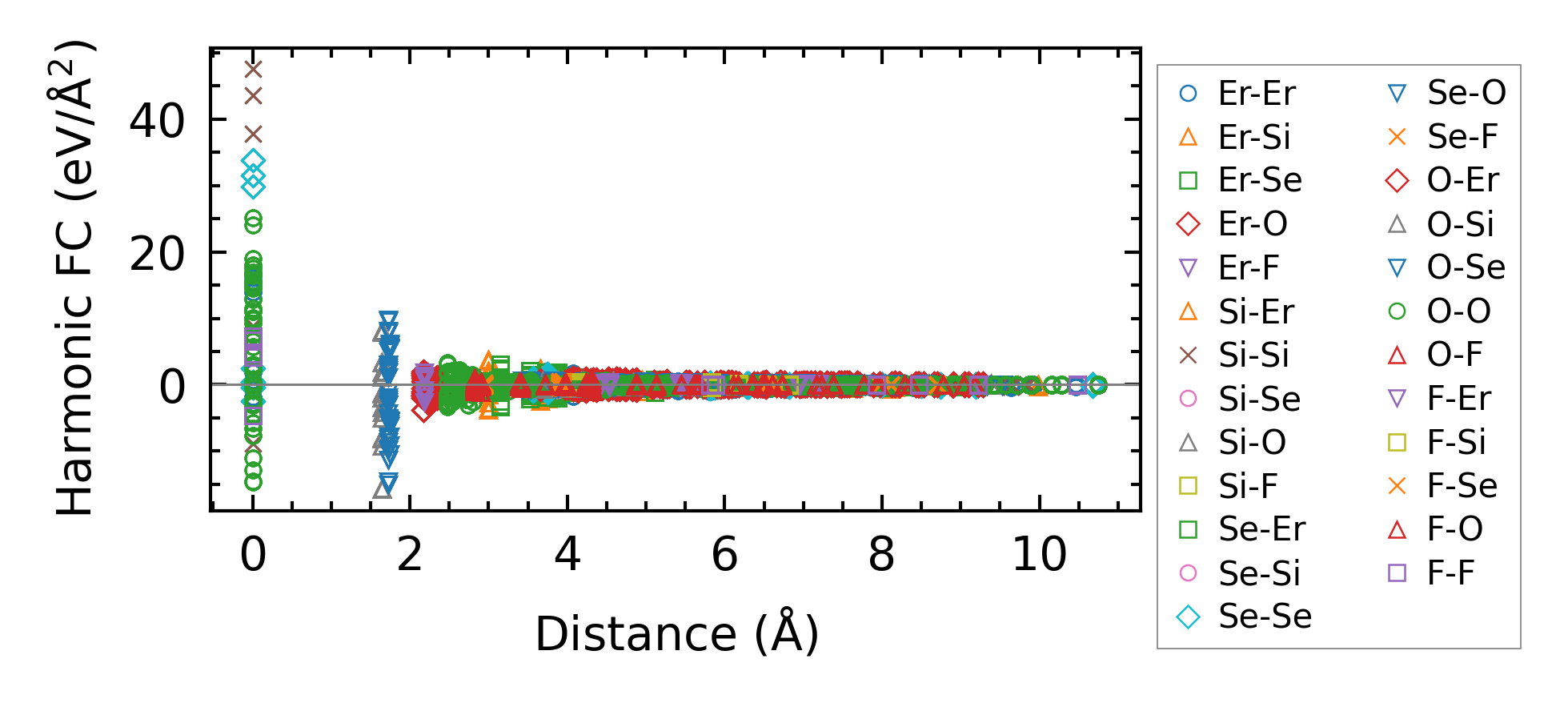

../../_images/fig_fc28473.png — (a) Force constants w.r.t atomic distance

Summary

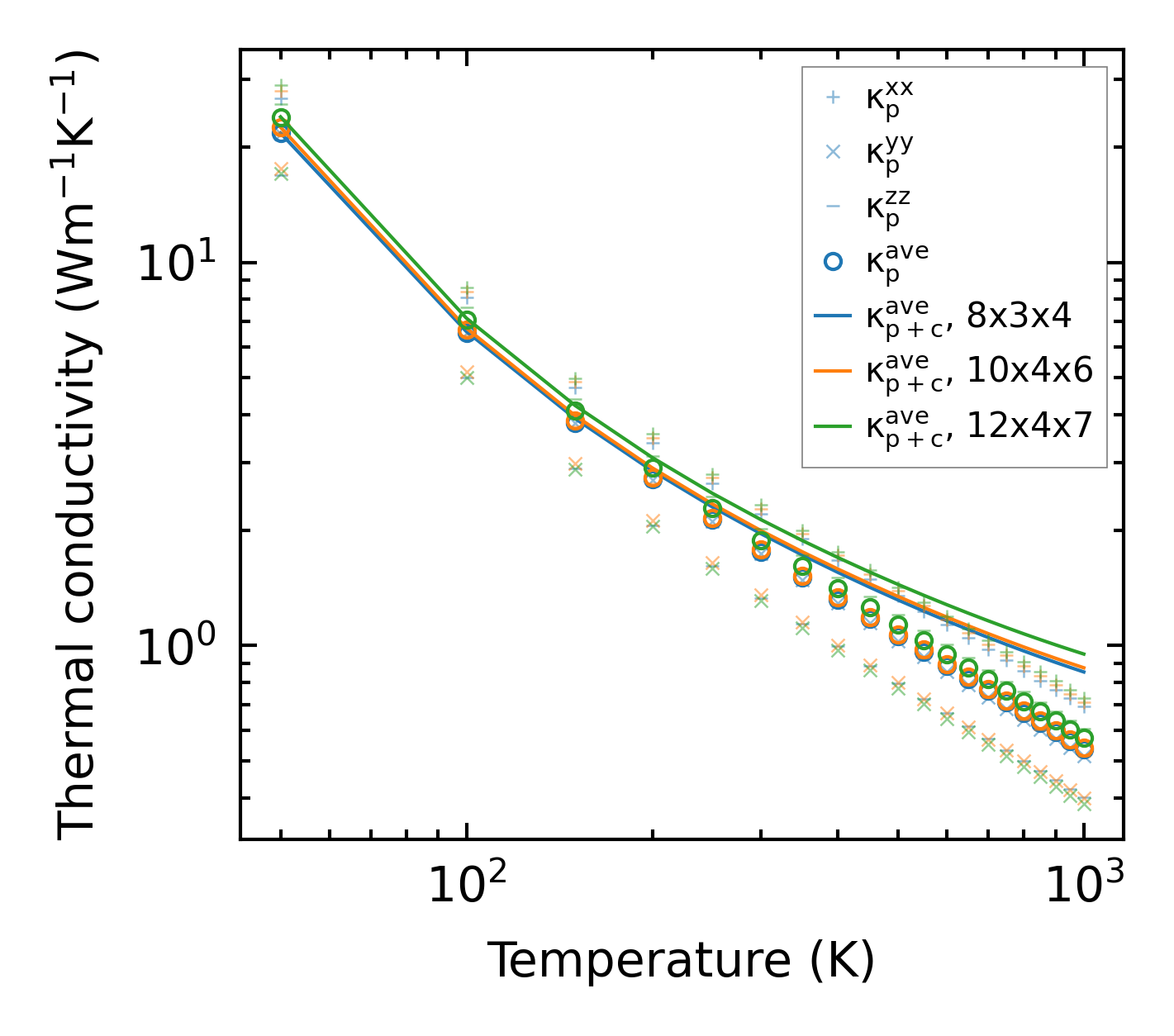

../../_images/fig_kappa6657.png — (a) Temperature-dependent lattice thermal conductivity

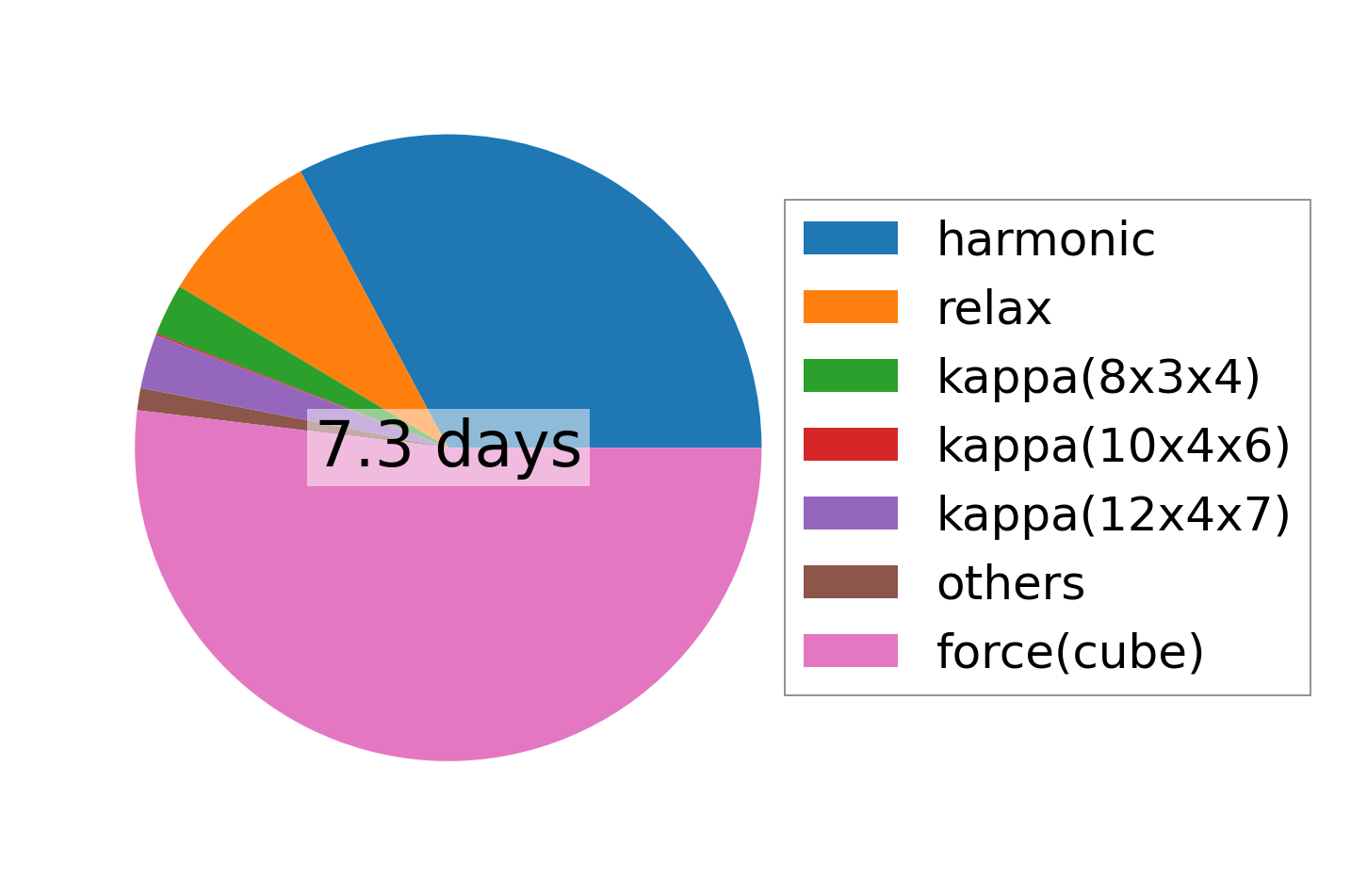

../../_images/fig_times15264.png — (b) Computation time
