mp-555188/Ba17Ho16Zn8Pt4O57/anharm

Space group: I4/m (87)
Link: Materials Project
Download: mp-555188.tar.gz

Harmonic properties

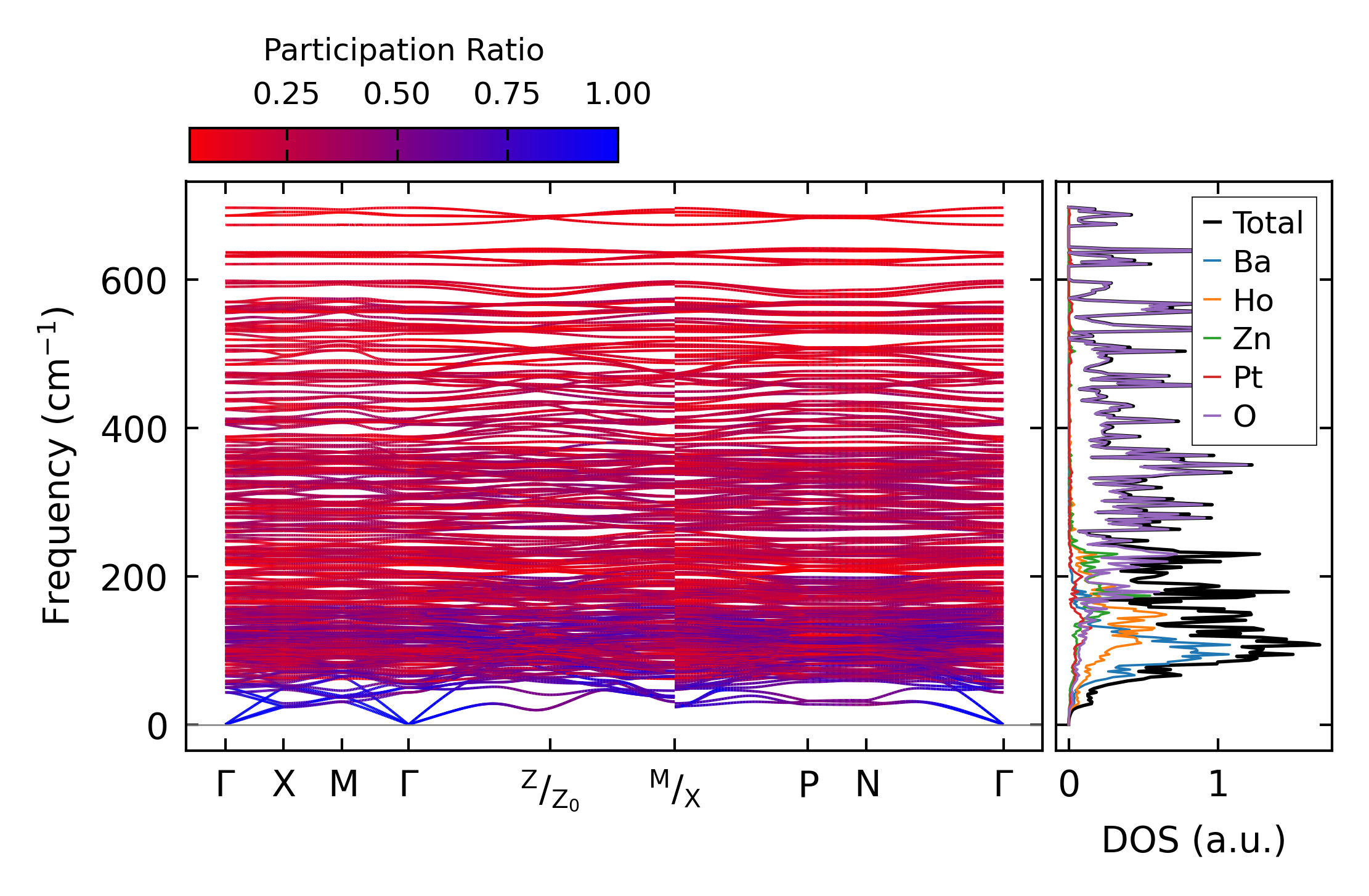

../../_images/fig_bandos_pr8867.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8867.png — (b) Thermodynamic properties

Grüneisen parameters

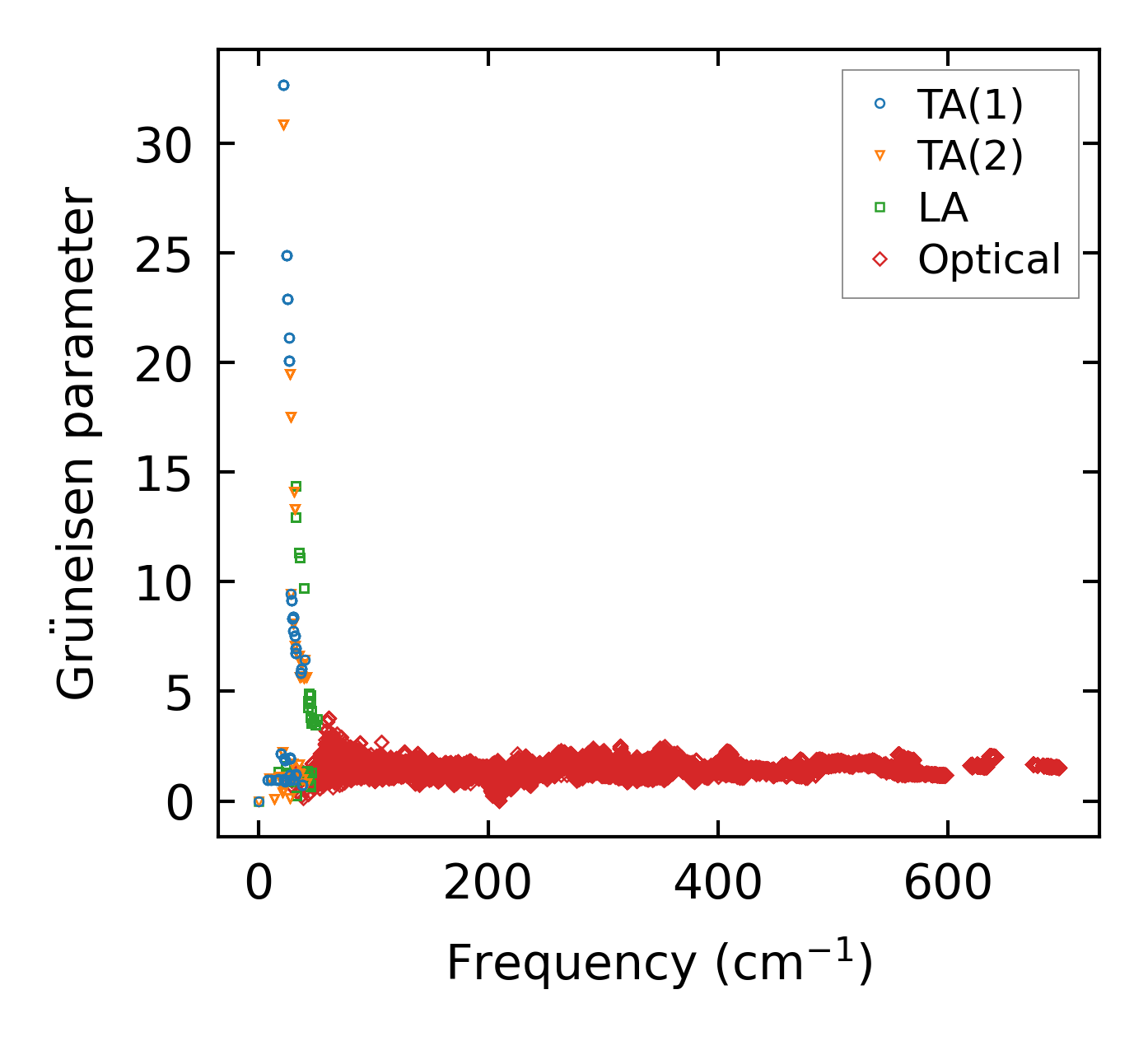

../../_images/fig_gru_all3563.png — (a) Grüneisen parameters

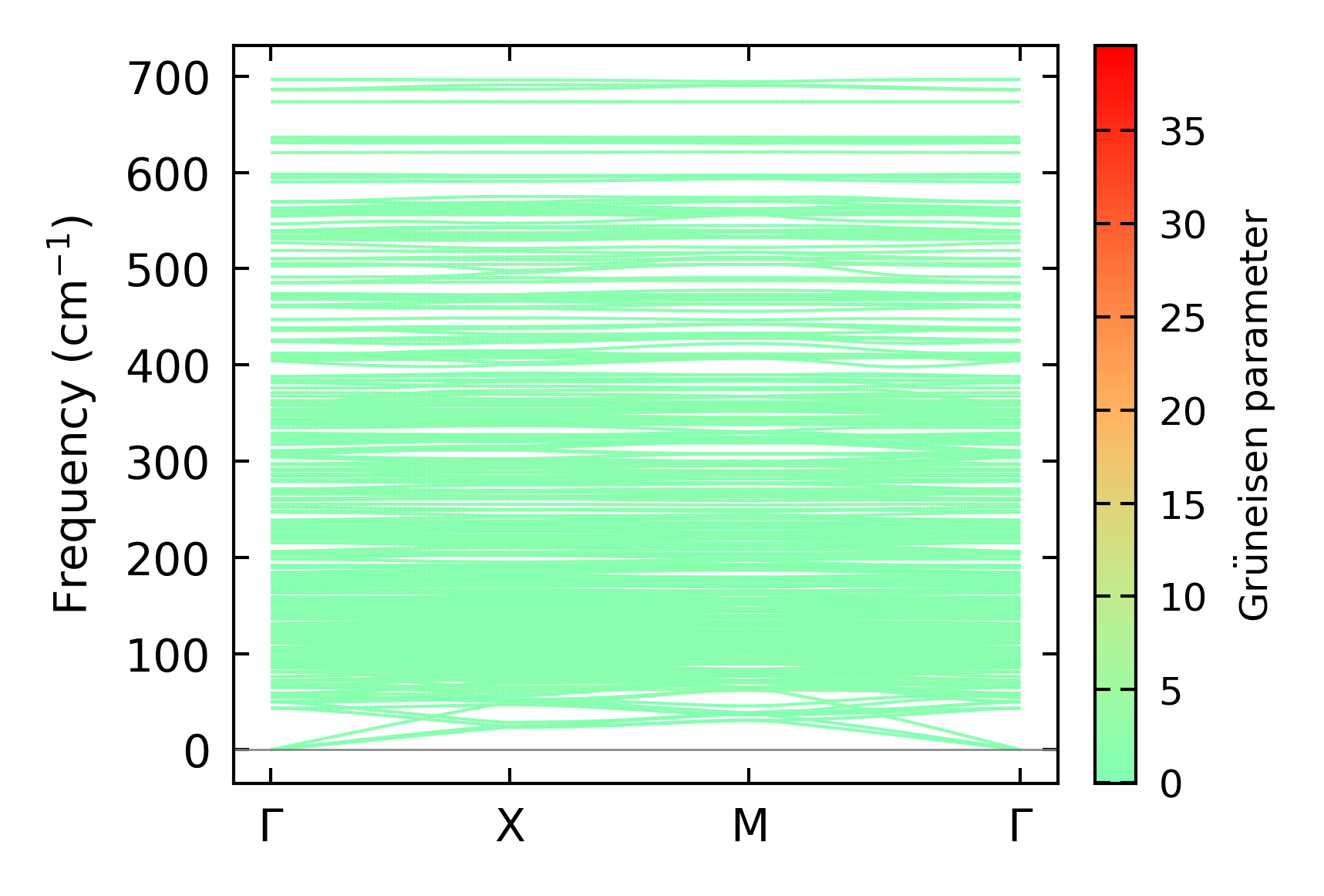

../../_images/fig_gruneisen3563.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

../../_images/fig_kappa6733.png — (a) Temperature-dependent lattice thermal conductivity

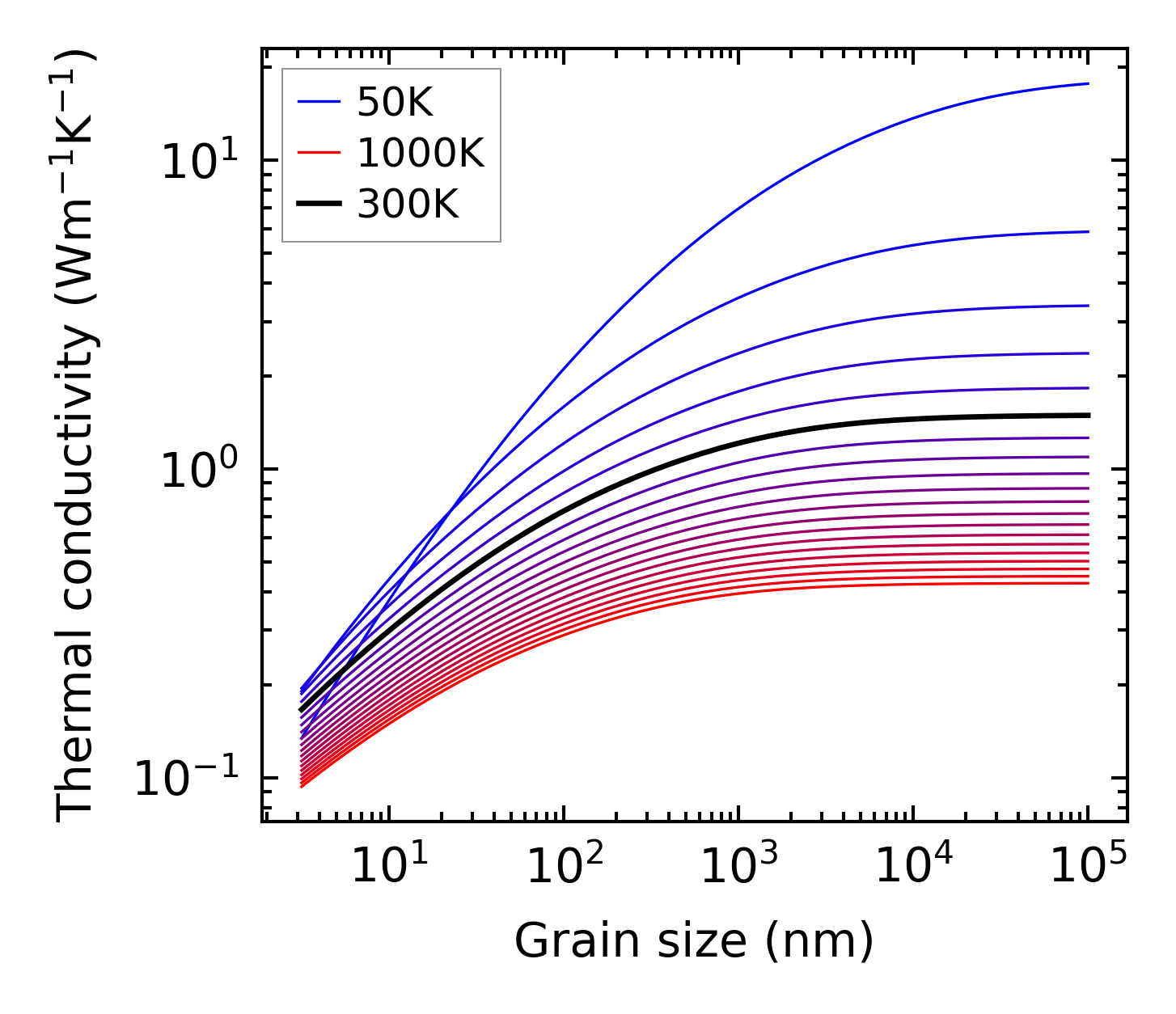

../../_images/fig_kappa_vs_grain_size3608.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

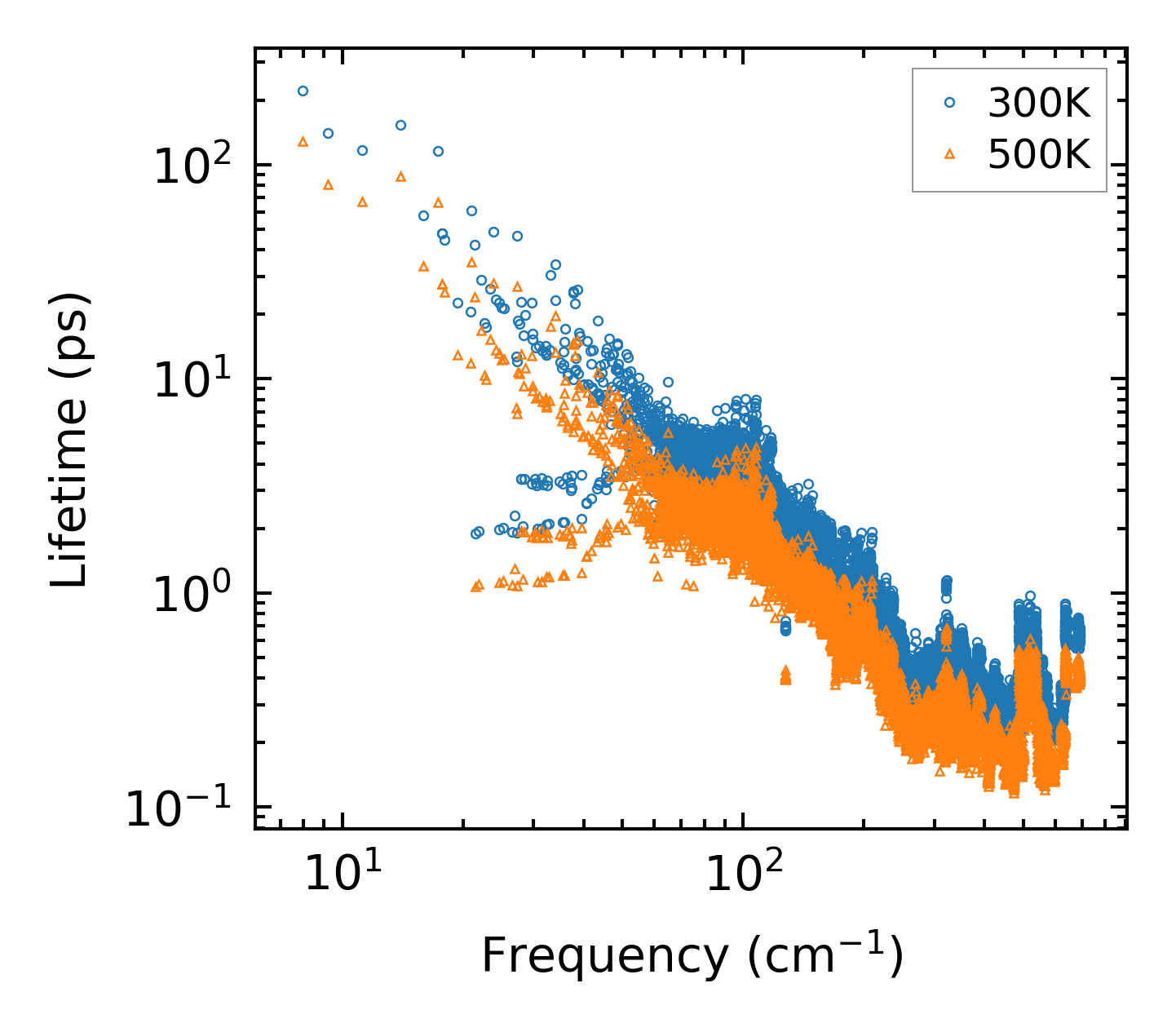

../../_images/fig_lifetime3530.png — (a) Phonon lifetime due to phonon-phonon scattering

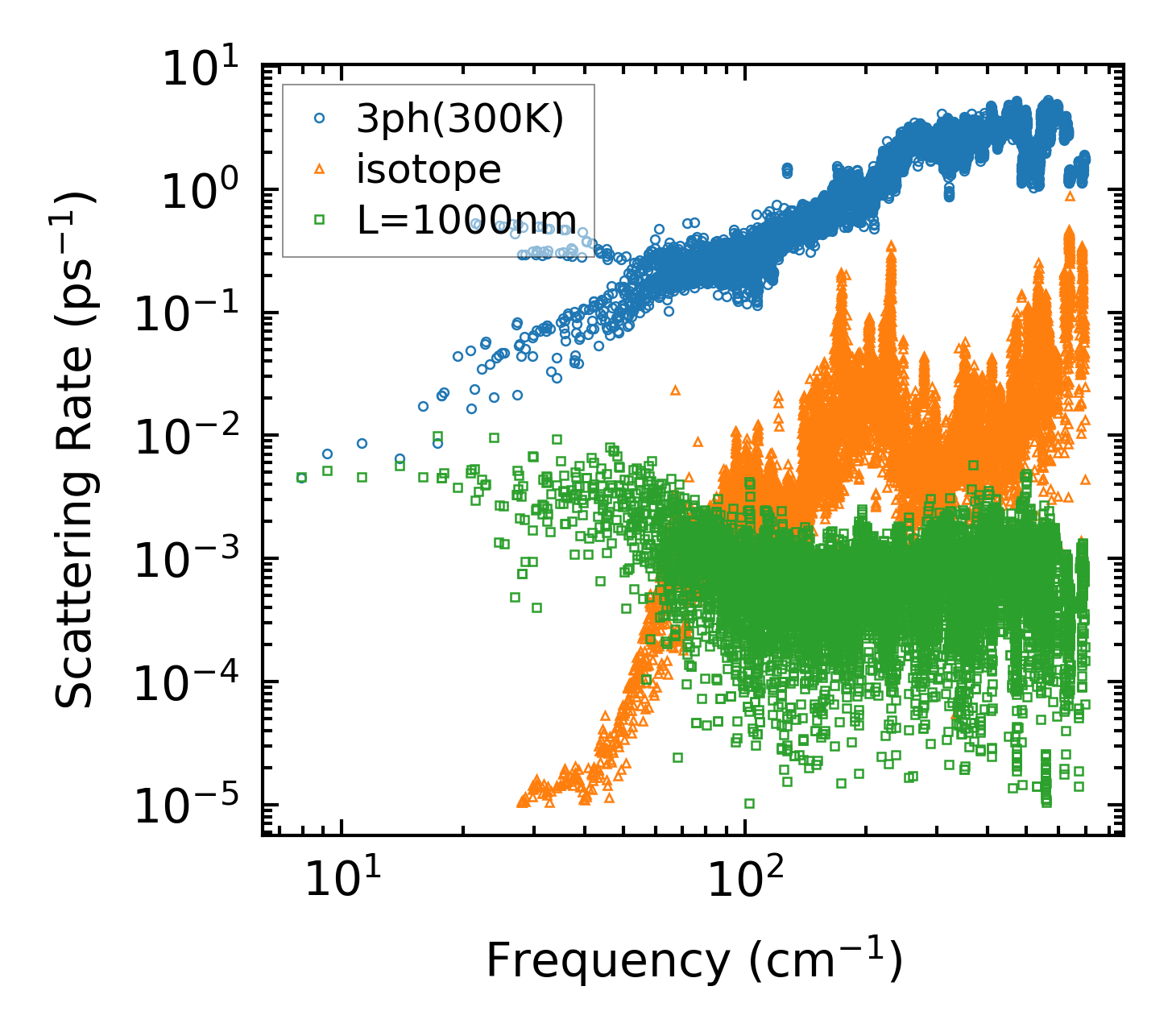

../../_images/fig_scat_rates3529.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

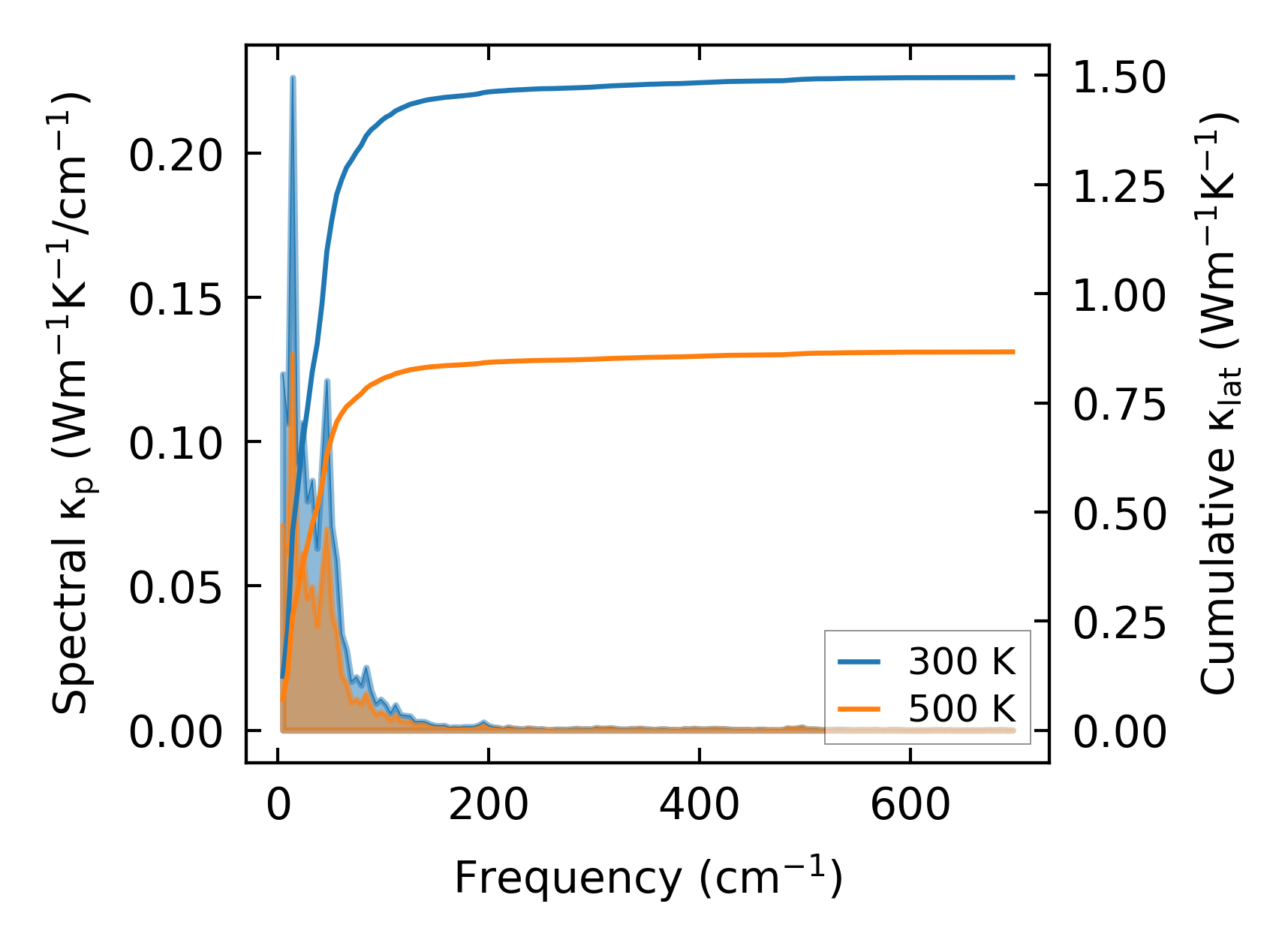

../../_images/fig_cumu_frequency3530.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

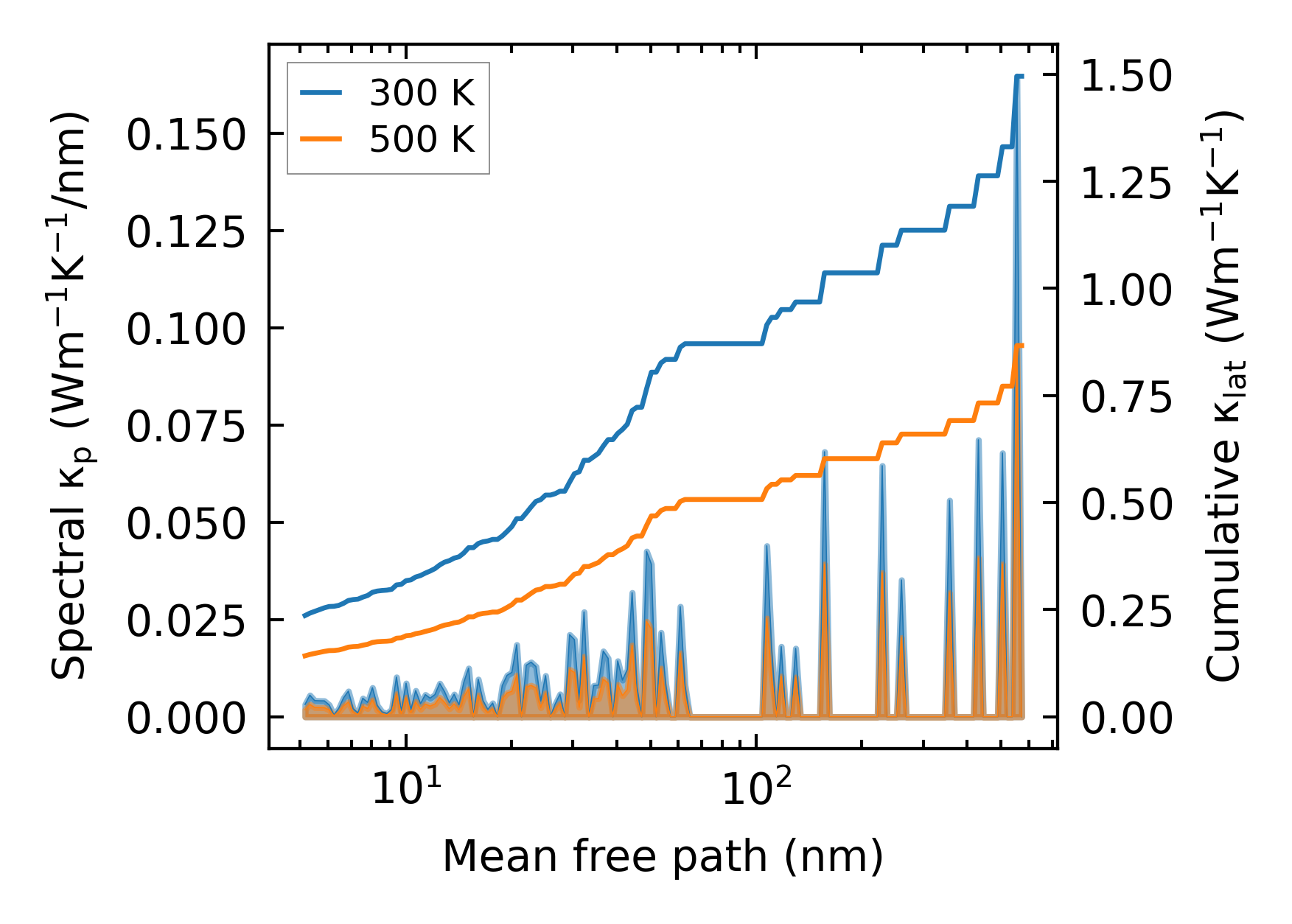

../../_images/fig_cumu_mfp3529.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

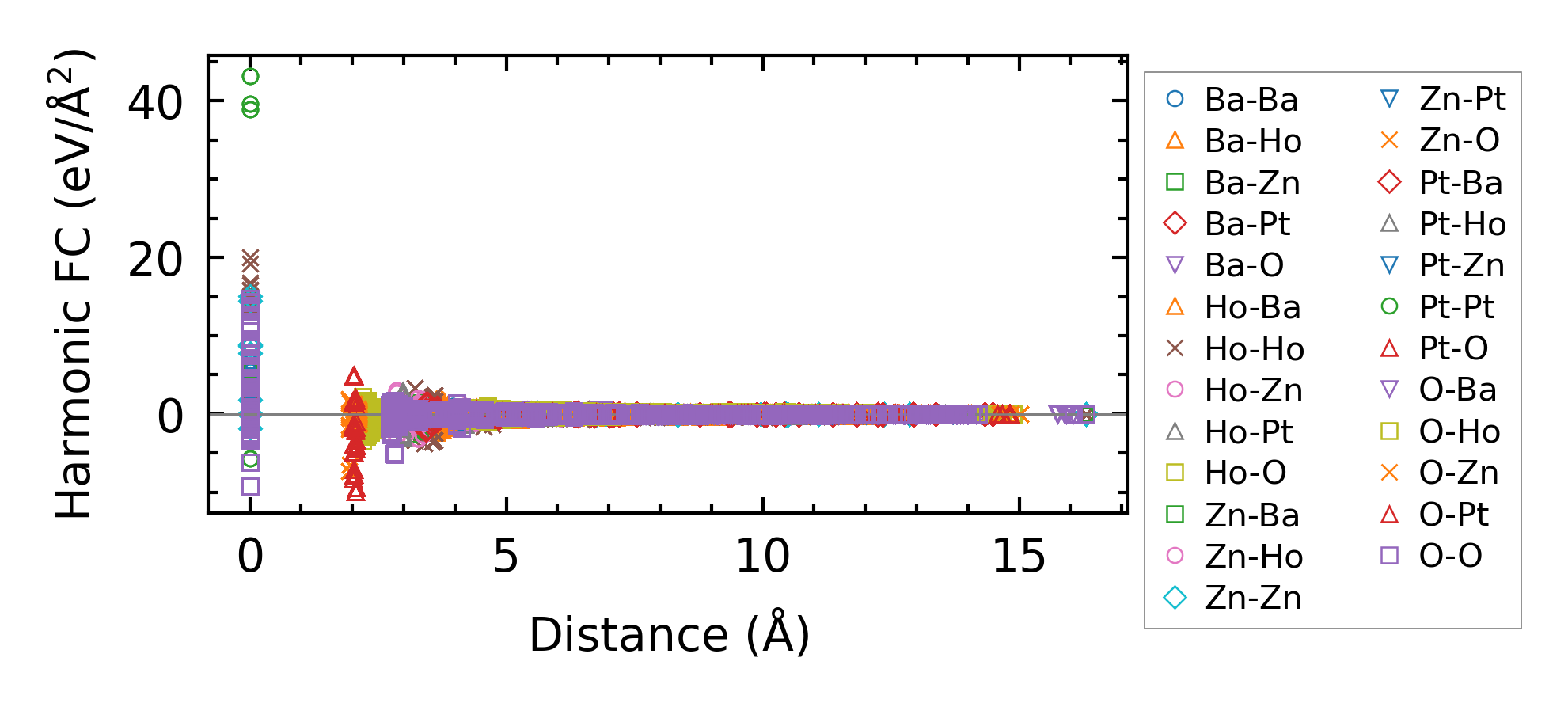

../../_images/fig_fc28628.png — (a) Force constants w.r.t atomic distance

Summary

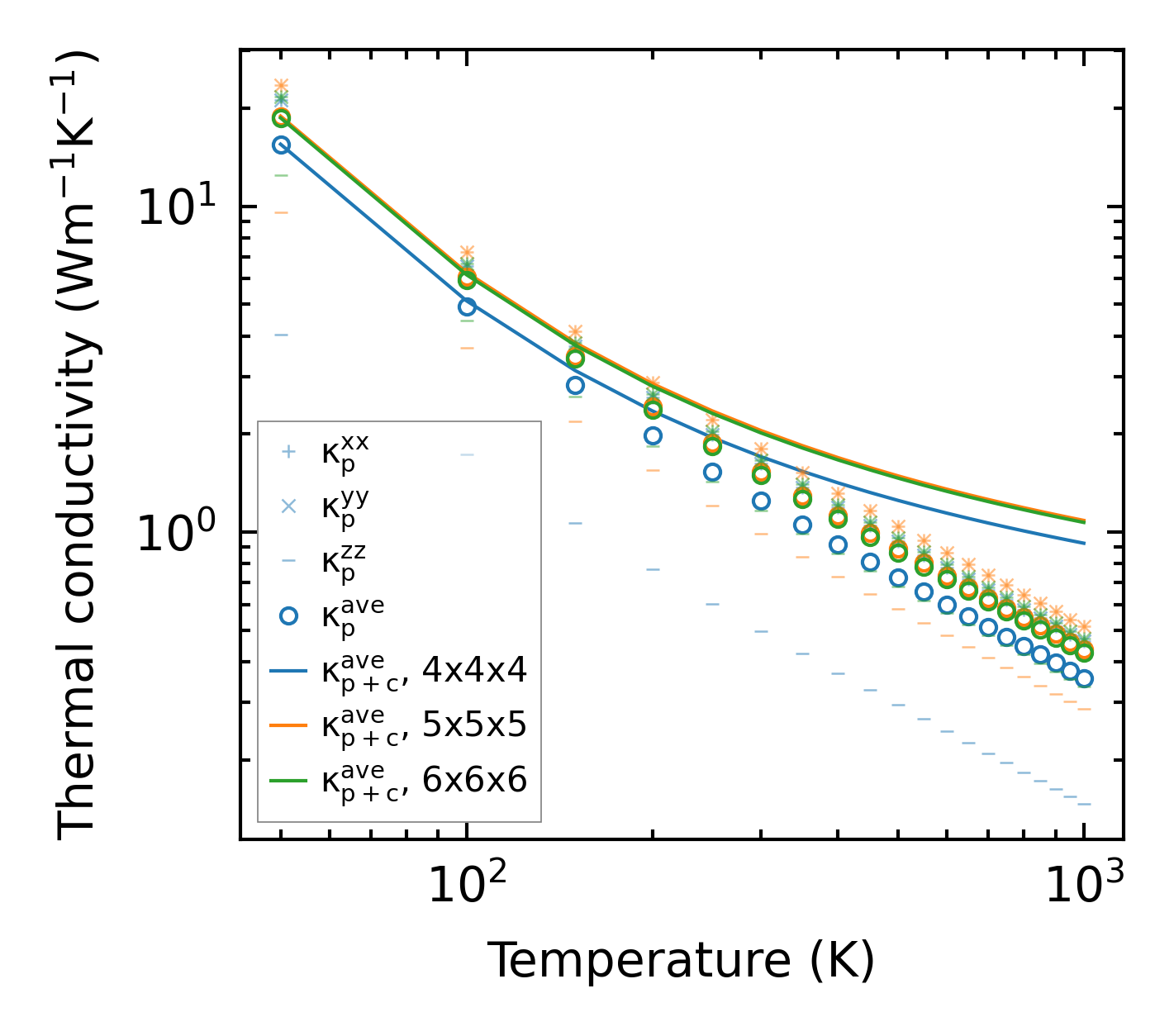

../../_images/fig_kappa6734.png — (a) Temperature-dependent lattice thermal conductivity

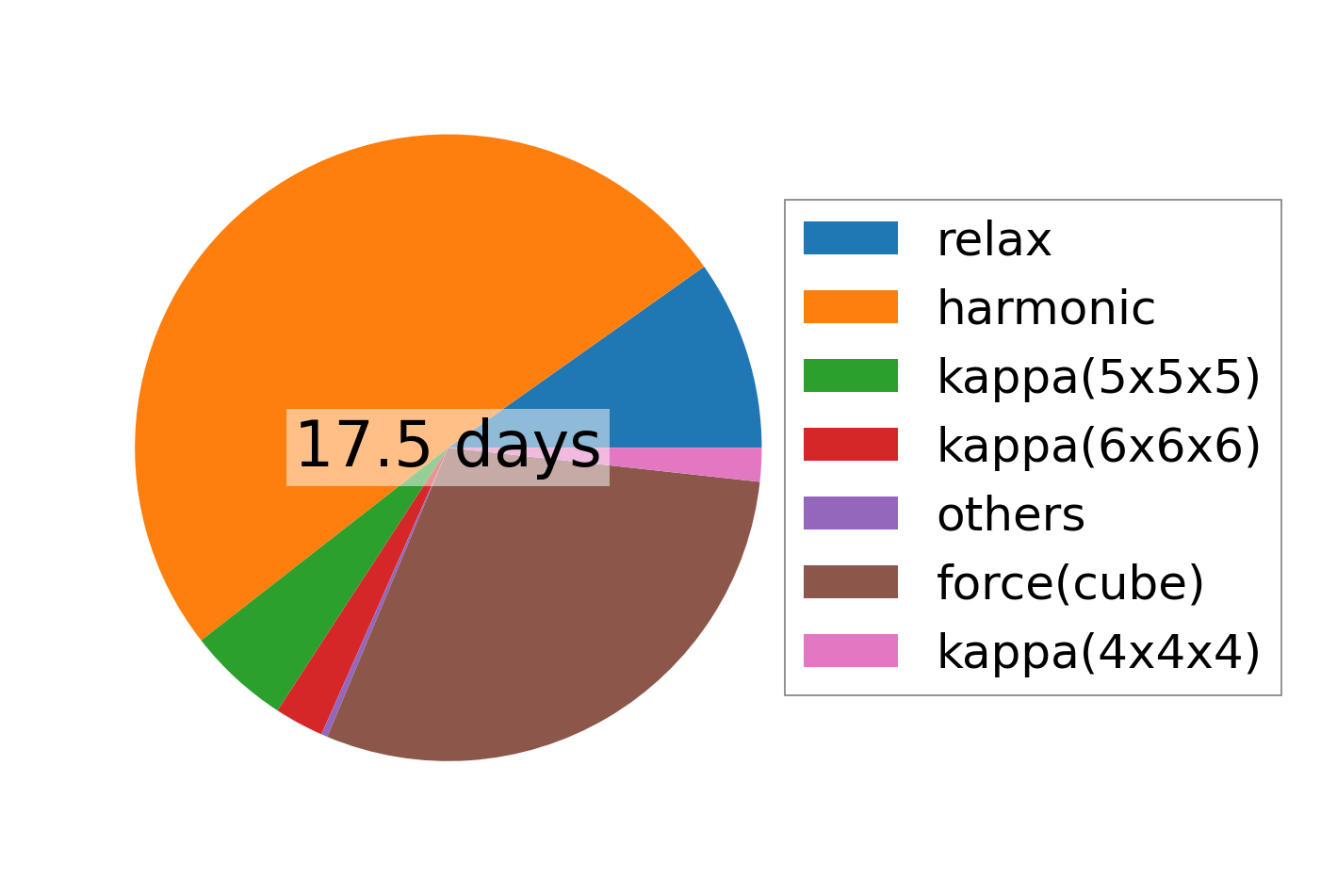

../../_images/fig_times15552.png — (b) Computation time
