mp-555858/ZnS/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-555858.tar.gz

Harmonic properties

../../_images/fig_bandos_pr8692.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8692.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3513.png — (a) Grüneisen parameters

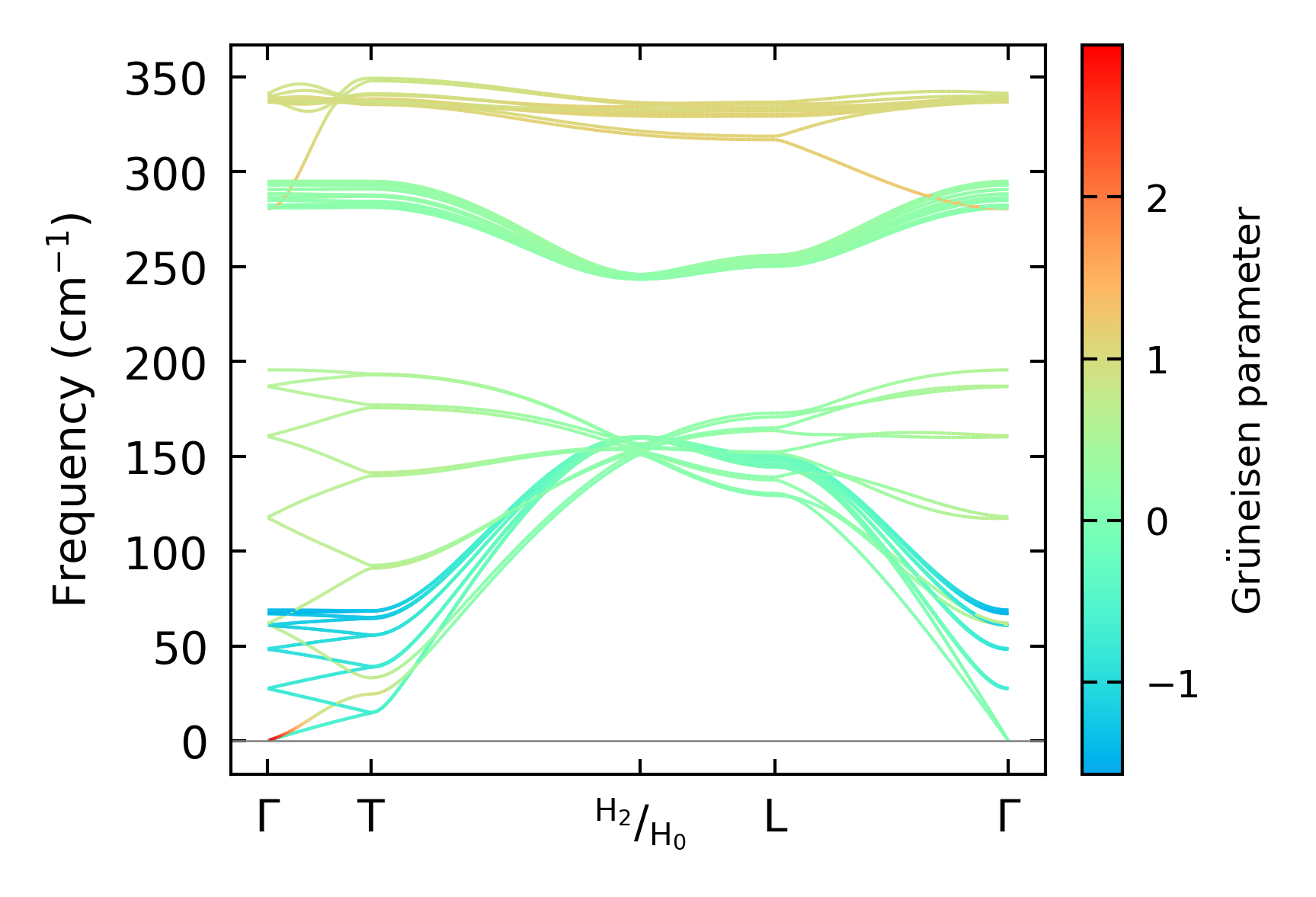

../../_images/fig_gruneisen3513.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

../../_images/fig_kappa6644.png — (a) Temperature-dependent lattice thermal conductivity

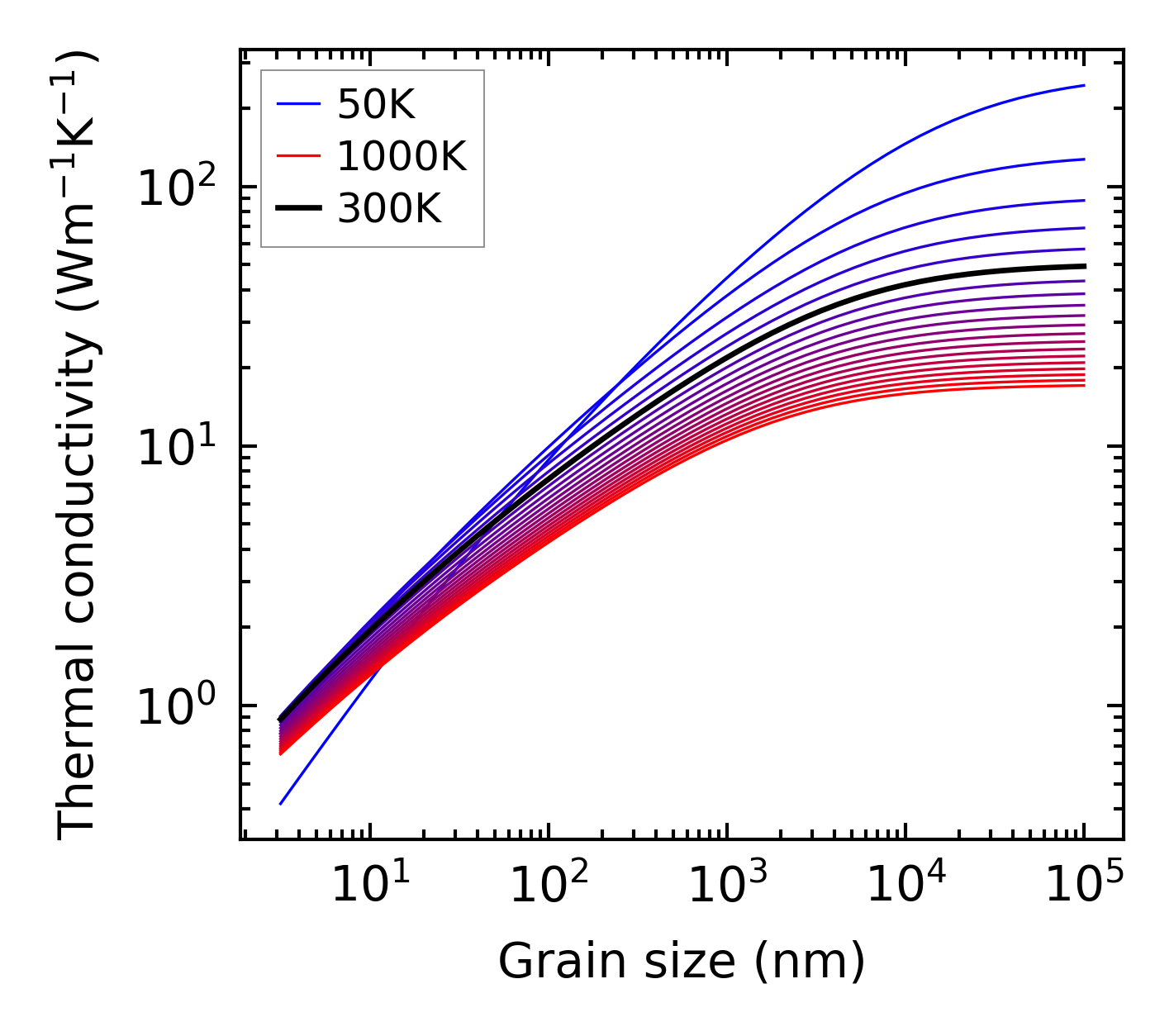

../../_images/fig_kappa_vs_grain_size3557.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

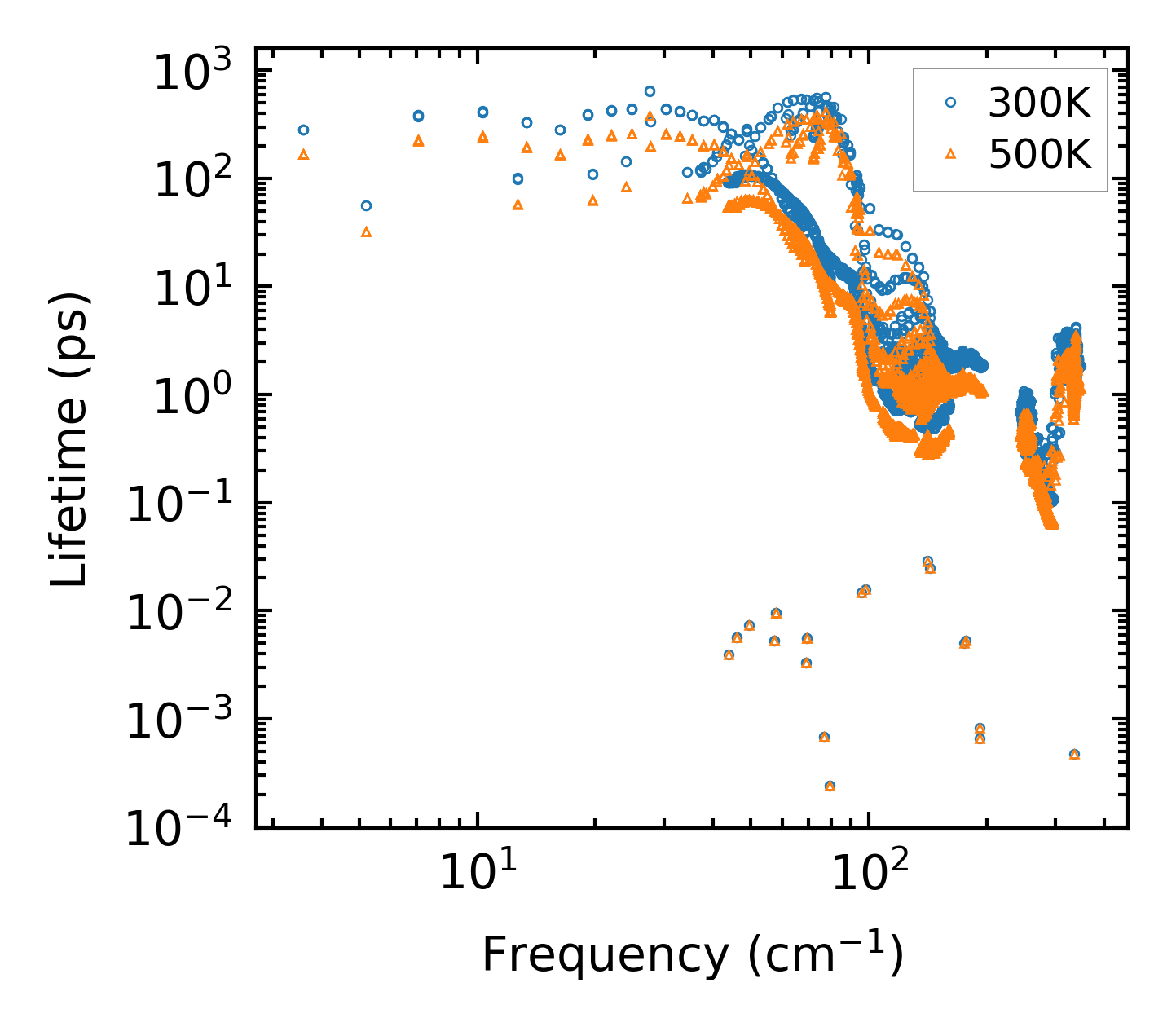

../../_images/fig_lifetime3480.png — (a) Phonon lifetime due to phonon-phonon scattering

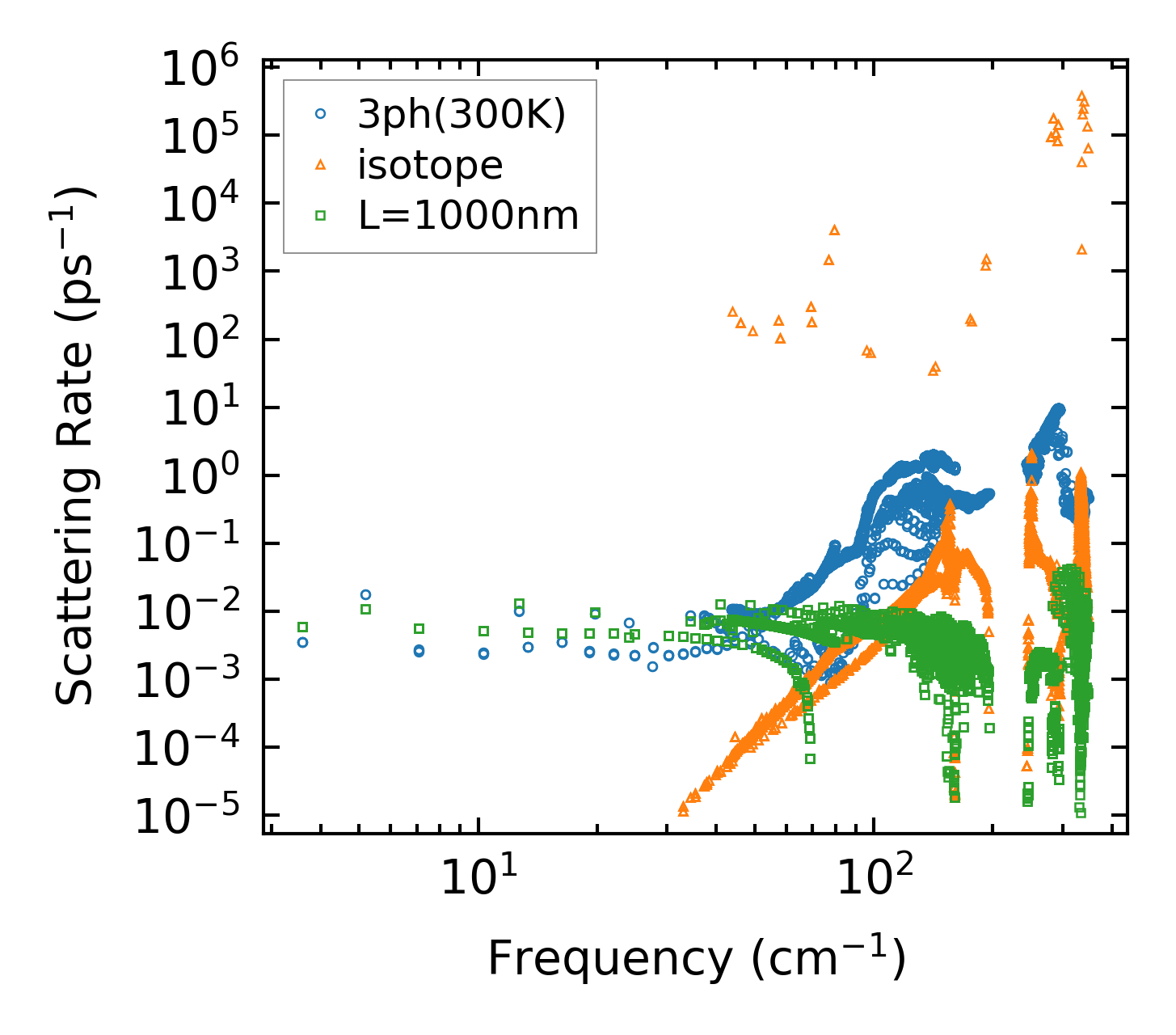

../../_images/fig_scat_rates3479.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

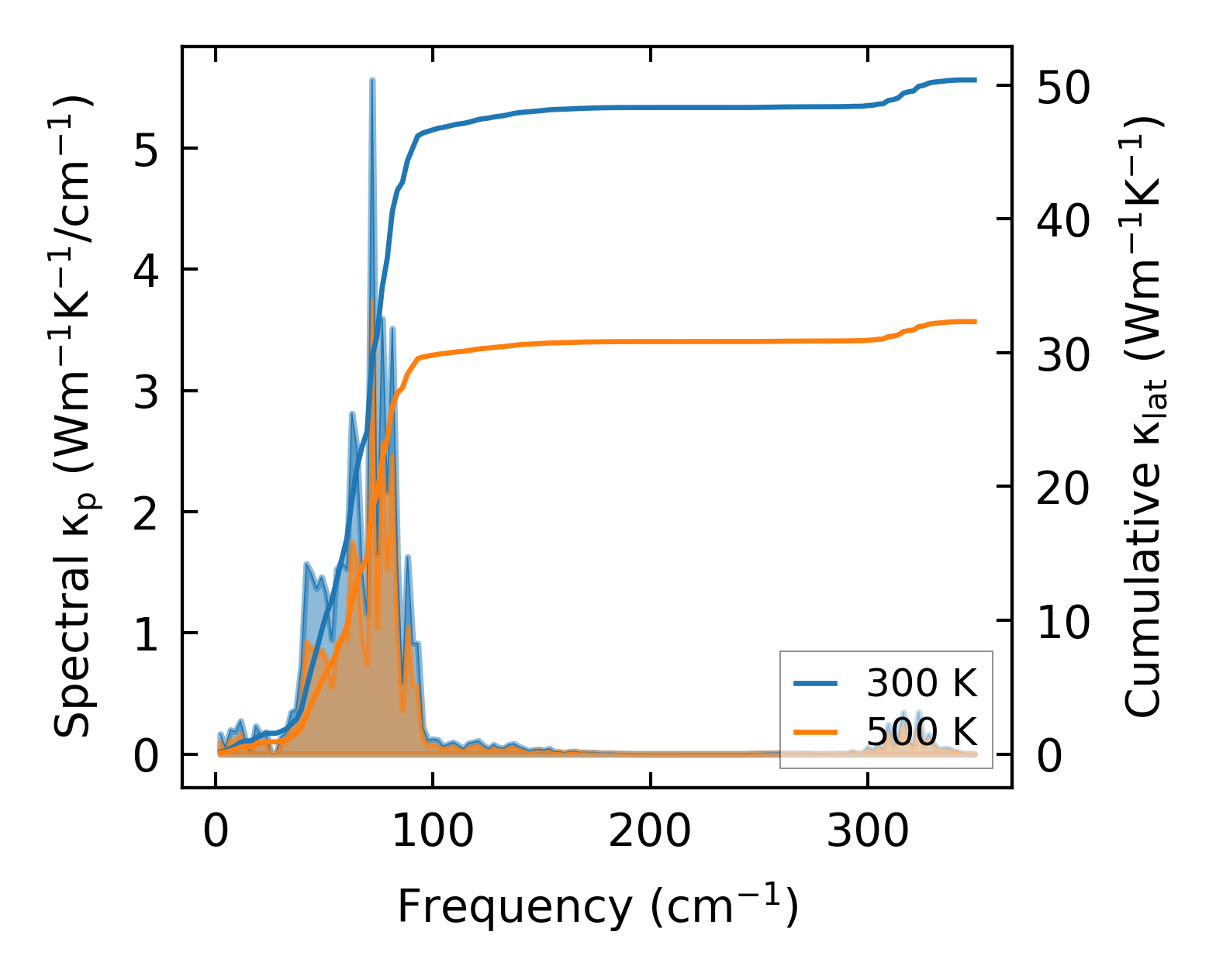

../../_images/fig_cumu_frequency3480.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

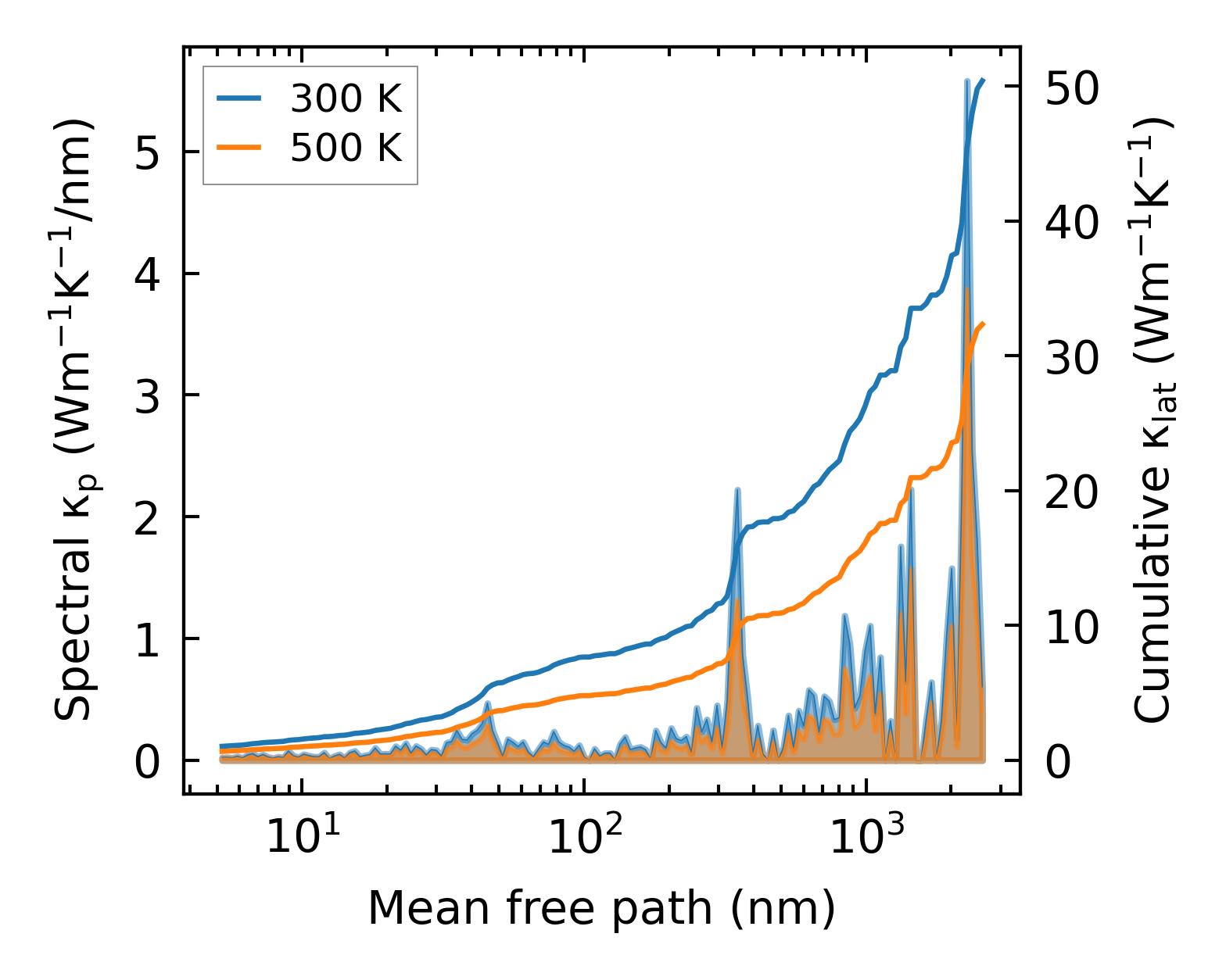

../../_images/fig_cumu_mfp3479.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

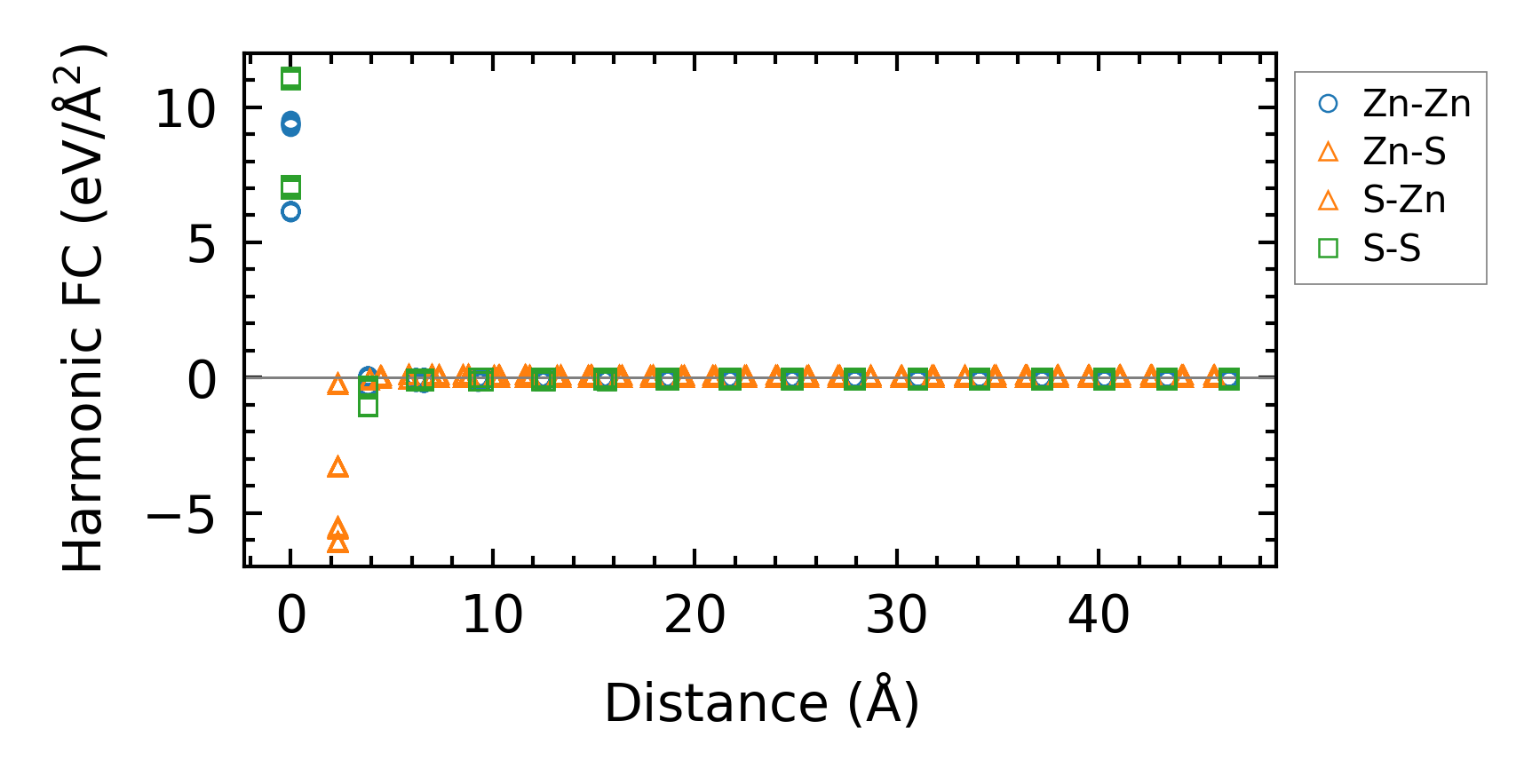

../../_images/fig_fc28453.png — (a) Force constants w.r.t atomic distance

Summary

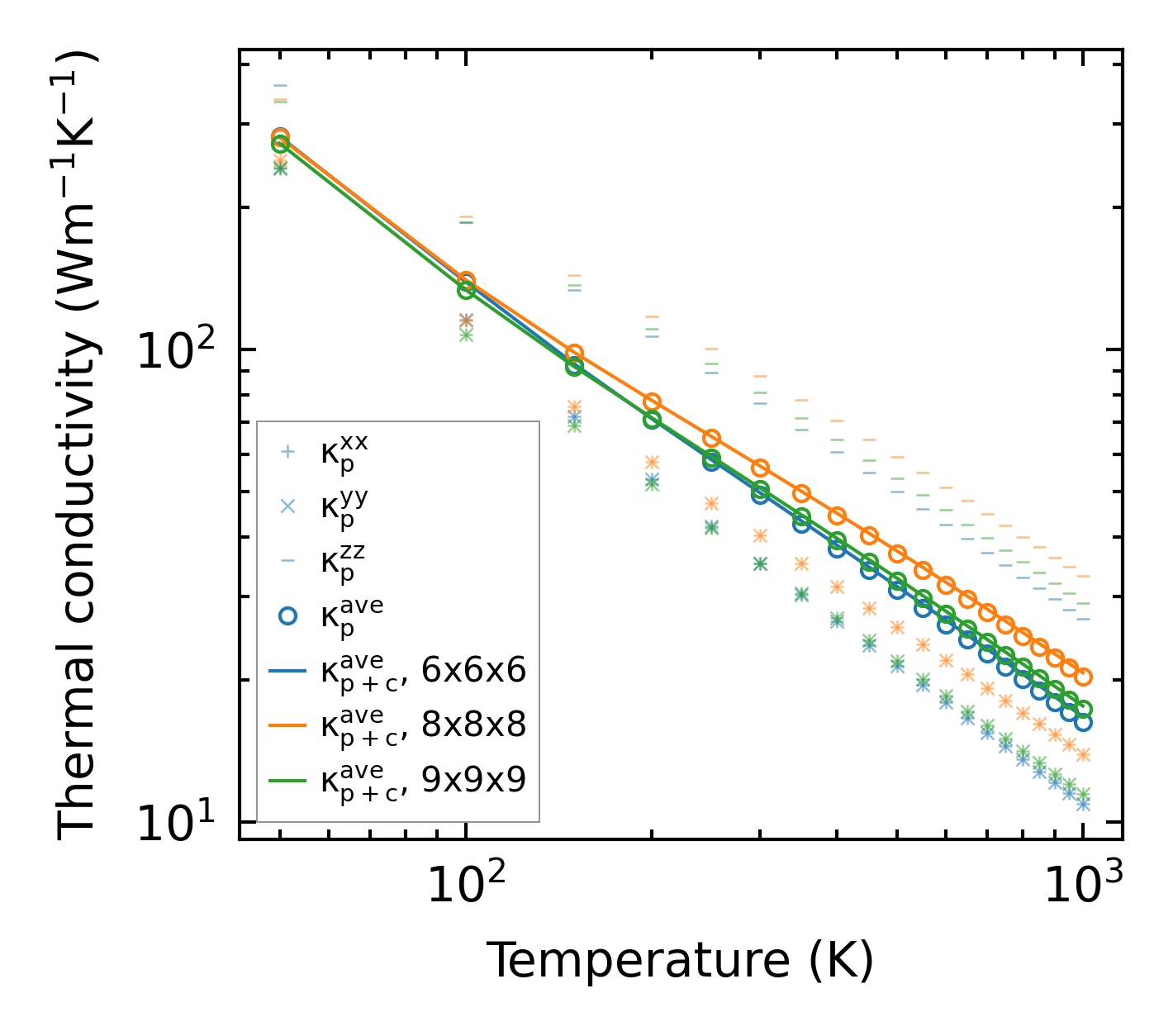

../../_images/fig_kappa6645.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15231.png — (b) Computation time
