mp-555199-2/TlHgAsS3/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-555199-2.tar.gz

Equation of state

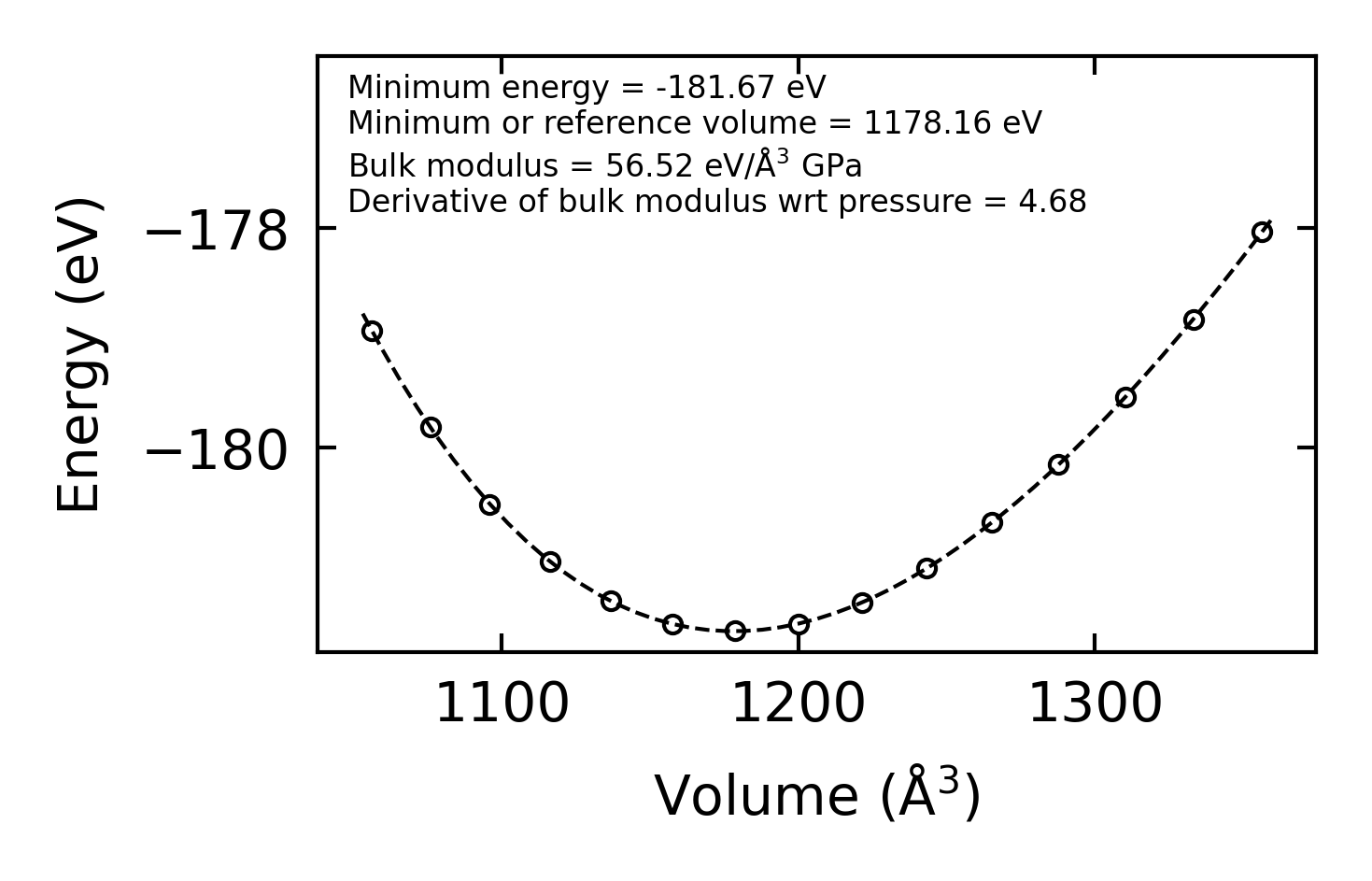

../../_images/fig_bm4479.png — (a) Equation of state

Harmonic properties

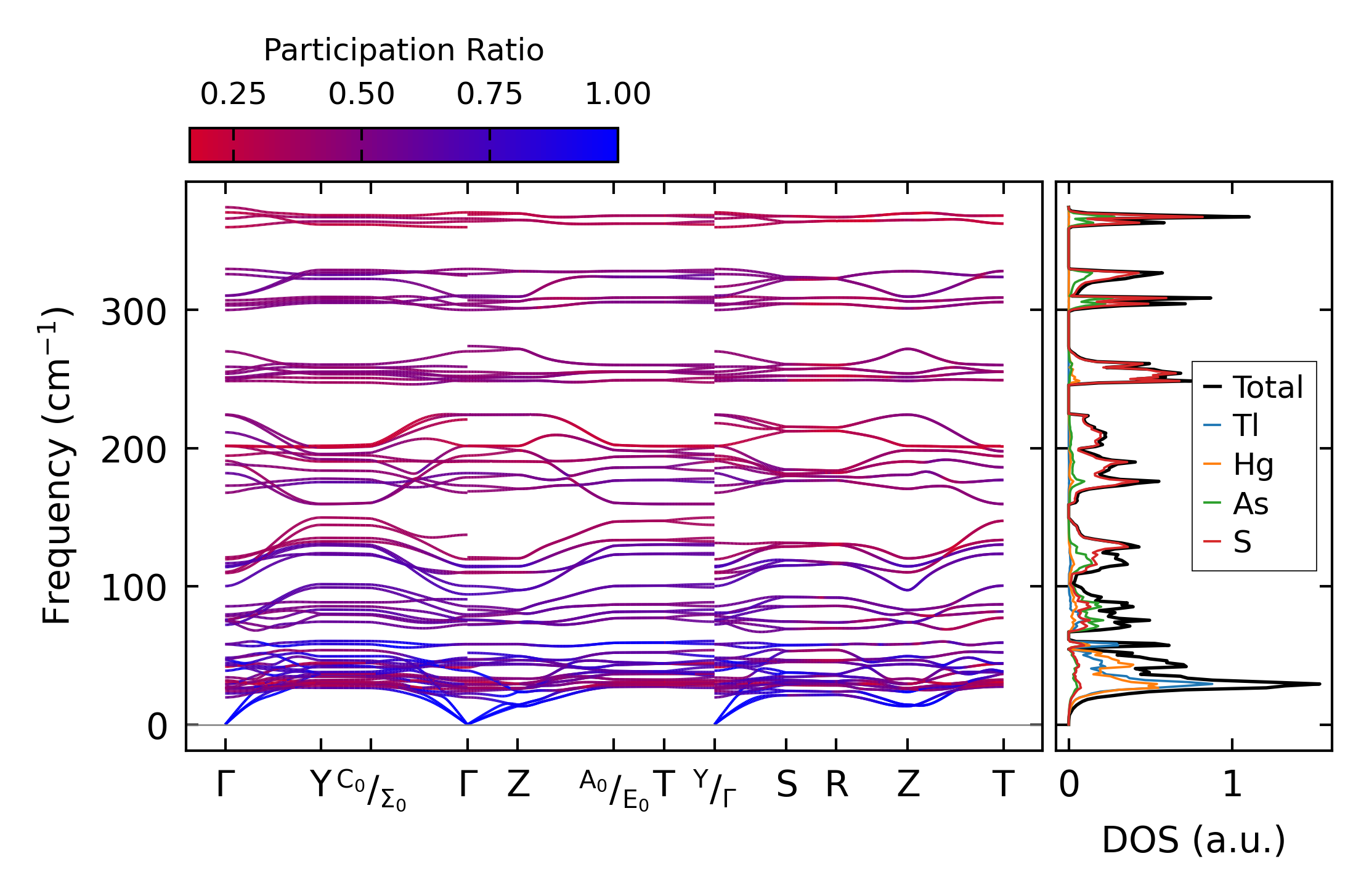

../../_images/fig_bandos_pr8873.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8873.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3564.png — (a) Grüneisen parameters

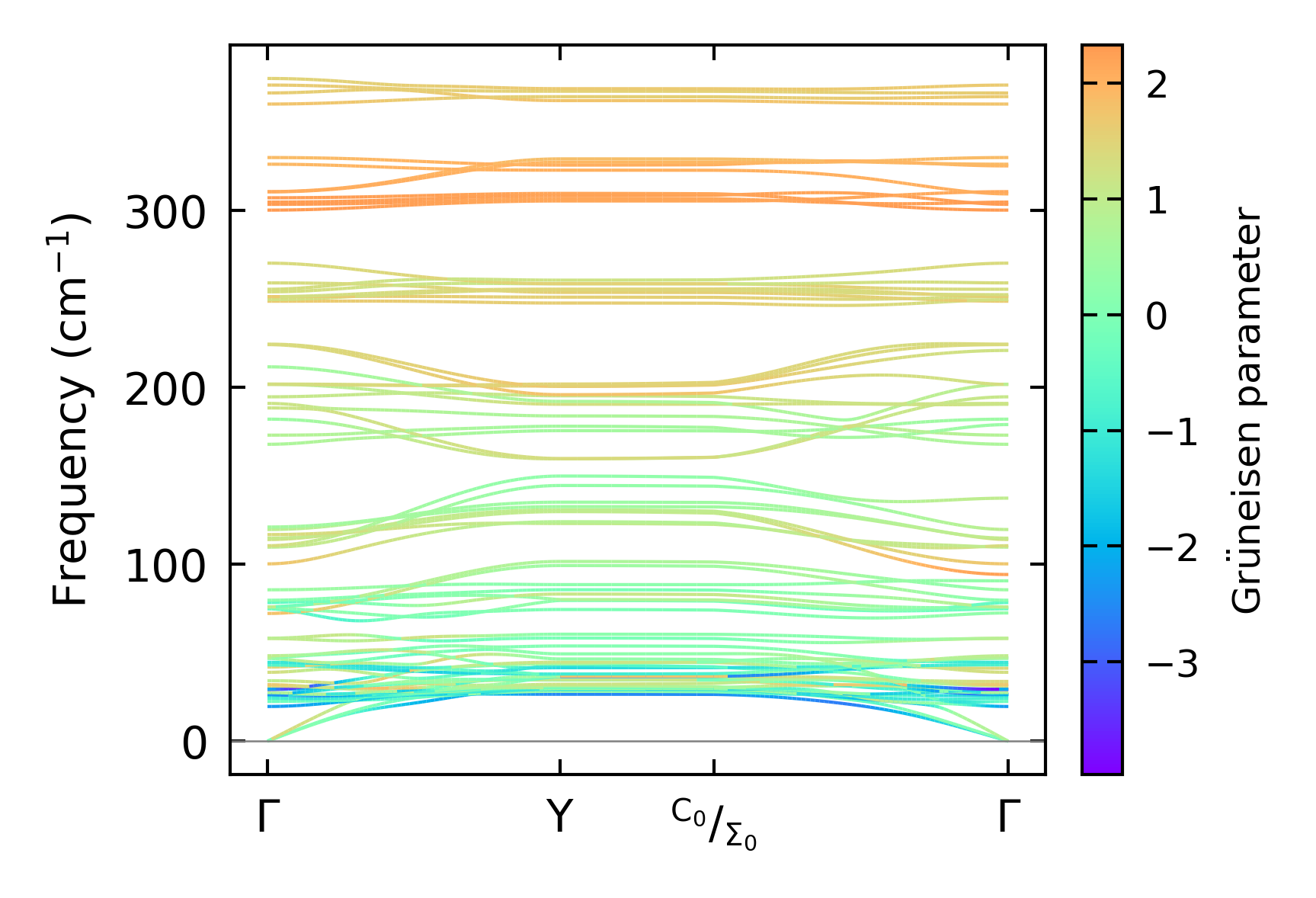

../../_images/fig_gruneisen3564.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x4, supercell: 2x1x1

../../_images/fig_kappa6735.png — (a) Temperature-dependent lattice thermal conductivity

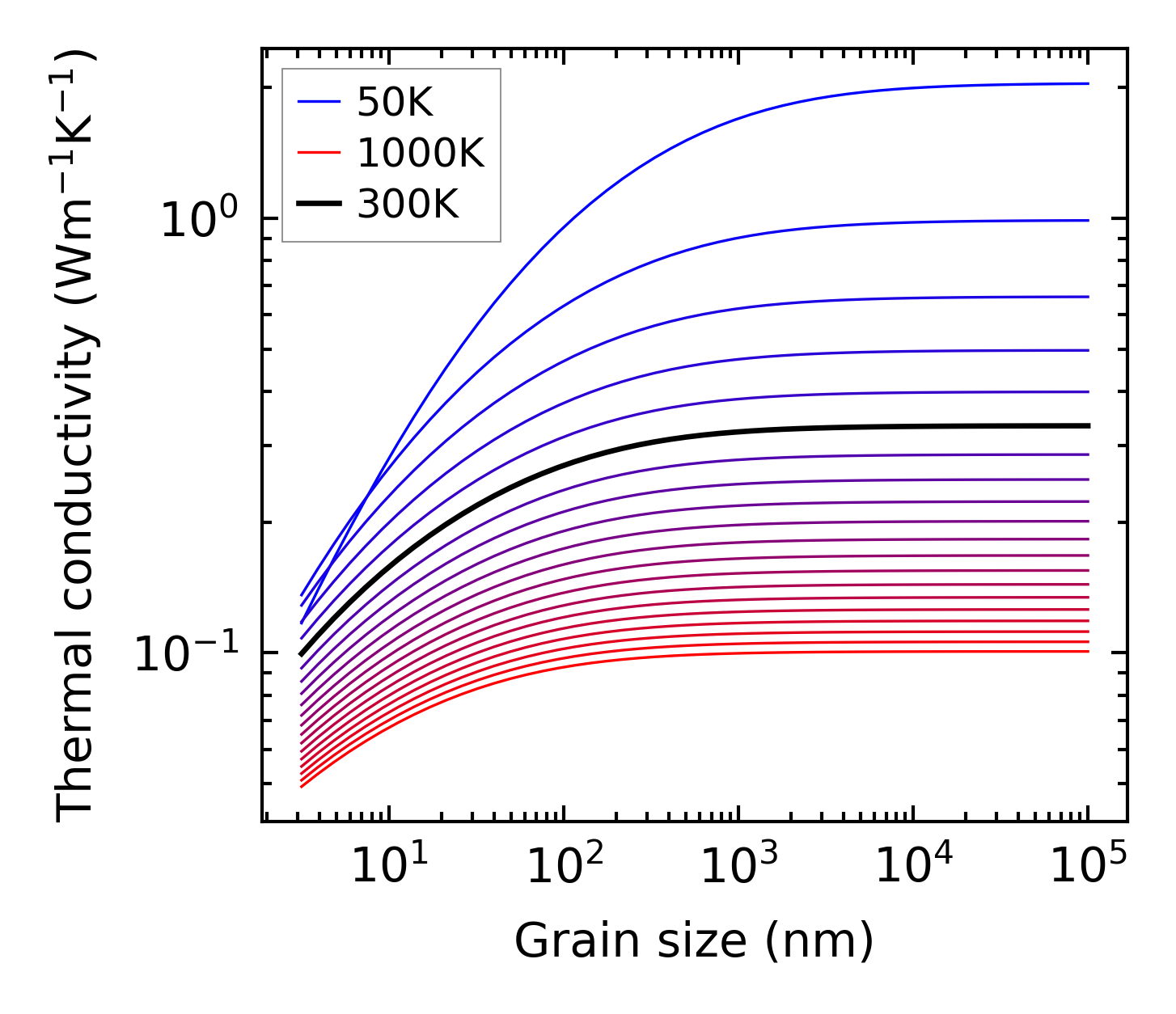

../../_images/fig_kappa_vs_grain_size3609.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 11x11x4, supercell: 2x2x1

../../_images/fig_kappa6736.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3610.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

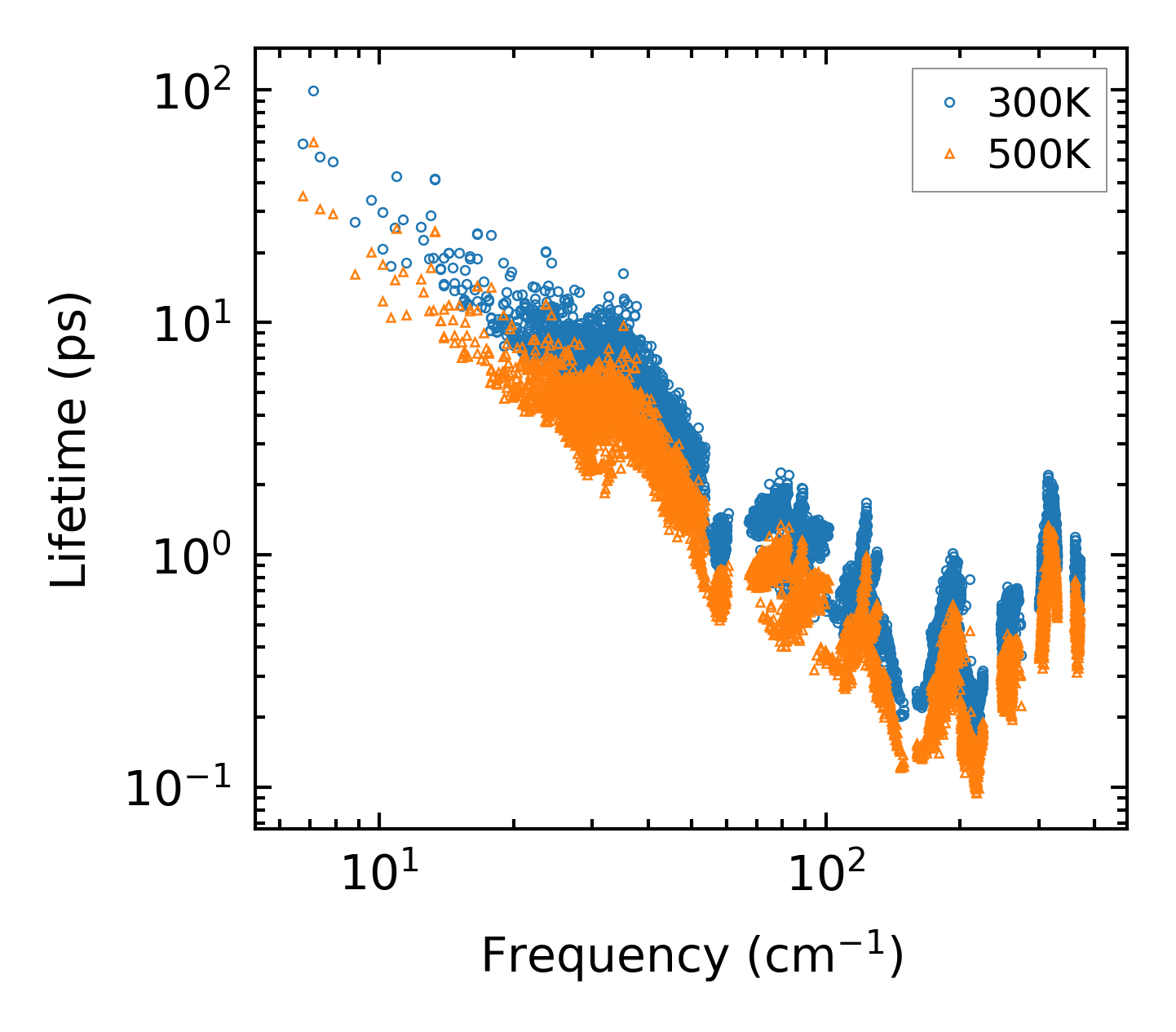

../../_images/fig_lifetime3531.png — (a) Phonon lifetime due to phonon-phonon scattering

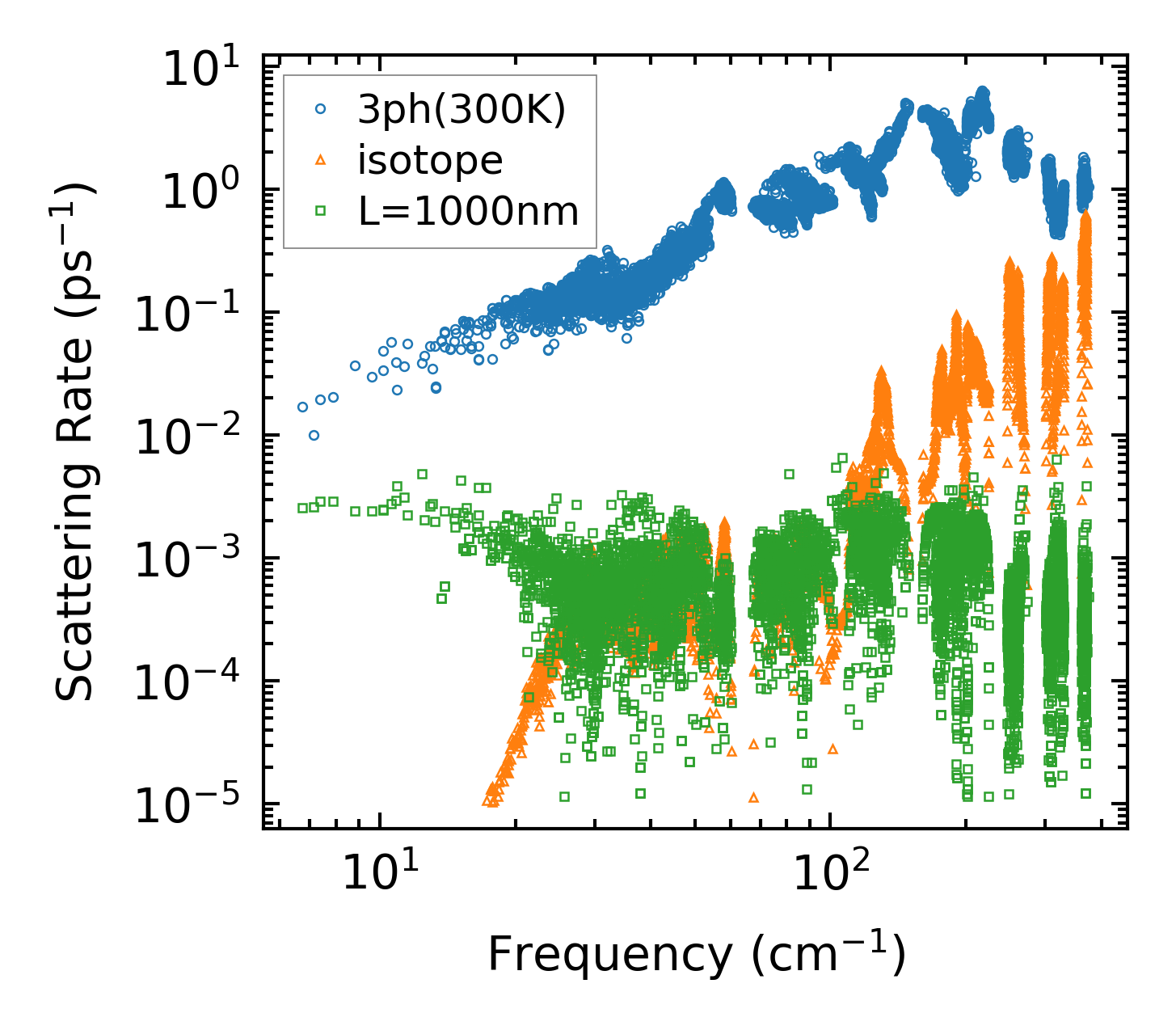

../../_images/fig_scat_rates3530.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

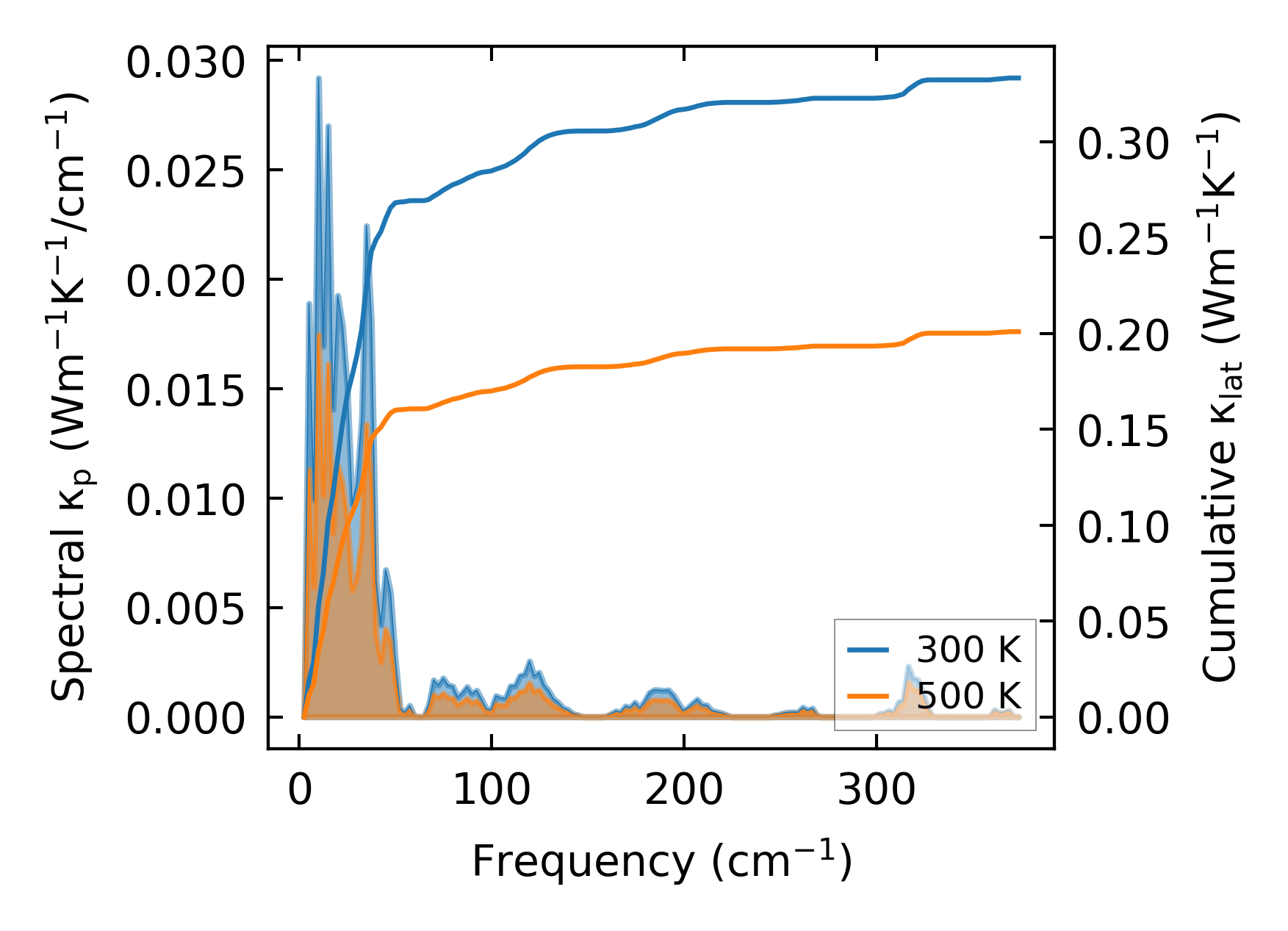

../../_images/fig_cumu_frequency3531.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

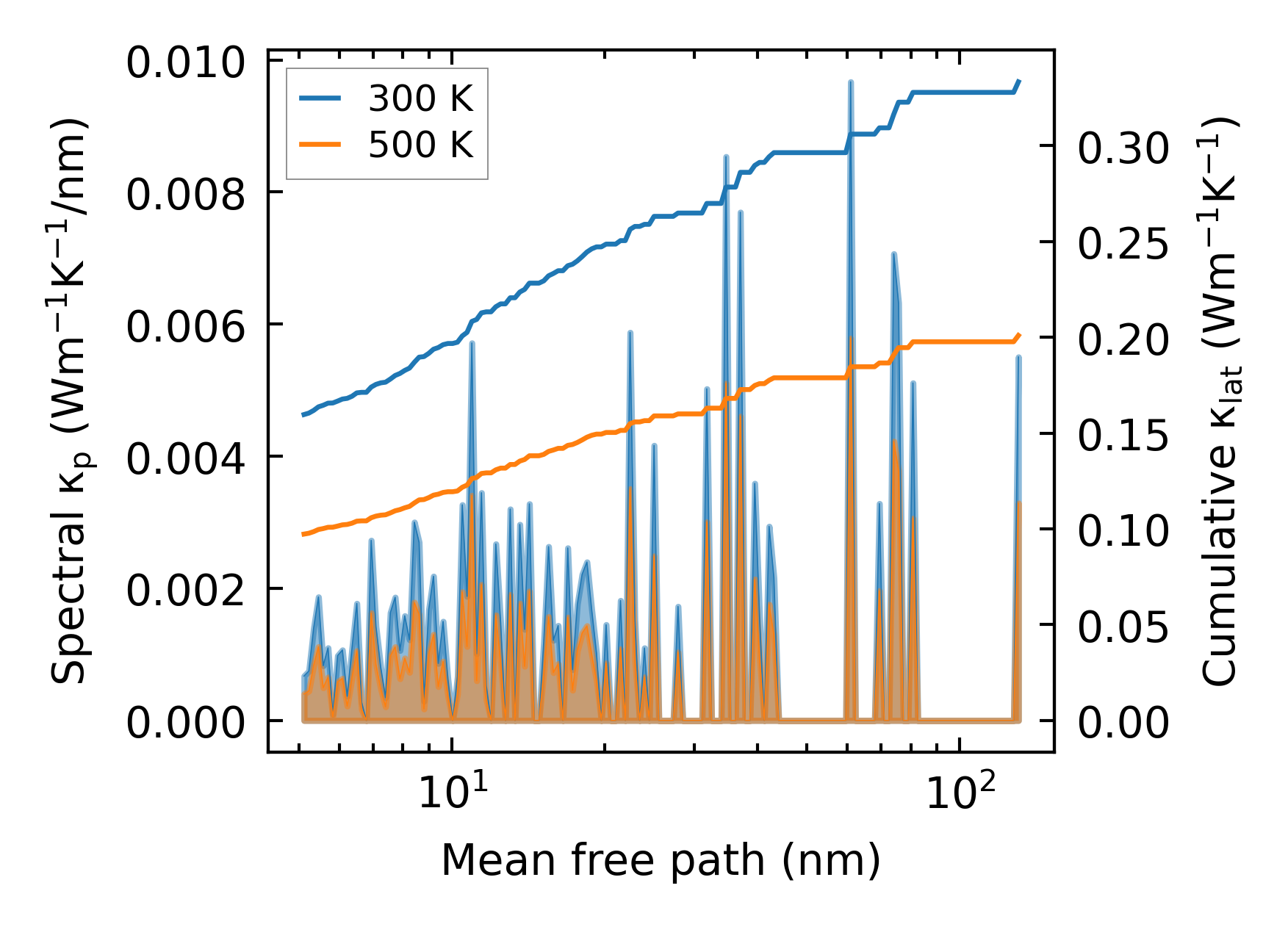

../../_images/fig_cumu_mfp3530.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28634.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6737.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15558.png — (b) Computation time
