mp-555178/Rb5H5O2F6/anharm

Space group: Pccn (56)
Link: Materials Project
Download: mp-555178.tar.gz

Harmonic properties

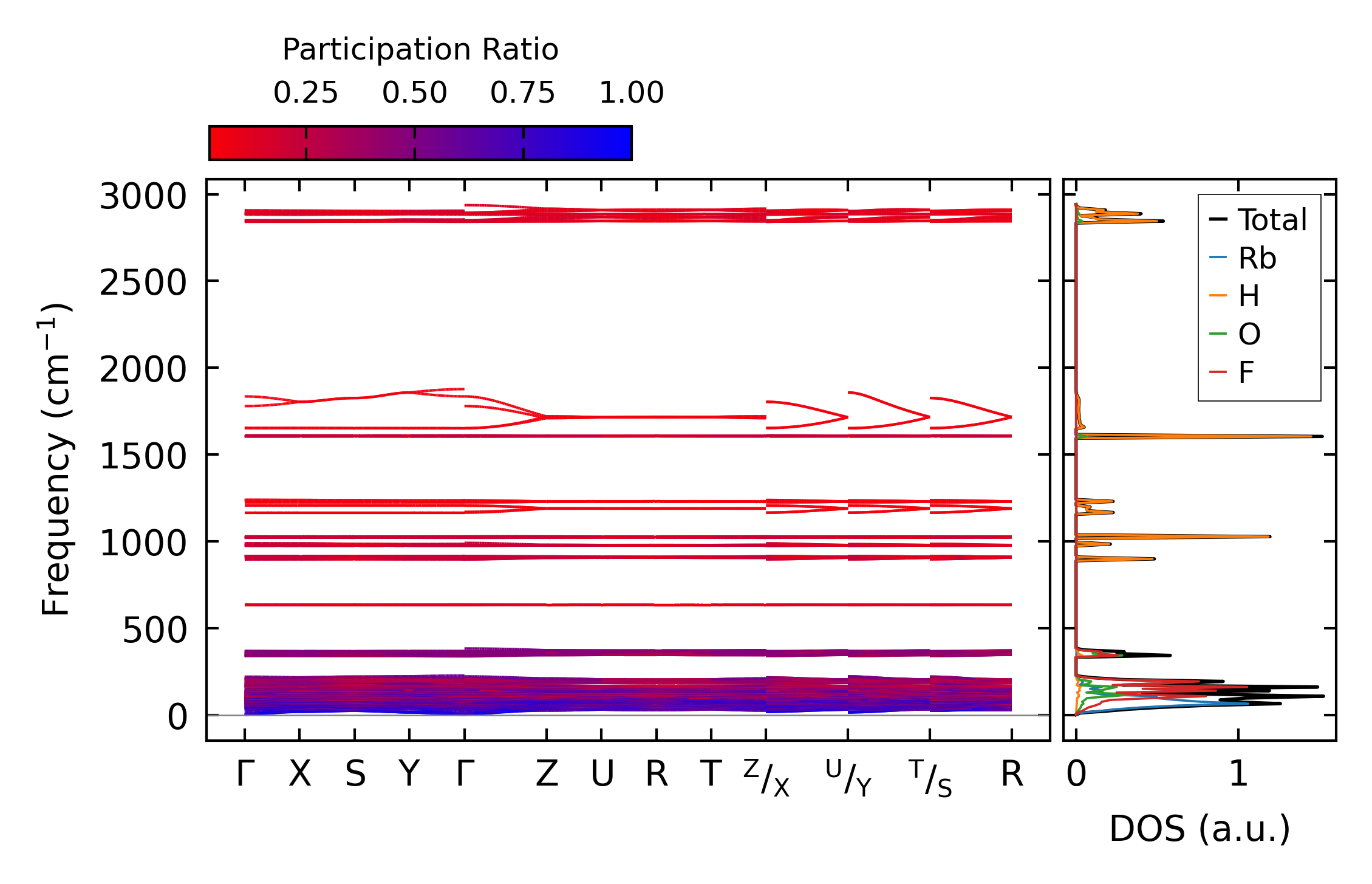

../../_images/fig_bandos_pr8863.png — (a) Phonon dispersion with participation ratio and DOS

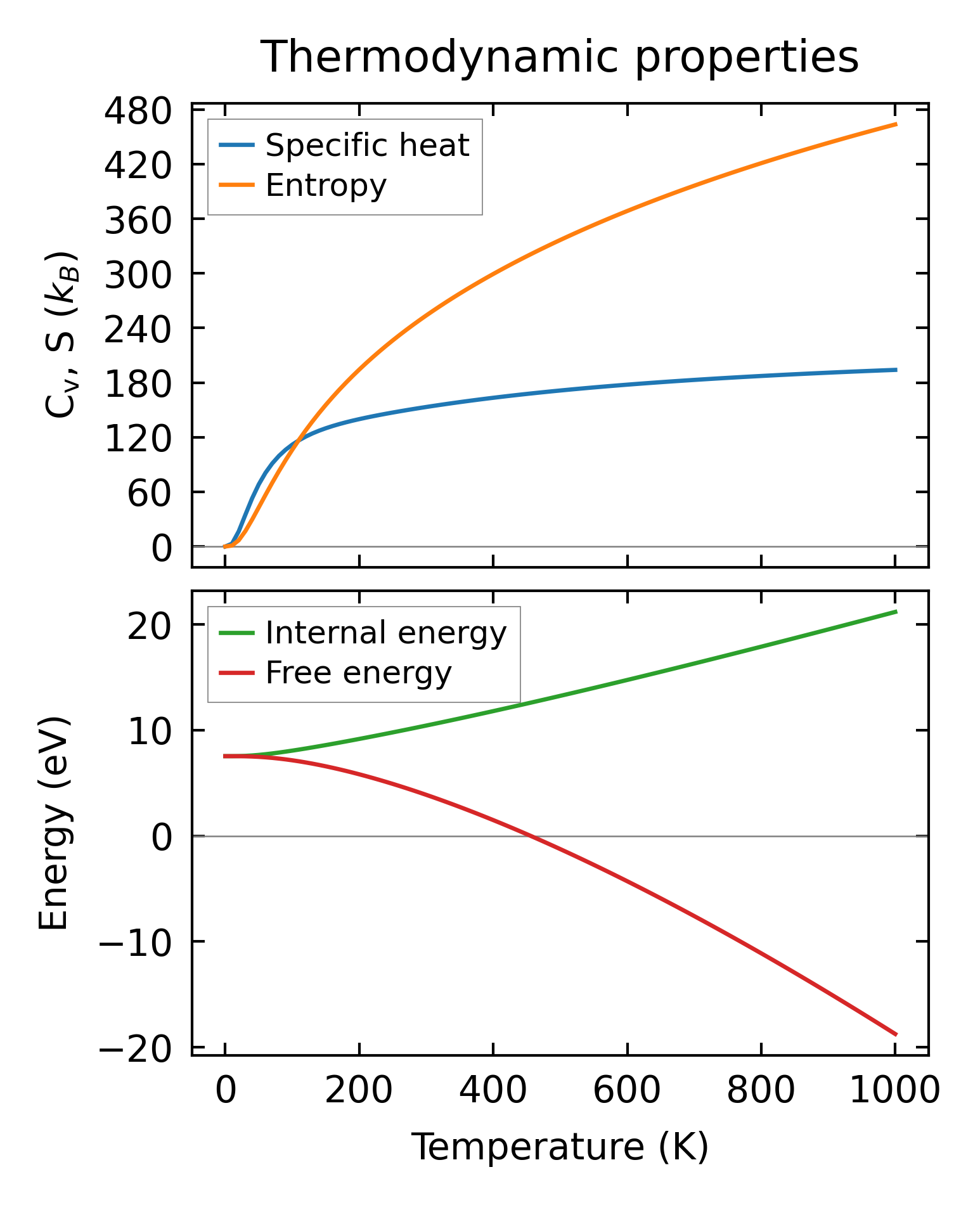

../../_images/fig_thermo8863.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3561.png — (a) Grüneisen parameters

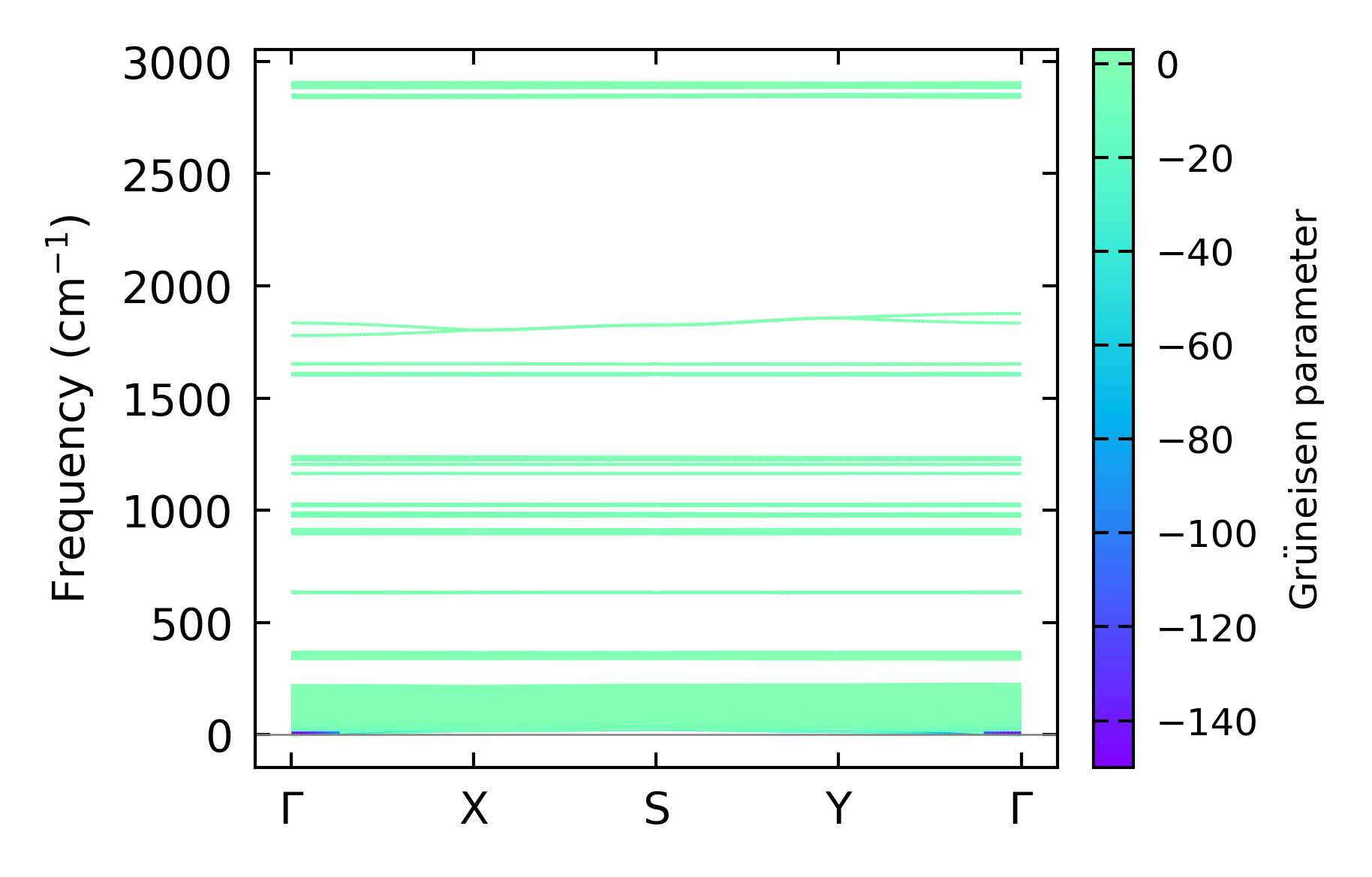

../../_images/fig_gruneisen3561.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x5x10, supercell: 1x1x2

../../_images/fig_kappa6730.png — (a) Temperature-dependent lattice thermal conductivity

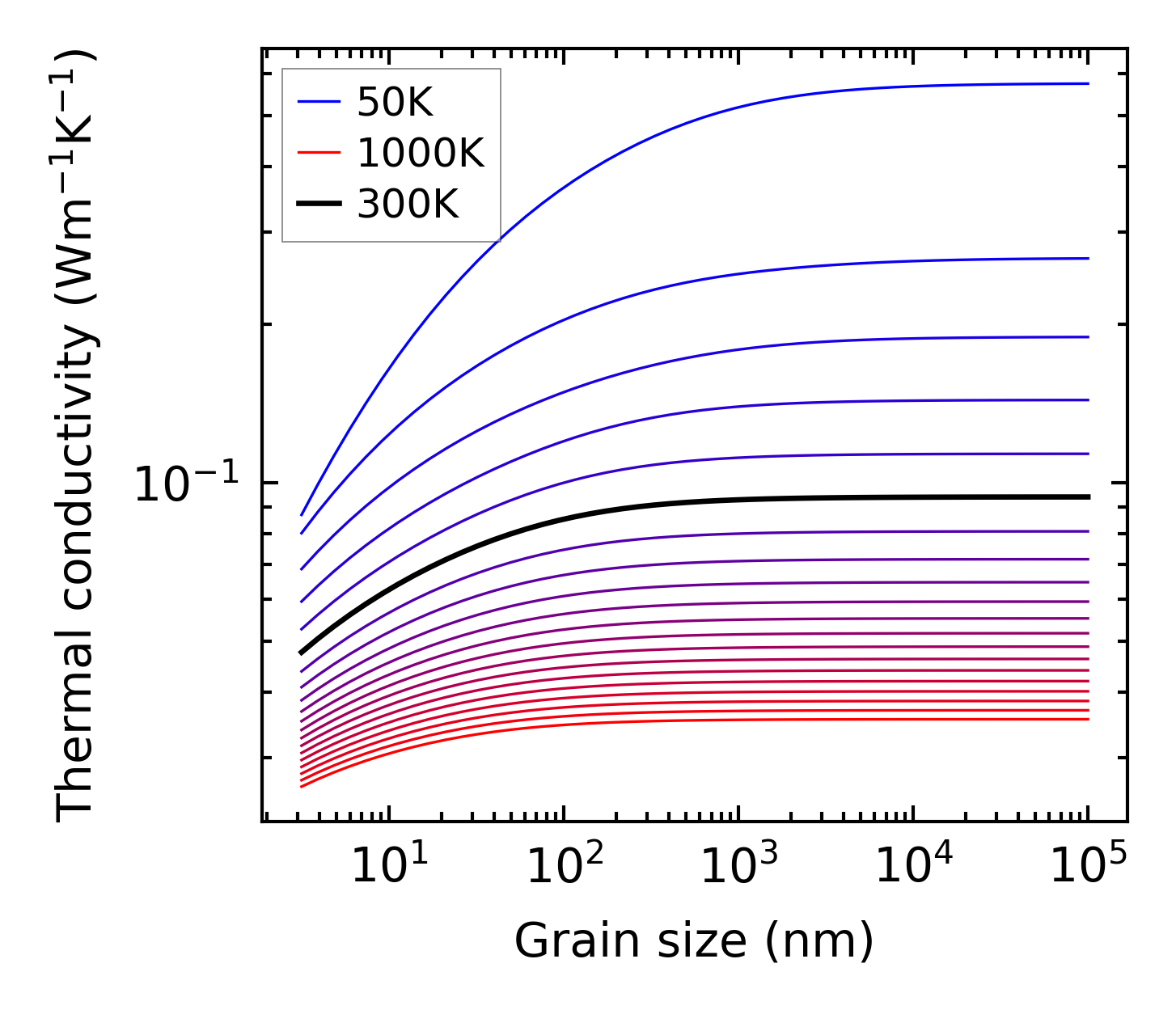

../../_images/fig_kappa_vs_grain_size3606.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

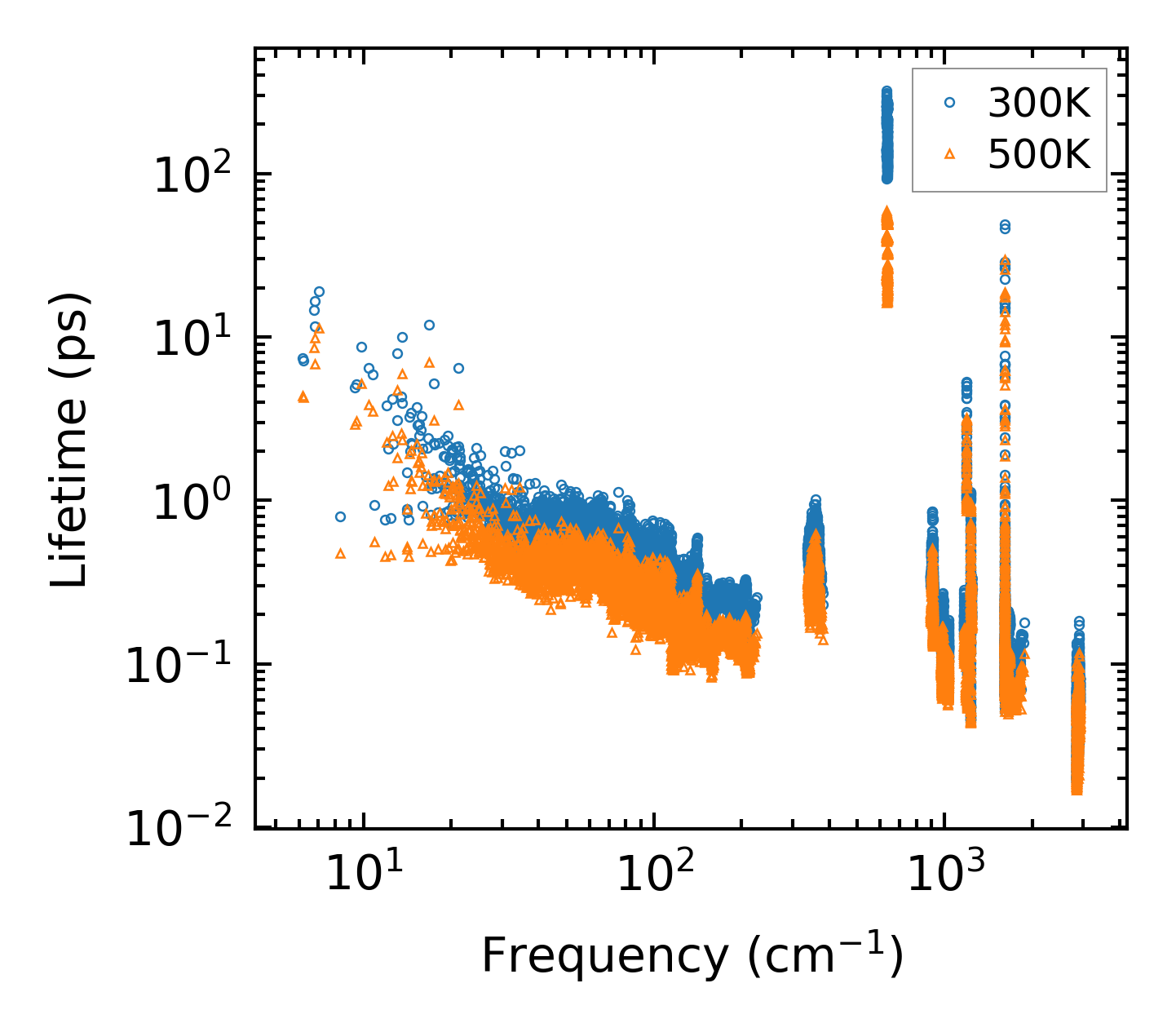

../../_images/fig_lifetime3528.png — (a) Phonon lifetime due to phonon-phonon scattering

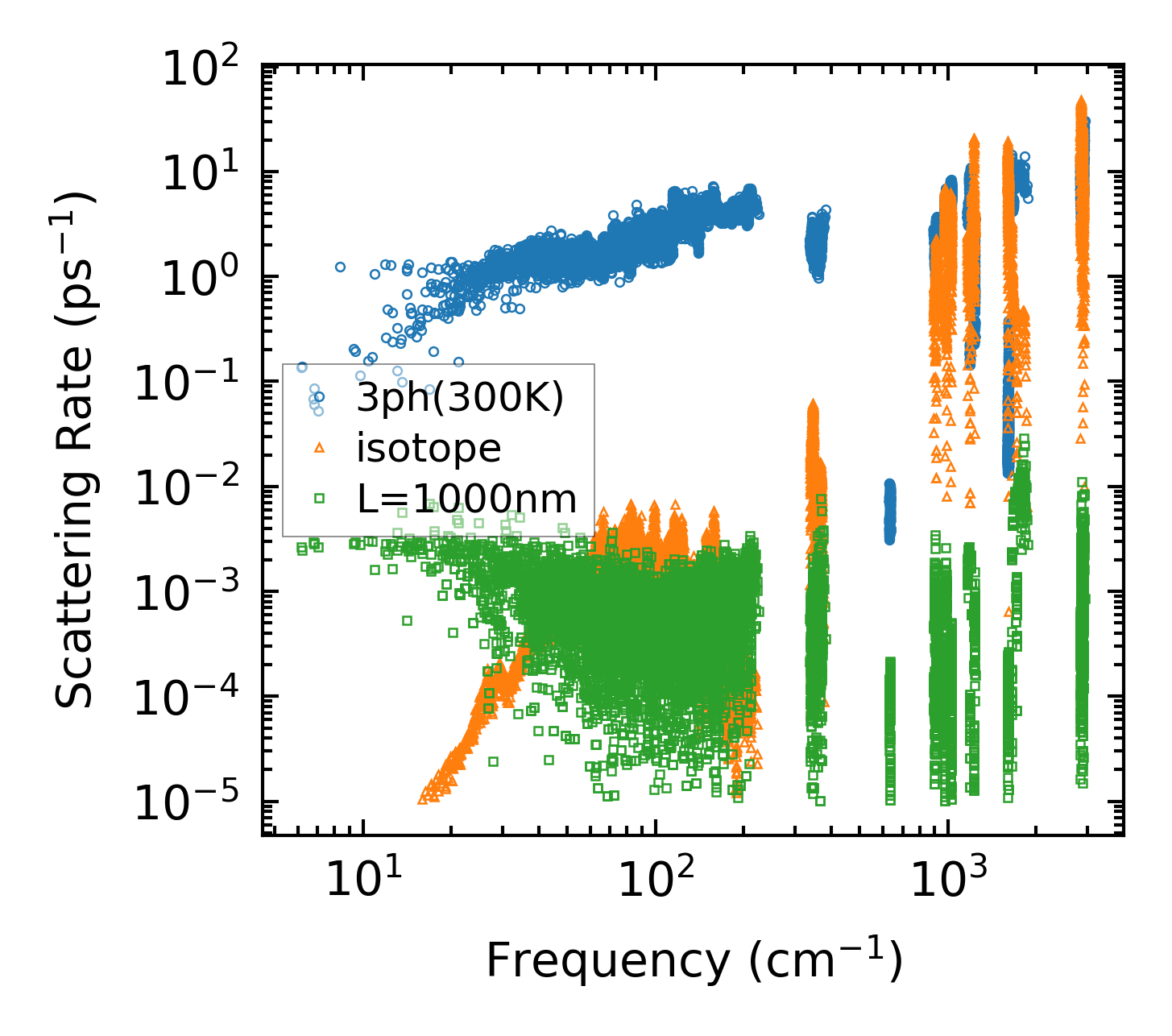

../../_images/fig_scat_rates3527.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

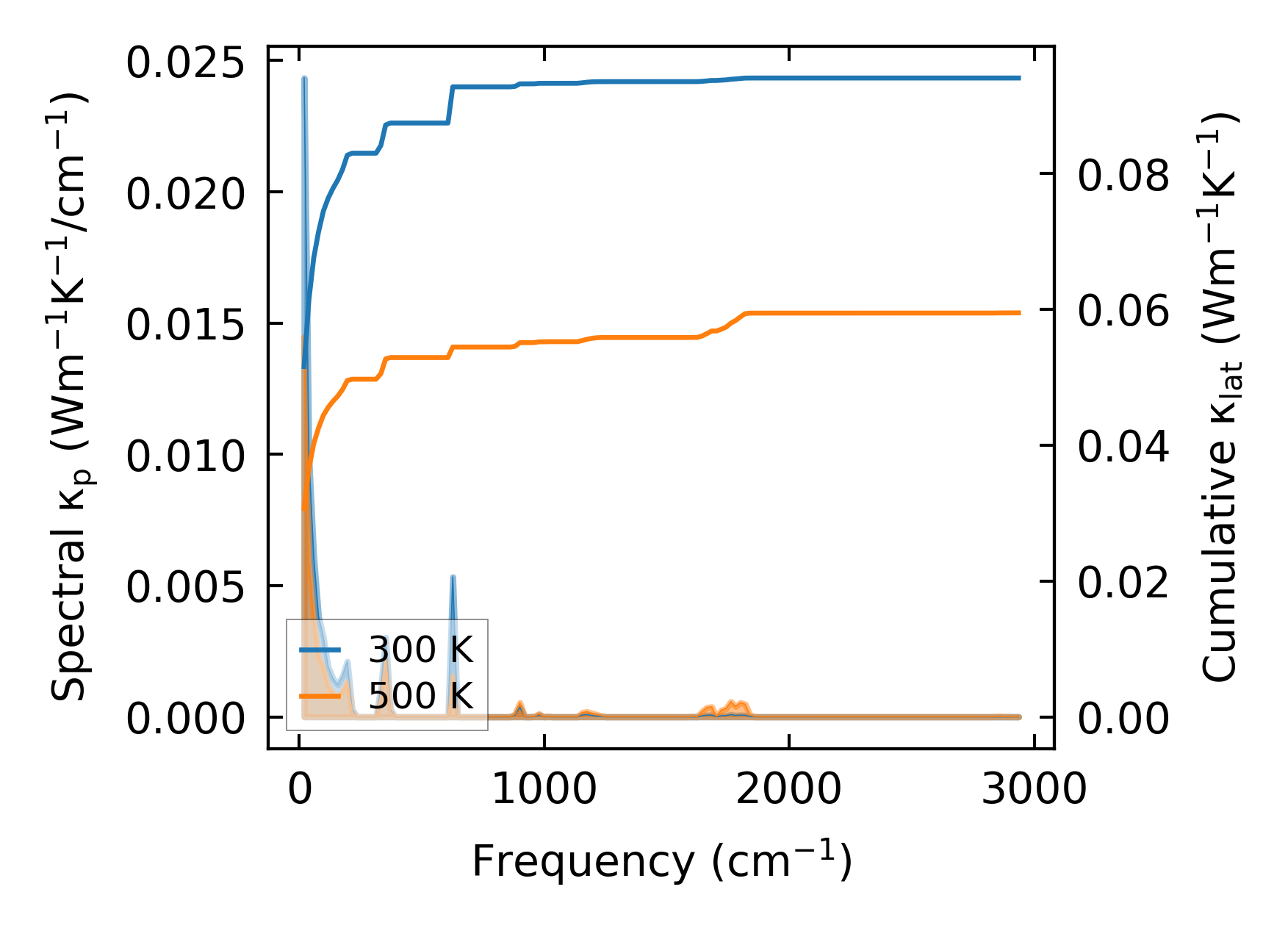

../../_images/fig_cumu_frequency3528.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3527.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28624.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6731.png — (a) Temperature-dependent lattice thermal conductivity

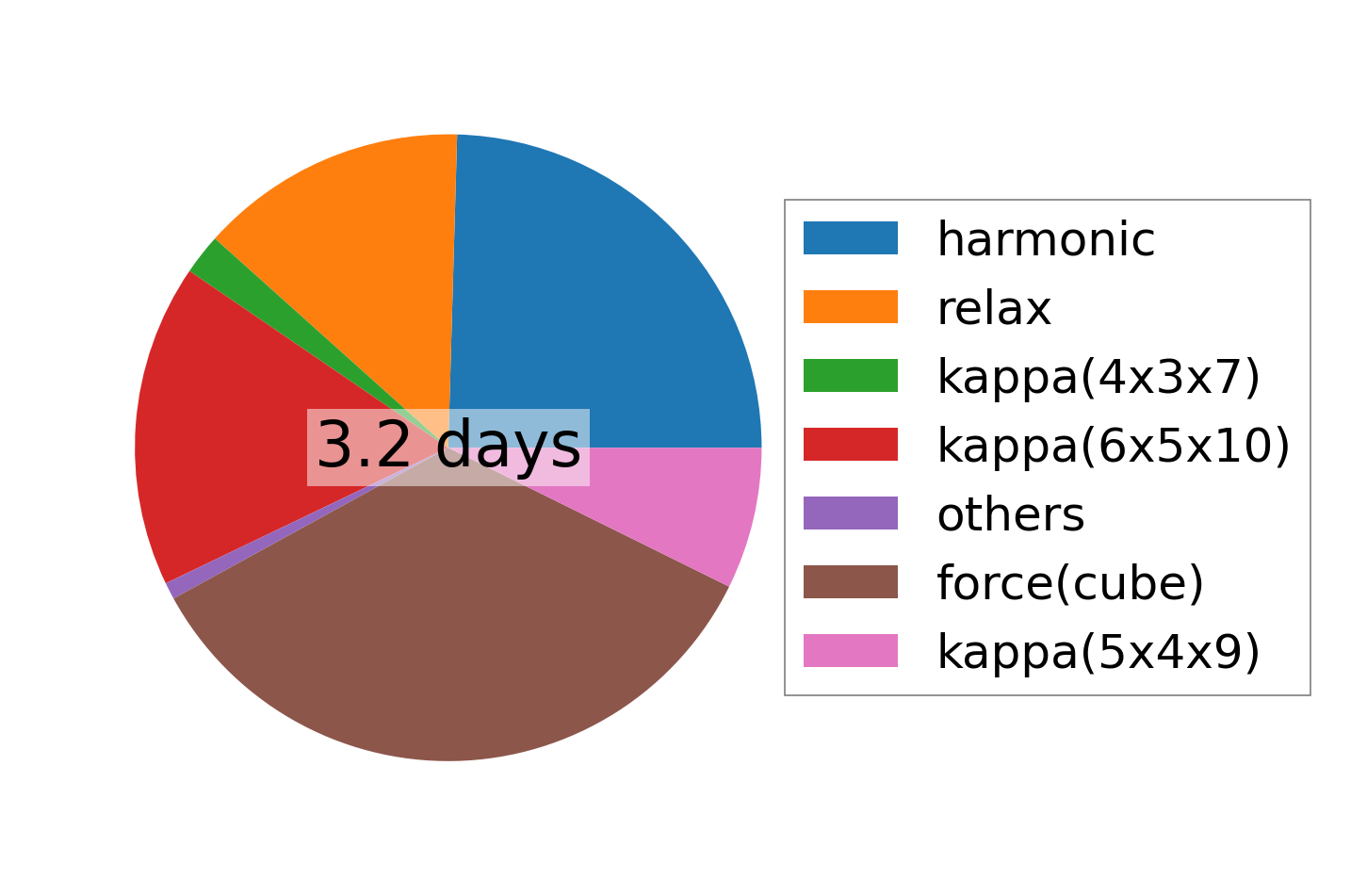

../../_images/fig_times15545.png — (b) Computation time
