mp-15895-2/SiCu2S3/anharm

Space group: Cc (9)
Link: Materials Project
Download: mp-15895-2.tar.gz

Equation of state

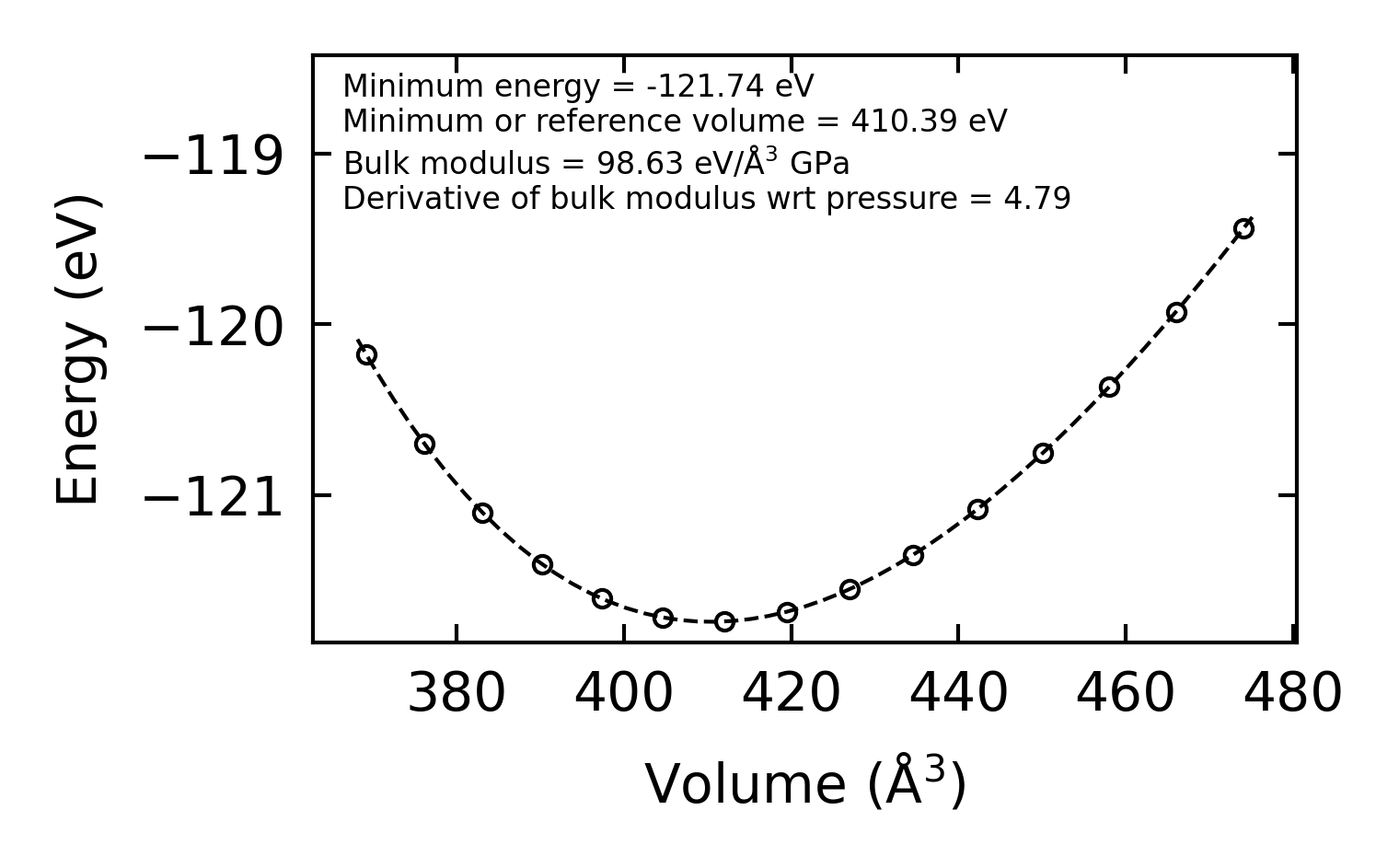

../../_images/fig_bm7182.png — (a) Equation of state

Harmonic properties

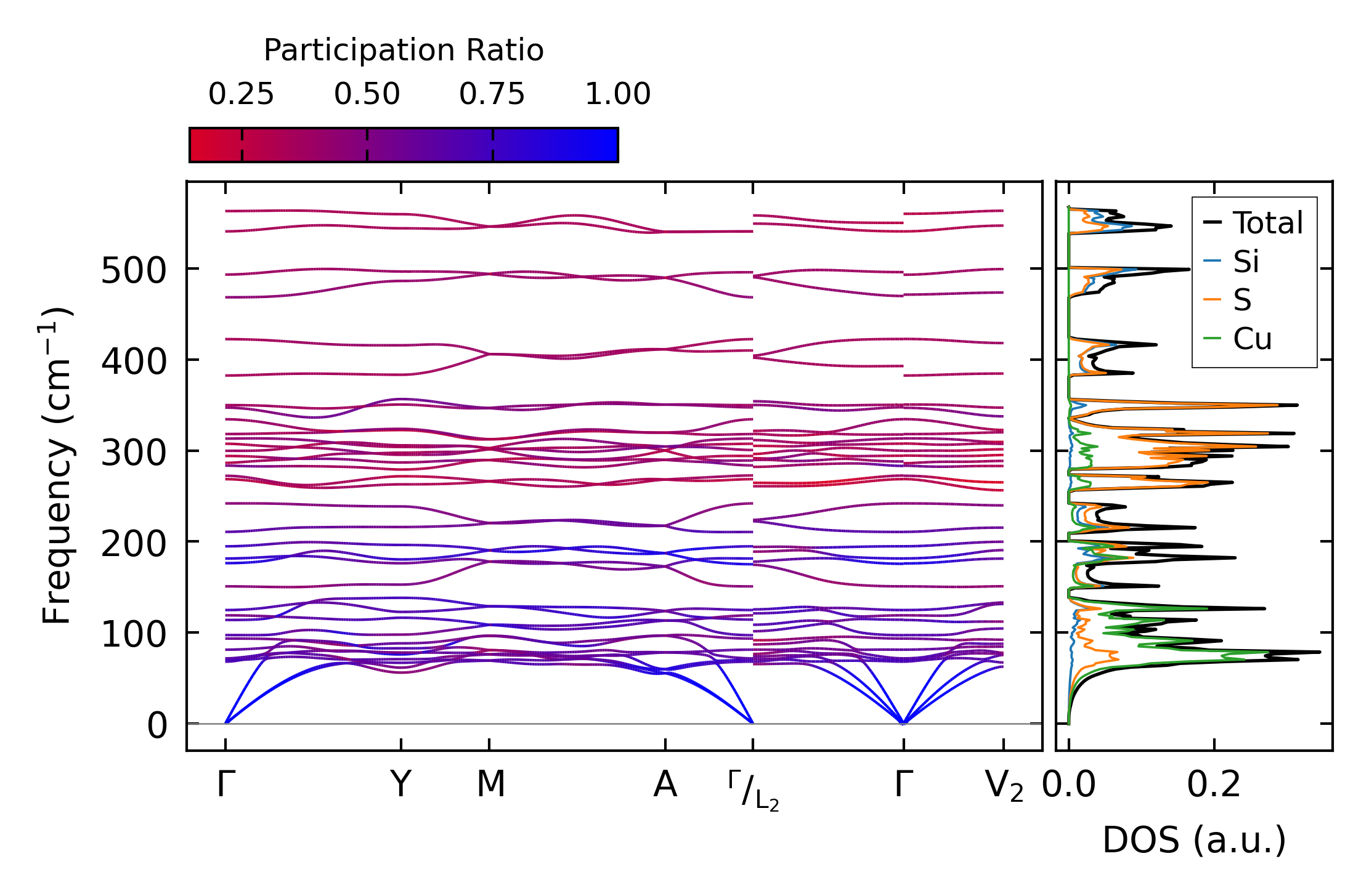

../../_images/fig_bandos_pr14352.png — (a) Phonon dispersion with participation ratio and DOS

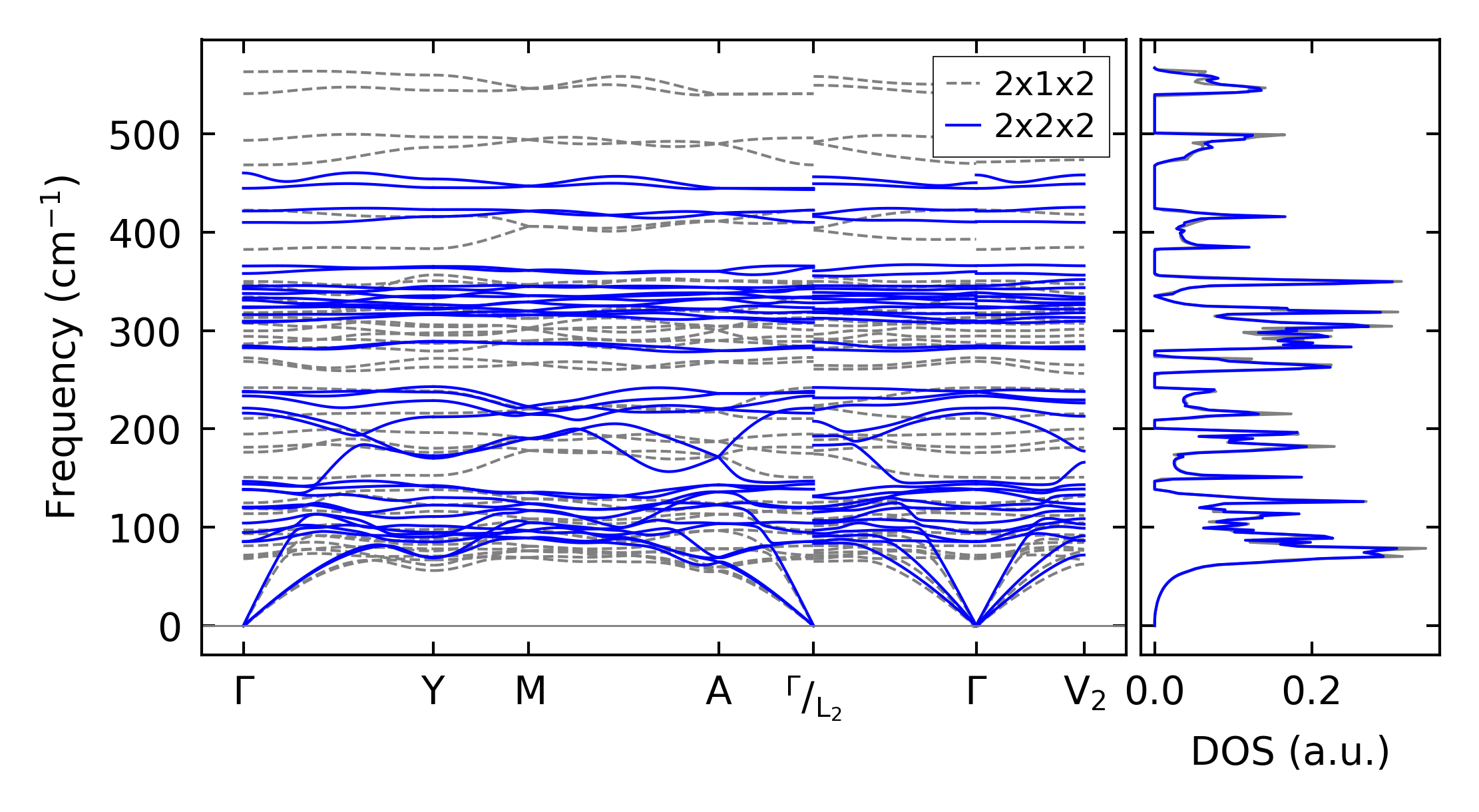

../../_images/fig_bandos18735.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14352.png — (c) Thermodynamic properties

Grüneisen parameters

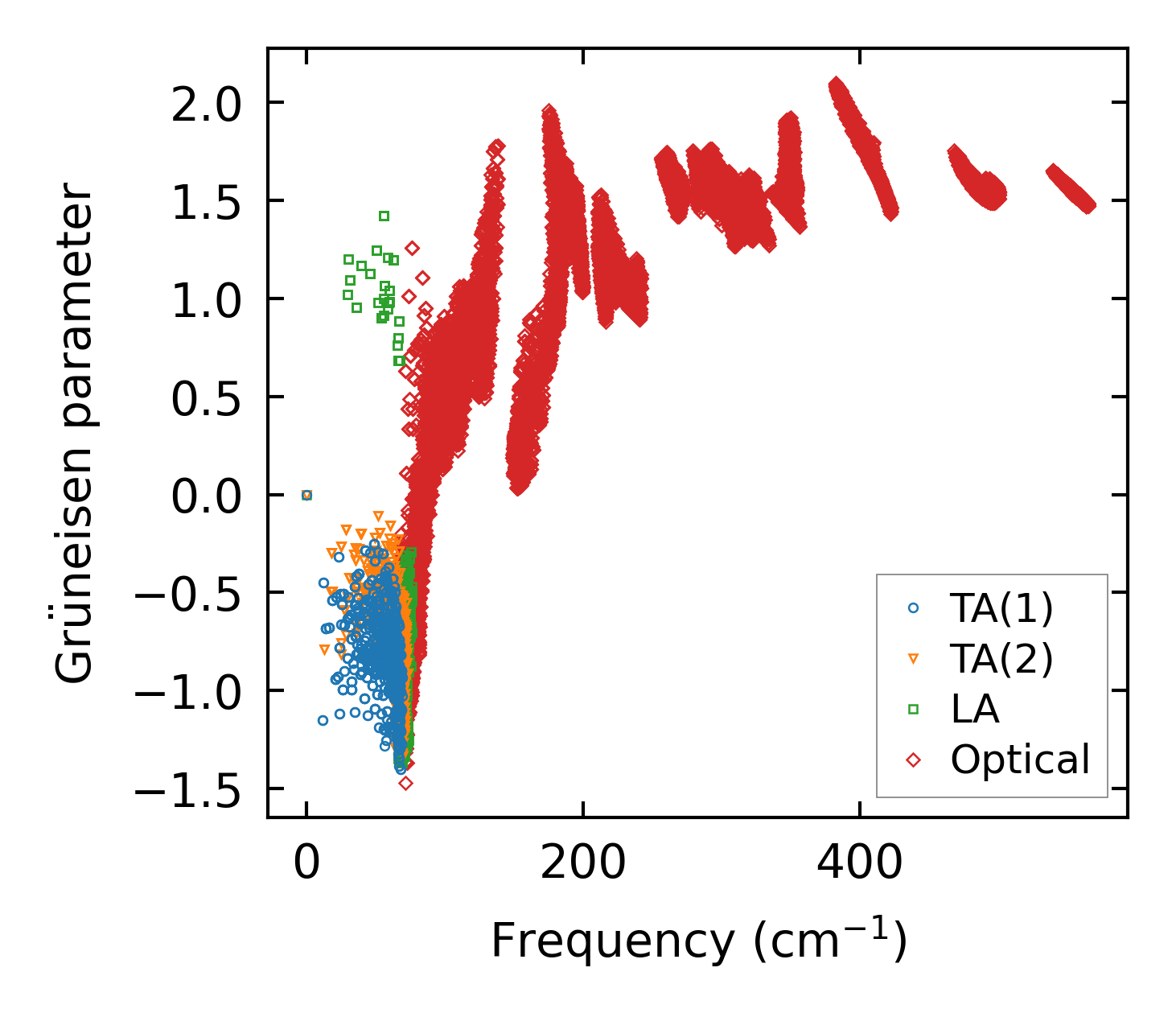

../../_images/fig_gru_all6123.png — (a) Grüneisen parameters

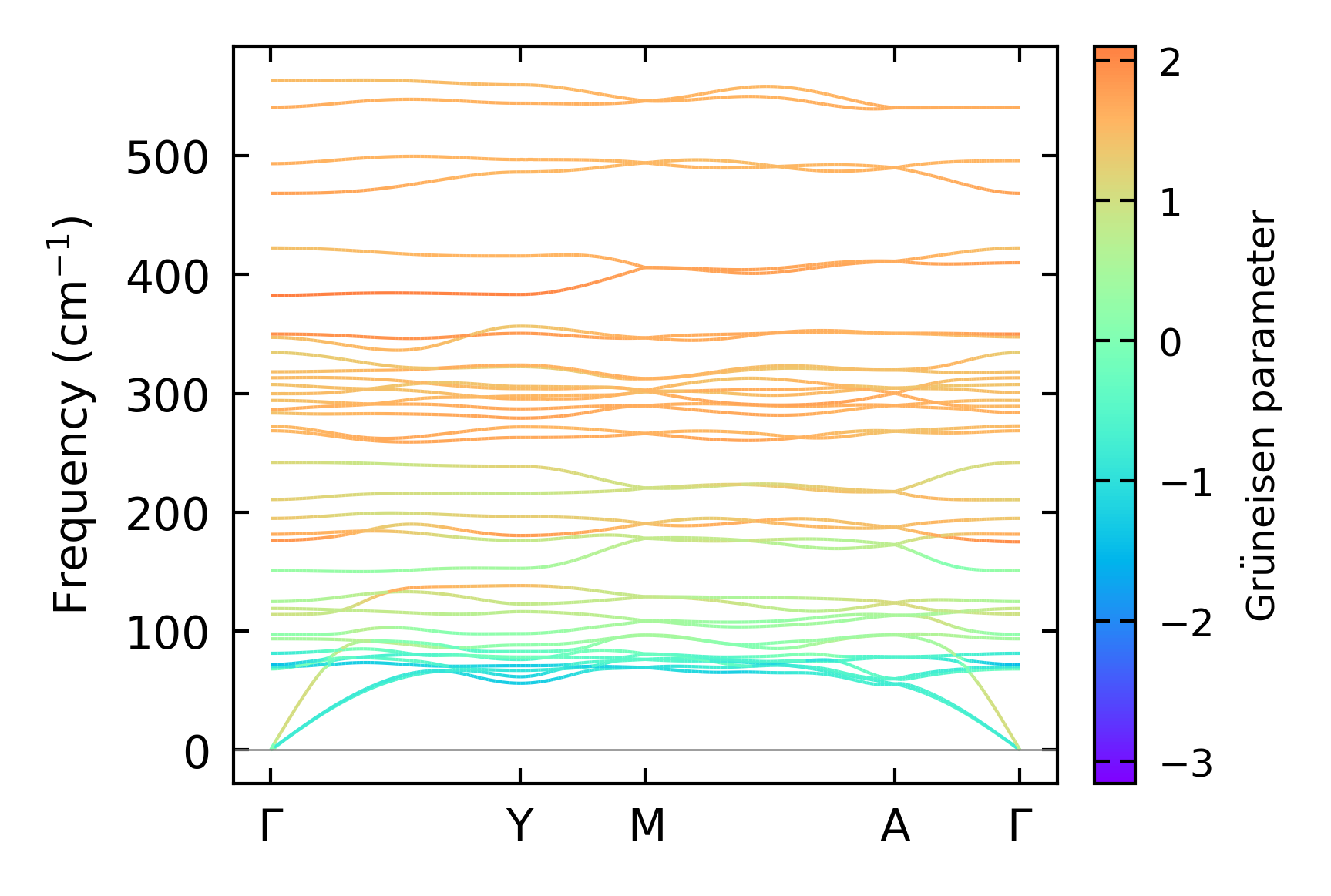

../../_images/fig_gruneisen6123.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 12x12x12, supercell: 2x2x2

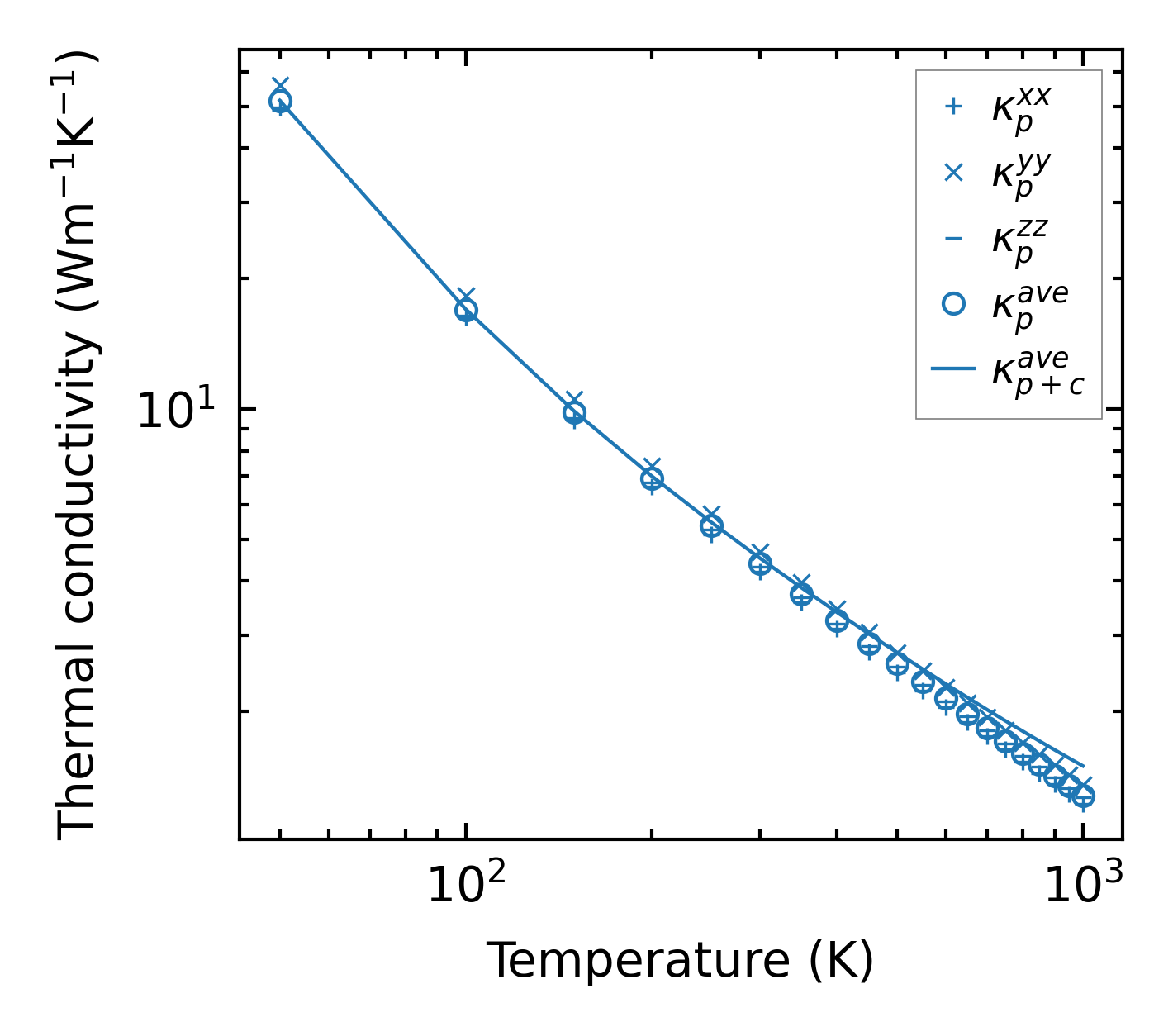

../../_images/fig_kappa11518.png — (a) Temperature-dependent lattice thermal conductivity

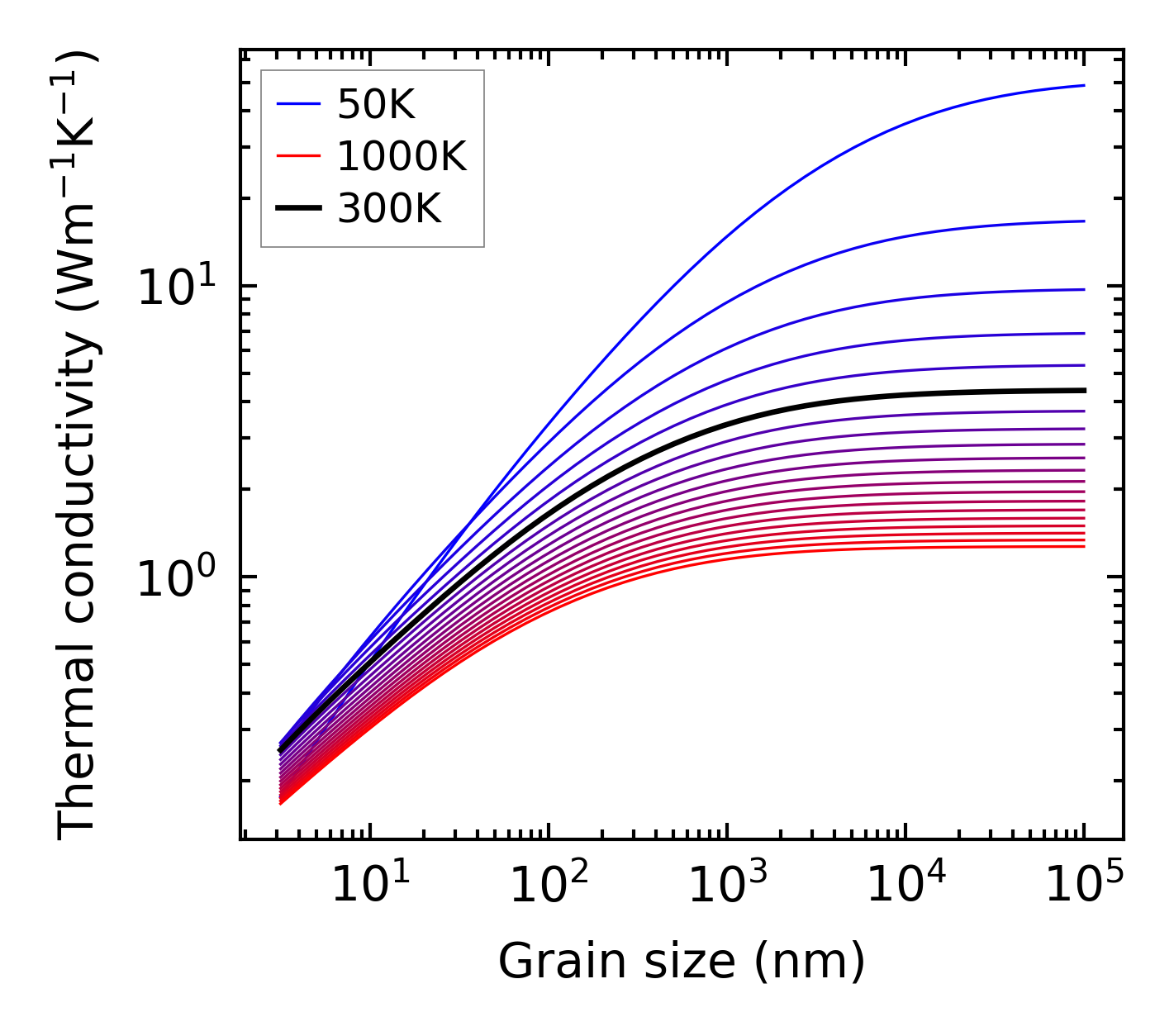

../../_images/fig_kappa_vs_grain_size6201.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

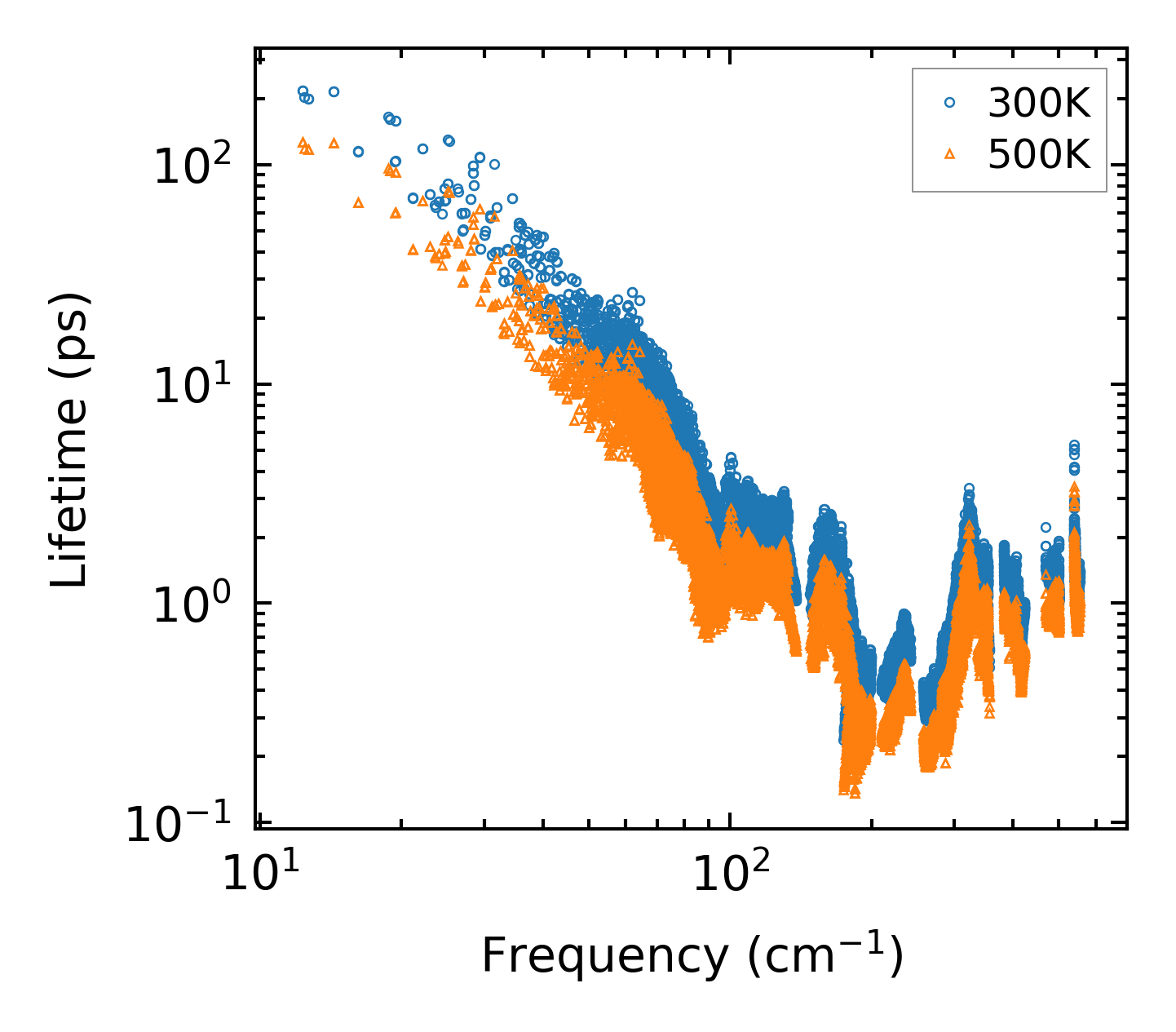

../../_images/fig_lifetime6062.png — (a) Phonon lifetime due to phonon-phonon scattering

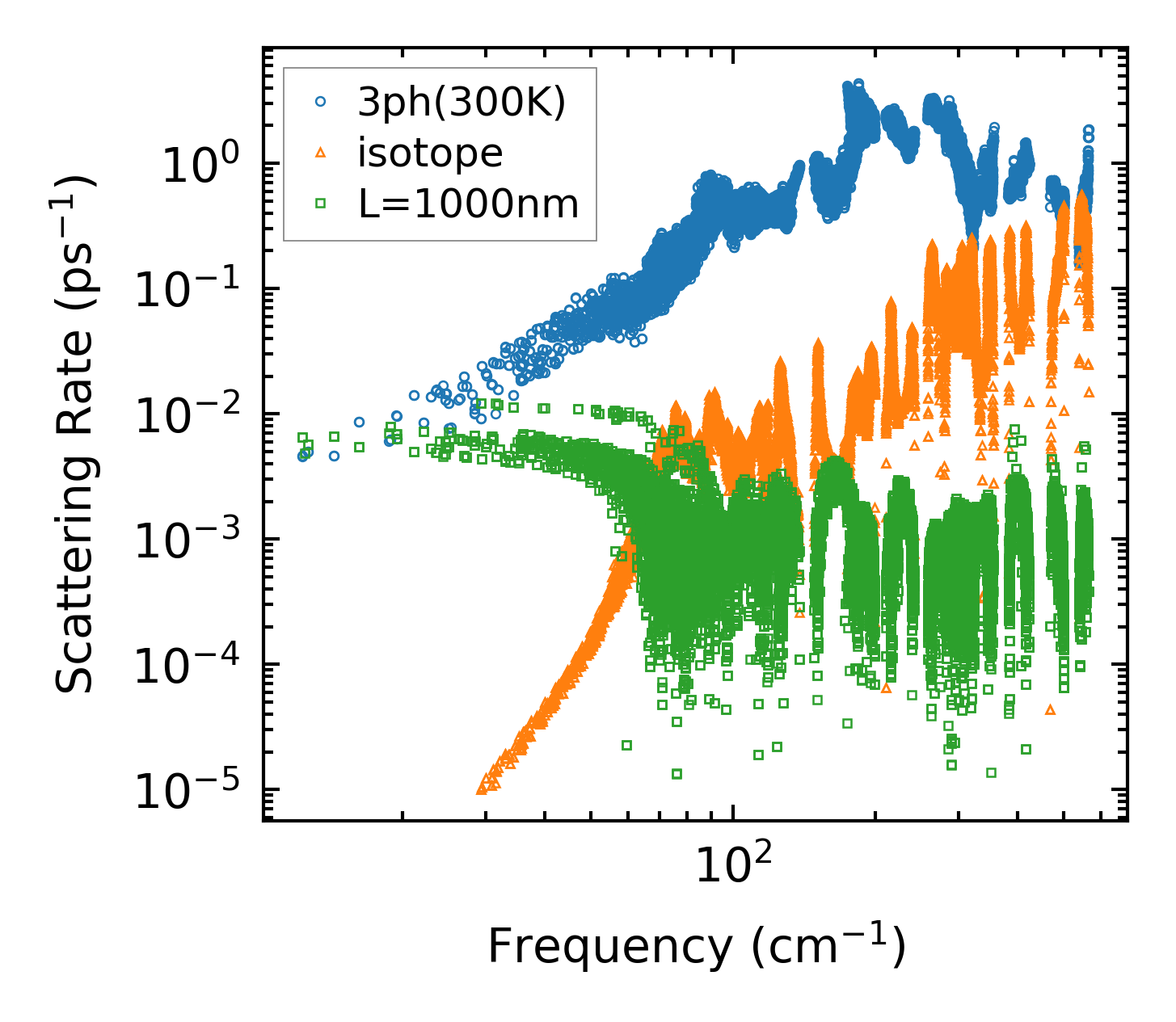

../../_images/fig_scat_rates6061.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

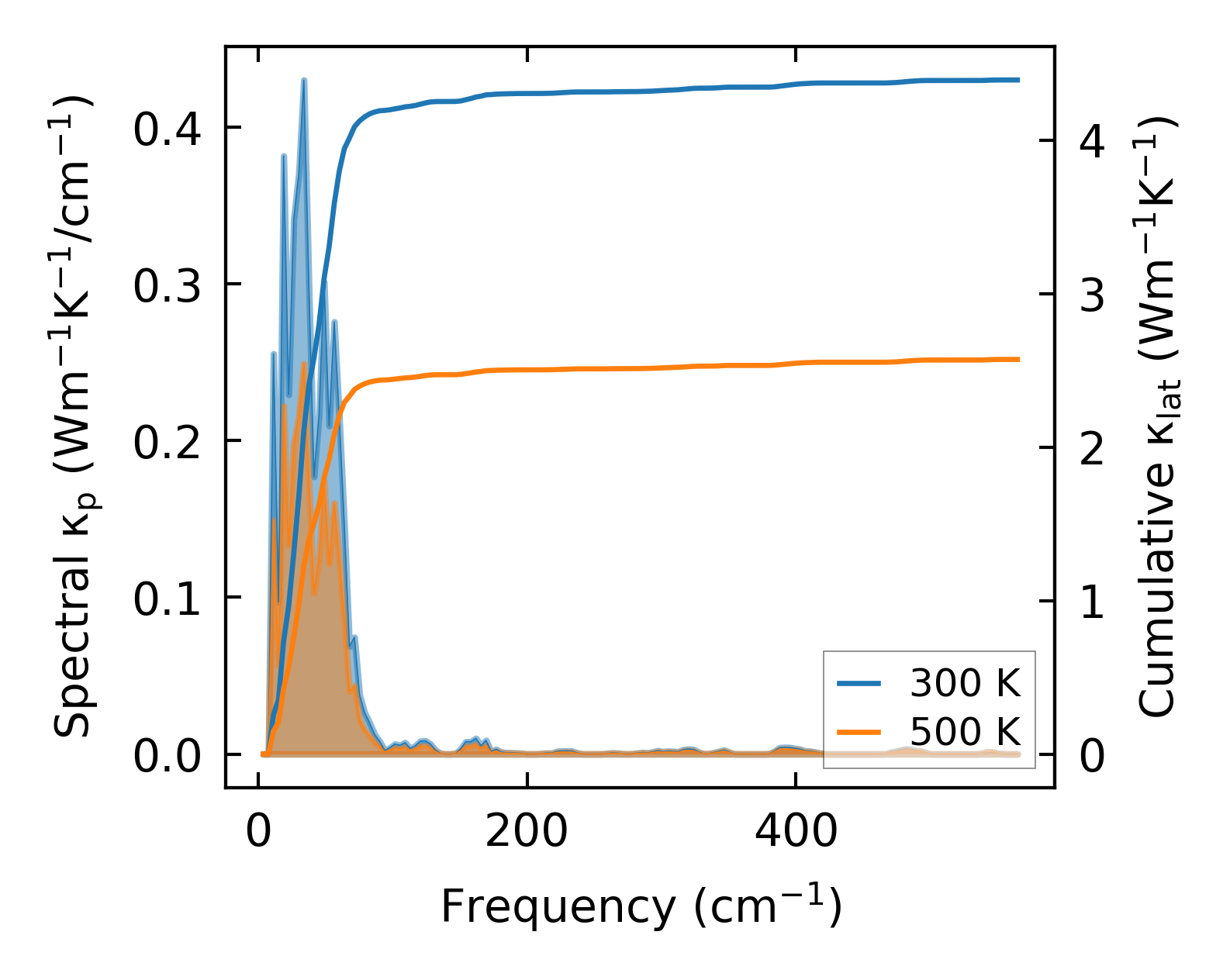

../../_images/fig_cumu_frequency6062.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

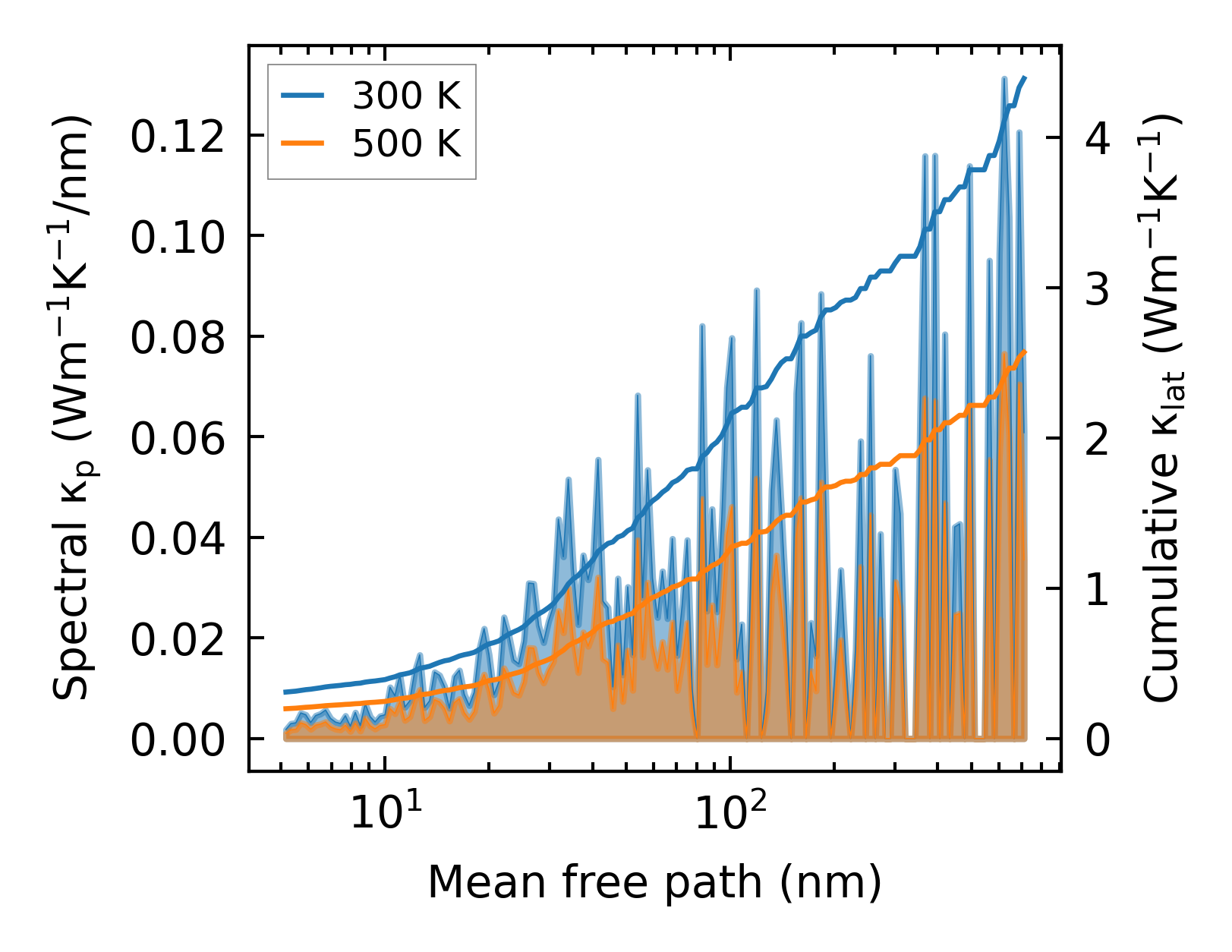

../../_images/fig_cumu_mfp6061.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

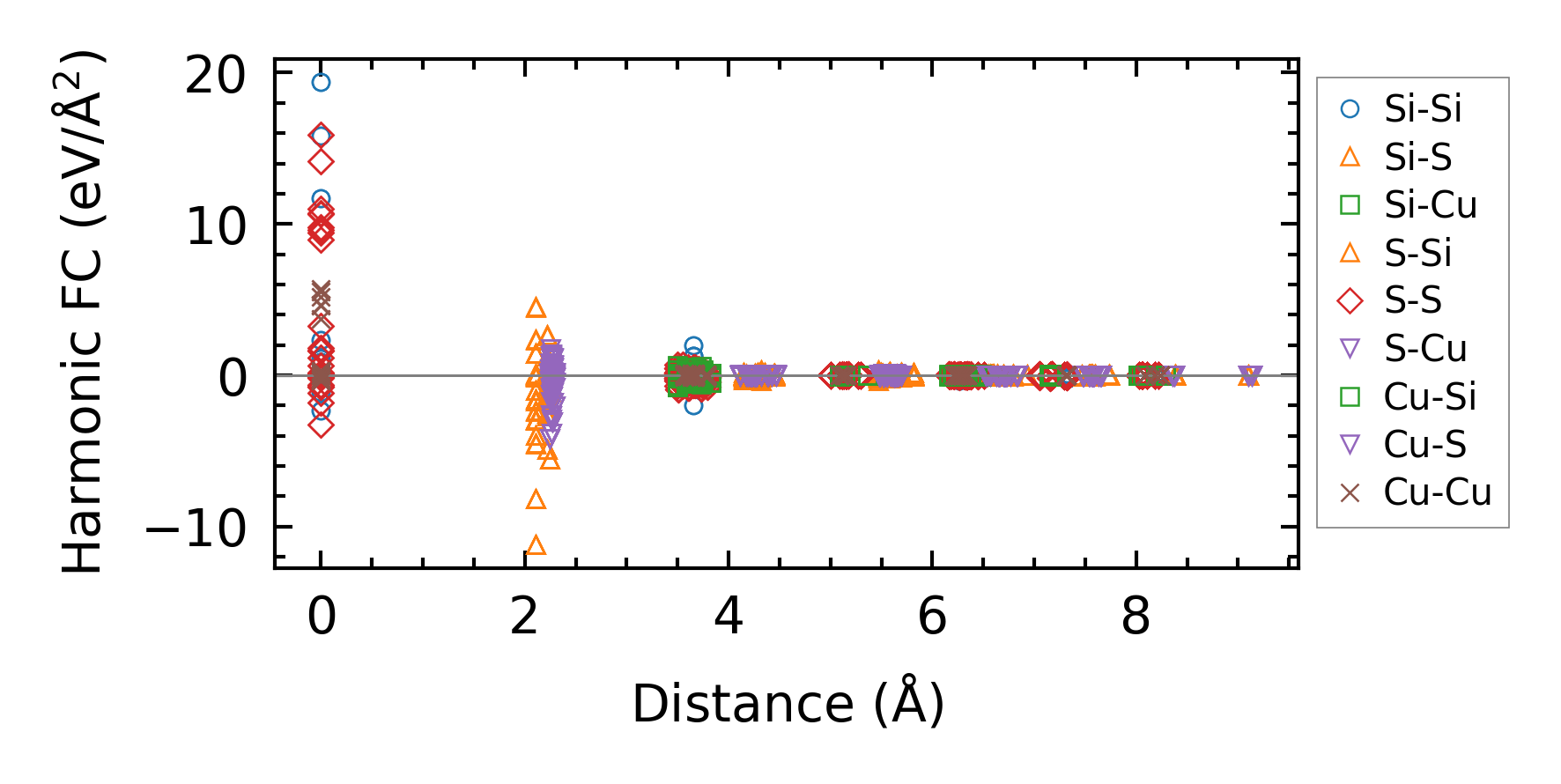

../../_images/fig_fc213977.png — (a) Force constants w.r.t atomic distance

Summary

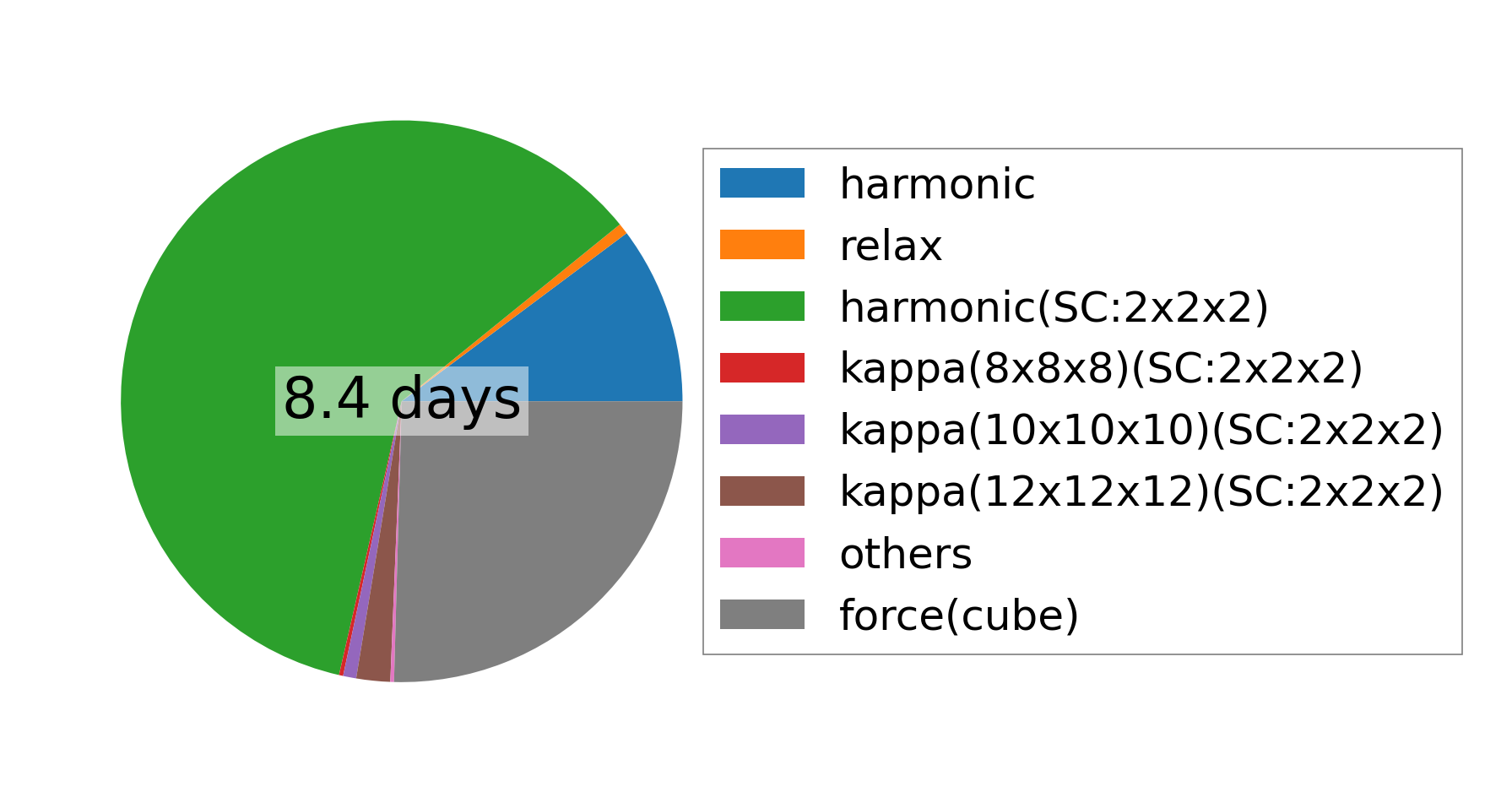

../../_images/fig_times23944.png — (a) Computation time
