mp-15575/Ho3Ga5O12/anharm

Space group: Ia-3d (230)
Link: Materials Project
Download: mp-15575.tar.gz

Harmonic properties

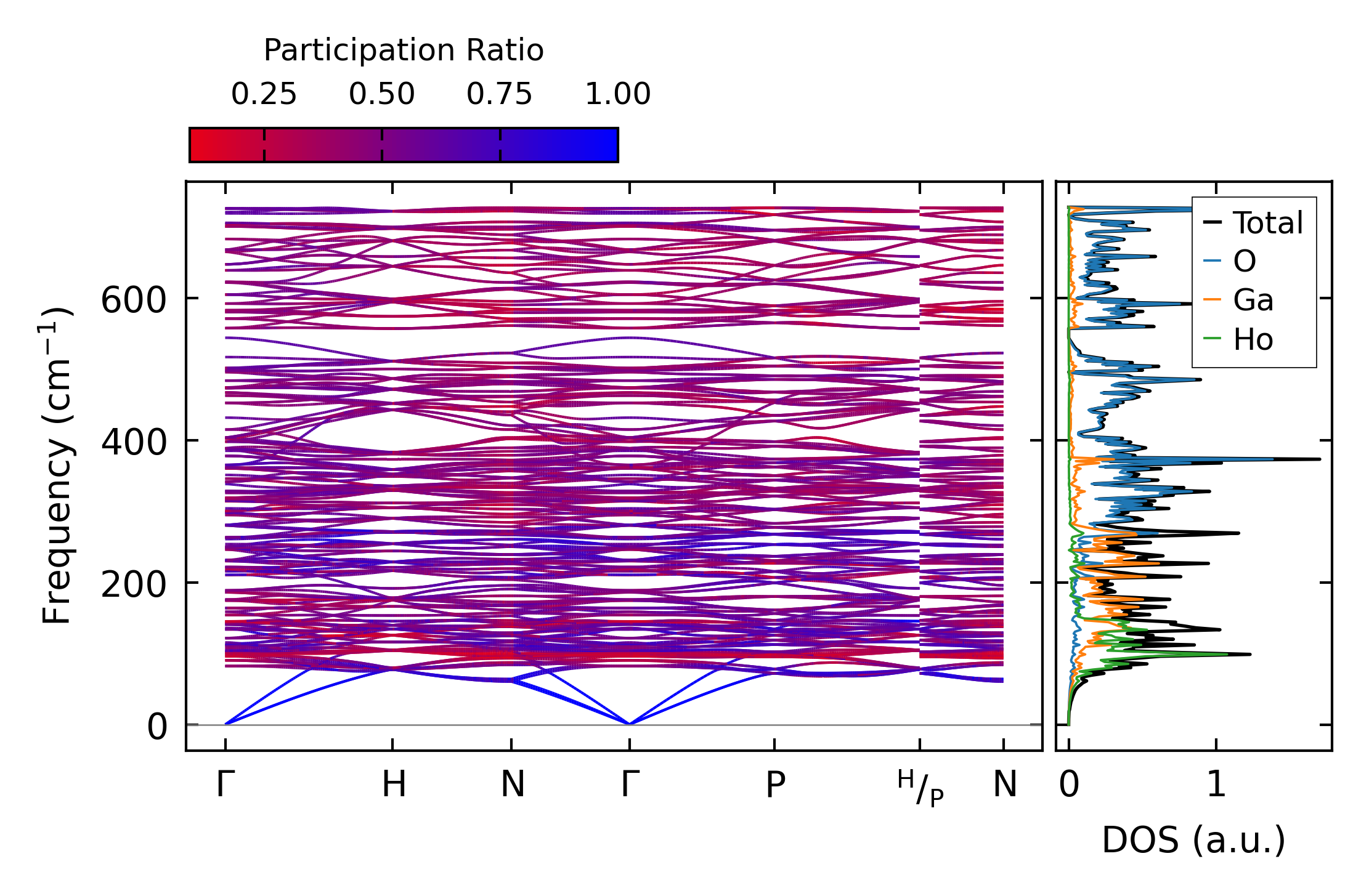

../../_images/fig_bandos_pr14297.png — (a) Phonon dispersion with participation ratio and DOS

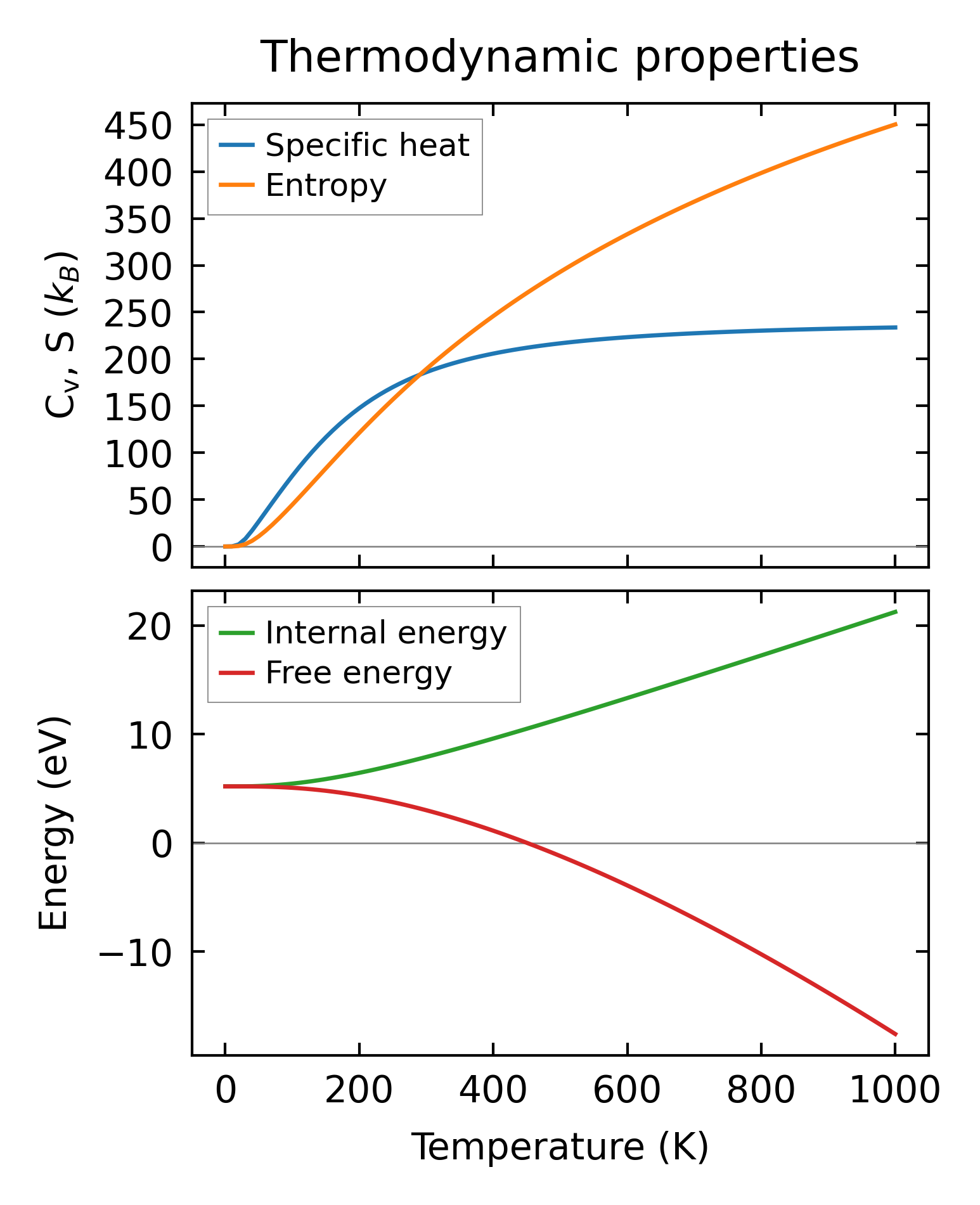

../../_images/fig_thermo14297.png — (b) Thermodynamic properties

Grüneisen parameters

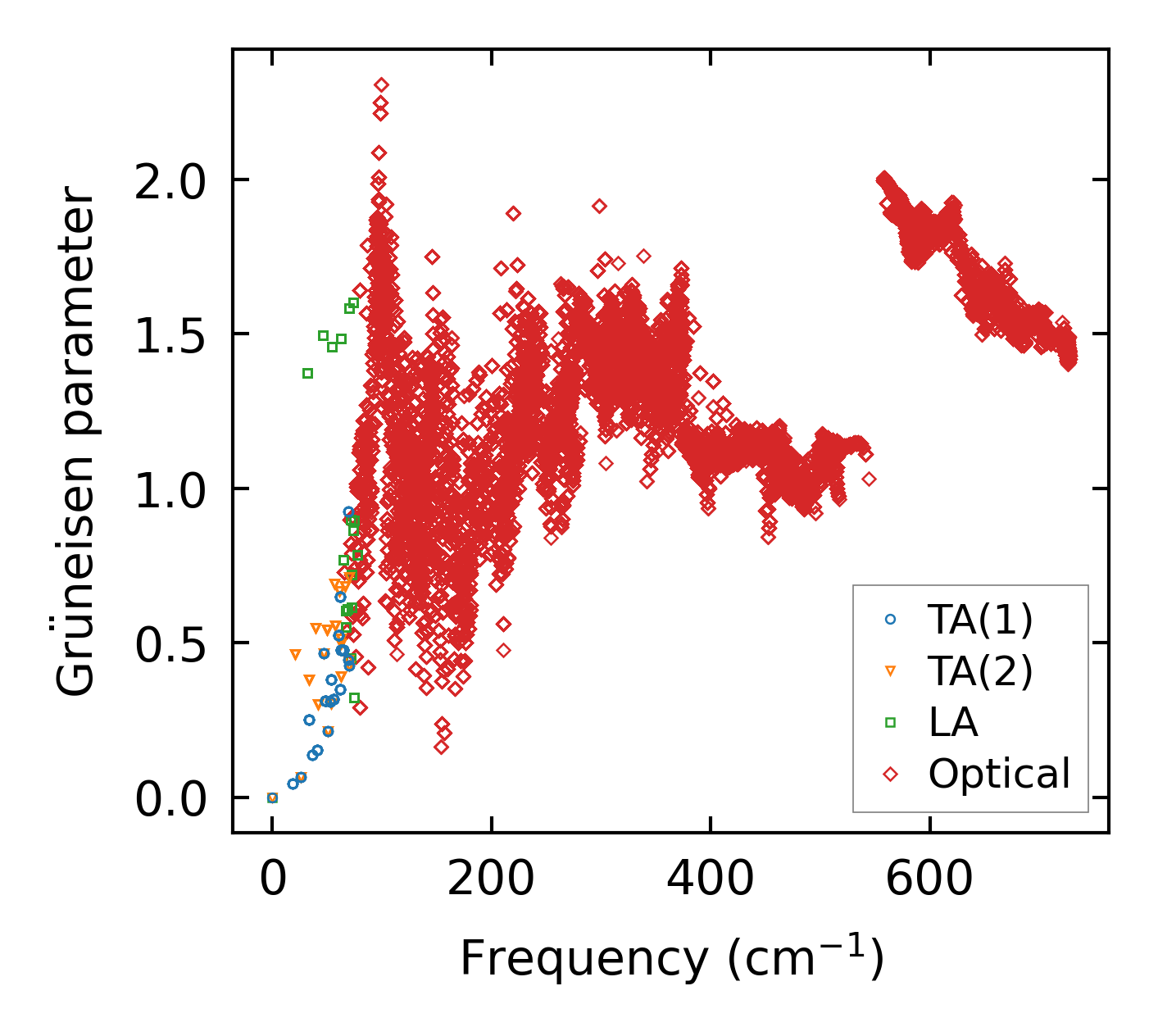

../../_images/fig_gru_all6089.png — (a) Grüneisen parameters

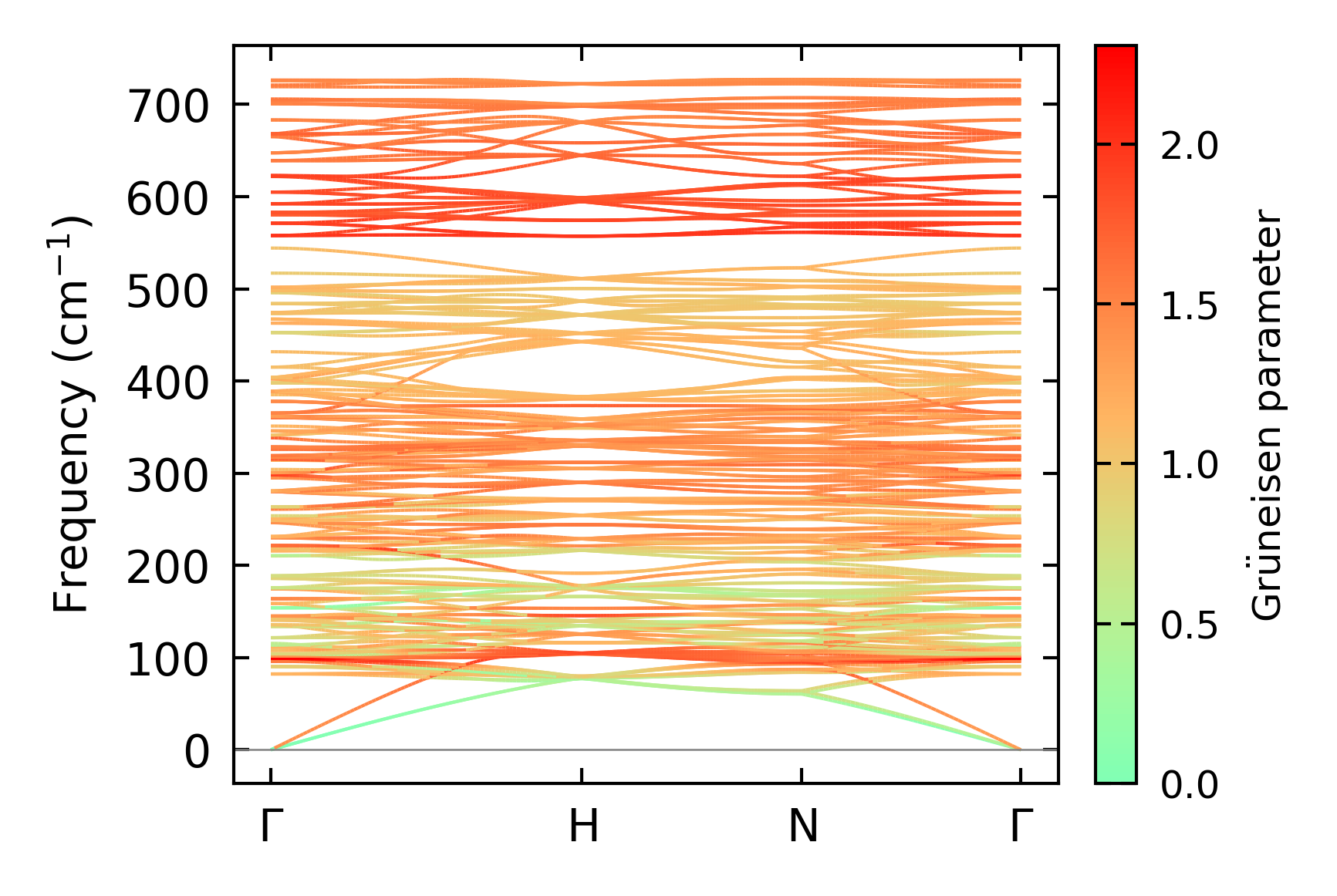

../../_images/fig_gruneisen6089.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

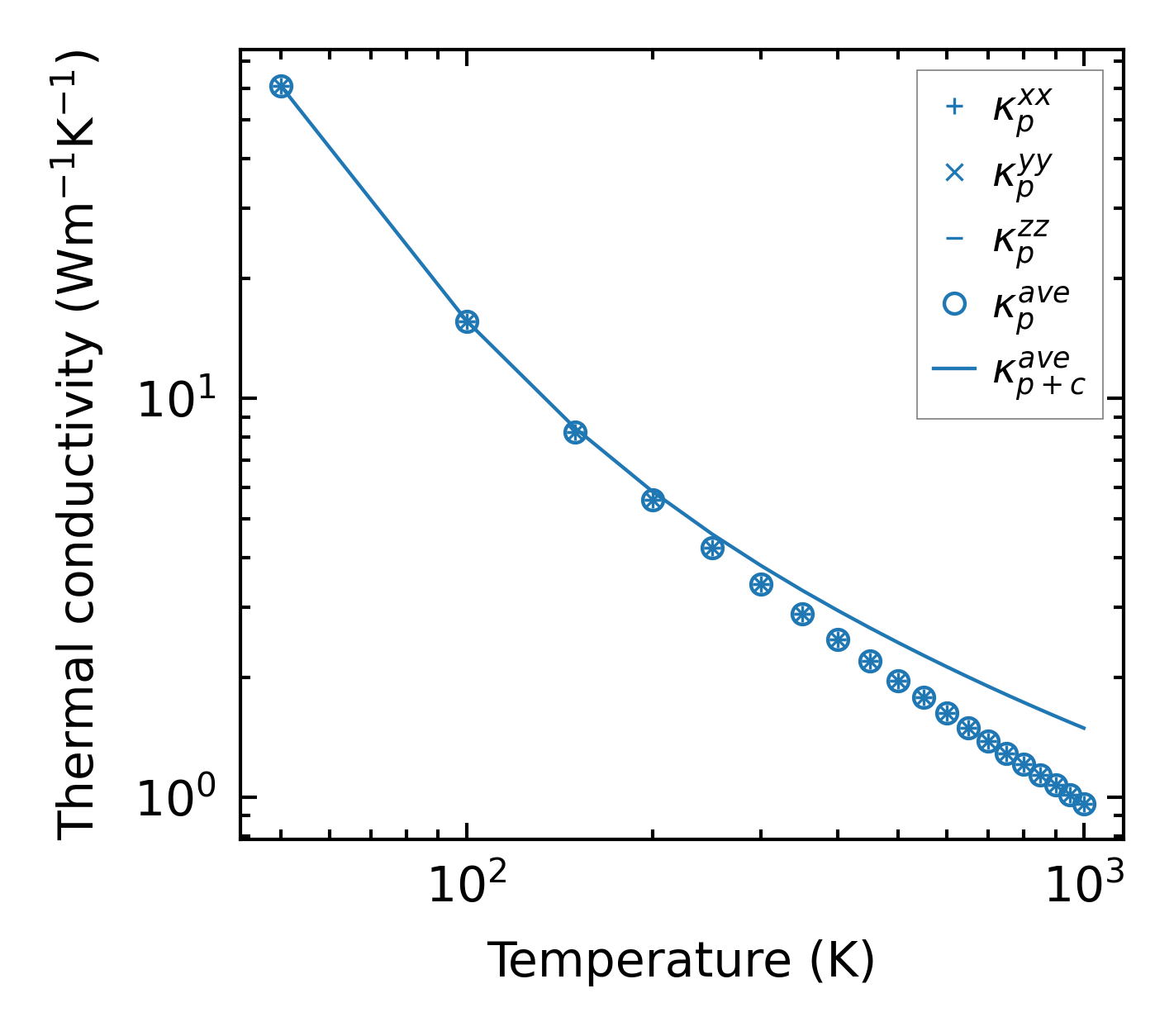

../../_images/fig_kappa11453.png — (a) Temperature-dependent lattice thermal conductivity

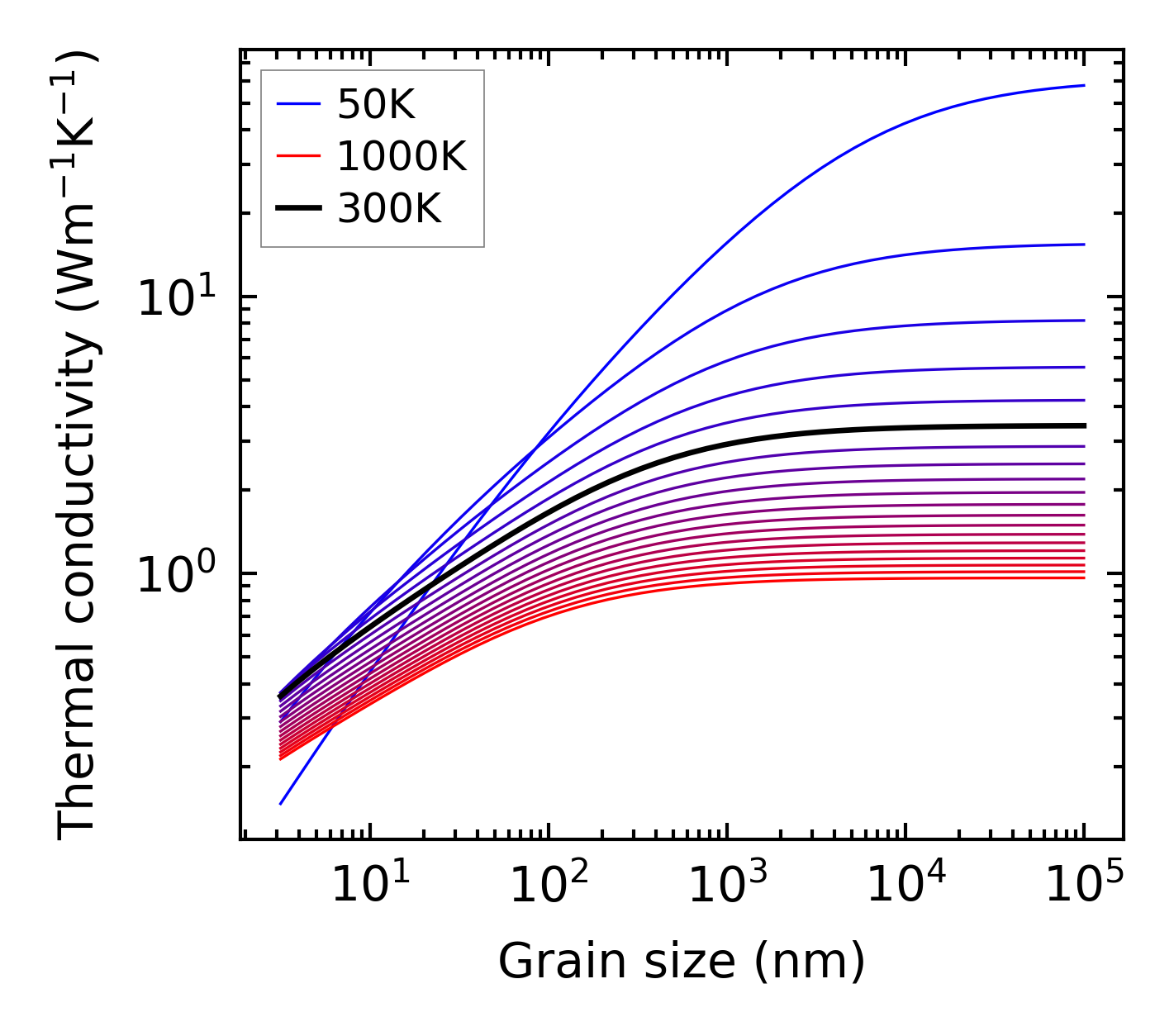

../../_images/fig_kappa_vs_grain_size6167.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

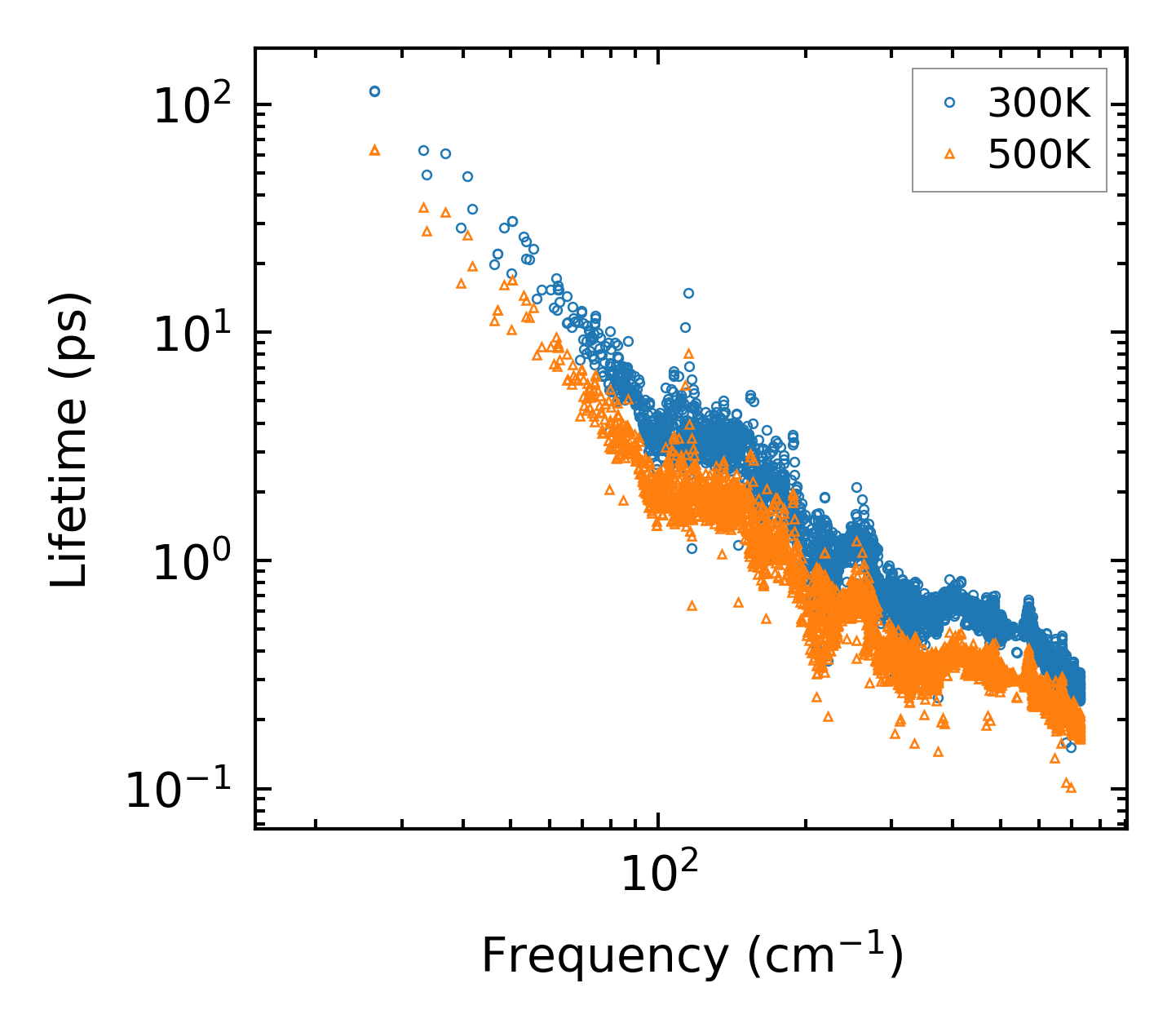

../../_images/fig_lifetime6028.png — (a) Phonon lifetime due to phonon-phonon scattering

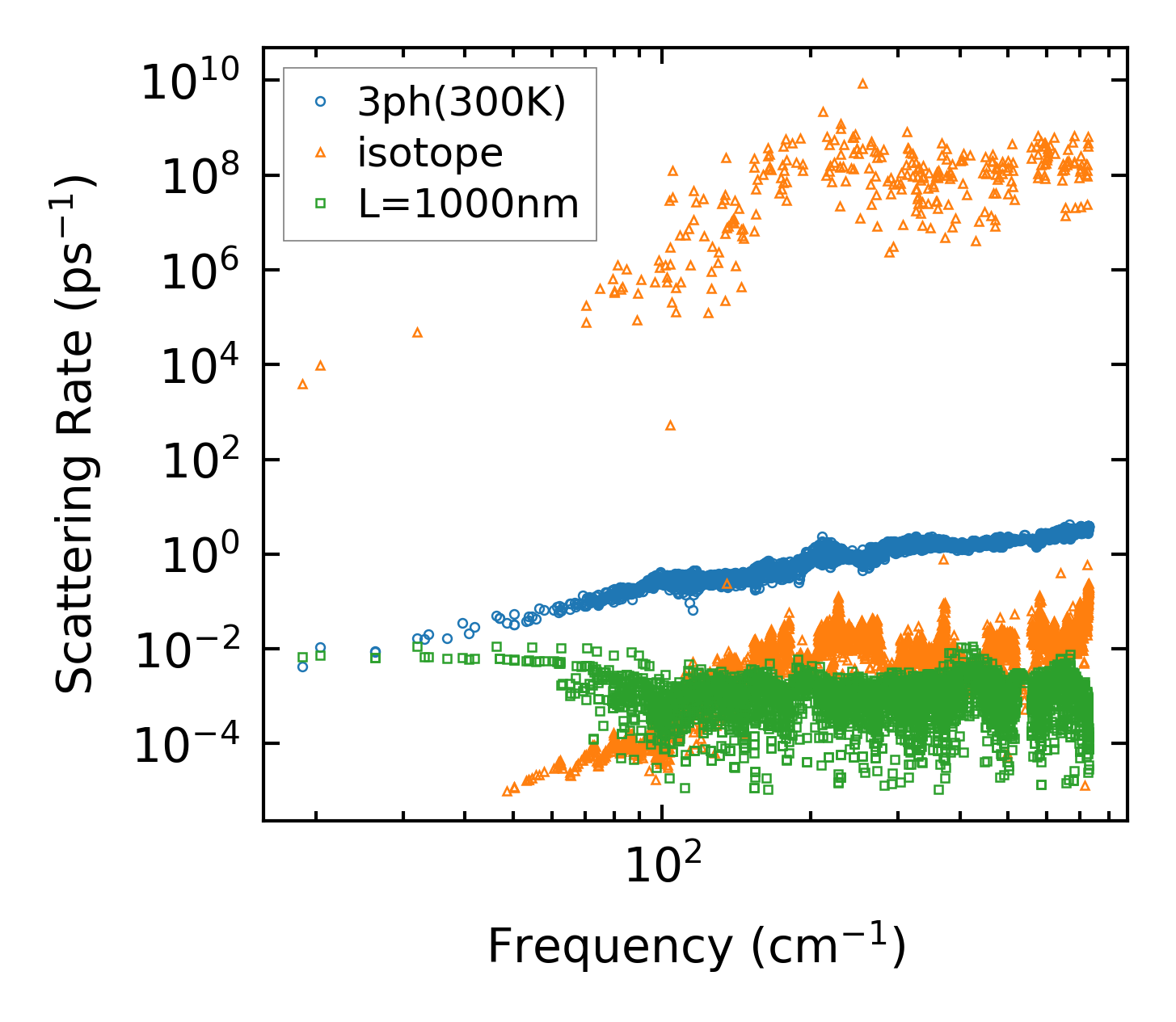

../../_images/fig_scat_rates6027.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

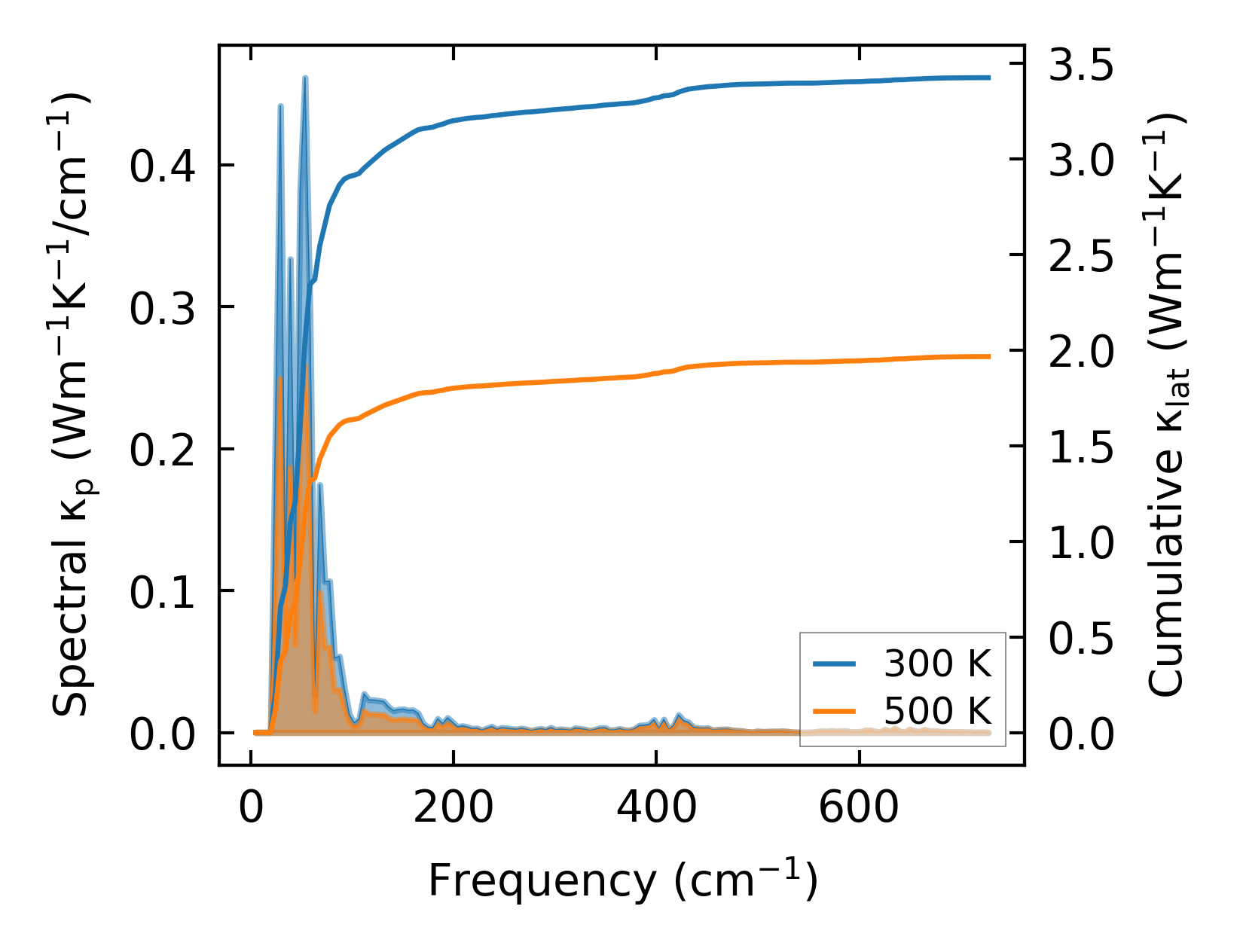

../../_images/fig_cumu_frequency6028.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

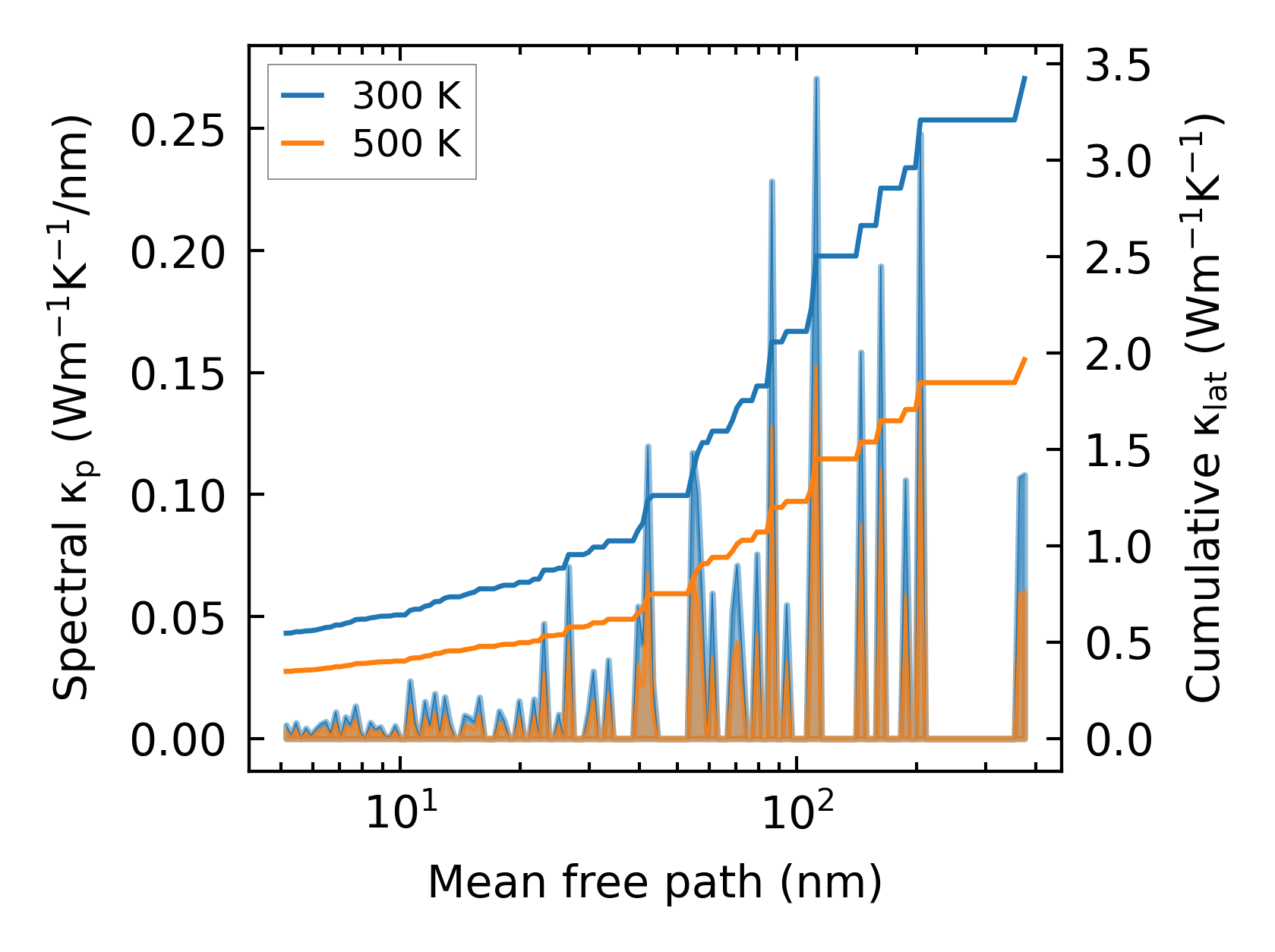

../../_images/fig_cumu_mfp6027.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

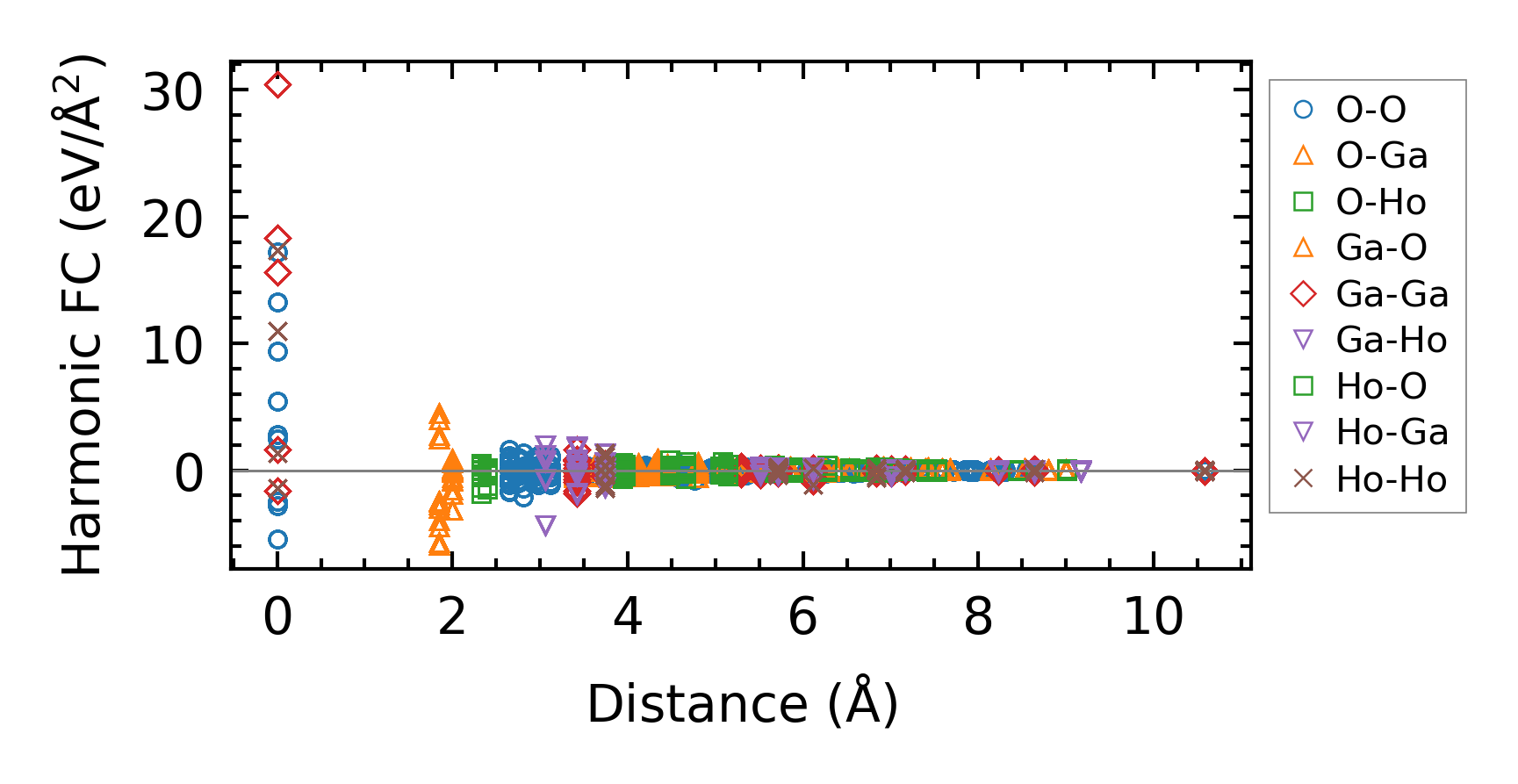

../../_images/fig_fc213925.png — (a) Force constants w.r.t atomic distance

Summary

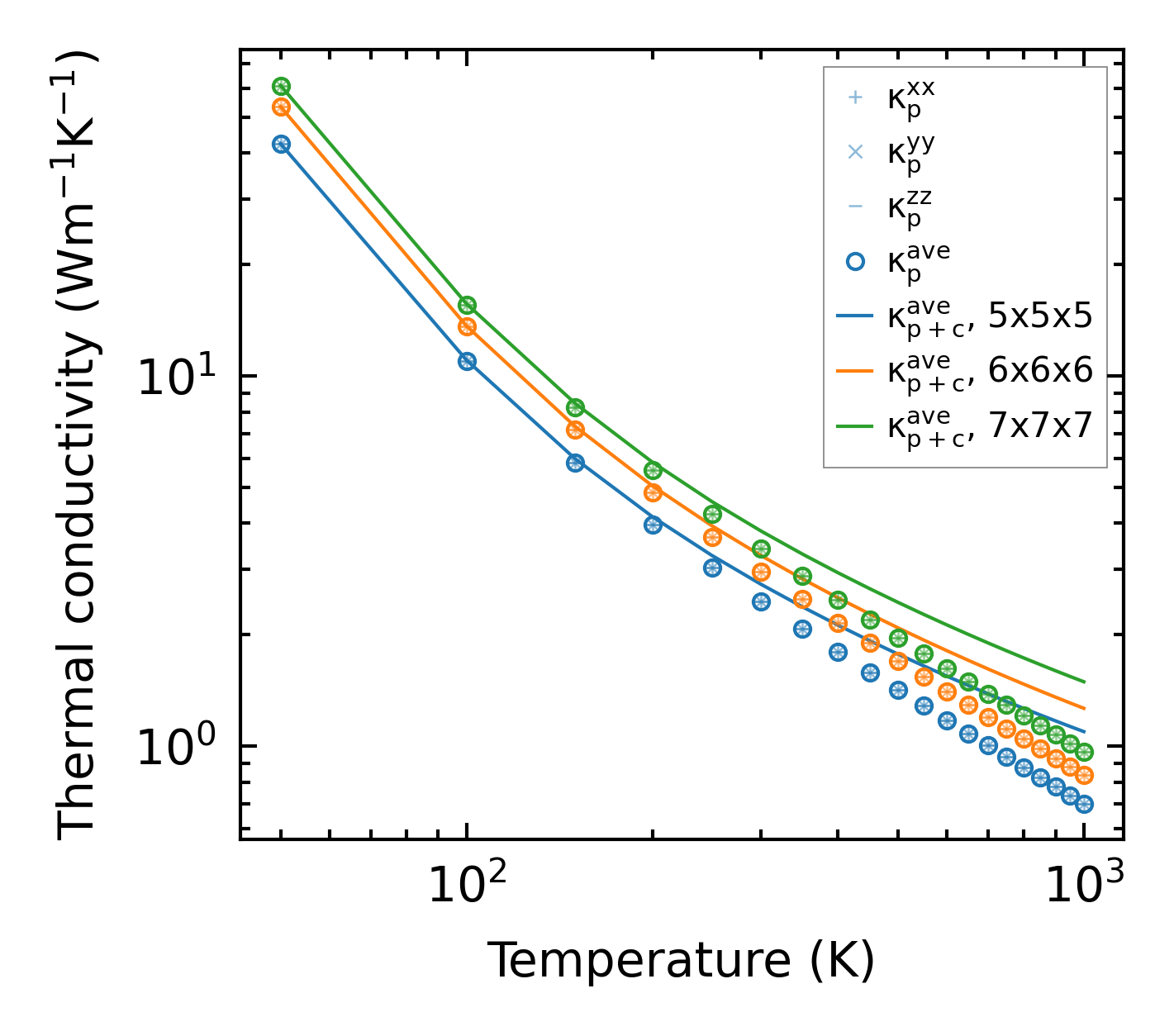

../../_images/fig_kappa11454.png — (a) Temperature-dependent lattice thermal conductivity

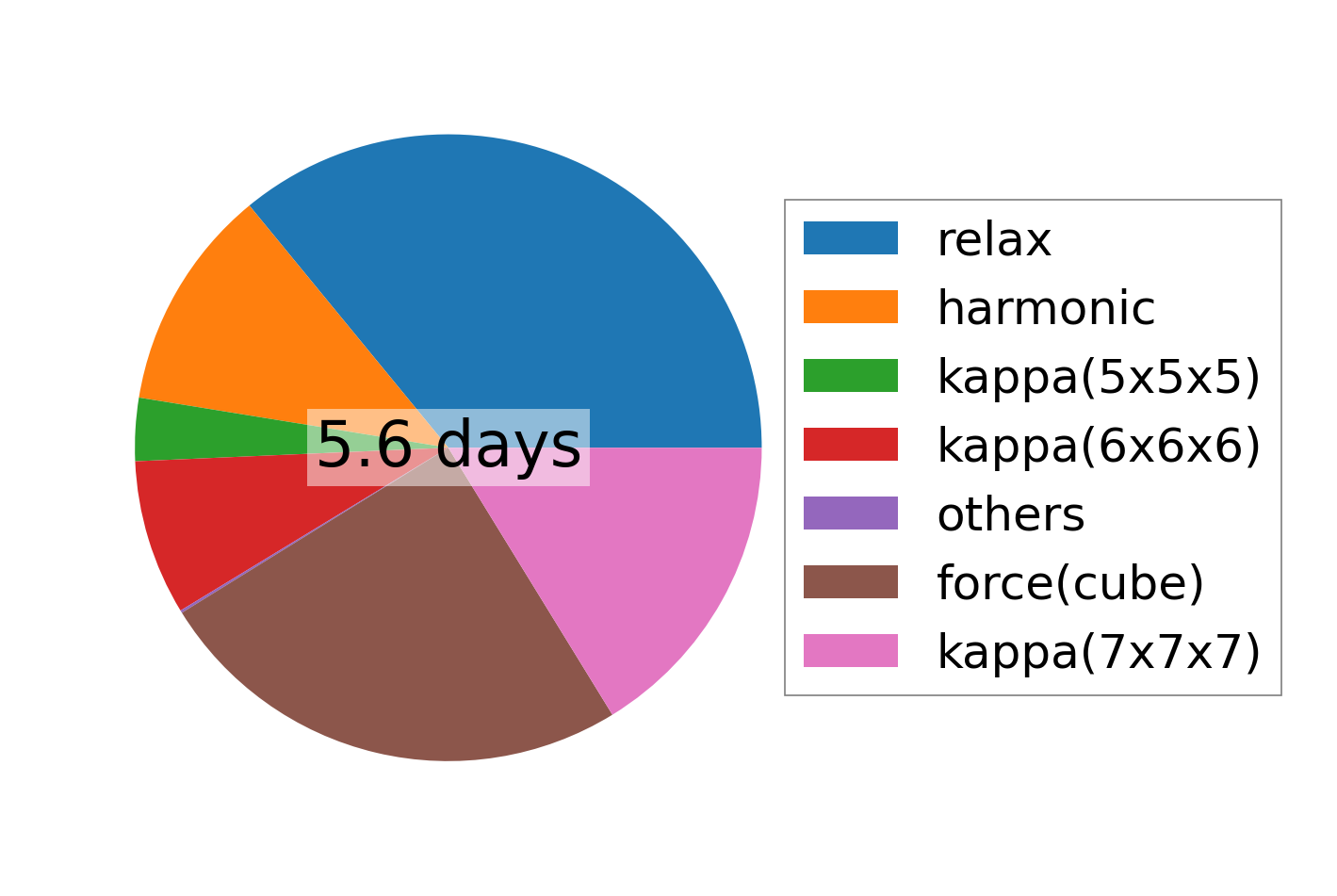

../../_images/fig_times23876.png — (b) Computation time
