mp-15416/Rb2GaAs2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-15416.tar.gz

Harmonic properties

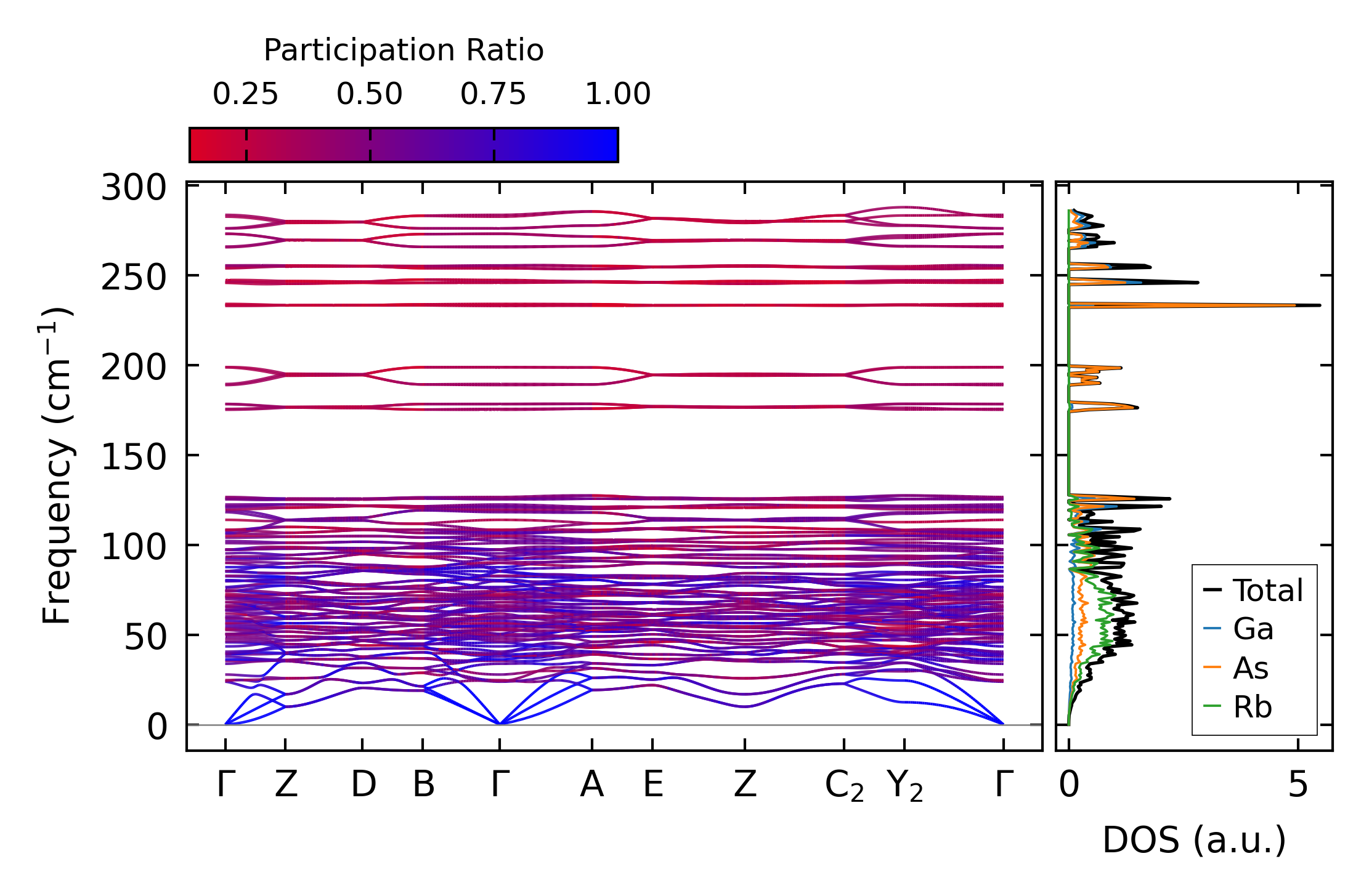

../../_images/fig_bandos_pr14633.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14633.png — (b) Thermodynamic properties

Grüneisen parameters

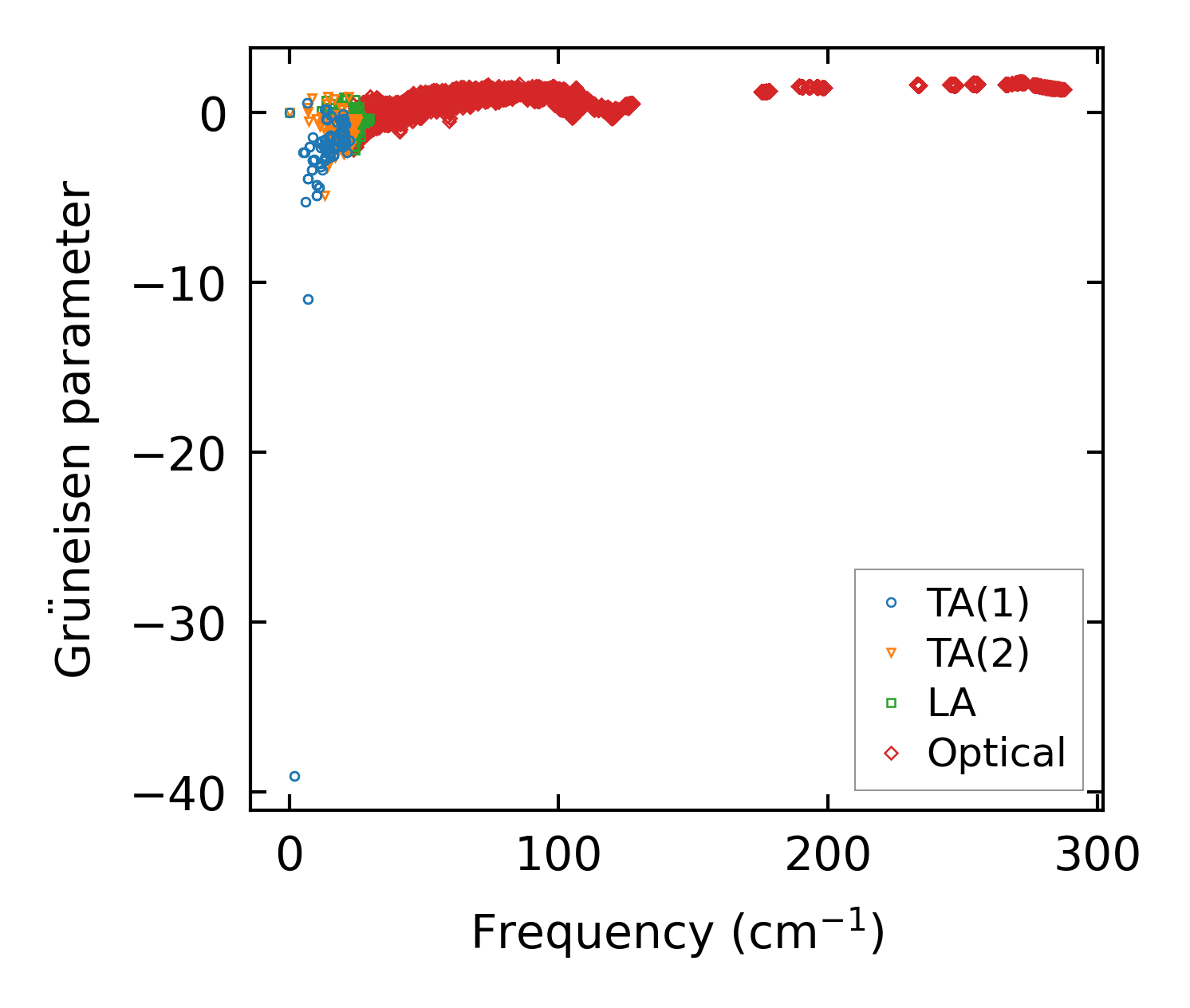

../../_images/fig_gru_all6258.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6258.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x5x6, supercell: 2x1x1

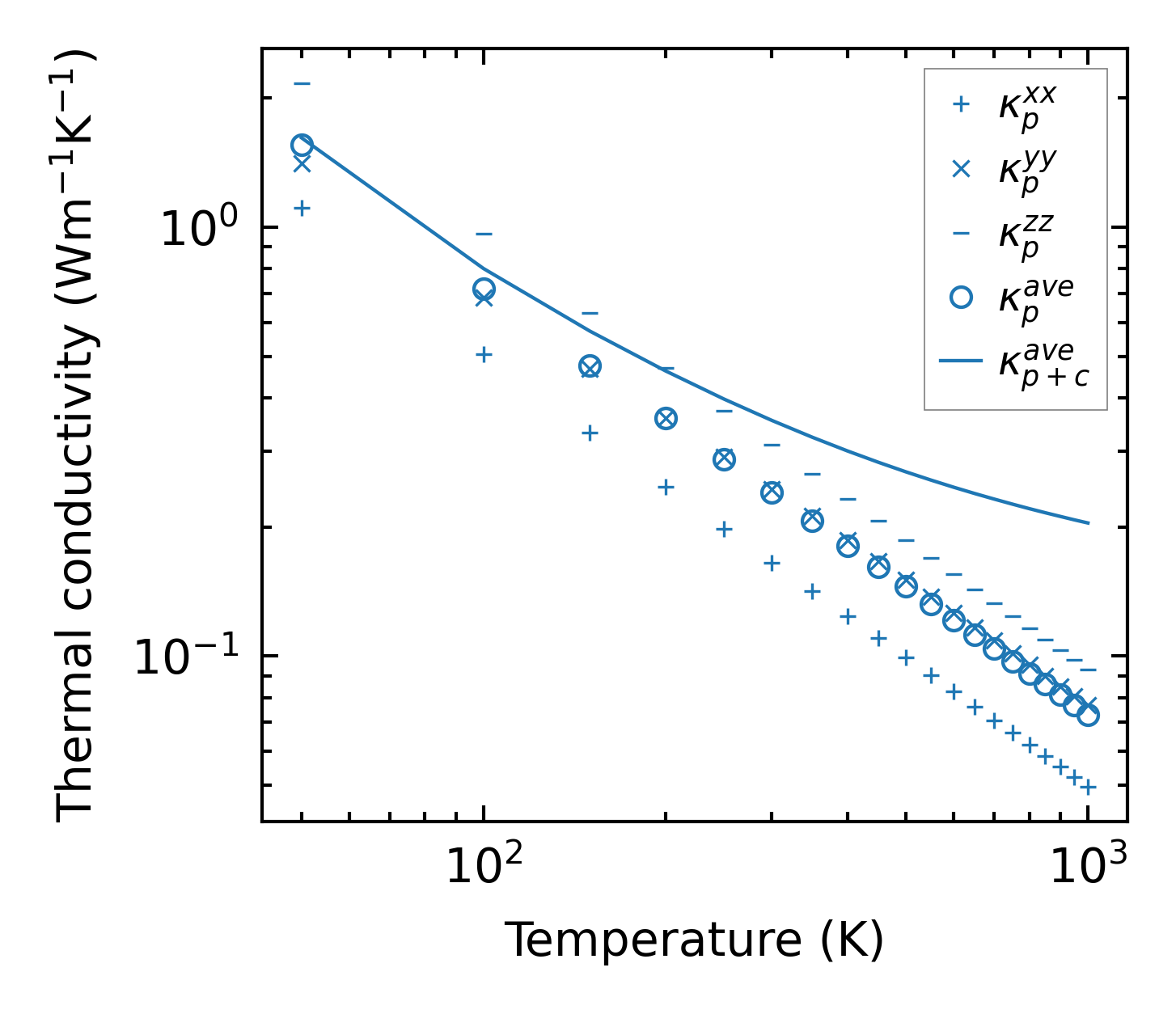

../../_images/fig_kappa11772.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6335.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6196.png — (a) Phonon lifetime due to phonon-phonon scattering

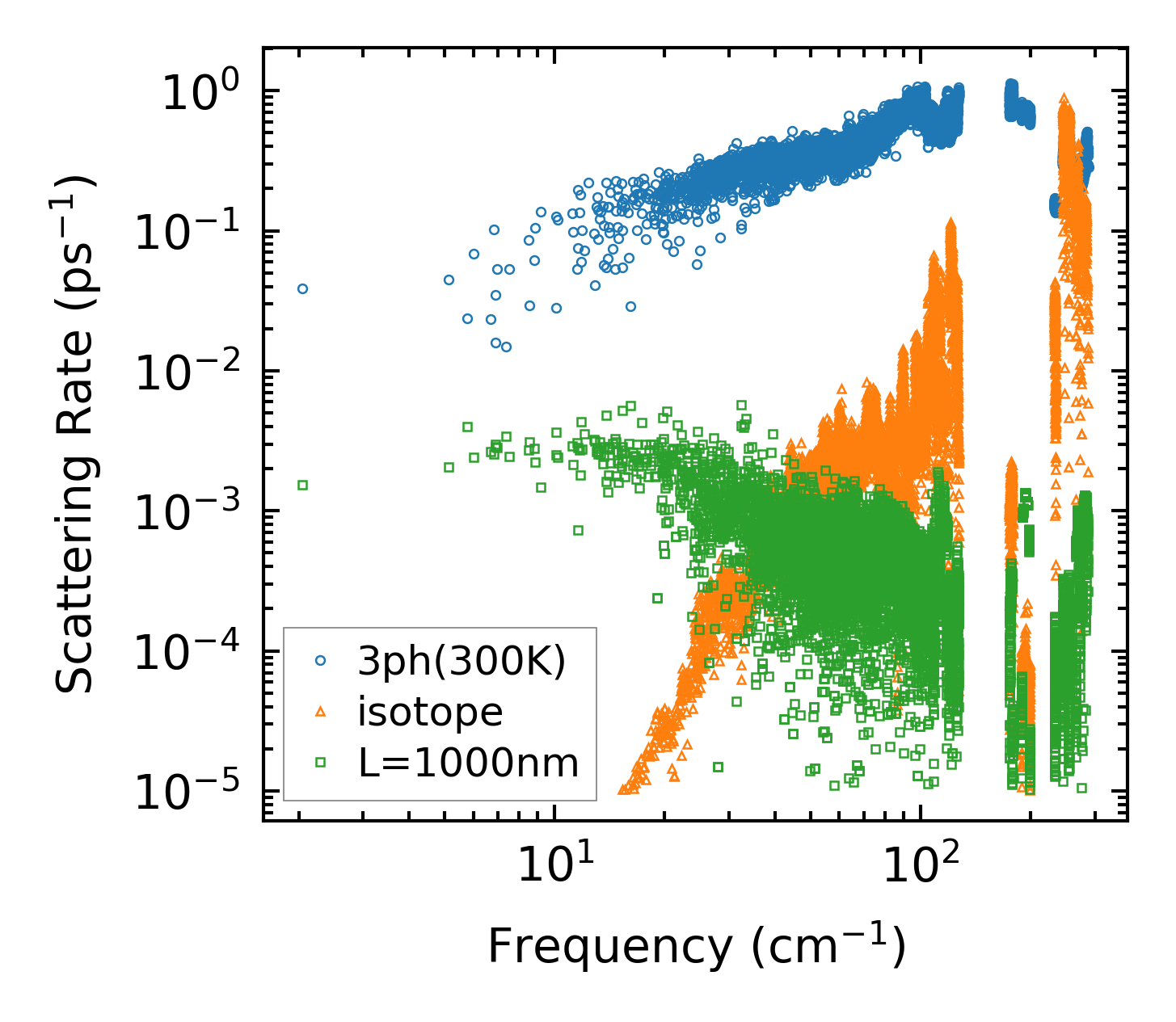

../../_images/fig_scat_rates6195.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

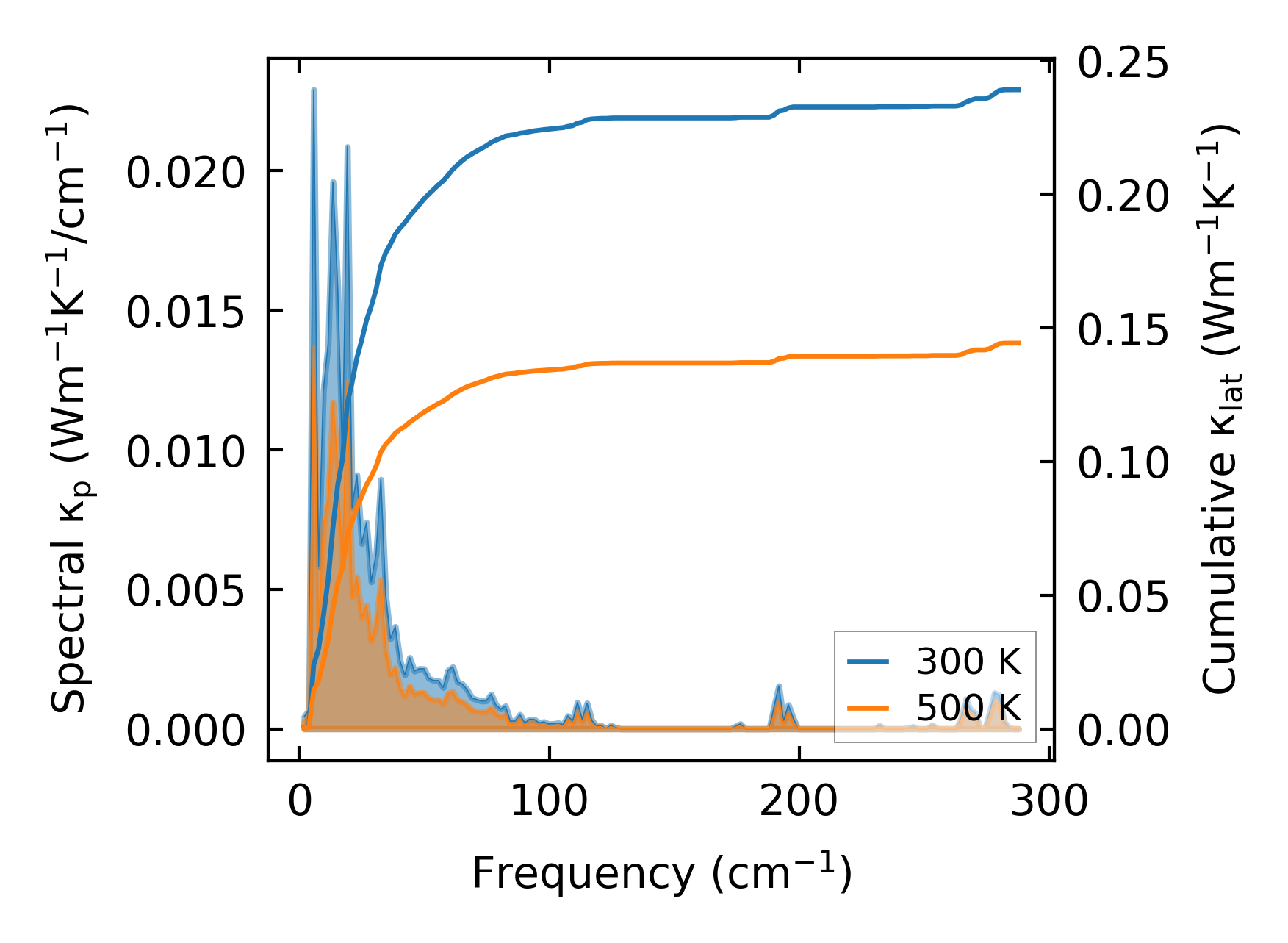

../../_images/fig_cumu_frequency6196.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

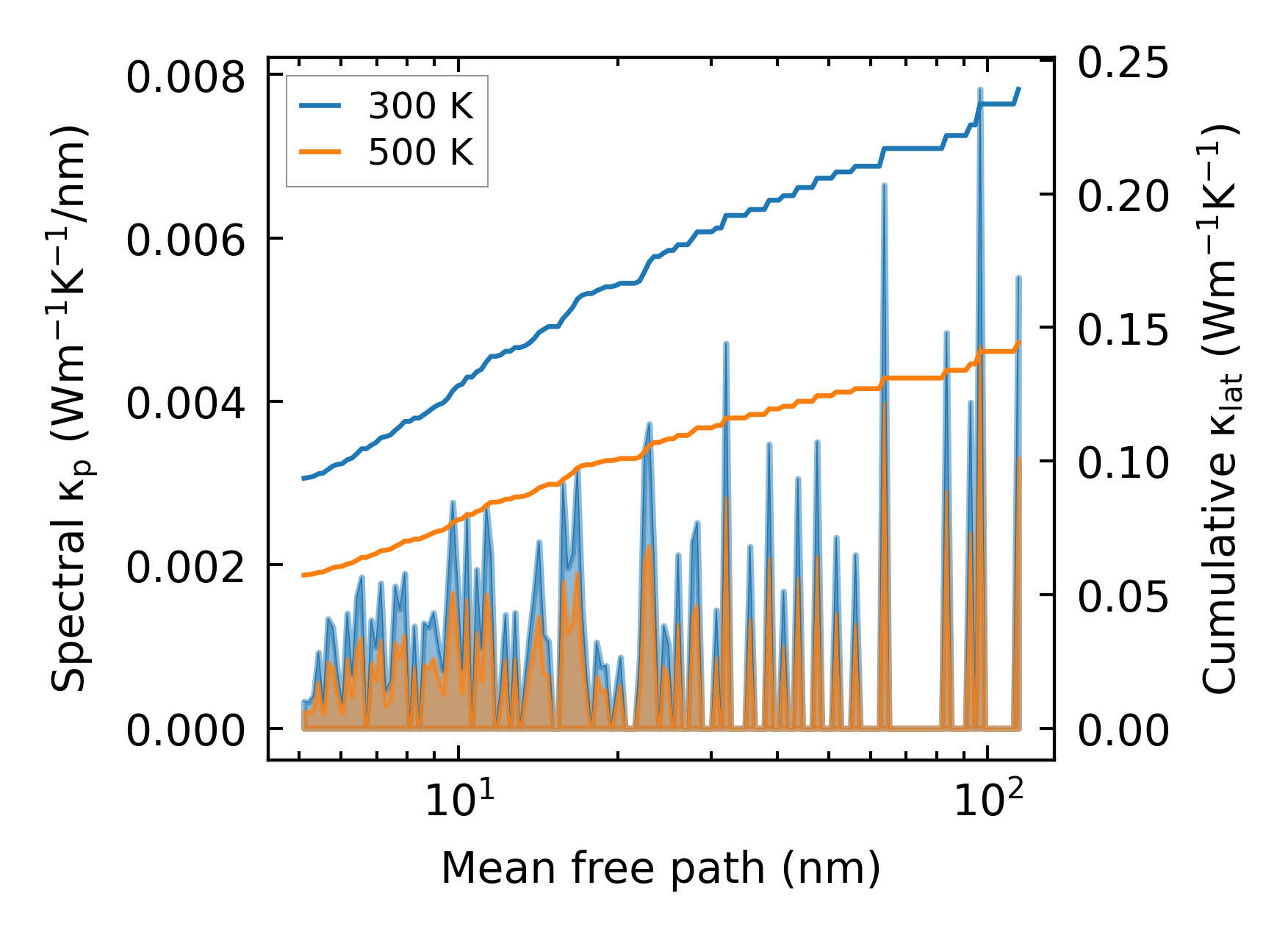

../../_images/fig_cumu_mfp6195.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

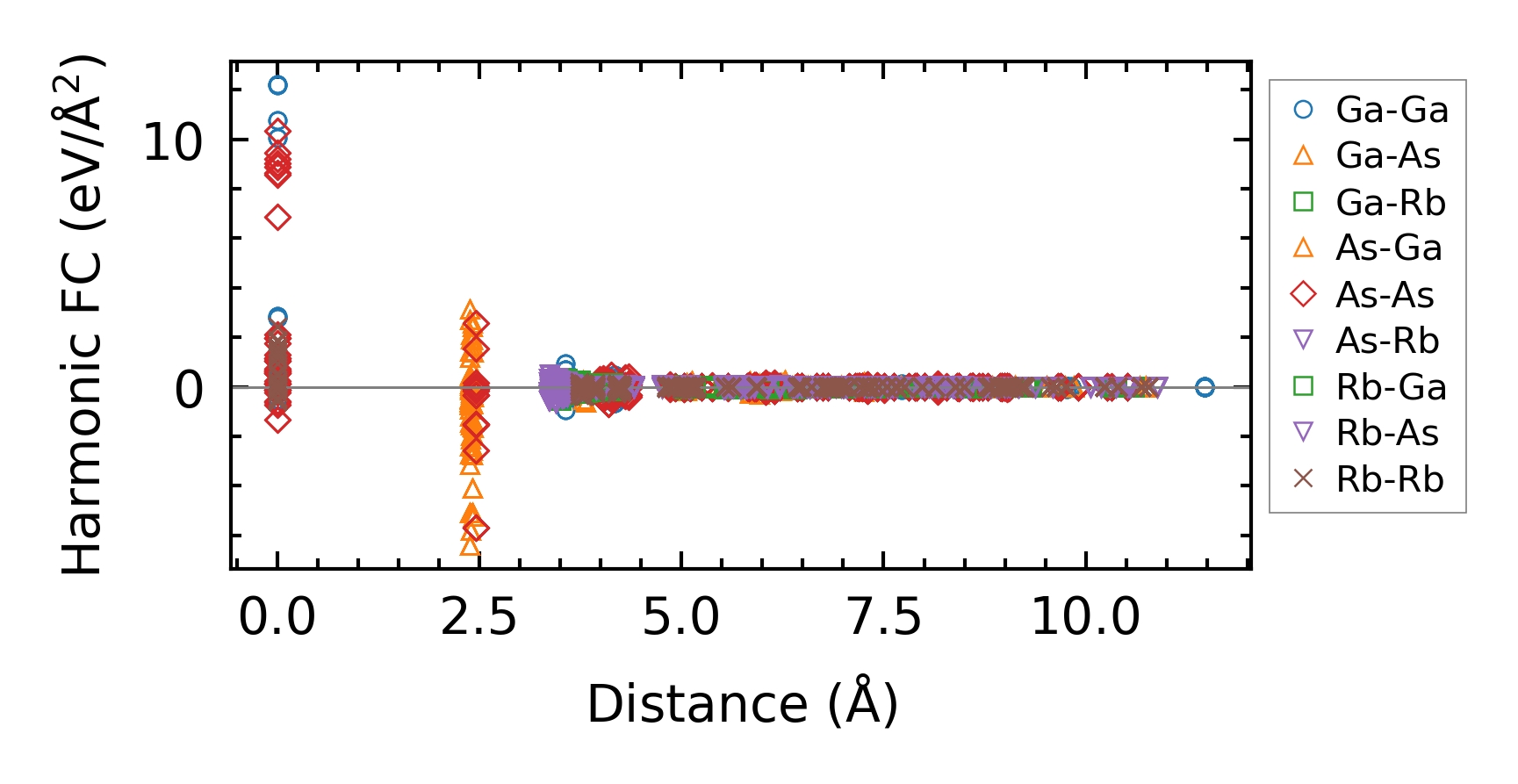

../../_images/fig_fc214252.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11773.png — (a) Temperature-dependent lattice thermal conductivity

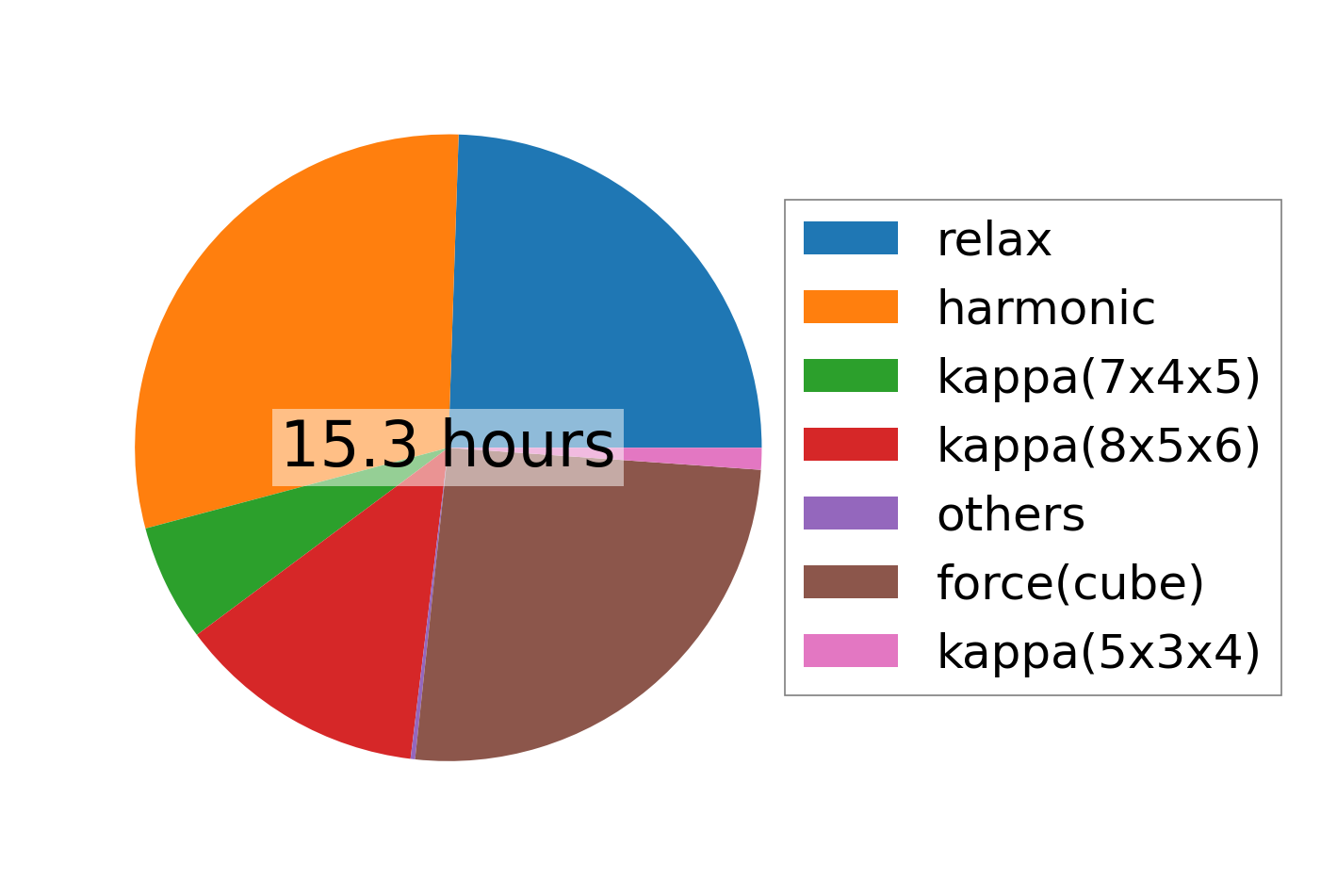

../../_images/fig_times24343.png — (b) Computation time
