mp-15541-2/KNa2Si12B3O30/anharm

Space group: P6/mcc (192)
Link: Materials Project
Download: mp-15541-2.tar.gz

Equation of state

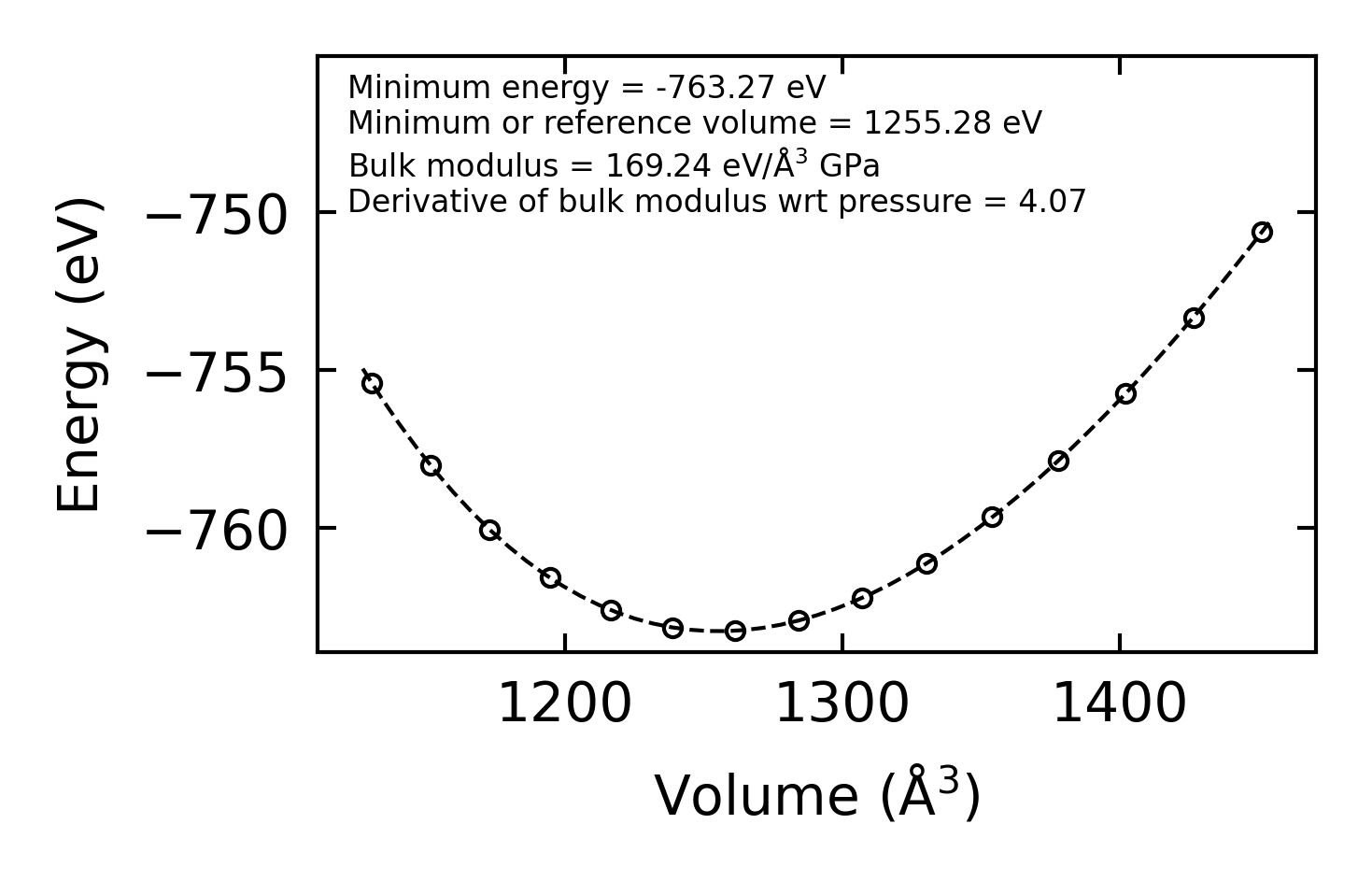

../../_images/fig_bm7156.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14283.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos18682.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14283.png — (c) Thermodynamic properties

Grüneisen parameters

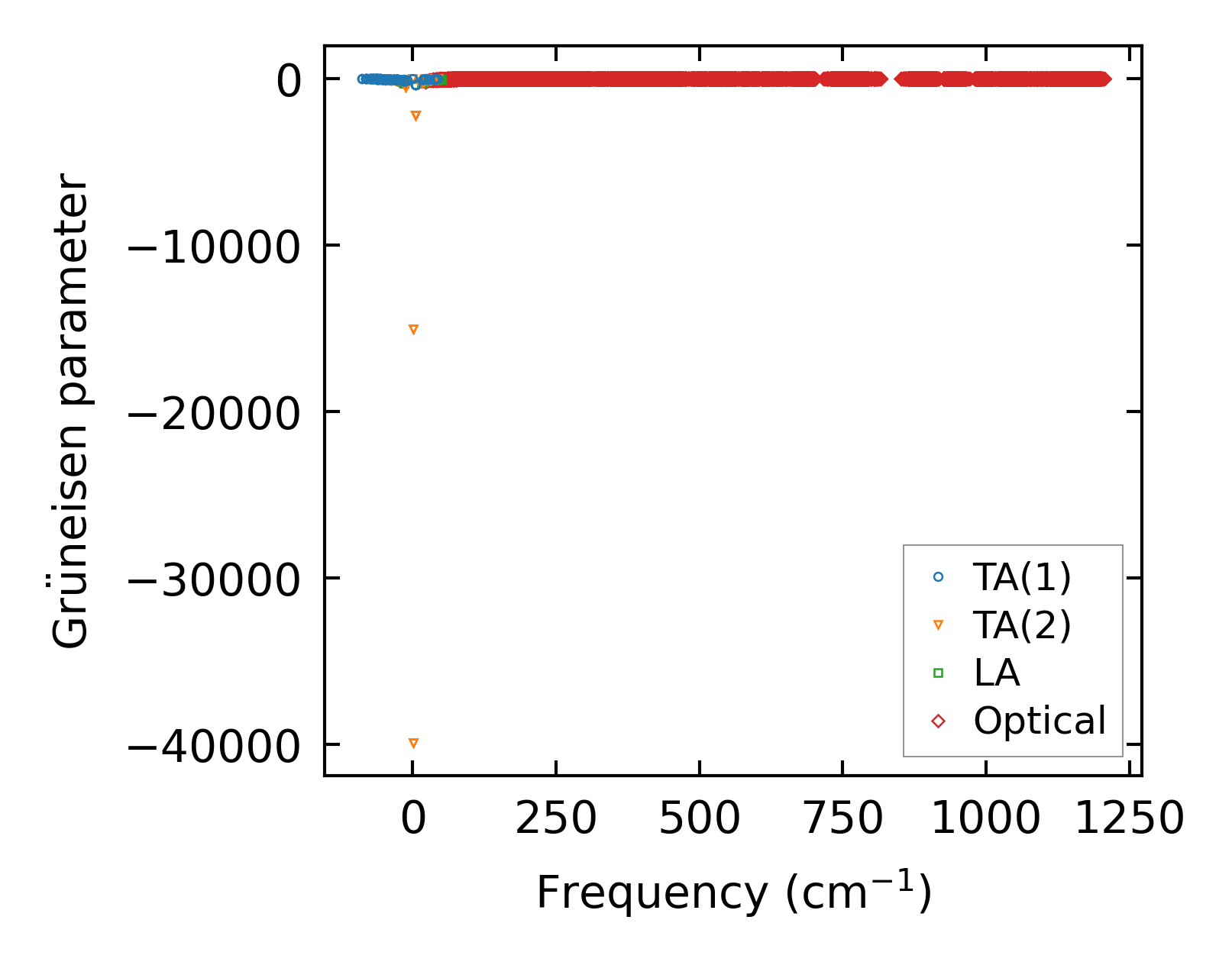

../../_images/fig_gru_all6083.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6083.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 7x7x5, supercell: 2x2x1

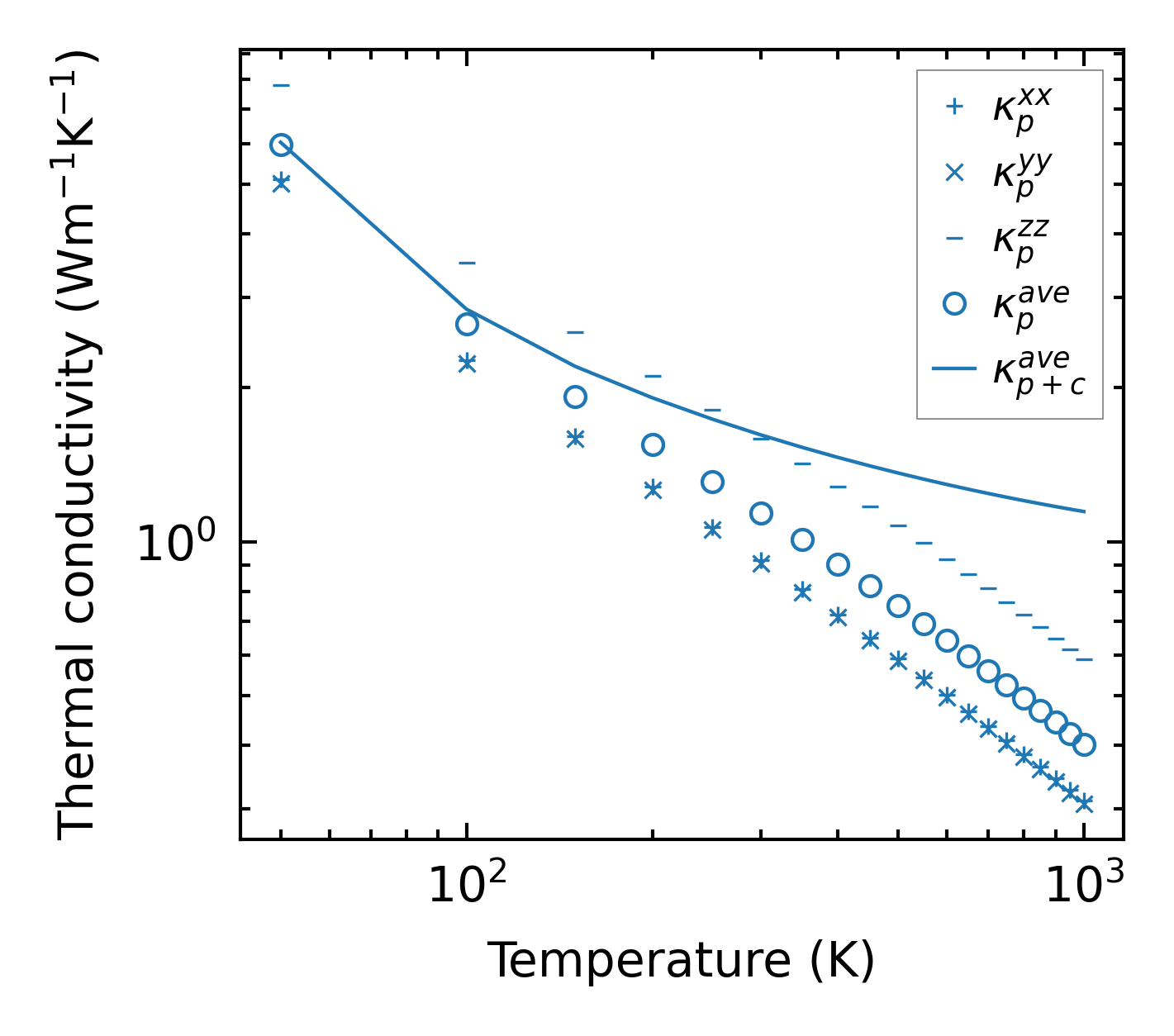

../../_images/fig_kappa11444.png — (a) Temperature-dependent lattice thermal conductivity

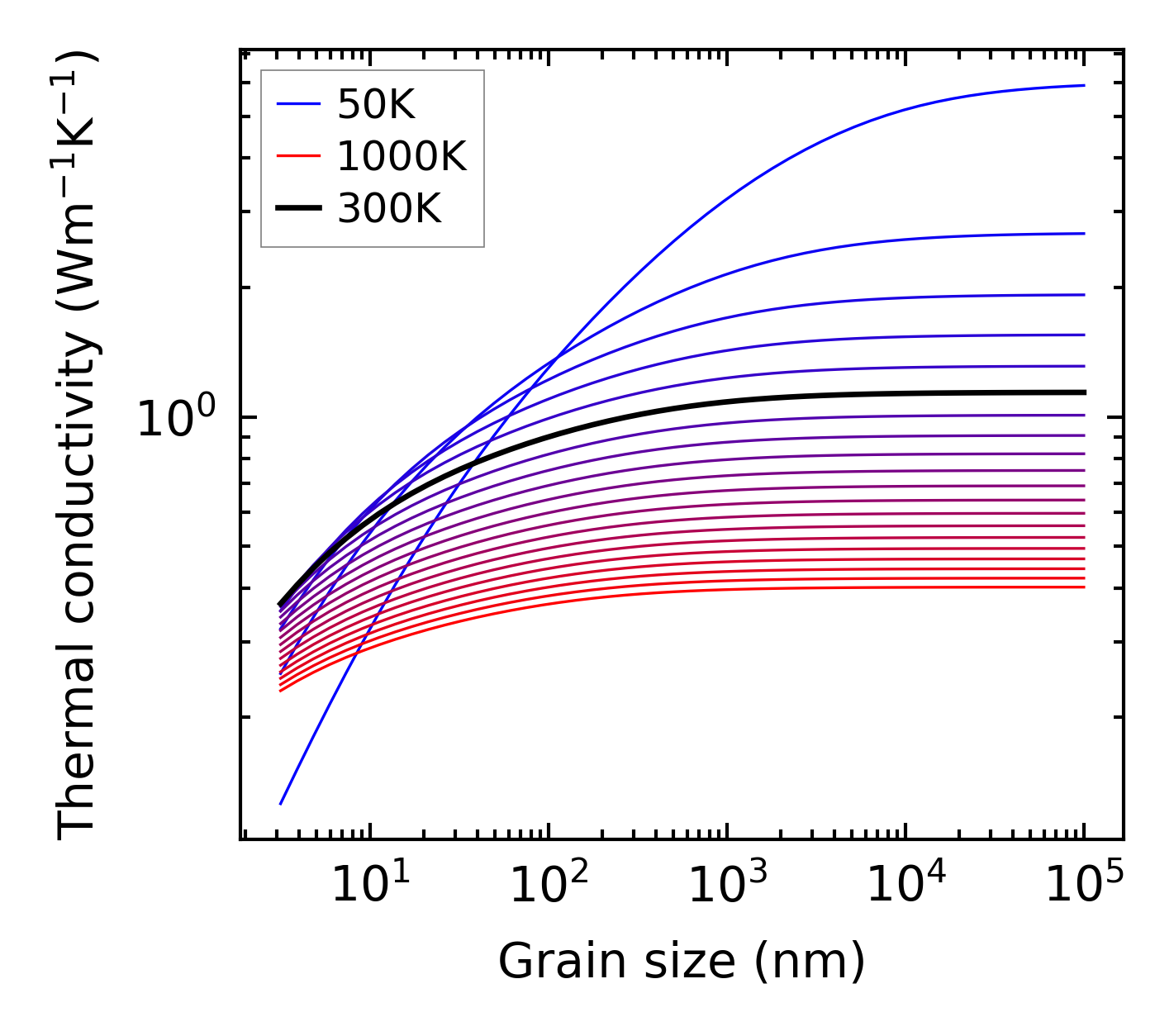

../../_images/fig_kappa_vs_grain_size6161.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

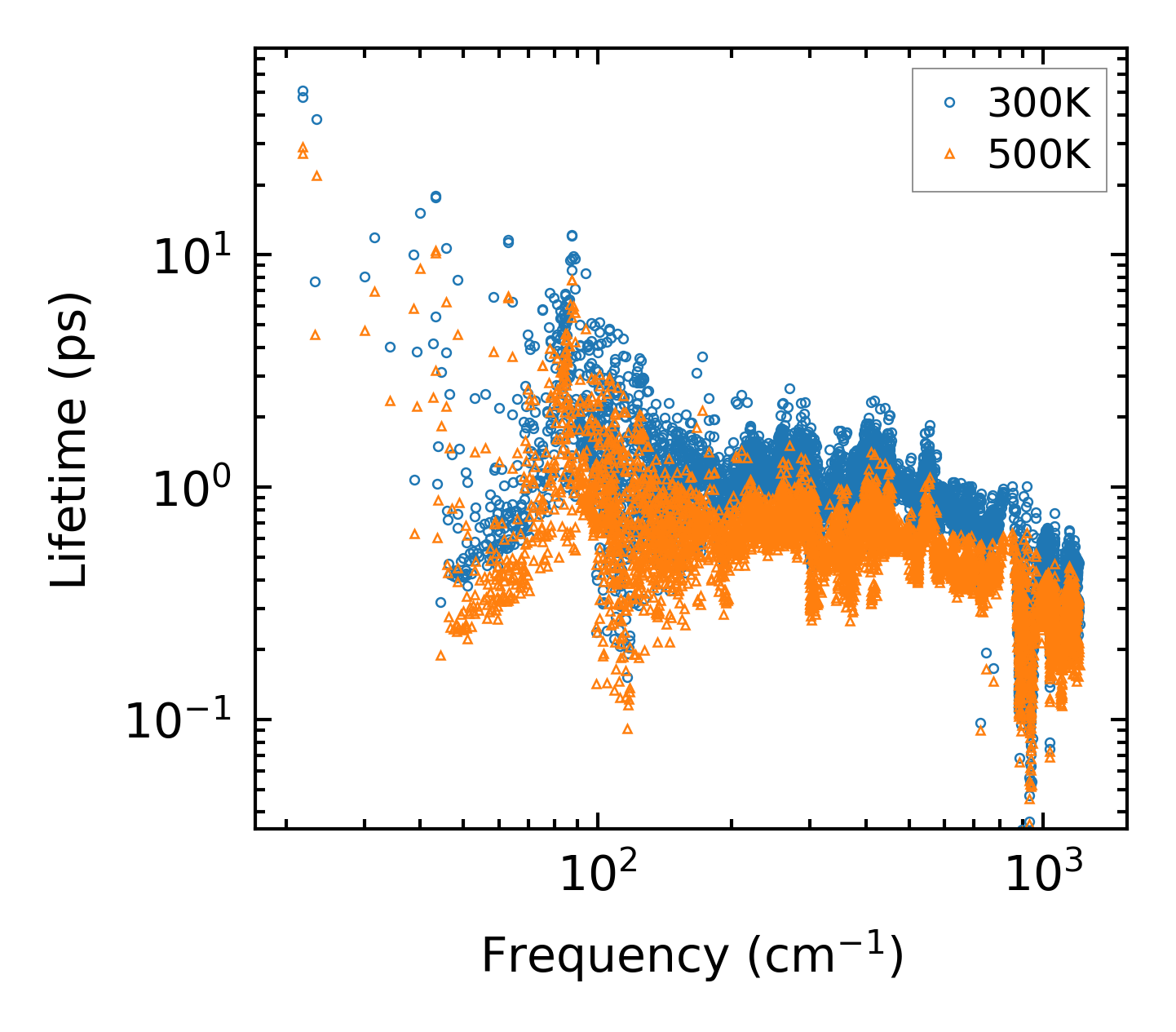

../../_images/fig_lifetime6022.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6021.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

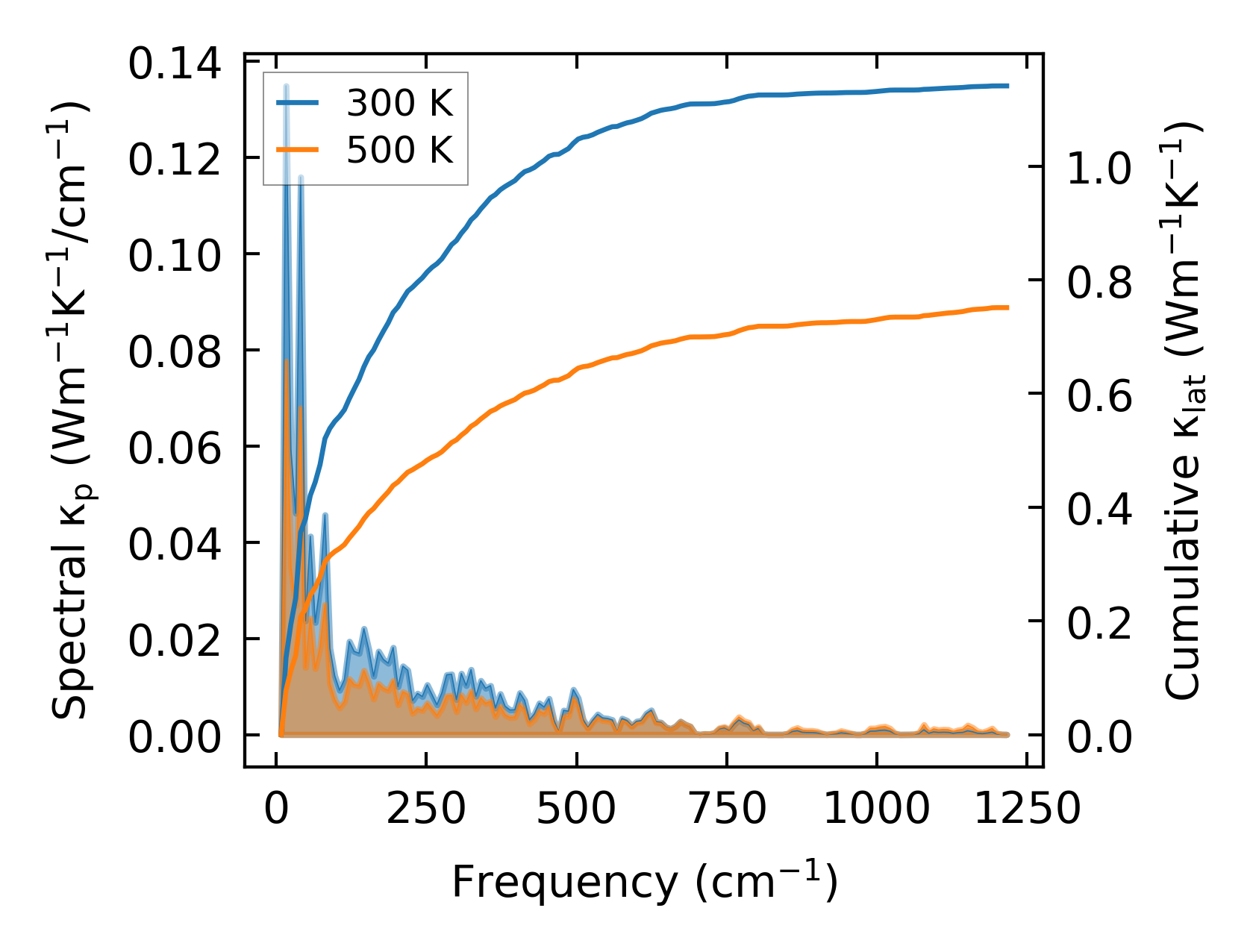

../../_images/fig_cumu_frequency6022.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6021.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

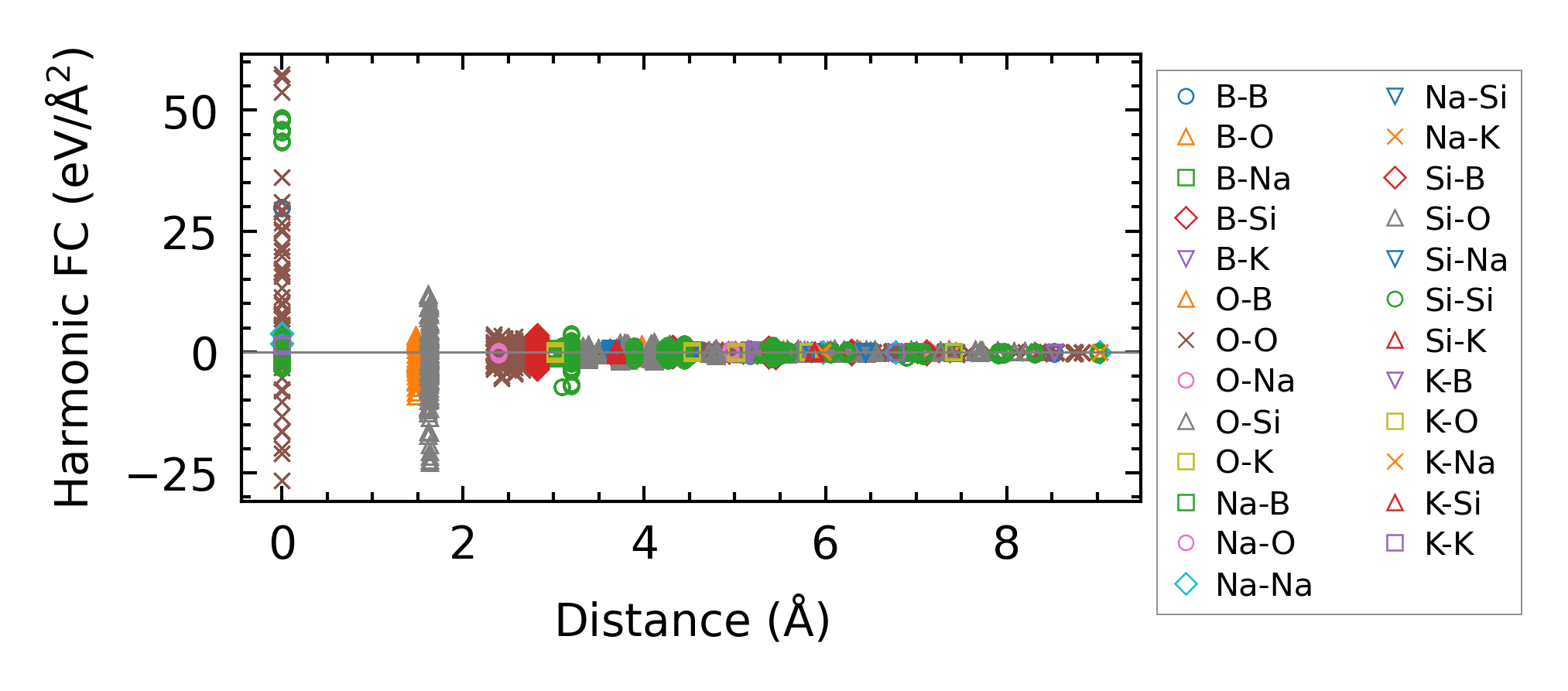

../../_images/fig_fc213911.png — (a) Force constants w.r.t atomic distance

Summary

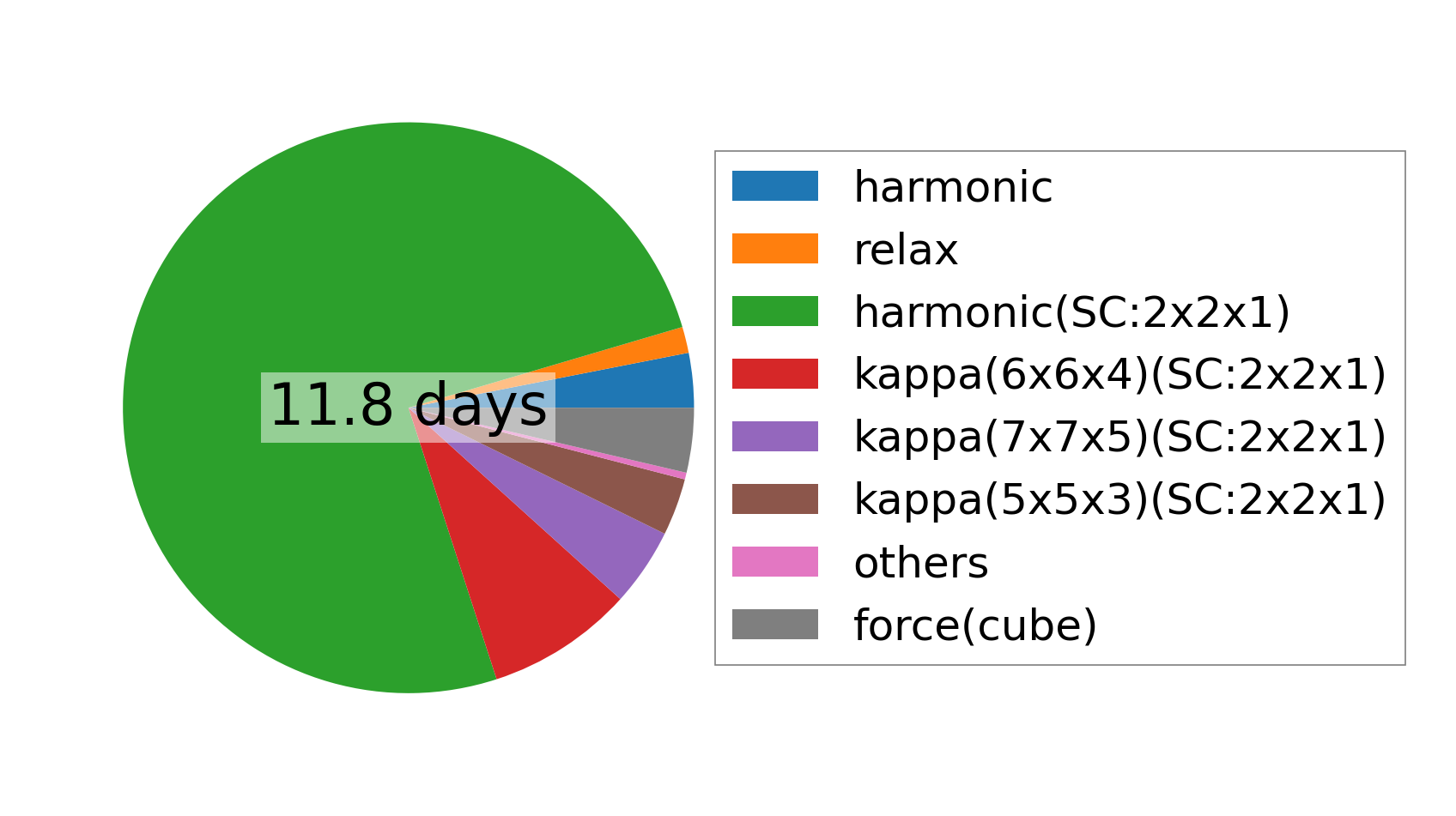

../../_images/fig_times23857.png — (a) Computation time
