mp-15113/Na2Si3O7/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-15113.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14596.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14596.png — (b) Thermodynamic properties

Grüneisen parameters

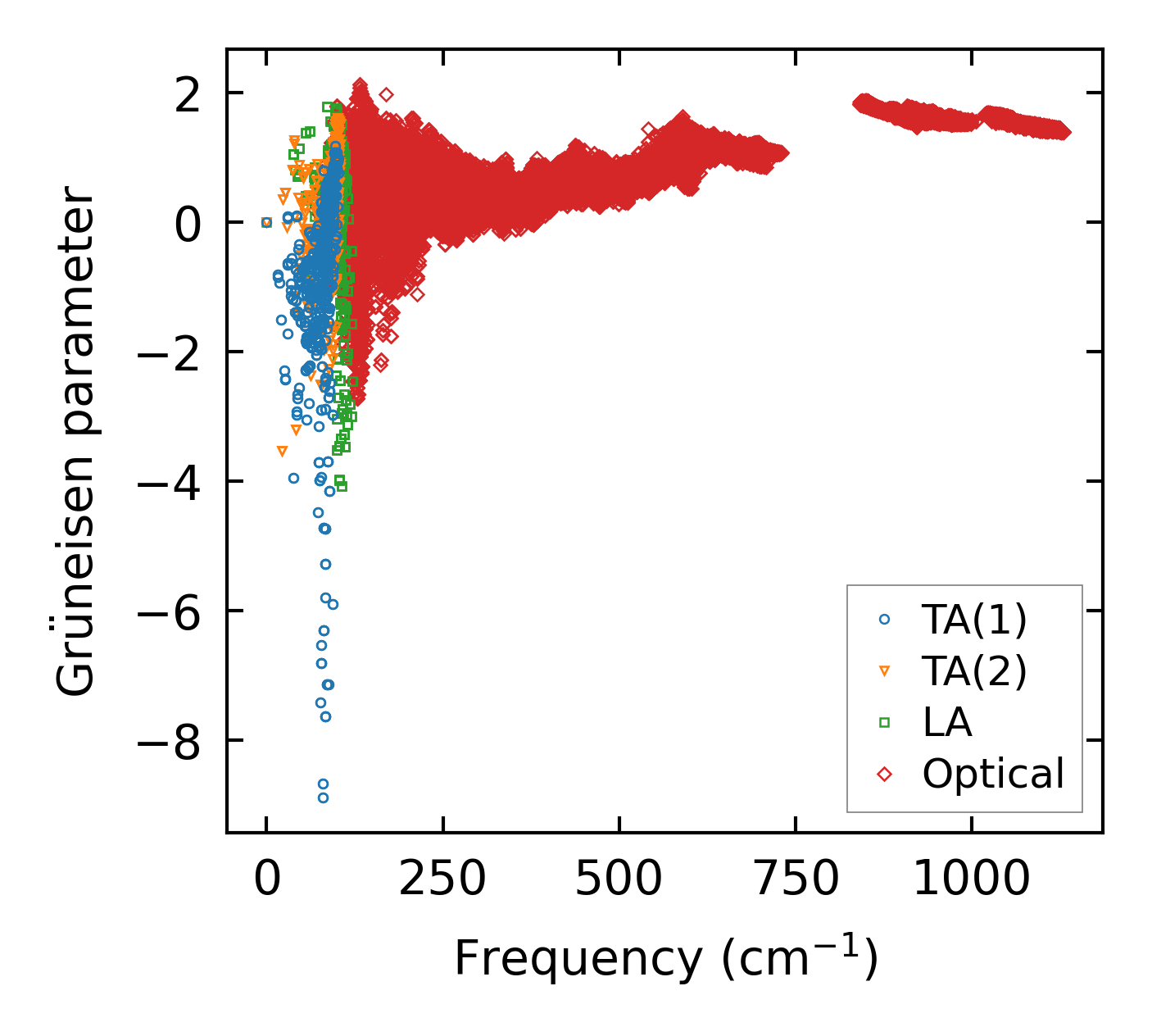

../../_images/fig_gru_all6246.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6246.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x6, supercell: 1x2x1

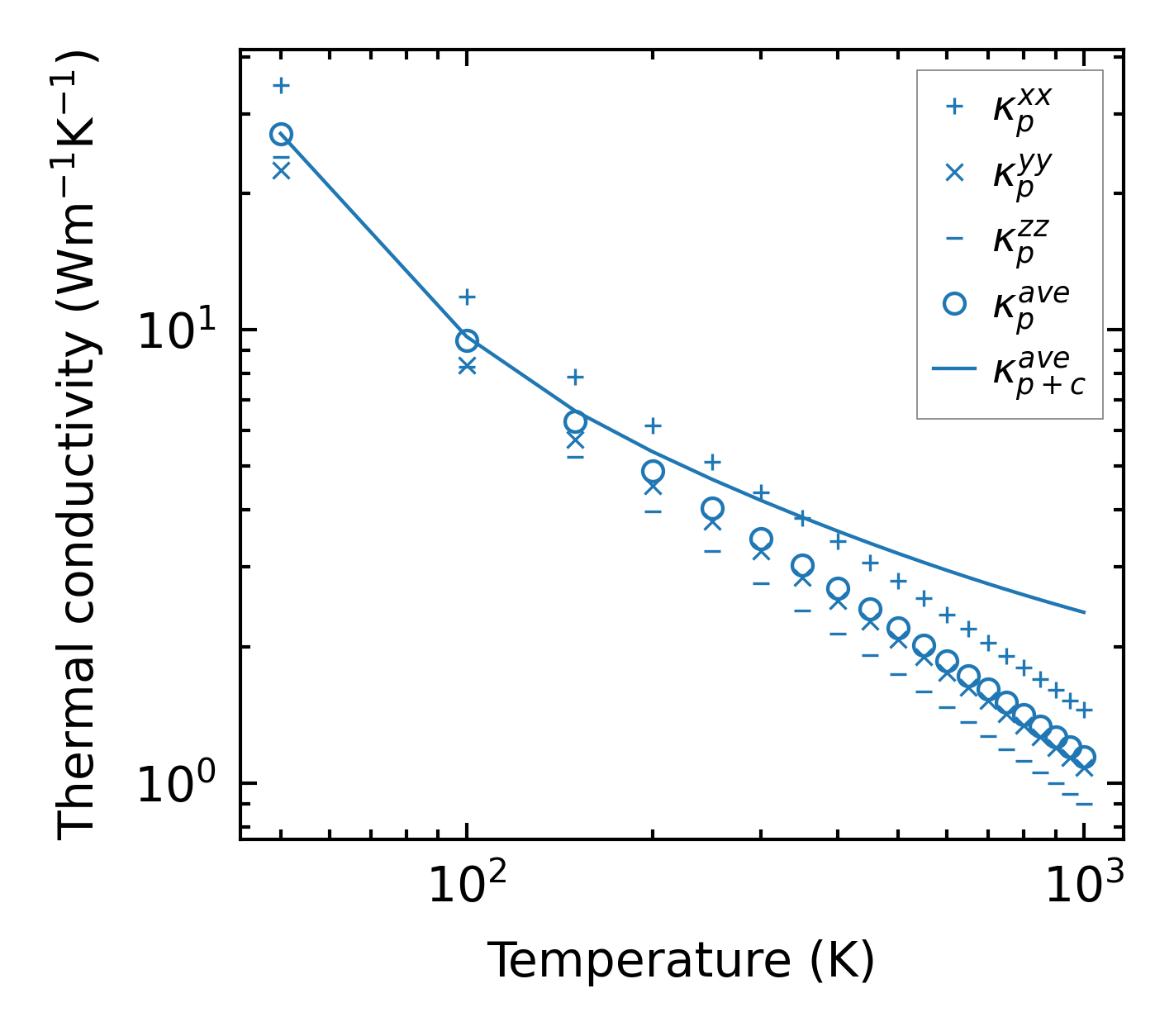

../../_images/fig_kappa11750.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6323.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

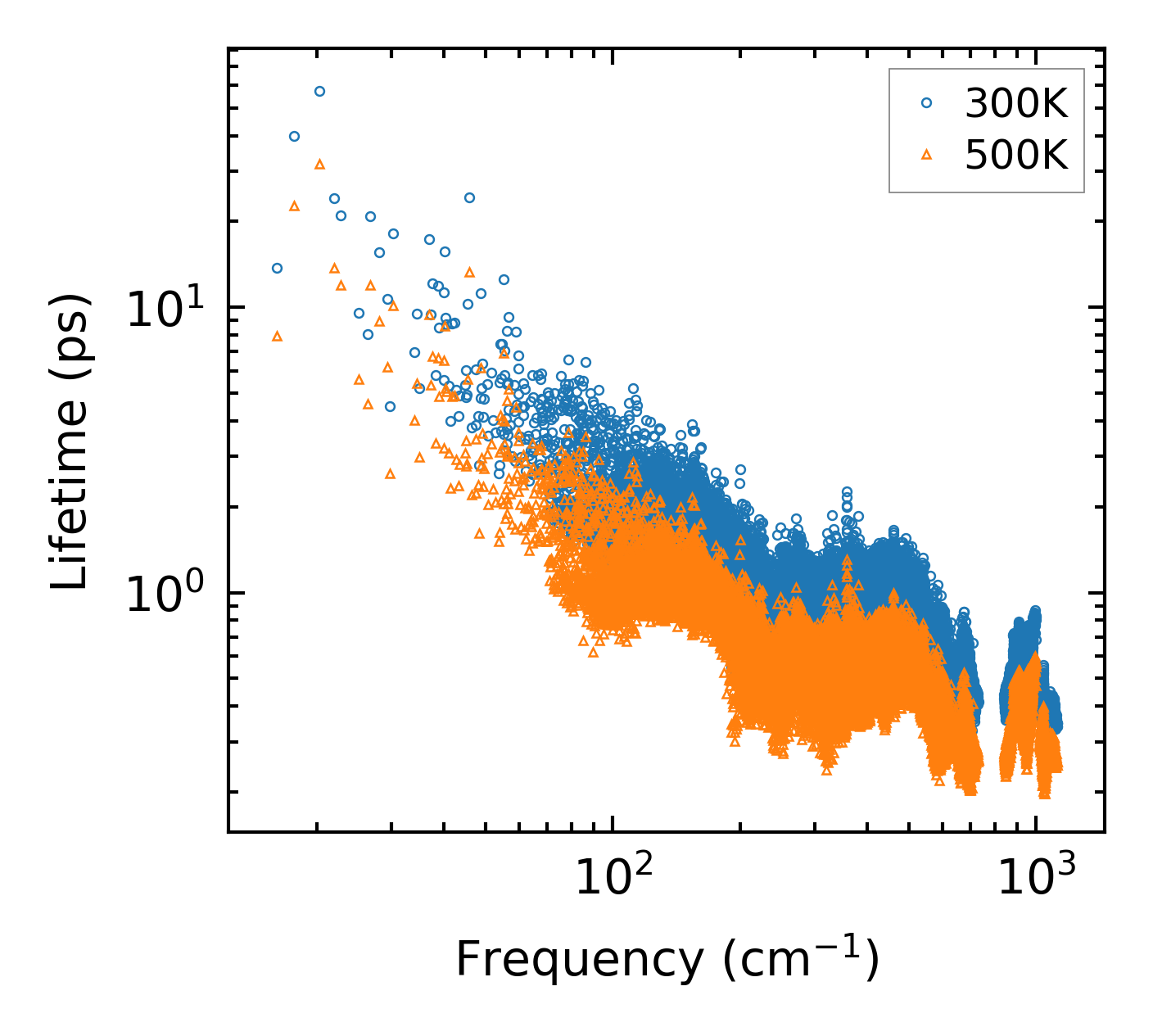

../../_images/fig_lifetime6184.png — (a) Phonon lifetime due to phonon-phonon scattering

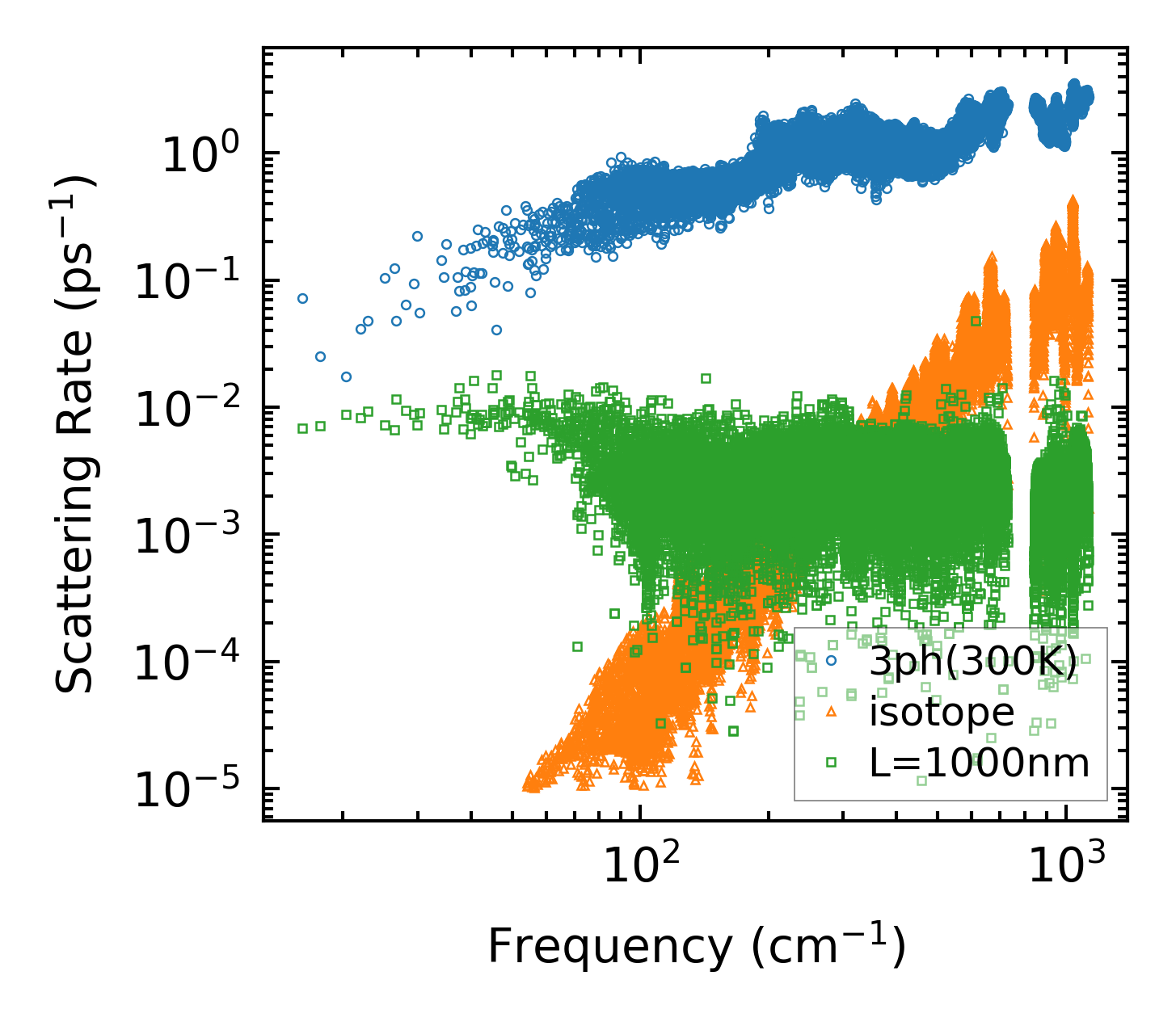

../../_images/fig_scat_rates6183.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

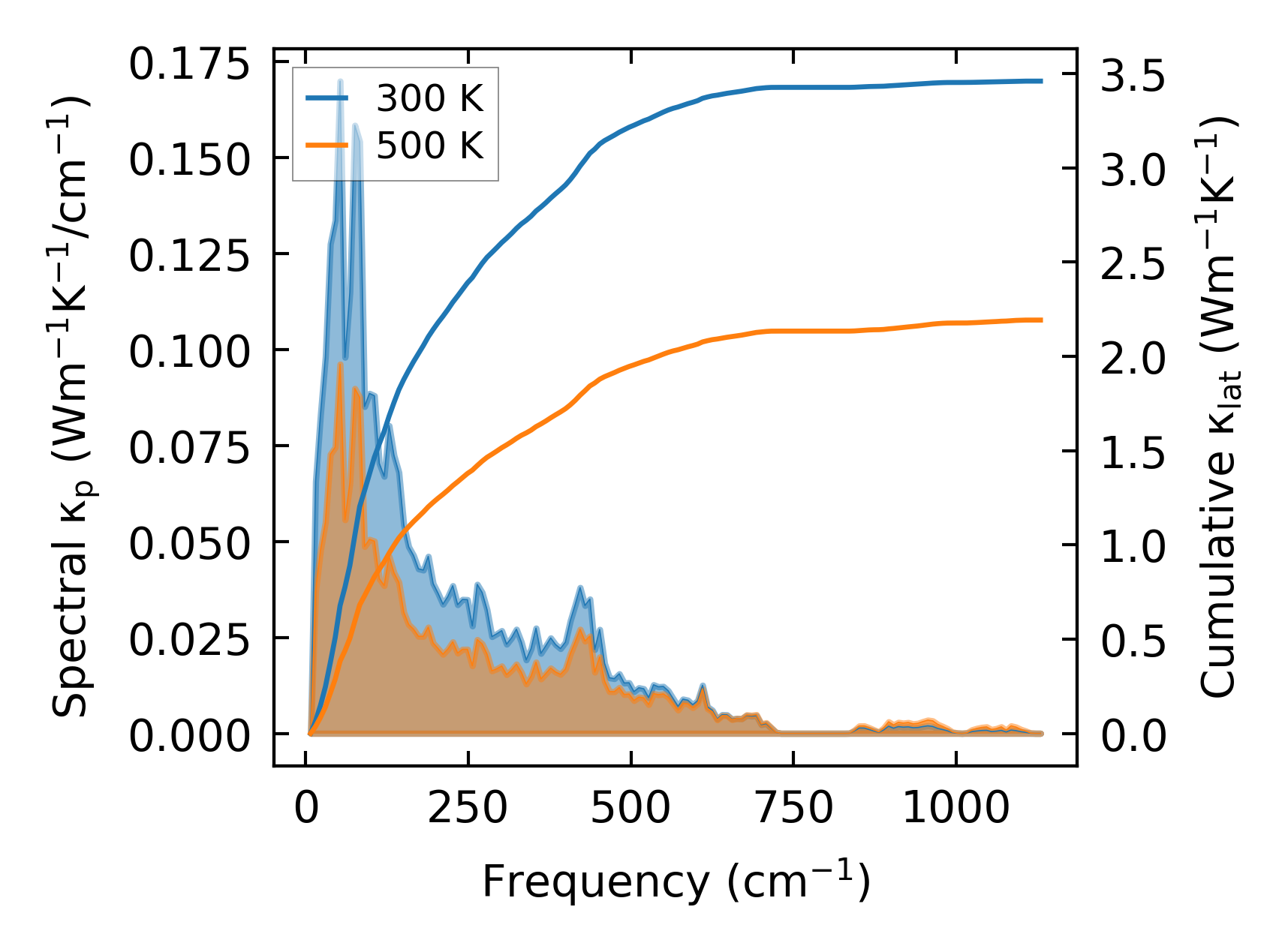

../../_images/fig_cumu_frequency6184.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

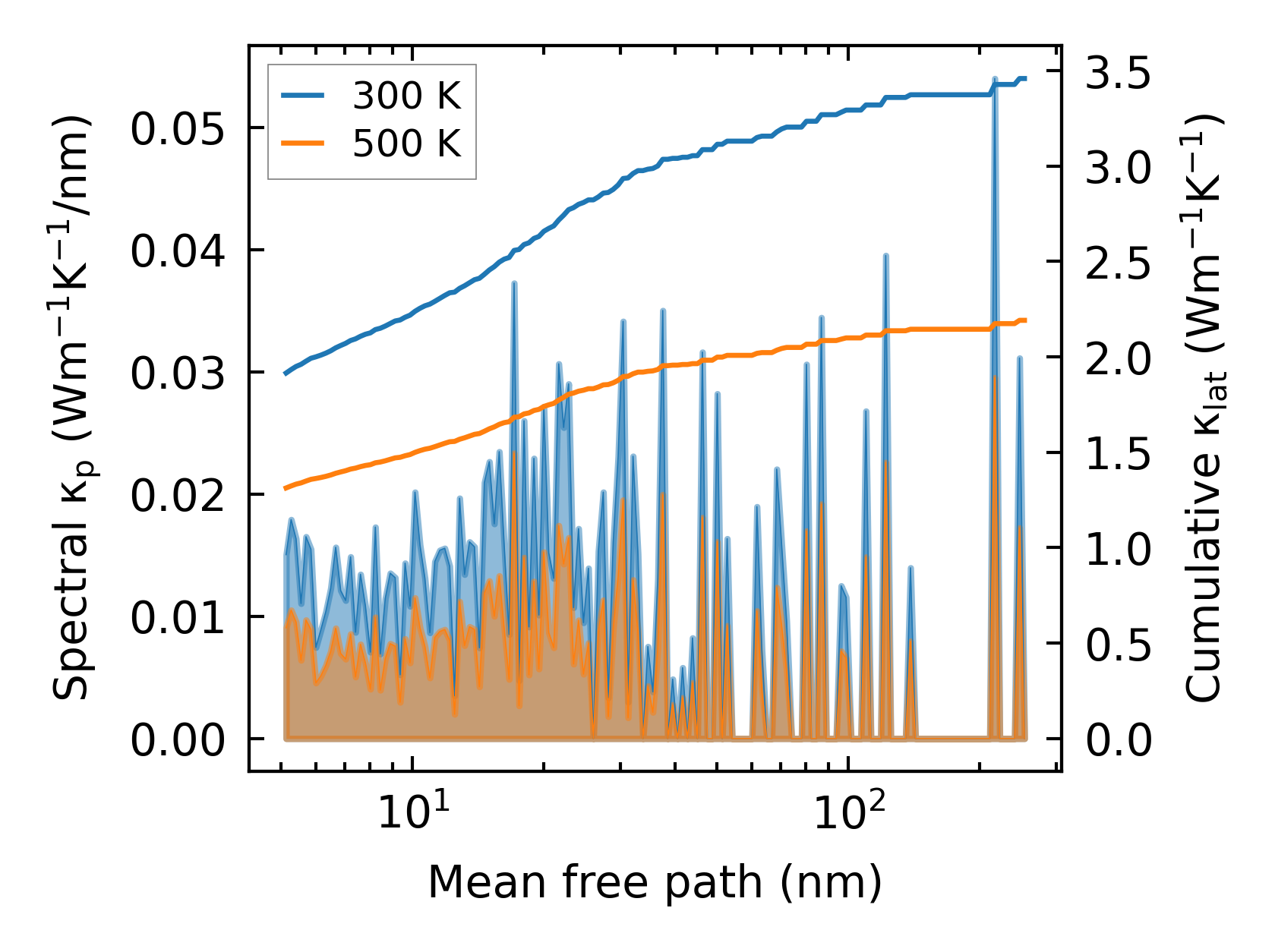

../../_images/fig_cumu_mfp6183.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214215.png — (a) Force constants w.r.t atomic distance

Summary

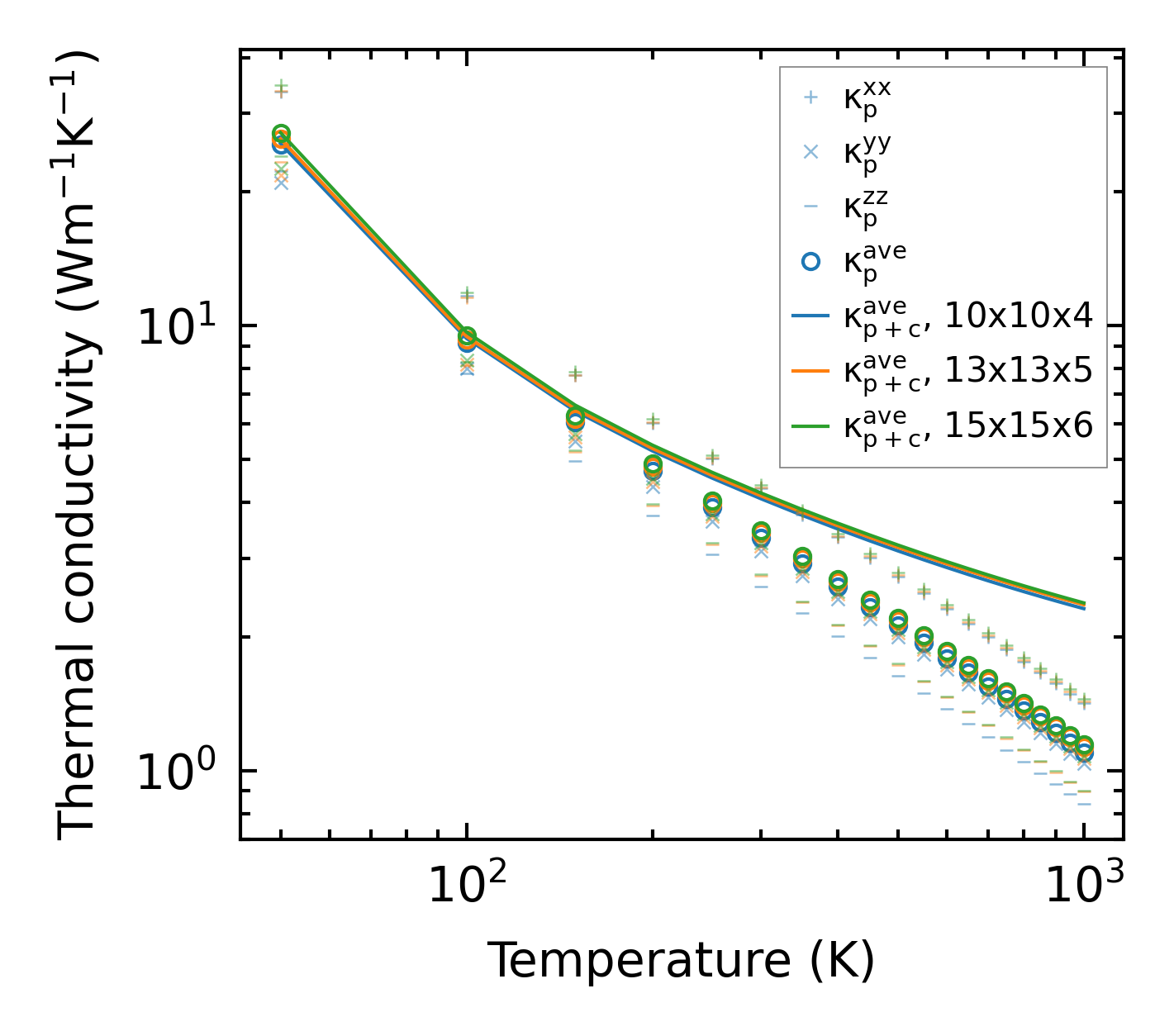

../../_images/fig_kappa11751.png — (a) Temperature-dependent lattice thermal conductivity

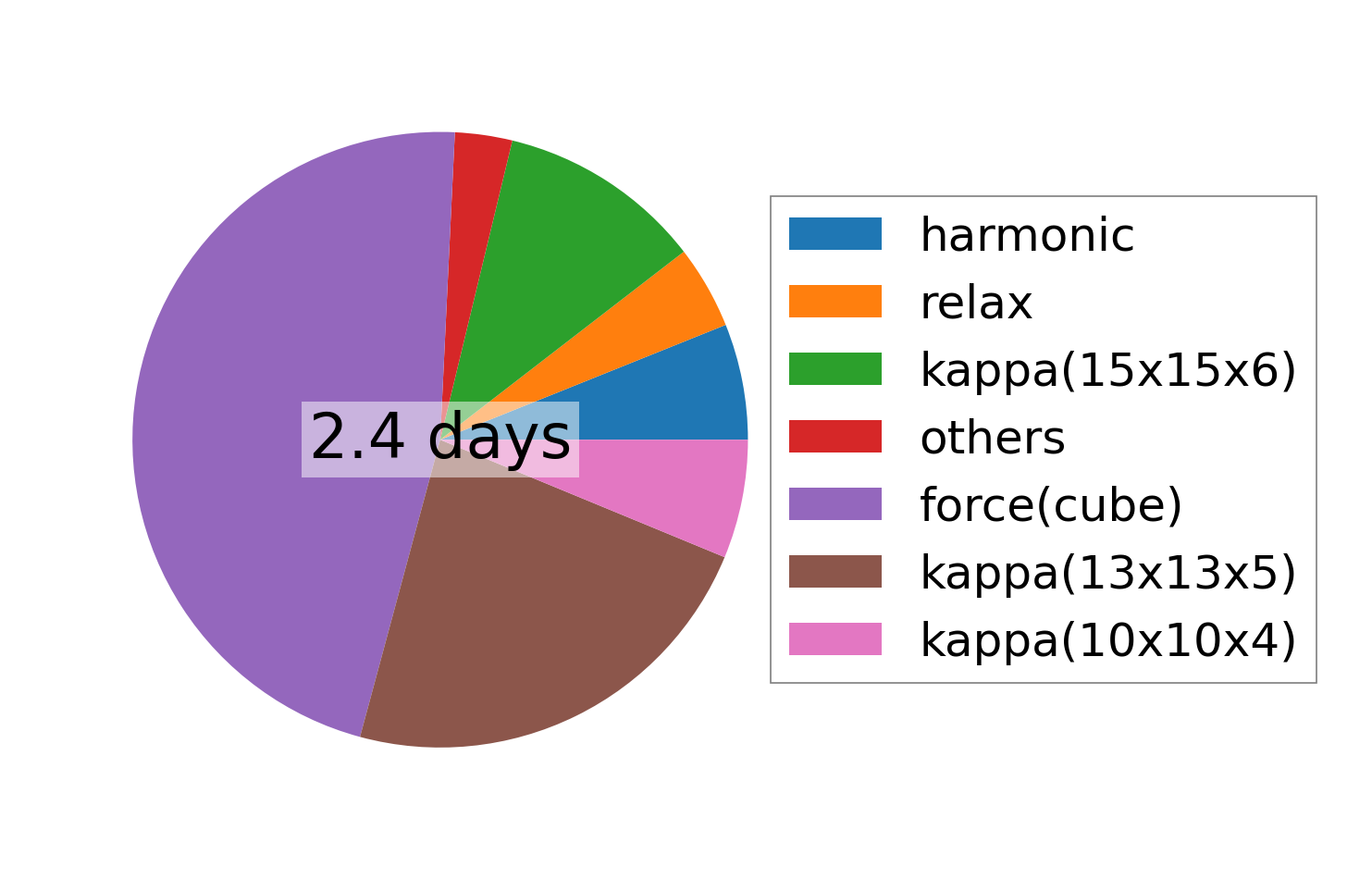

../../_images/fig_times24294.png — (b) Computation time
