mp-15079/Cs4KLiGa2F12/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-15079.tar.gz

Harmonic properties

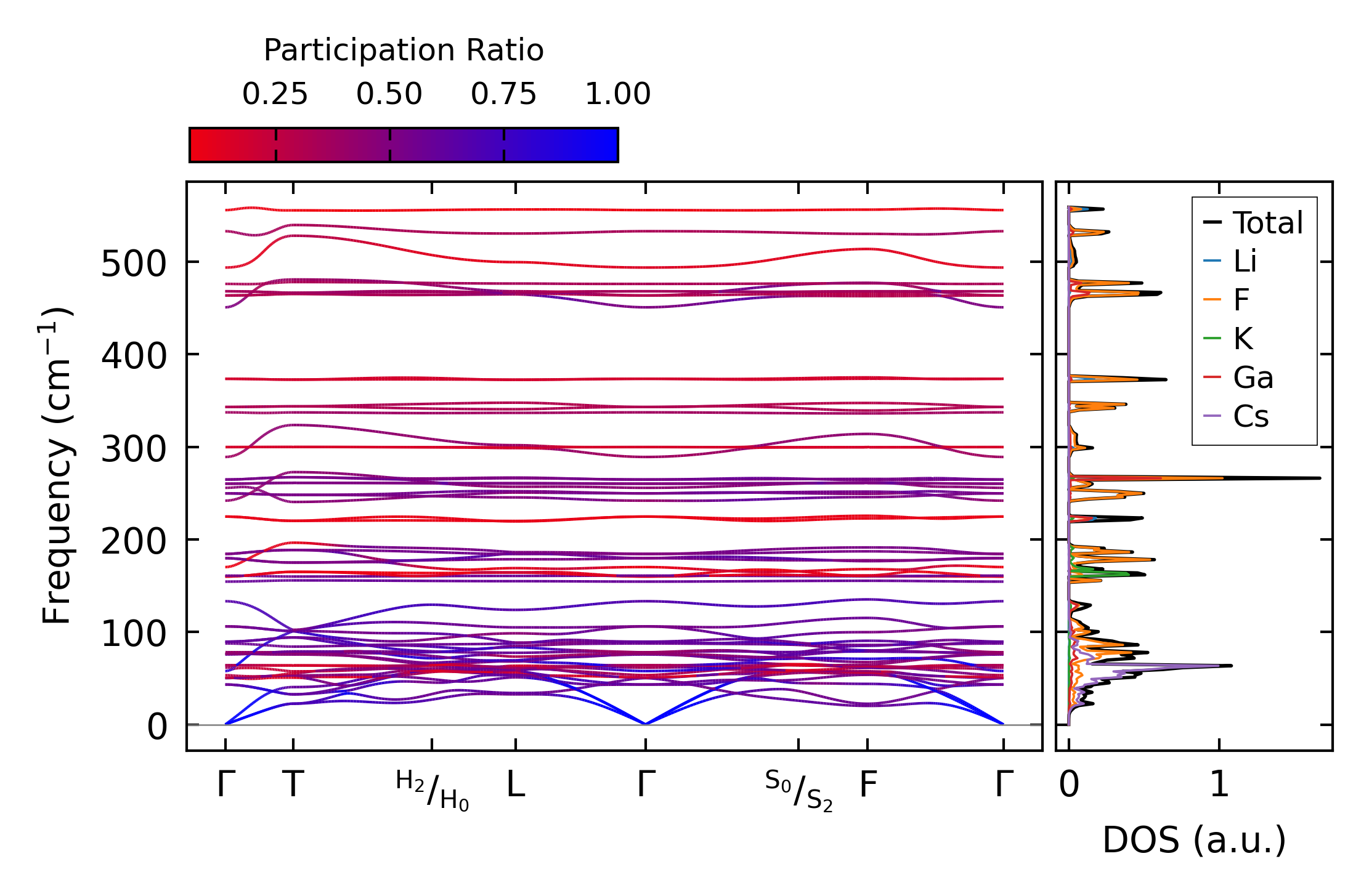

../../_images/fig_bandos_pr14589.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14589.png — (b) Thermodynamic properties

Grüneisen parameters

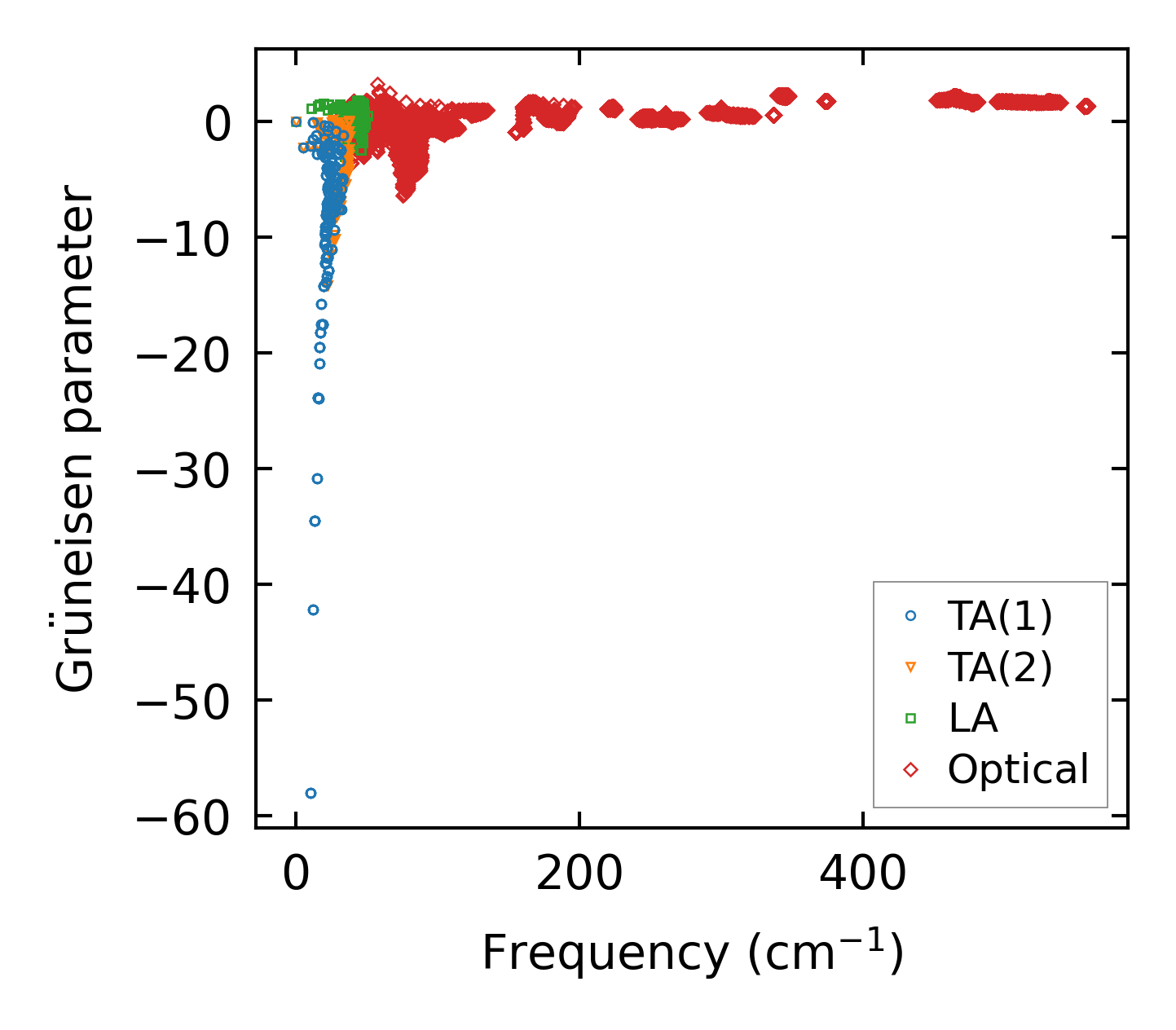

../../_images/fig_gru_all6243.png — (a) Grüneisen parameters

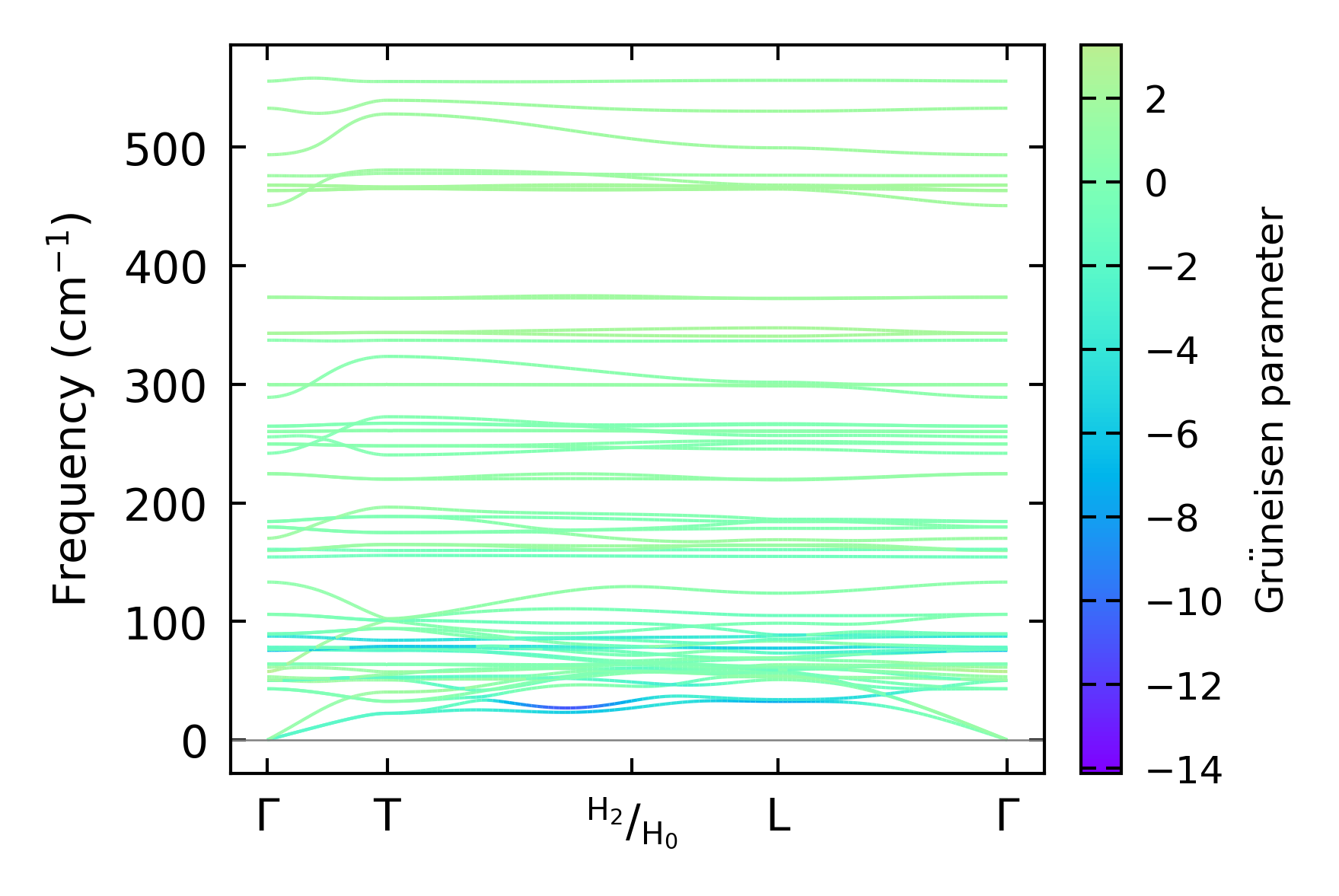

../../_images/fig_gruneisen6243.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

../../_images/fig_kappa11744.png — (a) Temperature-dependent lattice thermal conductivity

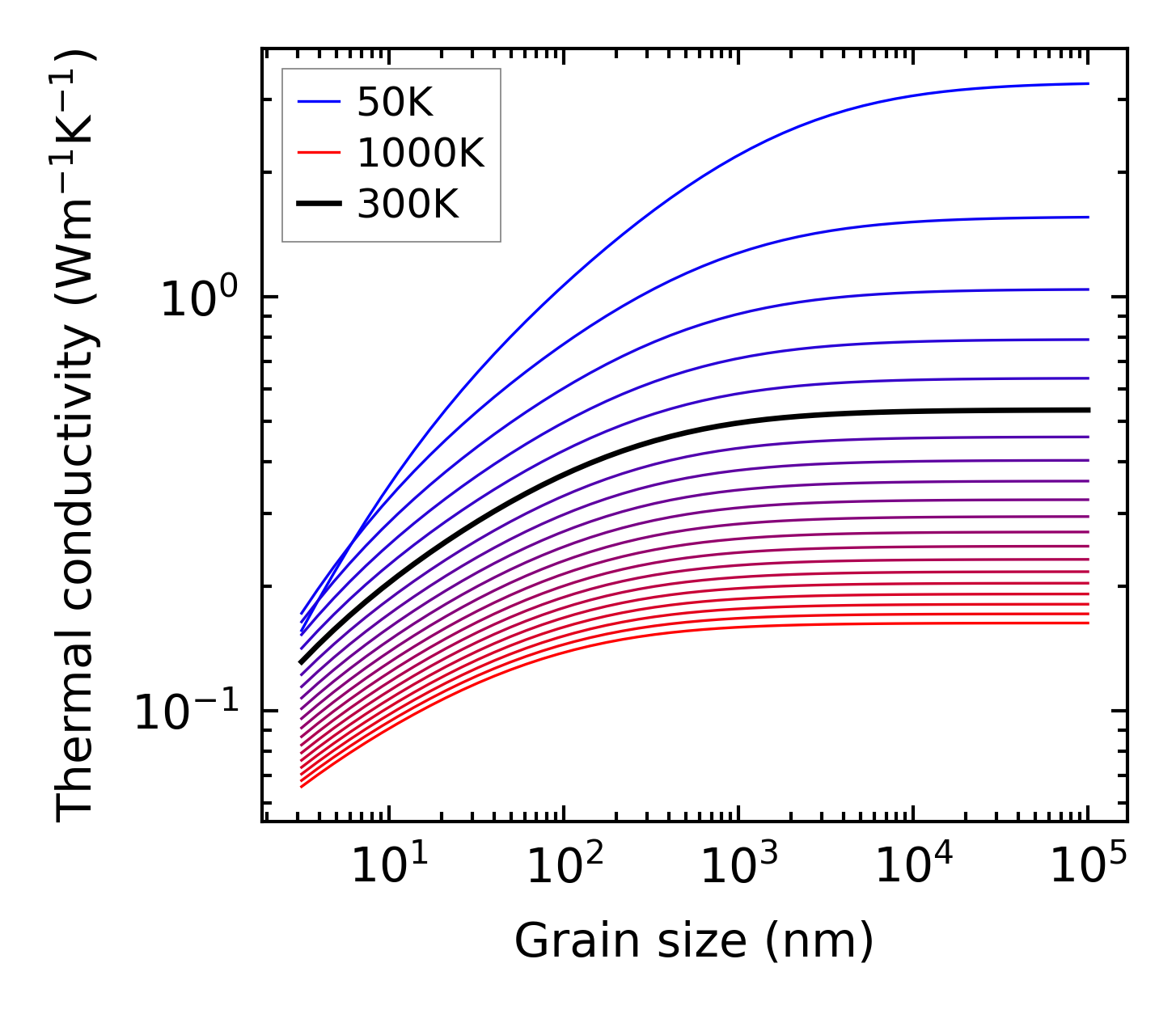

../../_images/fig_kappa_vs_grain_size6320.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

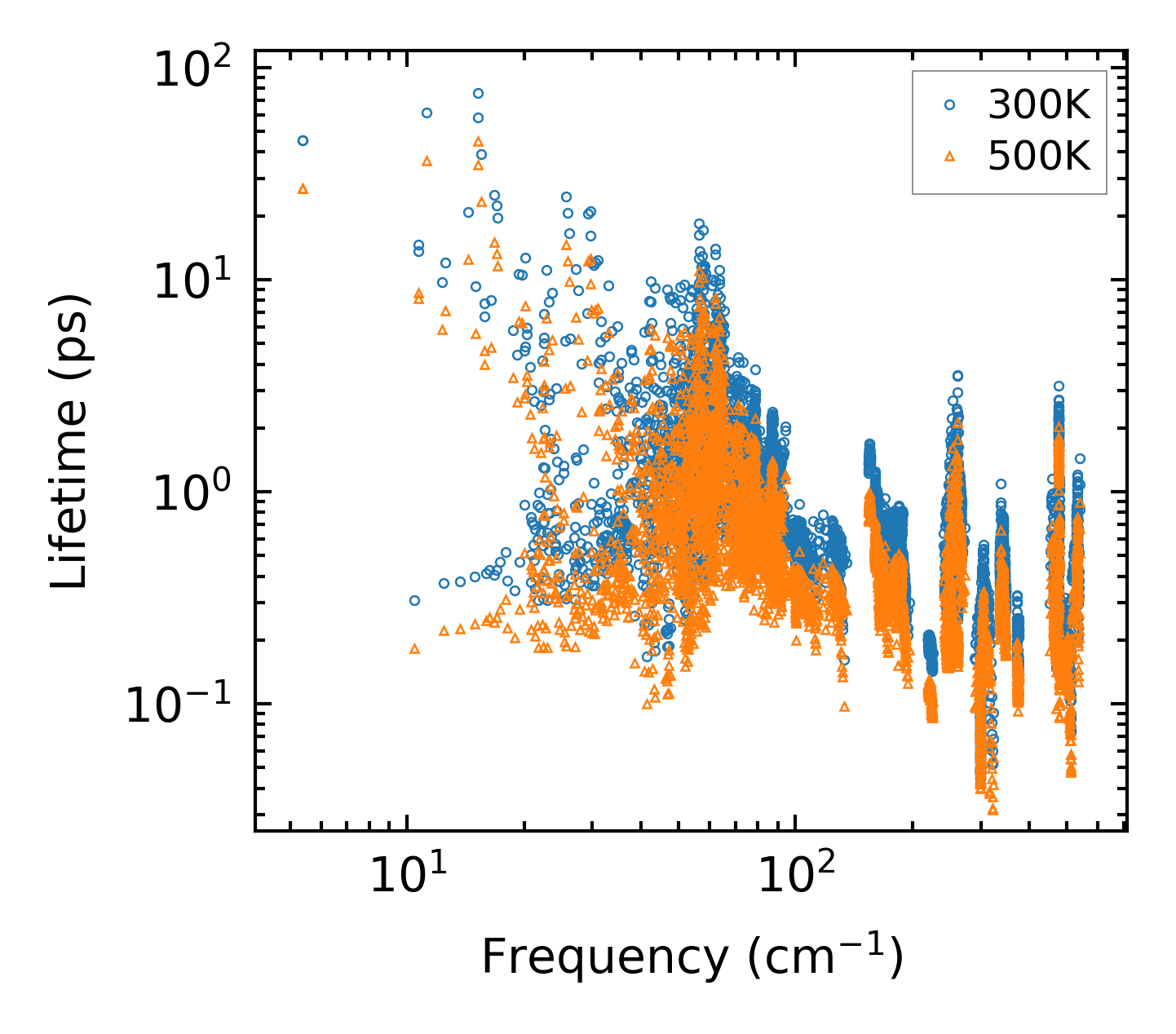

../../_images/fig_lifetime6181.png — (a) Phonon lifetime due to phonon-phonon scattering

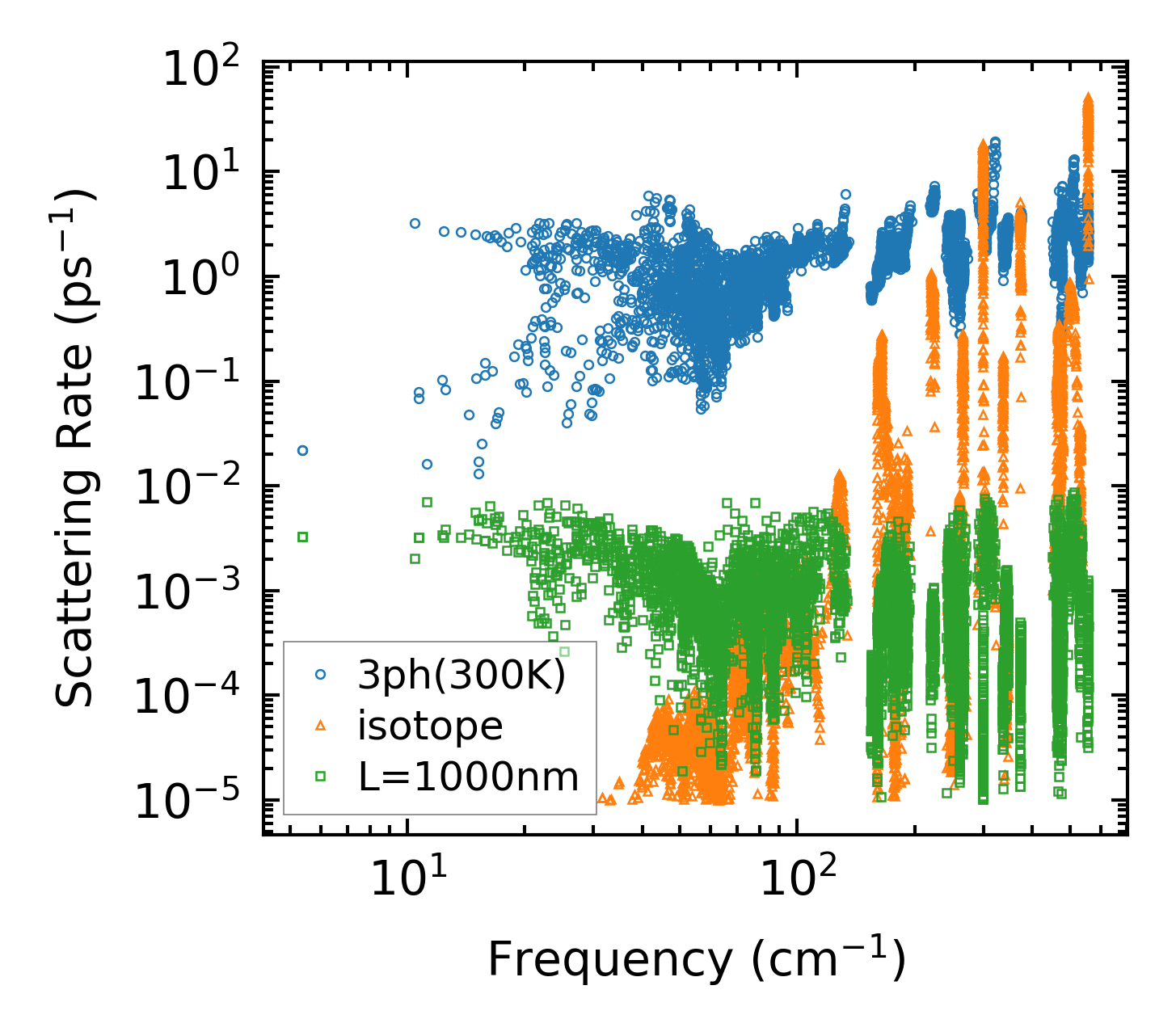

../../_images/fig_scat_rates6180.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6181.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

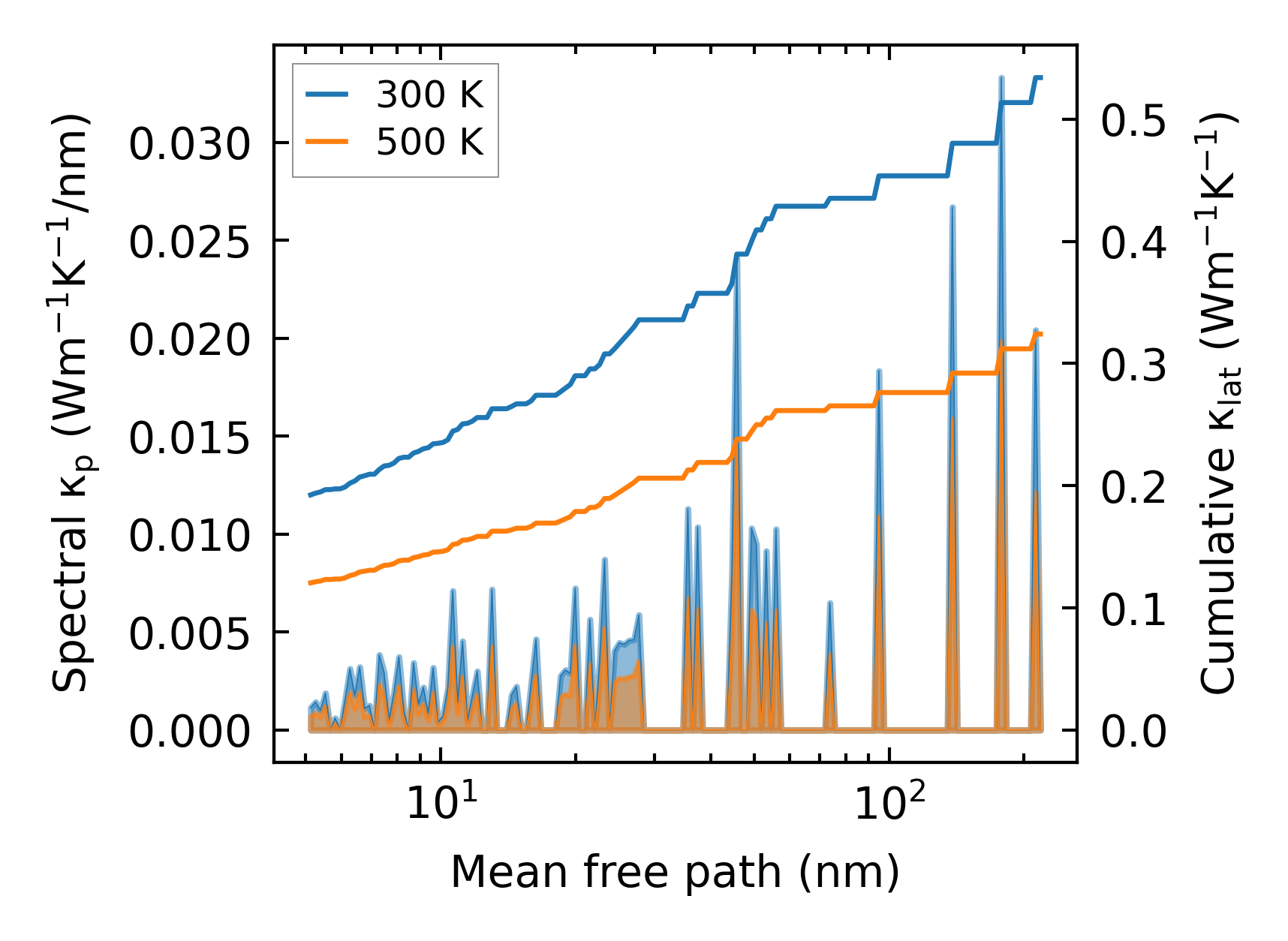

../../_images/fig_cumu_mfp6180.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214208.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11745.png — (a) Temperature-dependent lattice thermal conductivity

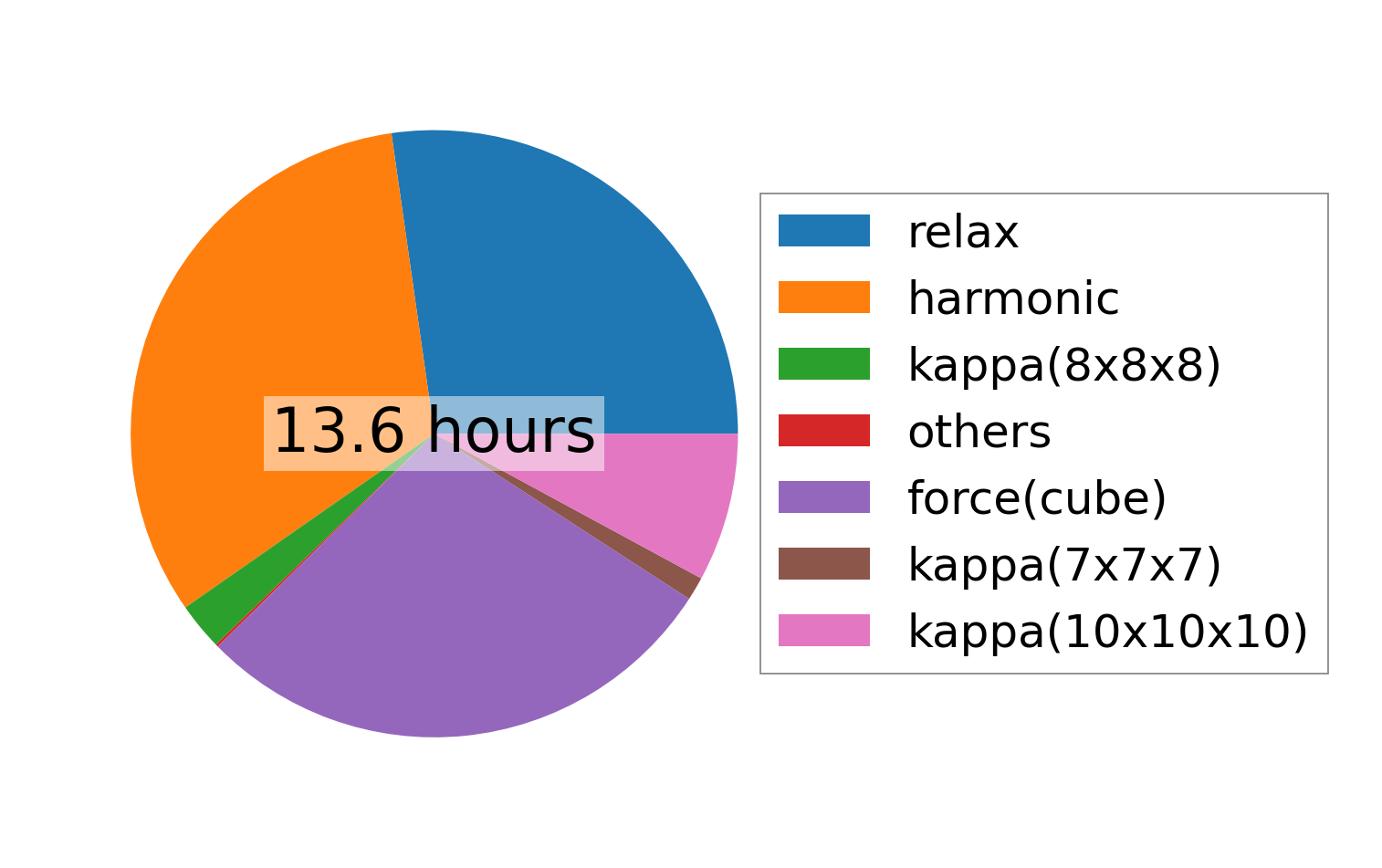

../../_images/fig_times24283.png — (b) Computation time
