mp-15685/Na2CuAs/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-15685.tar.gz

Harmonic properties

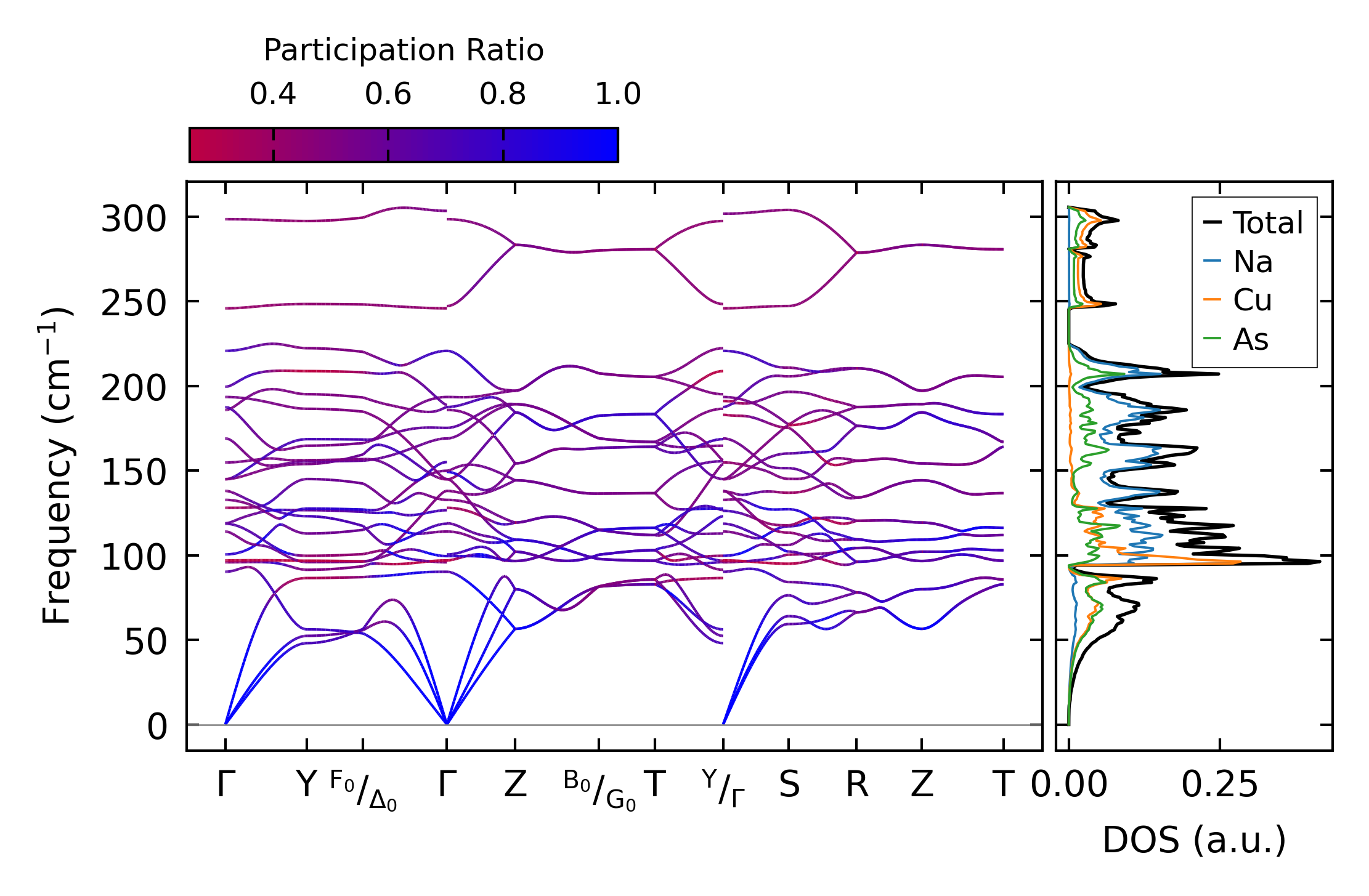

../../_images/fig_bandos_pr14309.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14309.png — (b) Thermodynamic properties

Grüneisen parameters

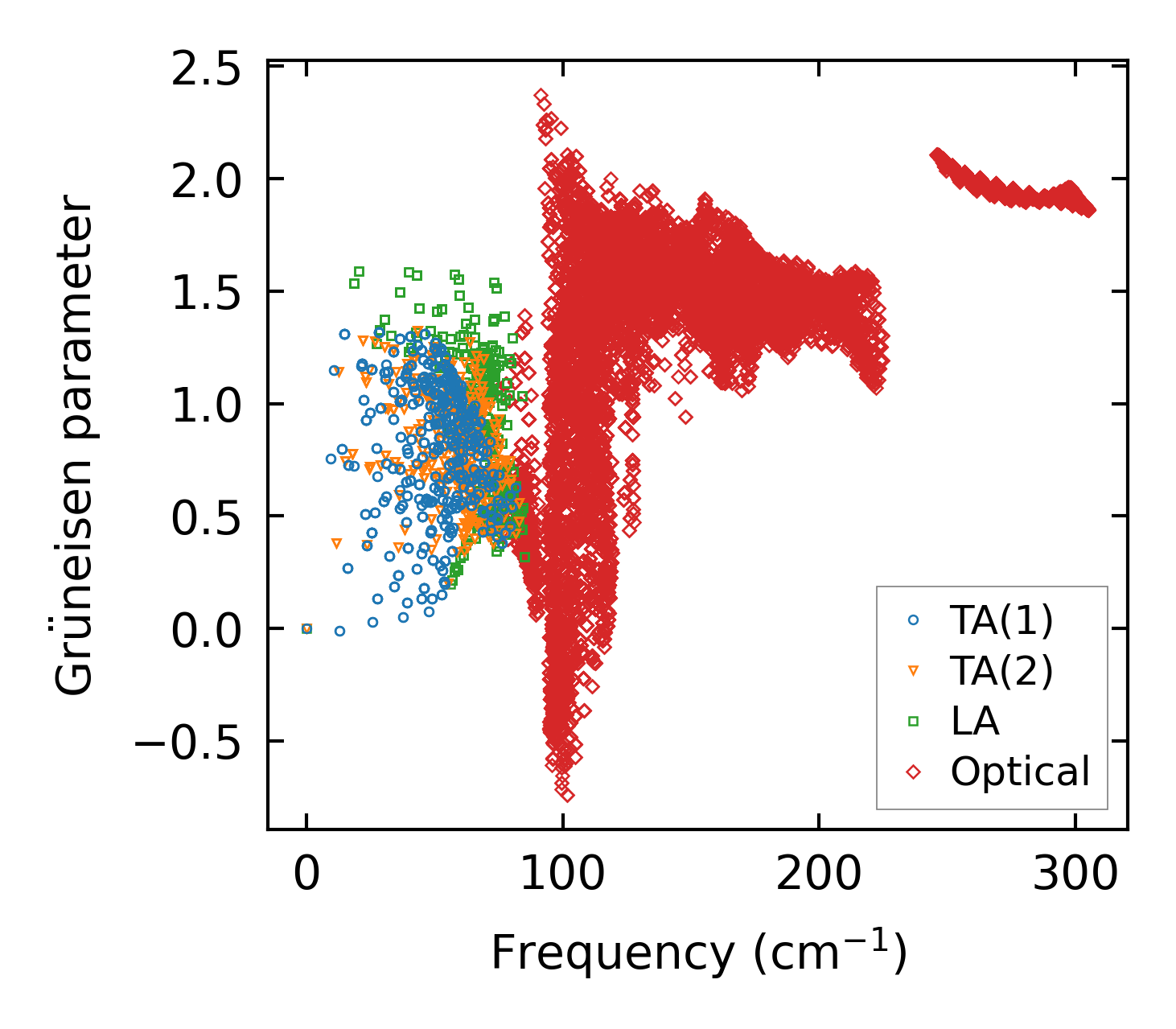

../../_images/fig_gru_all6095.png — (a) Grüneisen parameters

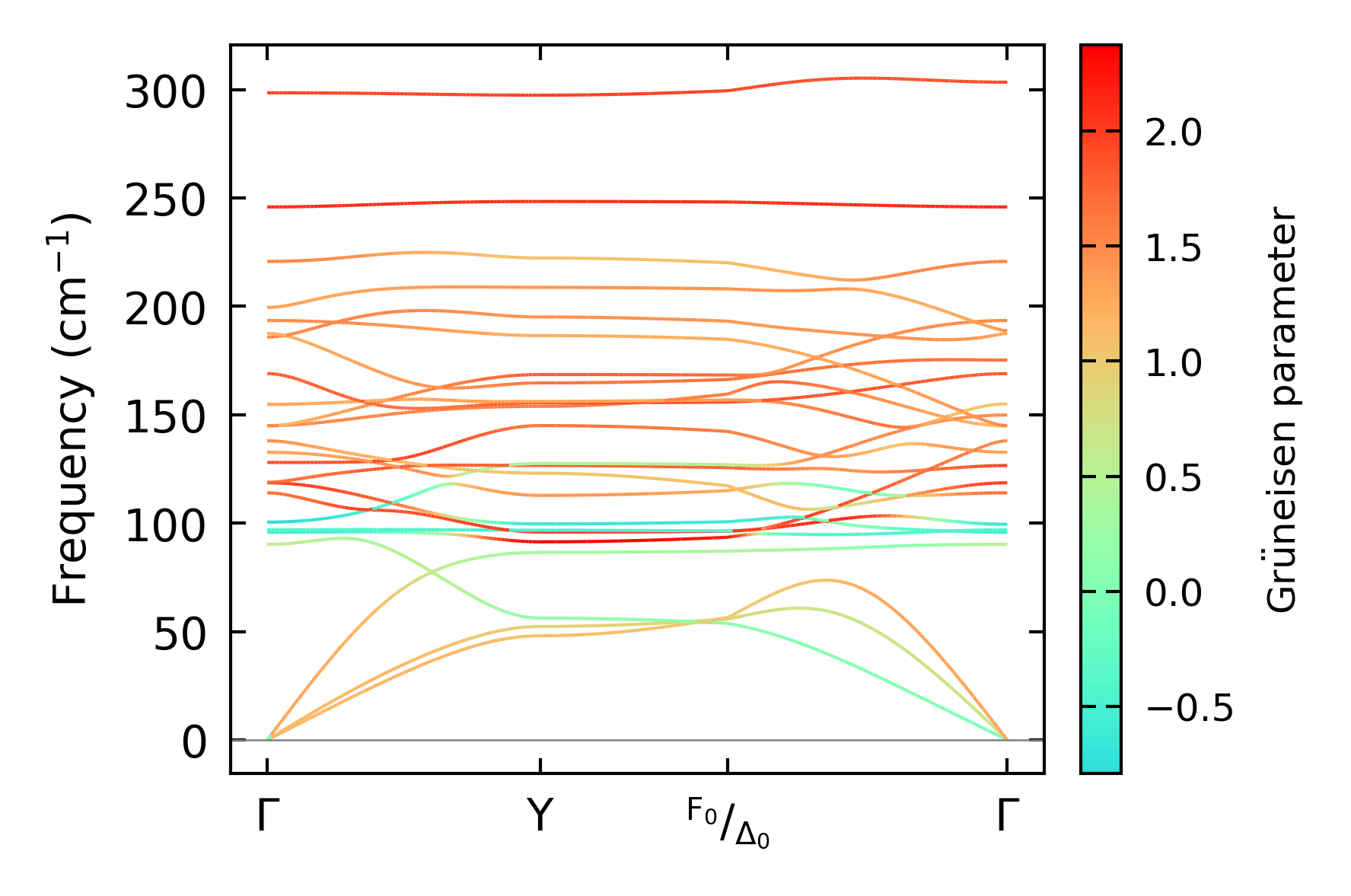

../../_images/fig_gruneisen6095.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x13, supercell: 2x2x2

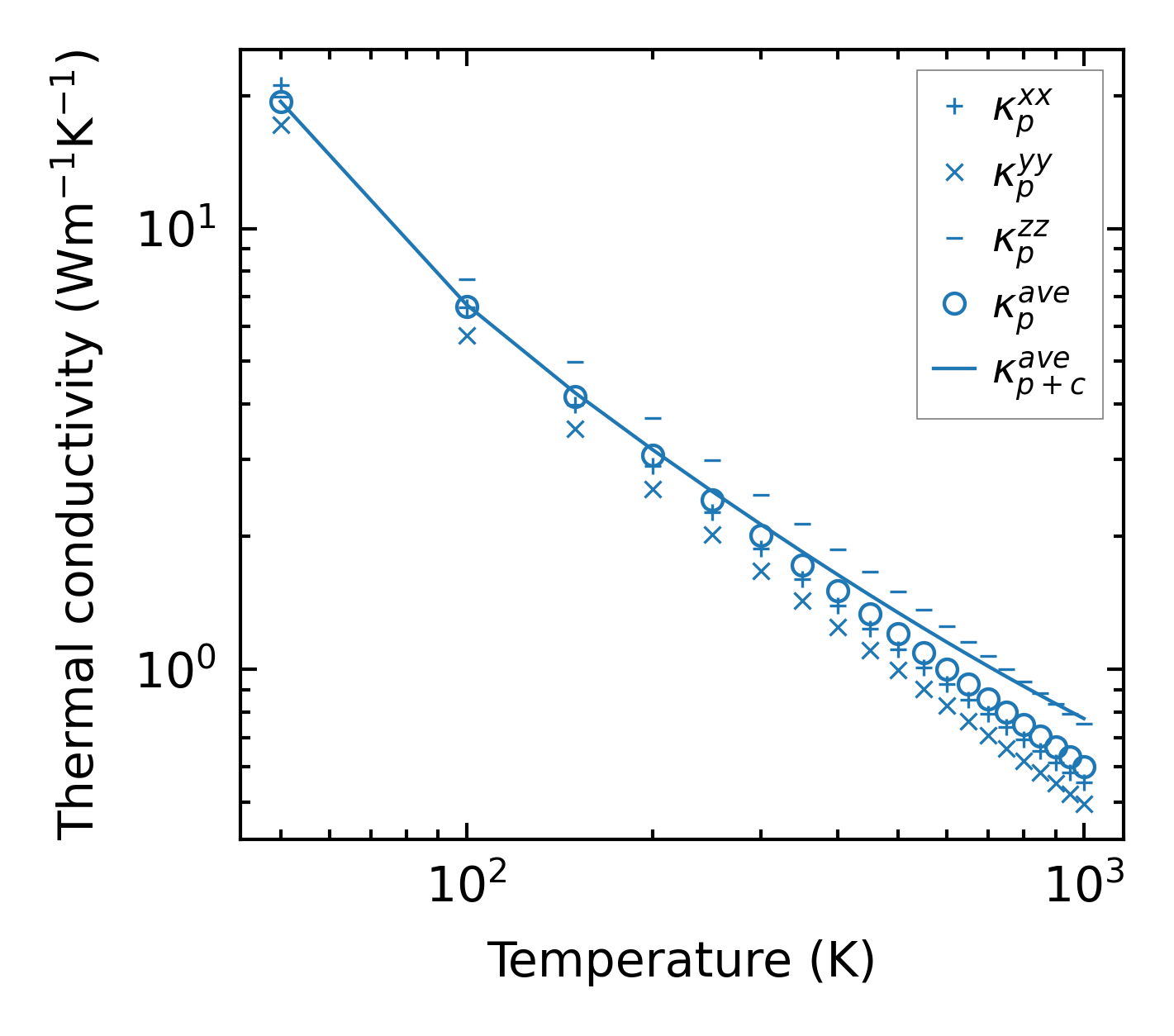

../../_images/fig_kappa11465.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6173.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

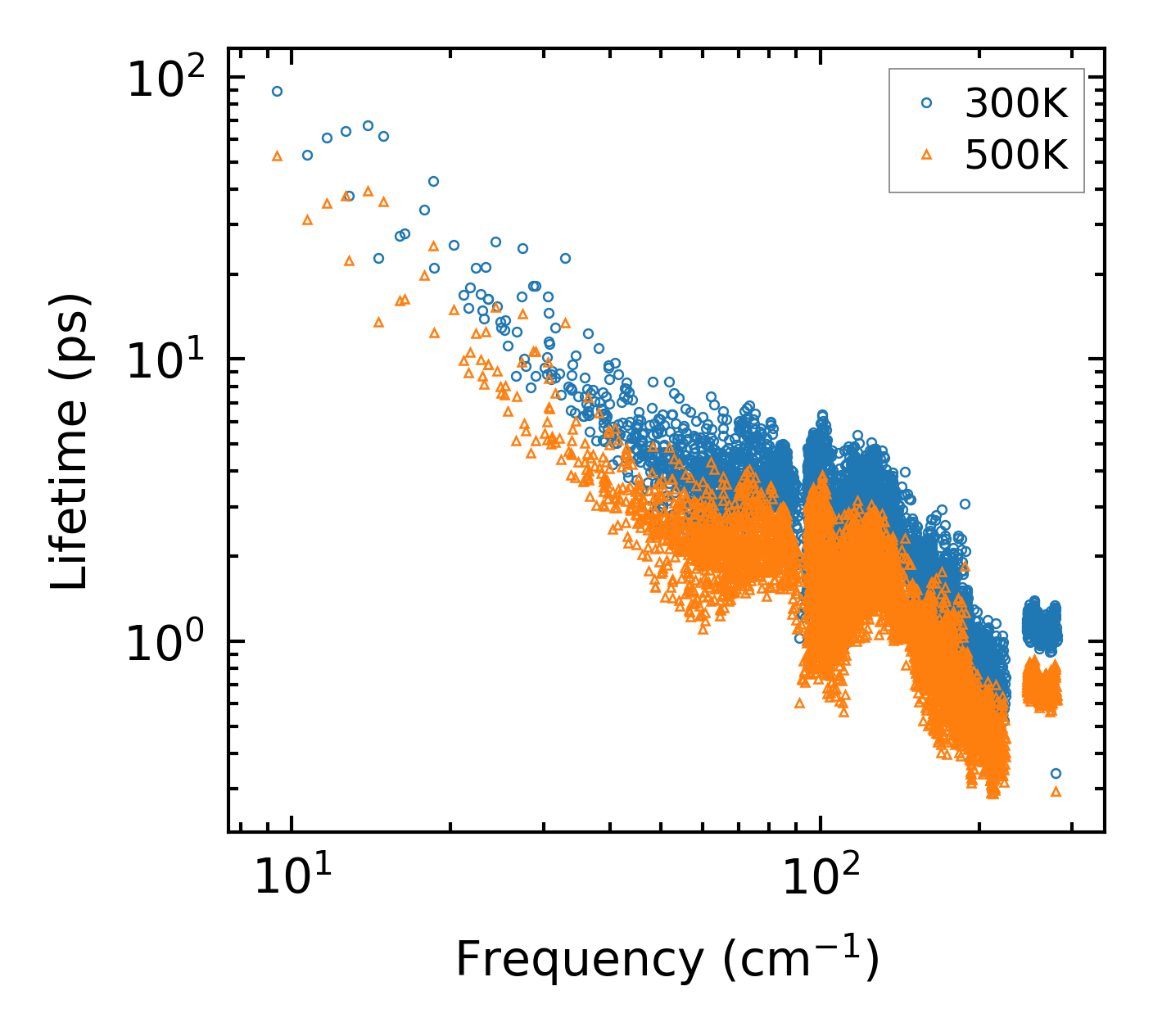

../../_images/fig_lifetime6034.png — (a) Phonon lifetime due to phonon-phonon scattering

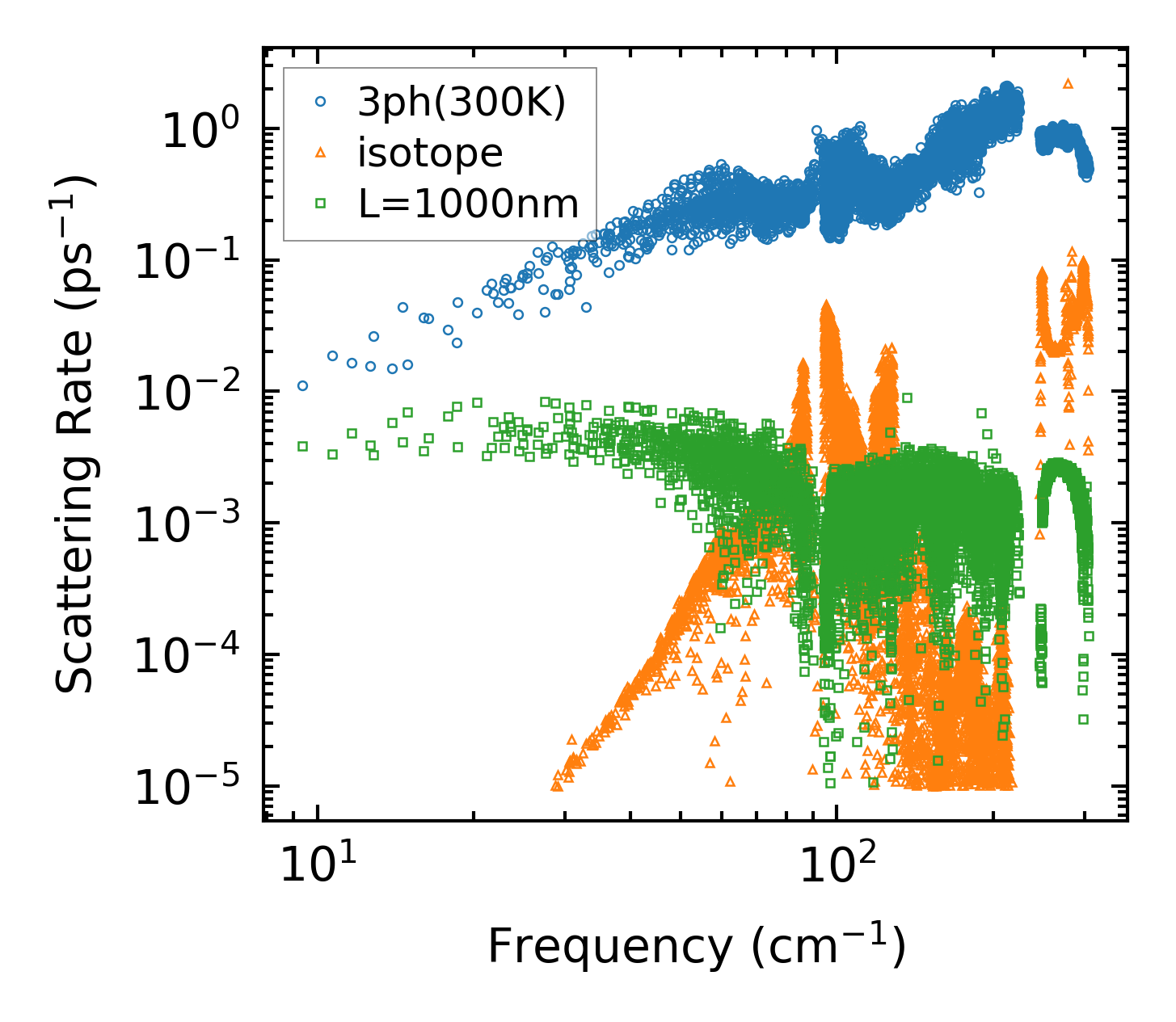

../../_images/fig_scat_rates6033.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

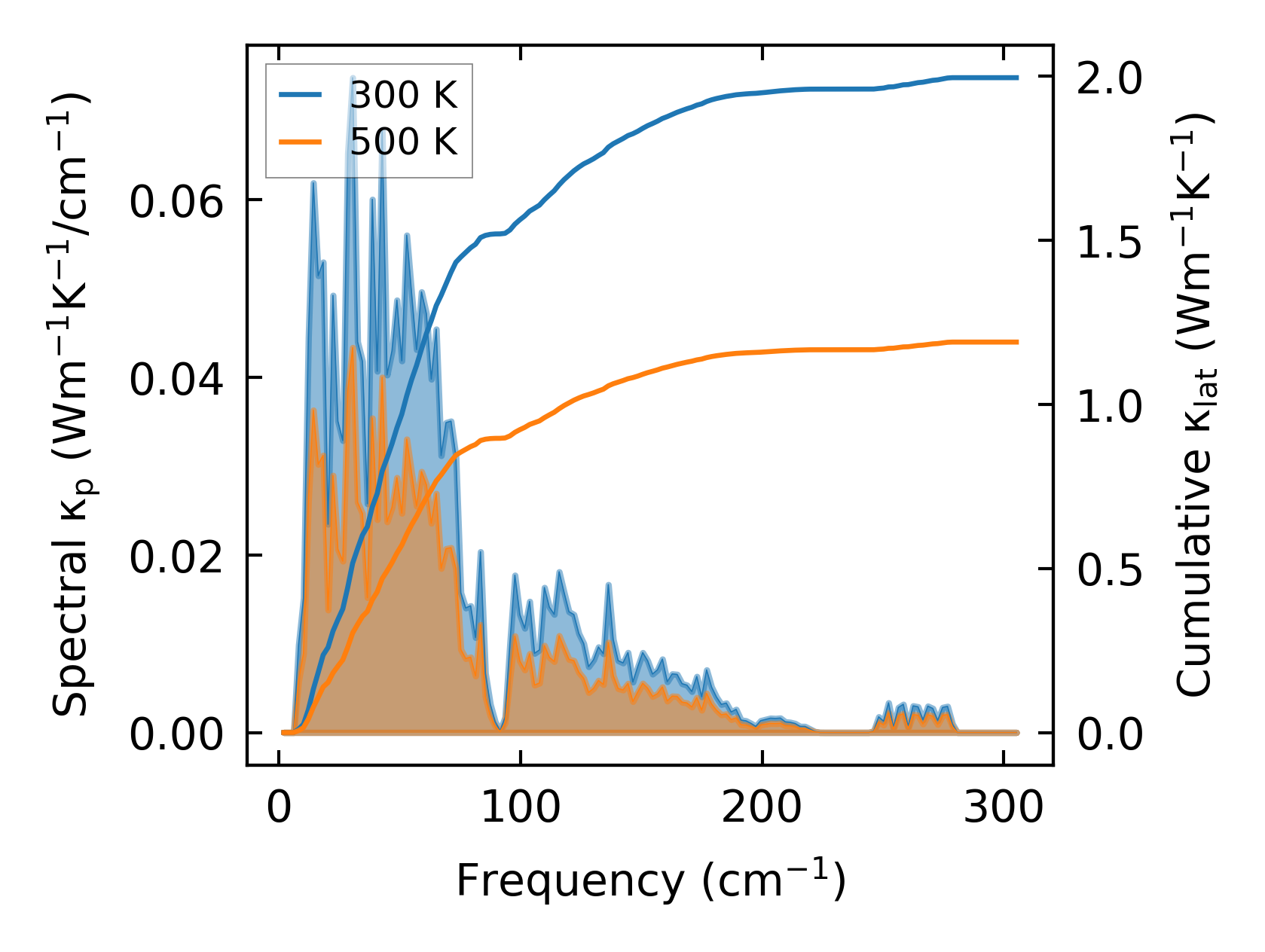

../../_images/fig_cumu_frequency6034.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6033.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

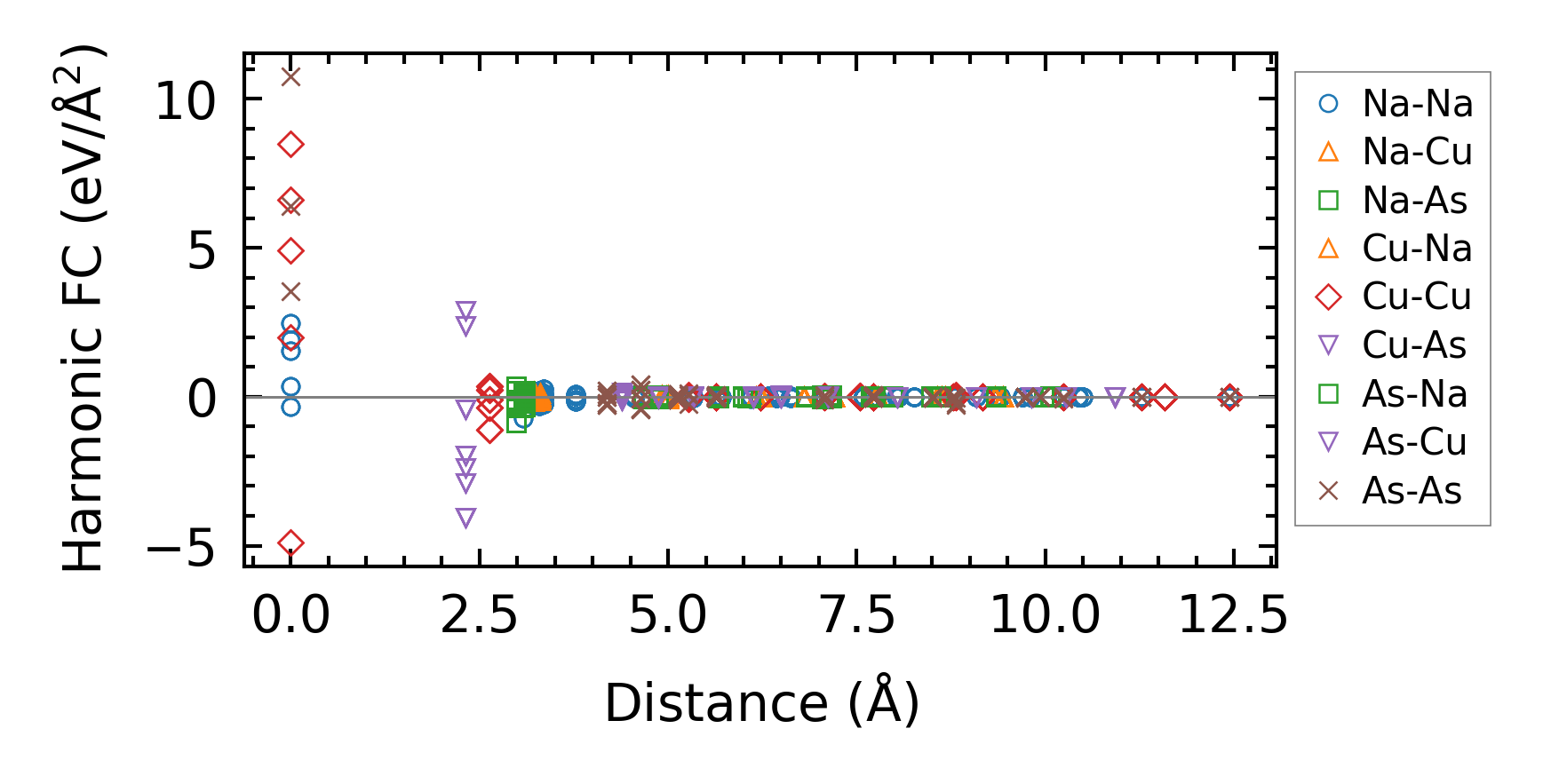

../../_images/fig_fc213937.png — (a) Force constants w.r.t atomic distance

Summary

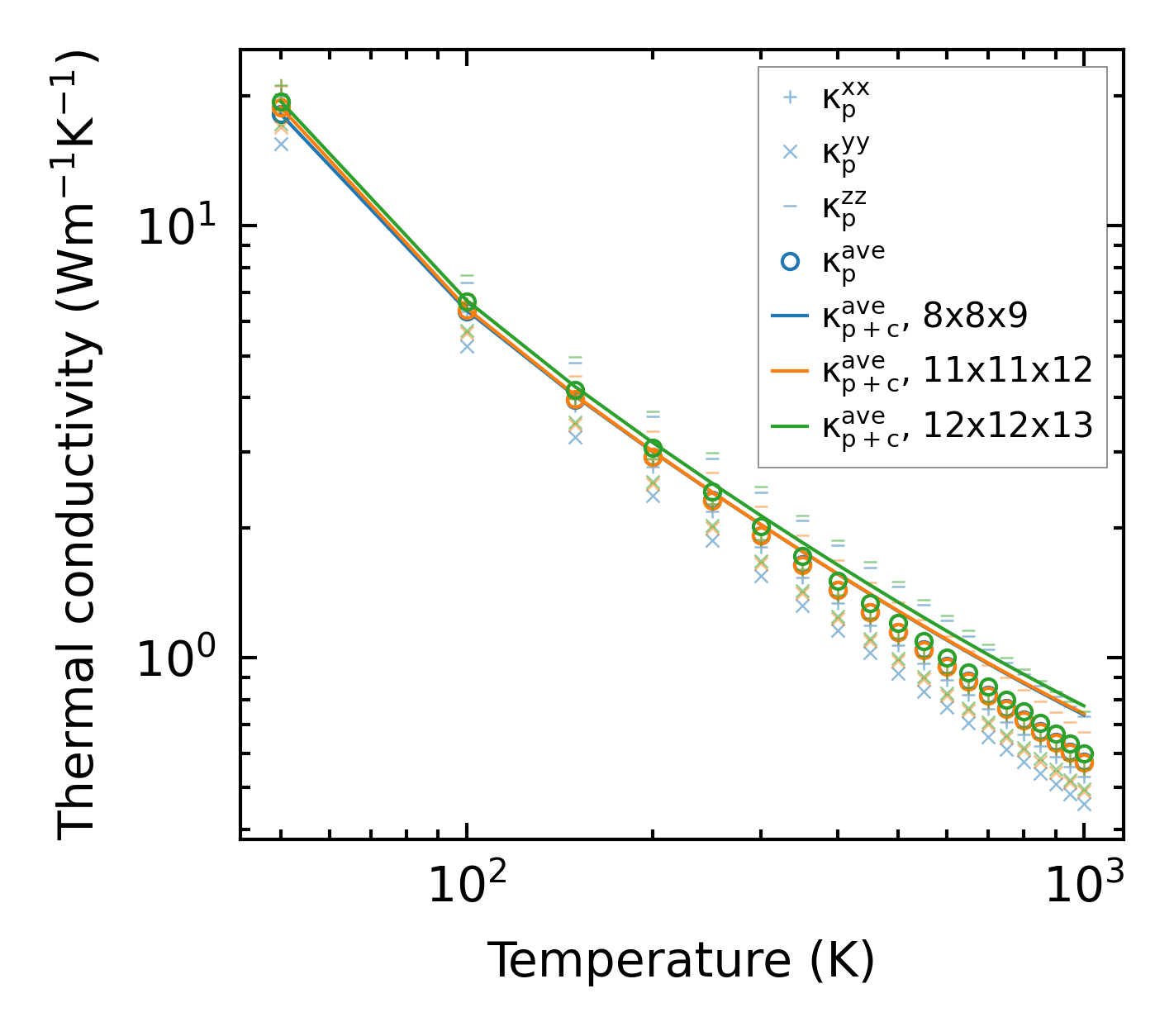

../../_images/fig_kappa11466.png — (a) Temperature-dependent lattice thermal conductivity

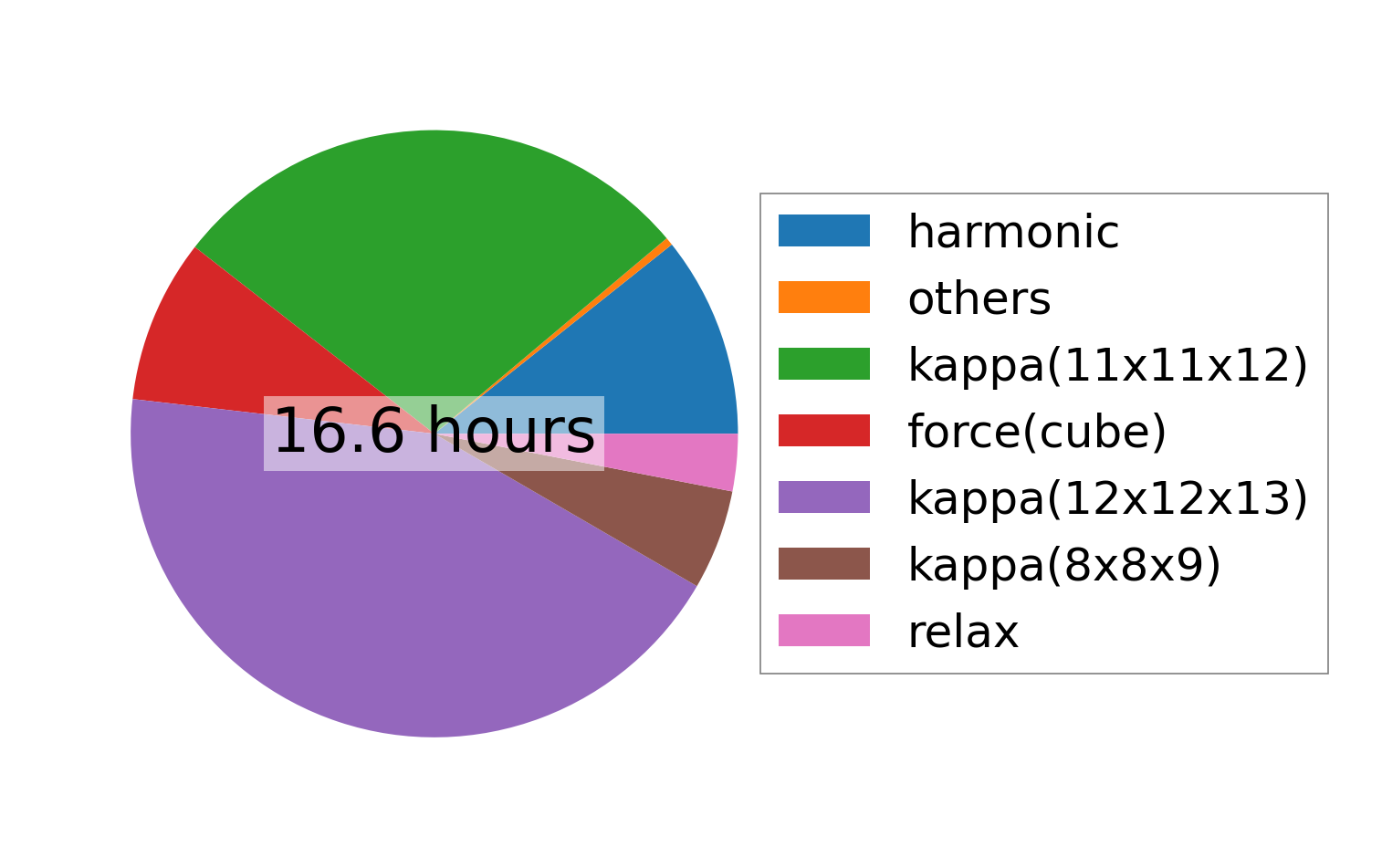

../../_images/fig_times23891.png — (b) Computation time
