mp-15312-2/Ca4Al6TeO12/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-15312-2.tar.gz

Equation of state

../../_images/fig_bm7312.png — (a) Equation of state

Harmonic properties

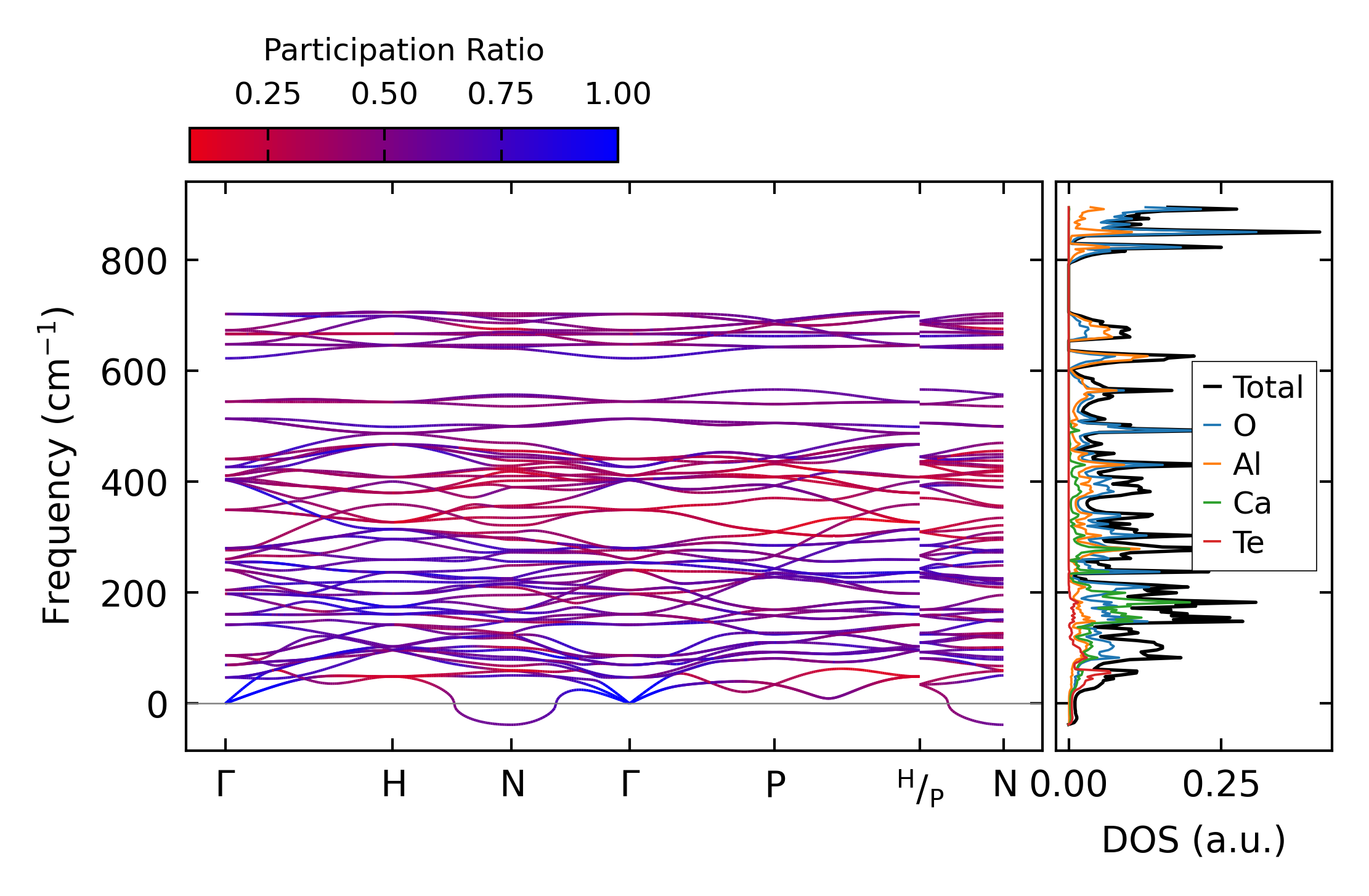

../../_images/fig_bandos_pr14621.png — (a) Phonon dispersion with participation ratio and DOS

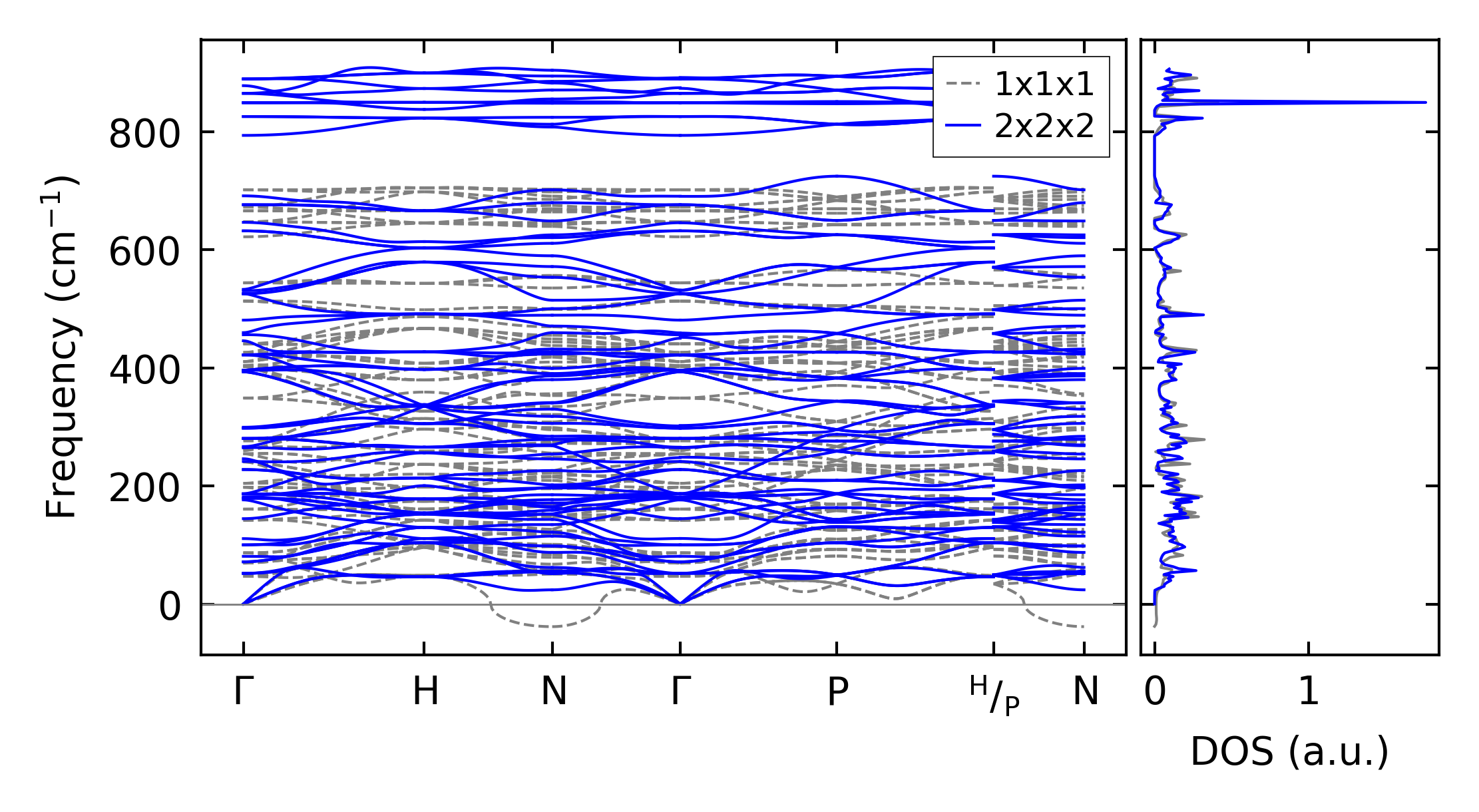

../../_images/fig_bandos18999.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14621.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6254.png — (a) Grüneisen parameters

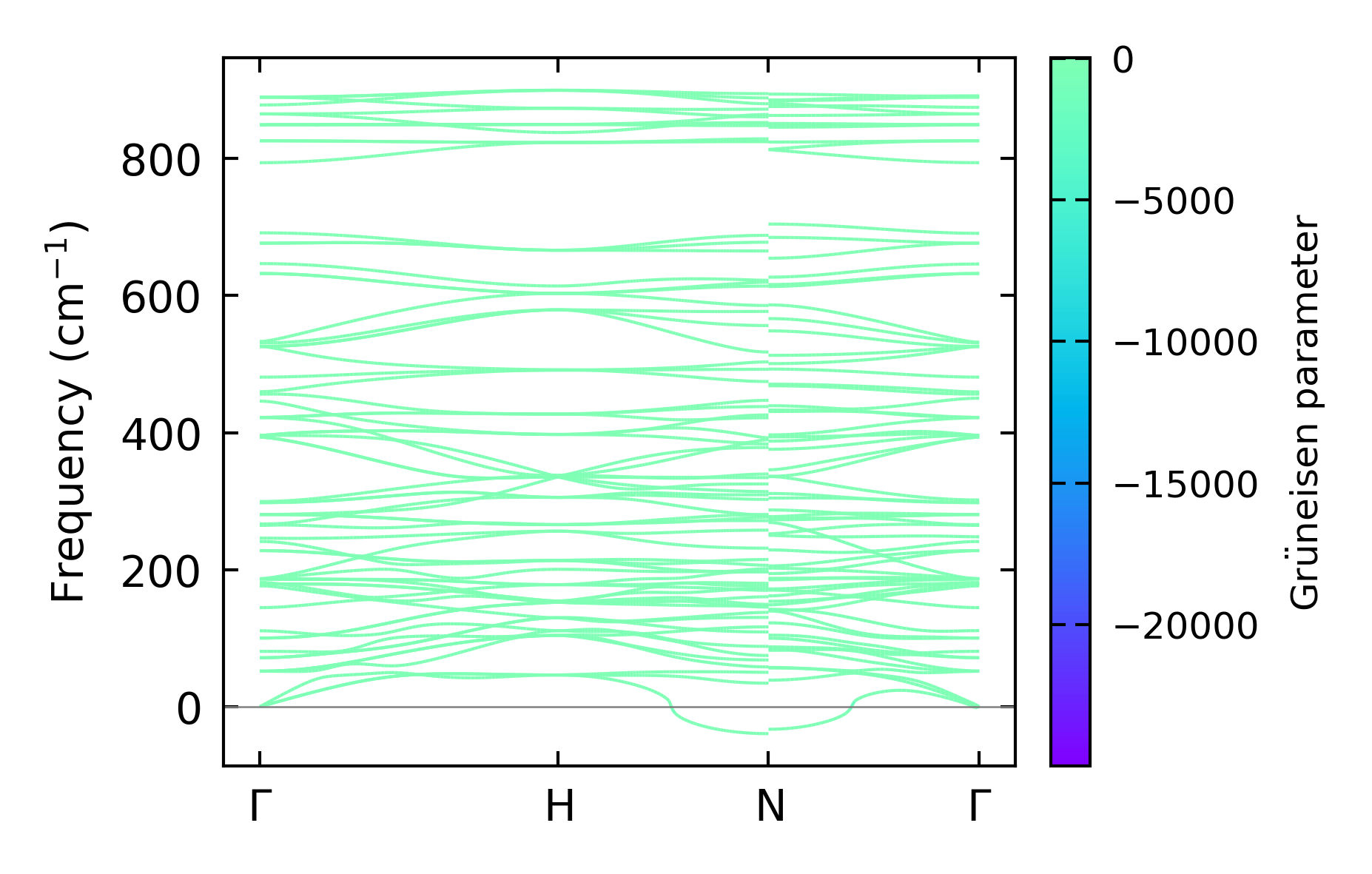

../../_images/fig_gruneisen6254.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 9x9x9, supercell: 2x2x2

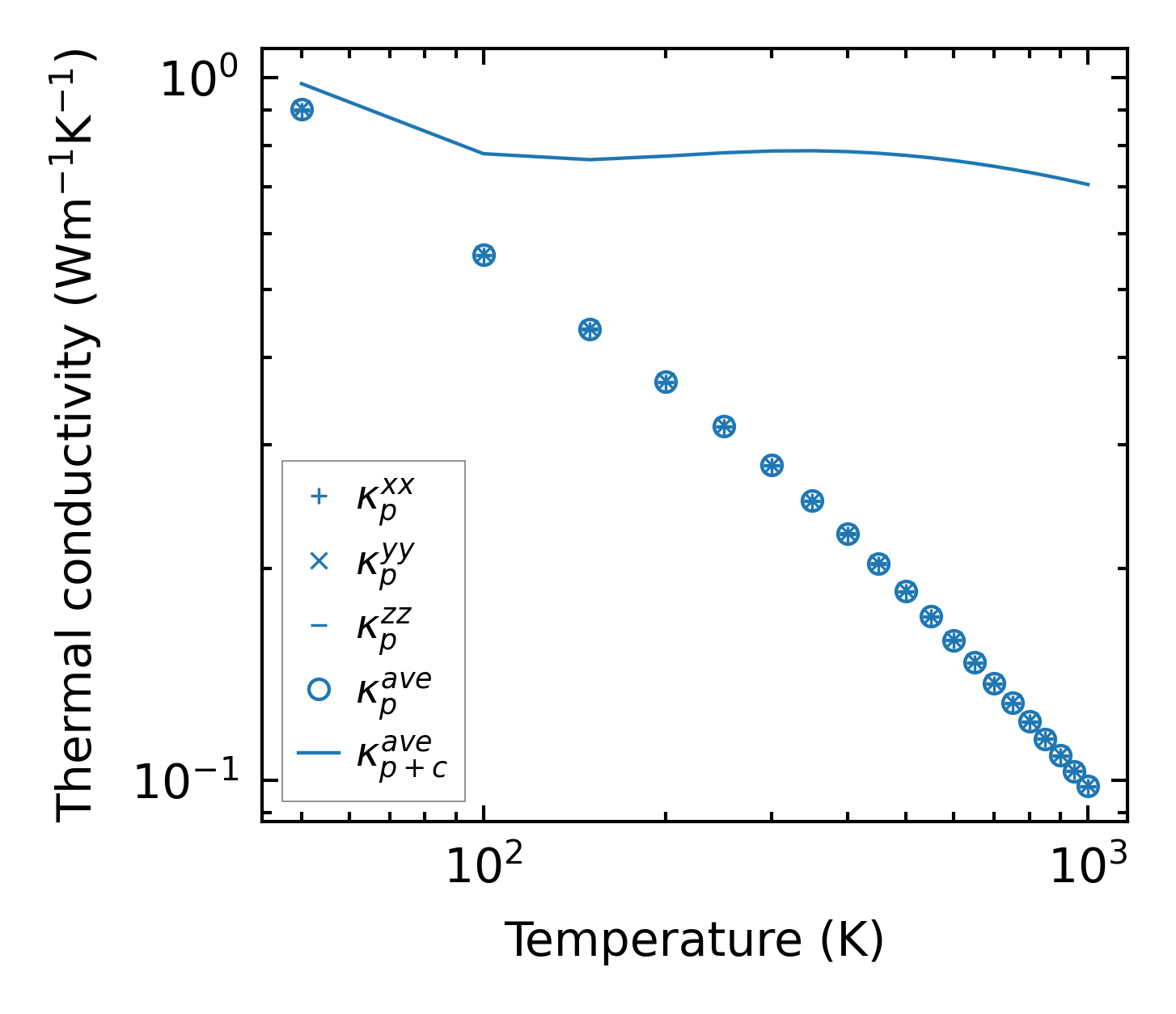

../../_images/fig_kappa11766.png — (a) Temperature-dependent lattice thermal conductivity

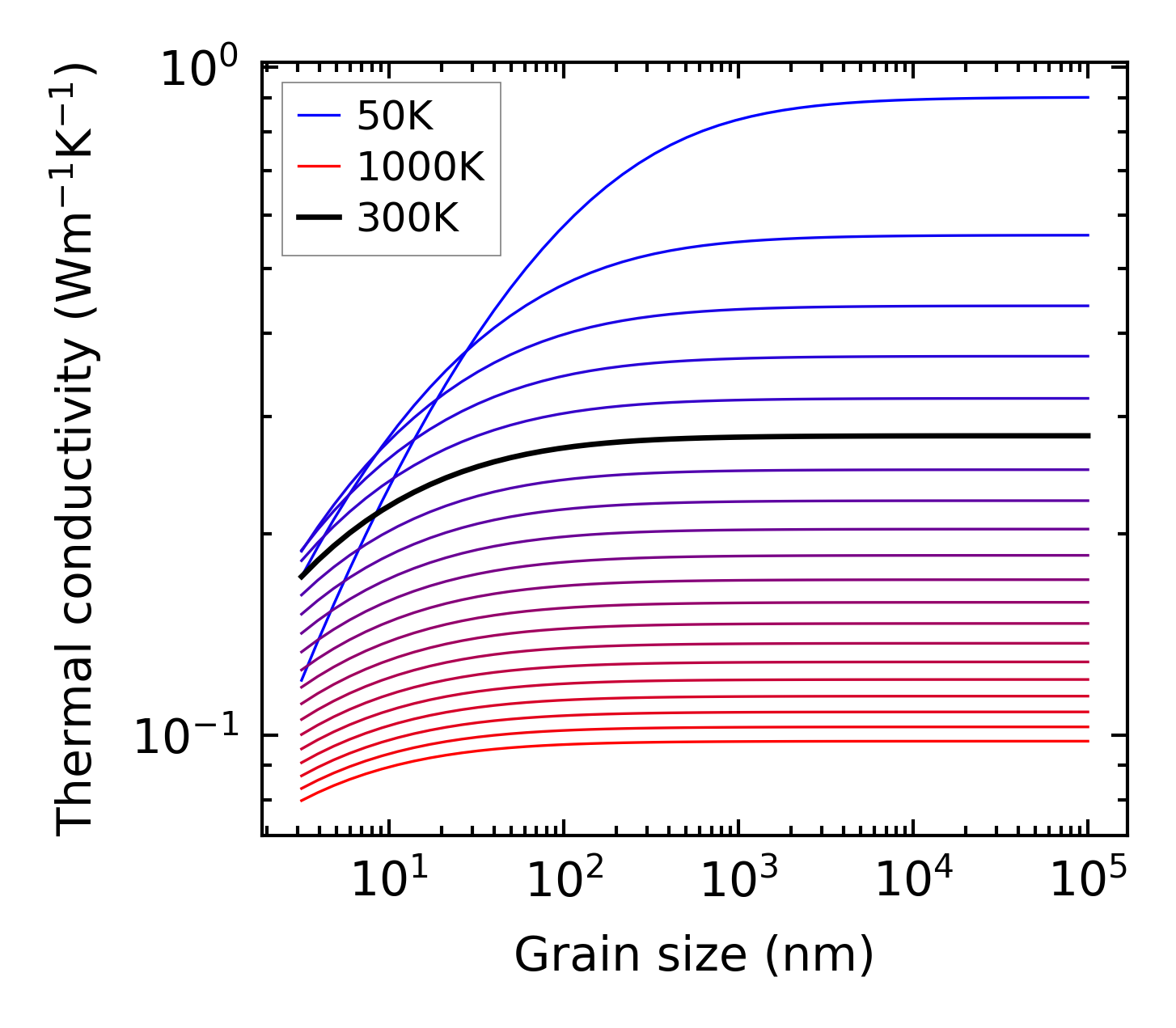

../../_images/fig_kappa_vs_grain_size6331.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

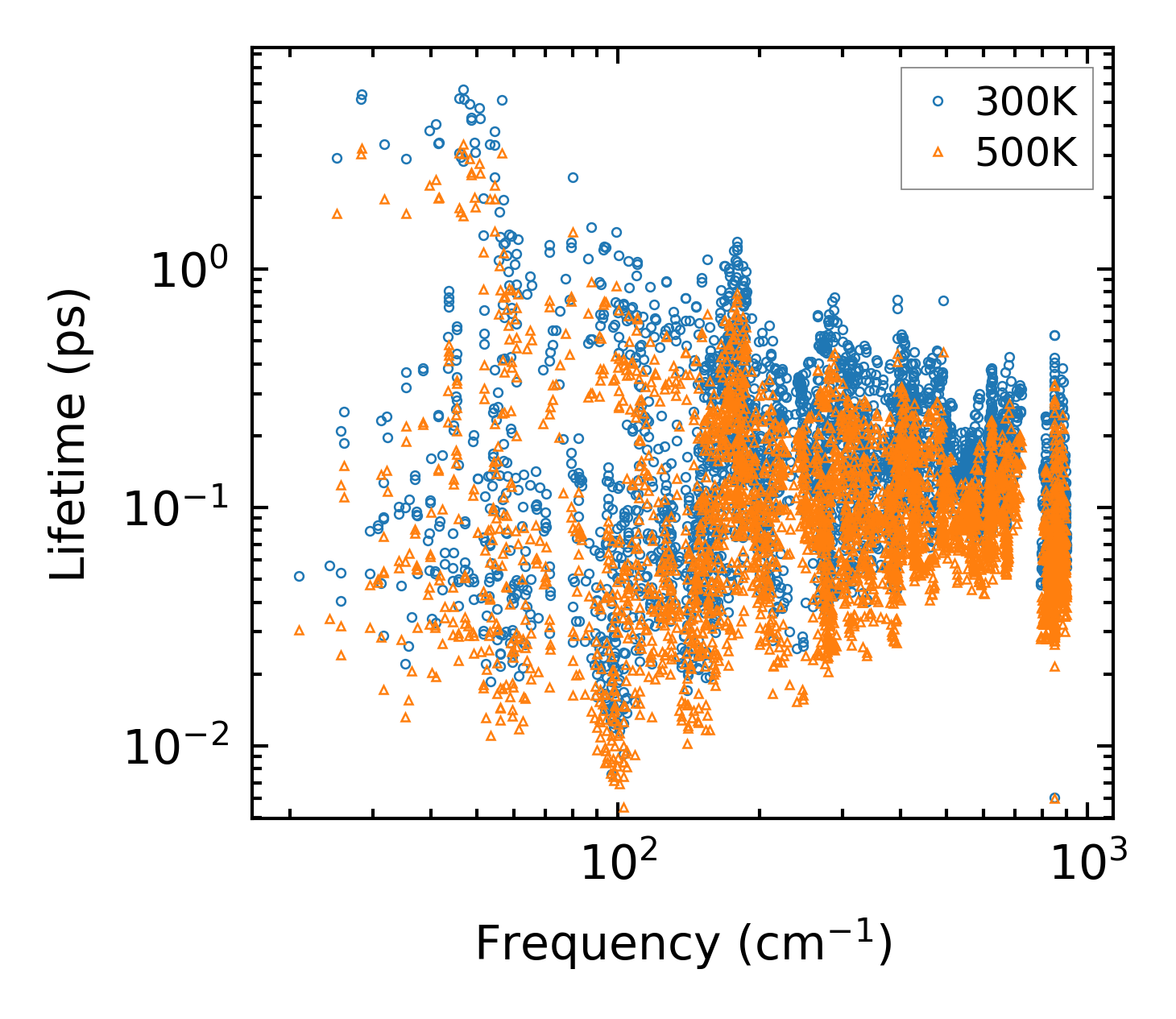

../../_images/fig_lifetime6192.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6191.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

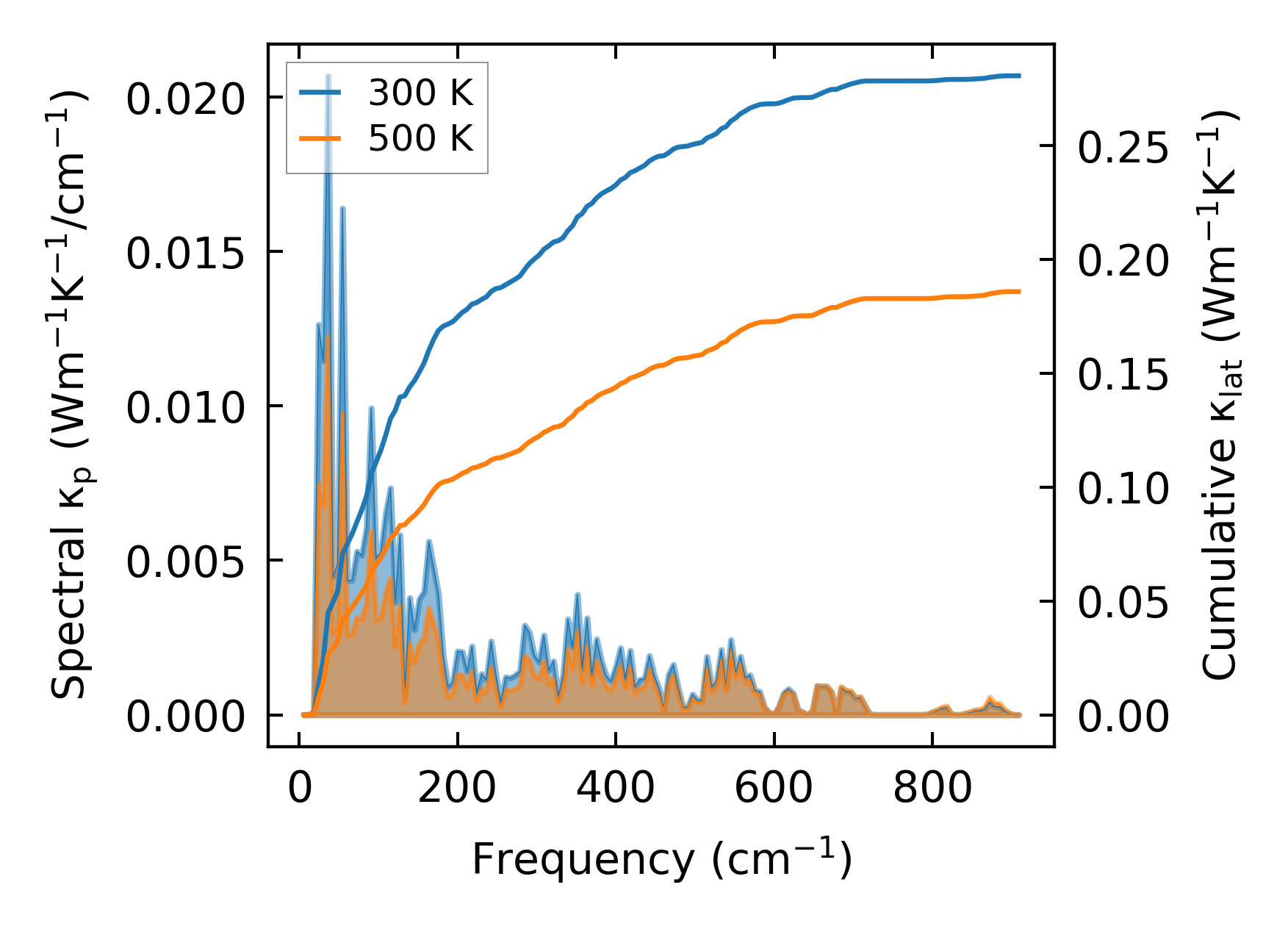

../../_images/fig_cumu_frequency6192.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

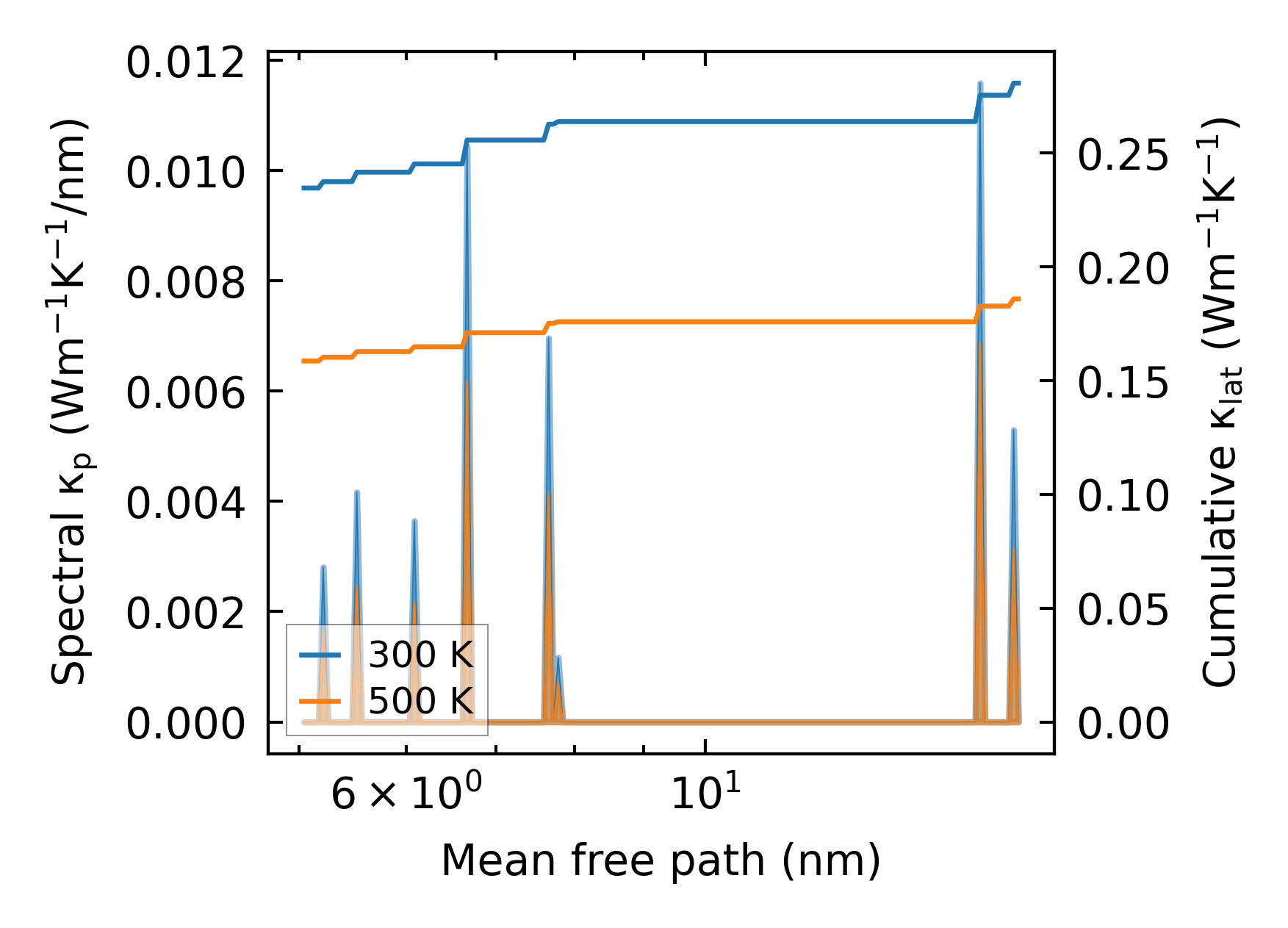

../../_images/fig_cumu_mfp6191.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214240.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times24325.png — (a) Computation time
