mp-15519-2/NdZnB5O10/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-15519-2.tar.gz

Equation of state

../../_images/fig_bm7326.png — (a) Equation of state

Harmonic properties

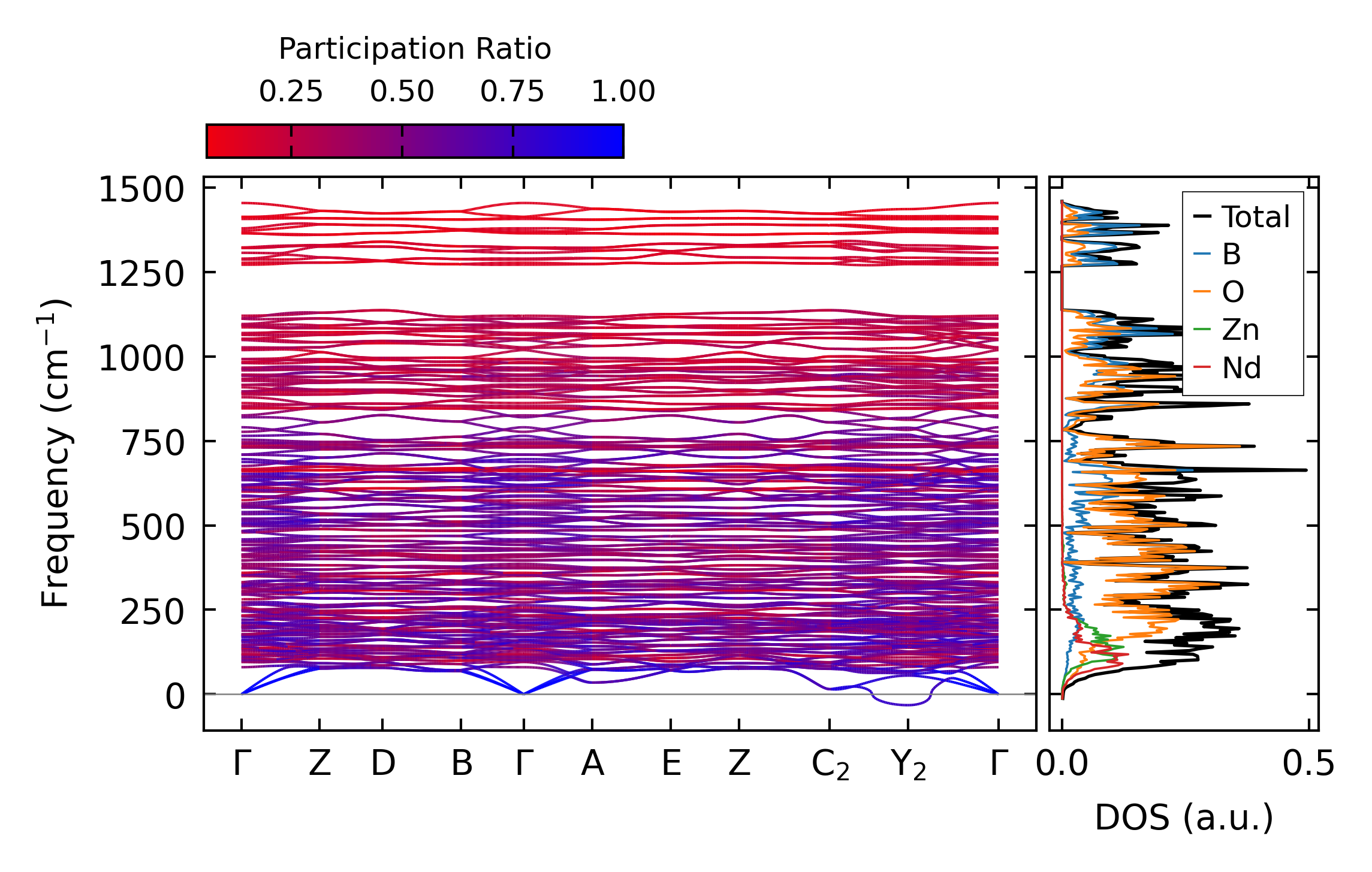

../../_images/fig_bandos_pr14651.png — (a) Phonon dispersion with participation ratio and DOS

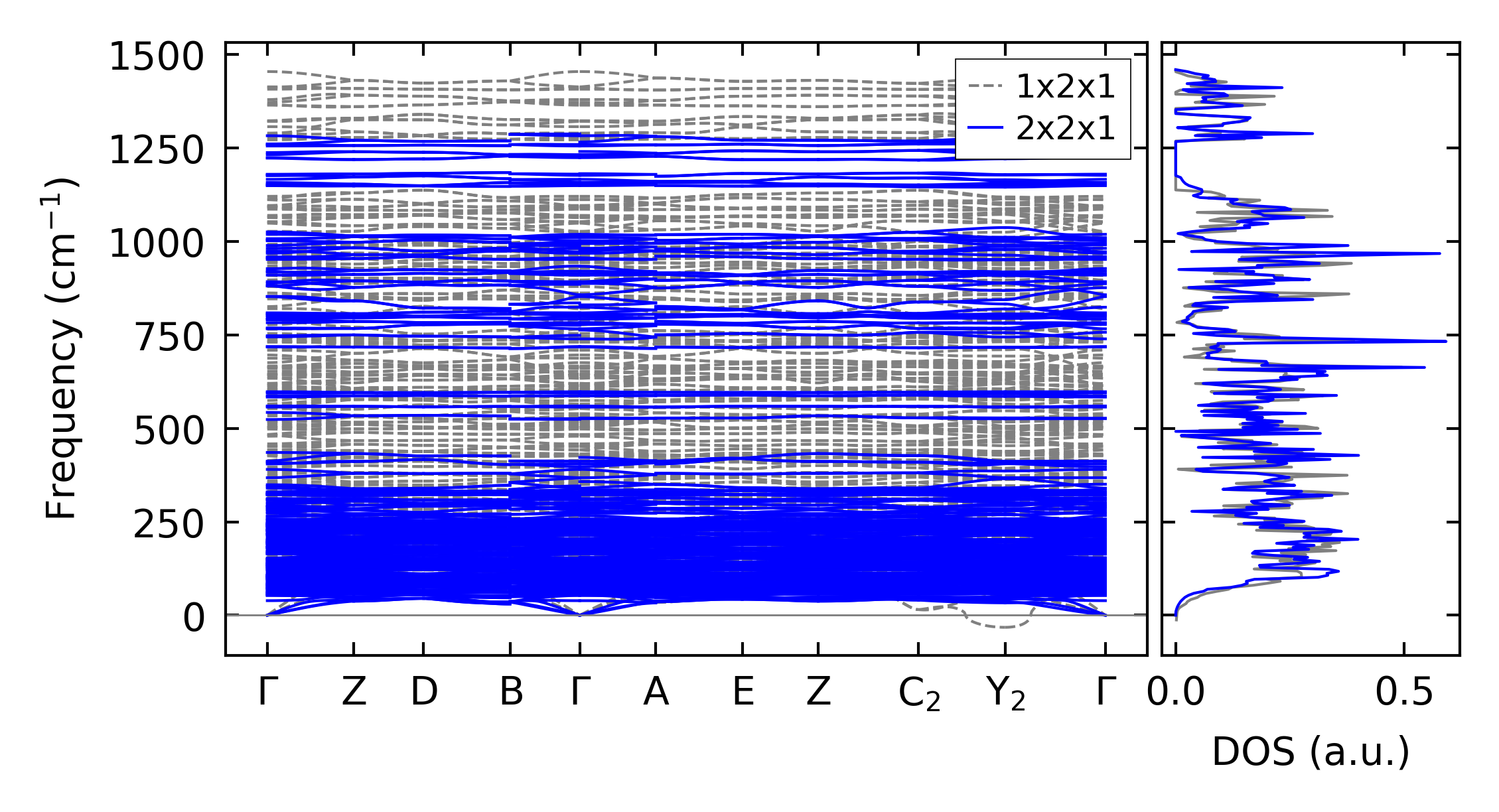

../../_images/fig_bandos19028.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14651.png — (c) Thermodynamic properties

Grüneisen parameters

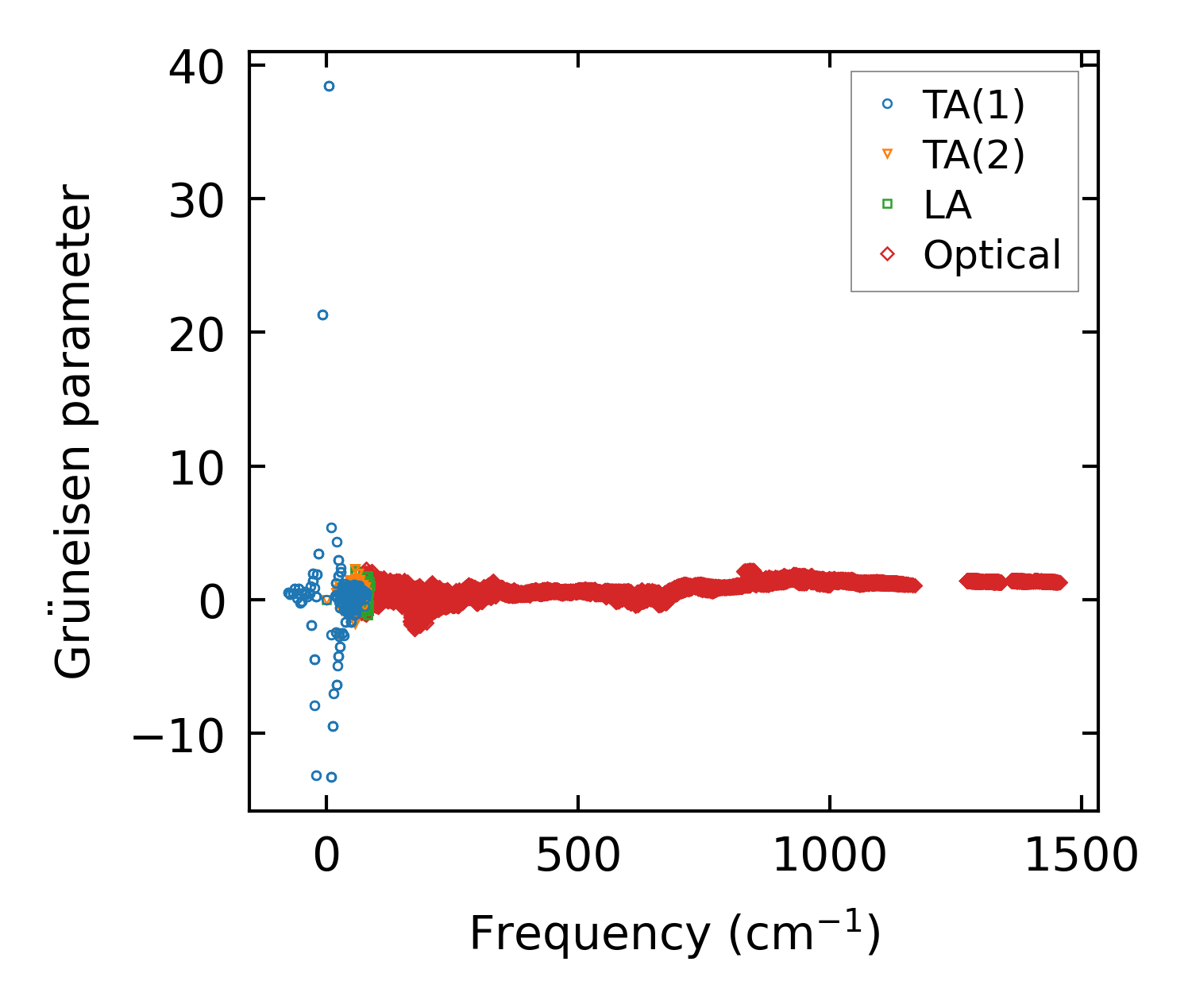

../../_images/fig_gru_all6269.png — (a) Grüneisen parameters

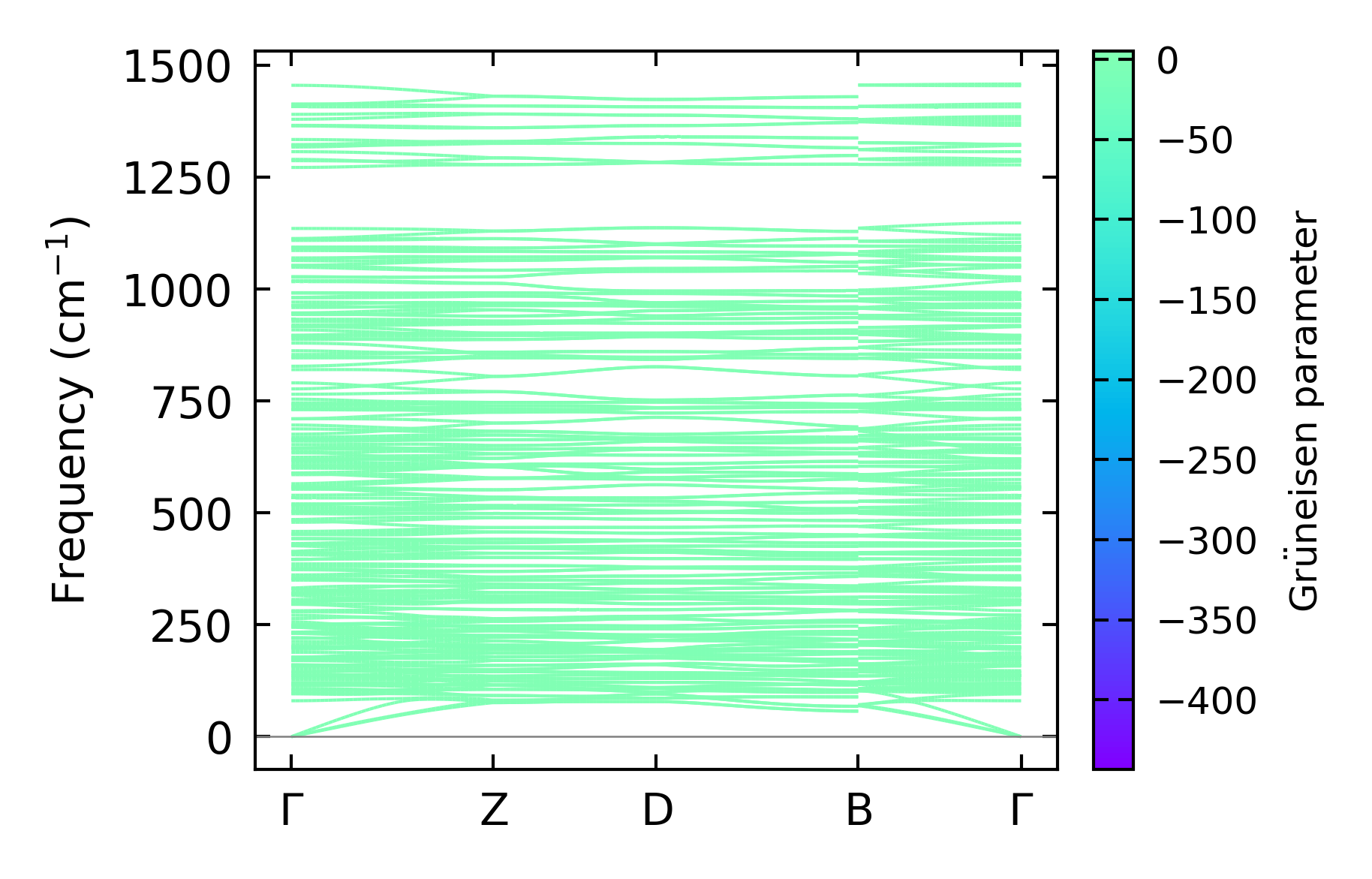

../../_images/fig_gruneisen6269.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x10x6, supercell: 2x2x1

../../_images/fig_kappa11793.png — (a) Temperature-dependent lattice thermal conductivity

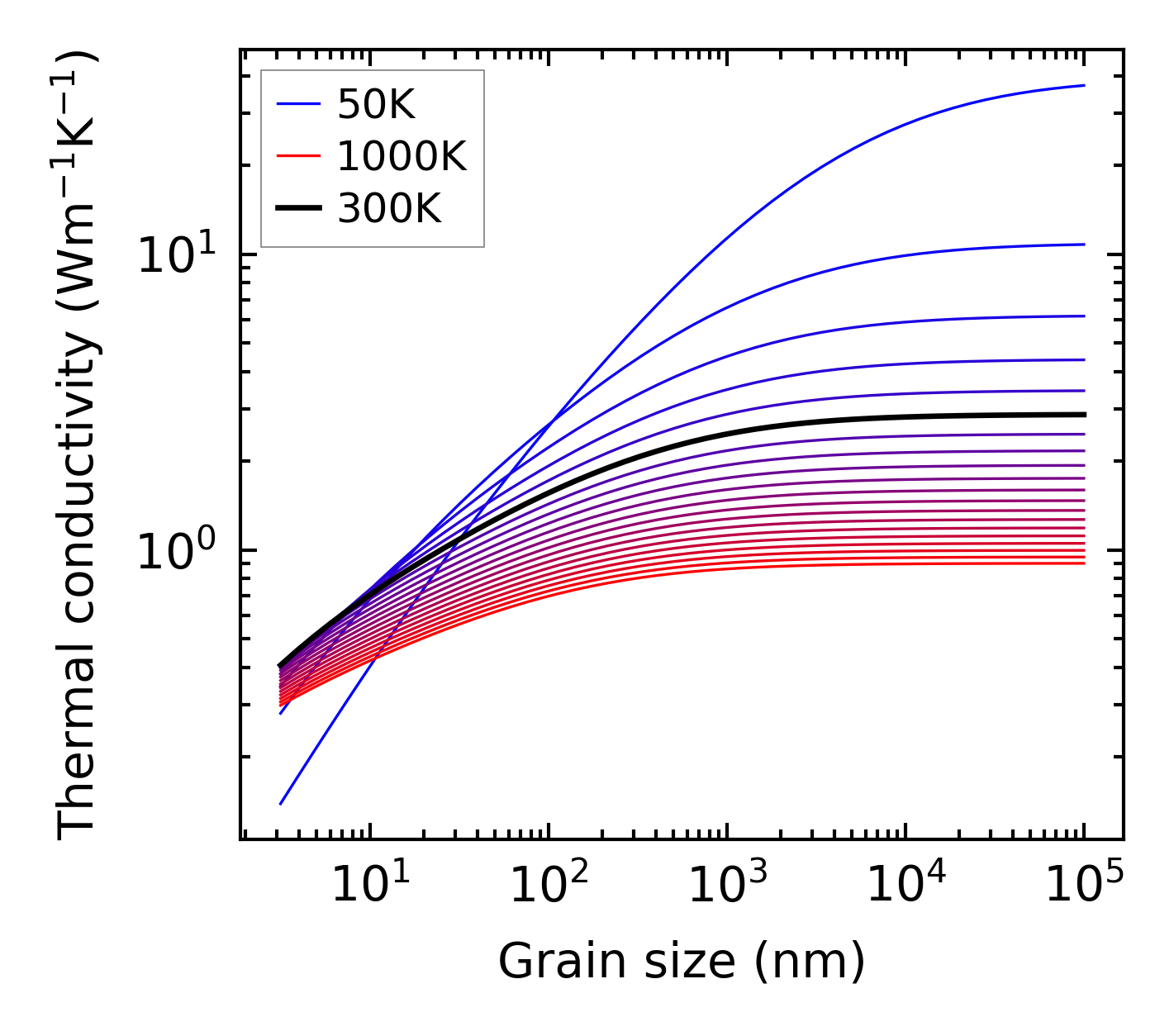

../../_images/fig_kappa_vs_grain_size6346.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

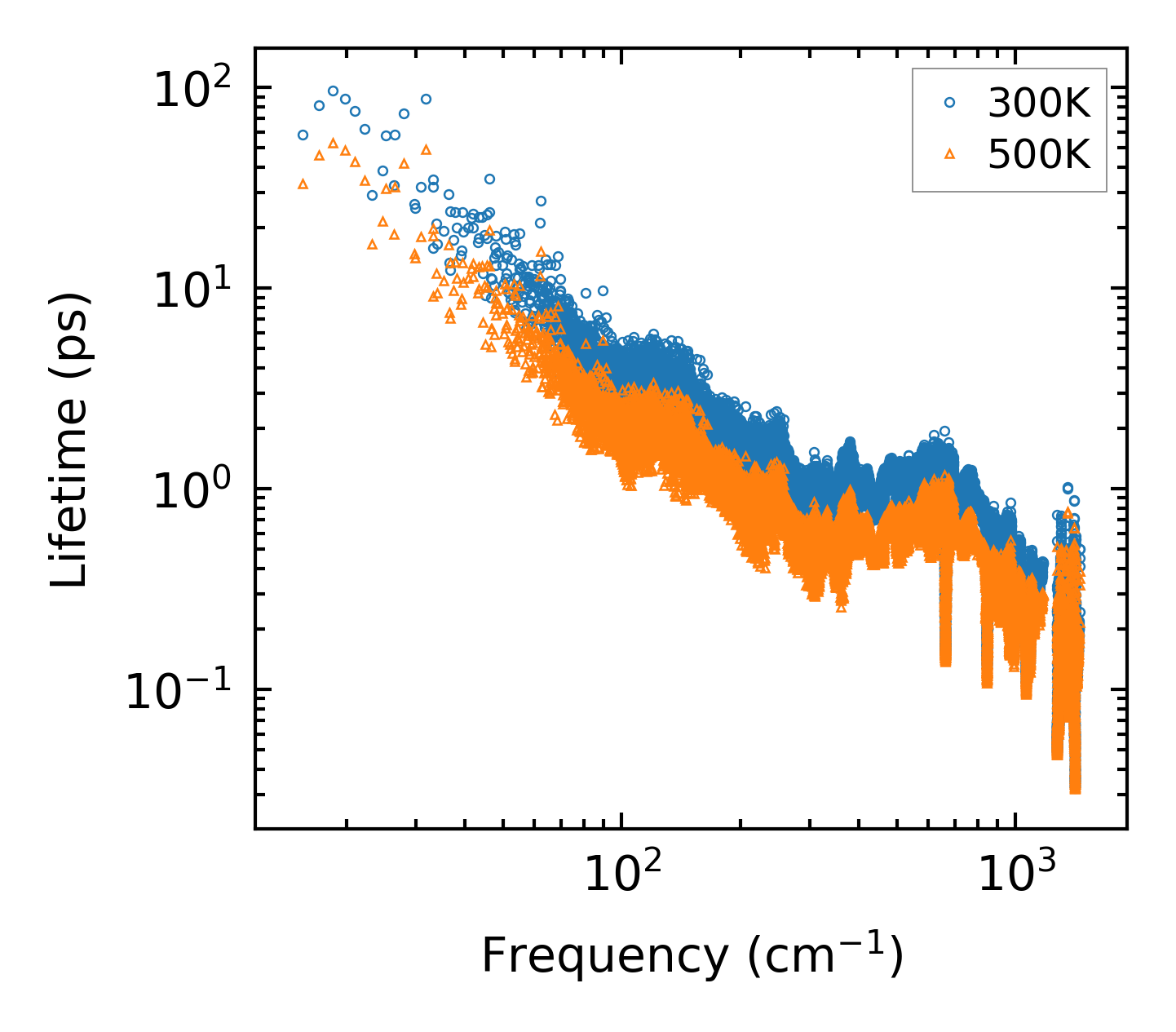

../../_images/fig_lifetime6207.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6206.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

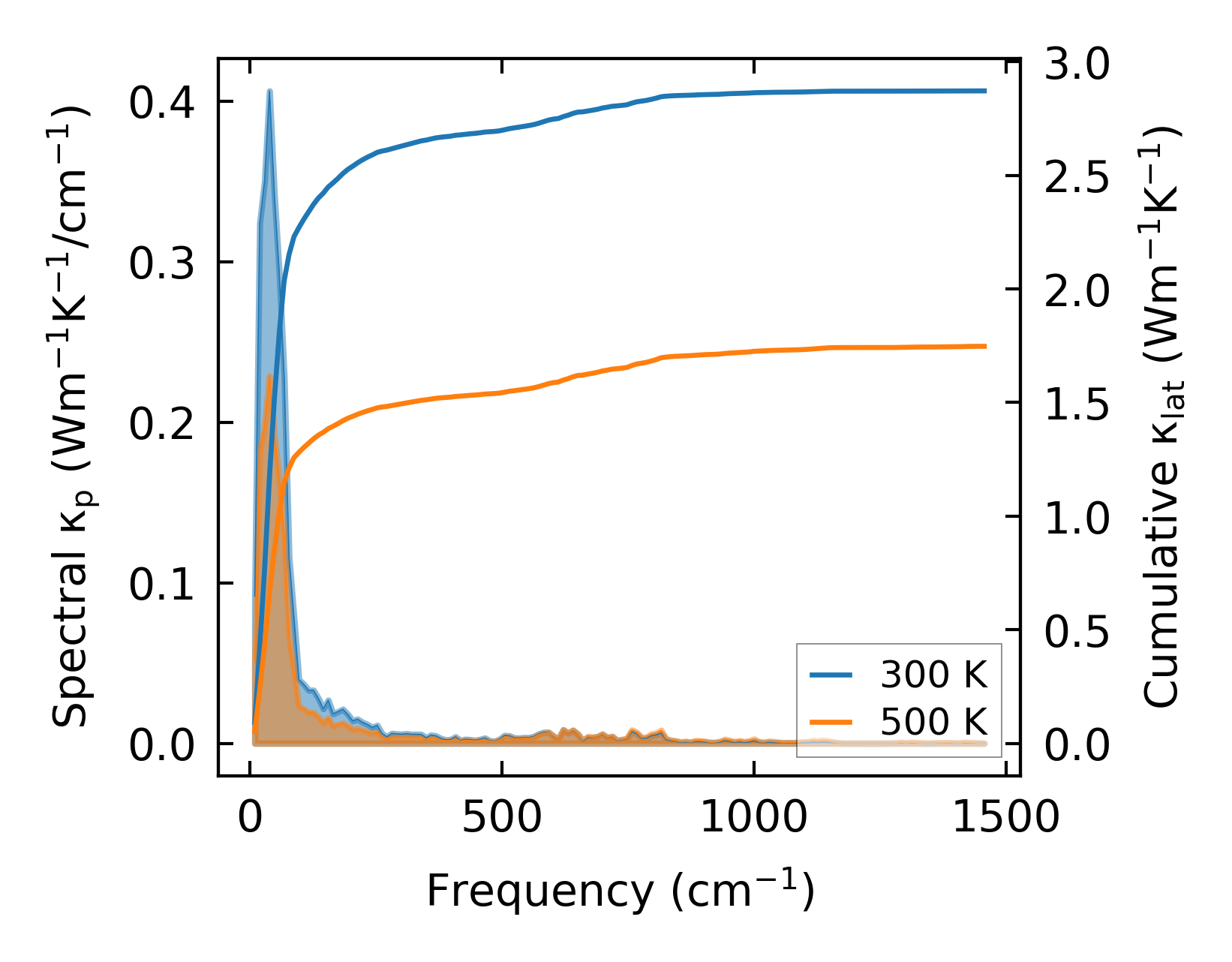

../../_images/fig_cumu_frequency6207.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6206.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214270.png — (a) Force constants w.r.t atomic distance

Summary

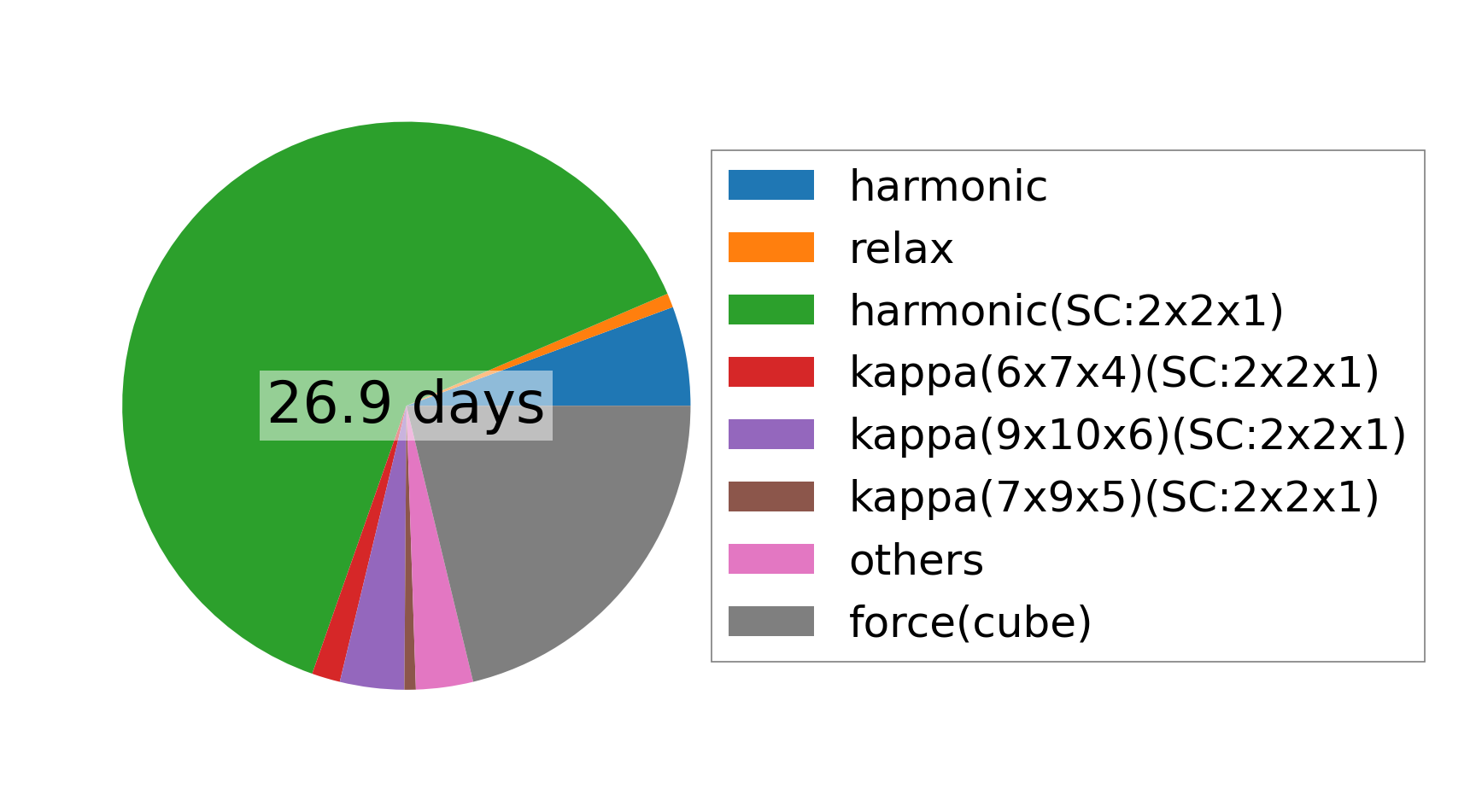

../../_images/fig_times24366.png — (a) Computation time
