mp-15417/K2GaP2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-15417.tar.gz

Harmonic properties

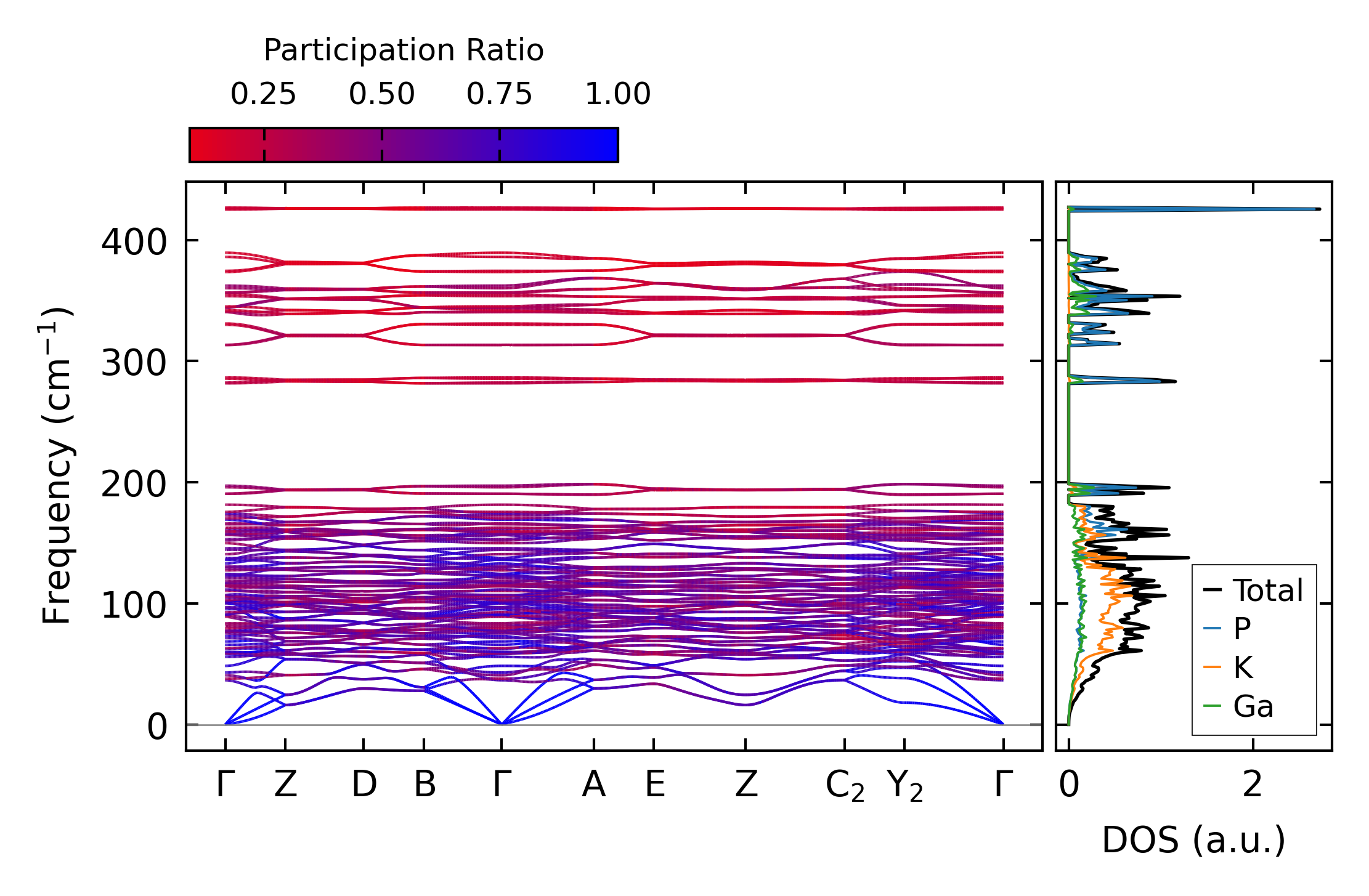

../../_images/fig_bandos_pr14634.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14634.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6259.png — (a) Grüneisen parameters

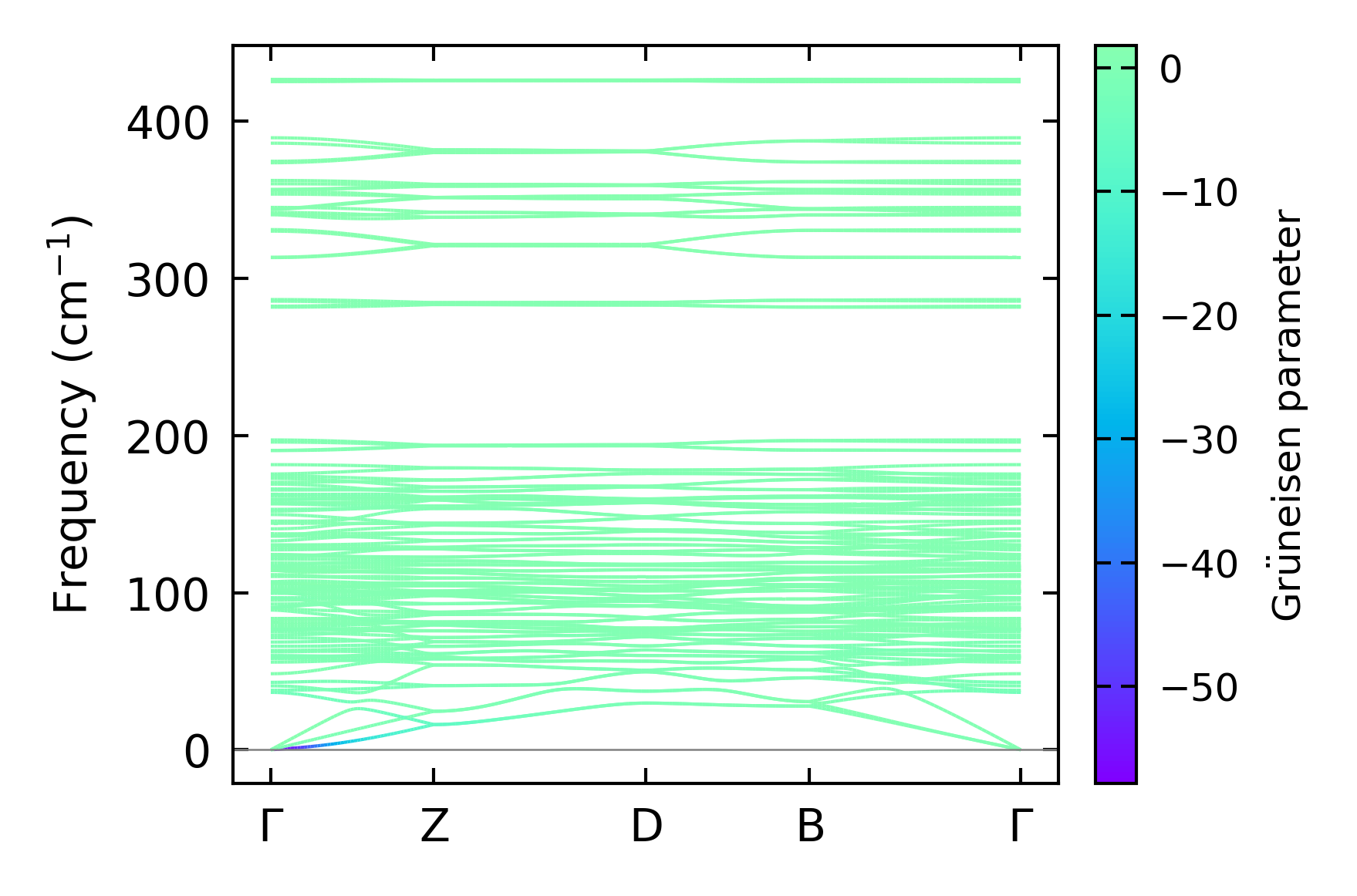

../../_images/fig_gruneisen6259.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x5x6, supercell: 2x1x1

../../_images/fig_kappa11774.png — (a) Temperature-dependent lattice thermal conductivity

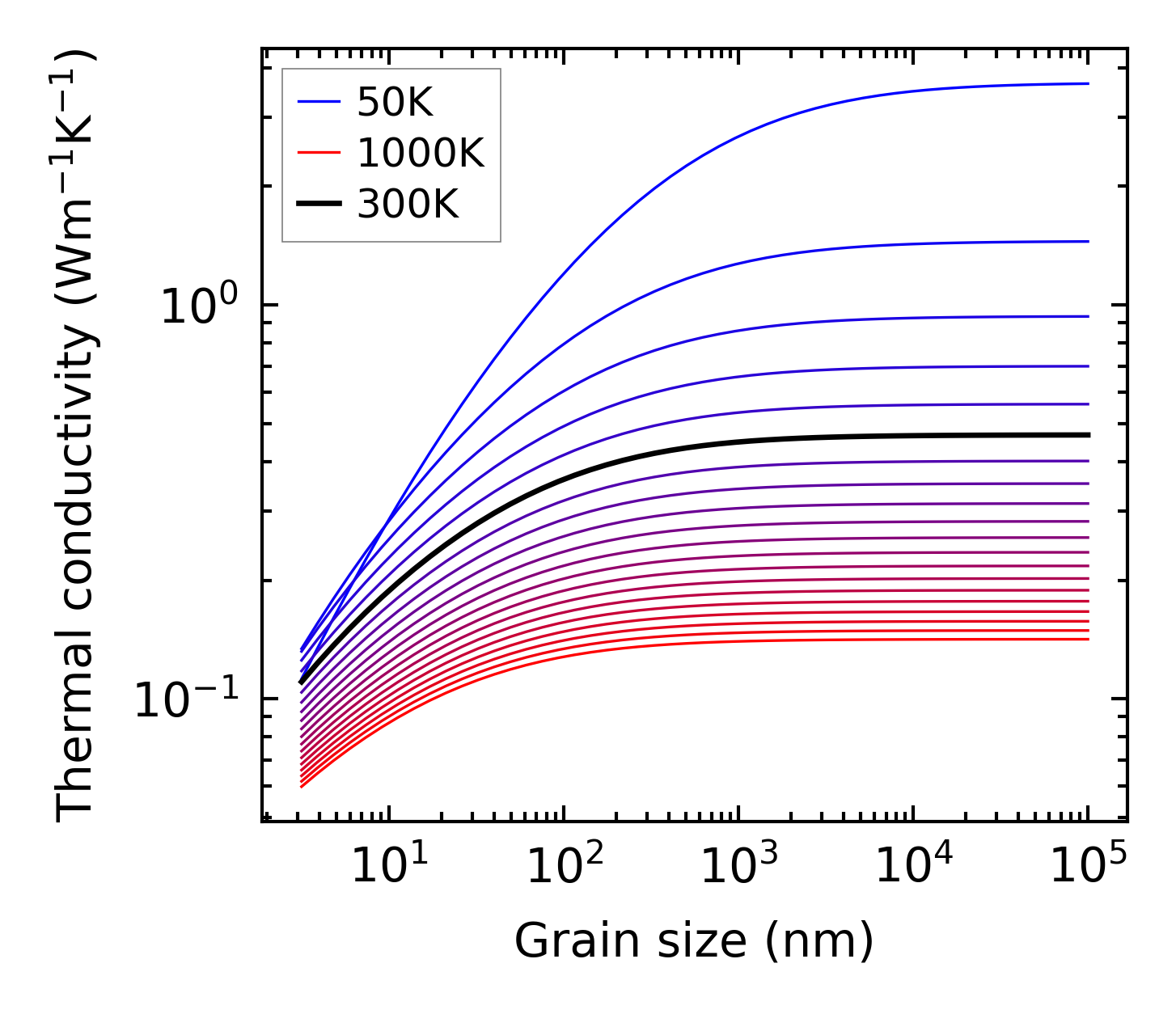

../../_images/fig_kappa_vs_grain_size6336.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

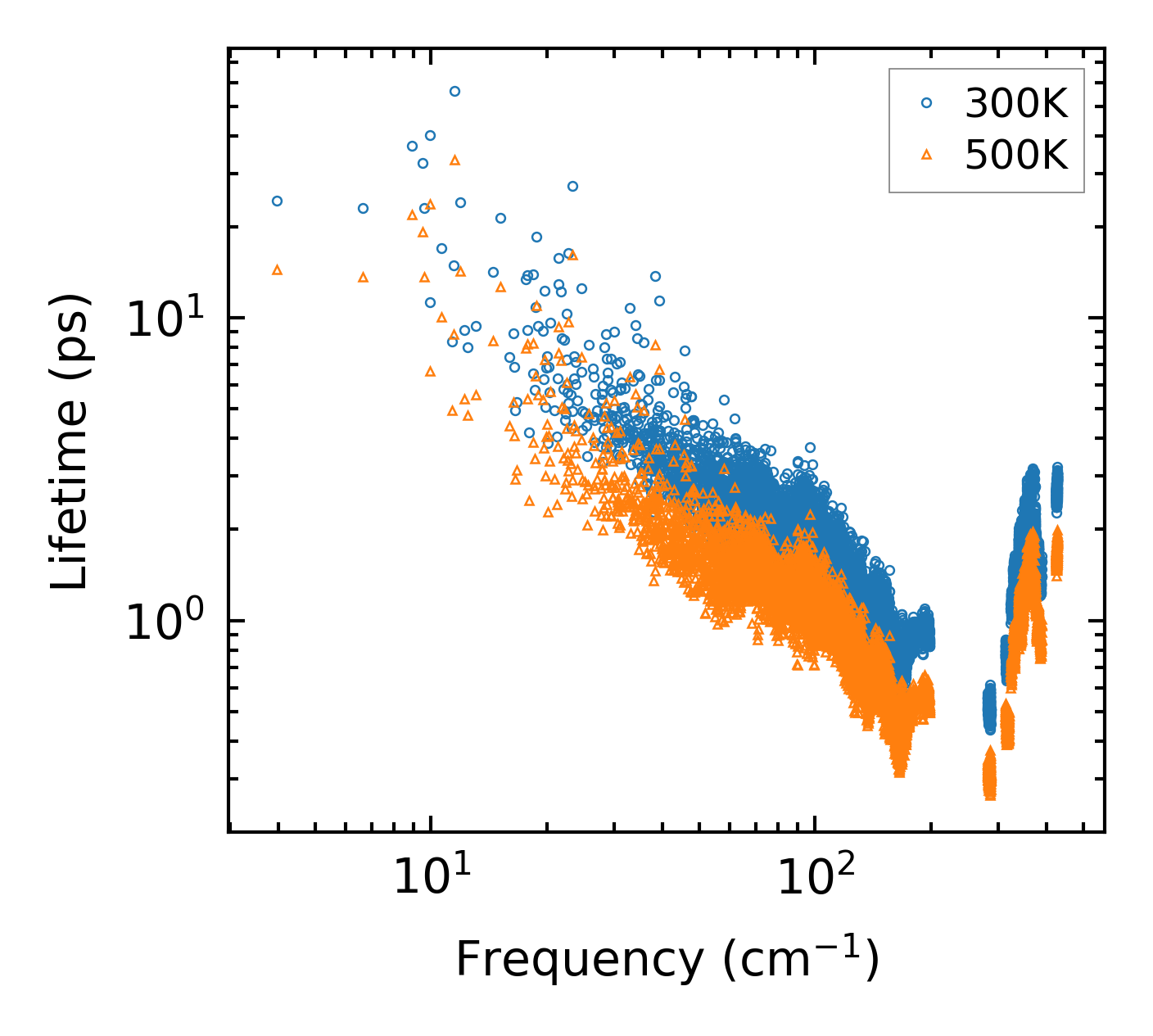

../../_images/fig_lifetime6197.png — (a) Phonon lifetime due to phonon-phonon scattering

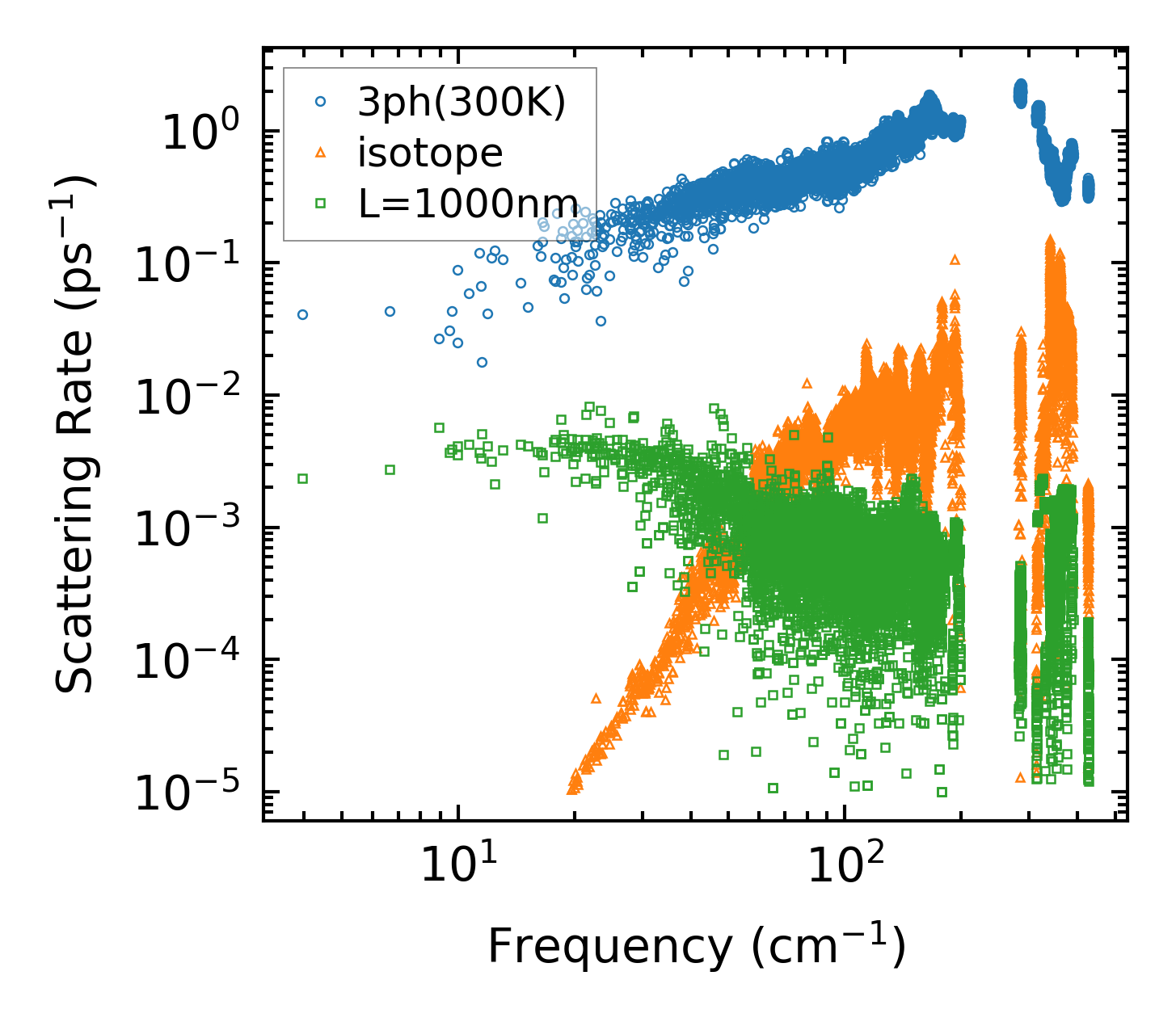

../../_images/fig_scat_rates6196.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

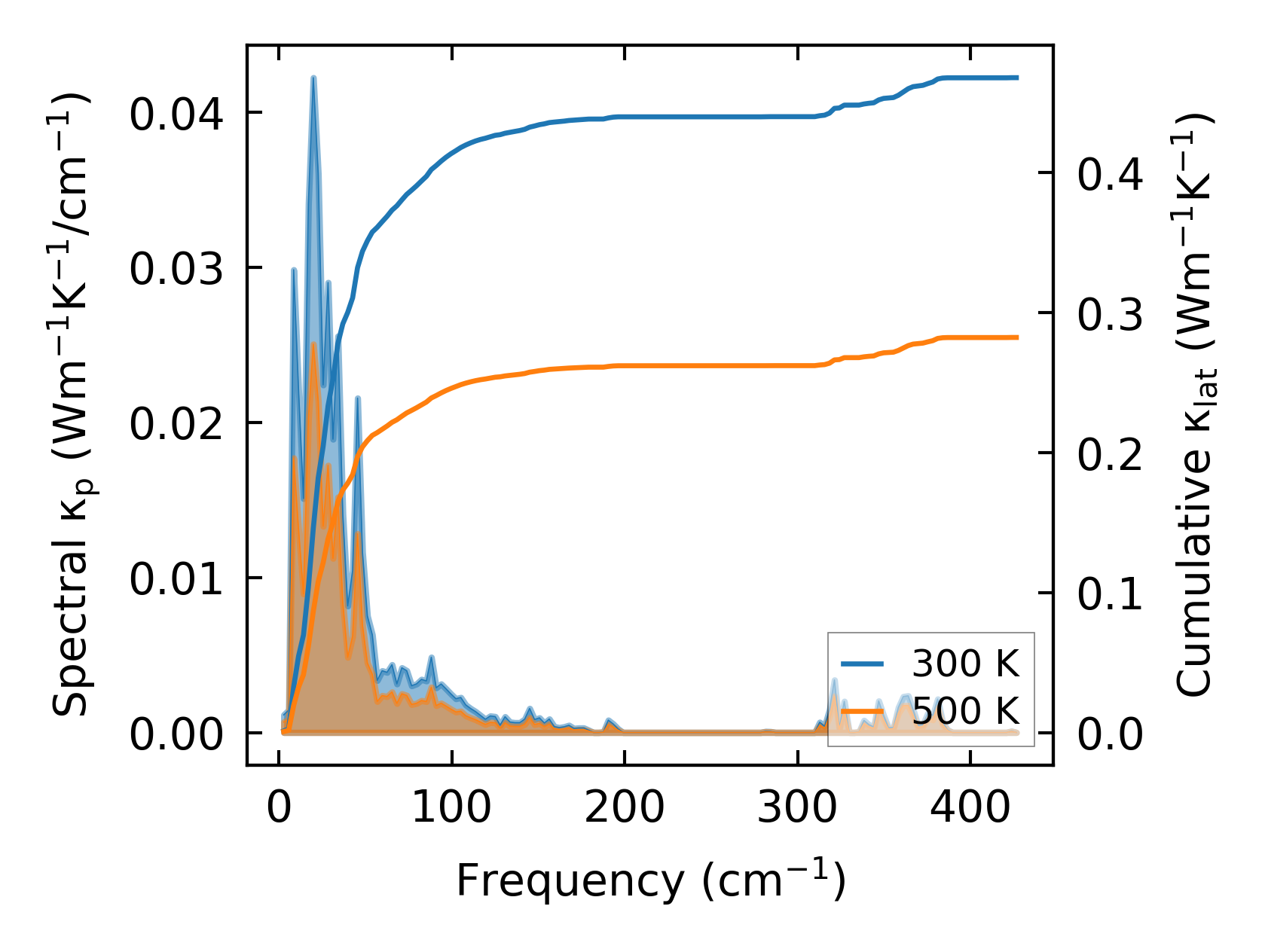

../../_images/fig_cumu_frequency6197.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

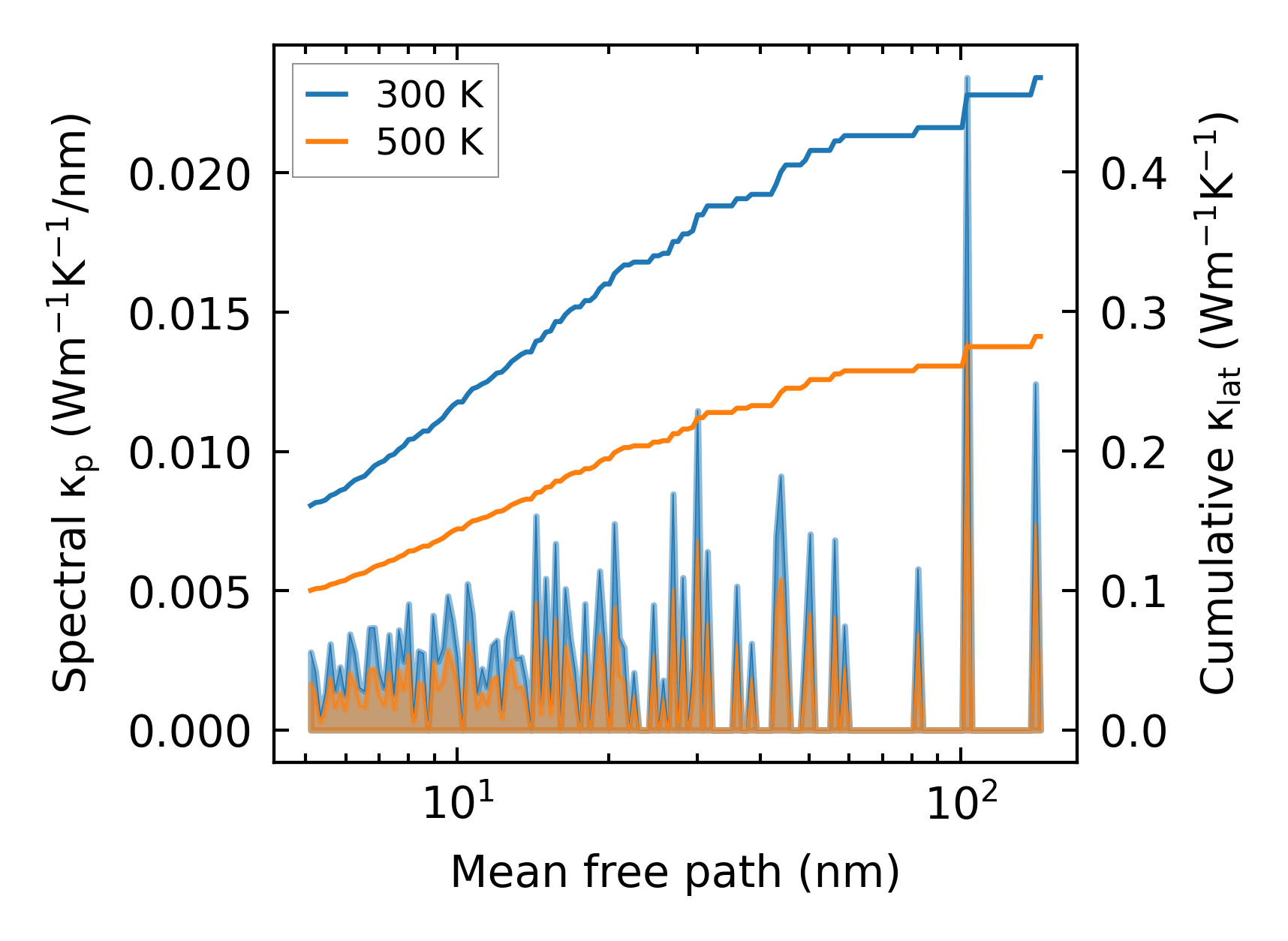

../../_images/fig_cumu_mfp6196.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214253.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11775.png — (a) Temperature-dependent lattice thermal conductivity

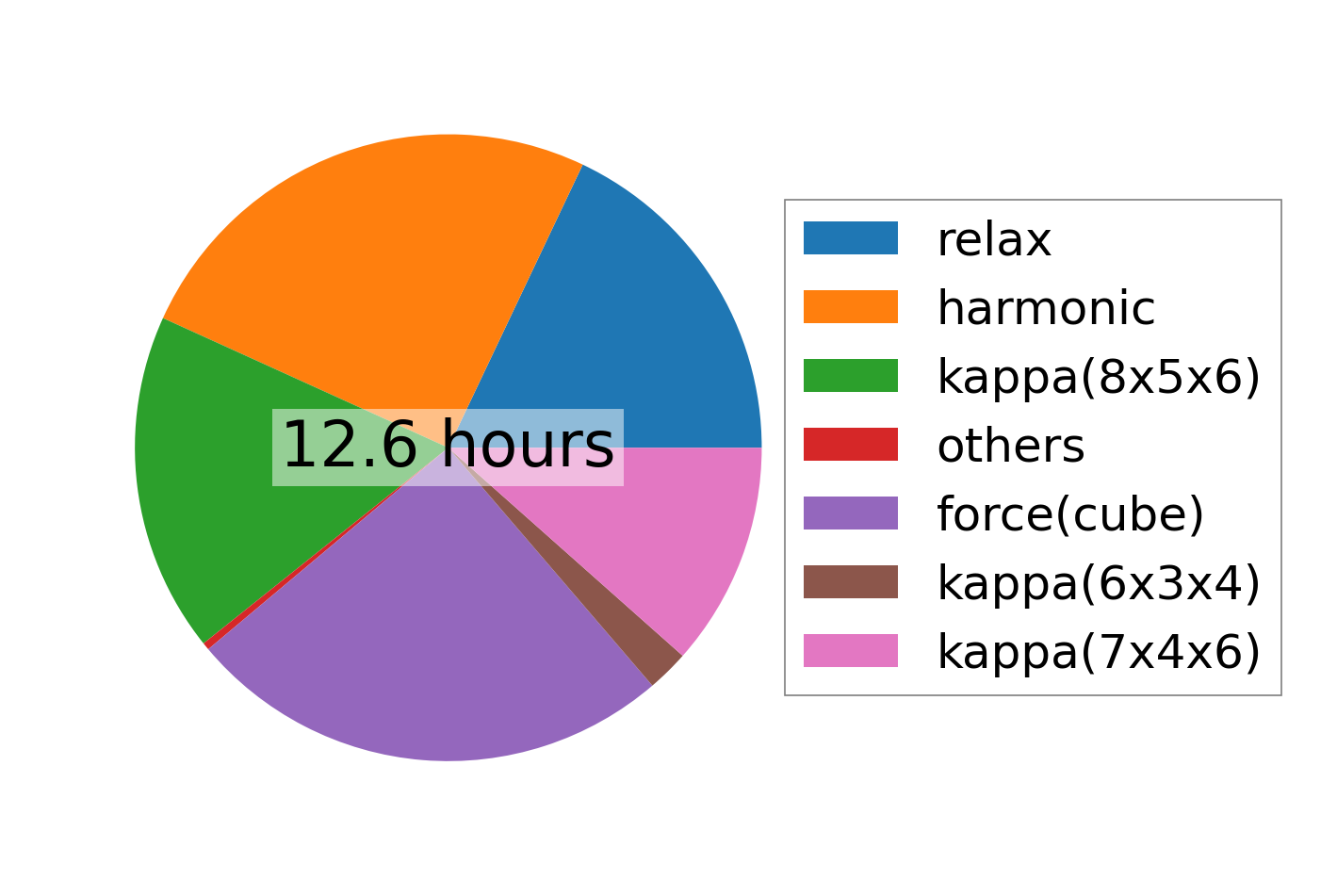

../../_images/fig_times24344.png — (b) Computation time
