mp-15777-2/ZnGa2Te4/anharm

Space group: I-4 (82)
Link: Materials Project
Download: mp-15777-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14329.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14329.png — (b) Thermodynamic properties

Grüneisen parameters

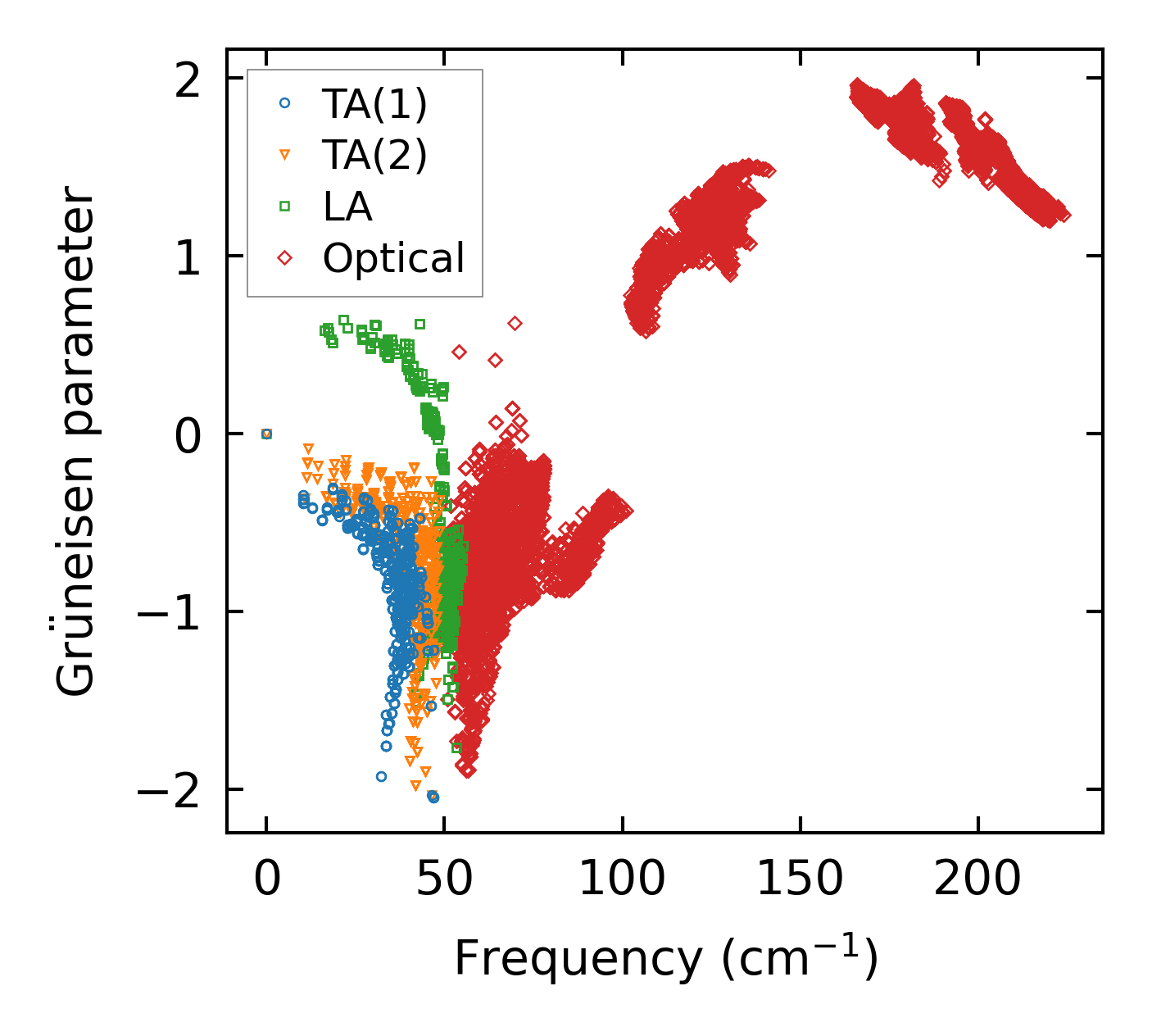

../../_images/fig_gru_all6103.png — (a) Grüneisen parameters

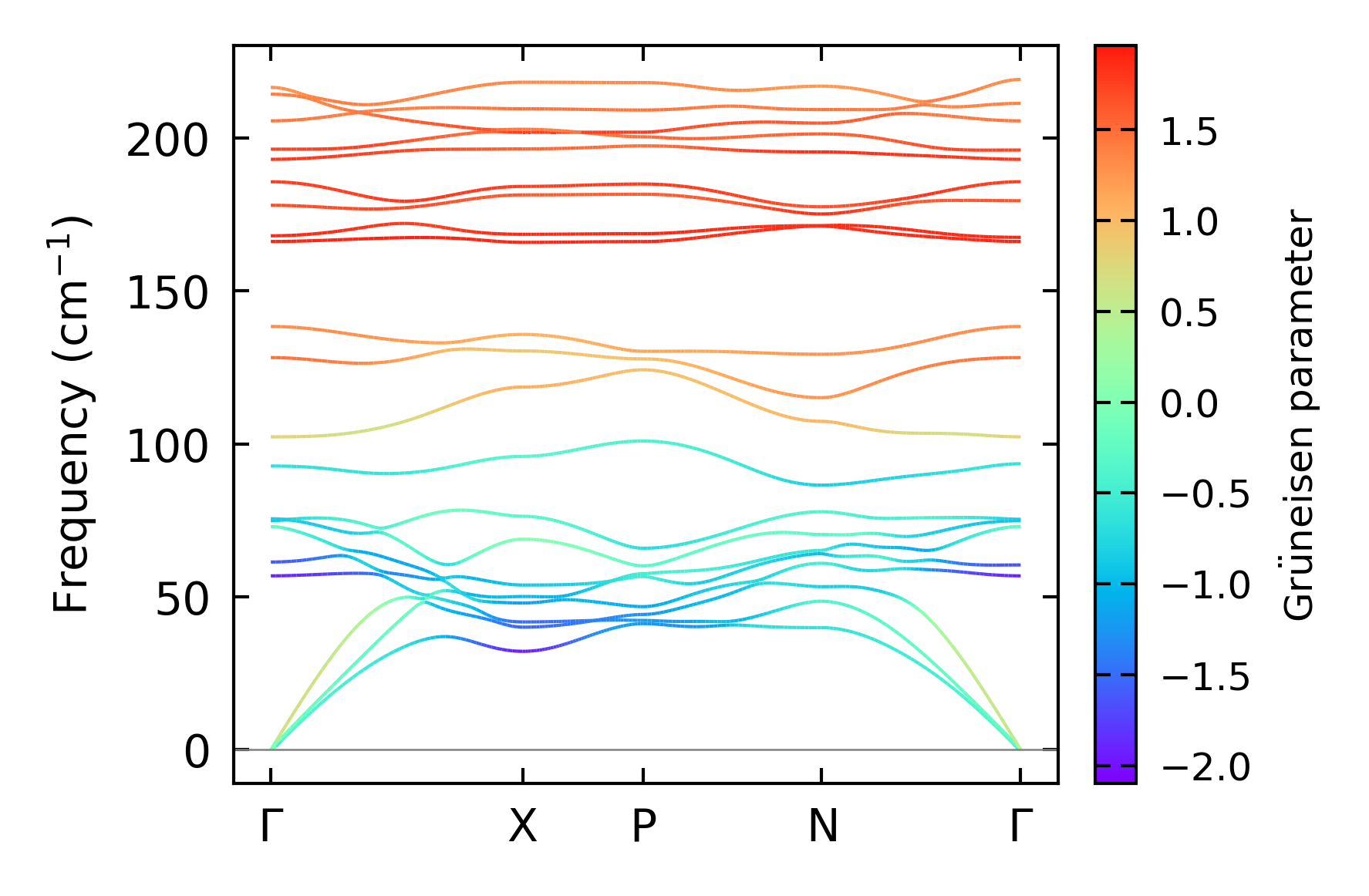

../../_images/fig_gruneisen6103.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

../../_images/fig_kappa11478.png — (a) Temperature-dependent lattice thermal conductivity

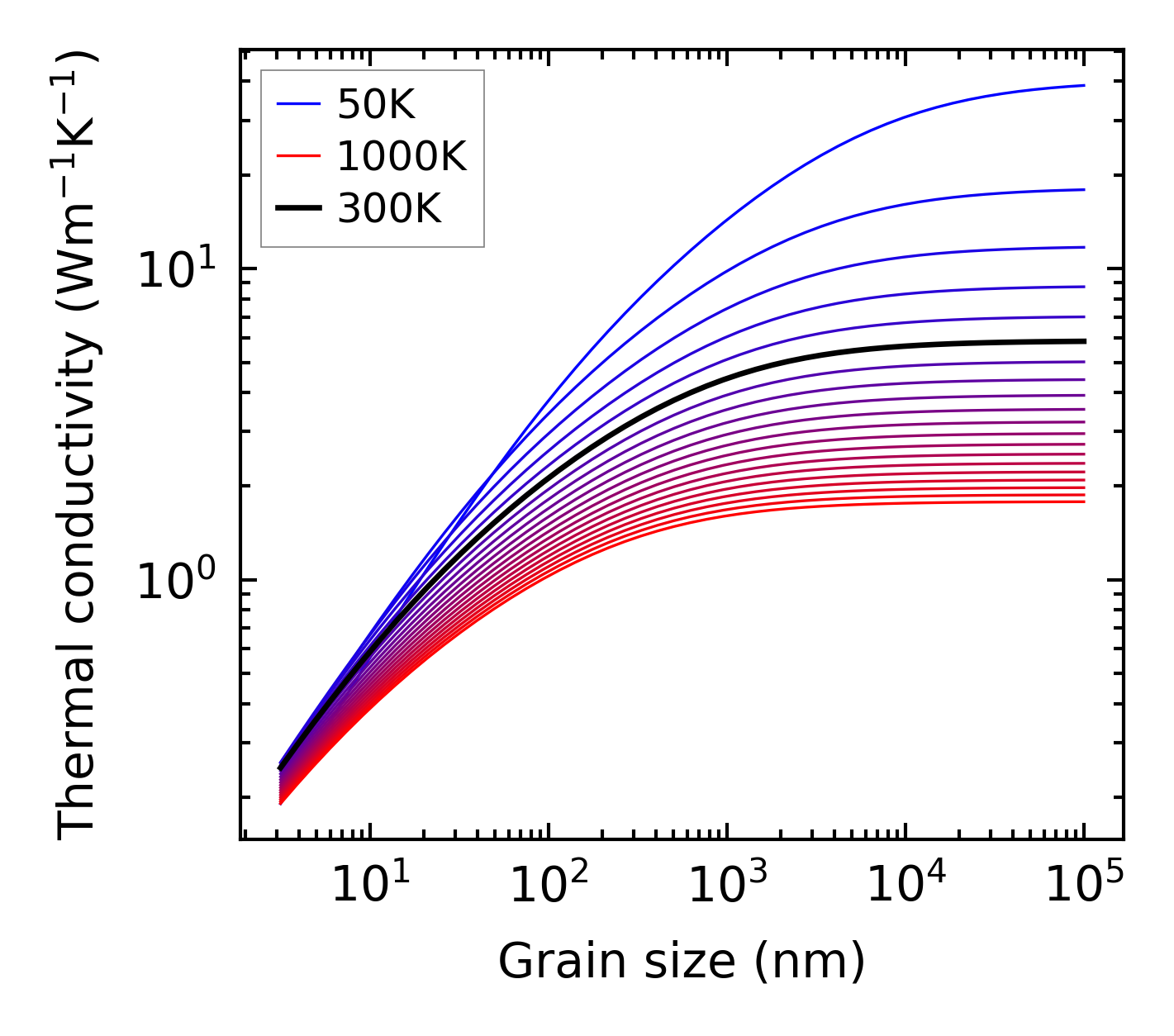

../../_images/fig_kappa_vs_grain_size6181.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6042.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6041.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

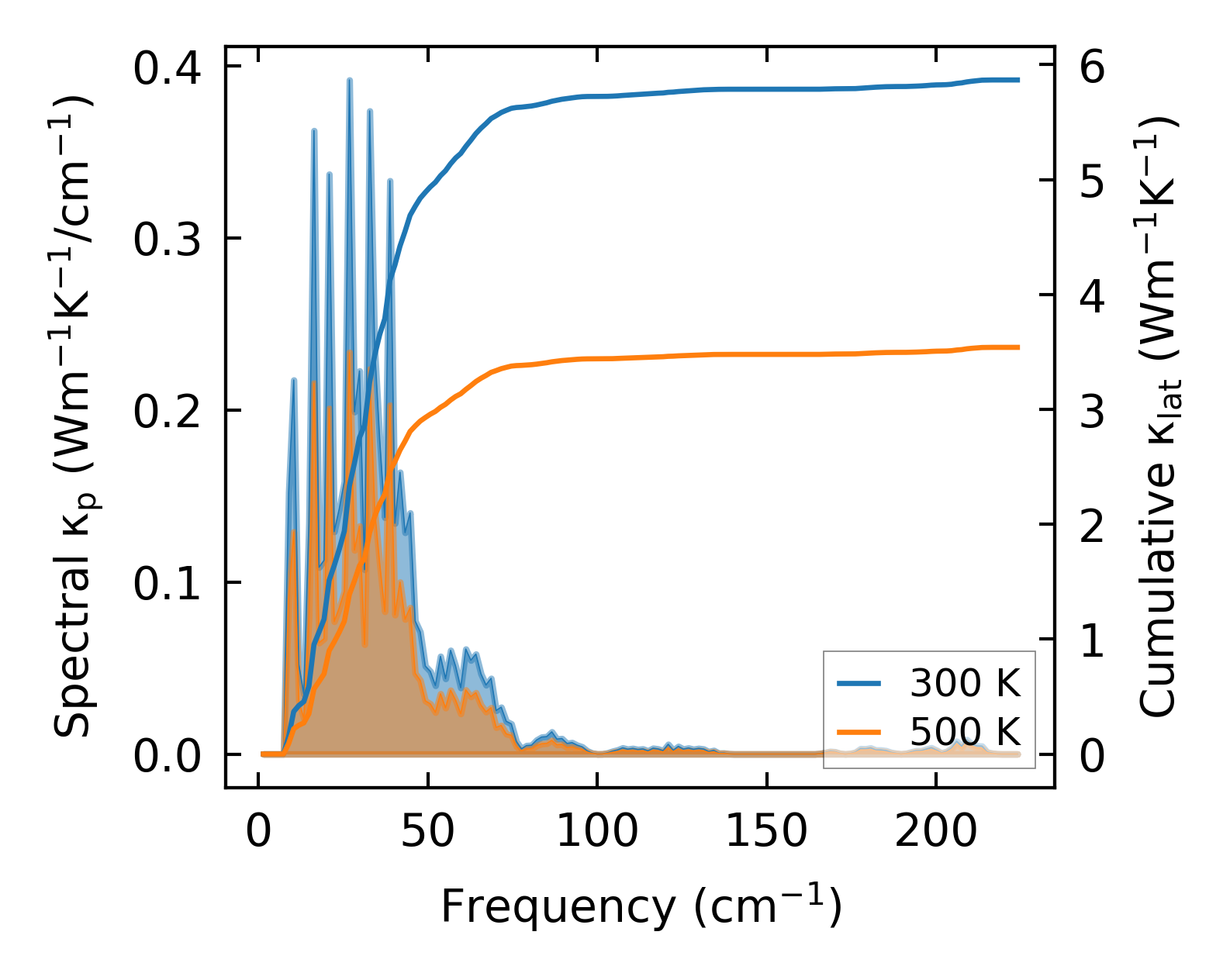

../../_images/fig_cumu_frequency6042.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

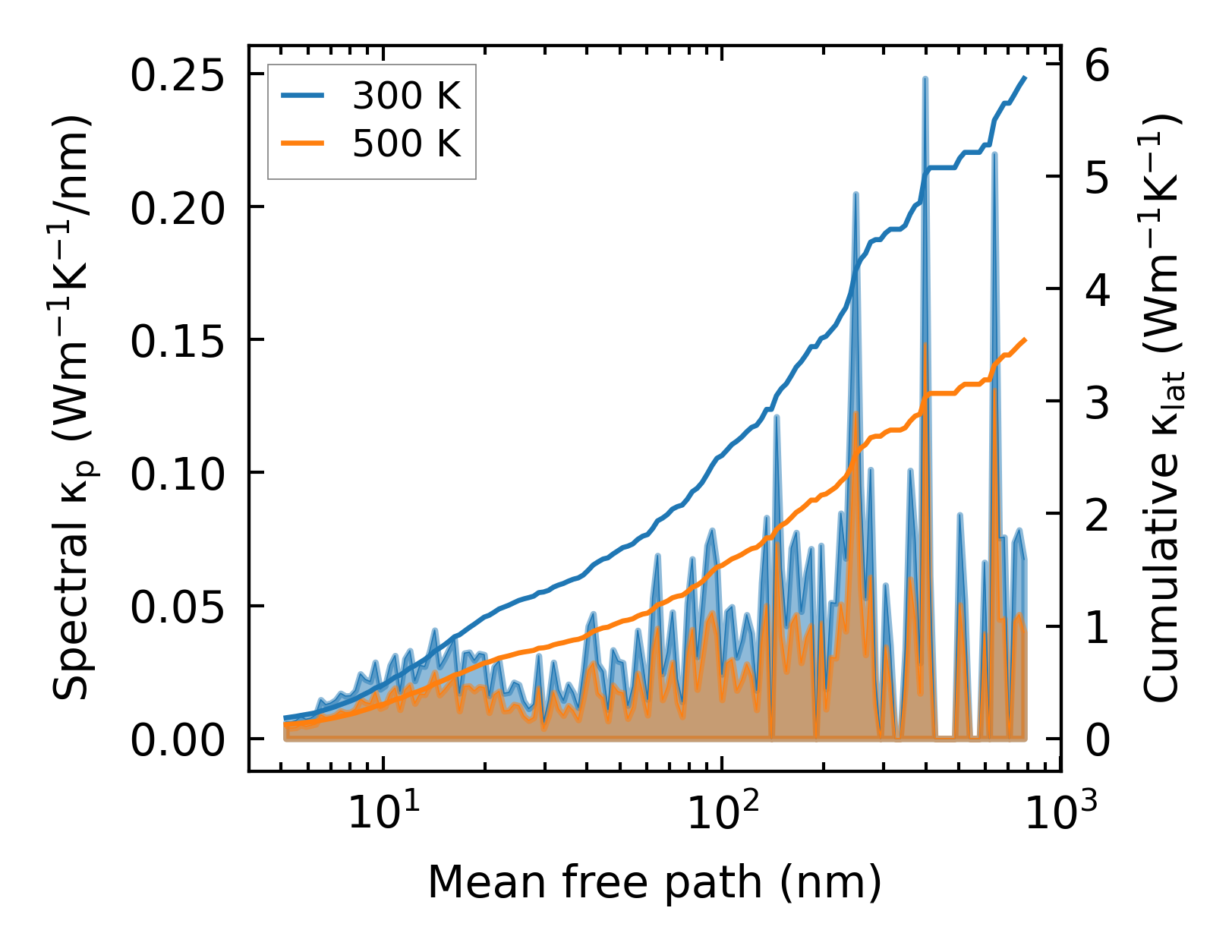

../../_images/fig_cumu_mfp6041.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

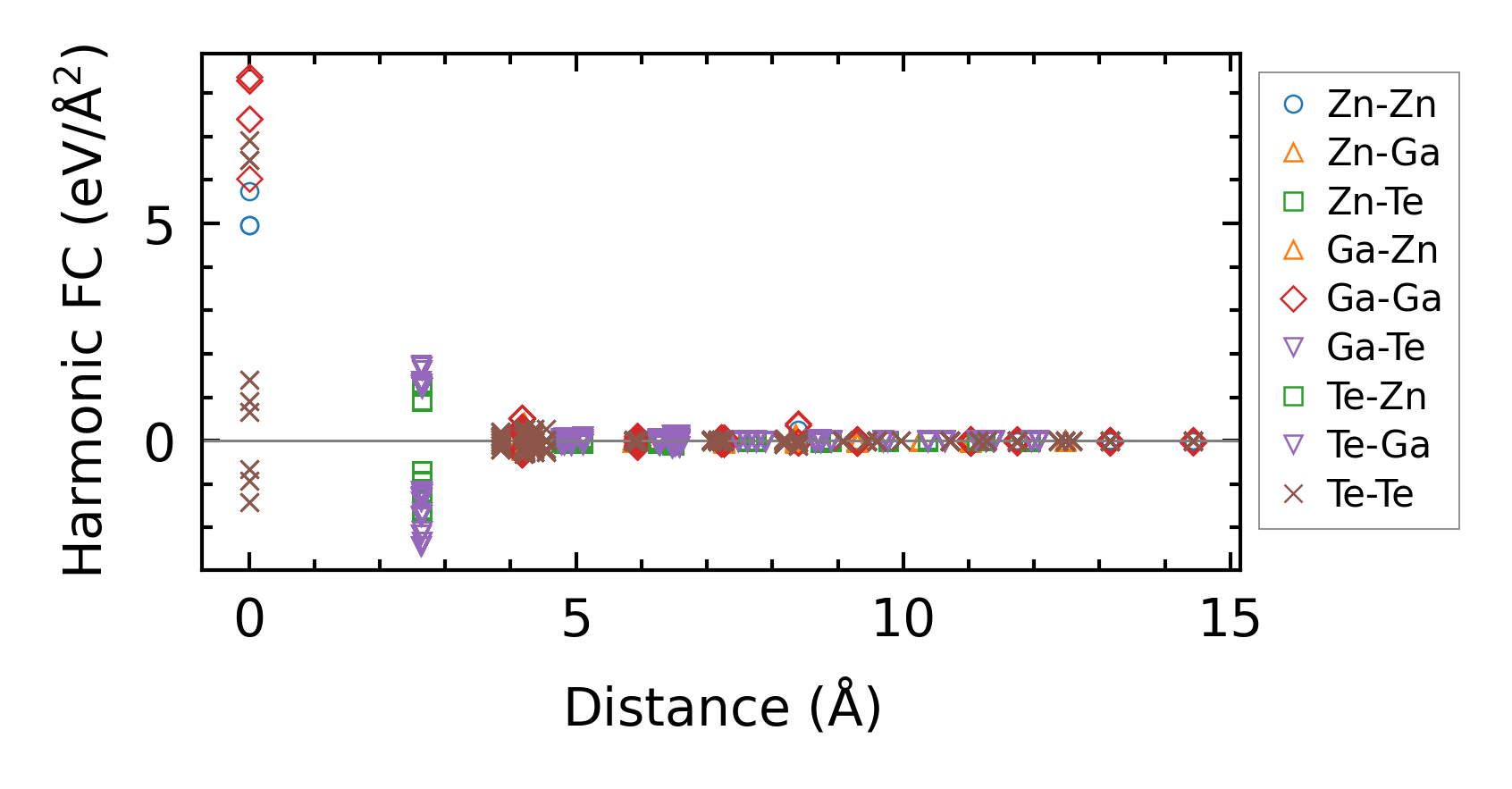

../../_images/fig_fc213956.png — (a) Force constants w.r.t atomic distance

Summary

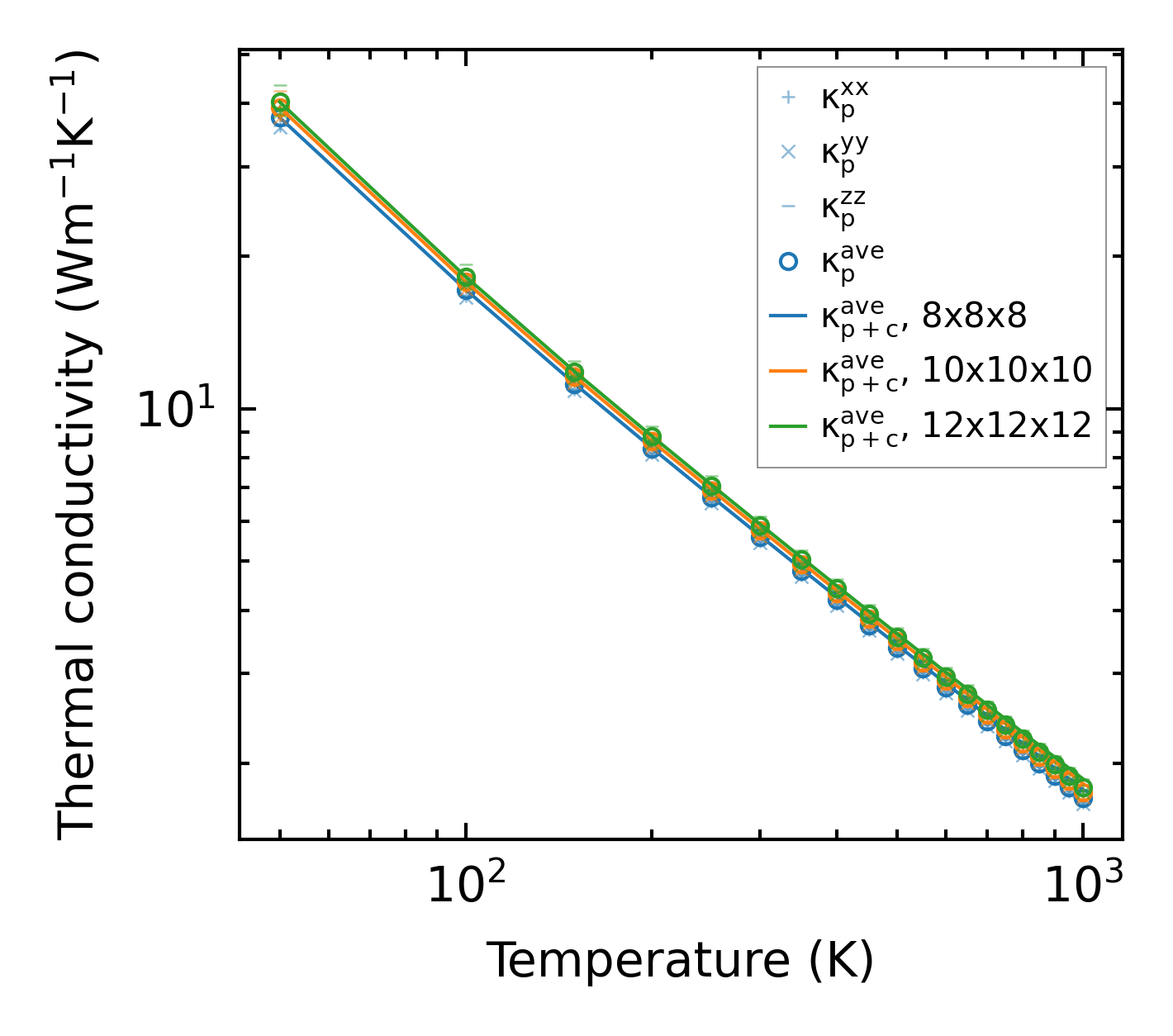

../../_images/fig_kappa11479.png — (a) Temperature-dependent lattice thermal conductivity

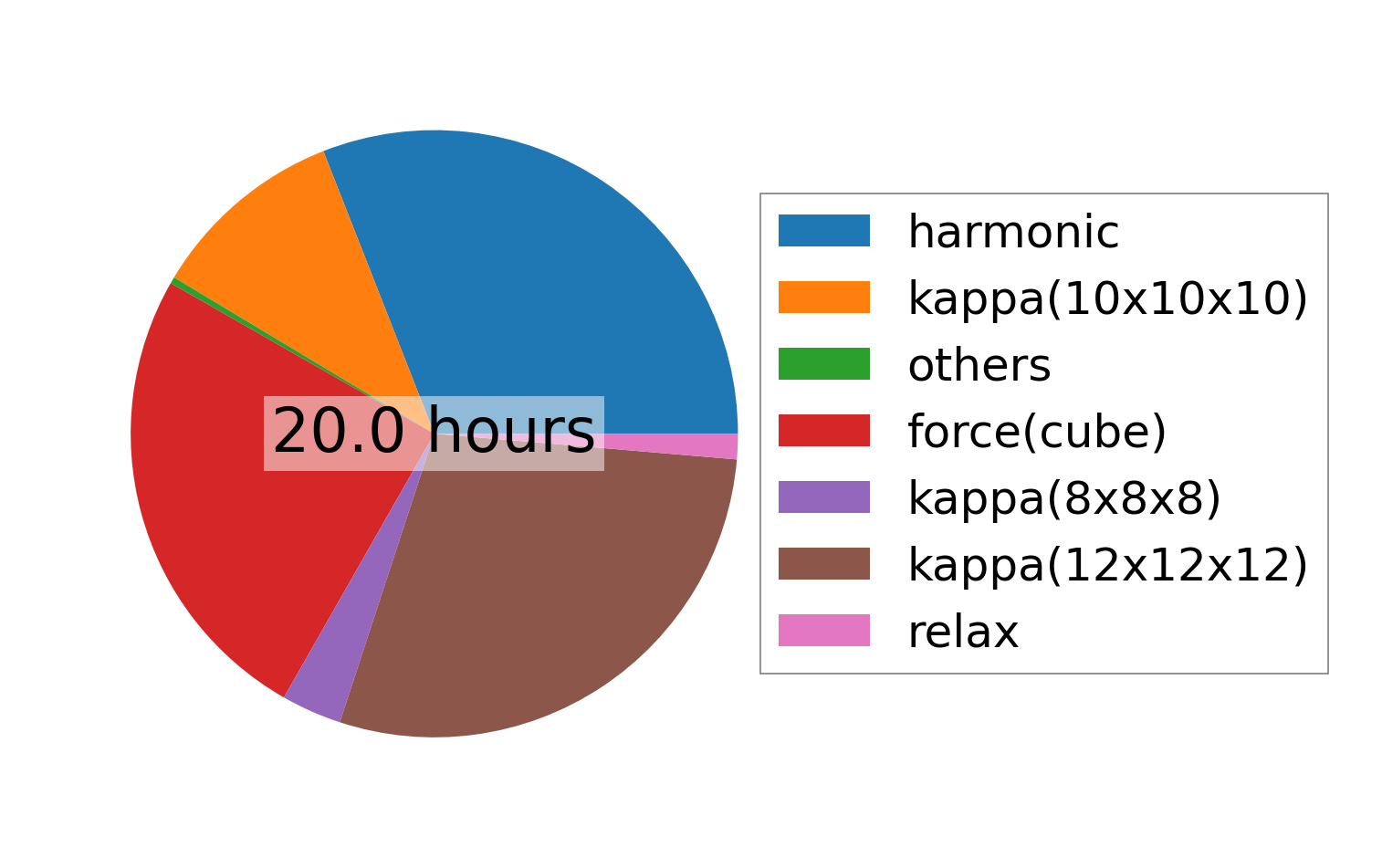

../../_images/fig_times23920.png — (b) Computation time
