mp-15702-2/MgCN2/anharm

Space group: I-42d (122)
Link: Materials Project
Download: mp-15702-2.tar.gz

Equation of state

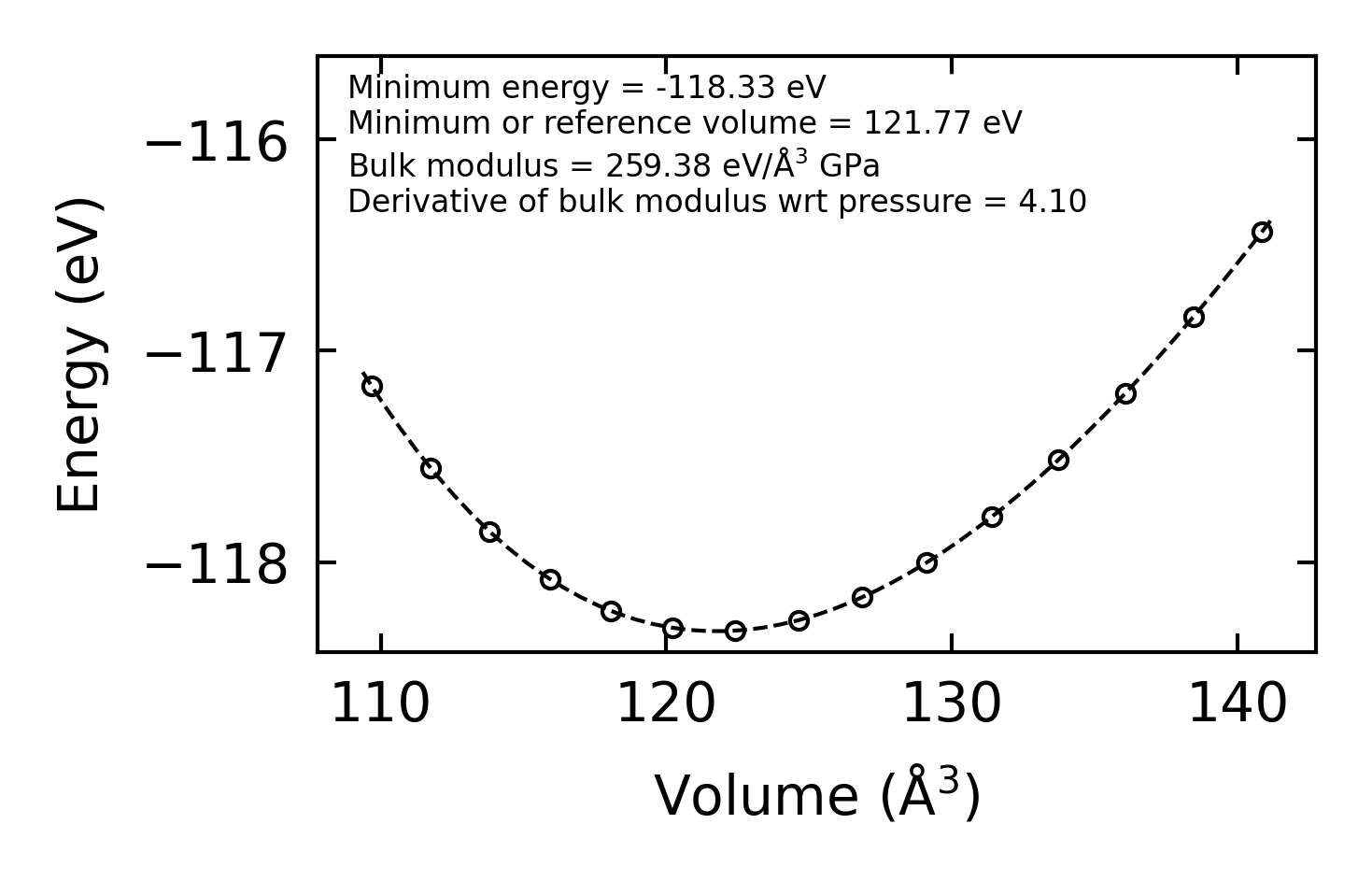

../../_images/fig_bm7170.png — (a) Equation of state

Harmonic properties

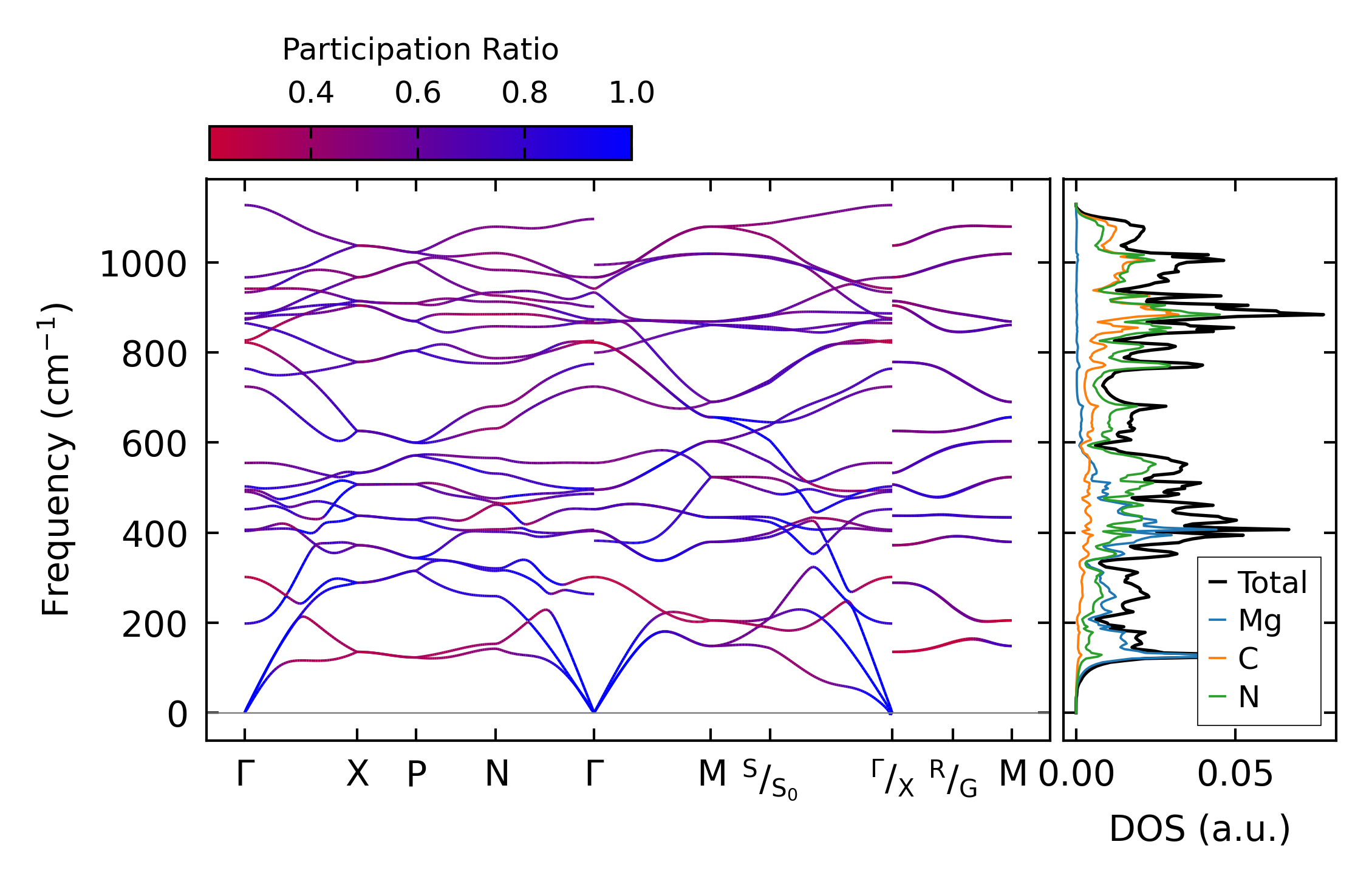

../../_images/fig_bandos_pr14313.png — (a) Phonon dispersion with participation ratio and DOS

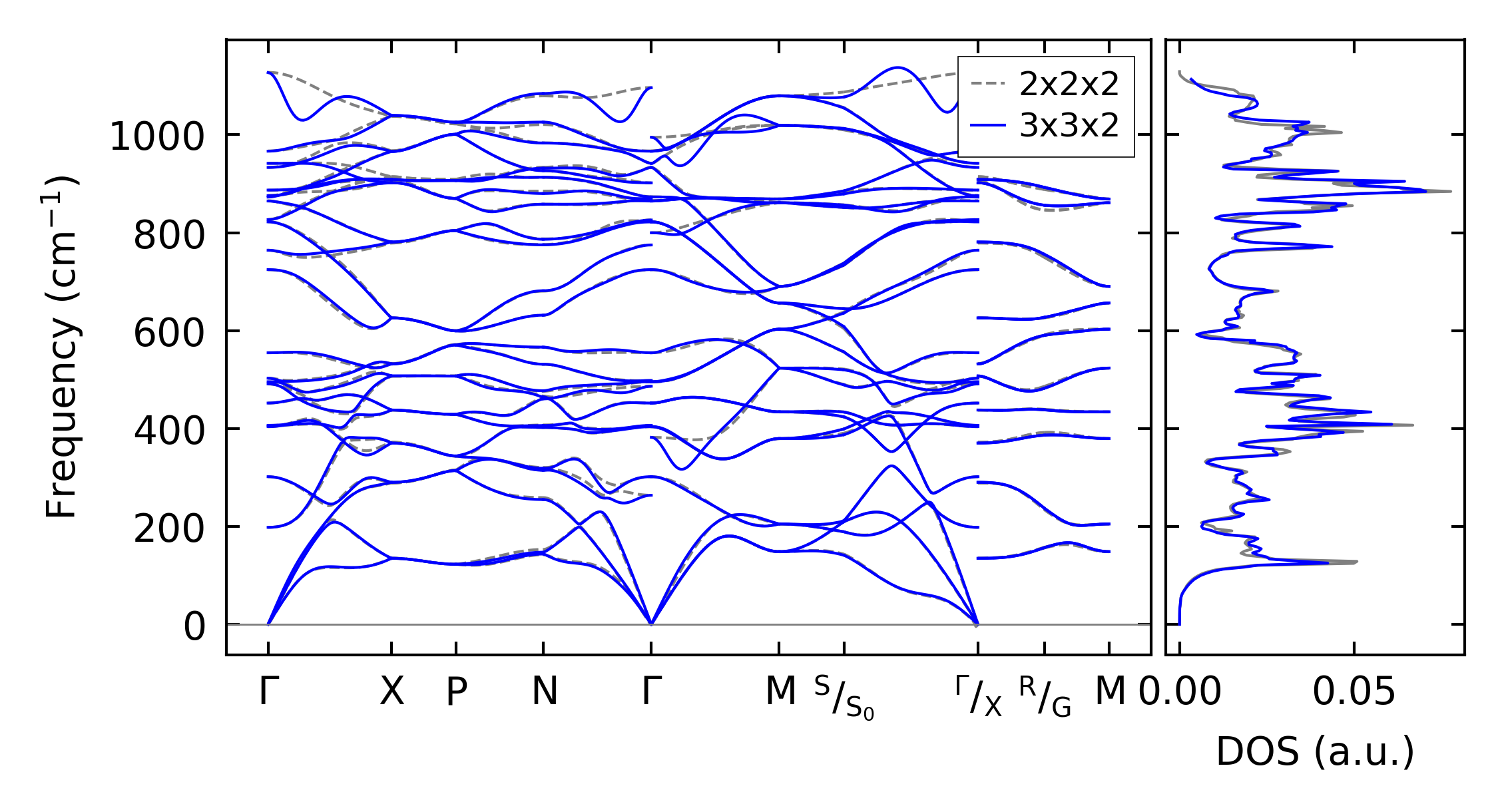

../../_images/fig_bandos18712.png — (b) Phonon dispersion and DOS

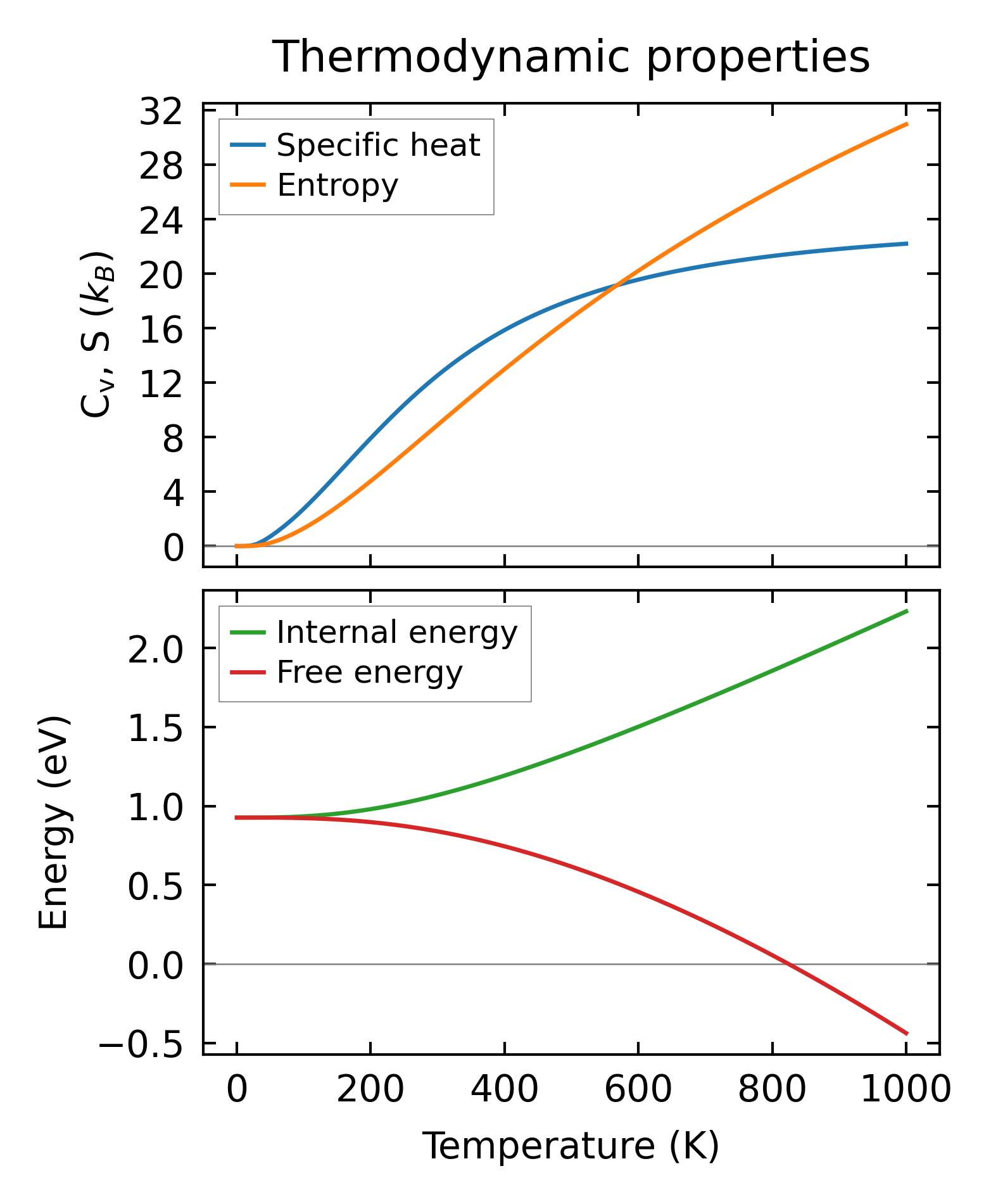

../../_images/fig_thermo14313.png — (c) Thermodynamic properties

Grüneisen parameters

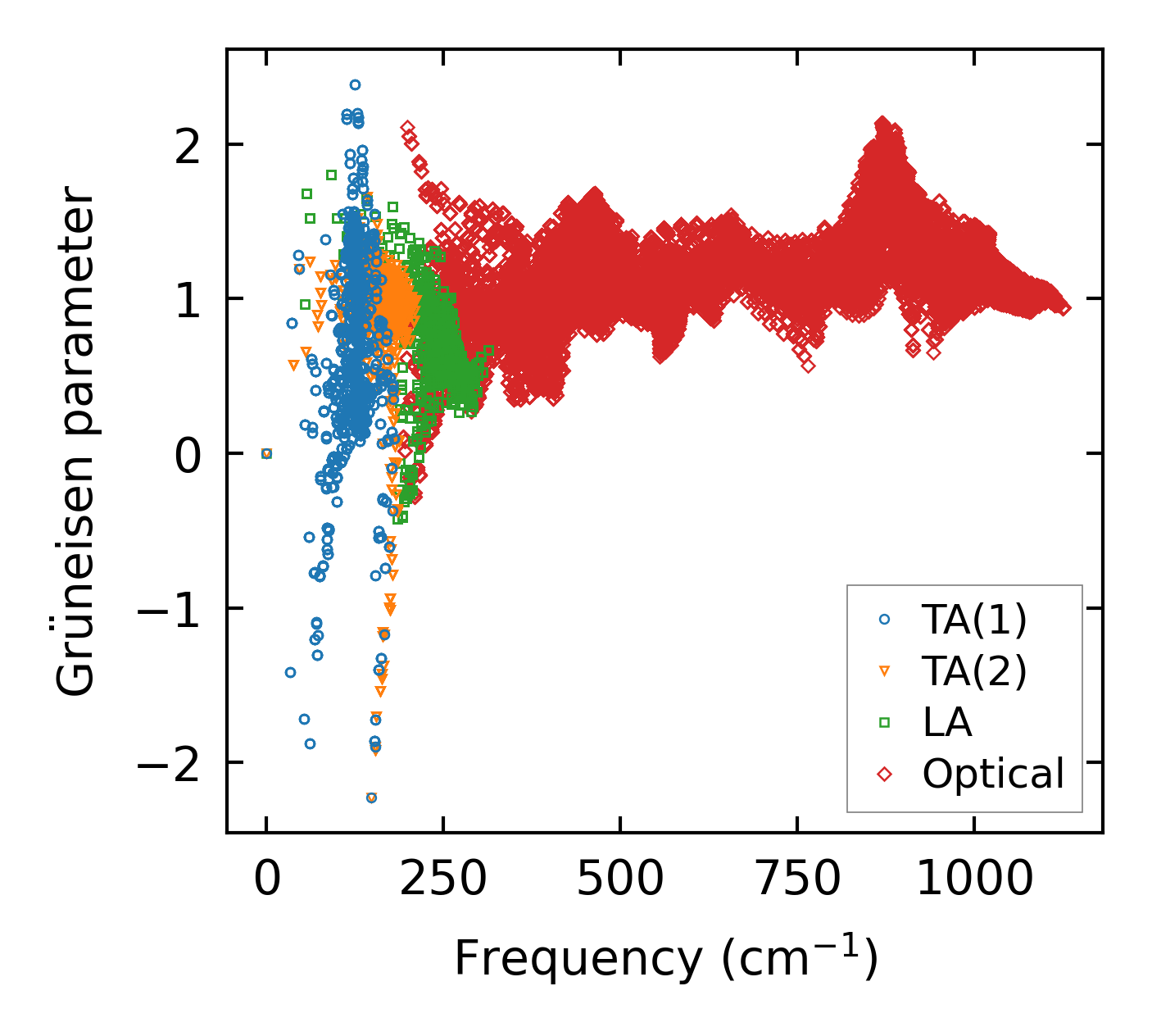

../../_images/fig_gru_all6097.png — (a) Grüneisen parameters

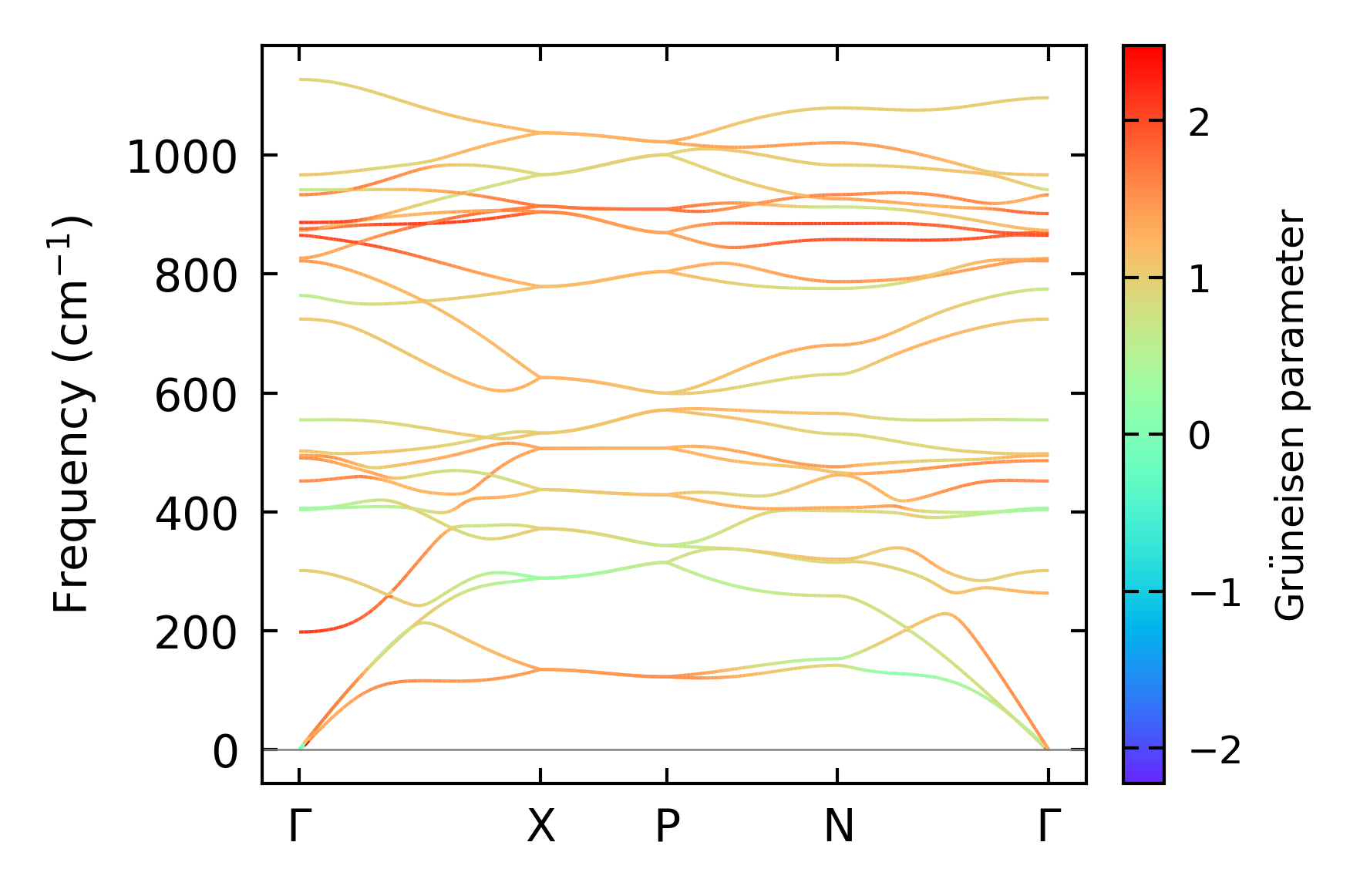

../../_images/fig_gruneisen6097.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x2 — q-mesh: 18x18x18, supercell: 3x3x2

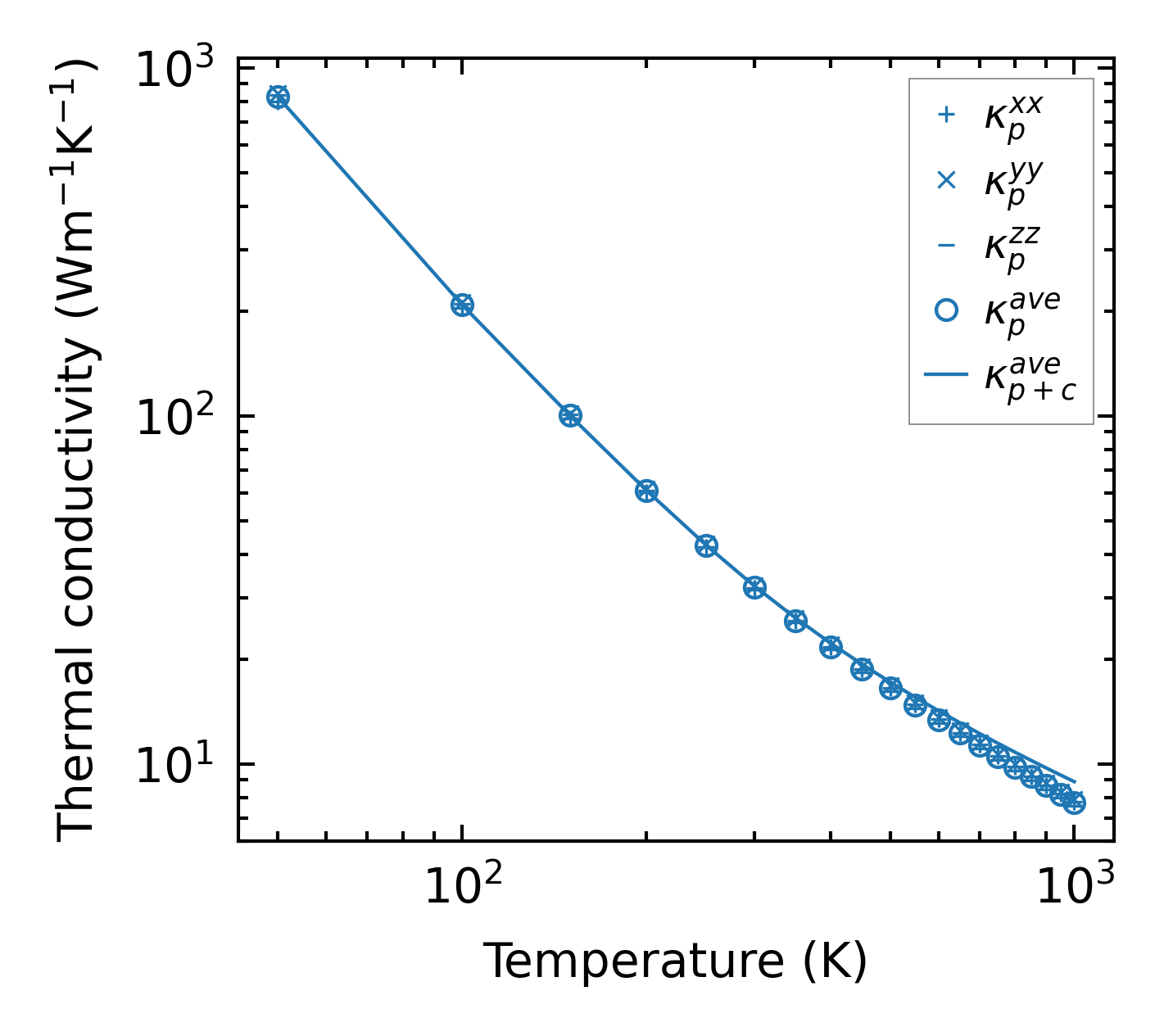

../../_images/fig_kappa11468.png — (a) Temperature-dependent lattice thermal conductivity

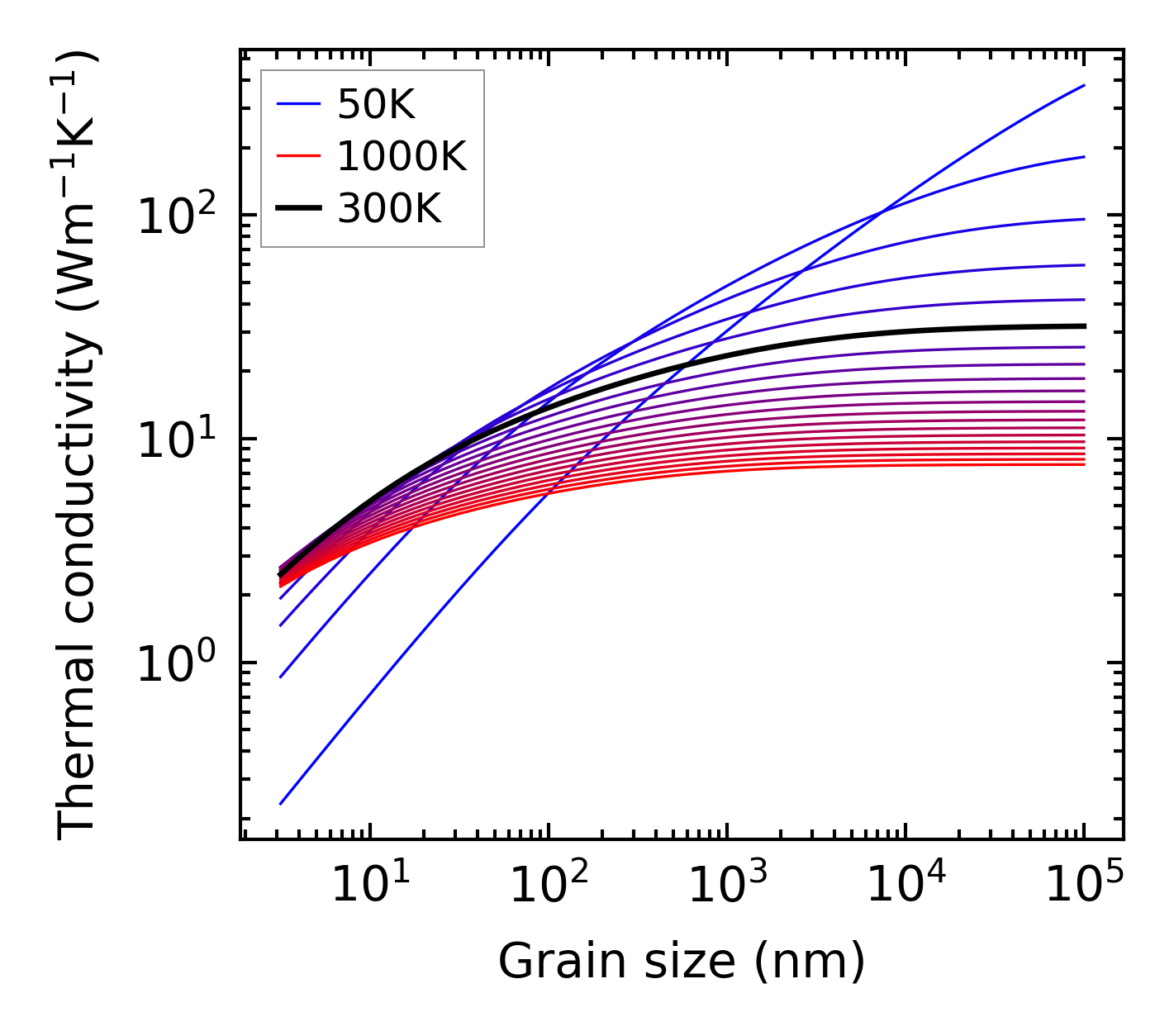

../../_images/fig_kappa_vs_grain_size6175.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

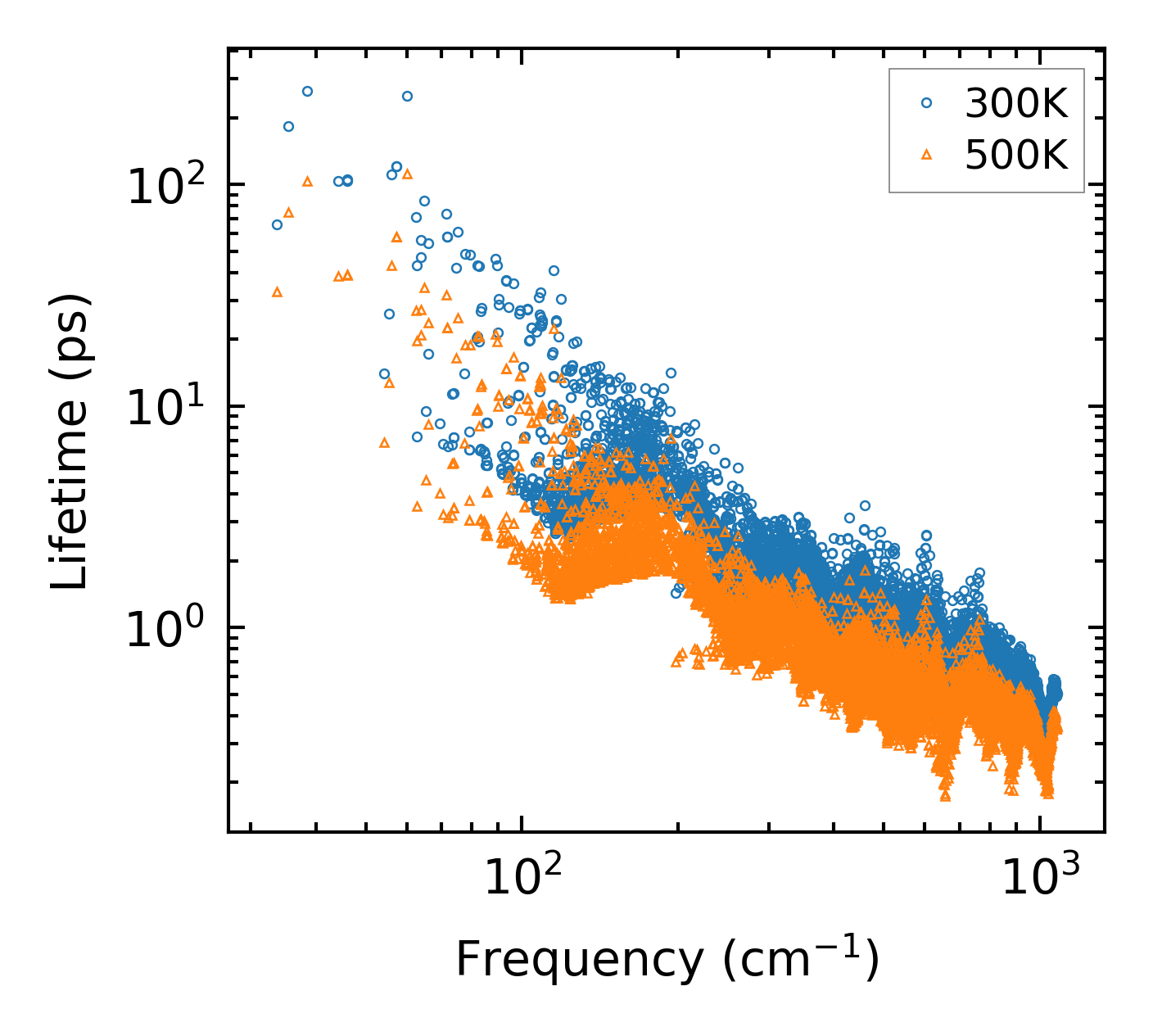

../../_images/fig_lifetime6036.png — (a) Phonon lifetime due to phonon-phonon scattering

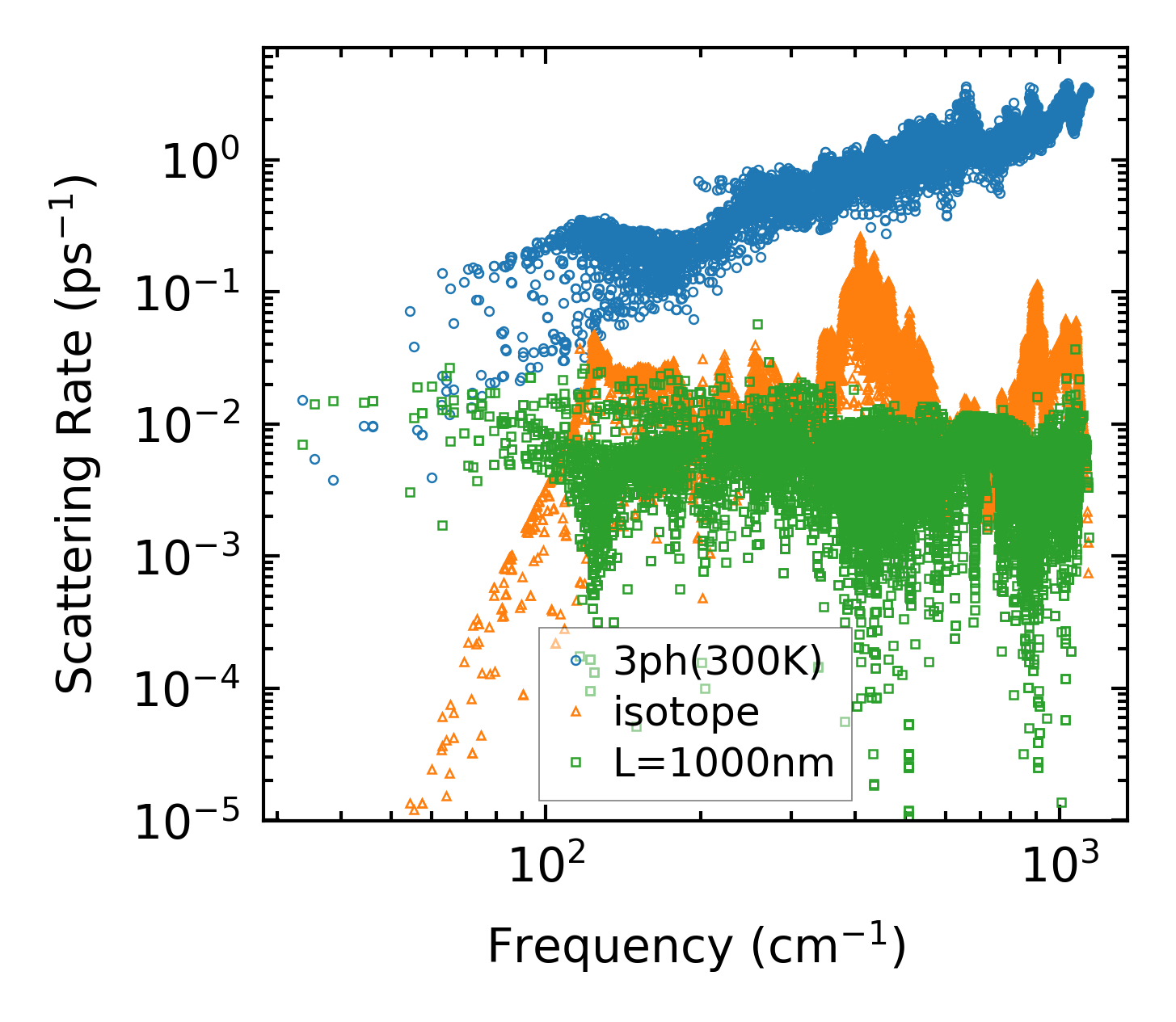

../../_images/fig_scat_rates6035.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

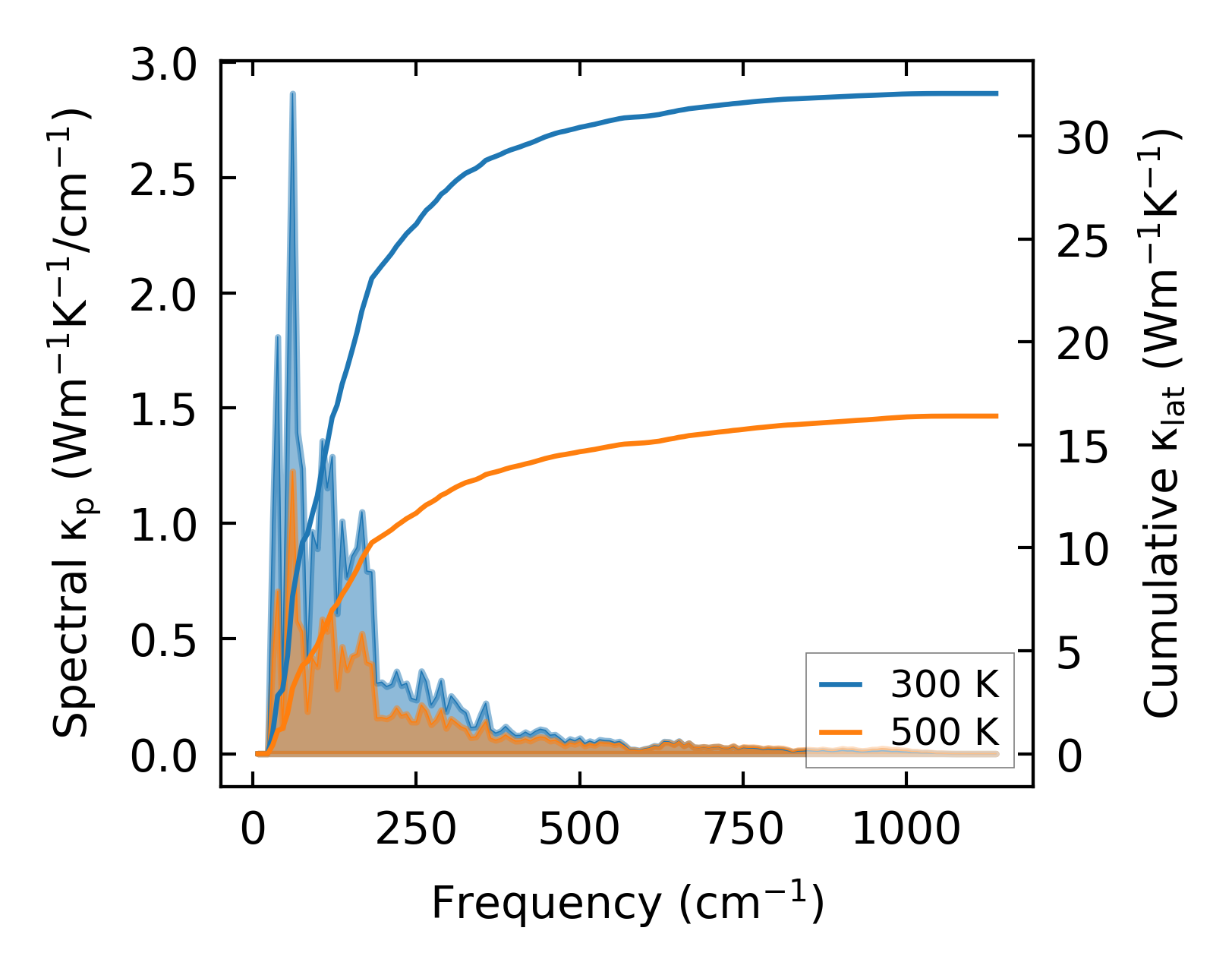

../../_images/fig_cumu_frequency6036.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

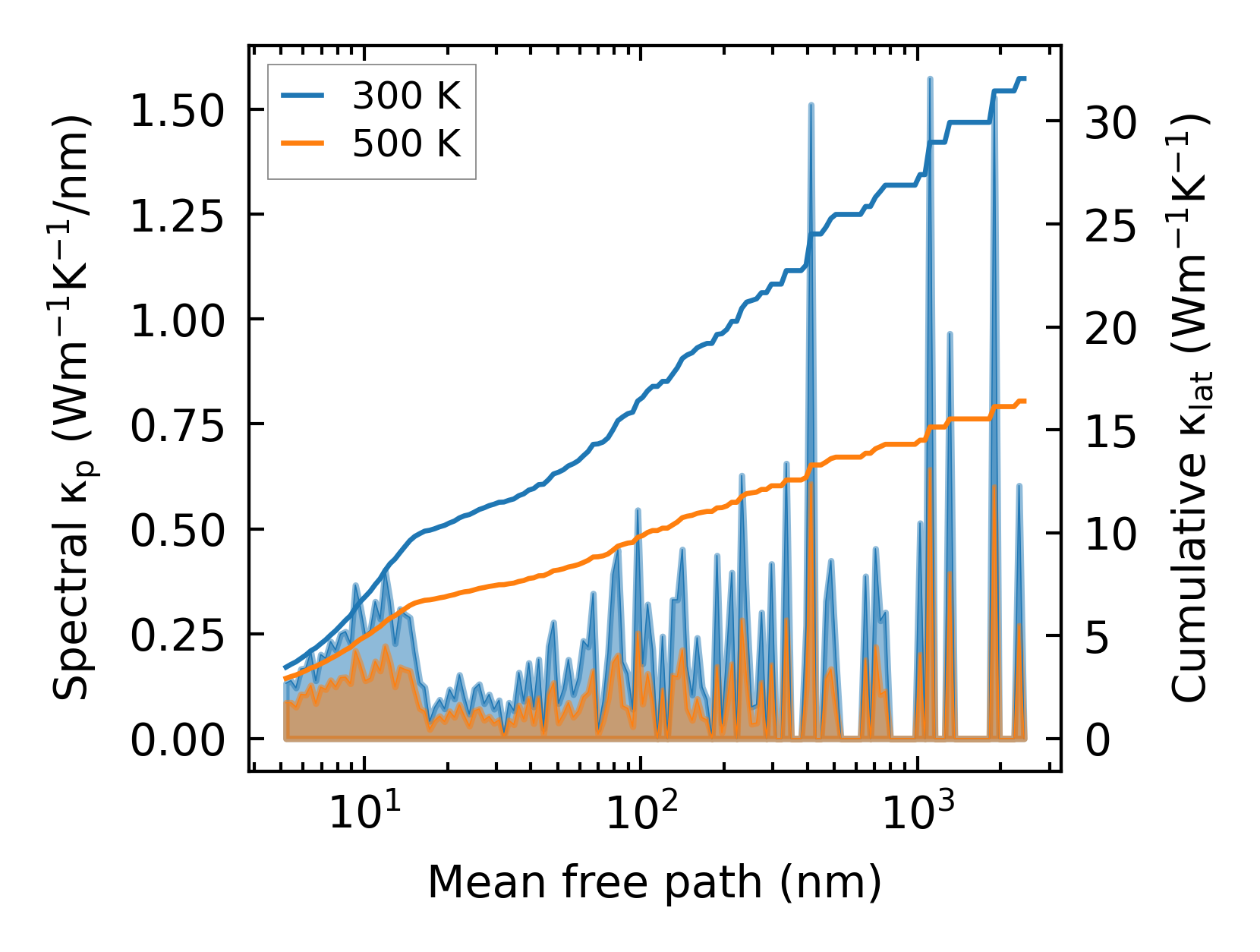

../../_images/fig_cumu_mfp6035.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

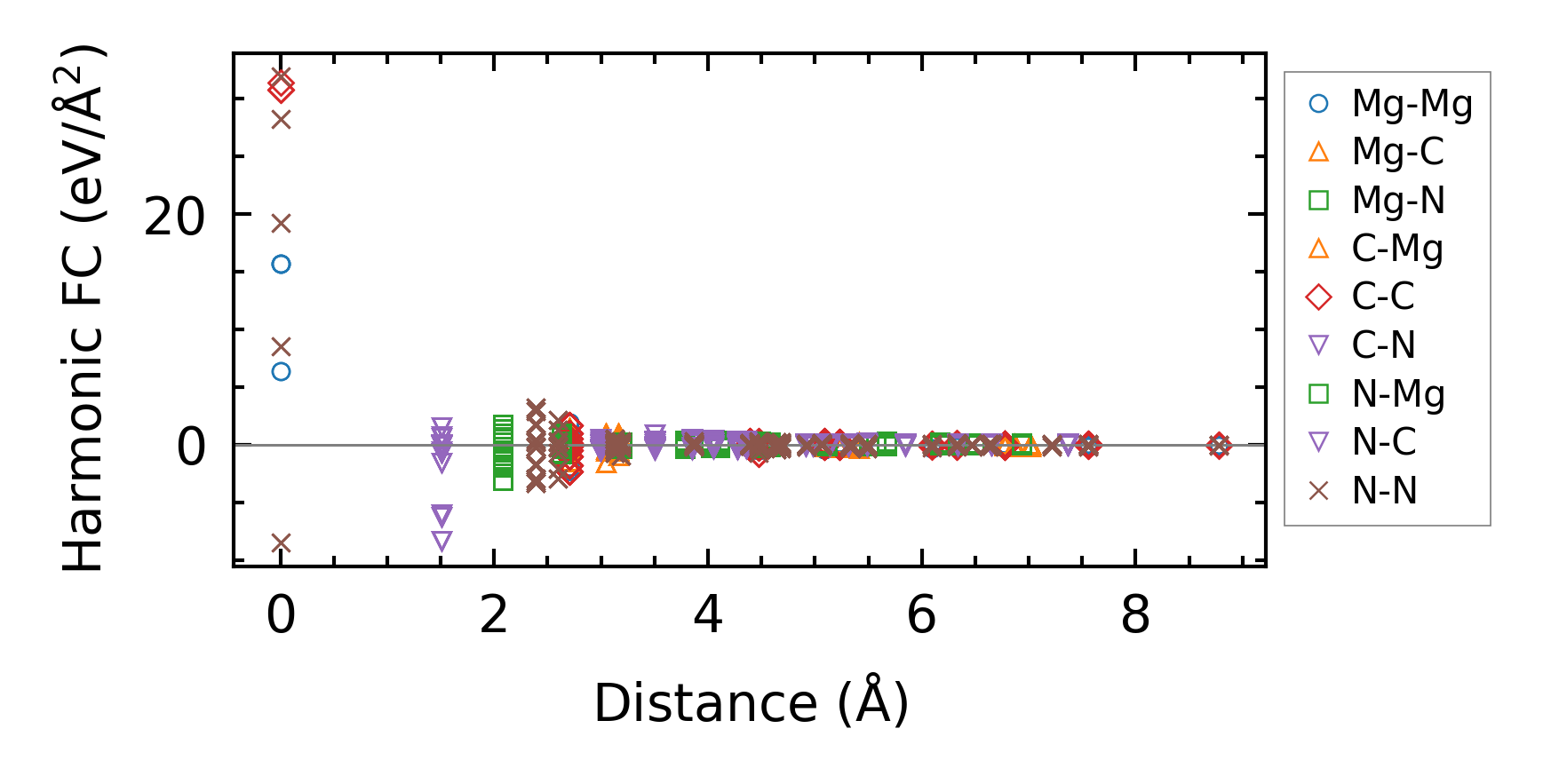

../../_images/fig_fc213941.png — (a) Force constants w.r.t atomic distance

Summary

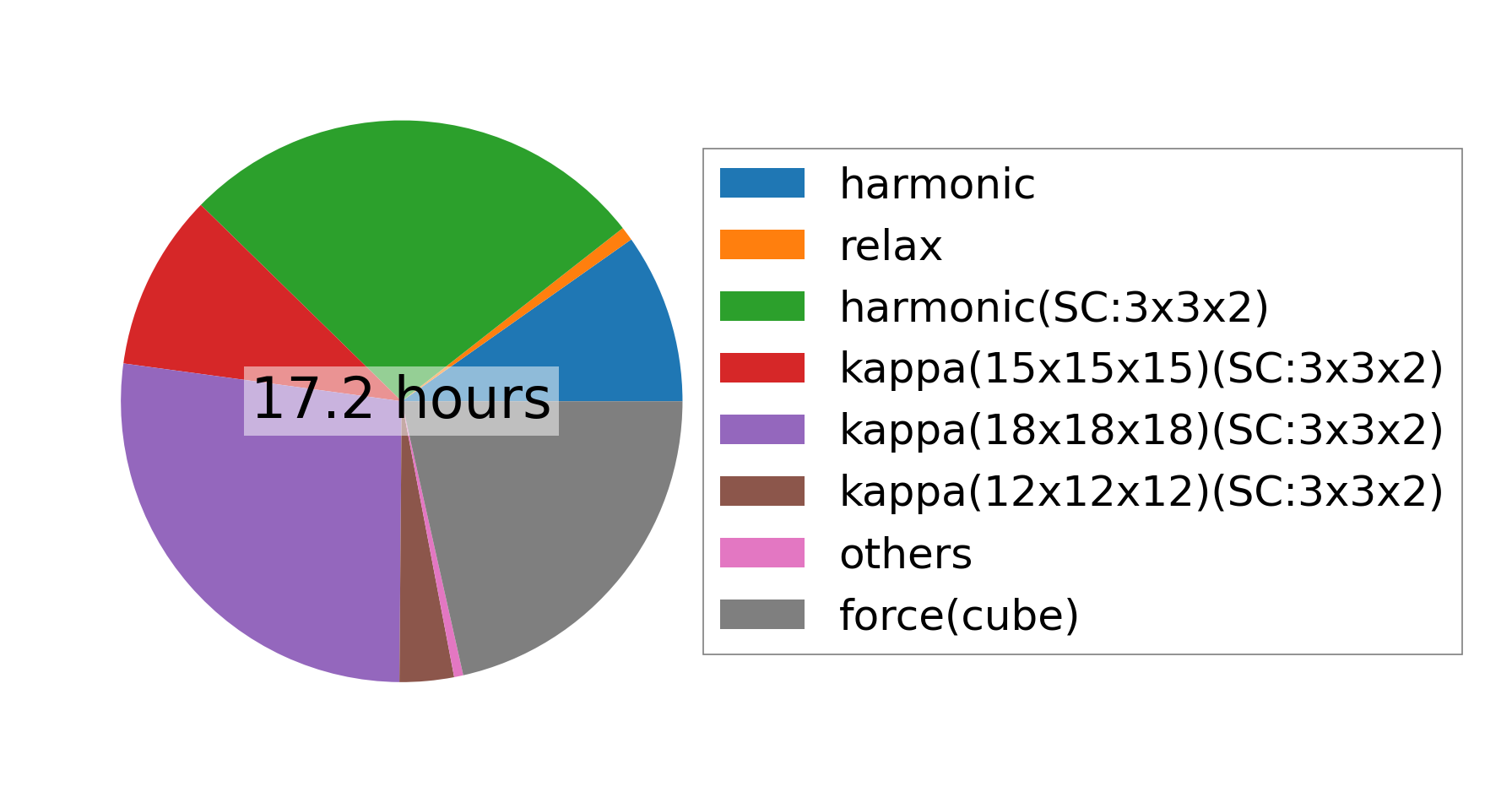

../../_images/fig_times23897.png — (a) Computation time
