mp-15103/Sr3Y2Ge3O12/anharm

Space group: Ia-3d (230)
Link: Materials Project
Download: mp-15103.tar.gz

Harmonic properties

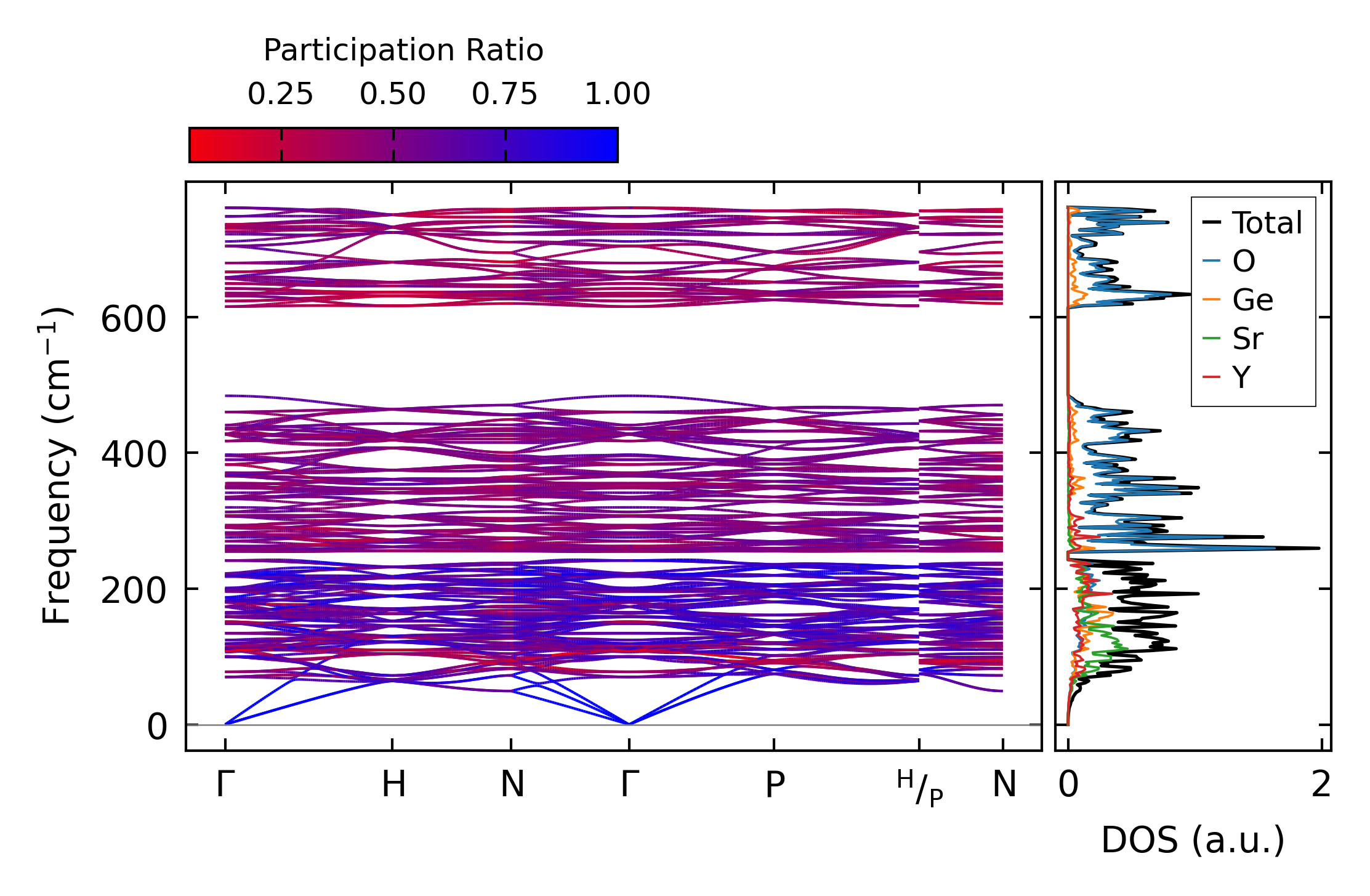

../../_images/fig_bandos_pr14591.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14591.png — (b) Thermodynamic properties

Grüneisen parameters

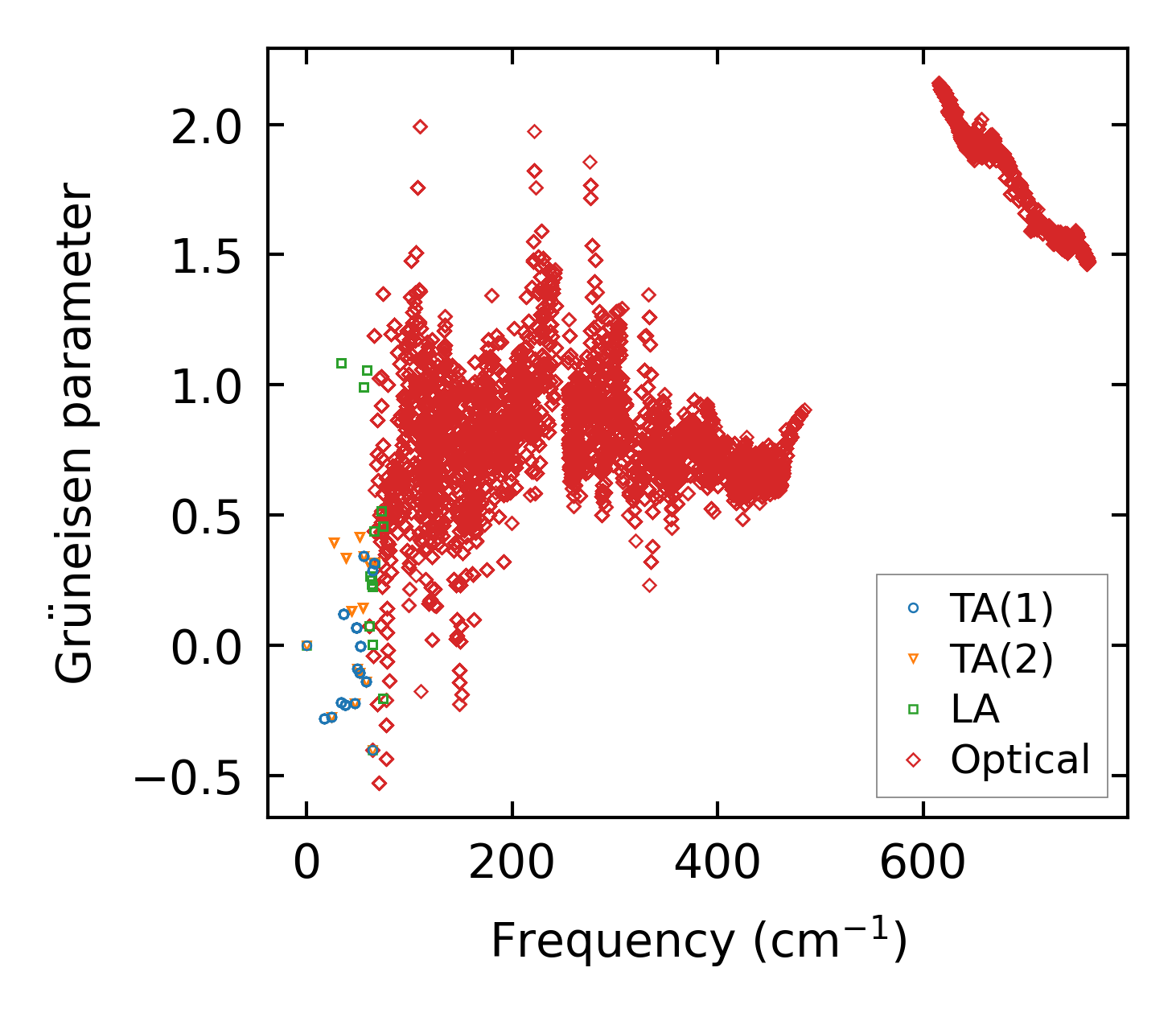

../../_images/fig_gru_all6245.png — (a) Grüneisen parameters

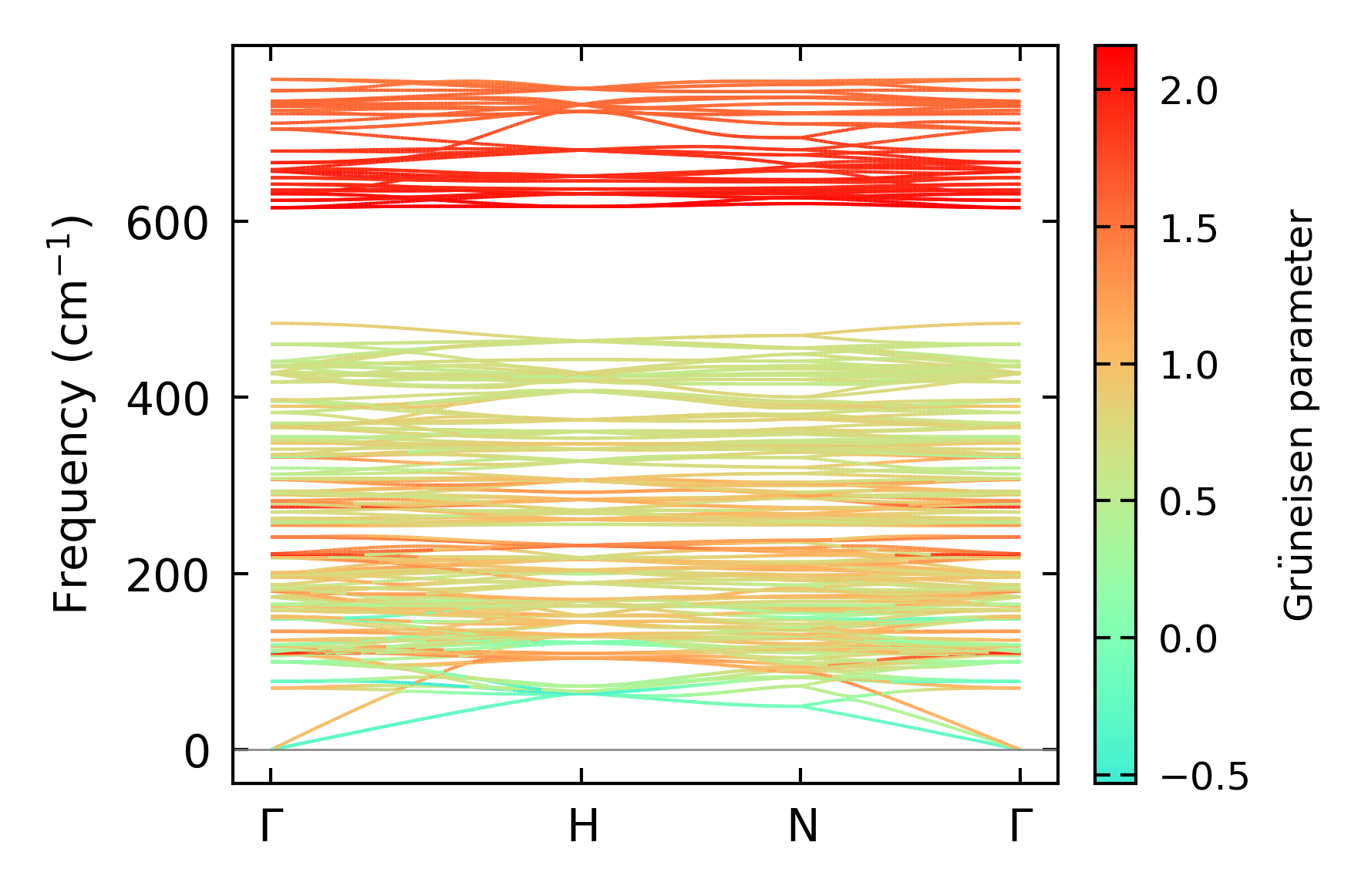

../../_images/fig_gruneisen6245.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

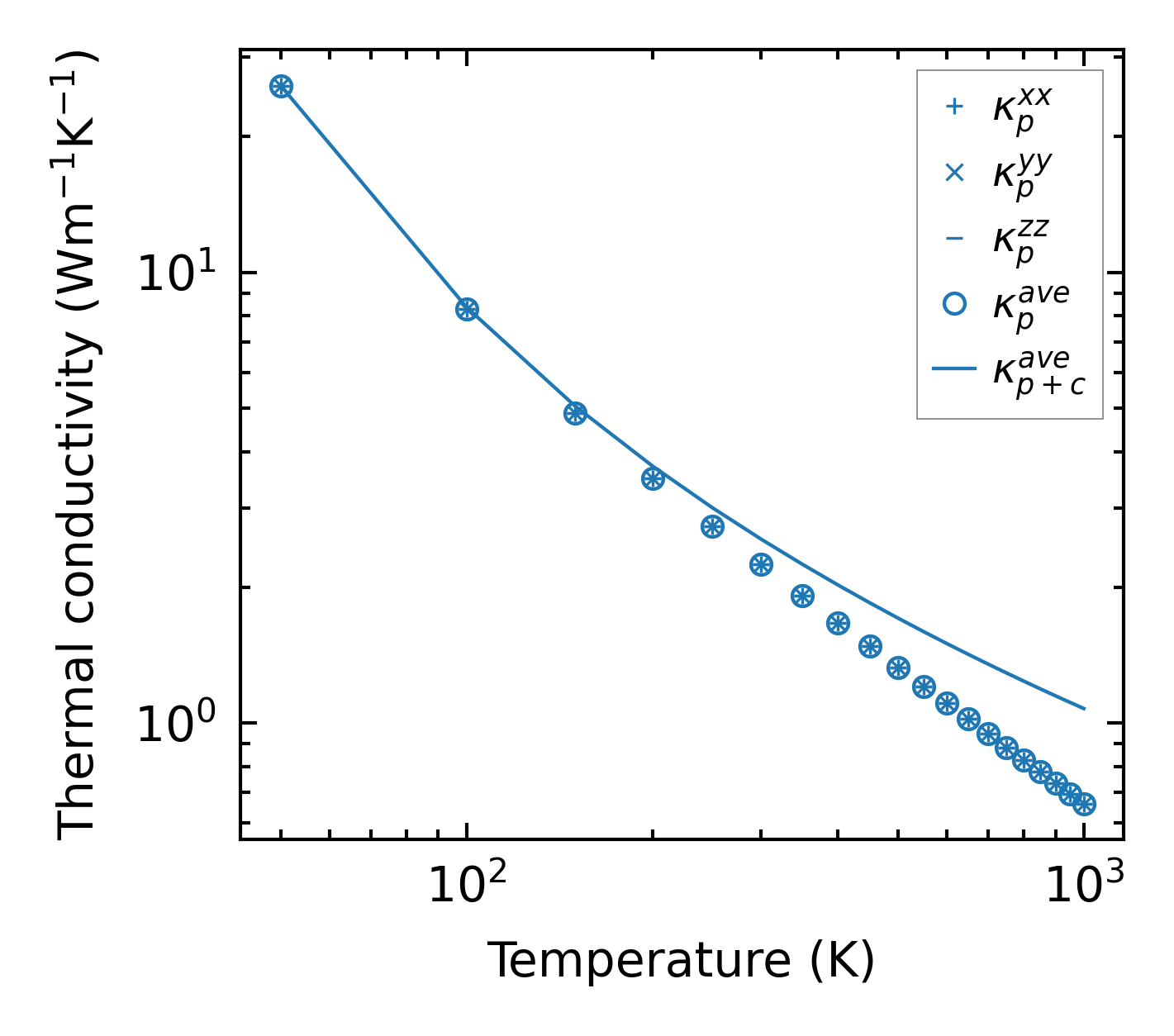

../../_images/fig_kappa11748.png — (a) Temperature-dependent lattice thermal conductivity

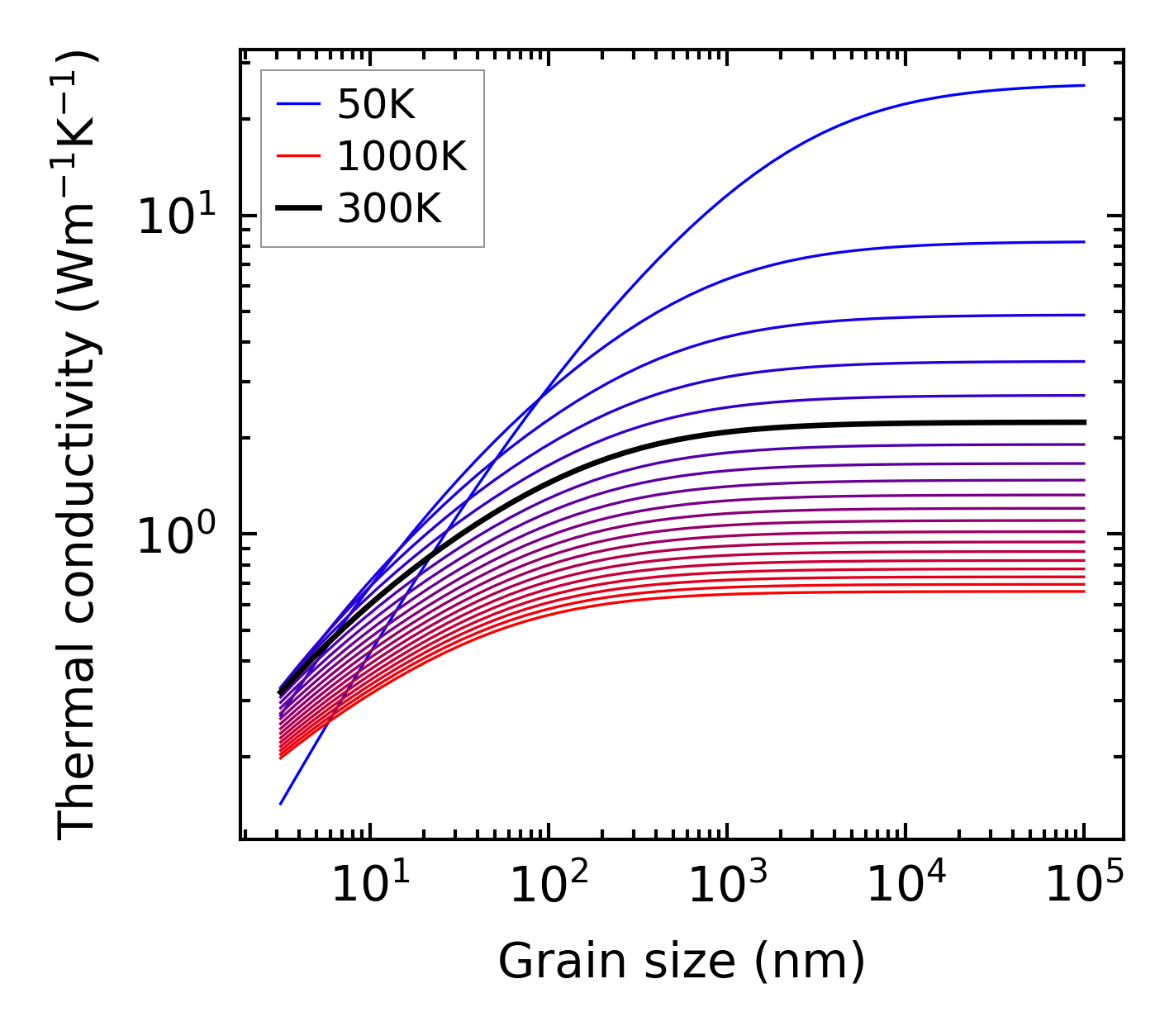

../../_images/fig_kappa_vs_grain_size6322.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

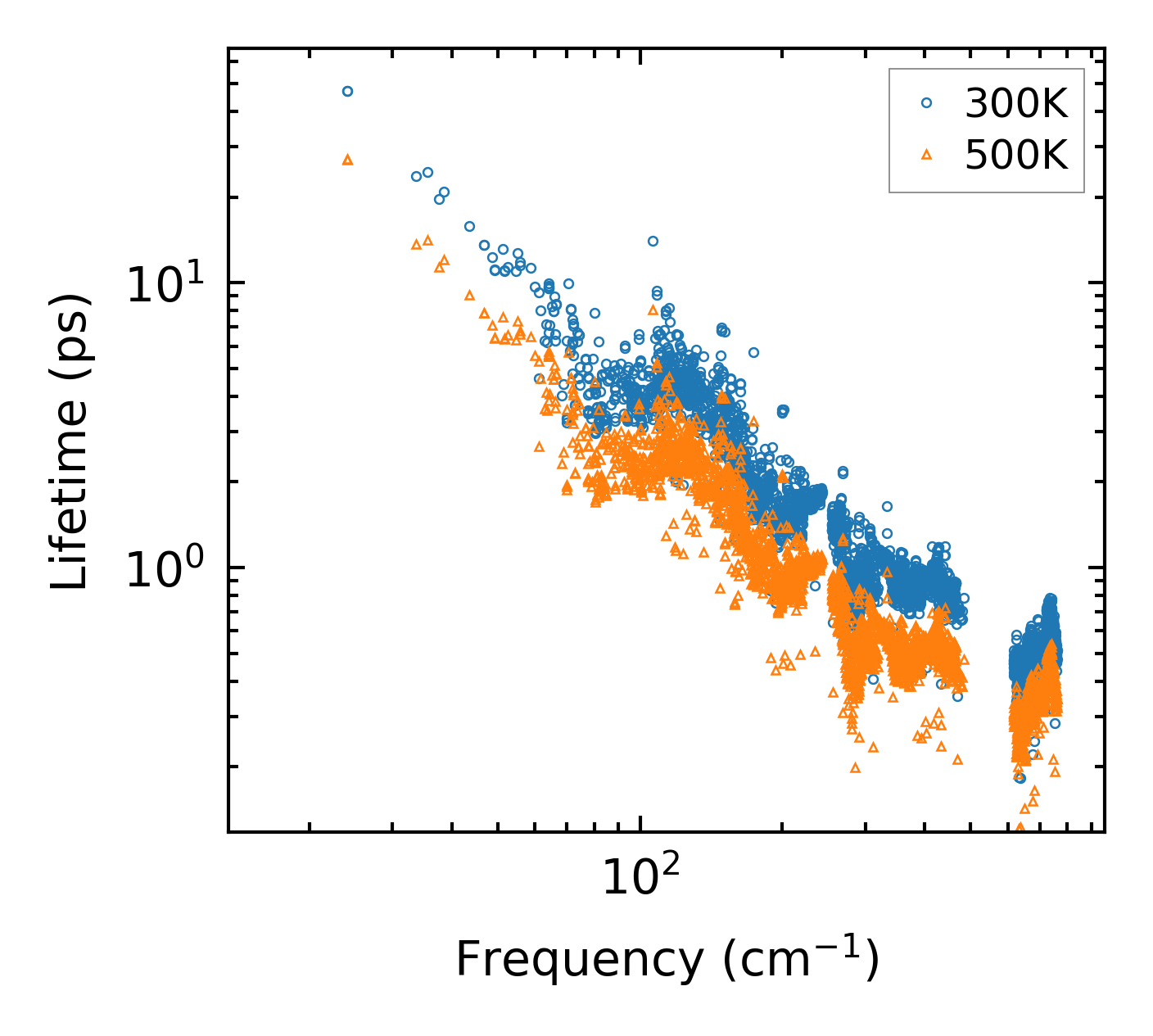

../../_images/fig_lifetime6183.png — (a) Phonon lifetime due to phonon-phonon scattering

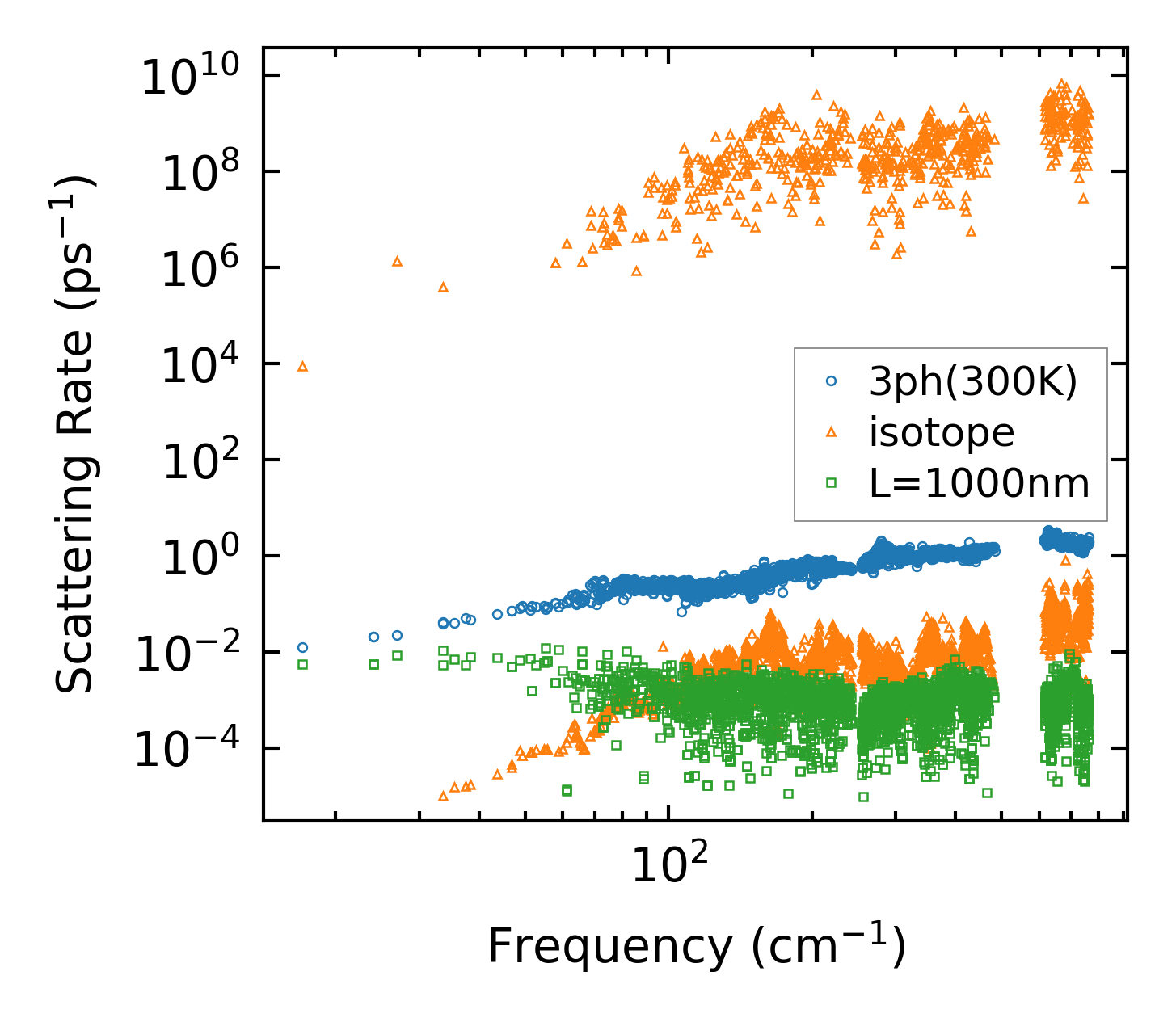

../../_images/fig_scat_rates6182.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

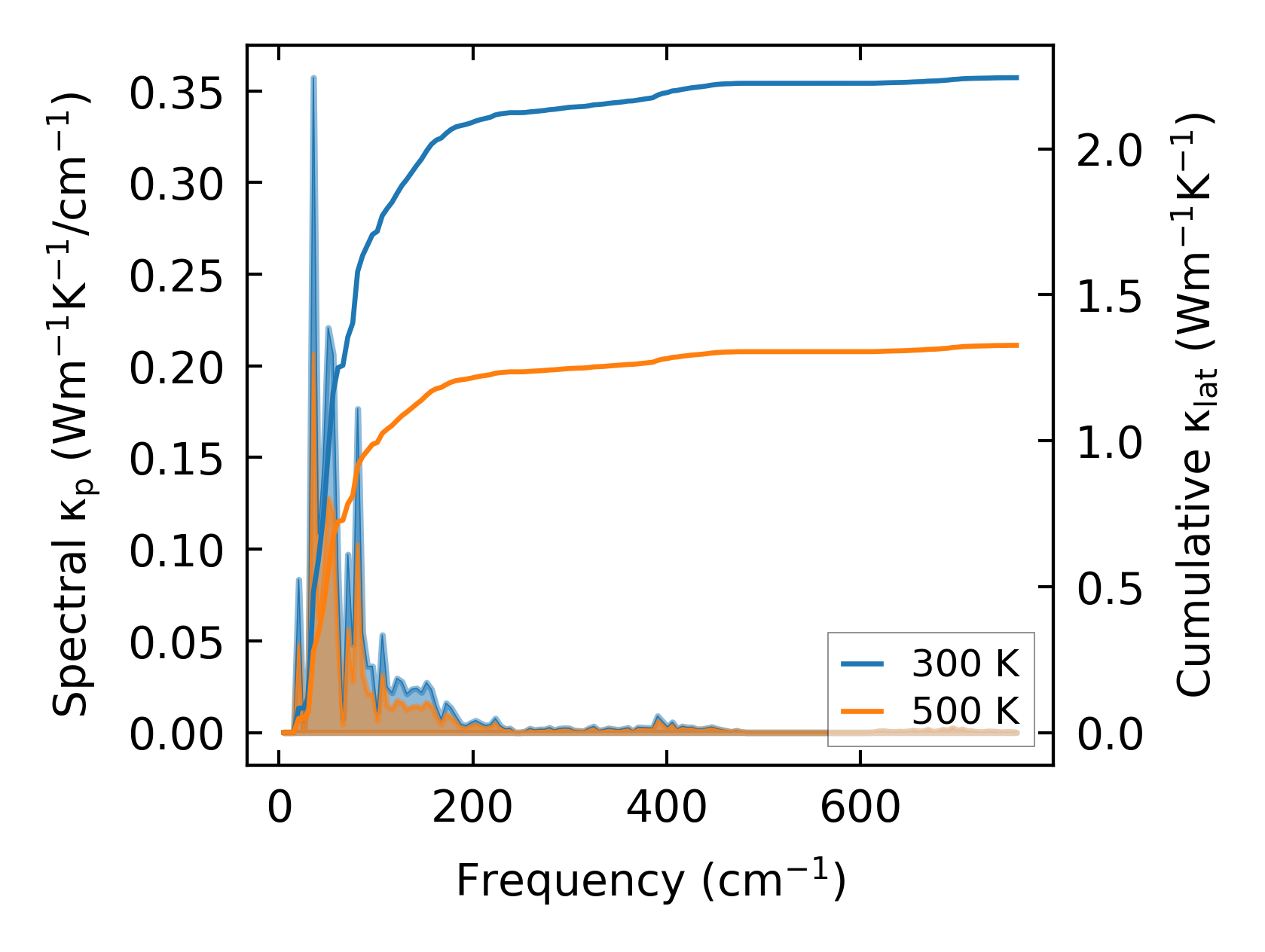

../../_images/fig_cumu_frequency6183.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

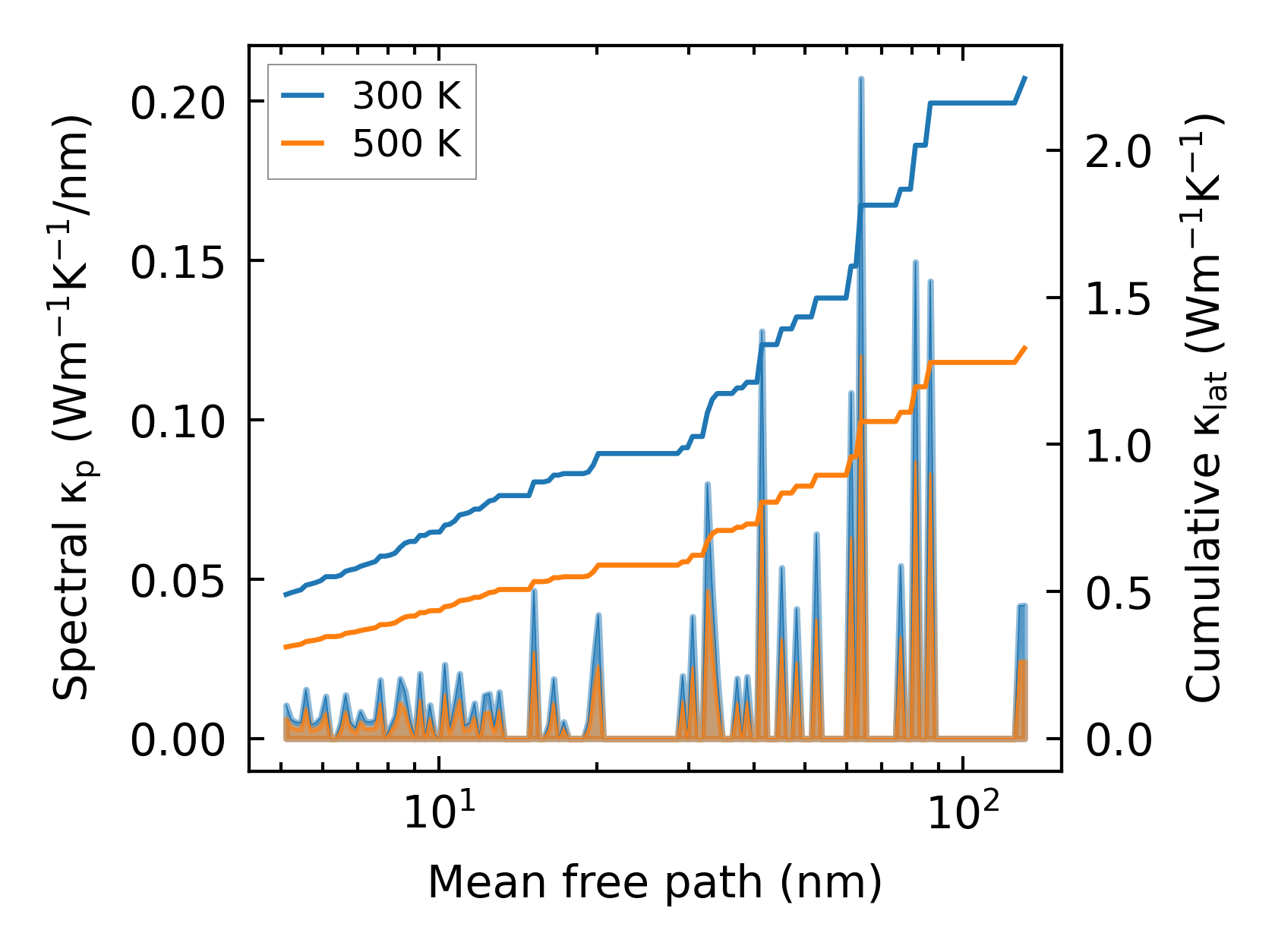

../../_images/fig_cumu_mfp6182.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

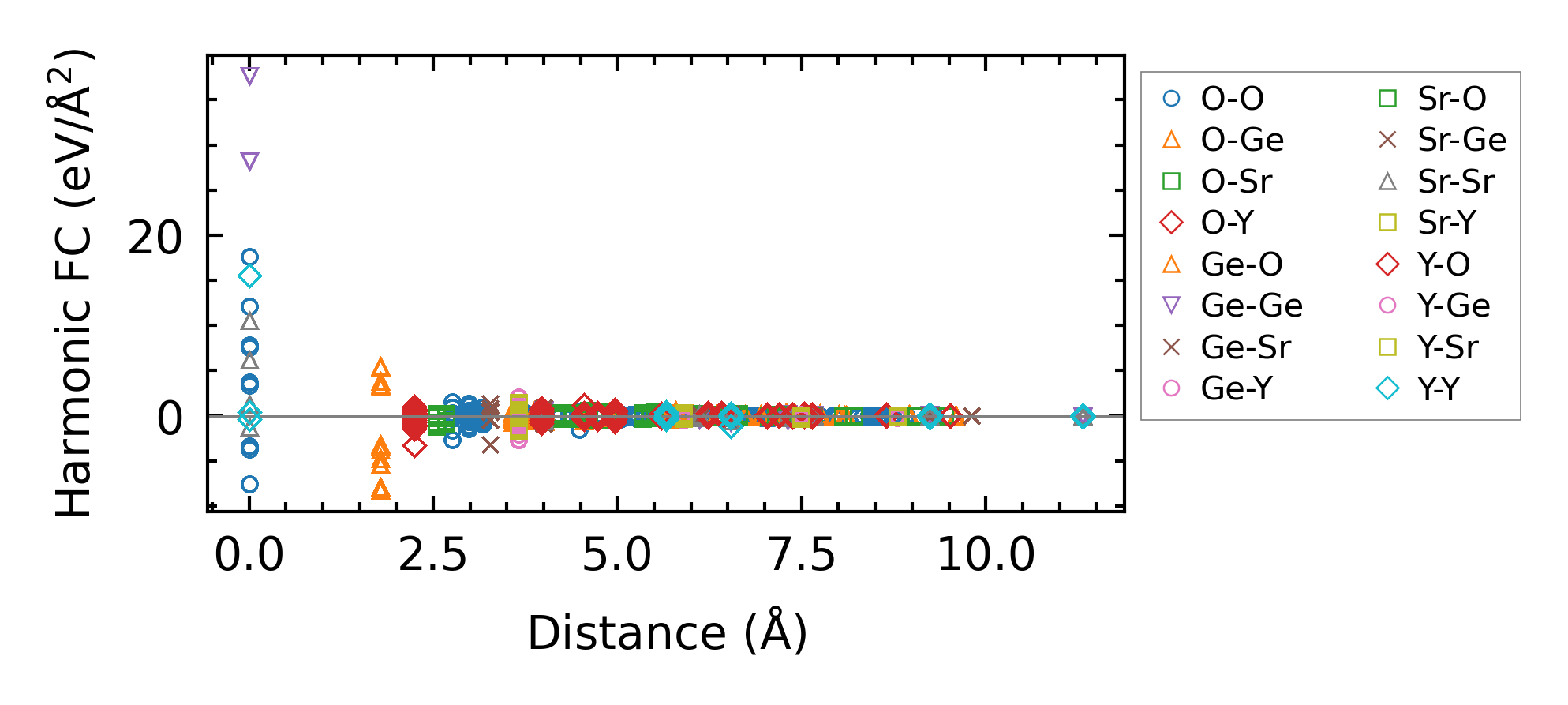

../../_images/fig_fc214210.png — (a) Force constants w.r.t atomic distance

Summary

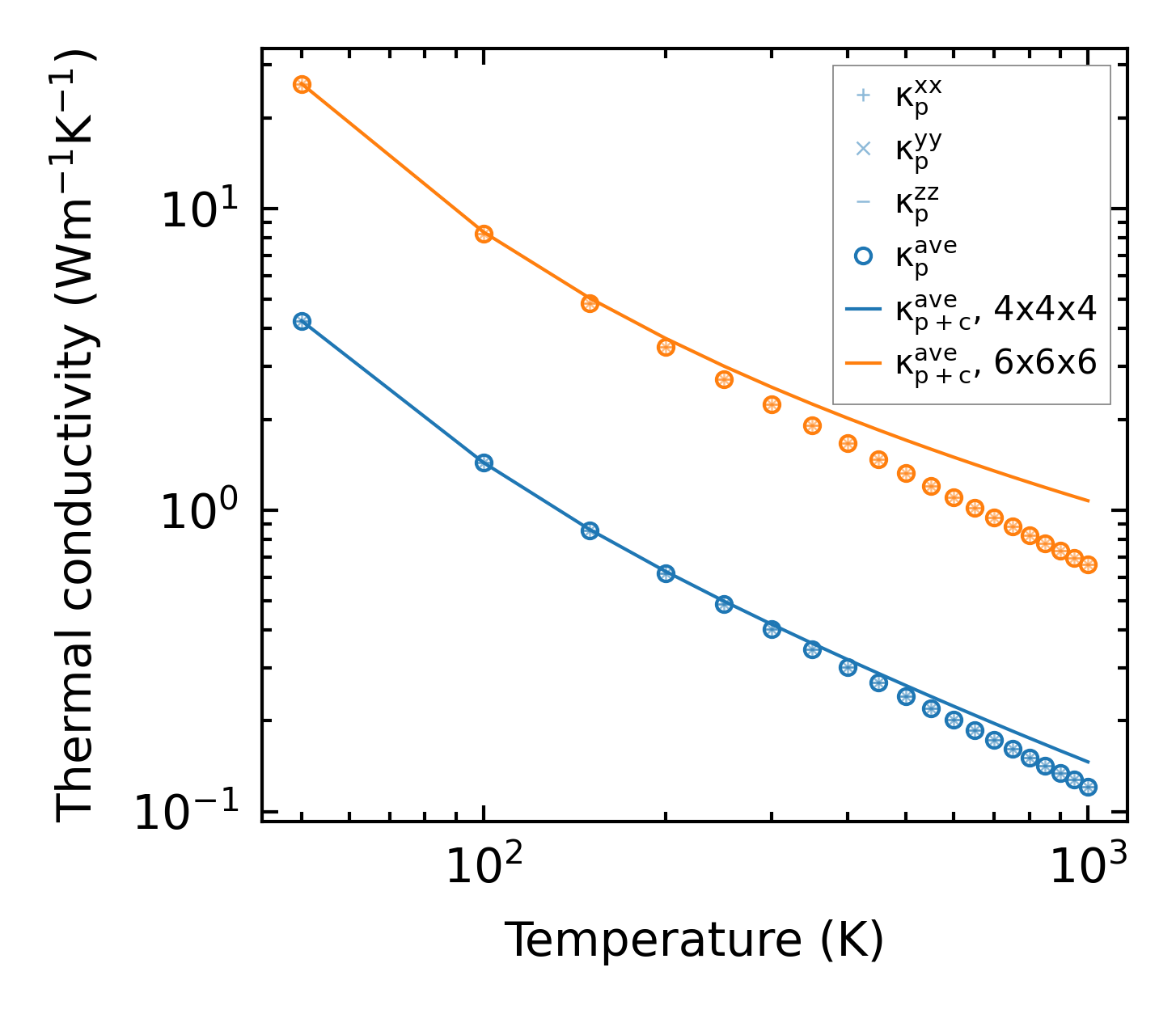

../../_images/fig_kappa11749.png — (a) Temperature-dependent lattice thermal conductivity

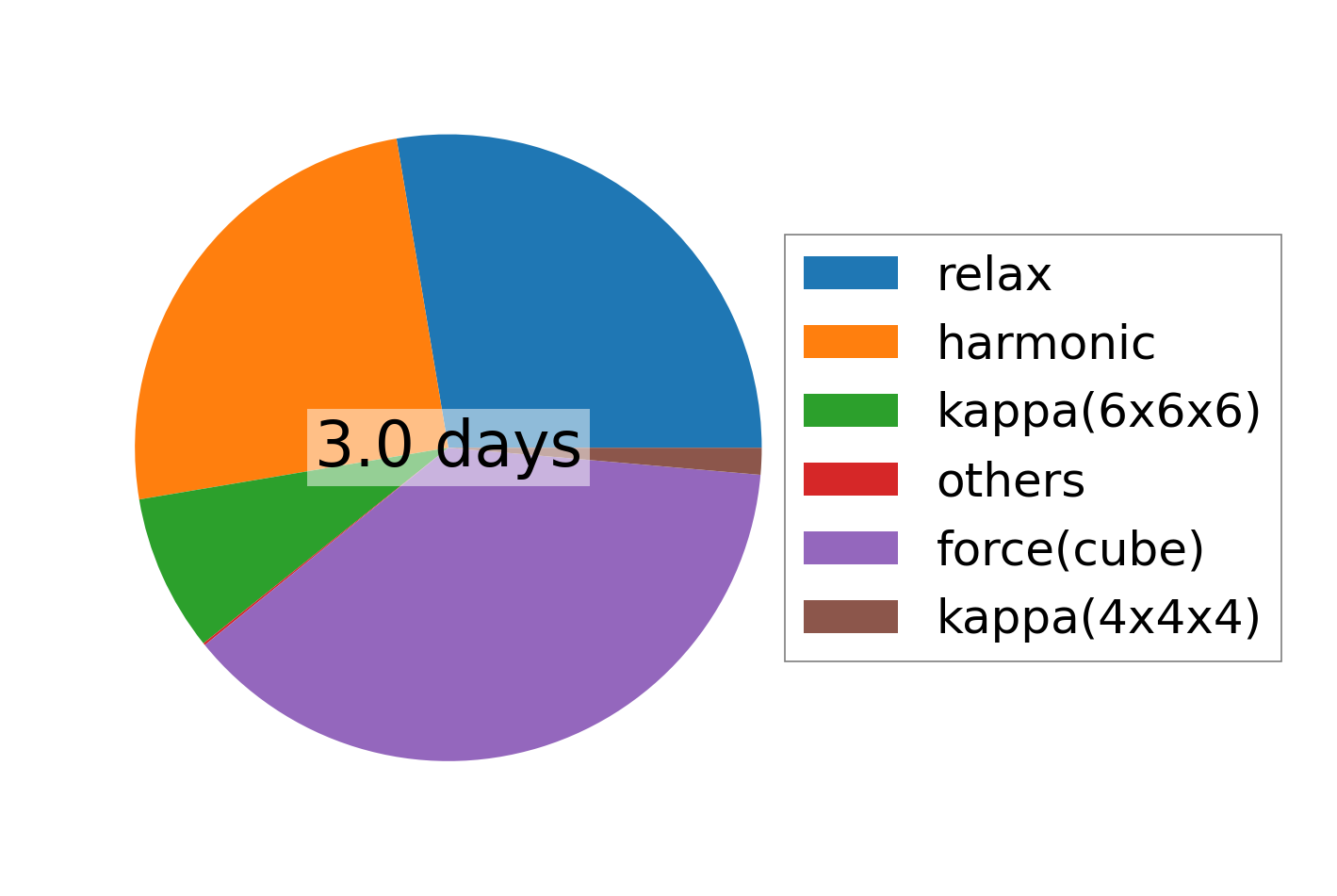

../../_images/fig_times24288.png — (b) Computation time
