mp-755950/Ba2Sc2O5/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-755950.tar.gz

Harmonic properties

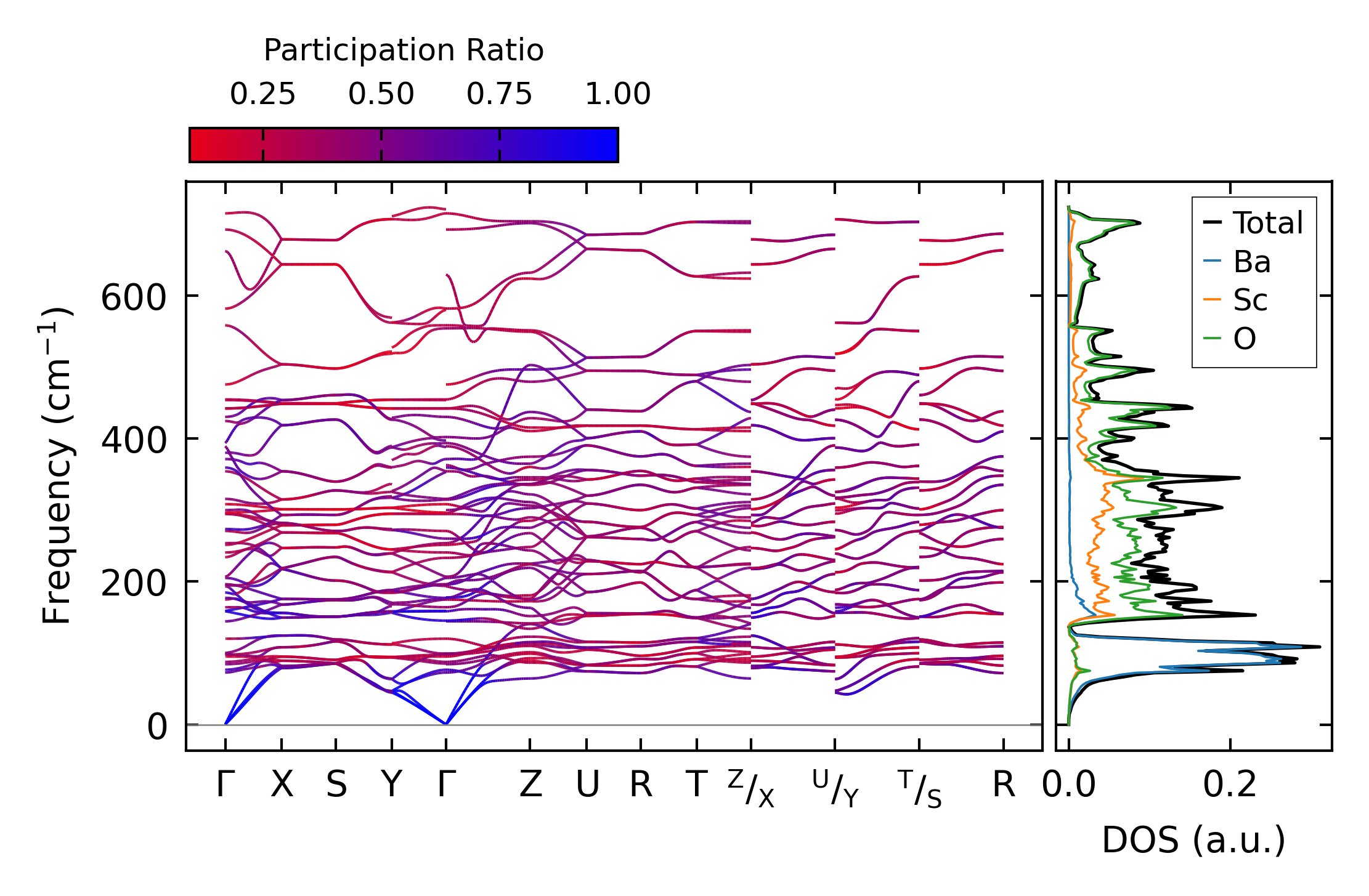

../../_images/fig_bandos_pr3508.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3508.png — (b) Thermodynamic properties

Grüneisen parameters

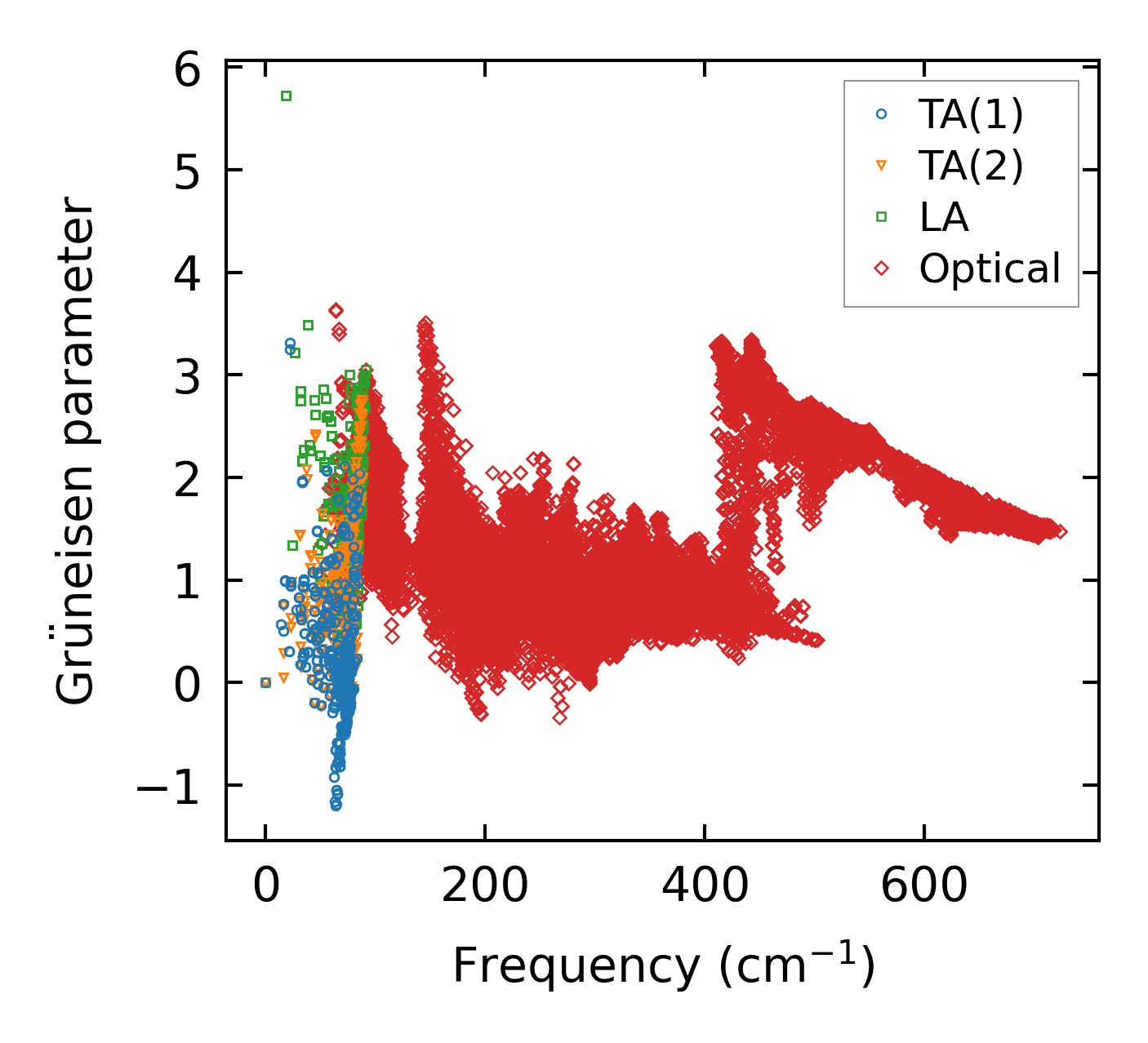

../../_images/fig_gru_all1583.png — (a) Grüneisen parameters

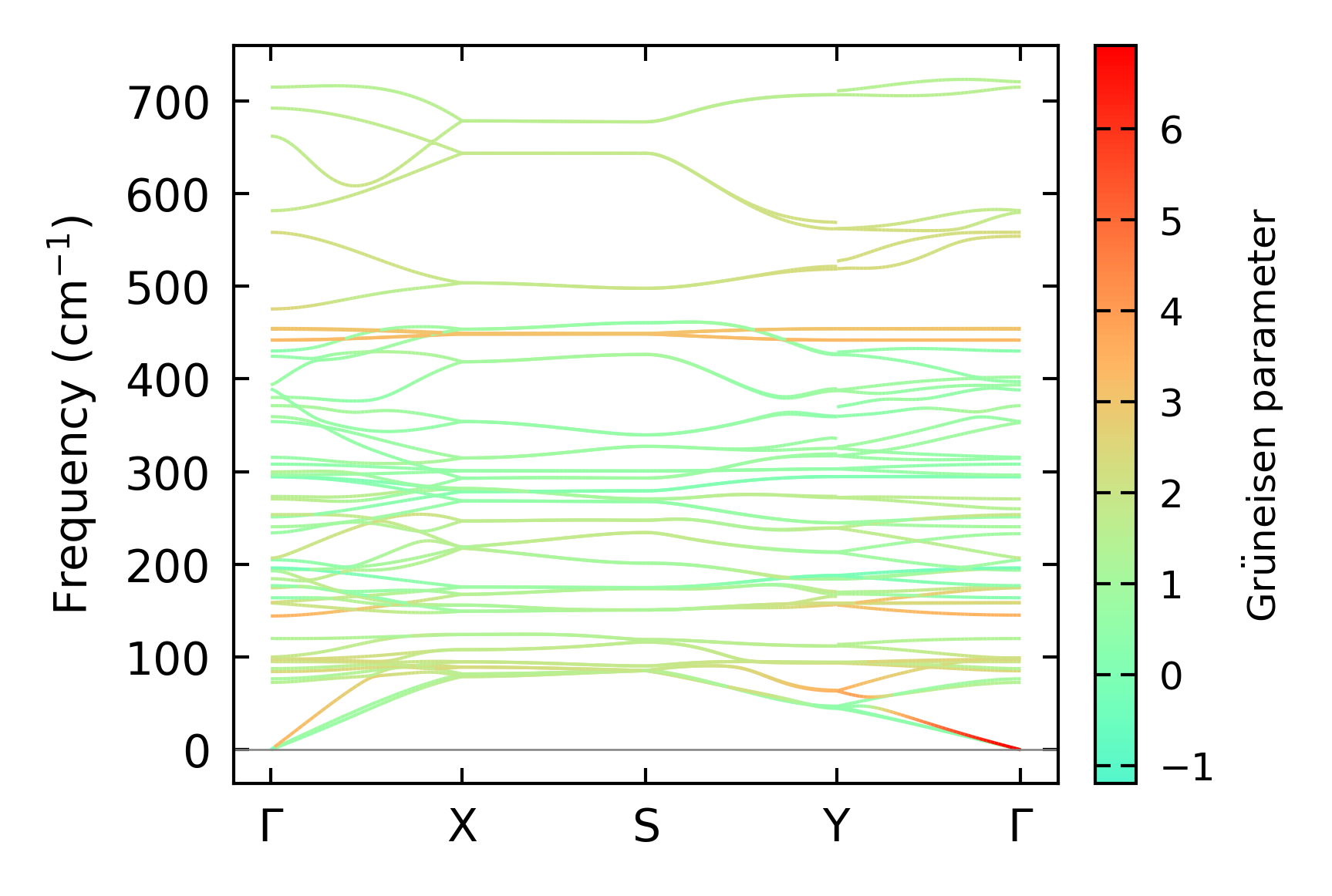

../../_images/fig_gruneisen1583.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x6x18, supercell: 2x1x3

../../_images/fig_kappa3043.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1604.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

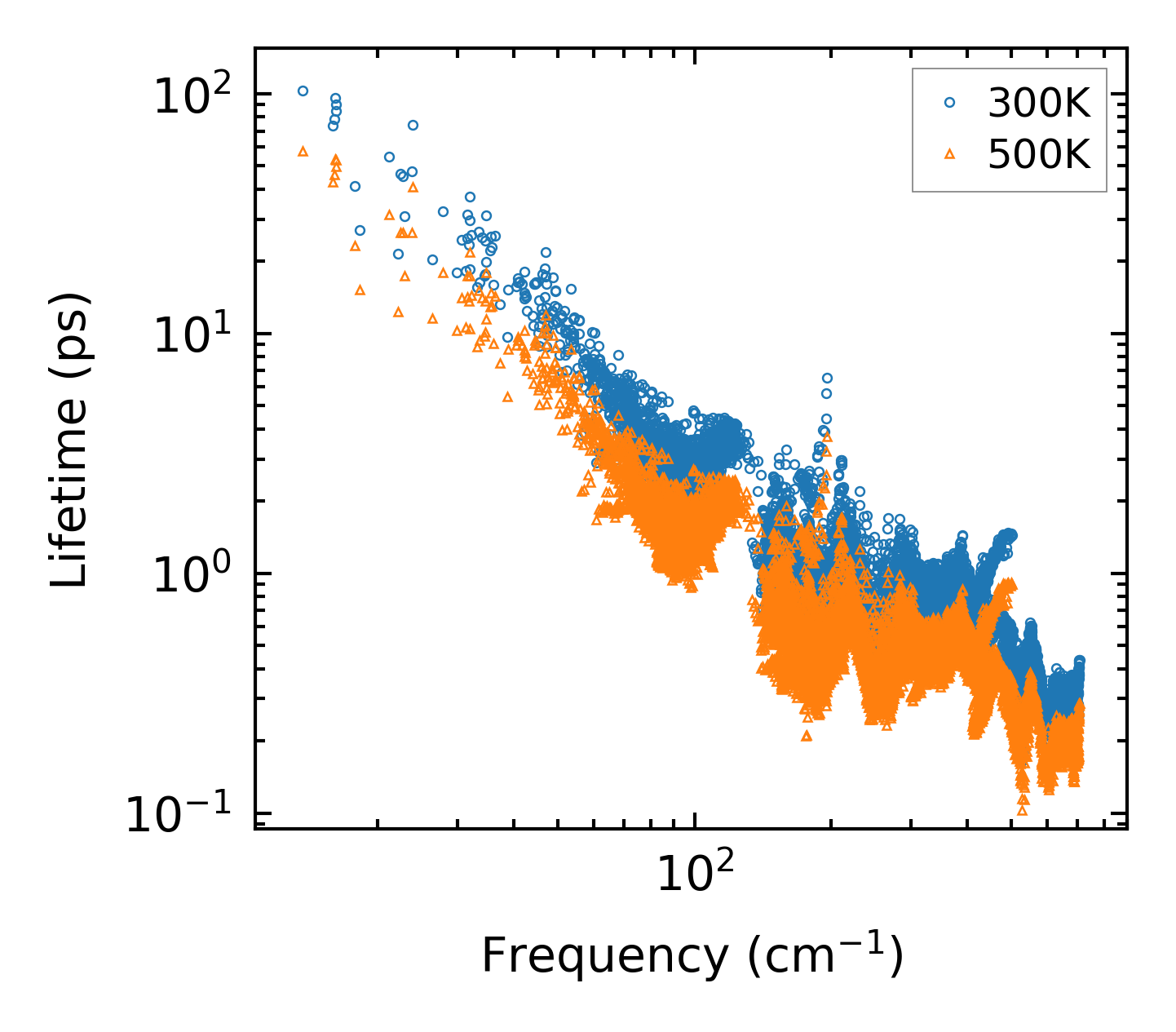

../../_images/fig_lifetime1573.png — (a) Phonon lifetime due to phonon-phonon scattering

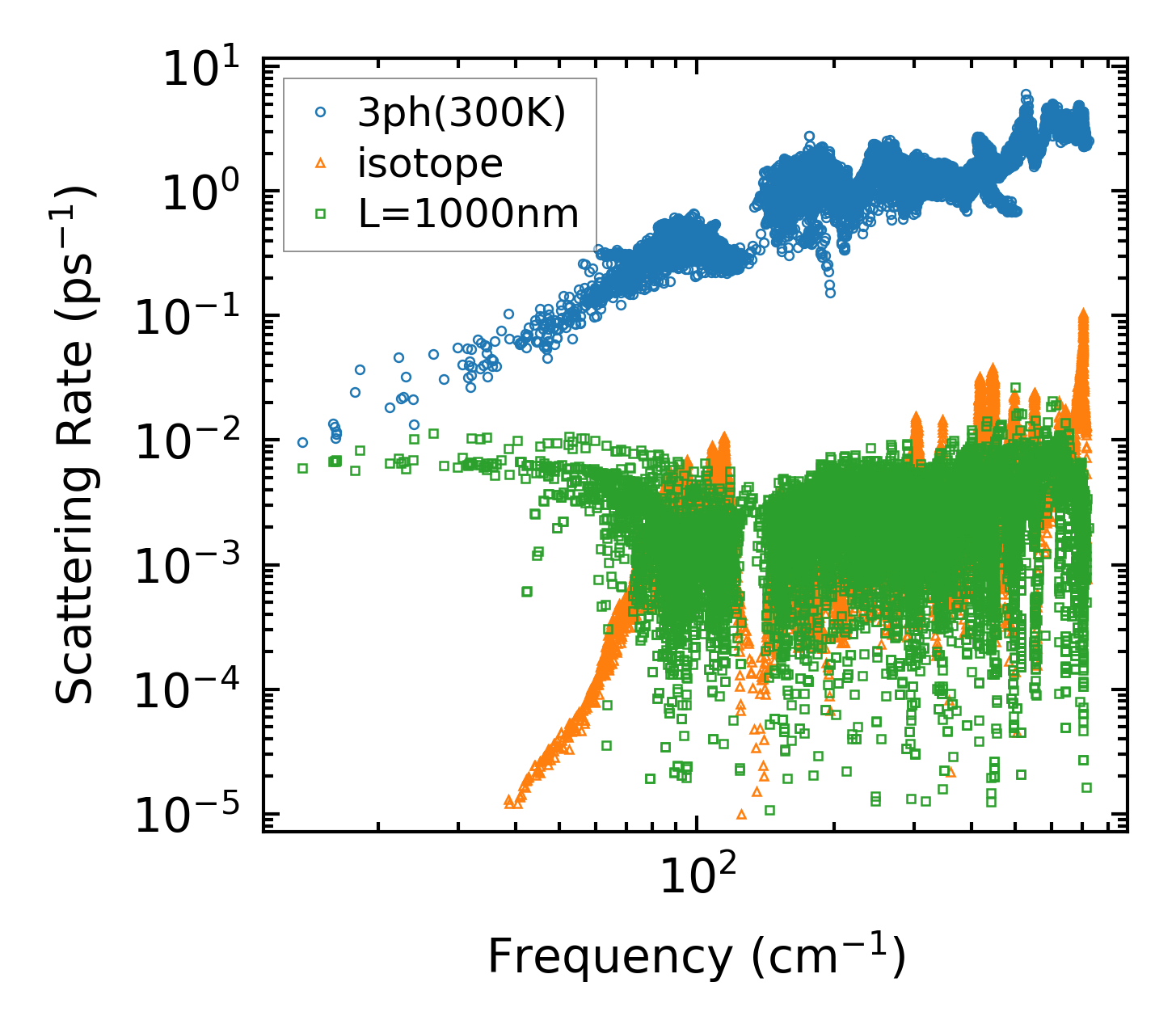

../../_images/fig_scat_rates1572.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1573.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

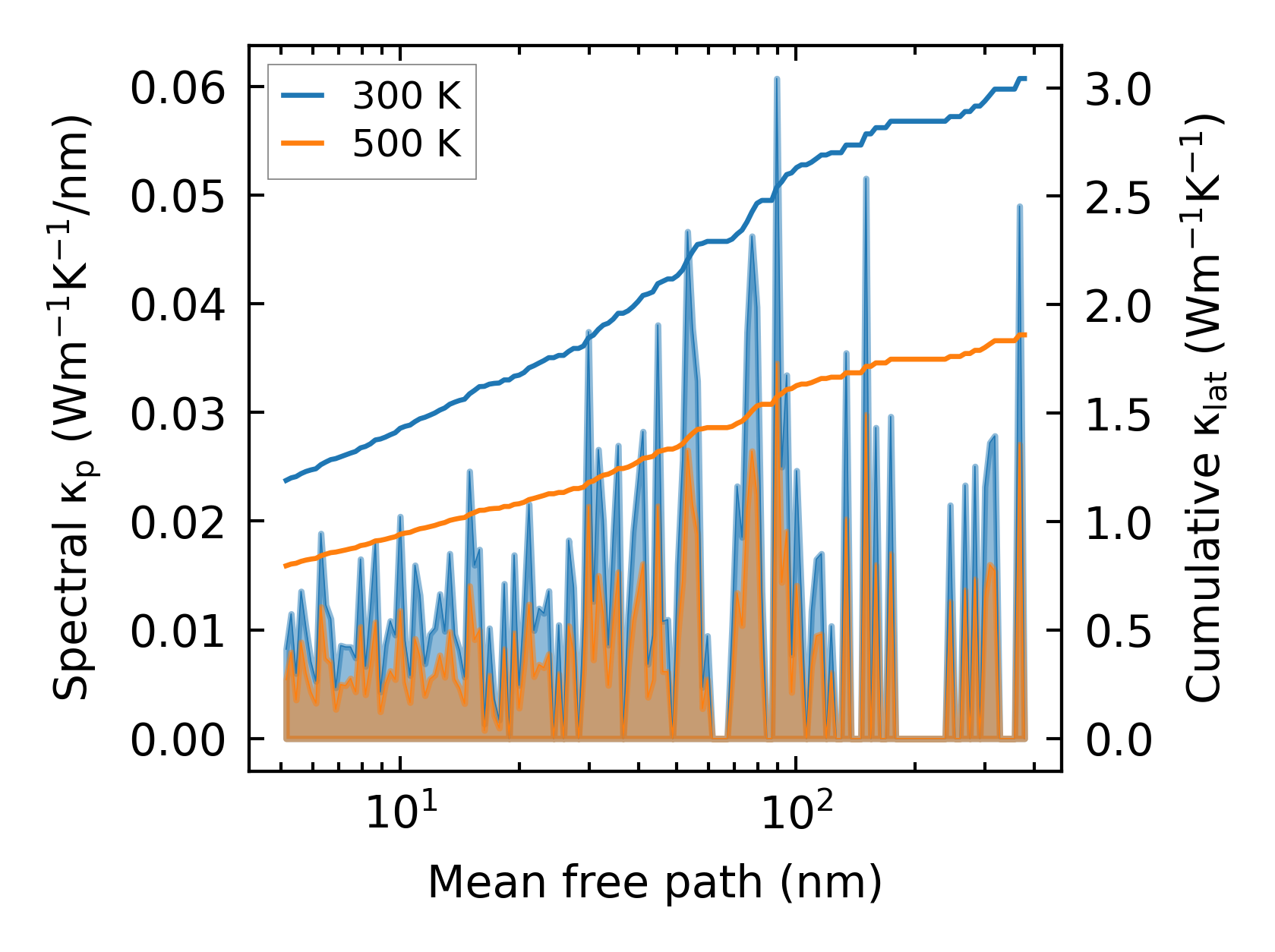

../../_images/fig_cumu_mfp1573.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

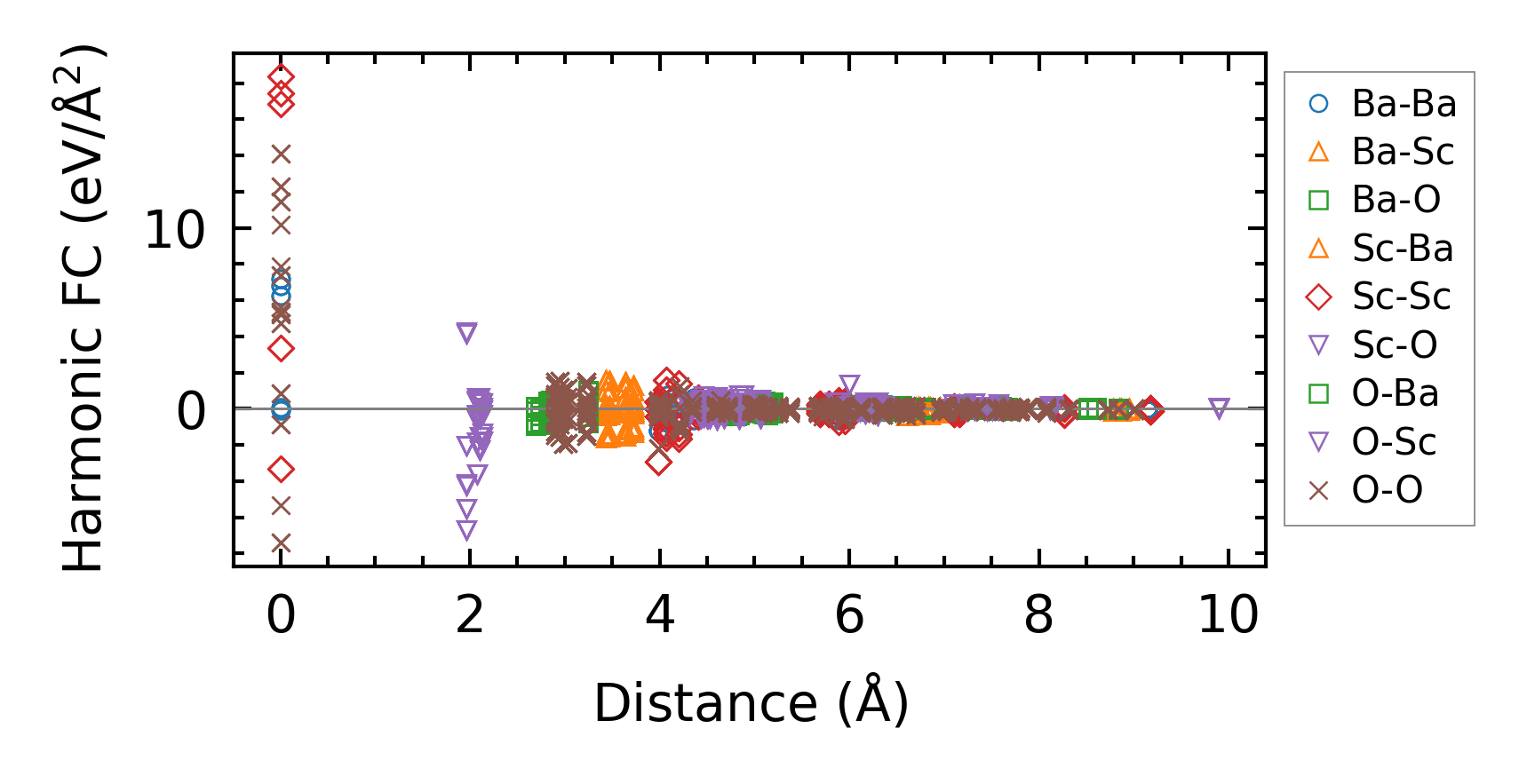

../../_images/fig_fc23326.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3044.png — (a) Temperature-dependent lattice thermal conductivity

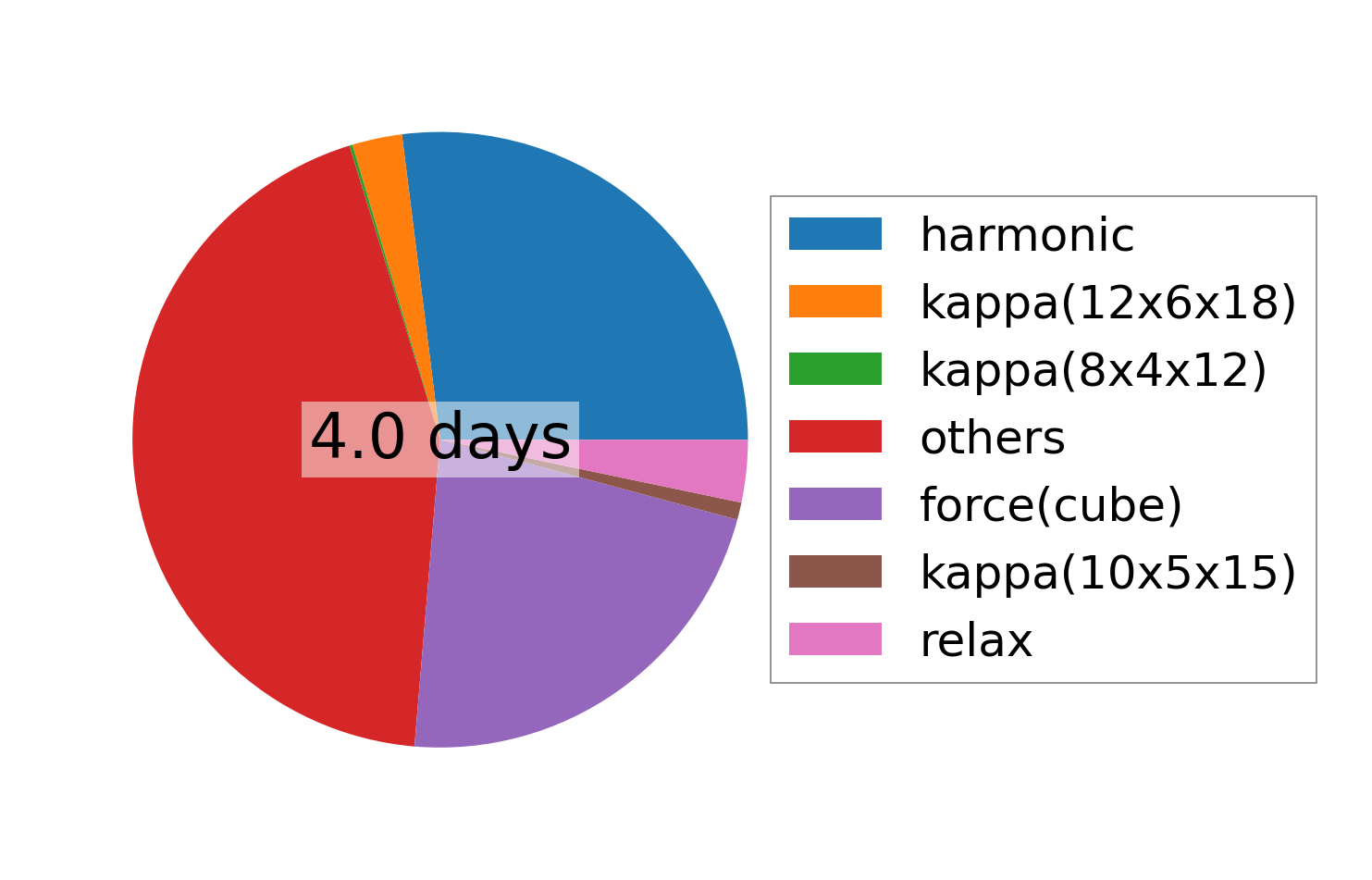

../../_images/fig_times6098.png — (b) Computation time
