mp-755277/Tb3SbO7/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-755277.tar.gz

Harmonic properties

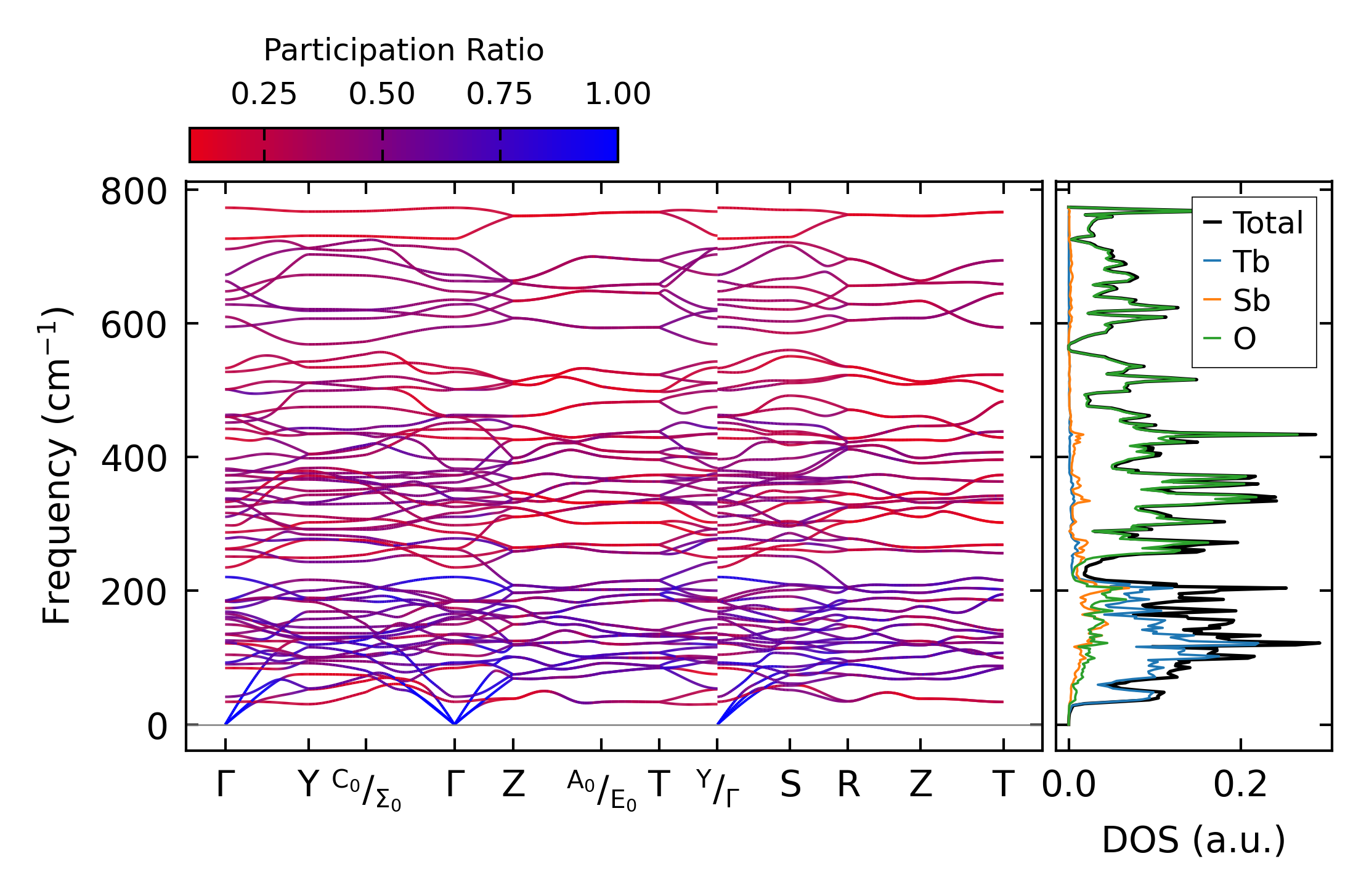

../../_images/fig_bandos_pr3669.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3669.png — (b) Thermodynamic properties

Grüneisen parameters

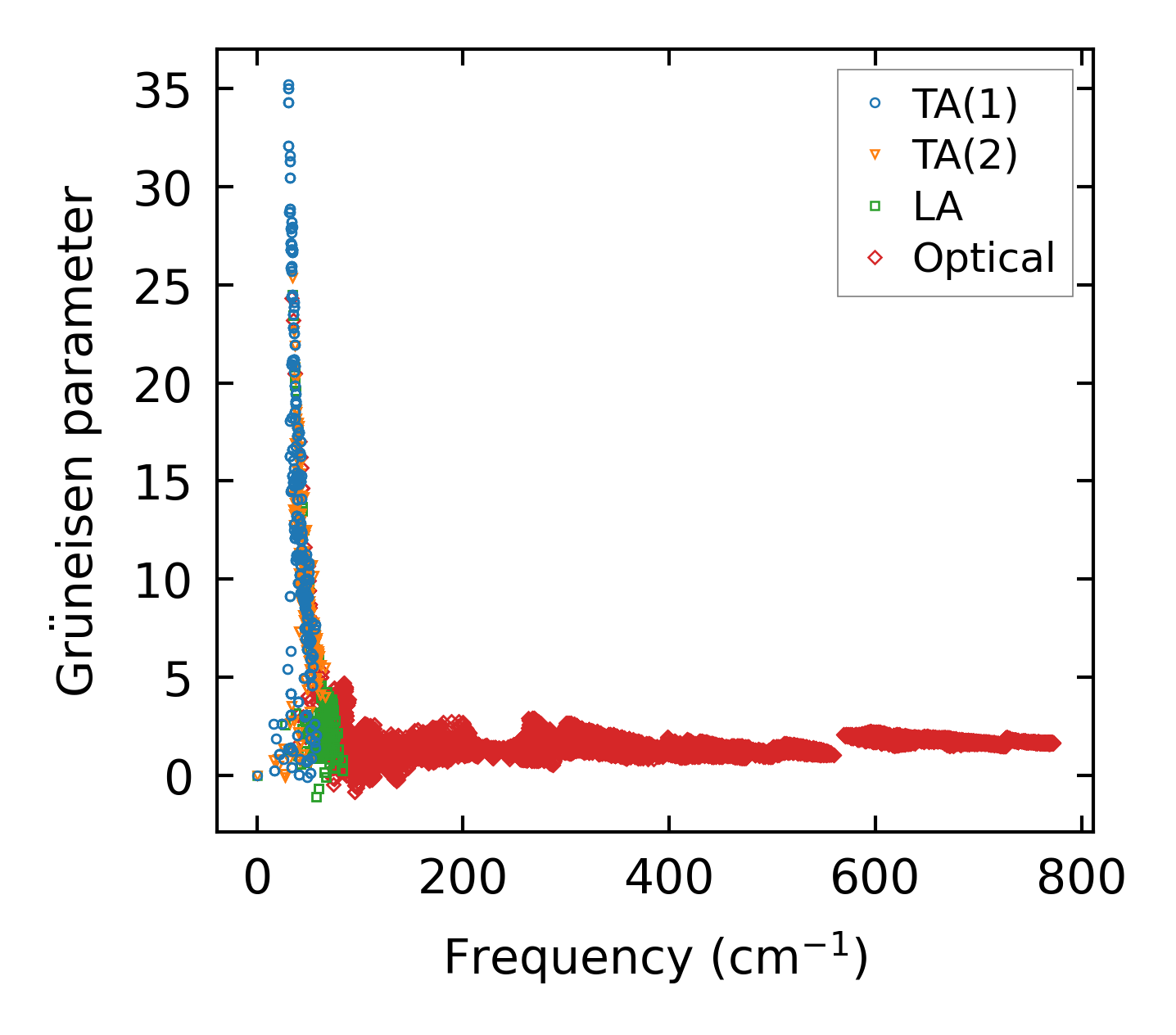

../../_images/fig_gru_all1654.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1654.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x9, supercell: 2x1x1

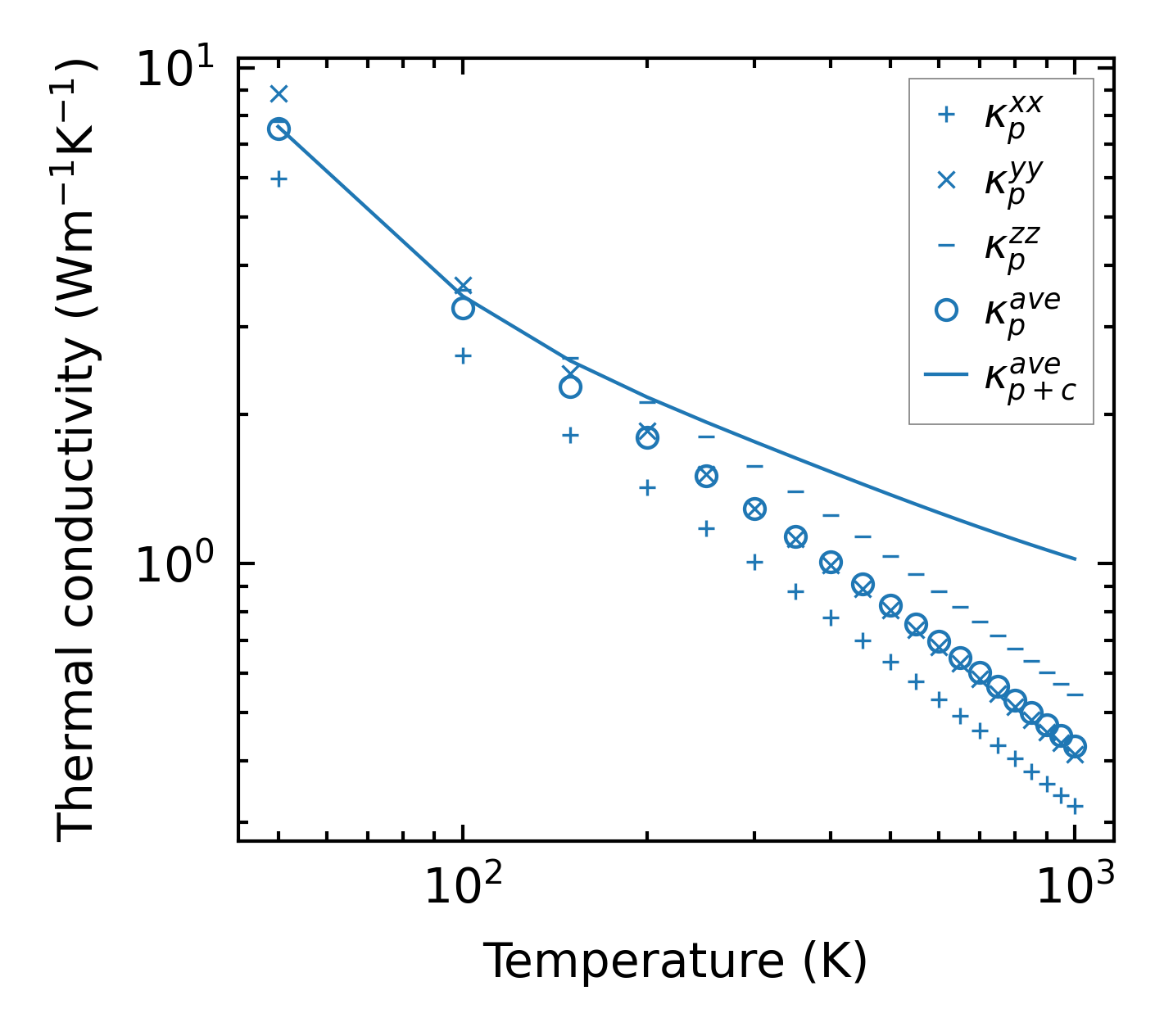

../../_images/fig_kappa3182.png — (a) Temperature-dependent lattice thermal conductivity

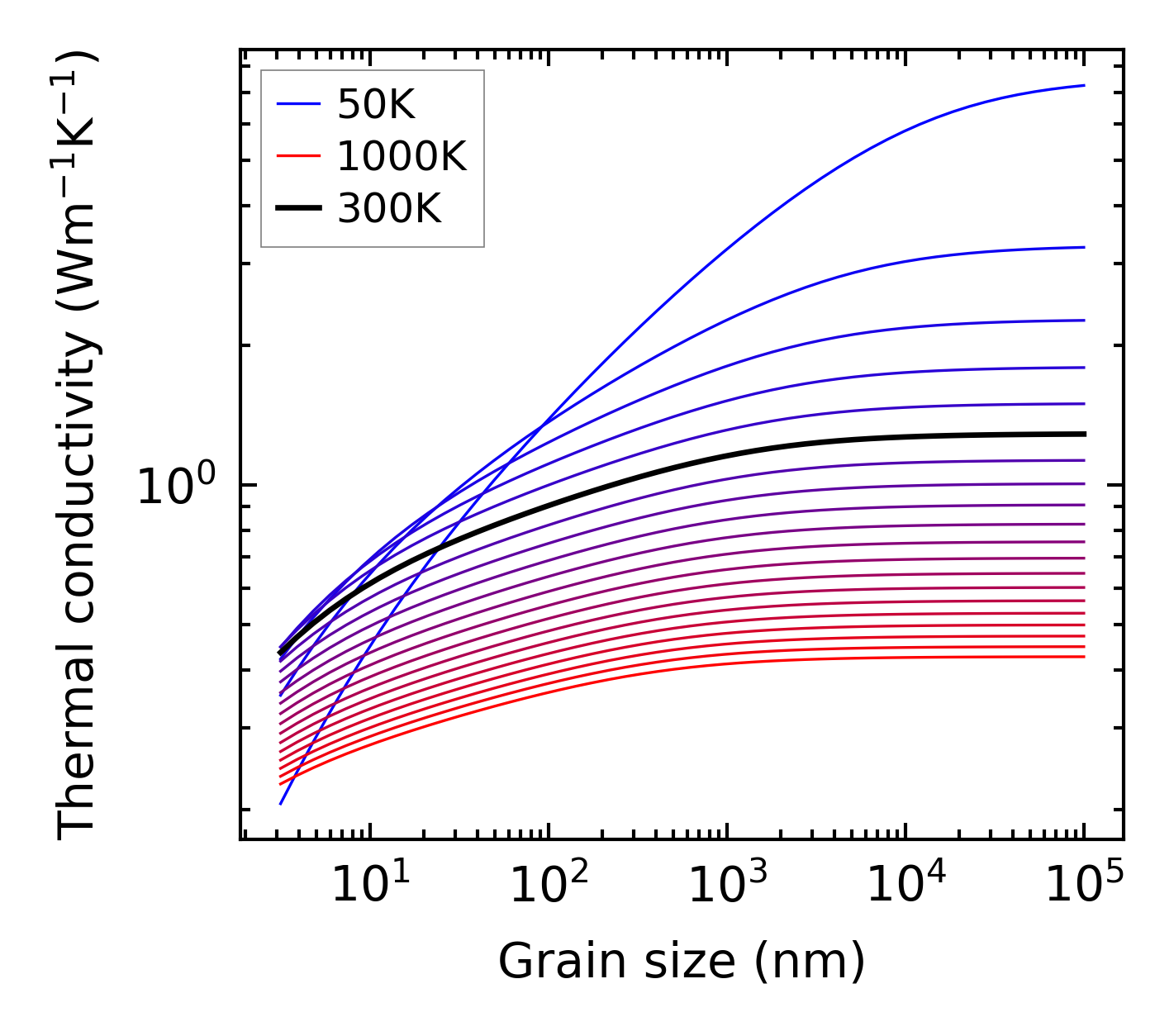

../../_images/fig_kappa_vs_grain_size1677.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

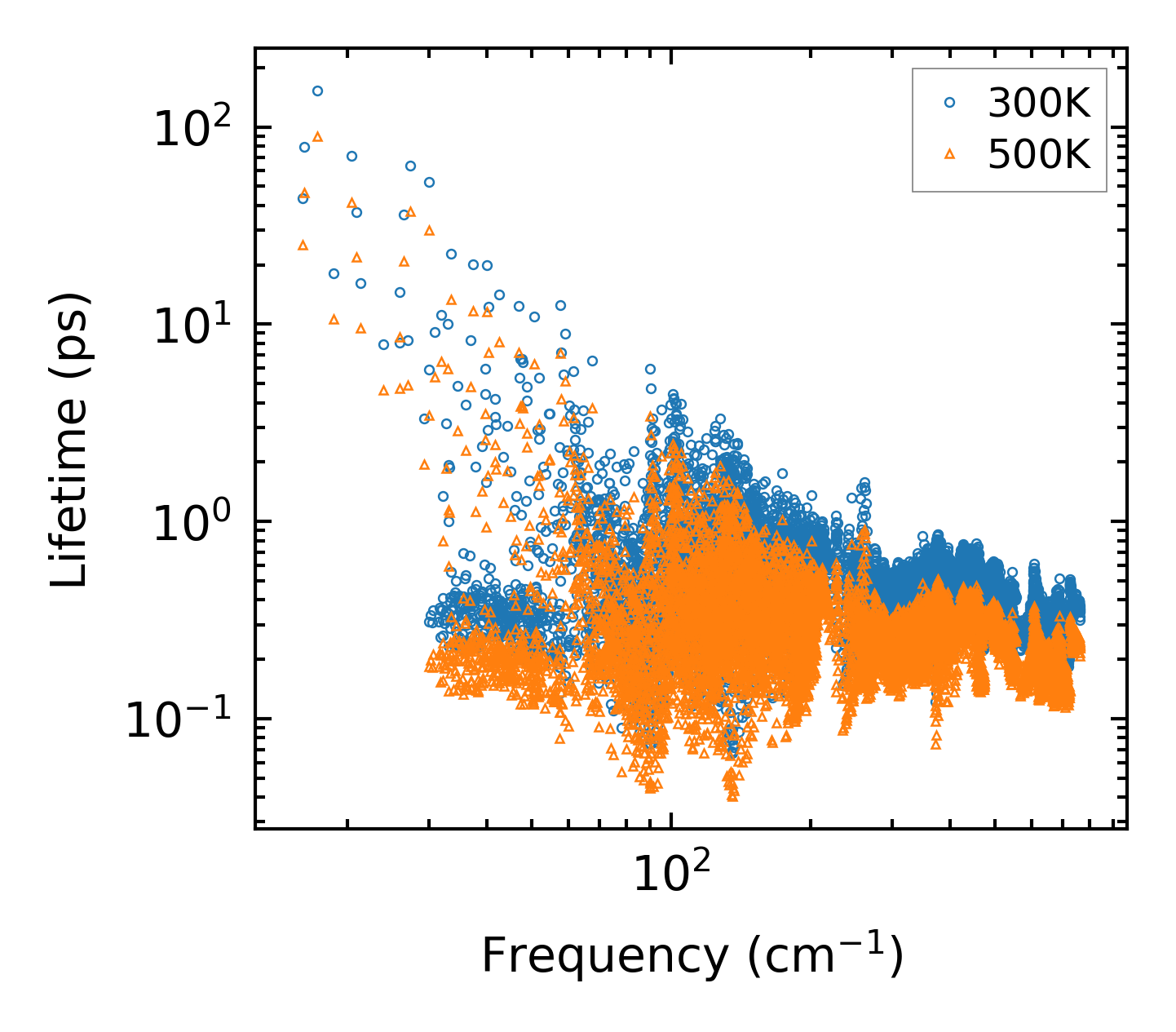

../../_images/fig_lifetime1644.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1643.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

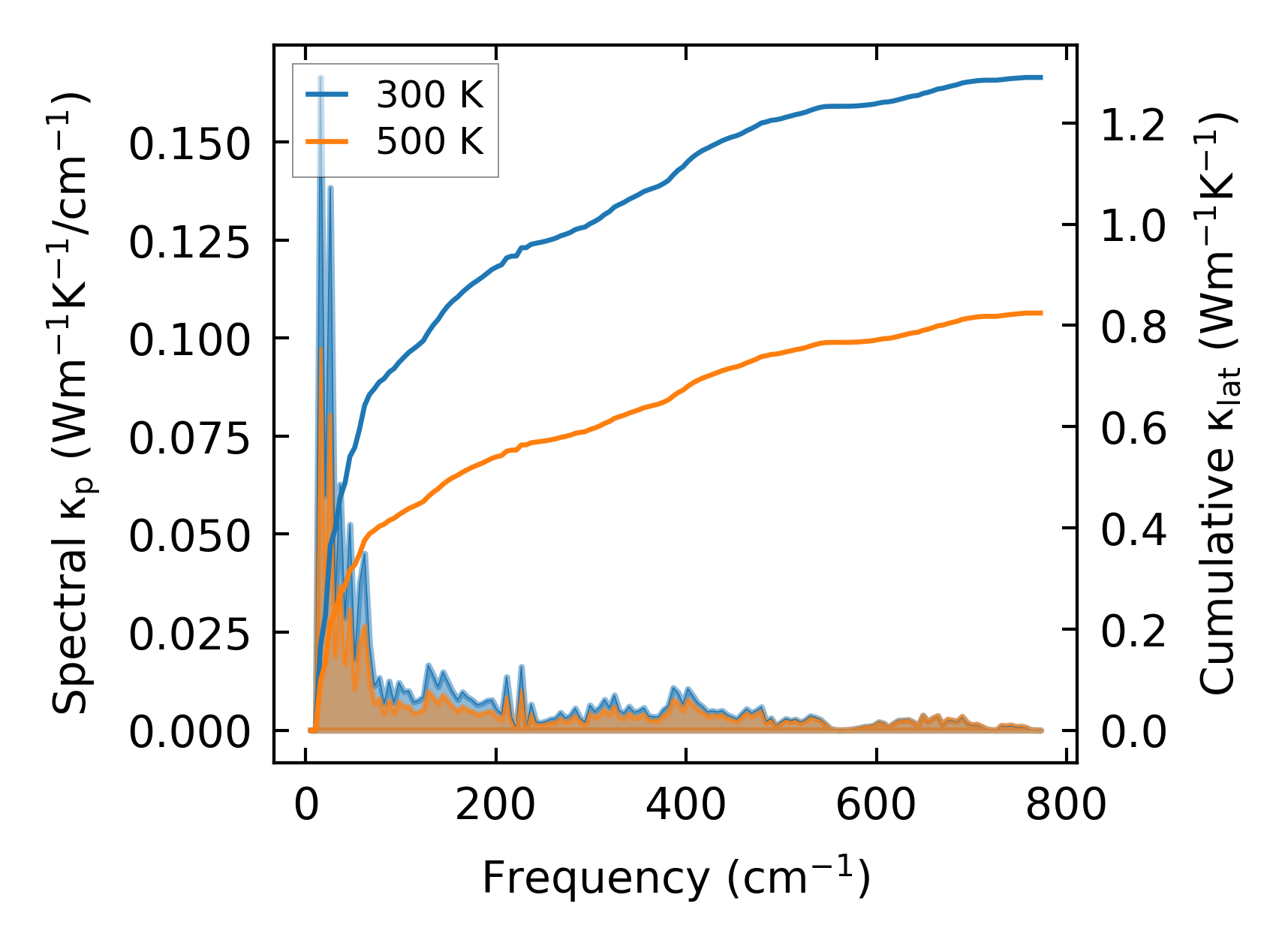

../../_images/fig_cumu_frequency1644.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1644.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

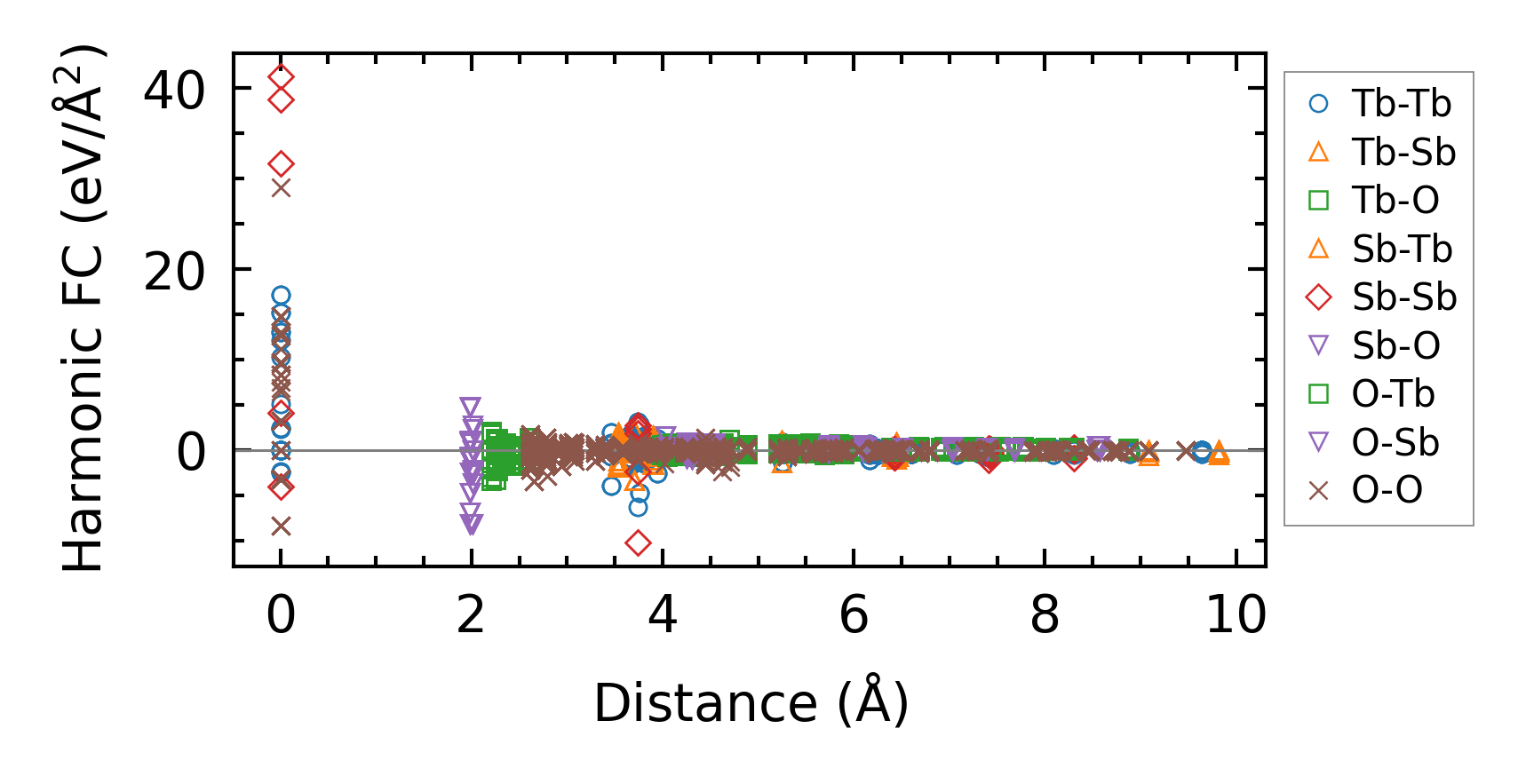

../../_images/fig_fc23486.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3183.png — (a) Temperature-dependent lattice thermal conductivity

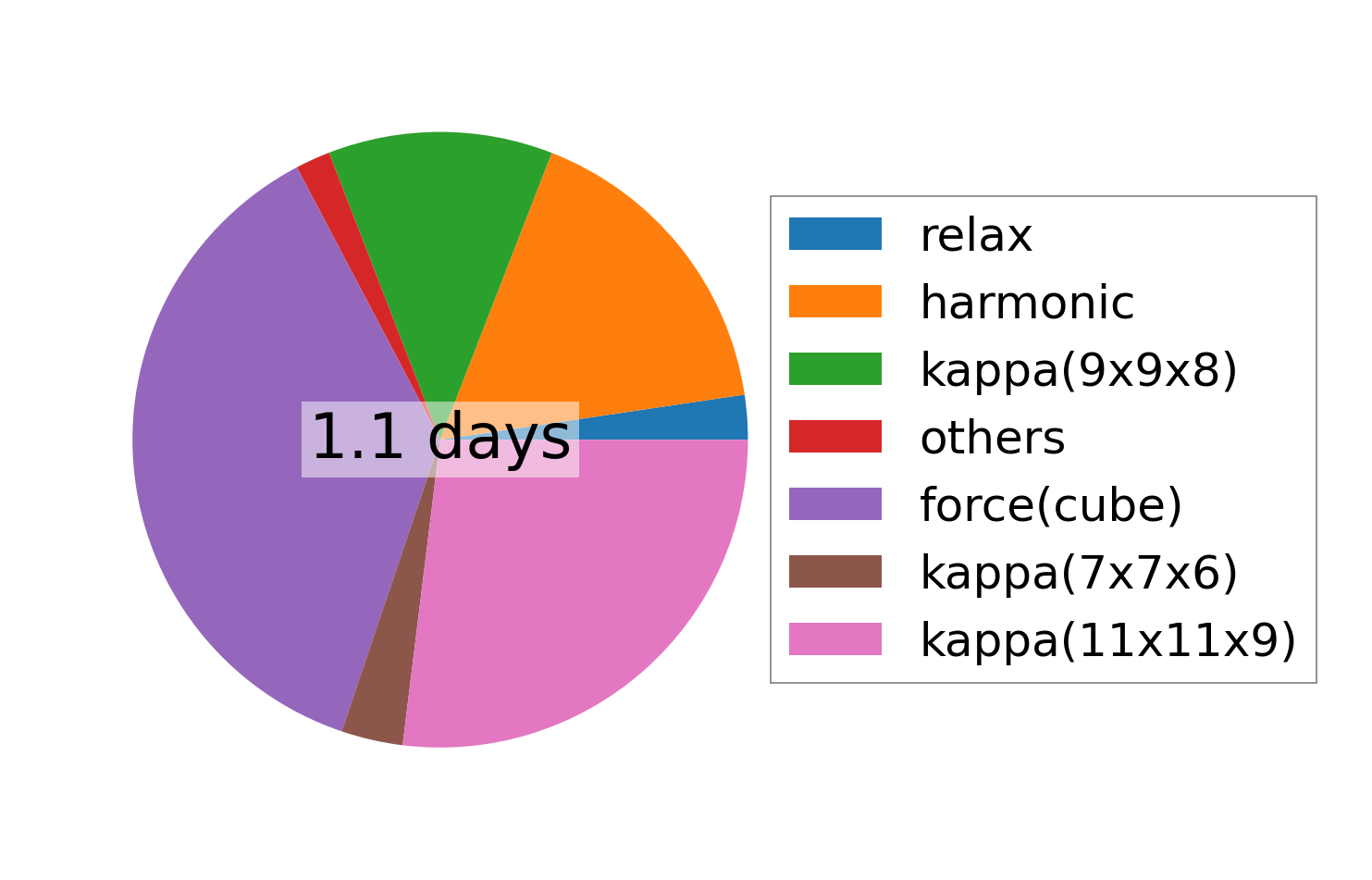

../../_images/fig_times6380.png — (b) Computation time
