mp-755084/Na6MgO4/anharm

Space group: P4_2/nmc (137)
Link: Materials Project
Download: mp-755084.tar.gz

Harmonic properties

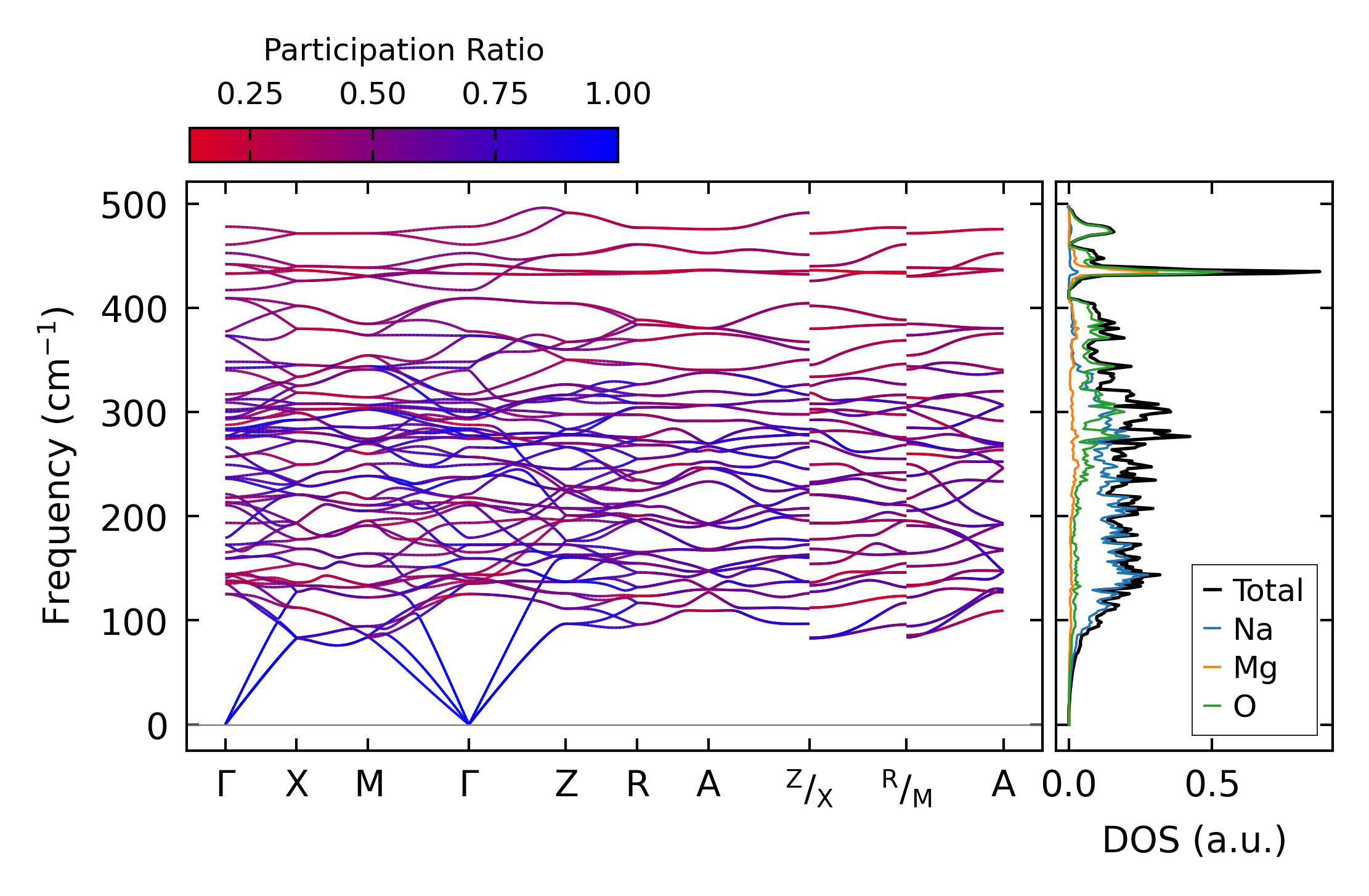

../../_images/fig_bandos_pr3645.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3645.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1637.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1637.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x13, supercell: 1x1x2

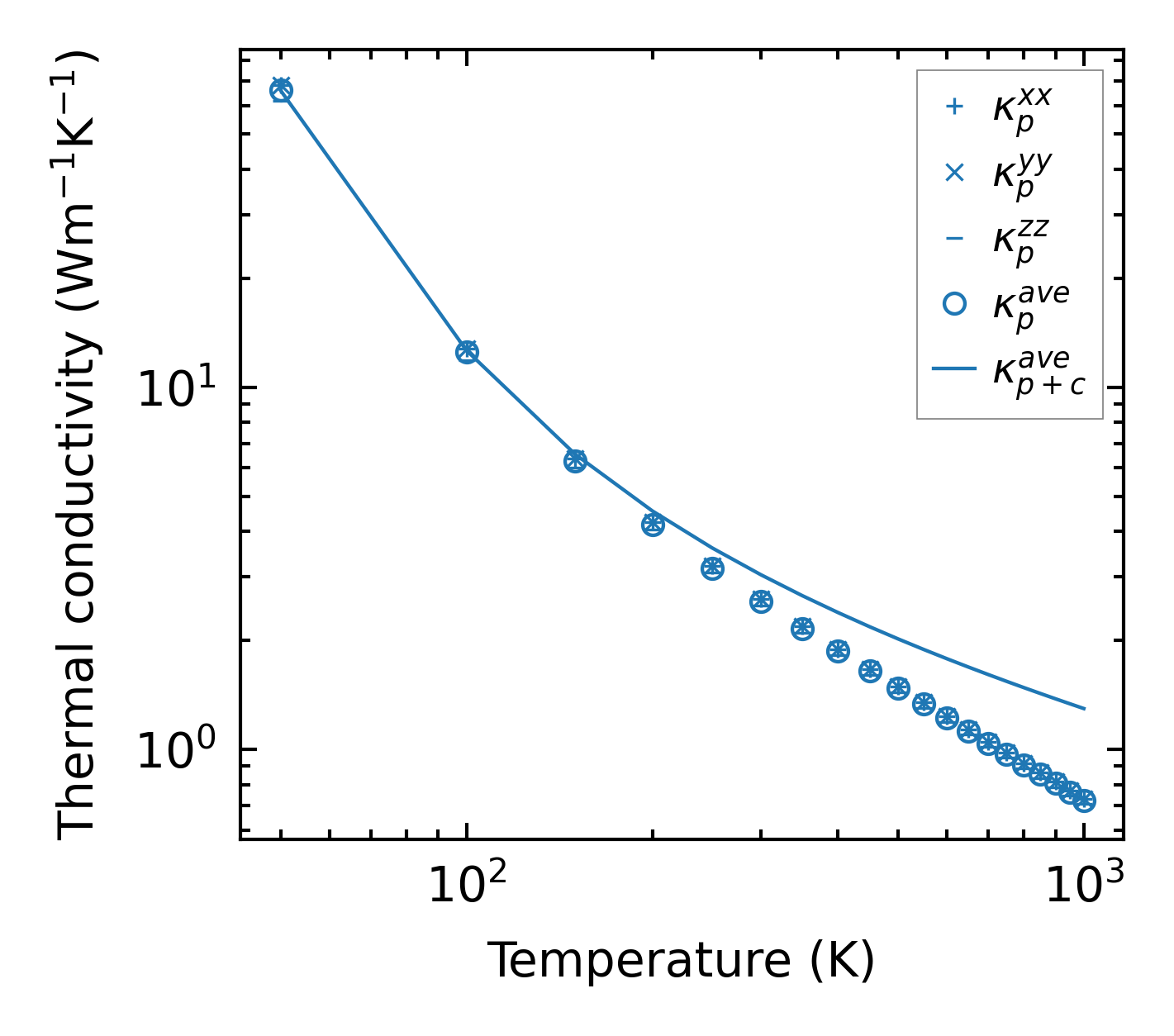

../../_images/fig_kappa3148.png — (a) Temperature-dependent lattice thermal conductivity

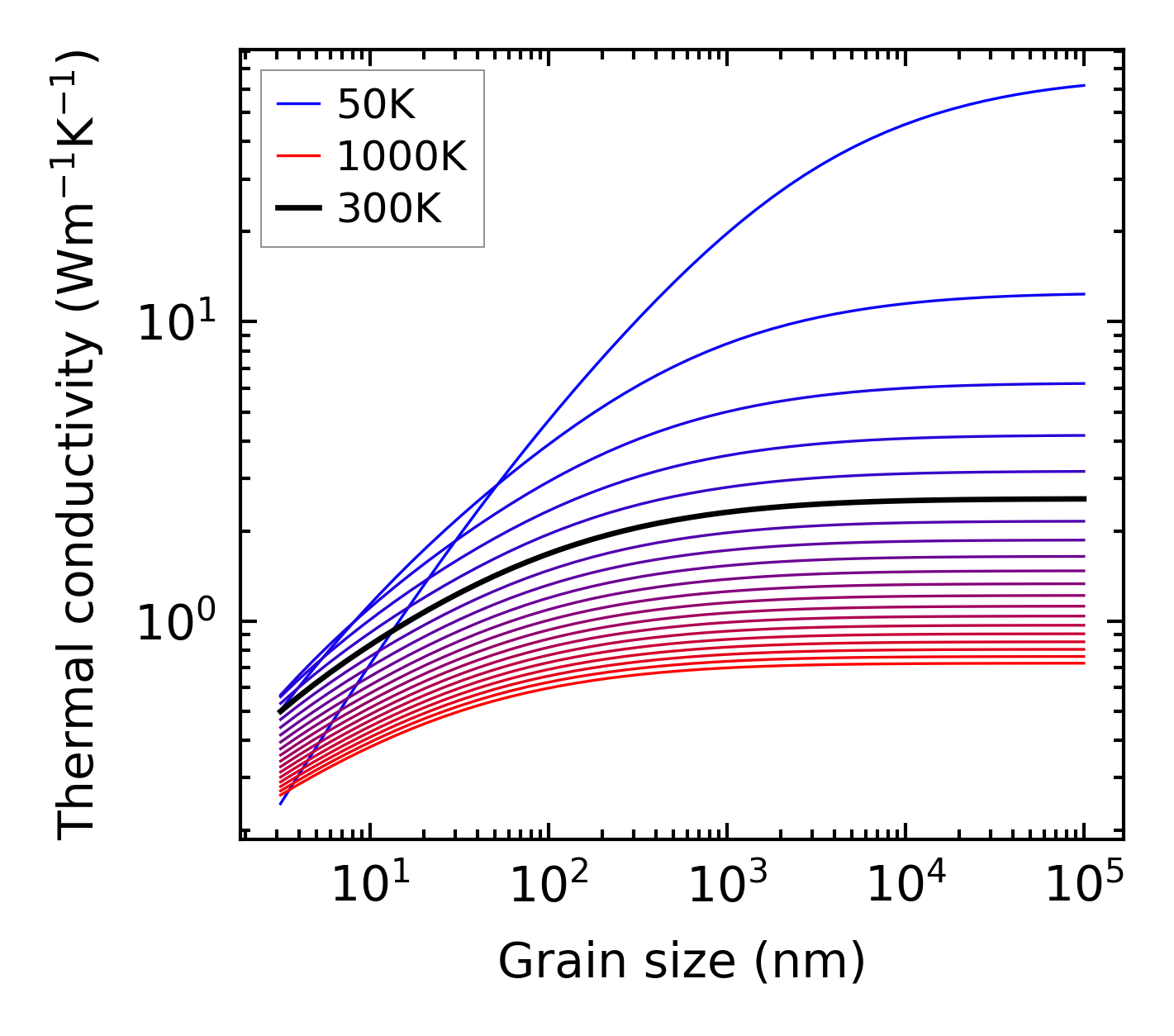

../../_images/fig_kappa_vs_grain_size1659.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1627.png — (a) Phonon lifetime due to phonon-phonon scattering

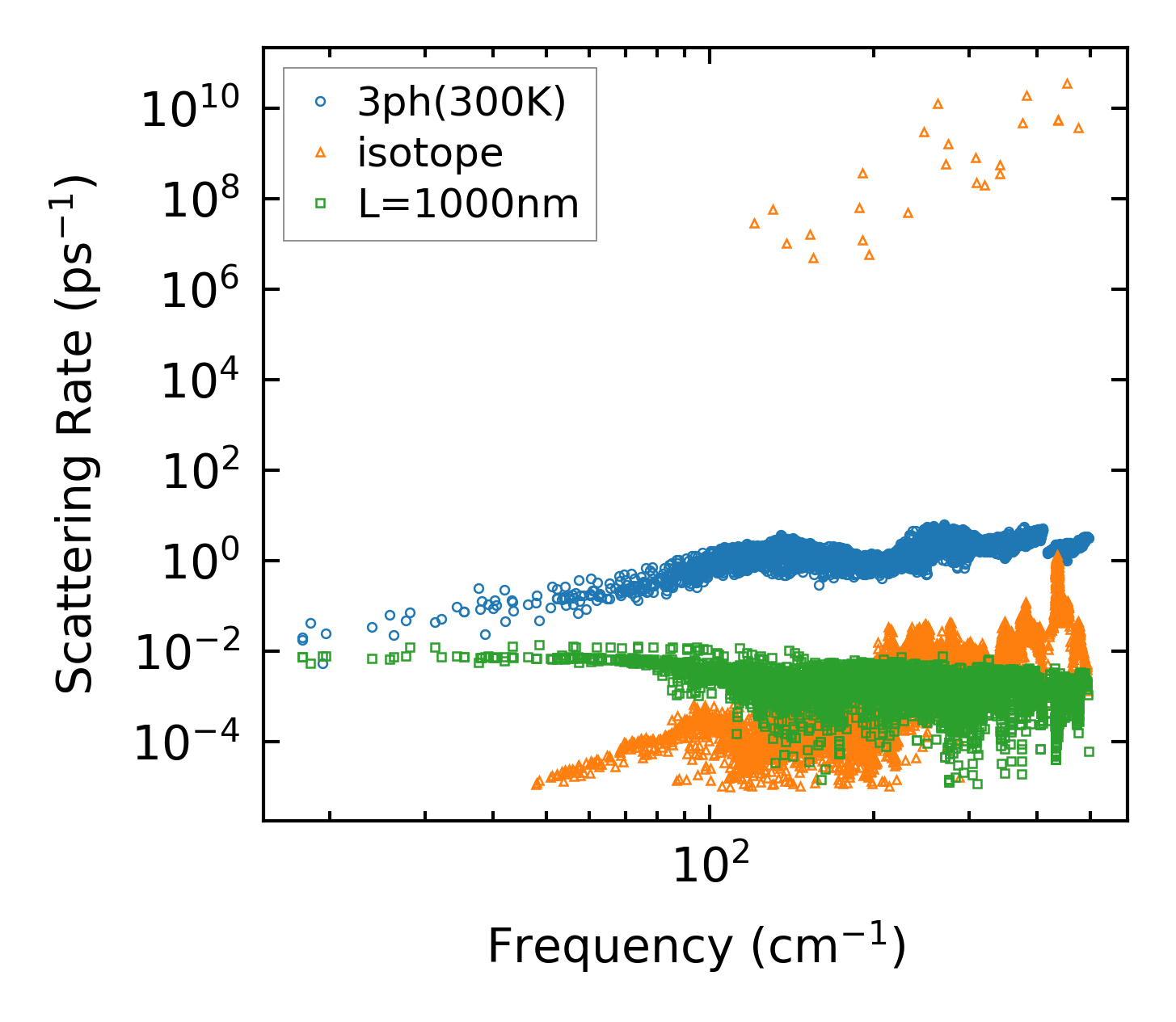

../../_images/fig_scat_rates1626.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

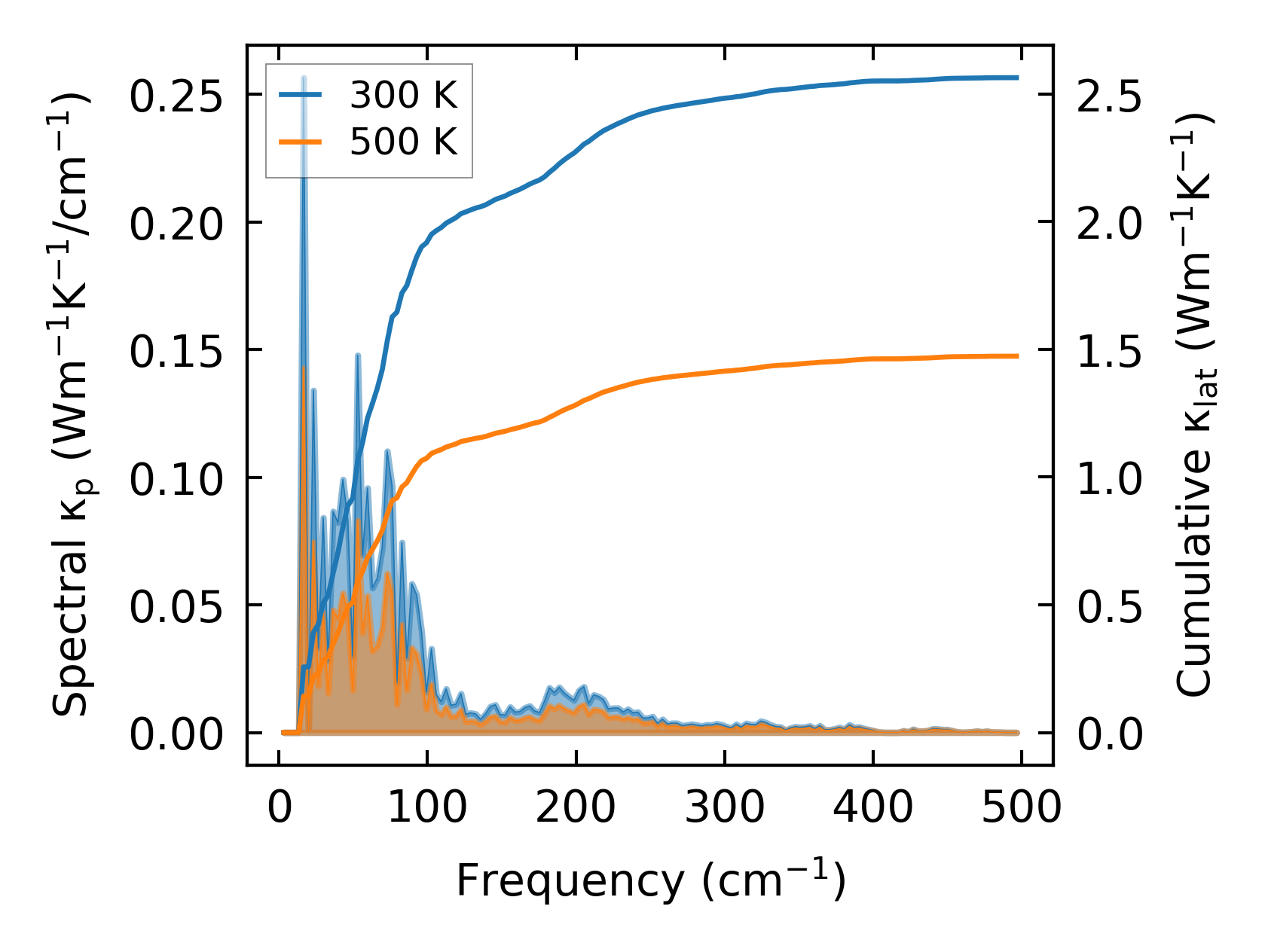

../../_images/fig_cumu_frequency1627.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1627.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

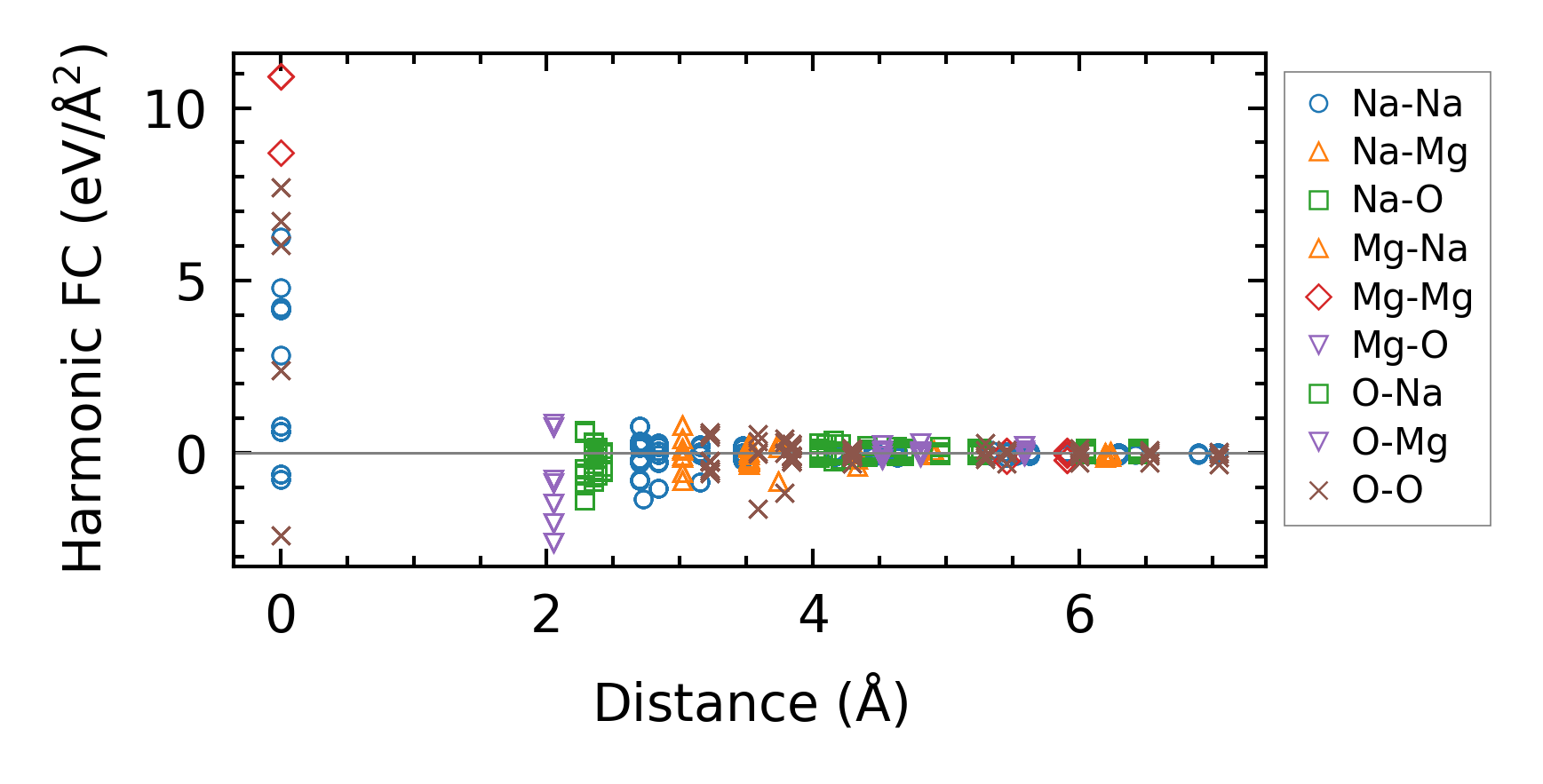

../../_images/fig_fc23462.png — (a) Force constants w.r.t atomic distance

Summary

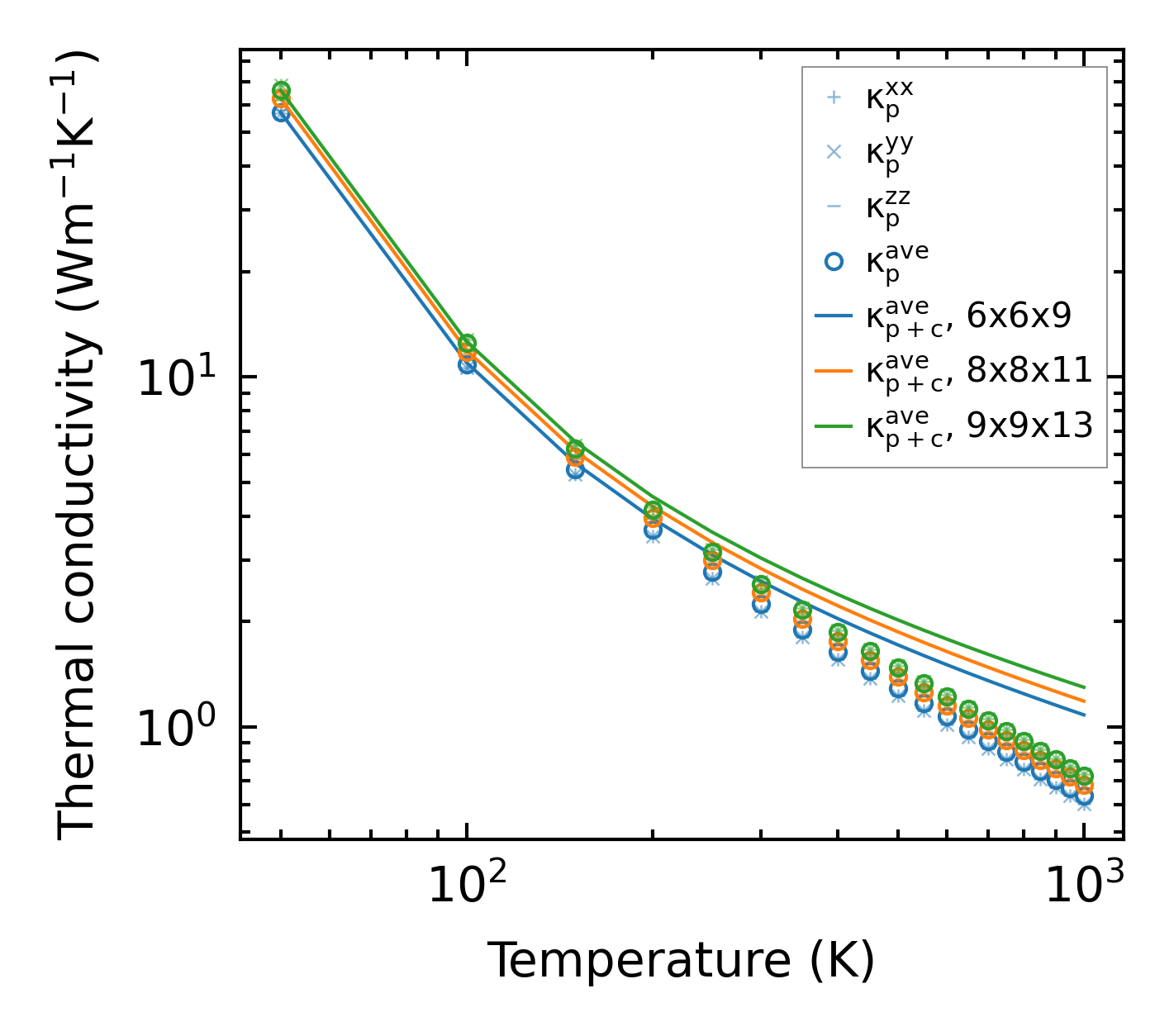

../../_images/fig_kappa3149.png — (a) Temperature-dependent lattice thermal conductivity

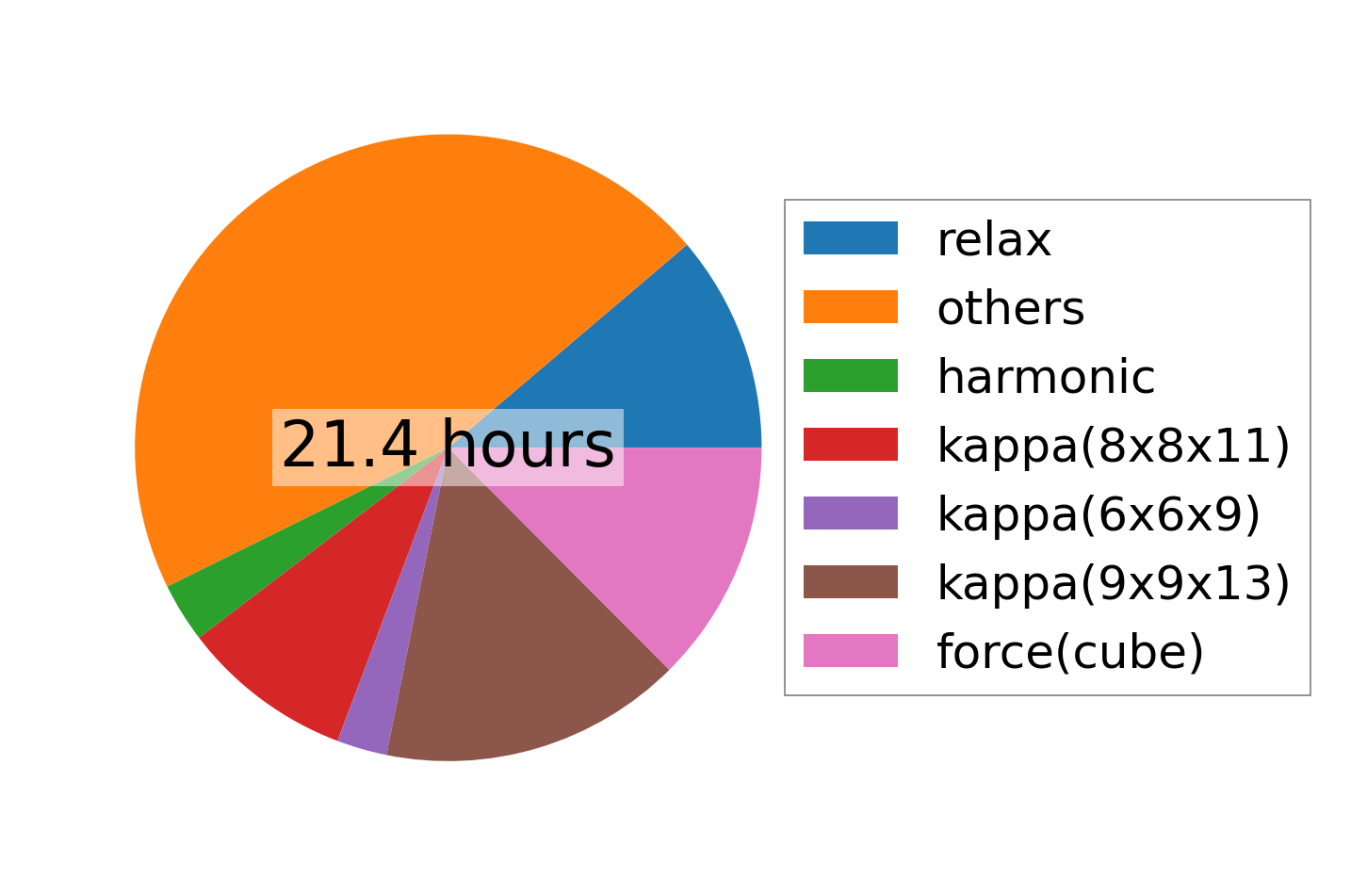

../../_images/fig_times6343.png — (b) Computation time
