mp-755752-2/Rb2Be2O3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-755752-2.tar.gz

Equation of state

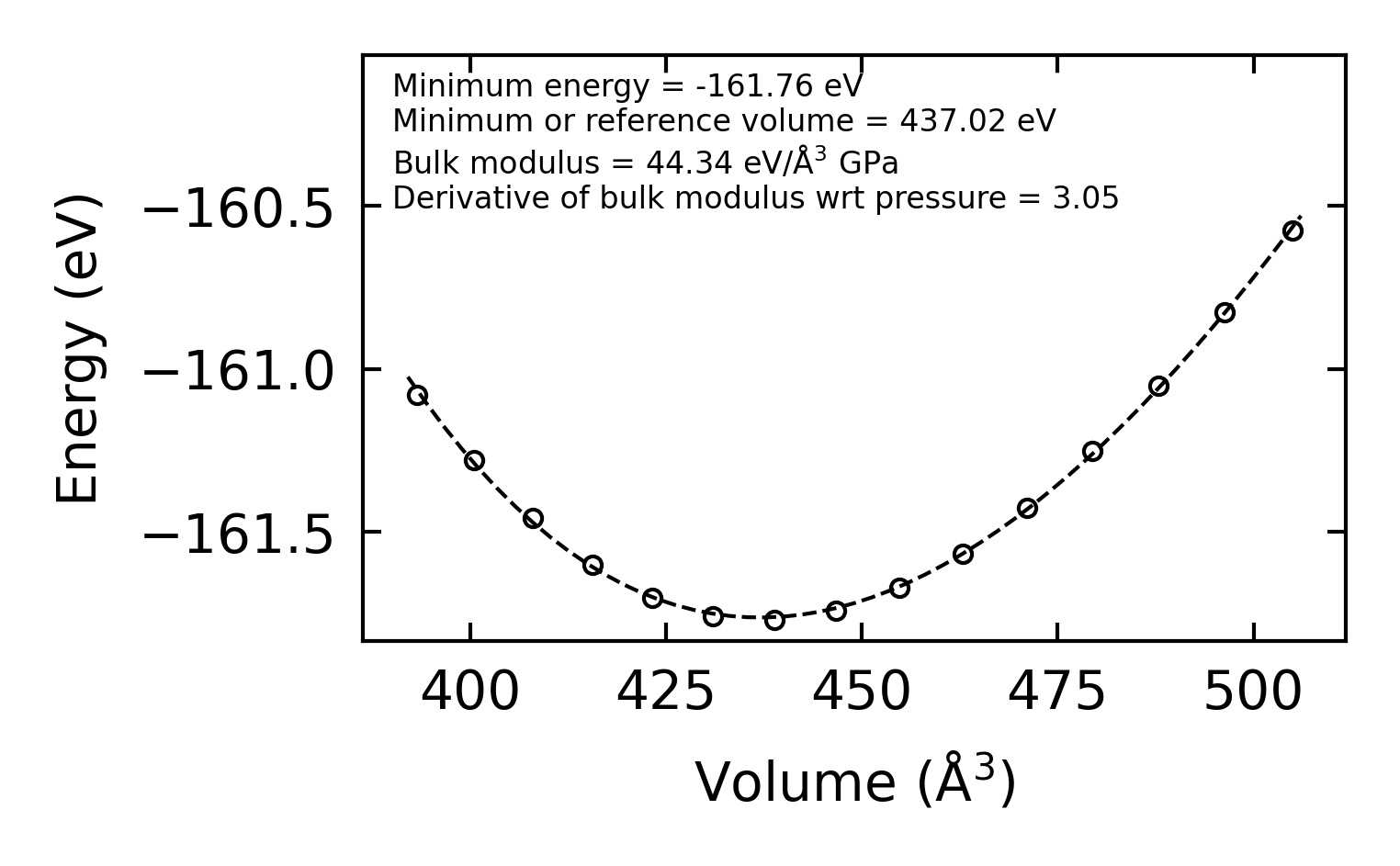

../../_images/fig_bm1687.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr3475.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3475.png — (b) Thermodynamic properties

Grüneisen parameters

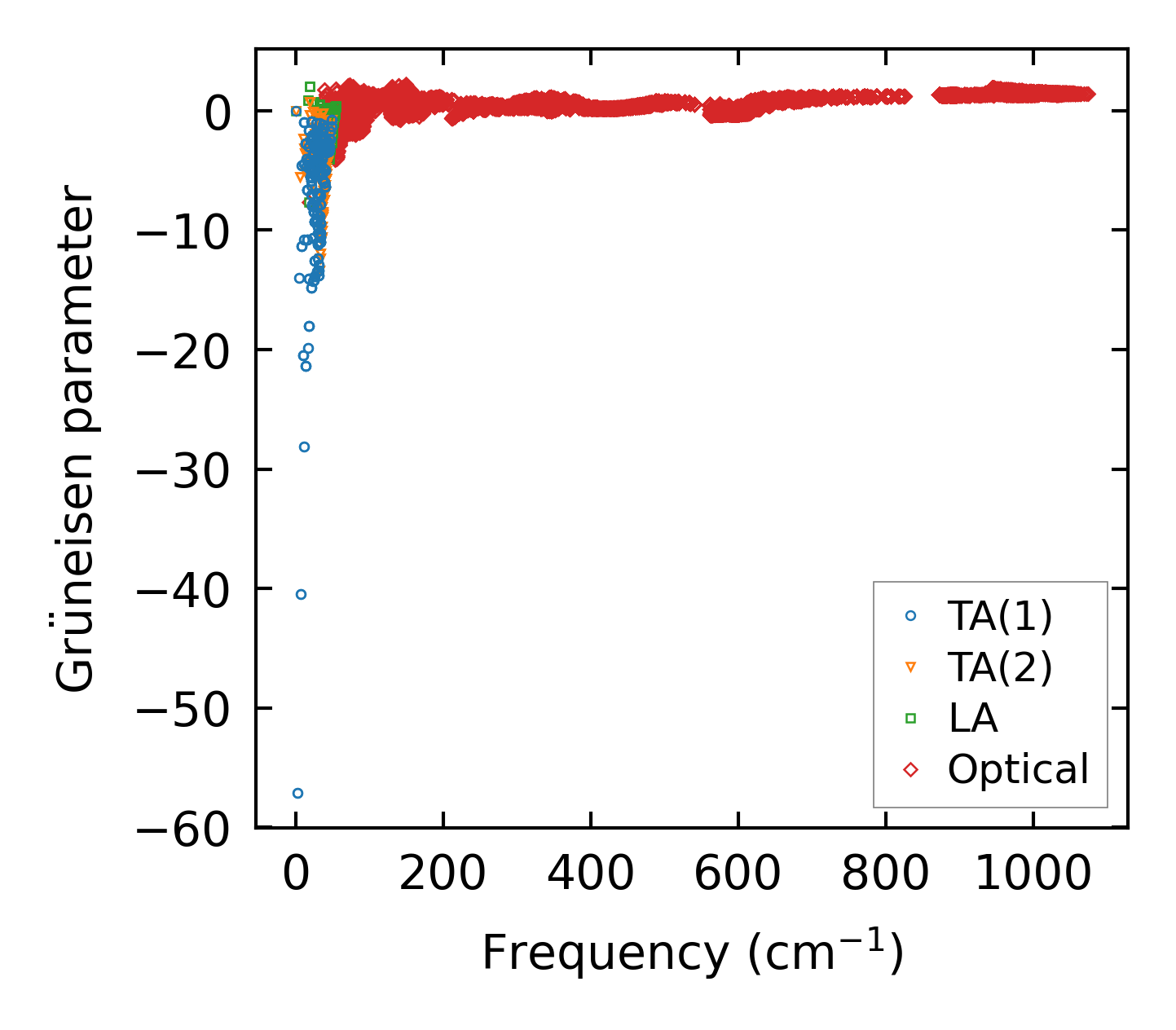

../../_images/fig_gru_all1569.png — (a) Grüneisen parameters

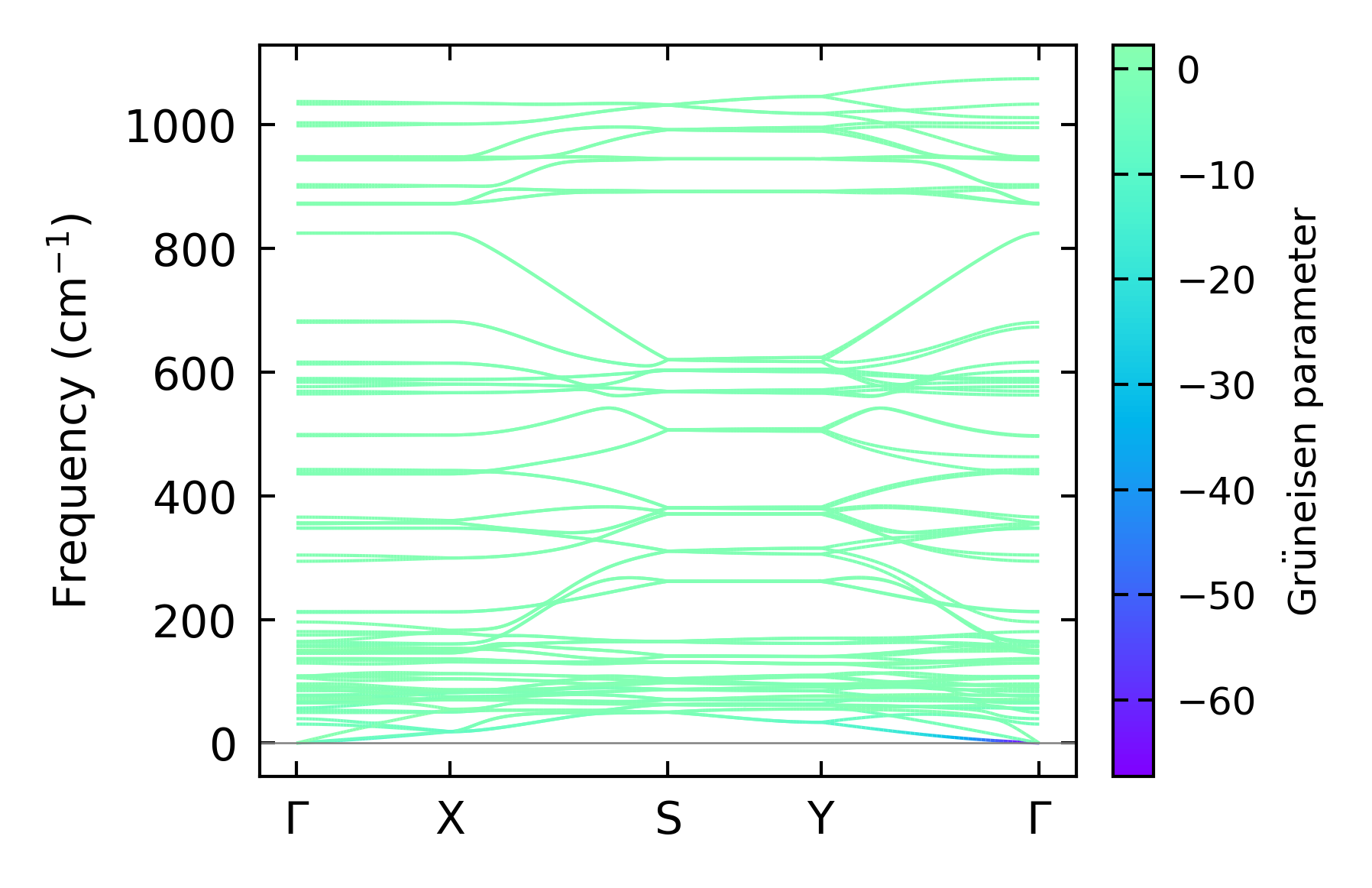

../../_images/fig_gruneisen1569.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x13x9, supercell: 1x2x2

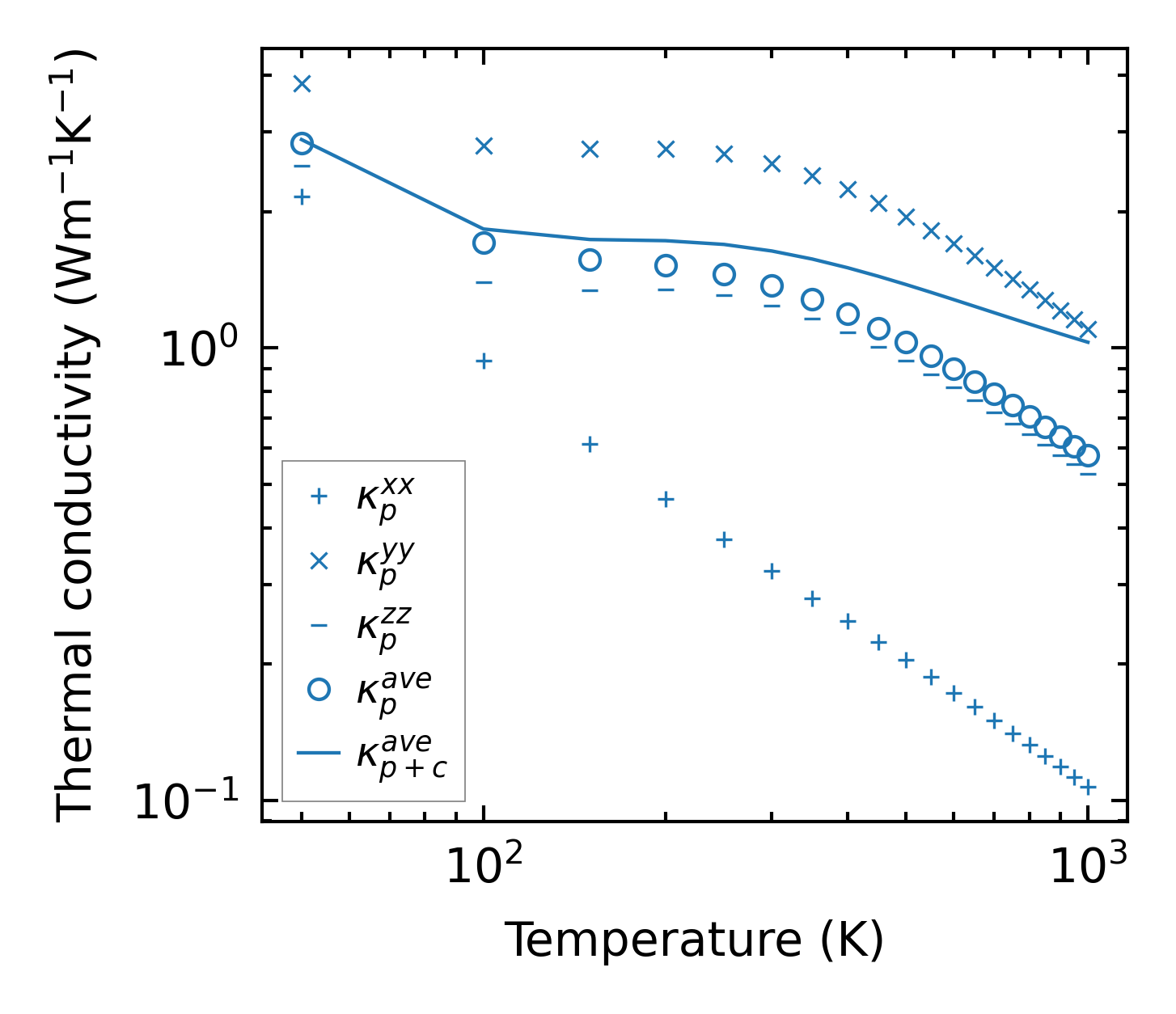

../../_images/fig_kappa3014.png — (a) Temperature-dependent lattice thermal conductivity

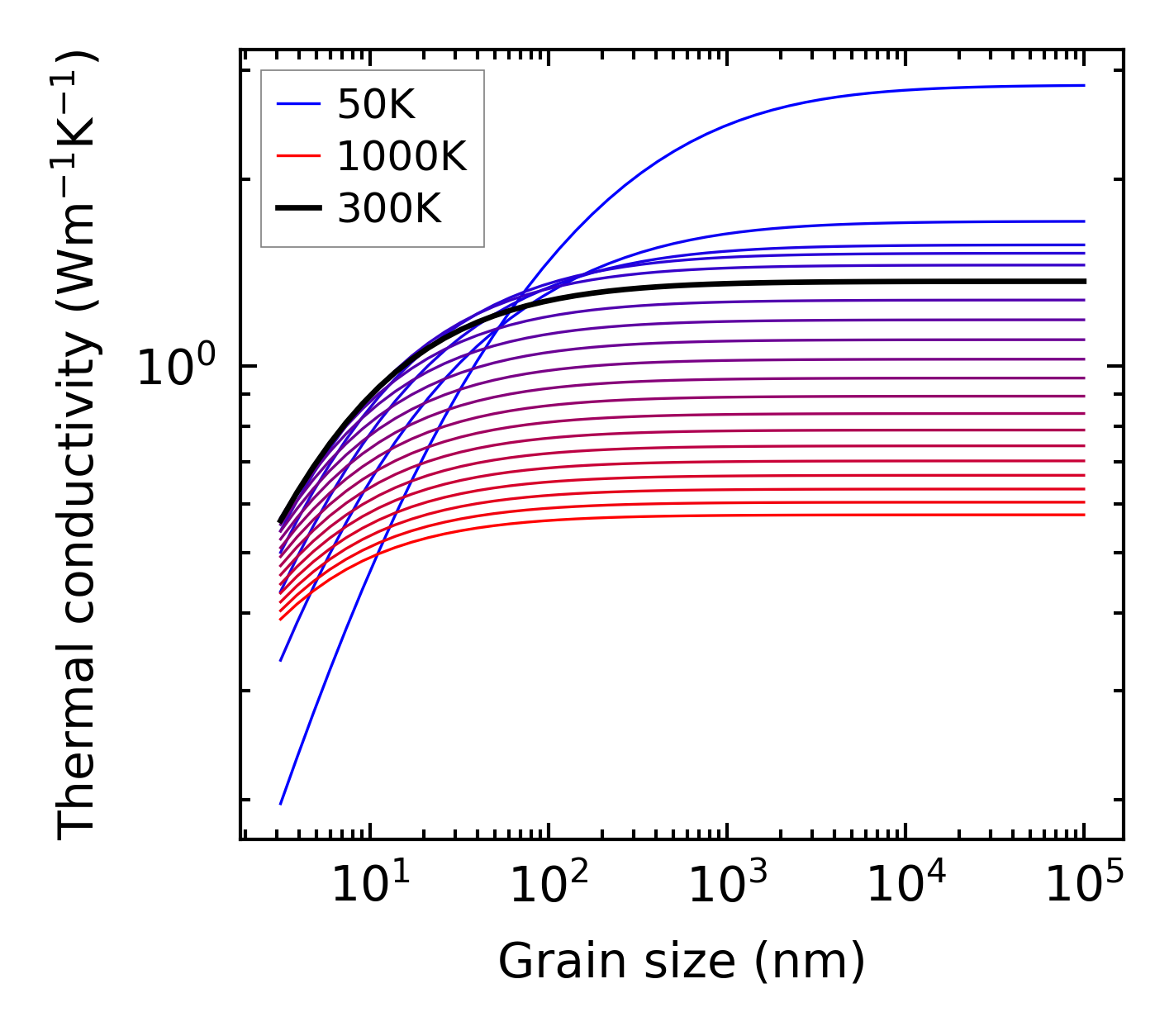

../../_images/fig_kappa_vs_grain_size1589.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 6x13x9, supercell: 2x2x2

../../_images/fig_kappa3015.png — (a) Temperature-dependent lattice thermal conductivity

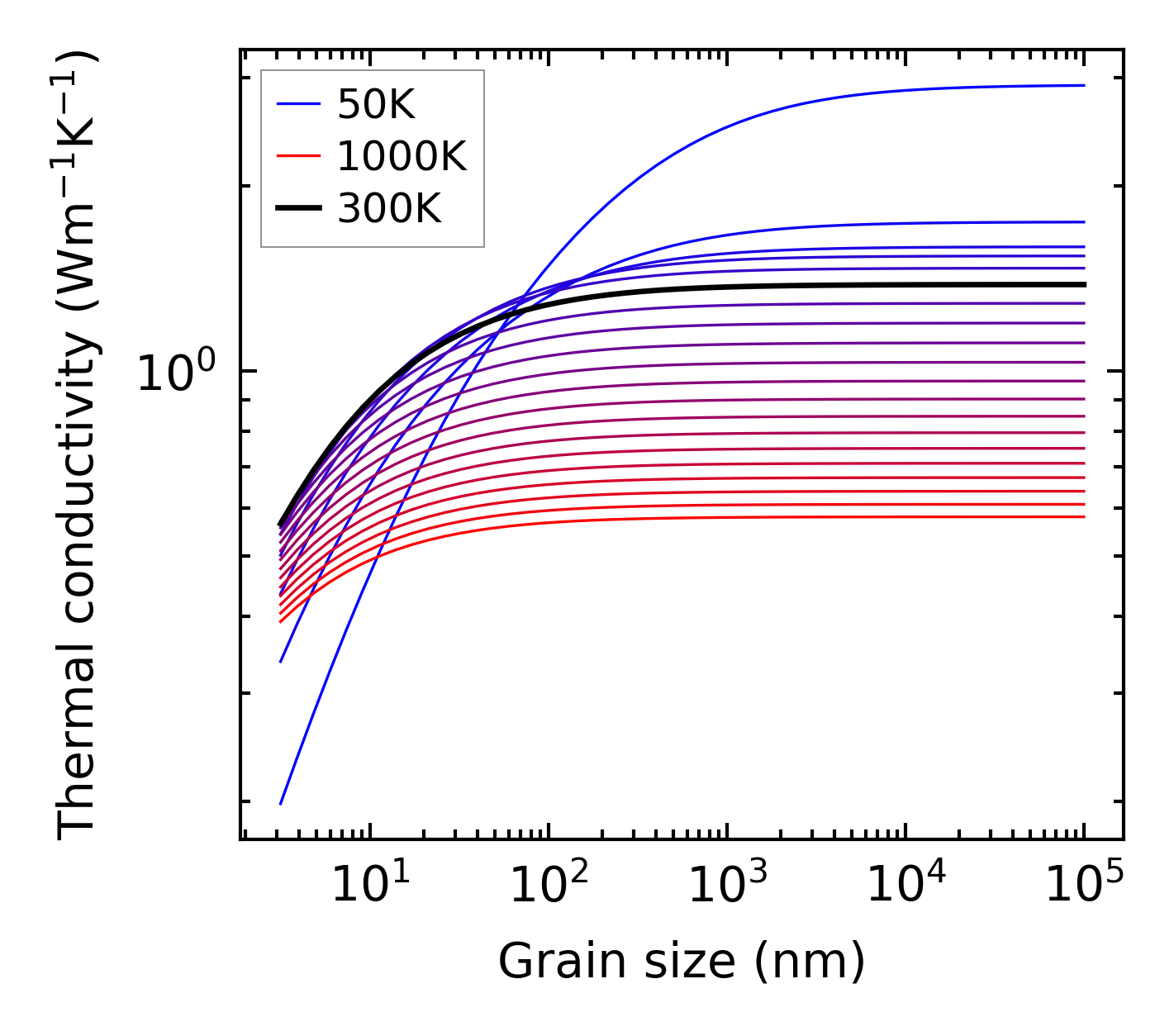

../../_images/fig_kappa_vs_grain_size1590.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

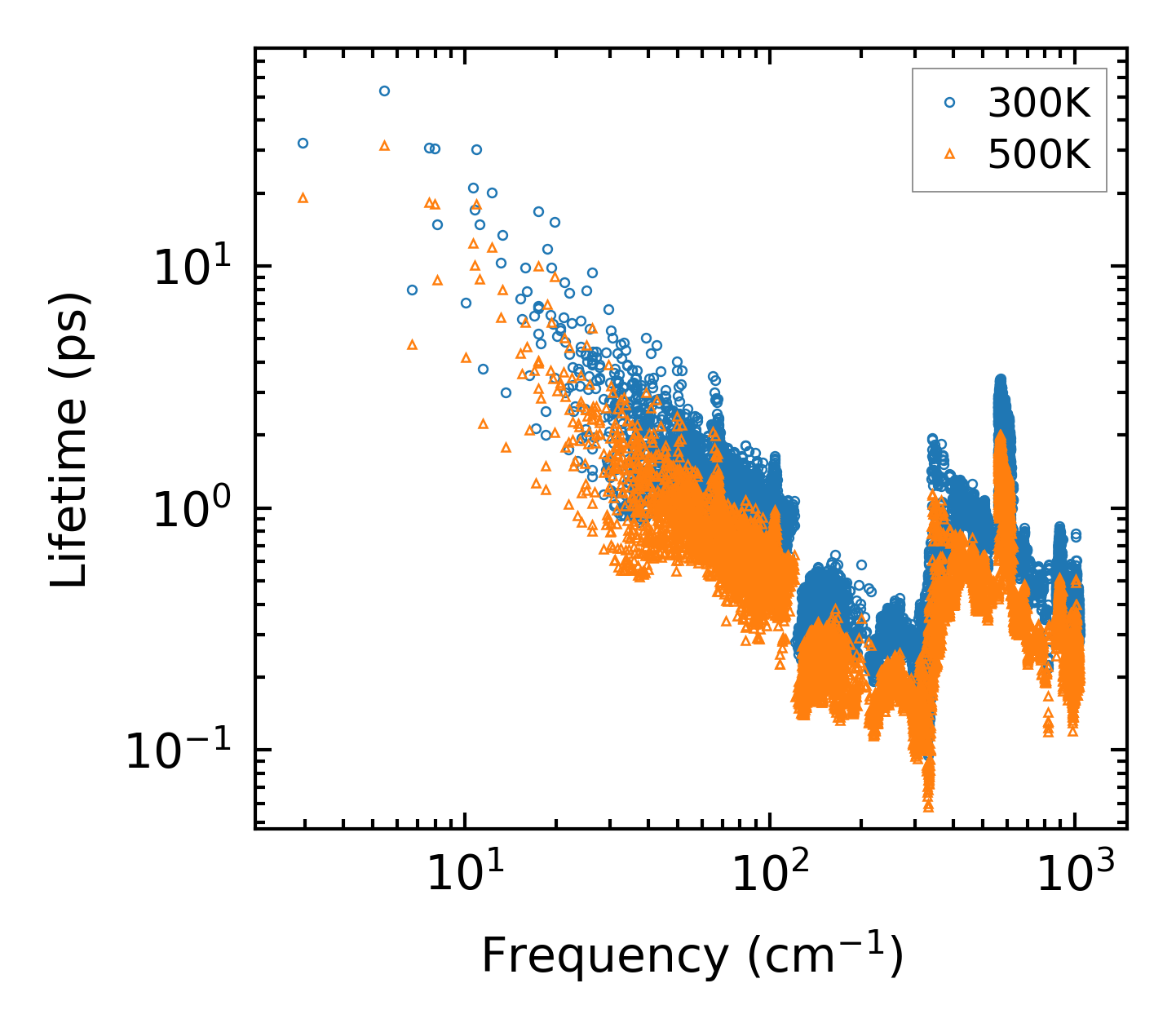

../../_images/fig_lifetime1559.png — (a) Phonon lifetime due to phonon-phonon scattering

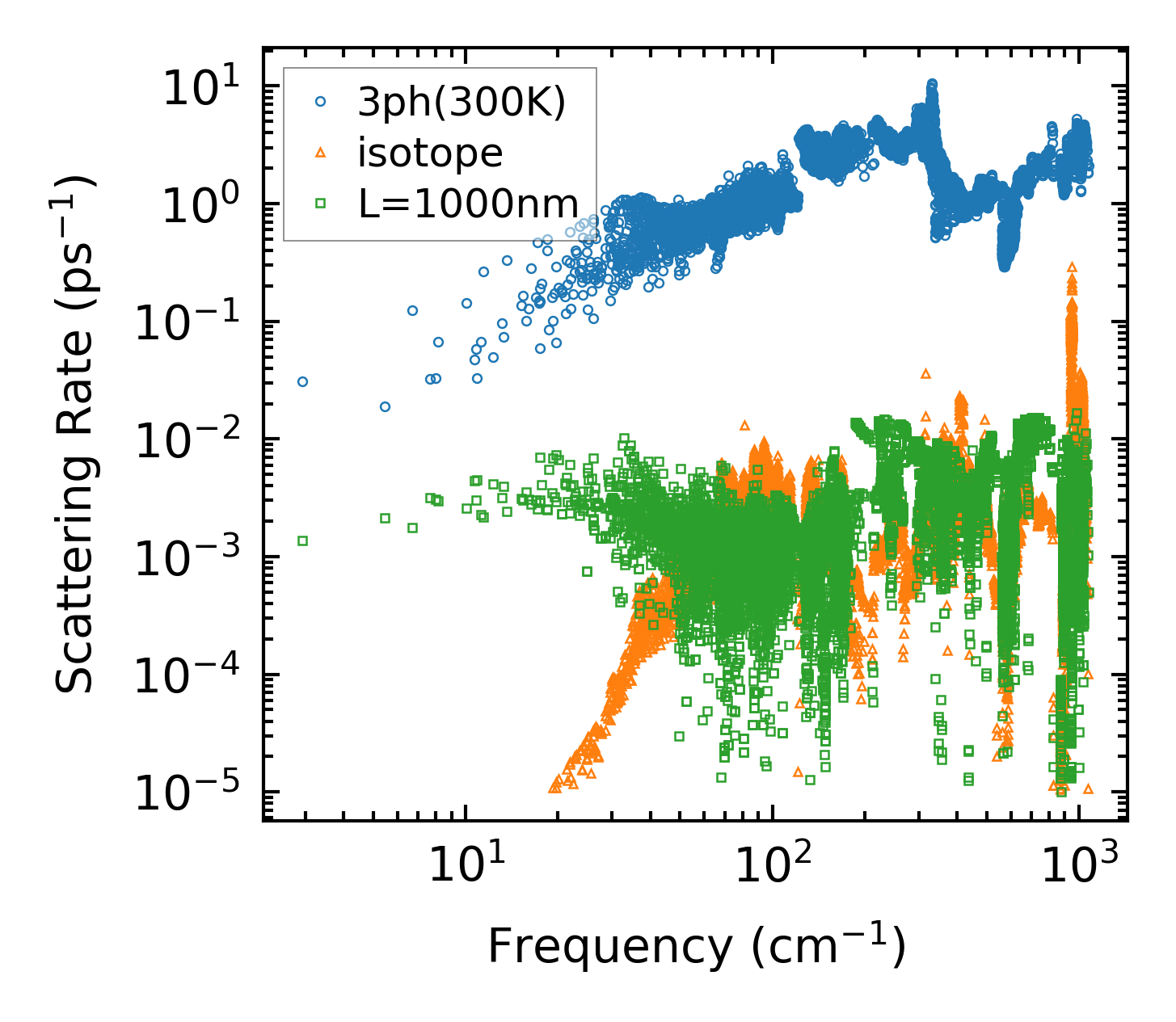

../../_images/fig_scat_rates1558.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

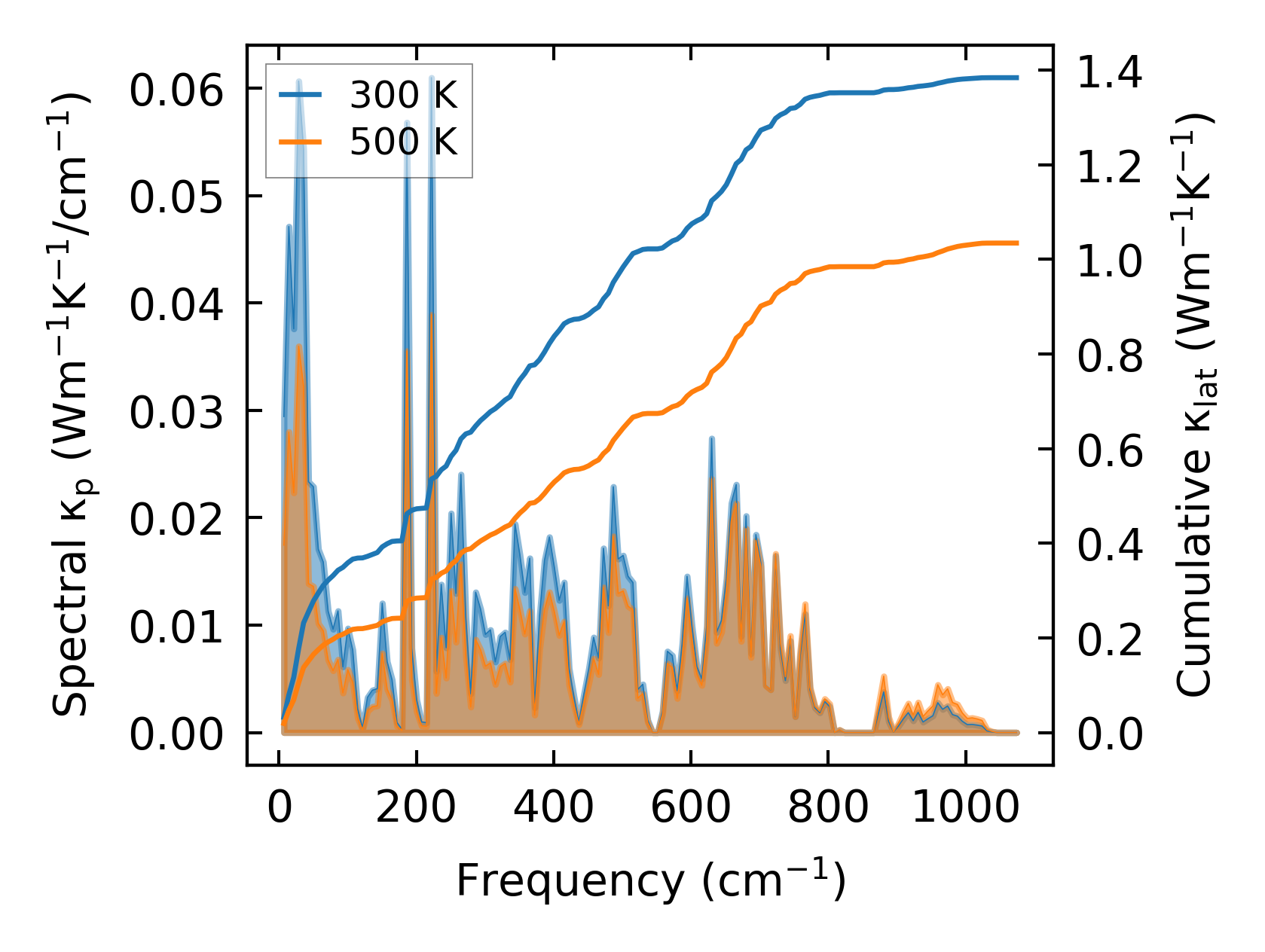

../../_images/fig_cumu_frequency1559.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

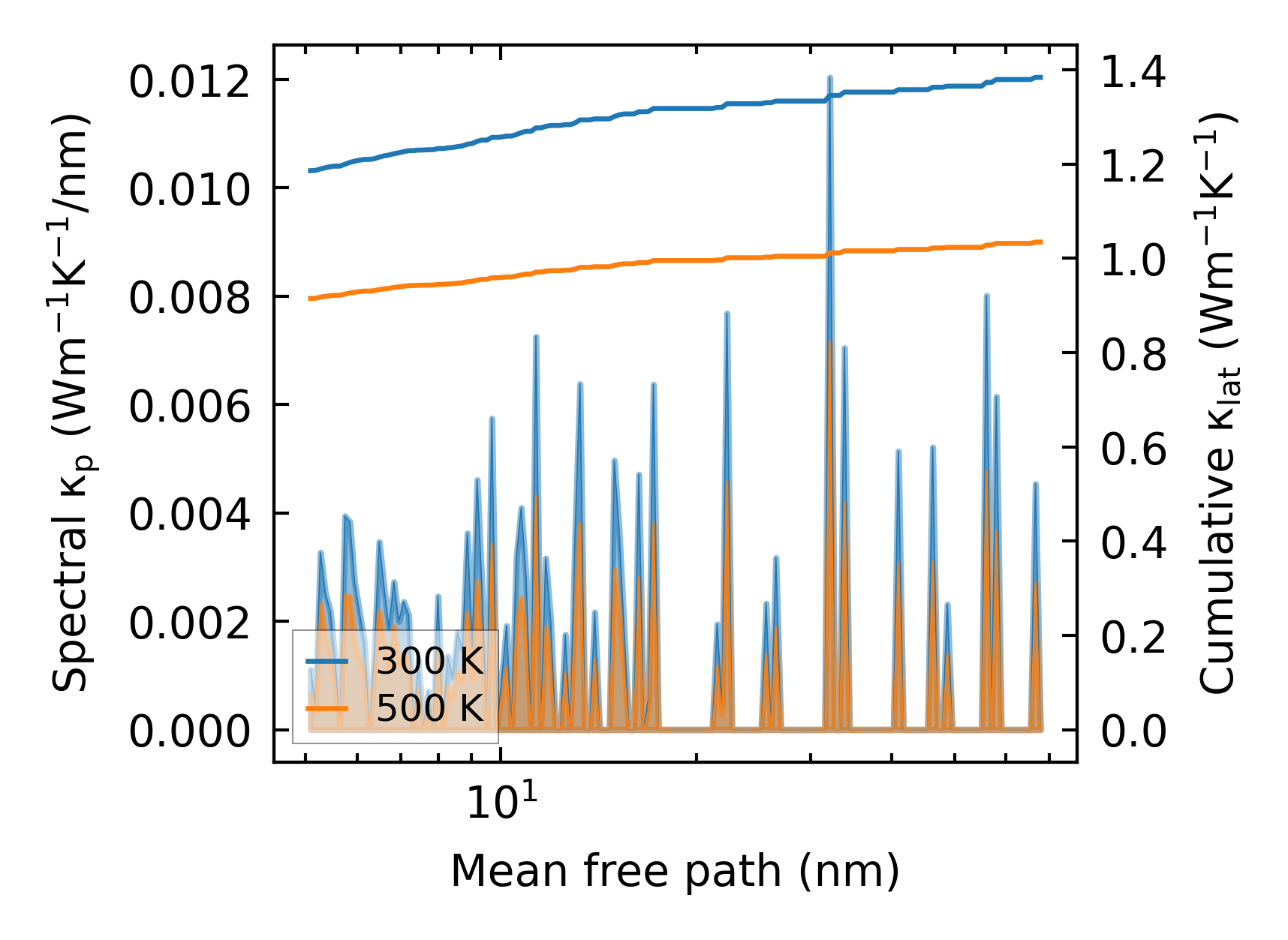

../../_images/fig_cumu_mfp1559.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

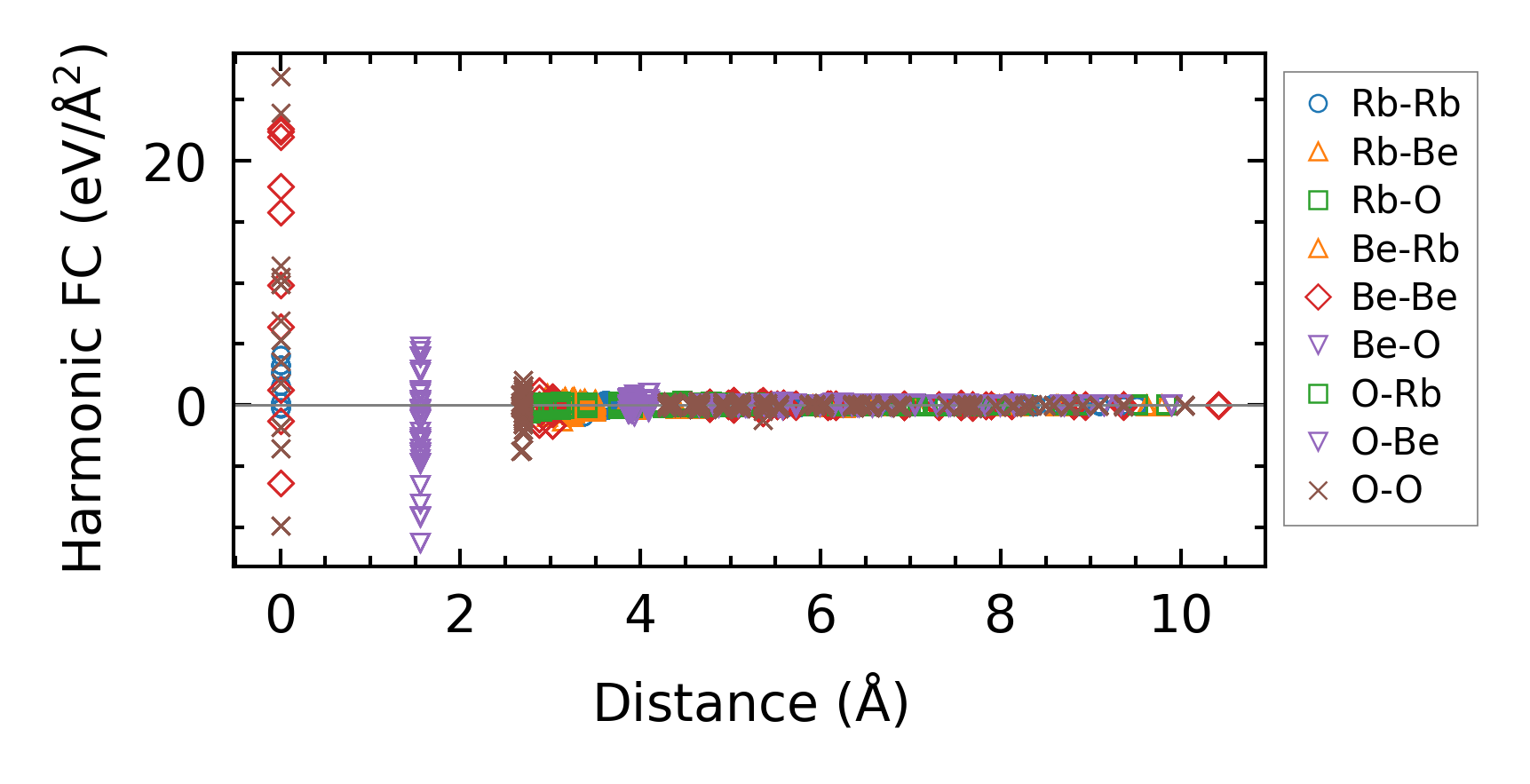

../../_images/fig_fc23293.png — (a) Force constants w.r.t atomic distance

Summary

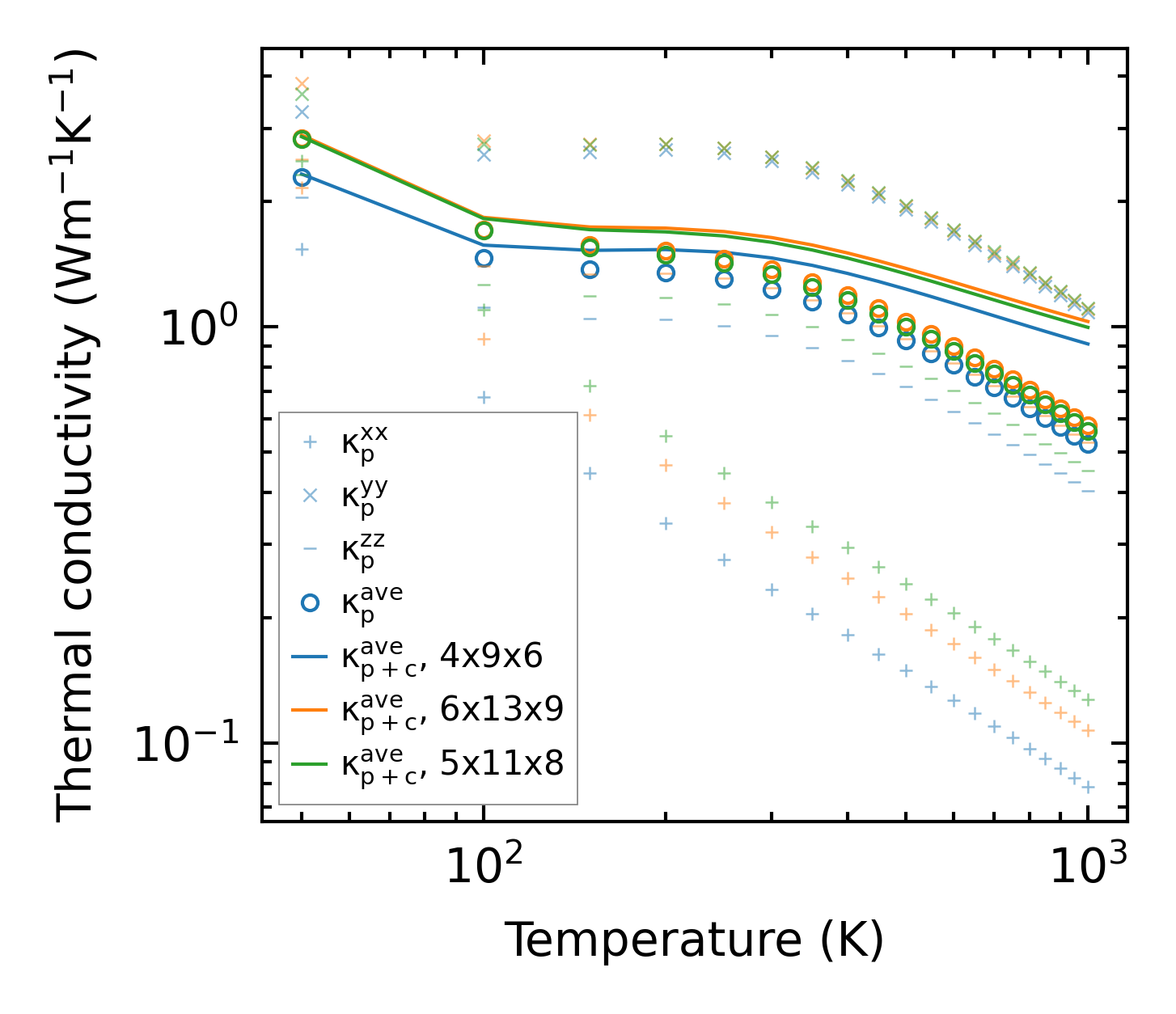

../../_images/fig_kappa3016.png — (a) Temperature-dependent lattice thermal conductivity

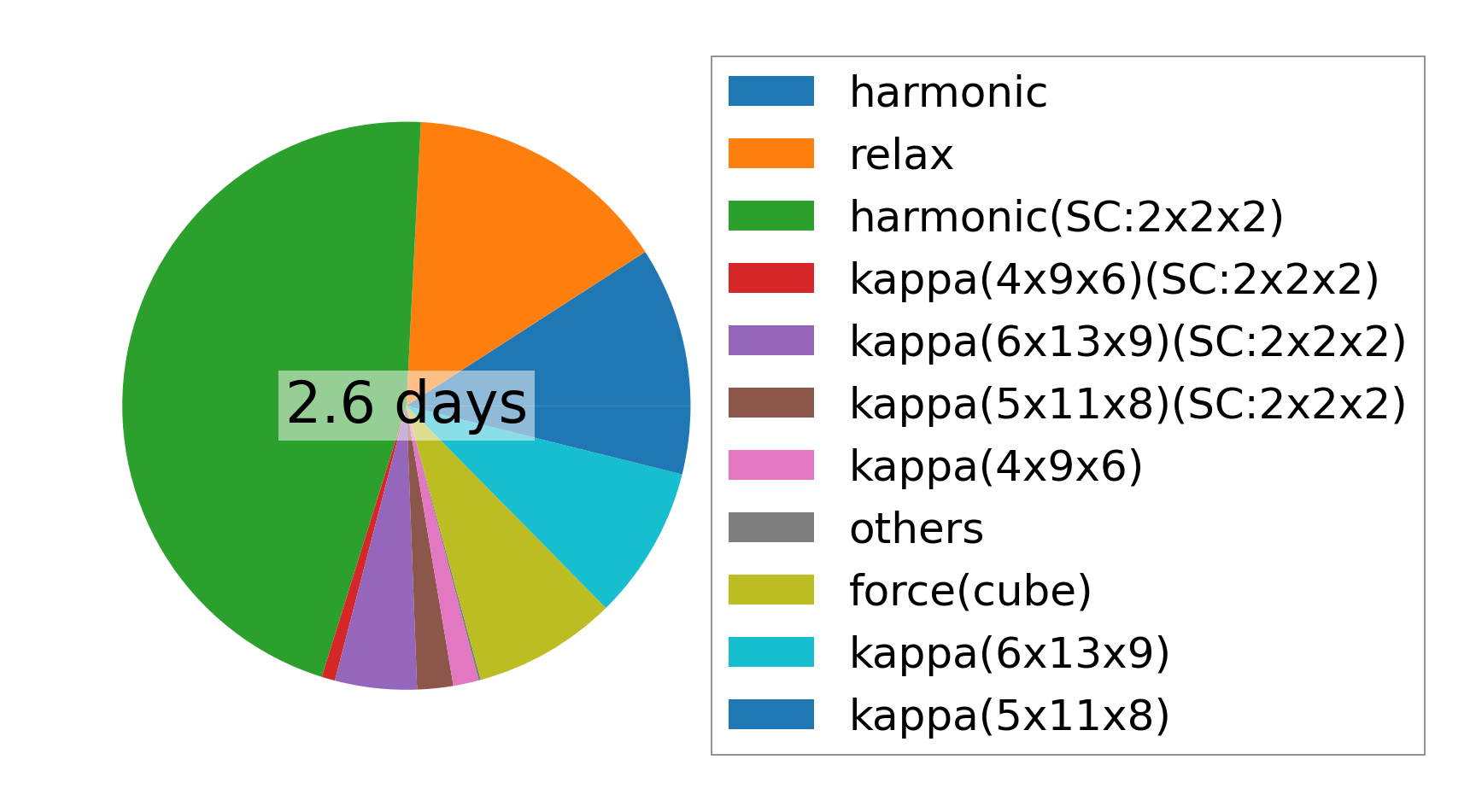

../../_images/fig_times6035.png — (b) Computation time
