mp-755635/Ho2Pt2O7/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-755635.tar.gz

Harmonic properties

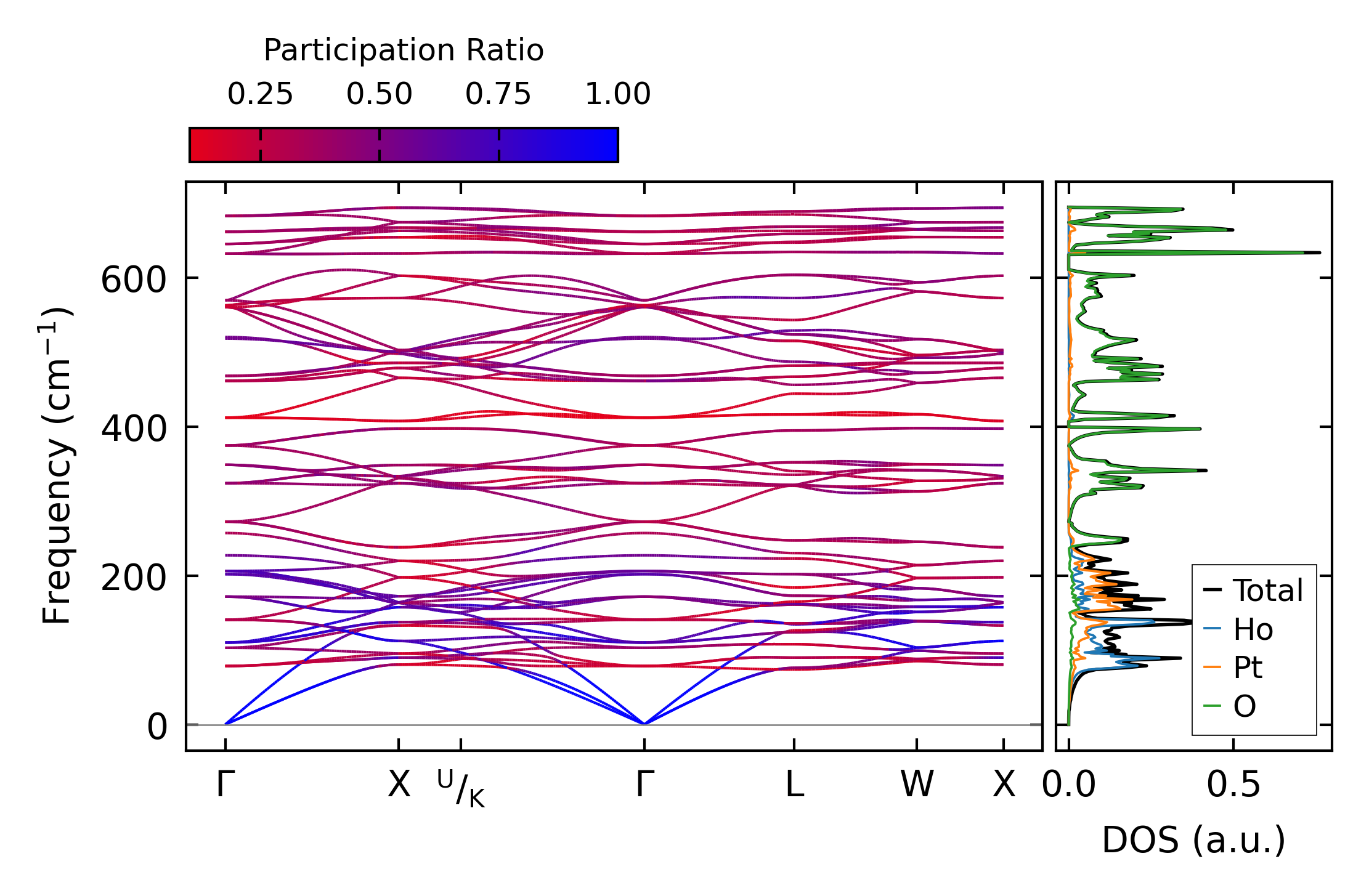

../../_images/fig_bandos_pr3448.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3448.png — (b) Thermodynamic properties

Grüneisen parameters

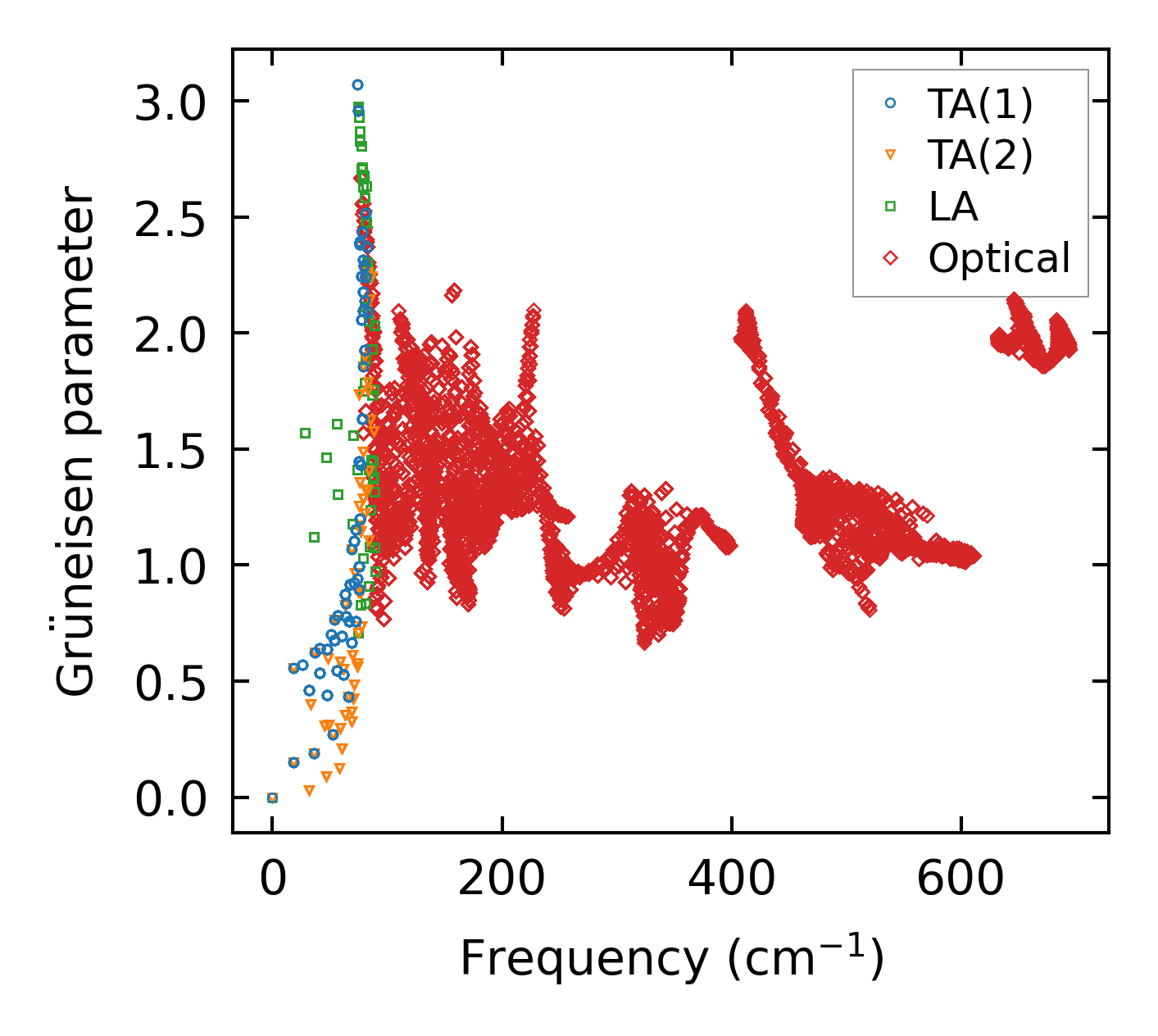

../../_images/fig_gru_all1564.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1564.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

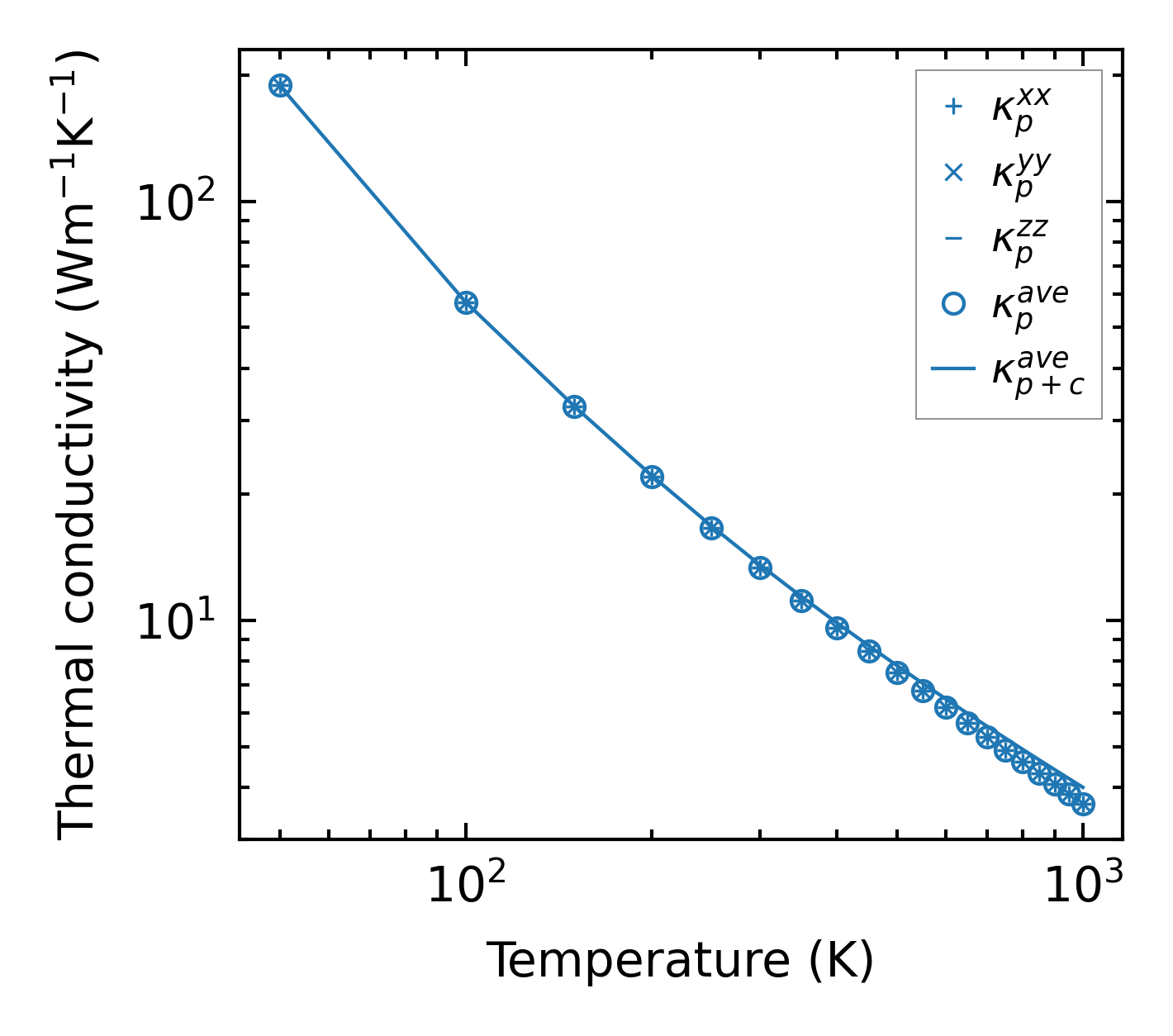

../../_images/fig_kappa3006.png — (a) Temperature-dependent lattice thermal conductivity

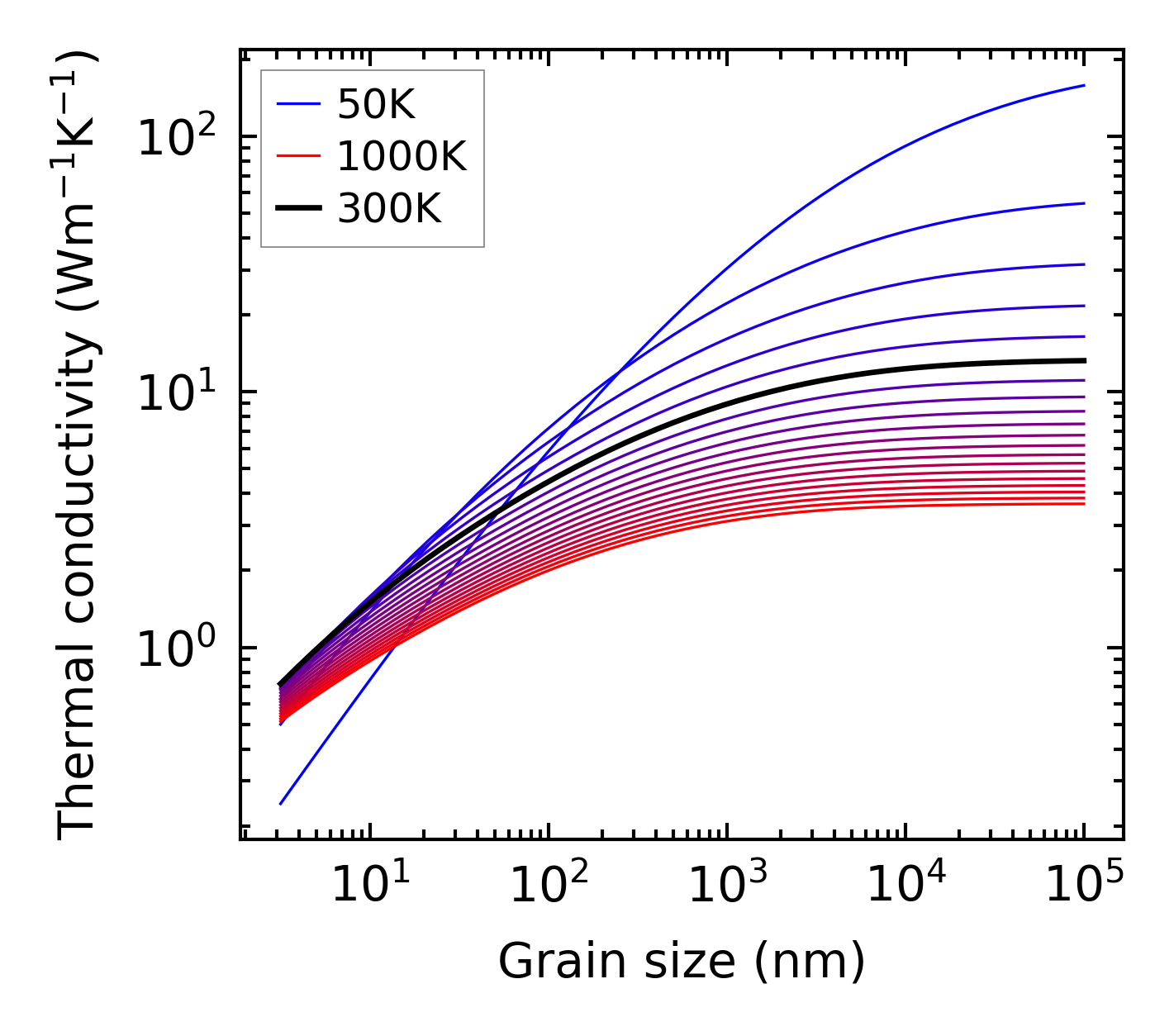

../../_images/fig_kappa_vs_grain_size1584.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

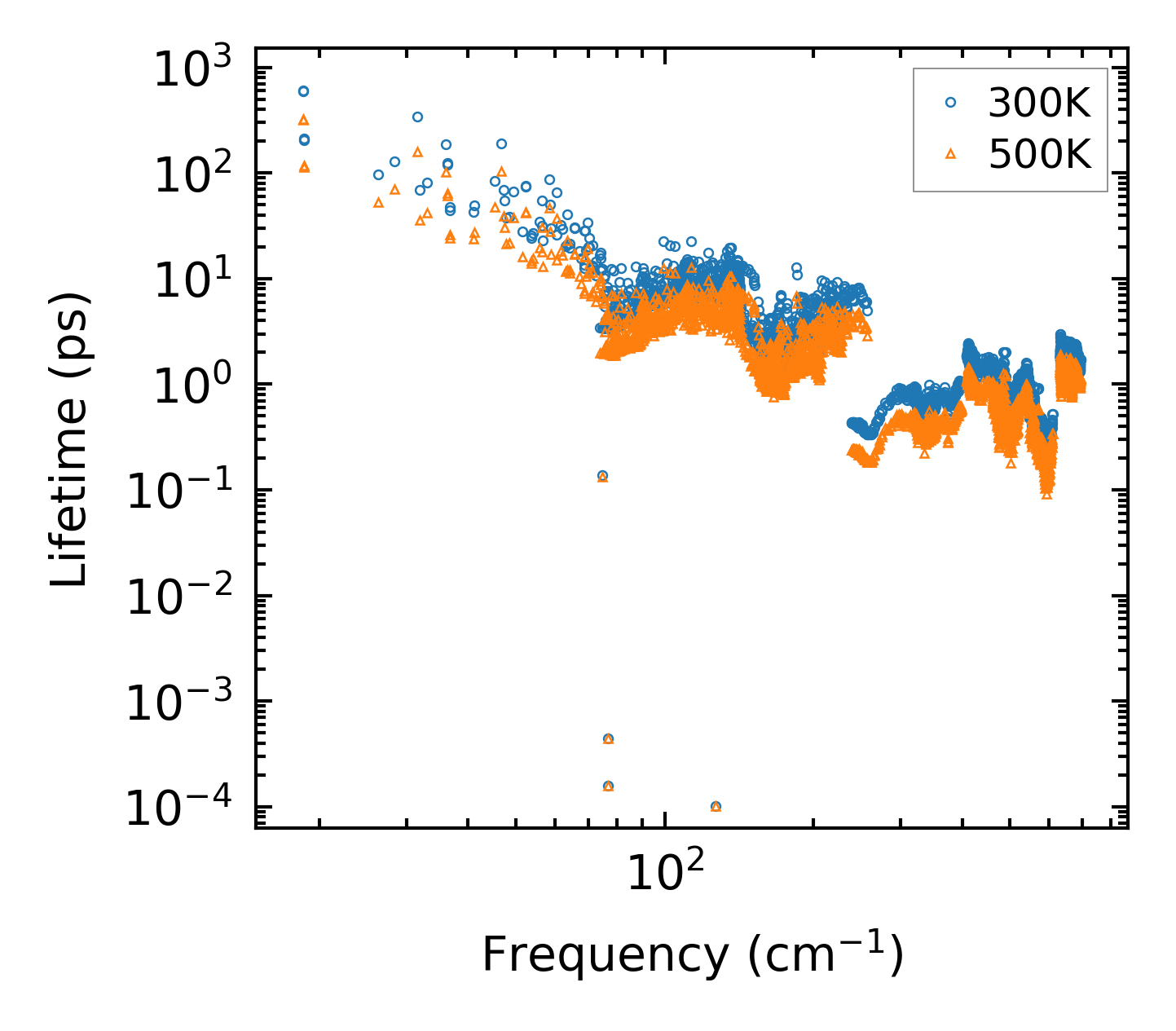

../../_images/fig_lifetime1554.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1553.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1554.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

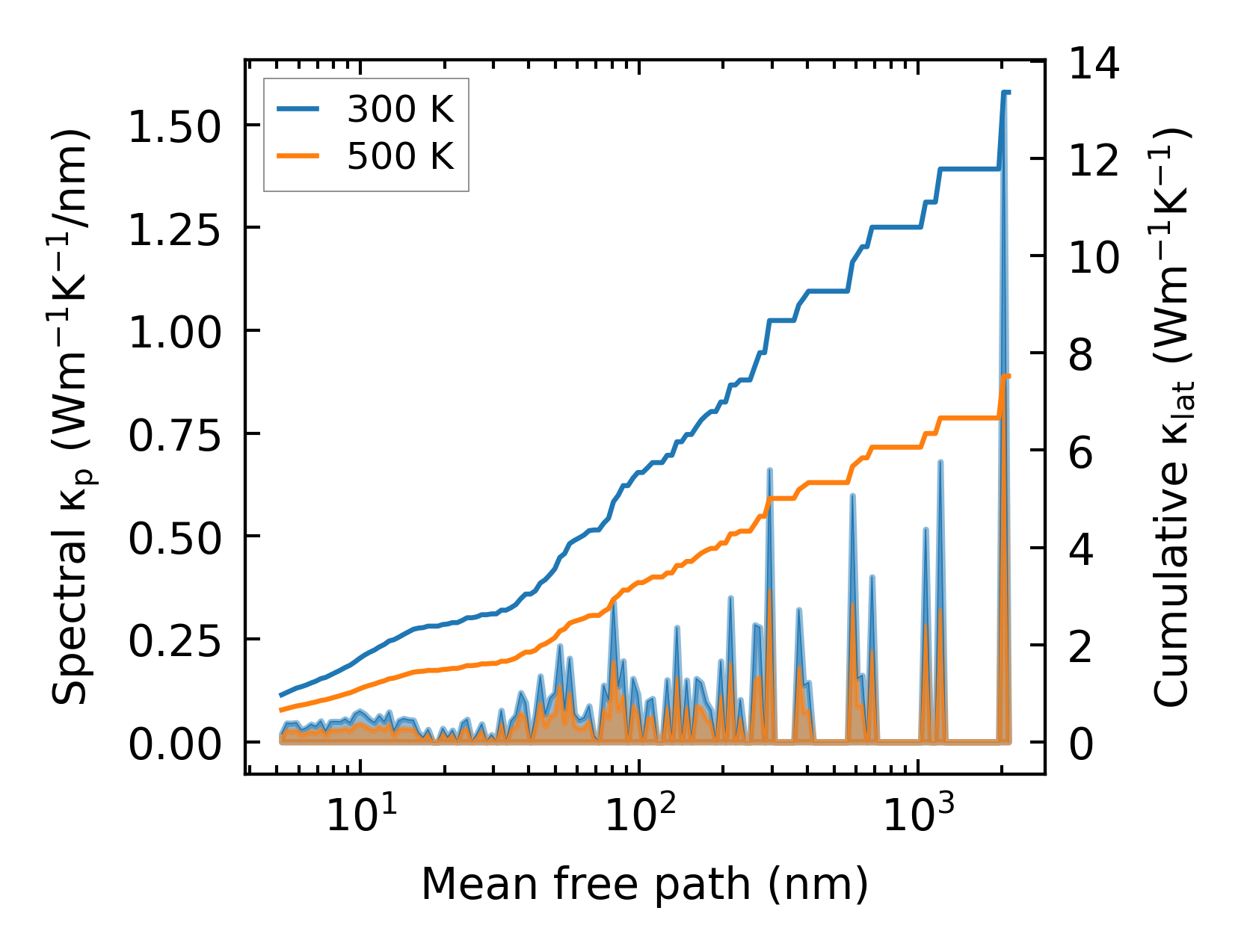

../../_images/fig_cumu_mfp1554.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

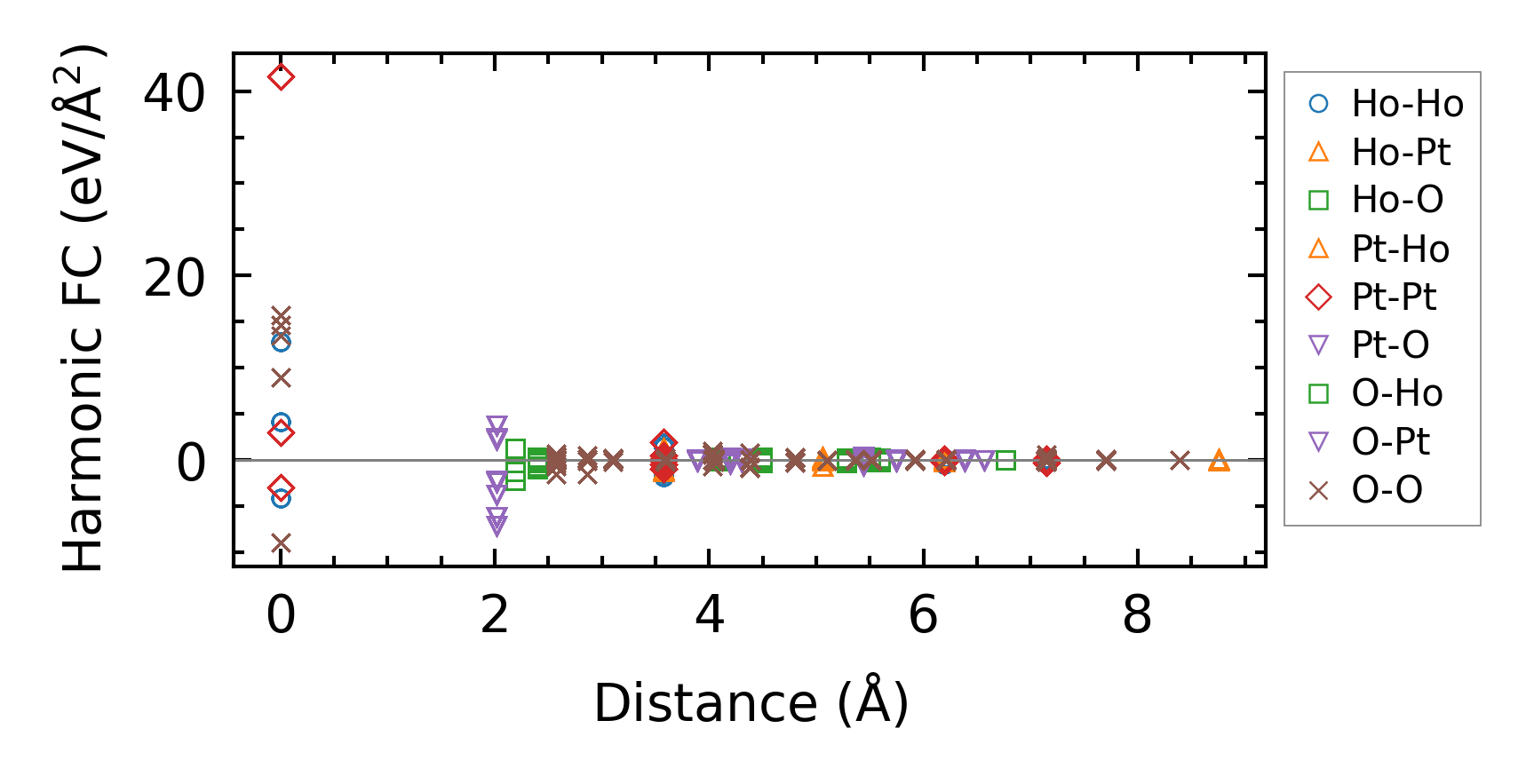

../../_images/fig_fc23266.png — (a) Force constants w.r.t atomic distance

Summary

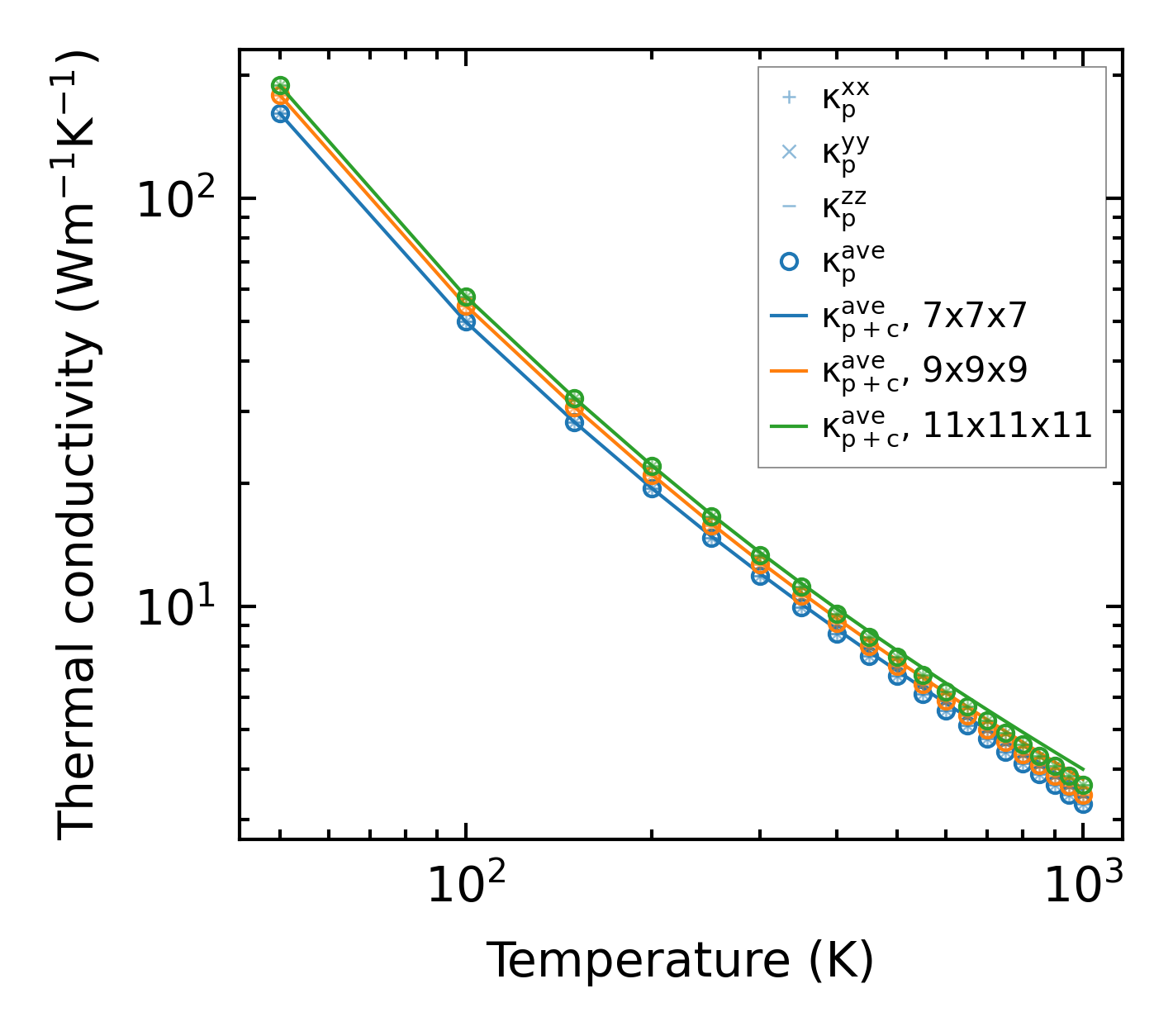

../../_images/fig_kappa3007.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times5989.png — (b) Computation time
