mp-755115-2/CuReO4/anharm

Space group: P2/c (13)
Link: Materials Project
Download: mp-755115-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr3649.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3649.png — (b) Thermodynamic properties

Grüneisen parameters

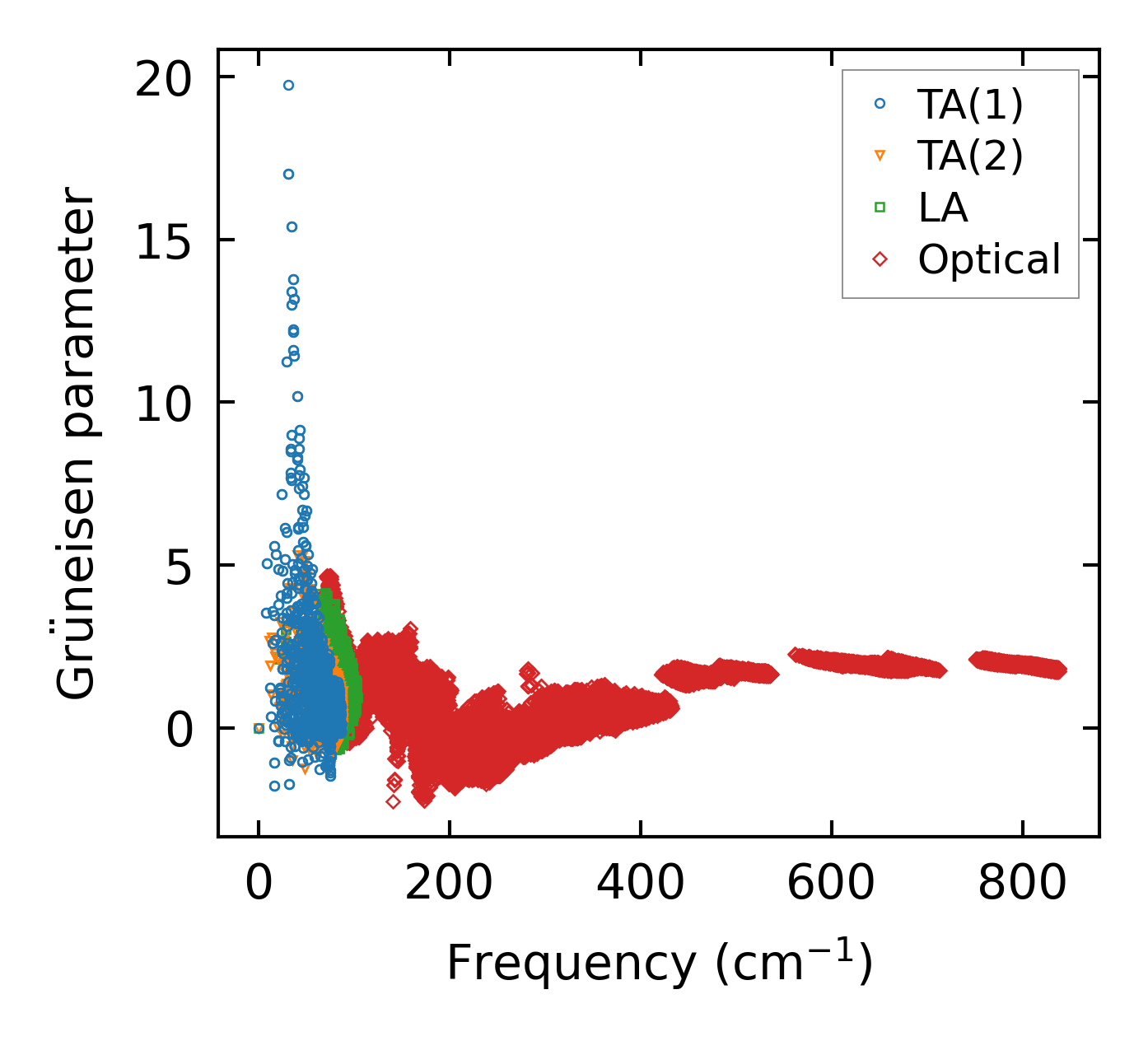

../../_images/fig_gru_all1640.png — (a) Grüneisen parameters

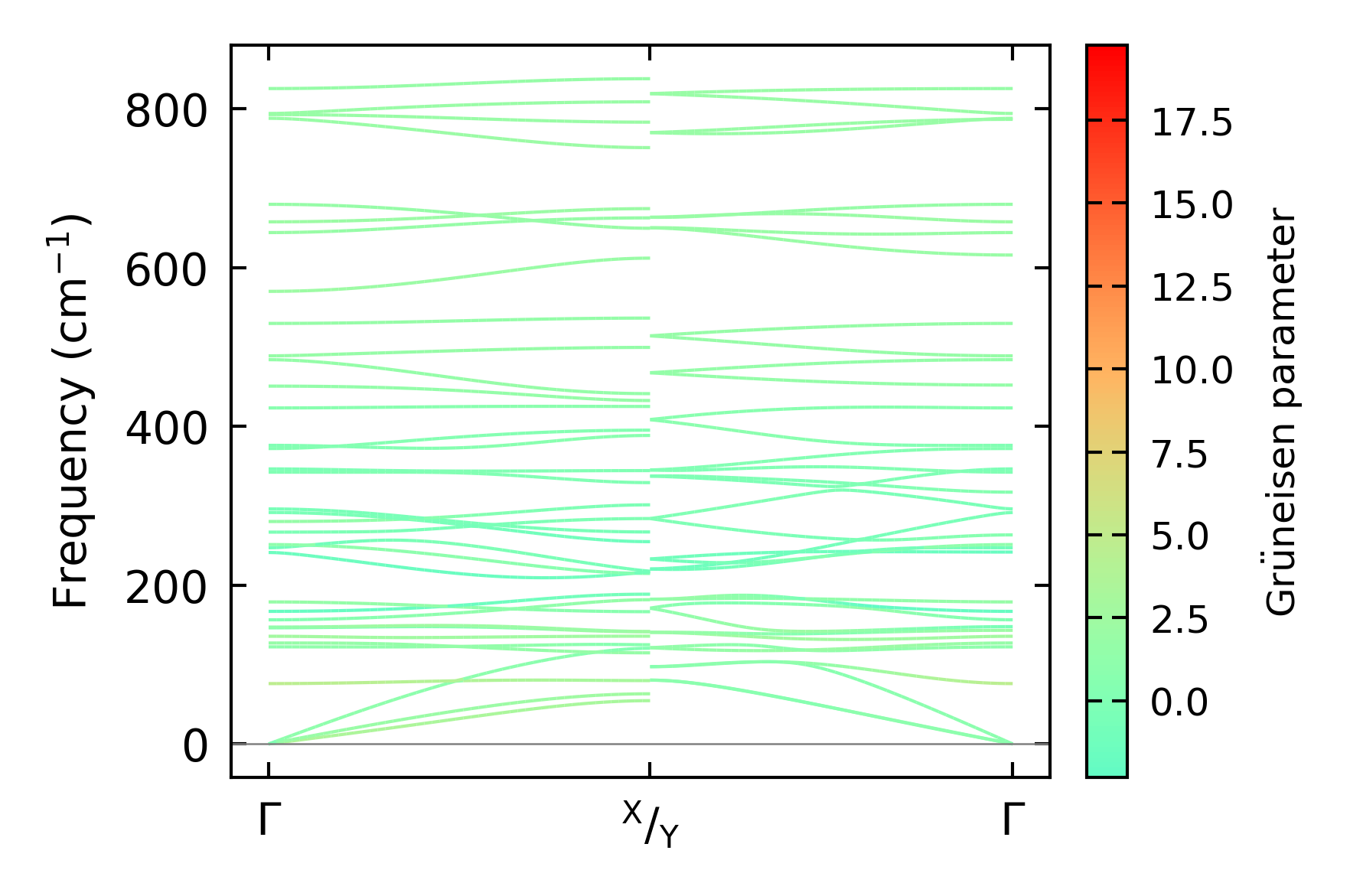

../../_images/fig_gruneisen1640.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x14x12, supercell: 3x2x2

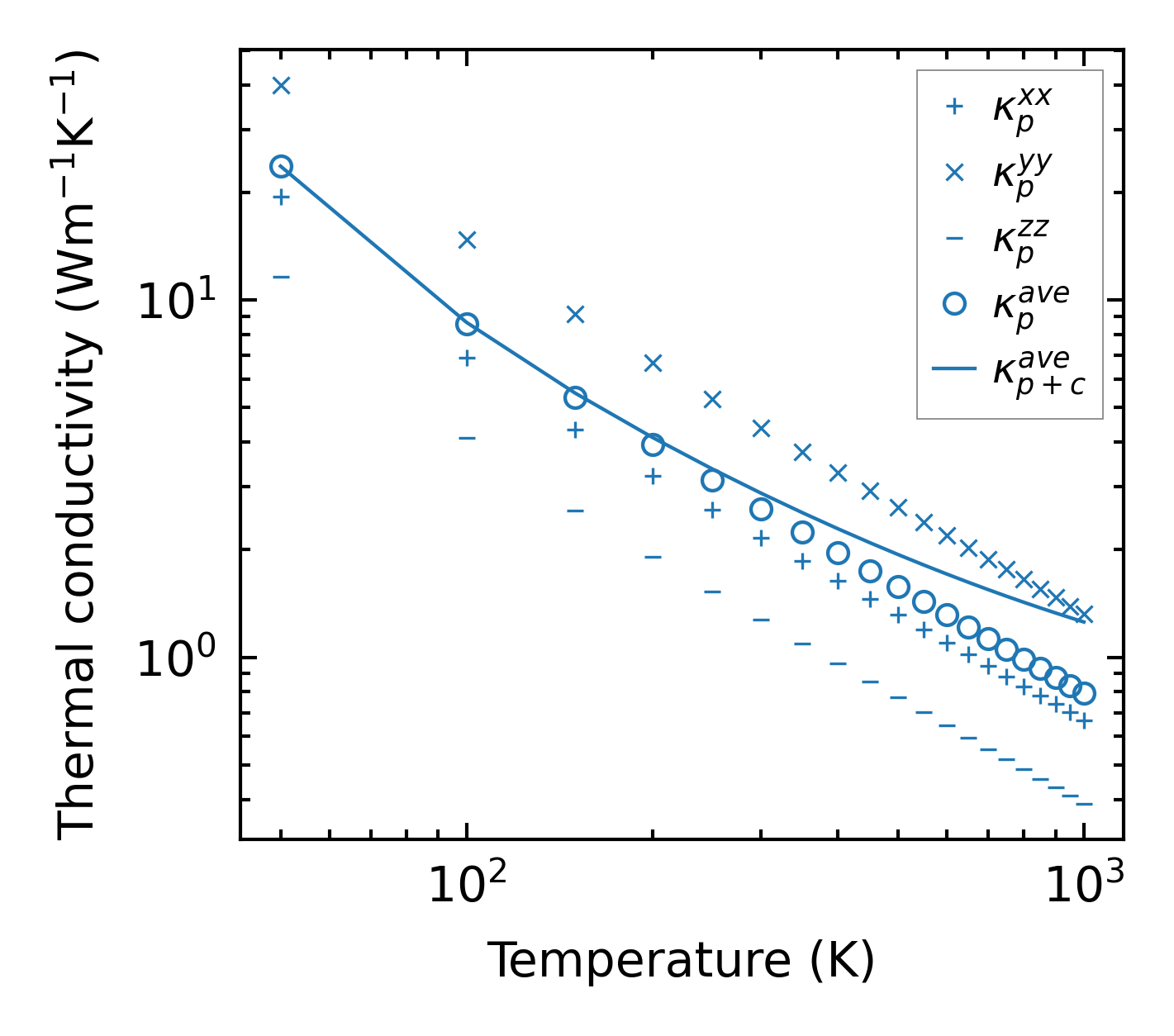

../../_images/fig_kappa3155.png — (a) Temperature-dependent lattice thermal conductivity

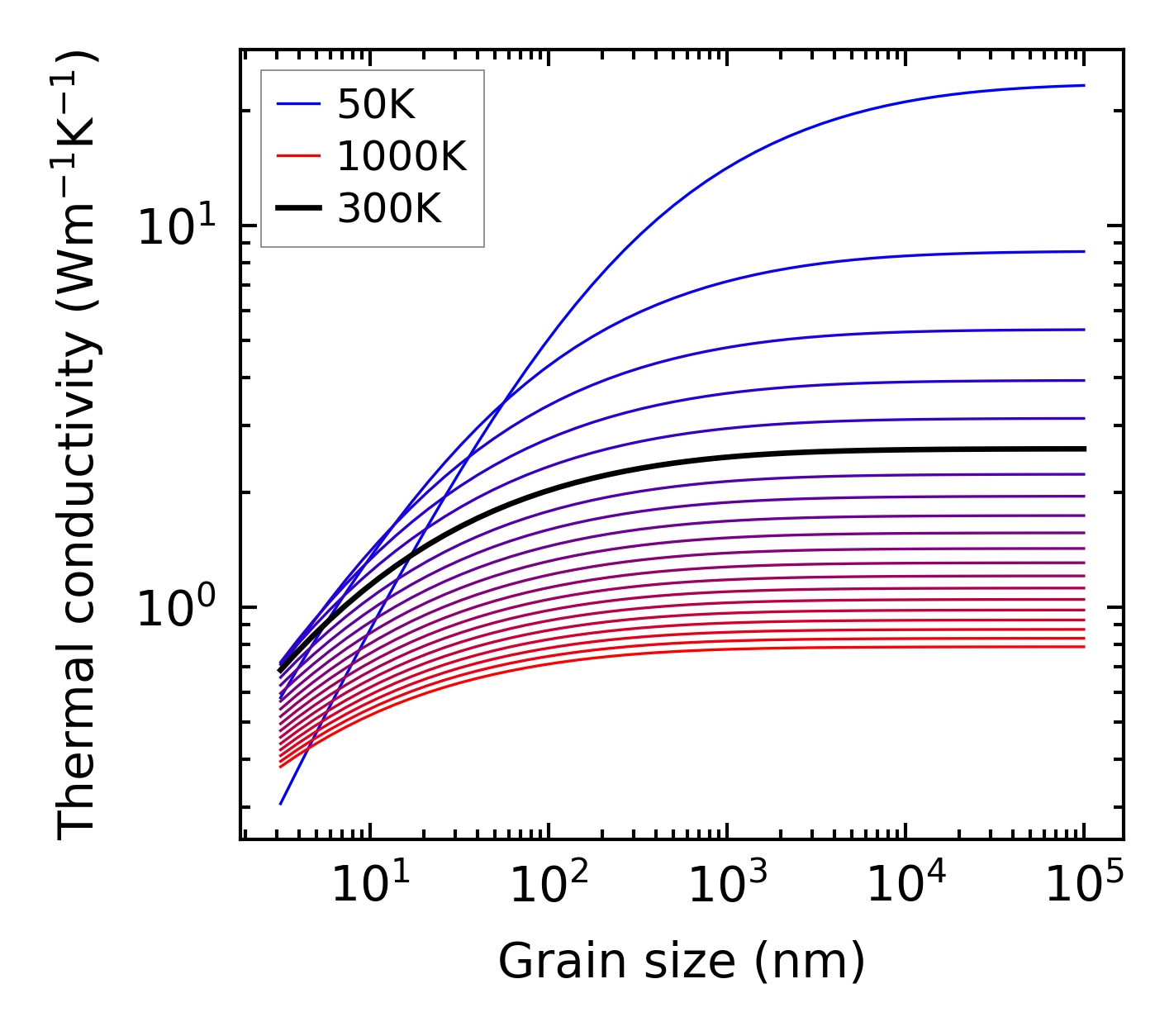

../../_images/fig_kappa_vs_grain_size1663.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1630.png — (a) Phonon lifetime due to phonon-phonon scattering

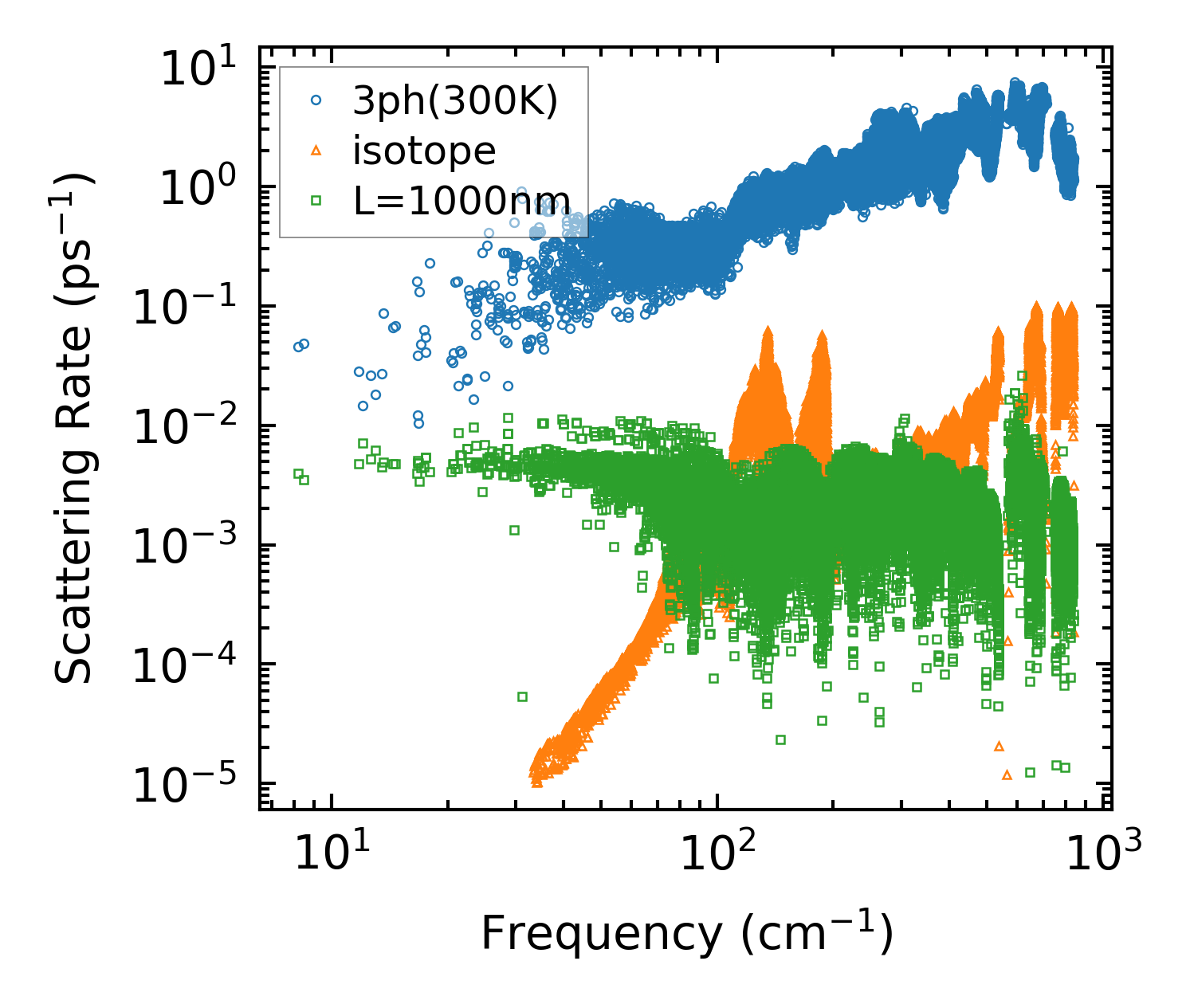

../../_images/fig_scat_rates1629.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1630.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1630.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

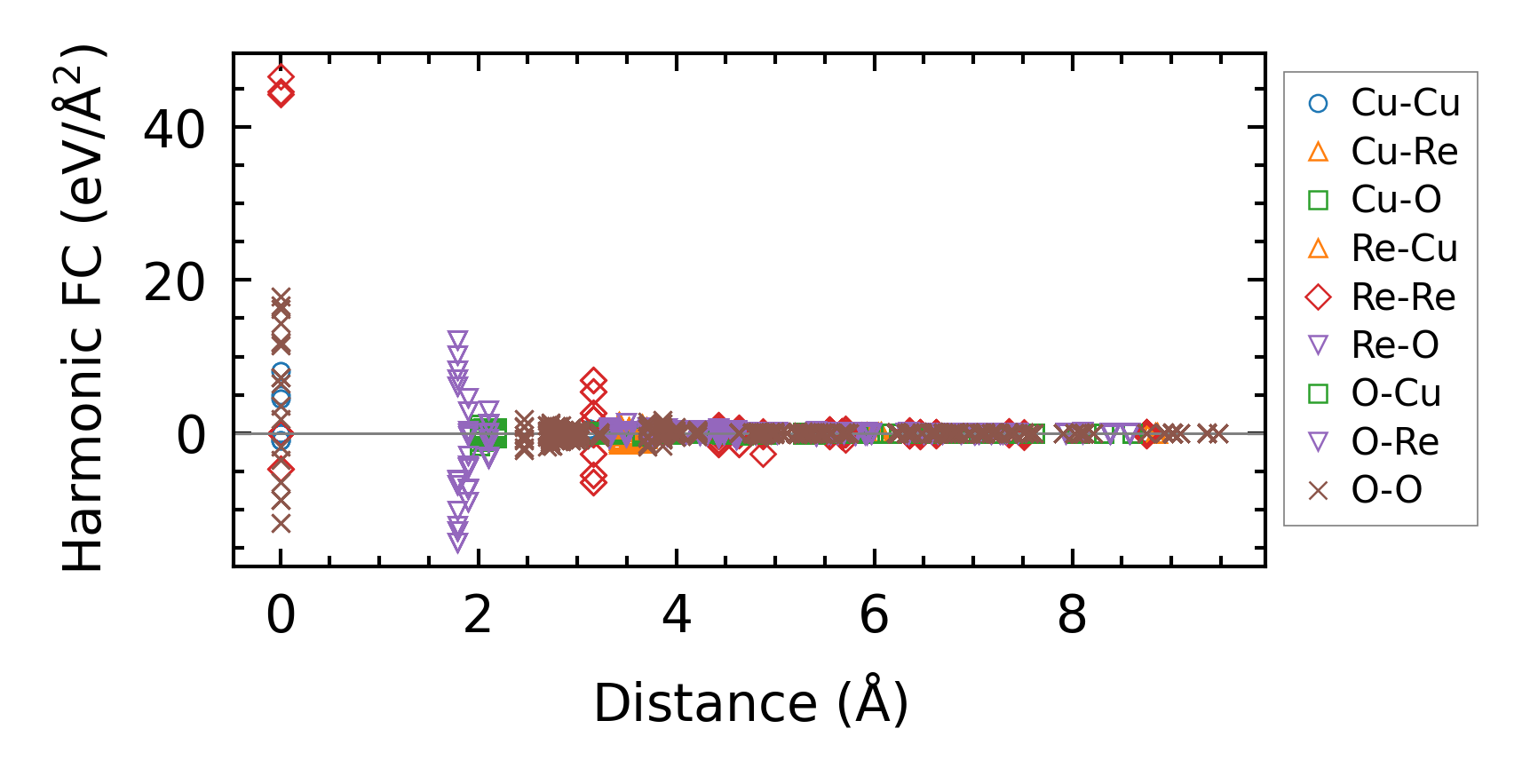

../../_images/fig_fc23466.png — (a) Force constants w.r.t atomic distance

Summary

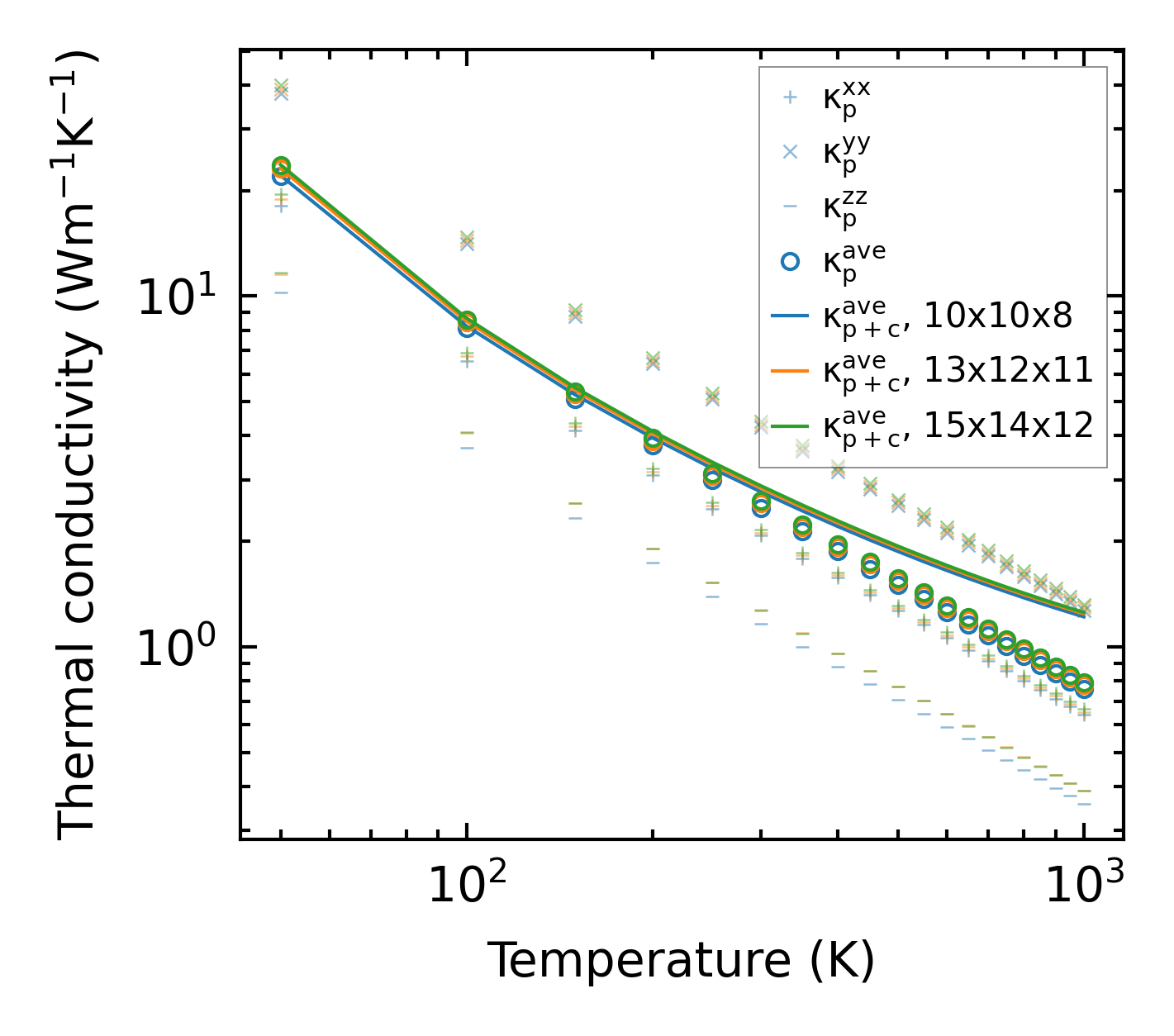

../../_images/fig_kappa3156.png — (a) Temperature-dependent lattice thermal conductivity

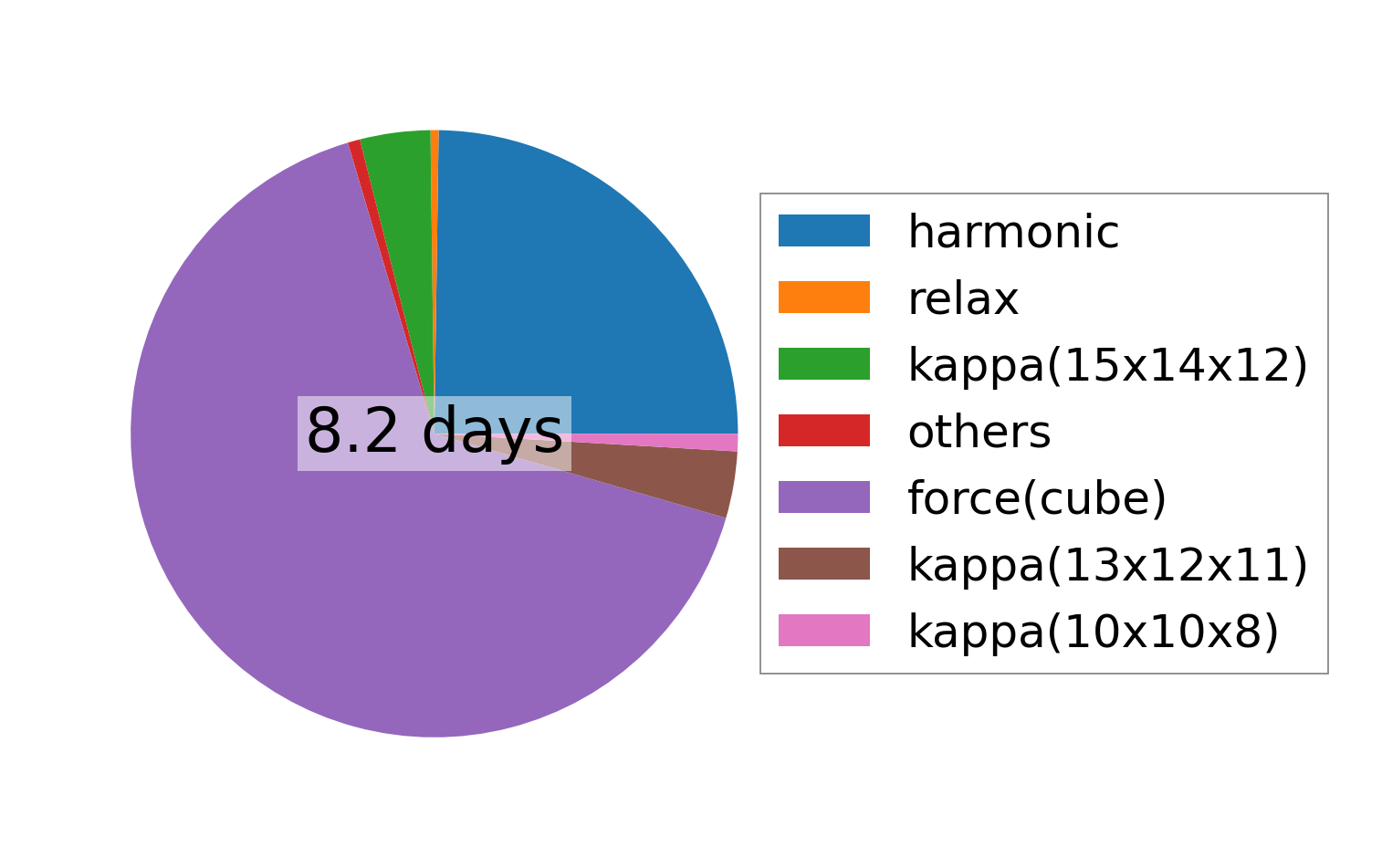

../../_images/fig_times6348.png — (b) Computation time
