mp-755401/Na3CuO2/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-755401.tar.gz

Harmonic properties

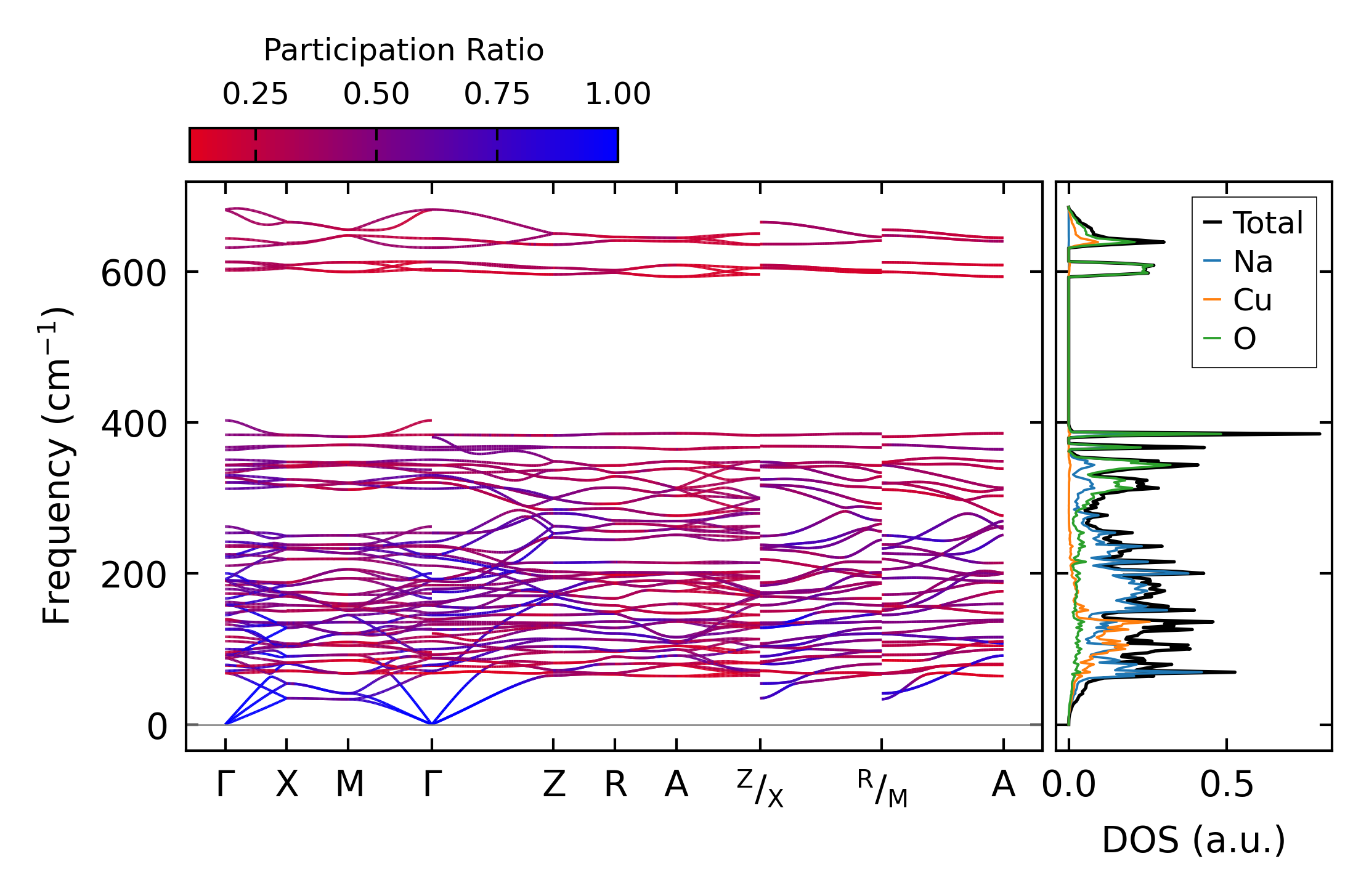

../../_images/fig_bandos_pr3697.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3697.png — (b) Thermodynamic properties

Grüneisen parameters

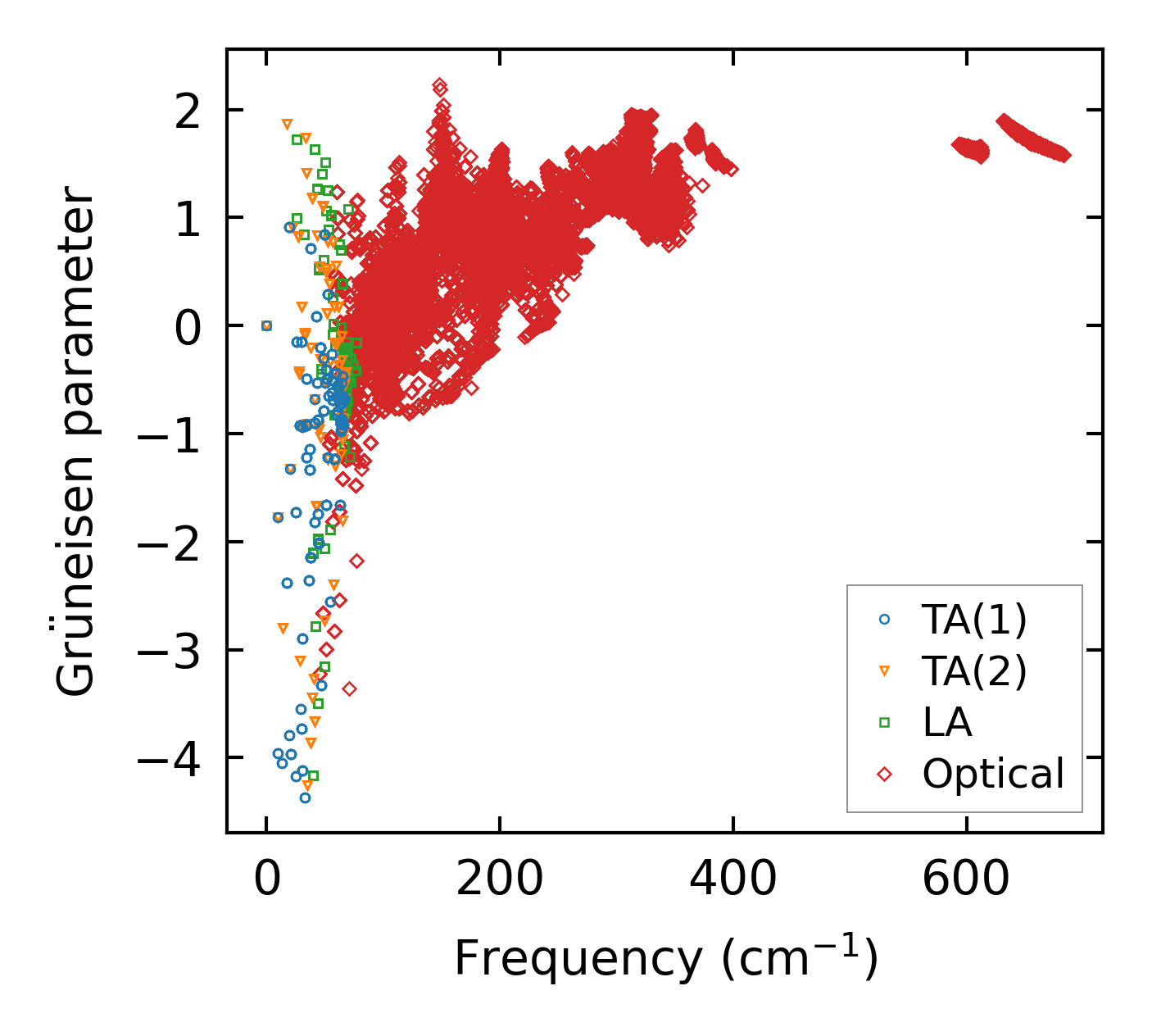

../../_images/fig_gru_all1670.png — (a) Grüneisen parameters

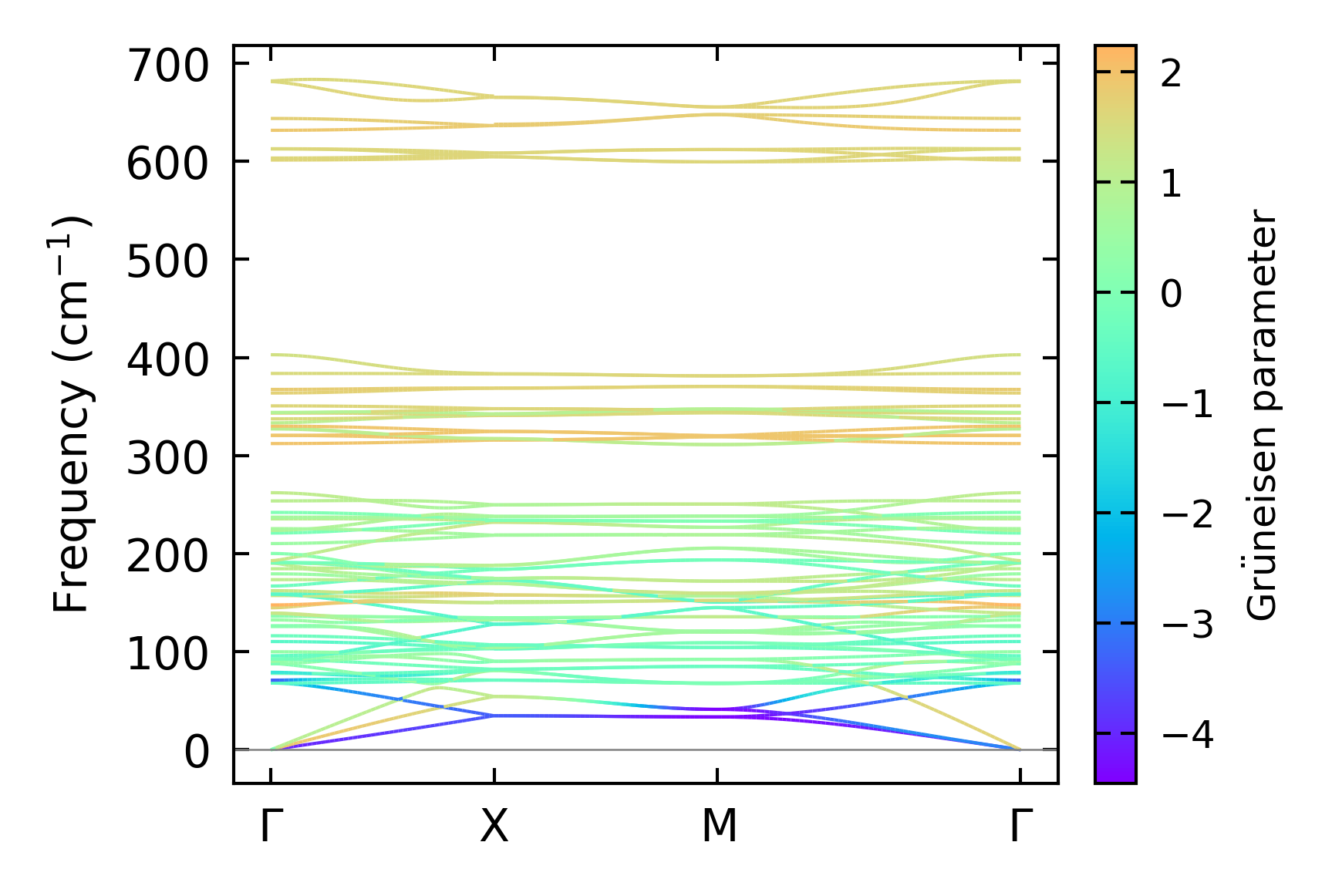

../../_images/fig_gruneisen1670.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x15, supercell: 1x1x3

../../_images/fig_kappa3212.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1693.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

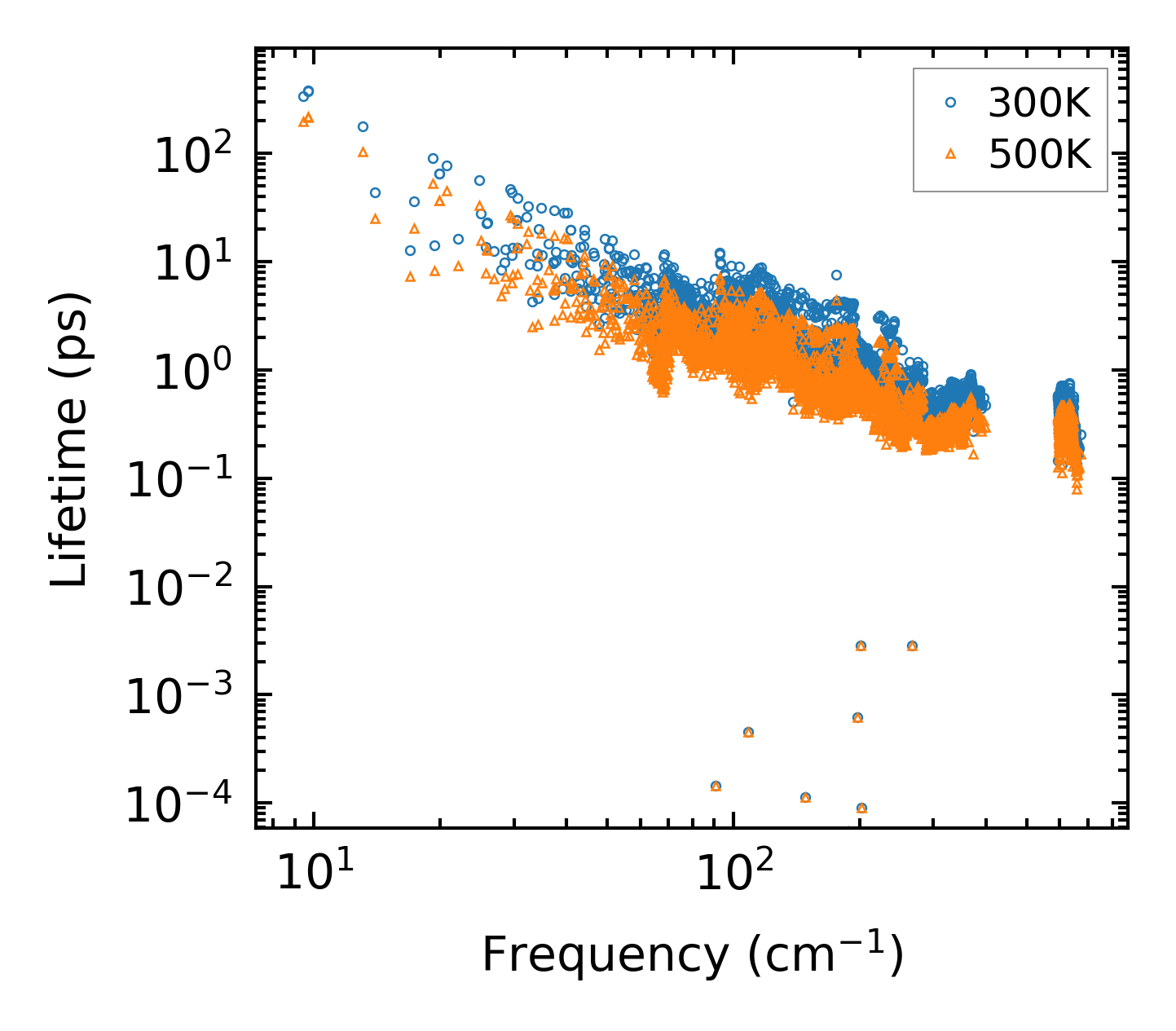

../../_images/fig_lifetime1660.png — (a) Phonon lifetime due to phonon-phonon scattering

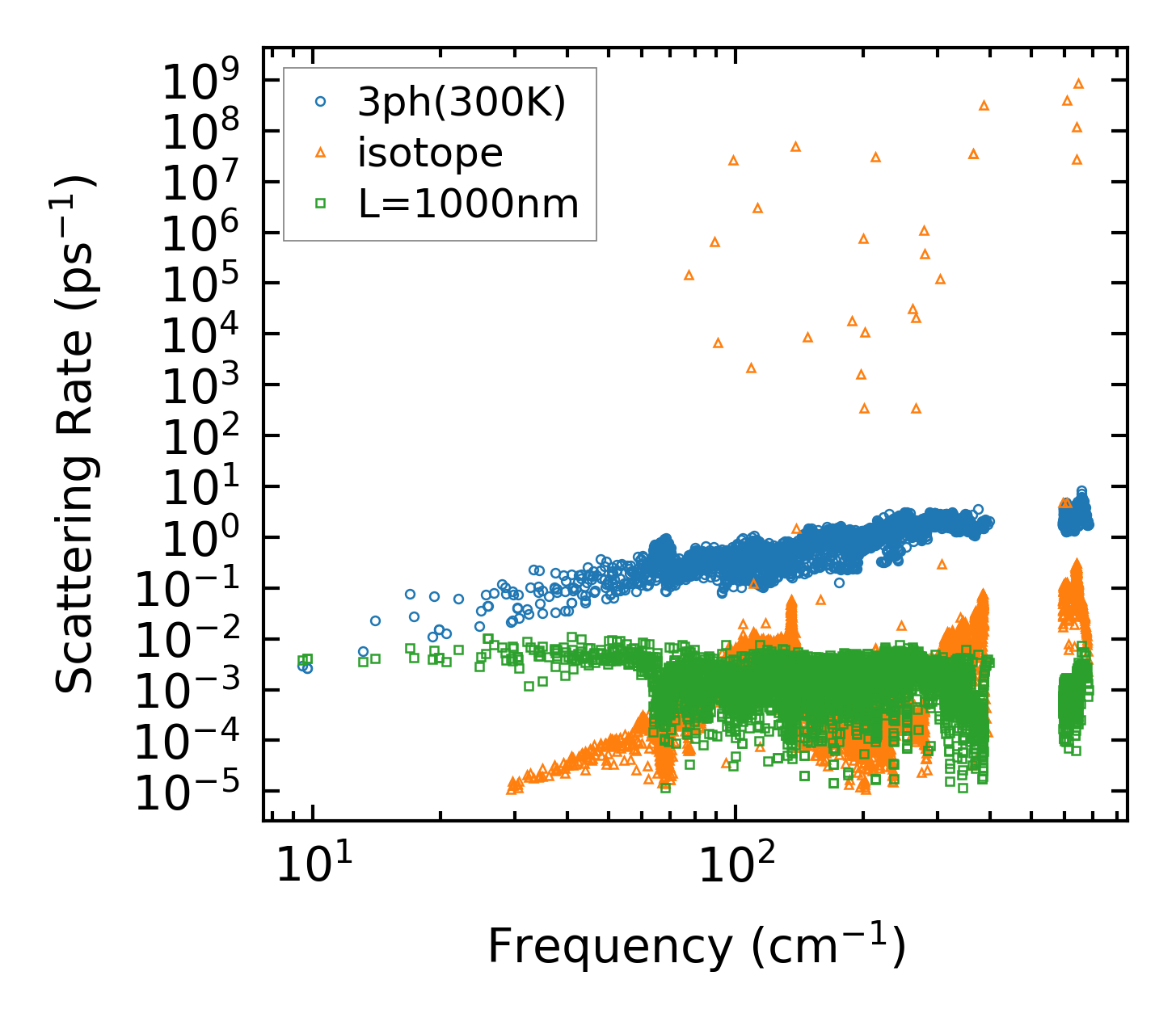

../../_images/fig_scat_rates1659.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

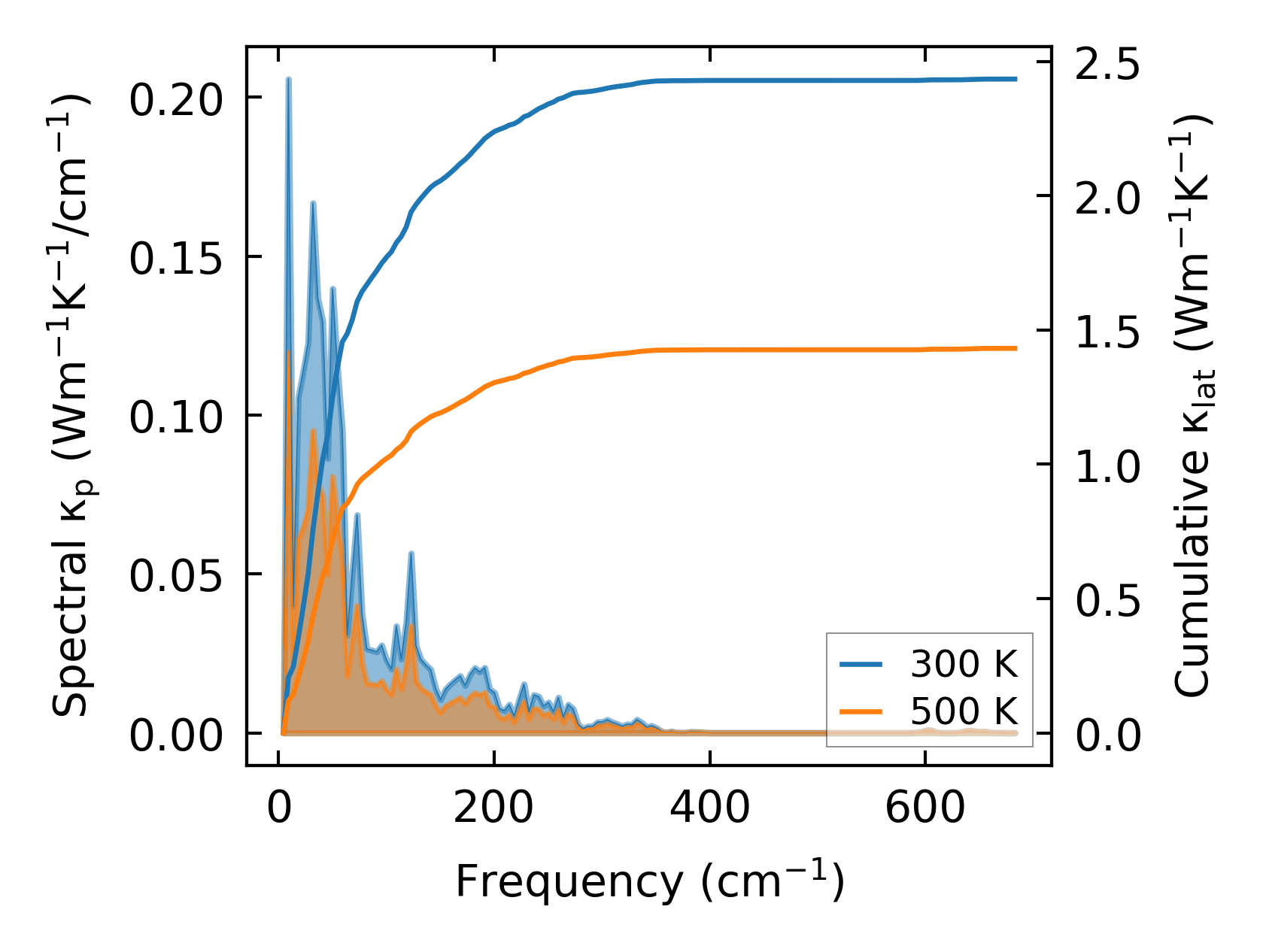

../../_images/fig_cumu_frequency1660.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1660.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

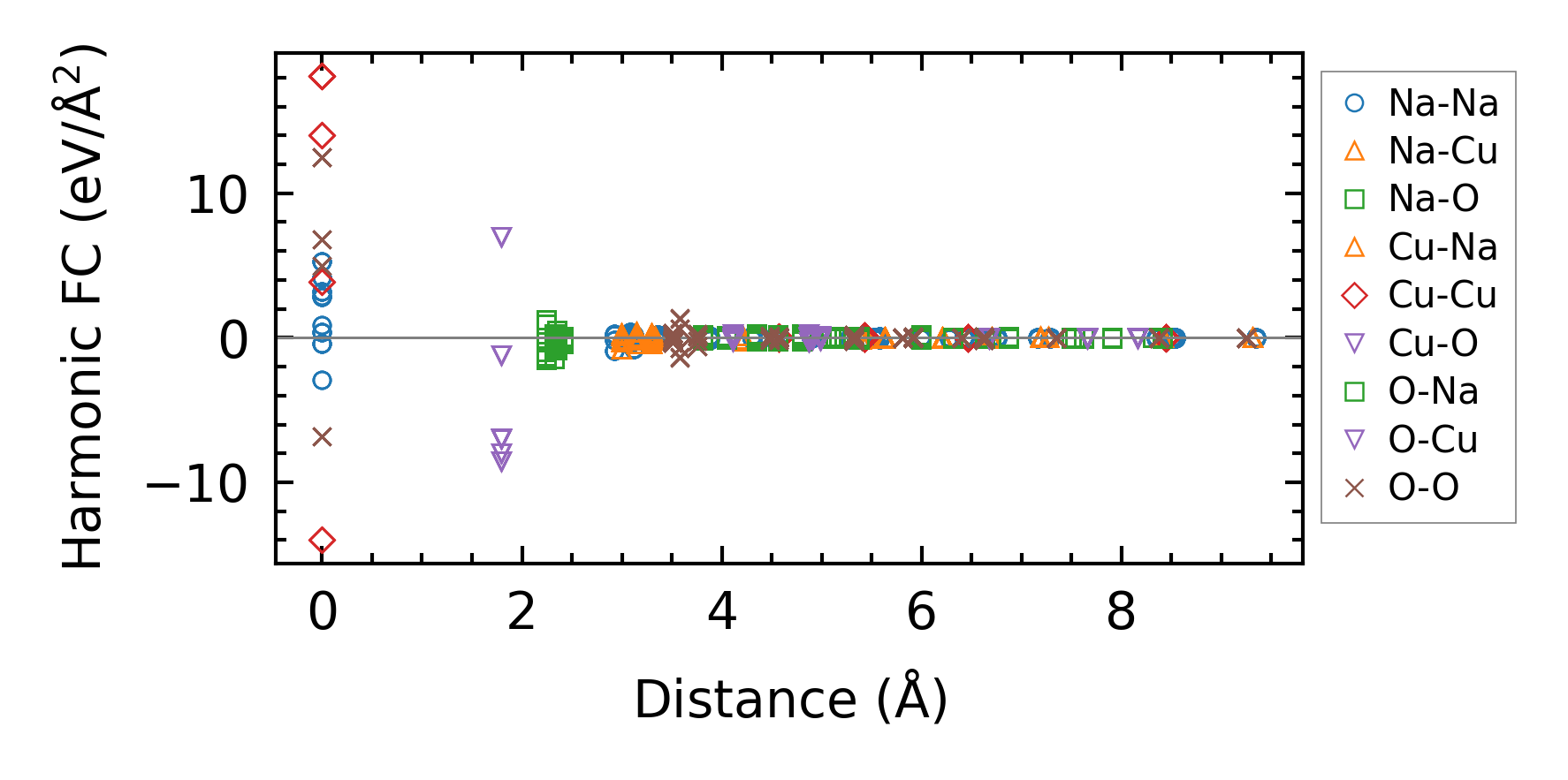

../../_images/fig_fc23513.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3213.png — (a) Temperature-dependent lattice thermal conductivity

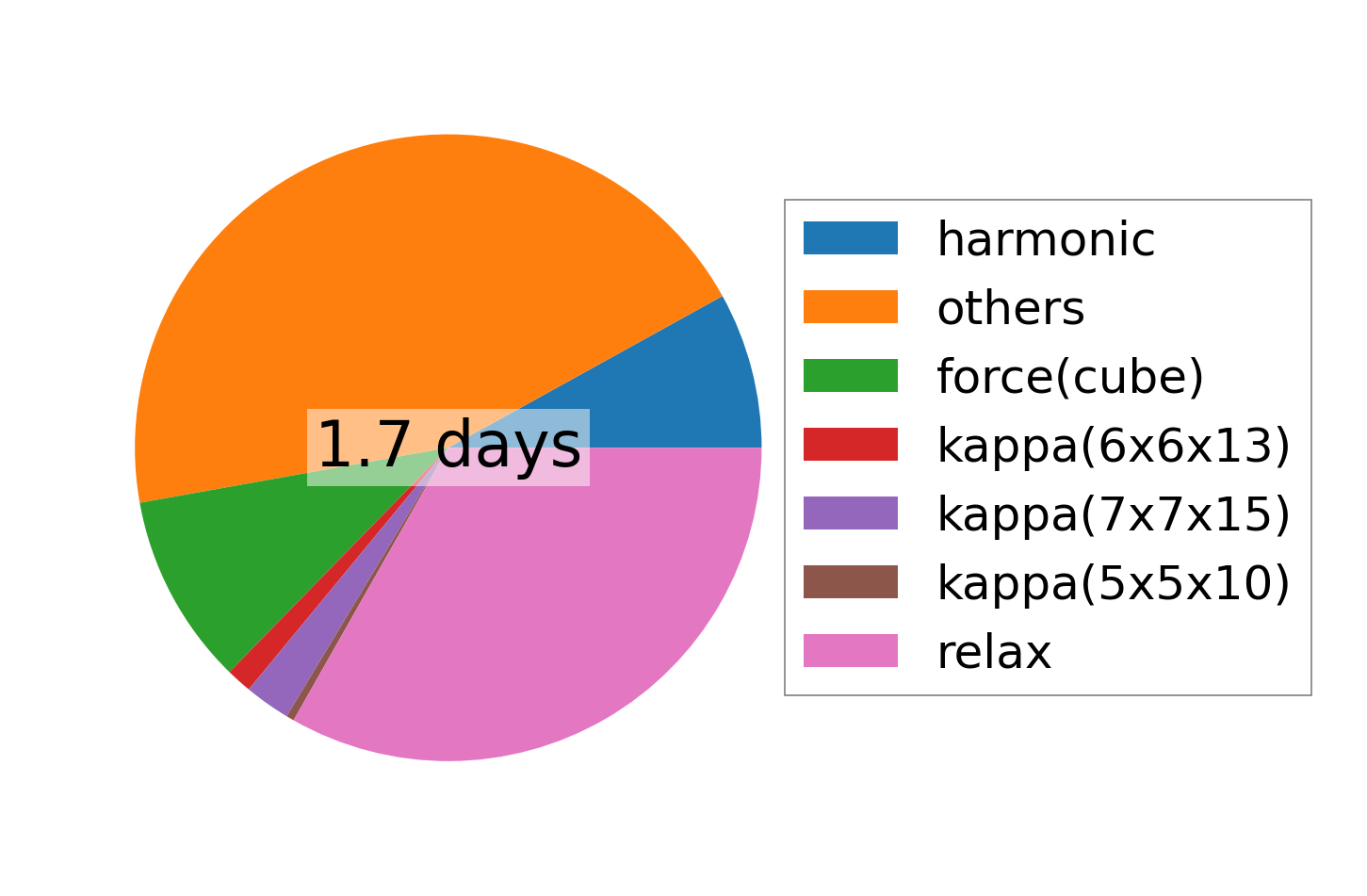

../../_images/fig_times6423.png — (b) Computation time
