mp-755450/La2Ce2O7/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-755450.tar.gz

Harmonic properties

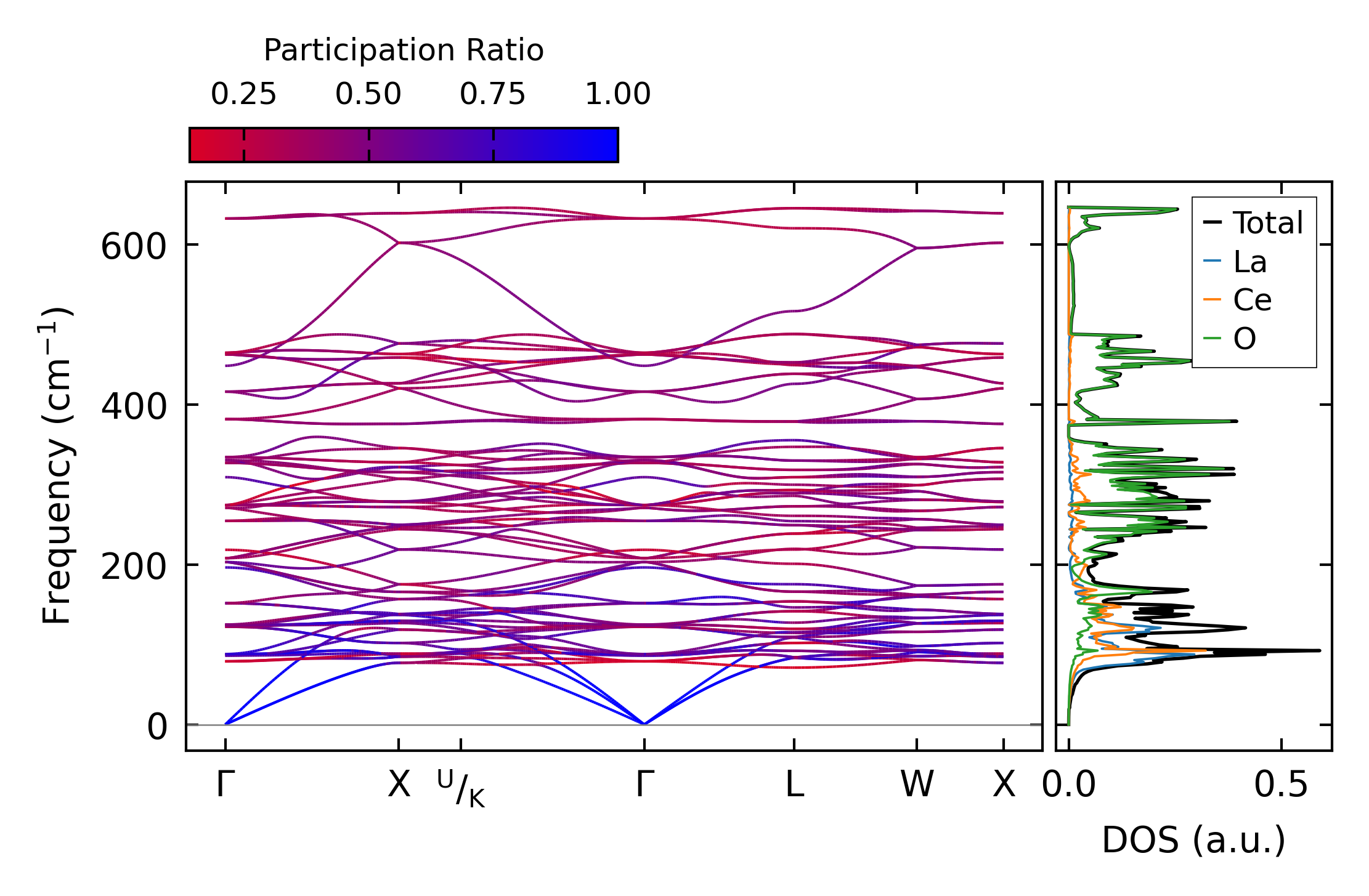

../../_images/fig_bandos_pr3404.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3404.png — (b) Thermodynamic properties

Grüneisen parameters

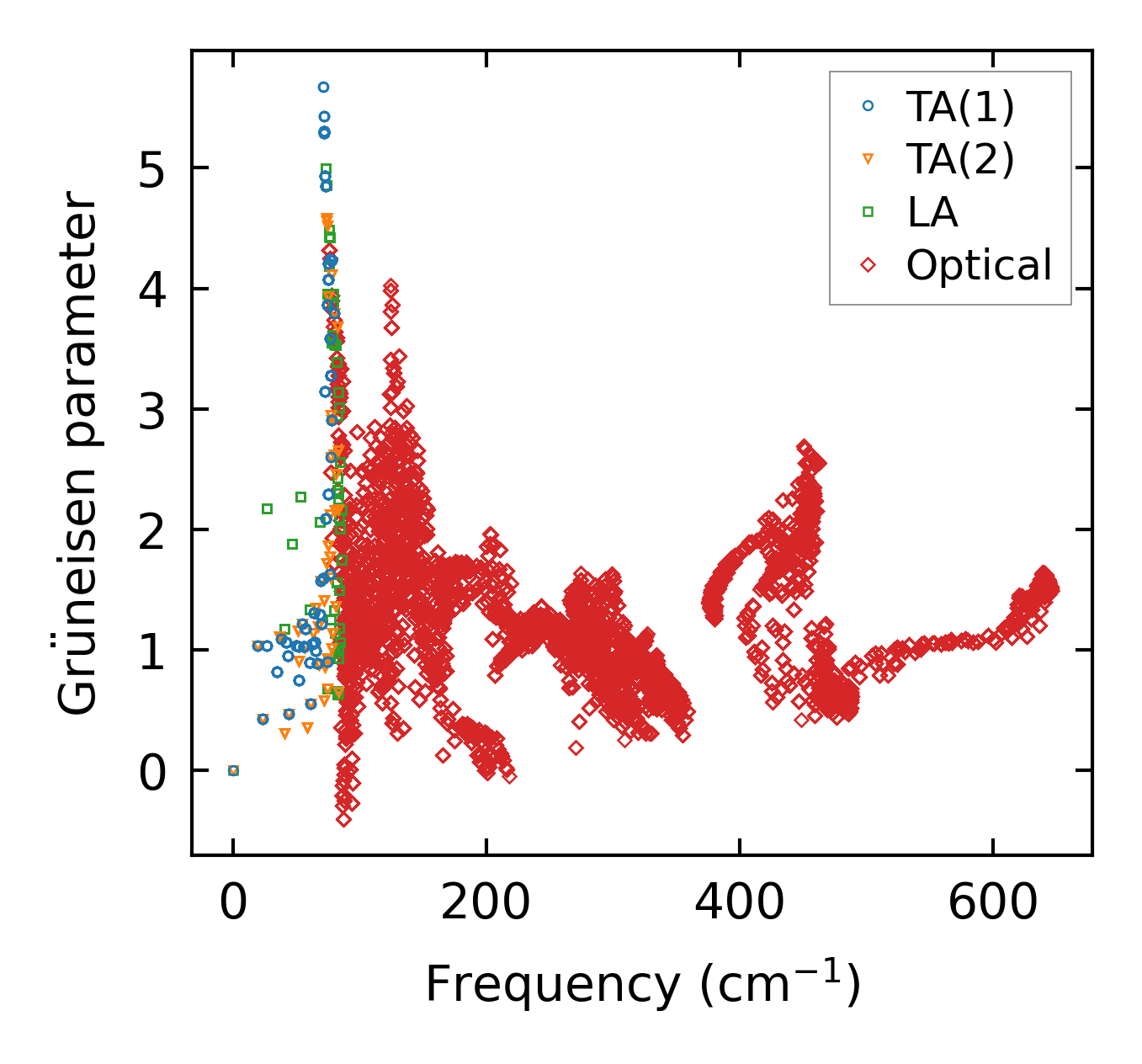

../../_images/fig_gru_all1541.png — (a) Grüneisen parameters

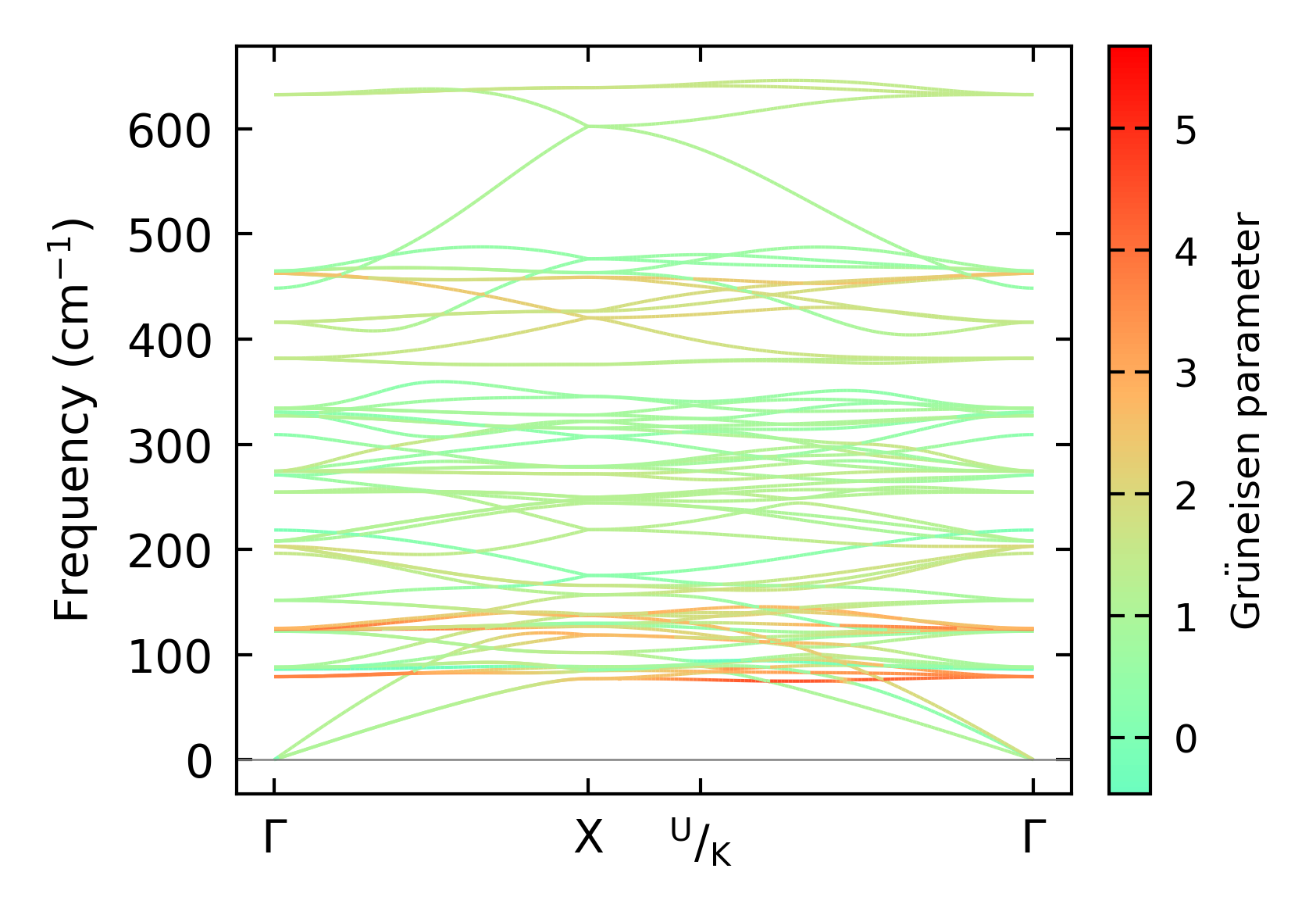

../../_images/fig_gruneisen1541.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

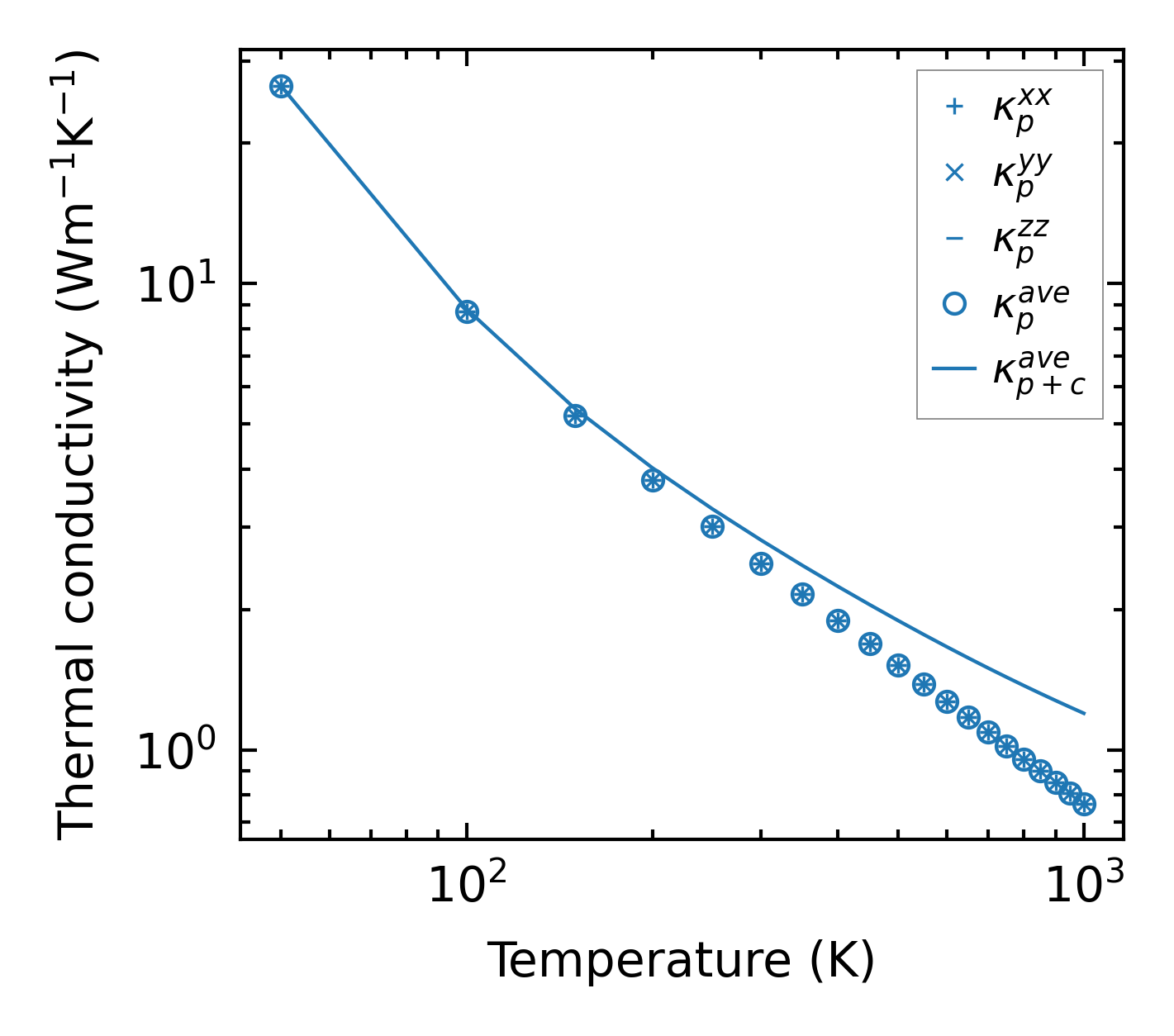

../../_images/fig_kappa2963.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1561.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

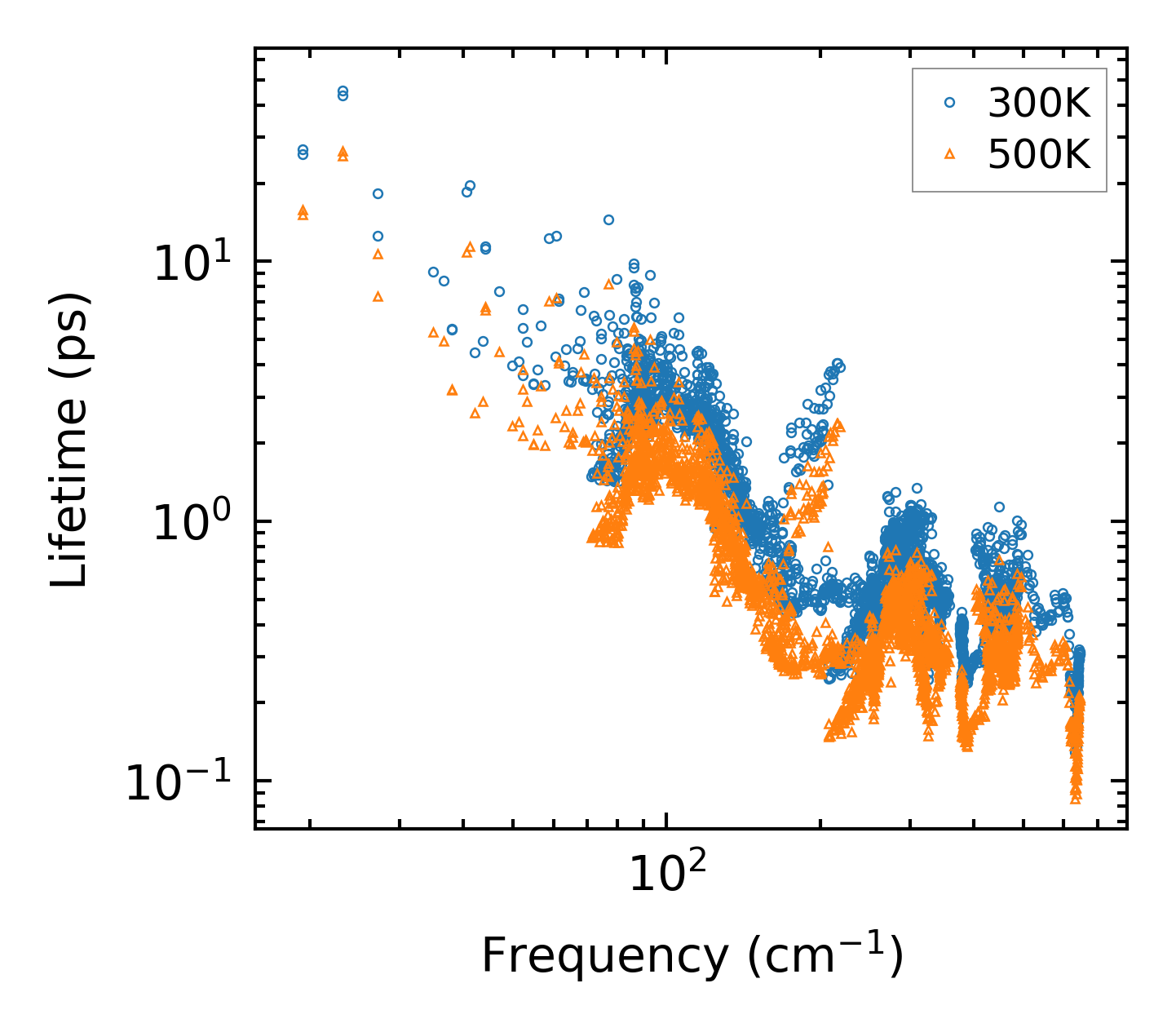

../../_images/fig_lifetime1531.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1530.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

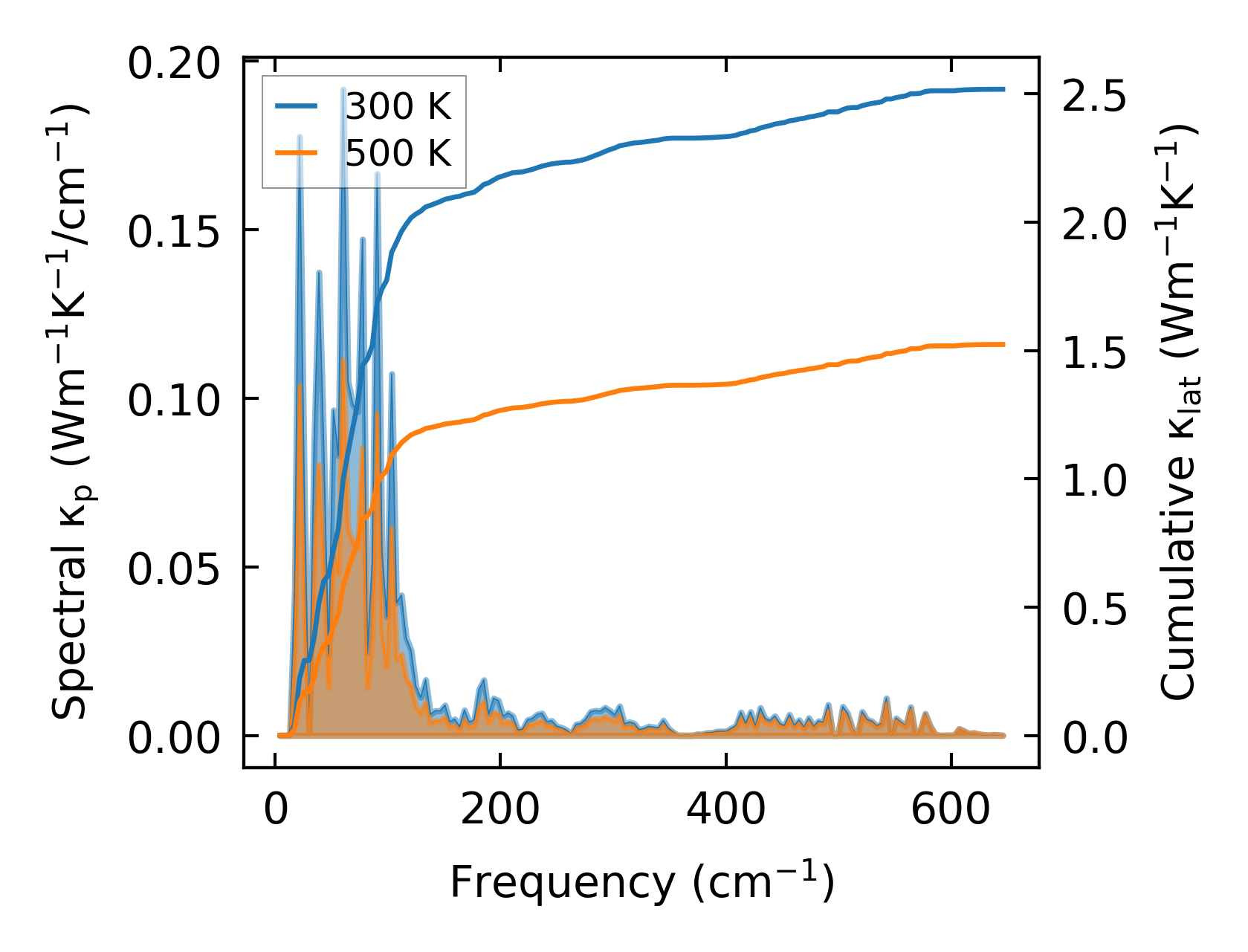

../../_images/fig_cumu_frequency1531.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

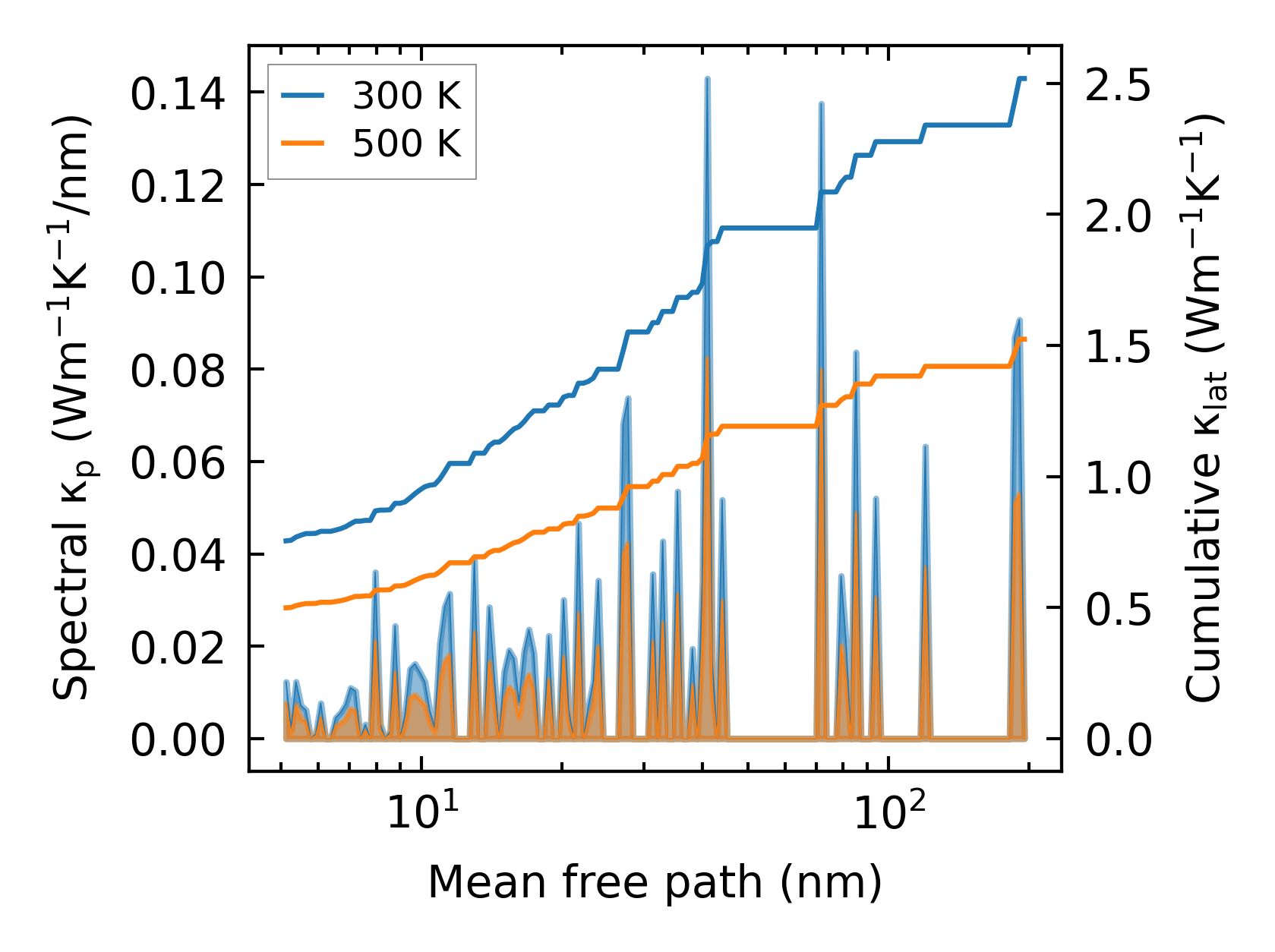

../../_images/fig_cumu_mfp1531.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

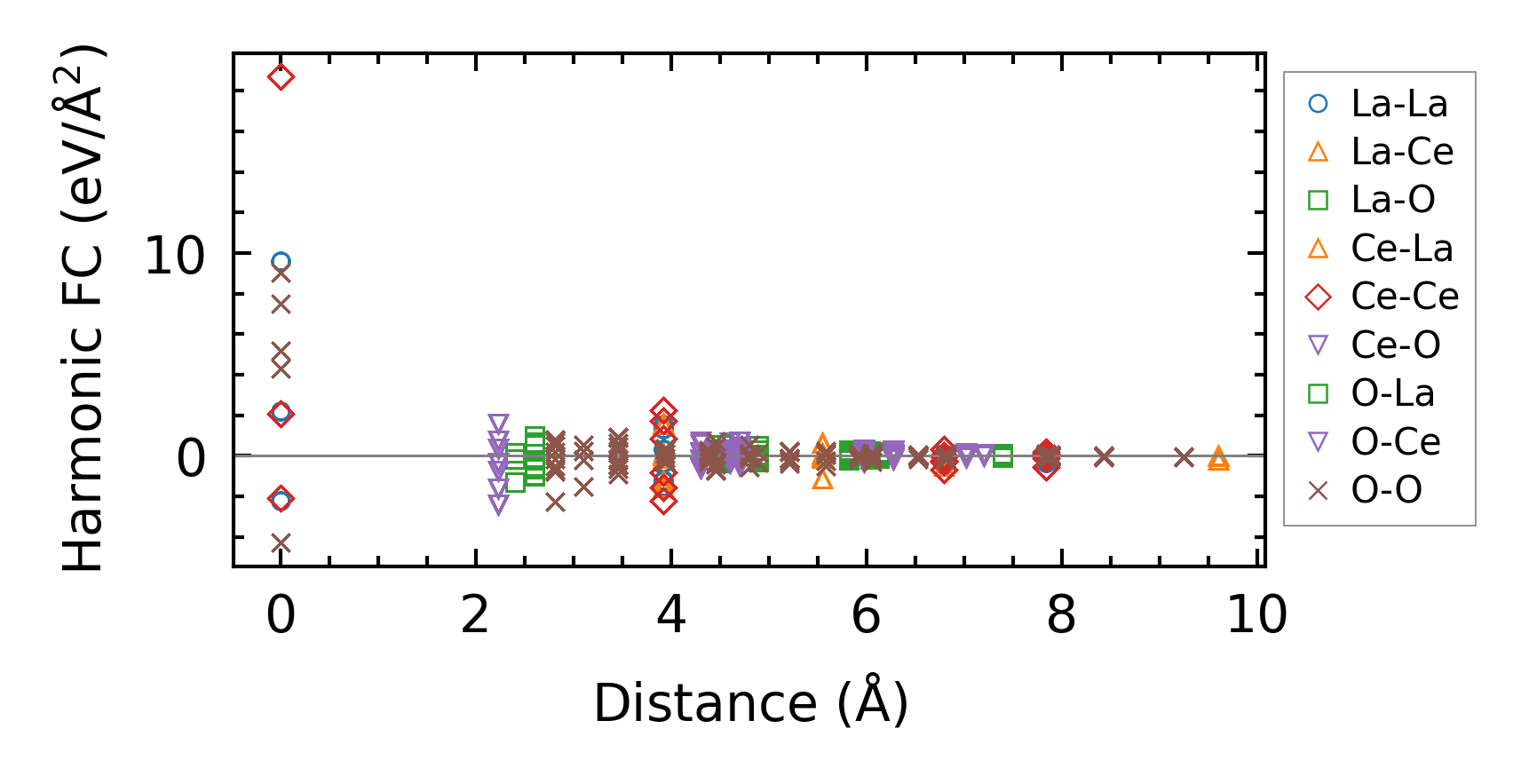

../../_images/fig_fc23223.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2964.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times5911.png — (b) Computation time
