mp-568949-2/TlBr/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-568949-2.tar.gz

Equation of state

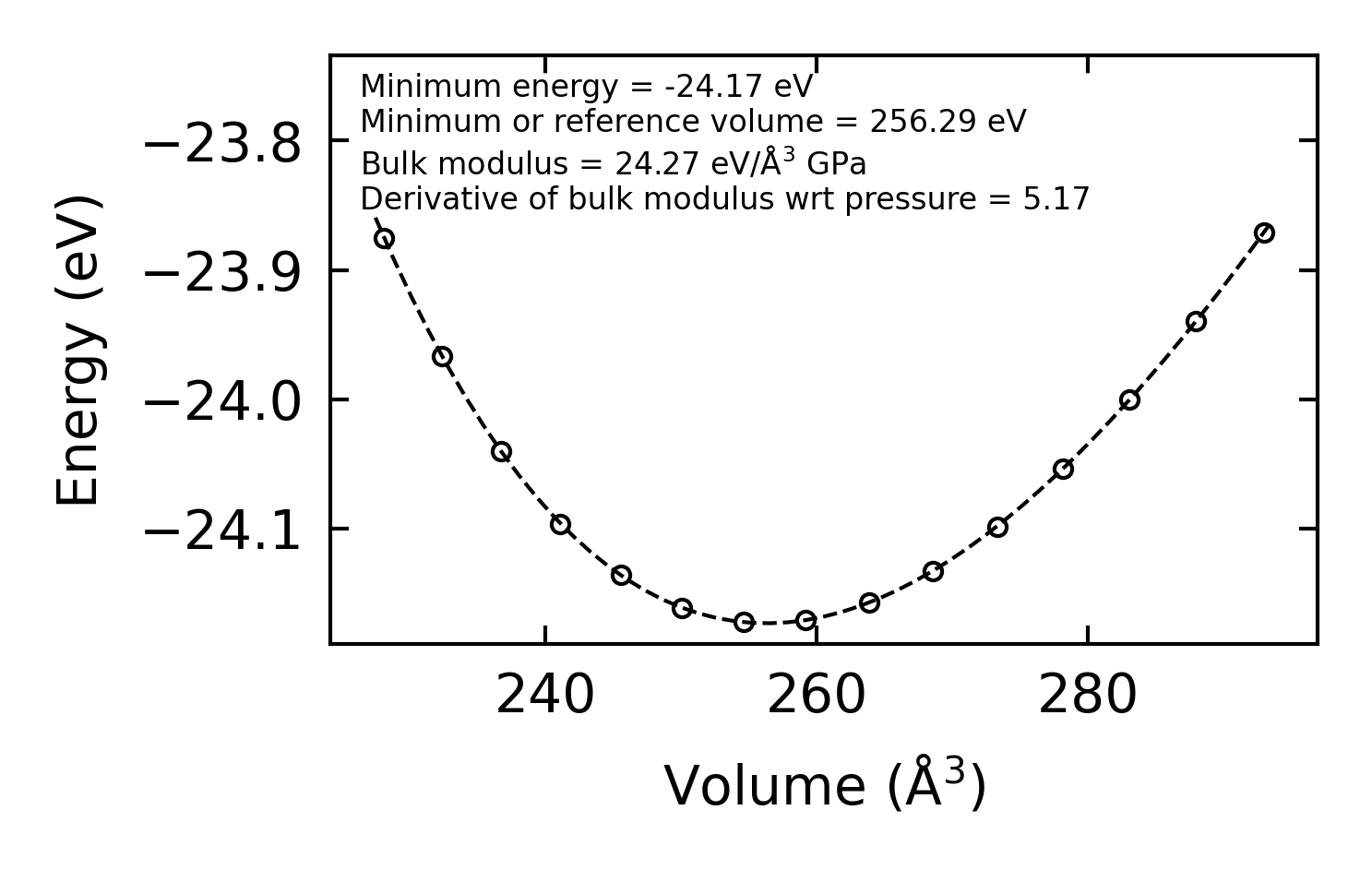

../../_images/fig_bm3727.png — (a) Equation of state

Harmonic properties

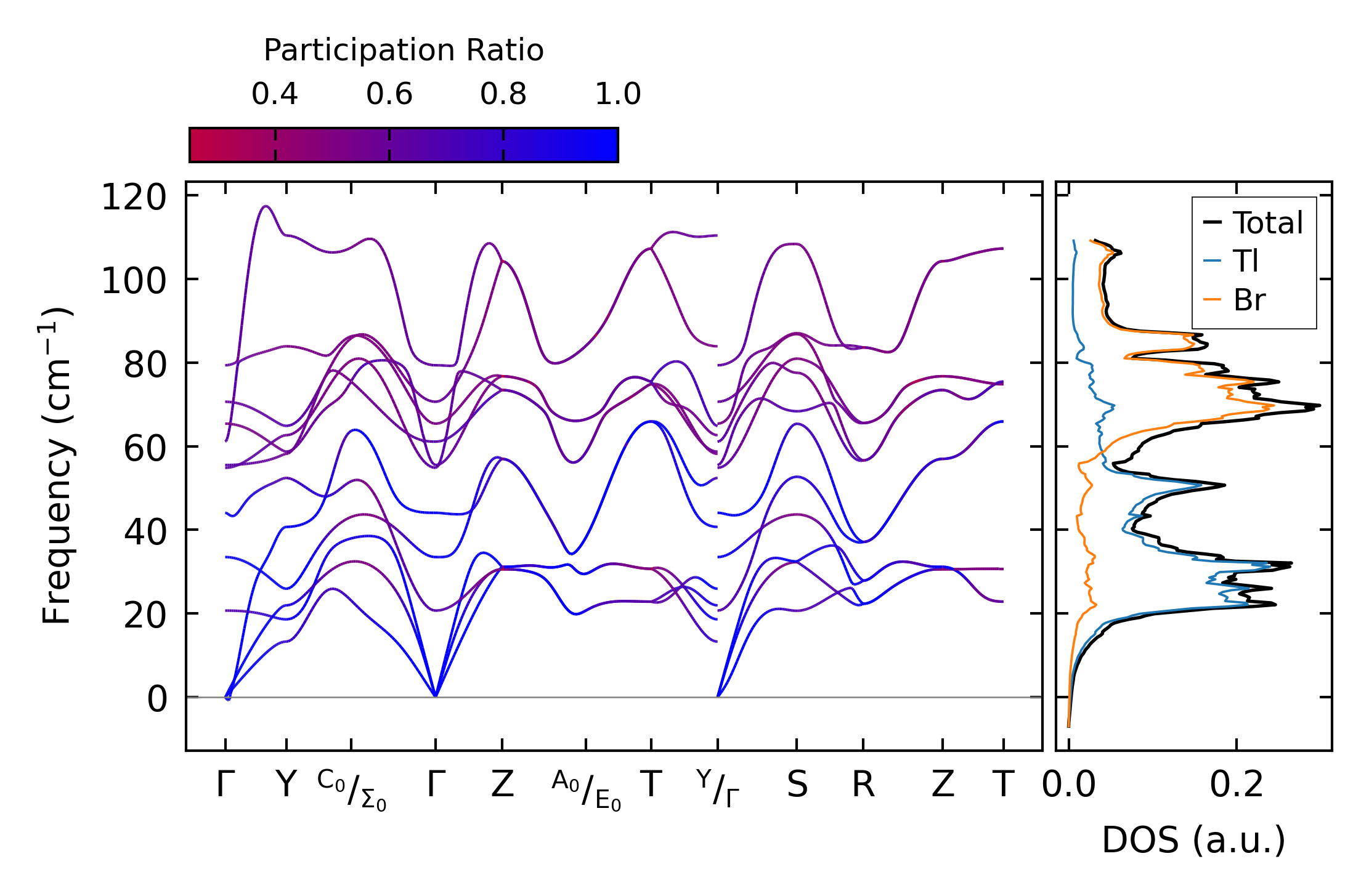

../../_images/fig_bandos_pr6973.png — (a) Phonon dispersion with participation ratio and DOS

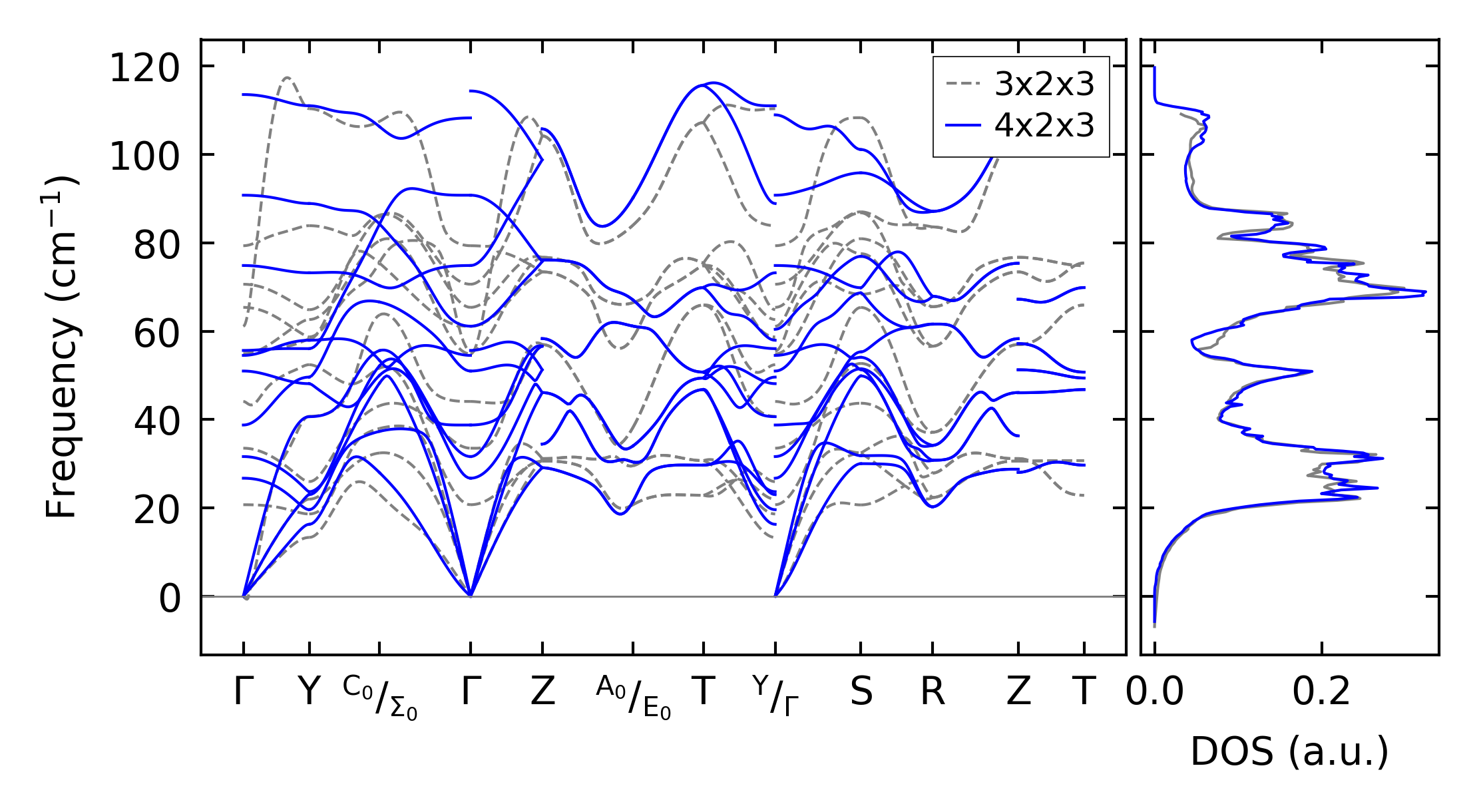

../../_images/fig_bandos9959.png — (b) Phonon dispersion and DOS

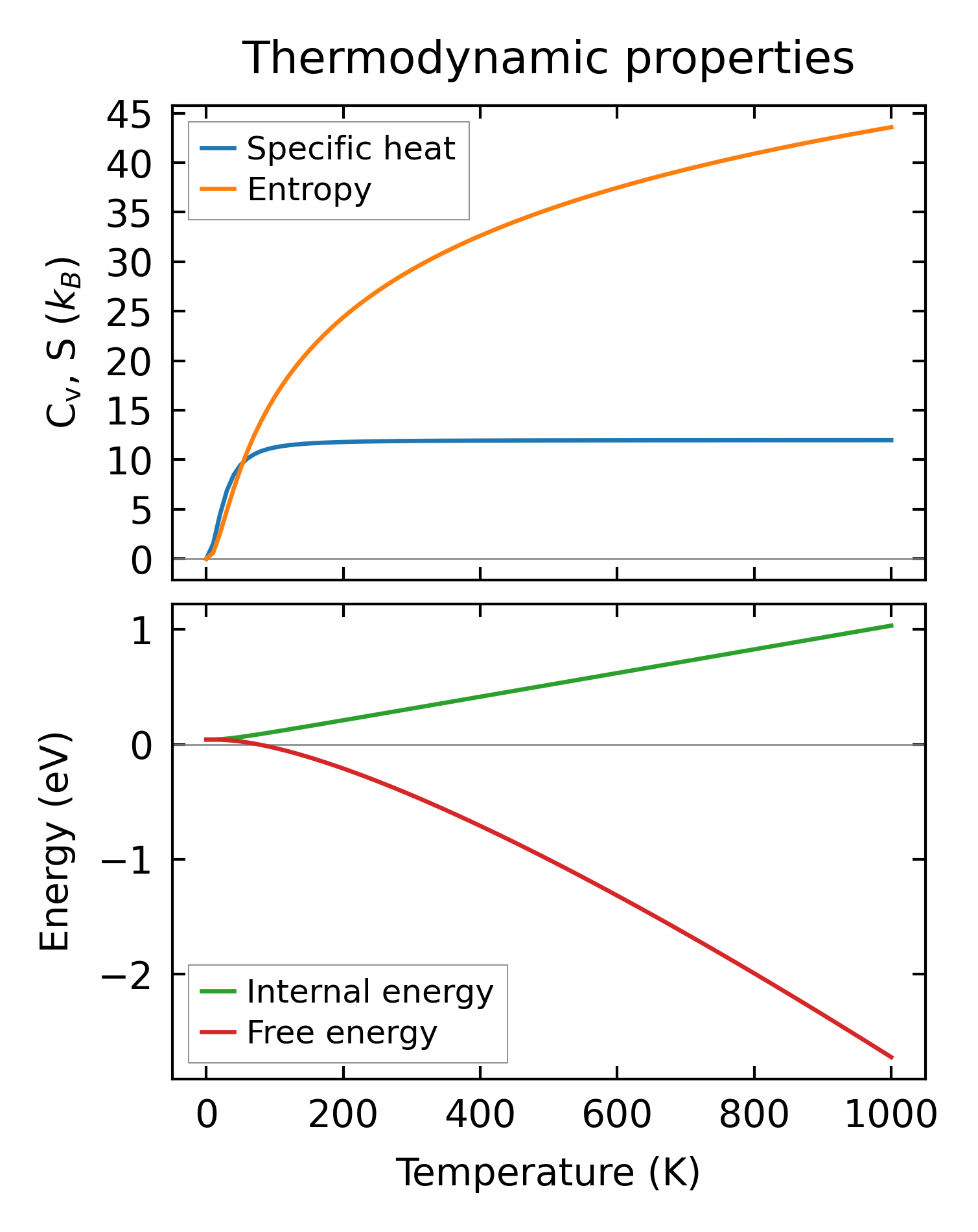

../../_images/fig_thermo6973.png — (c) Thermodynamic properties

Grüneisen parameters

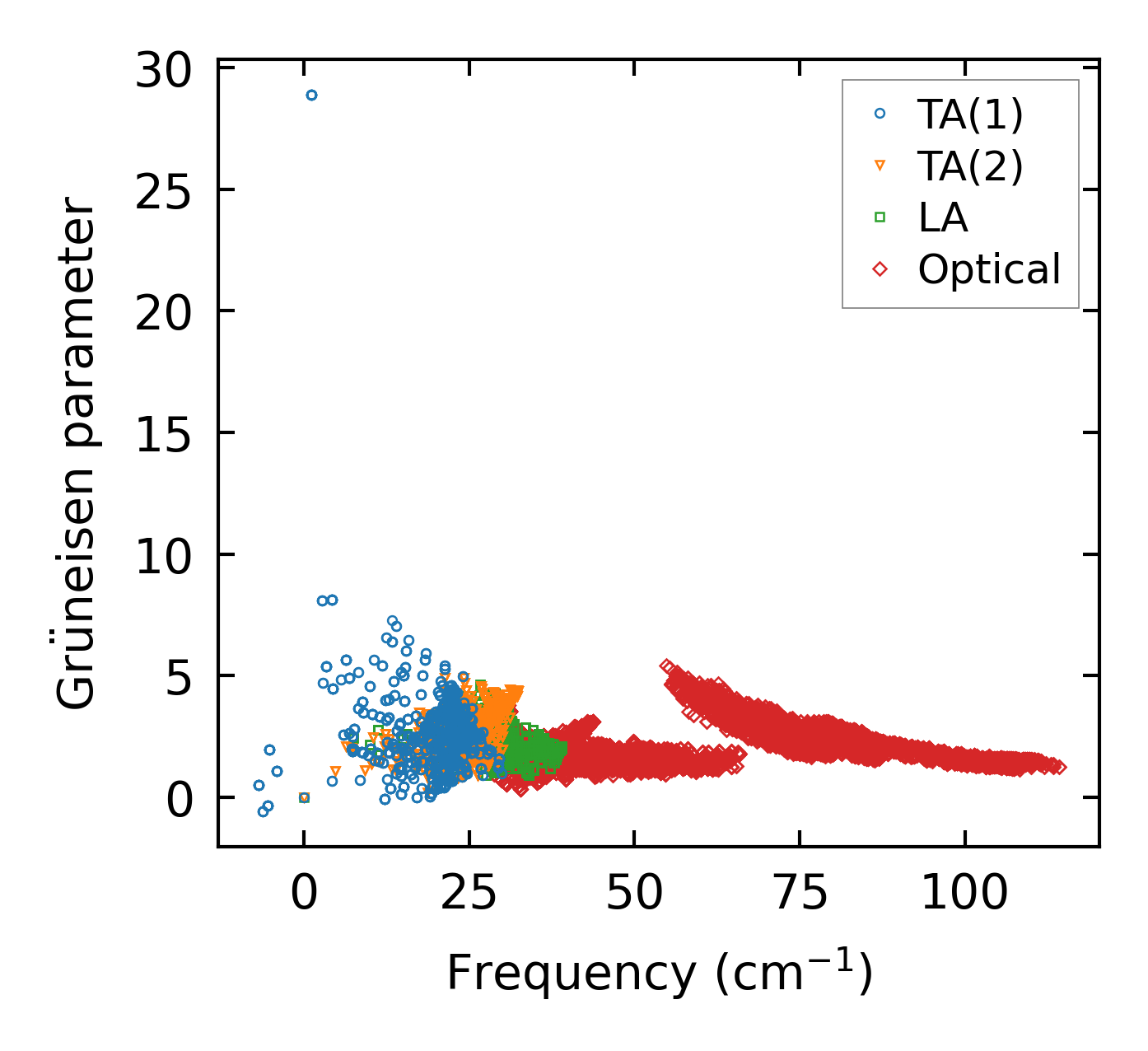

../../_images/fig_gru_all2892.png — (a) Grüneisen parameters

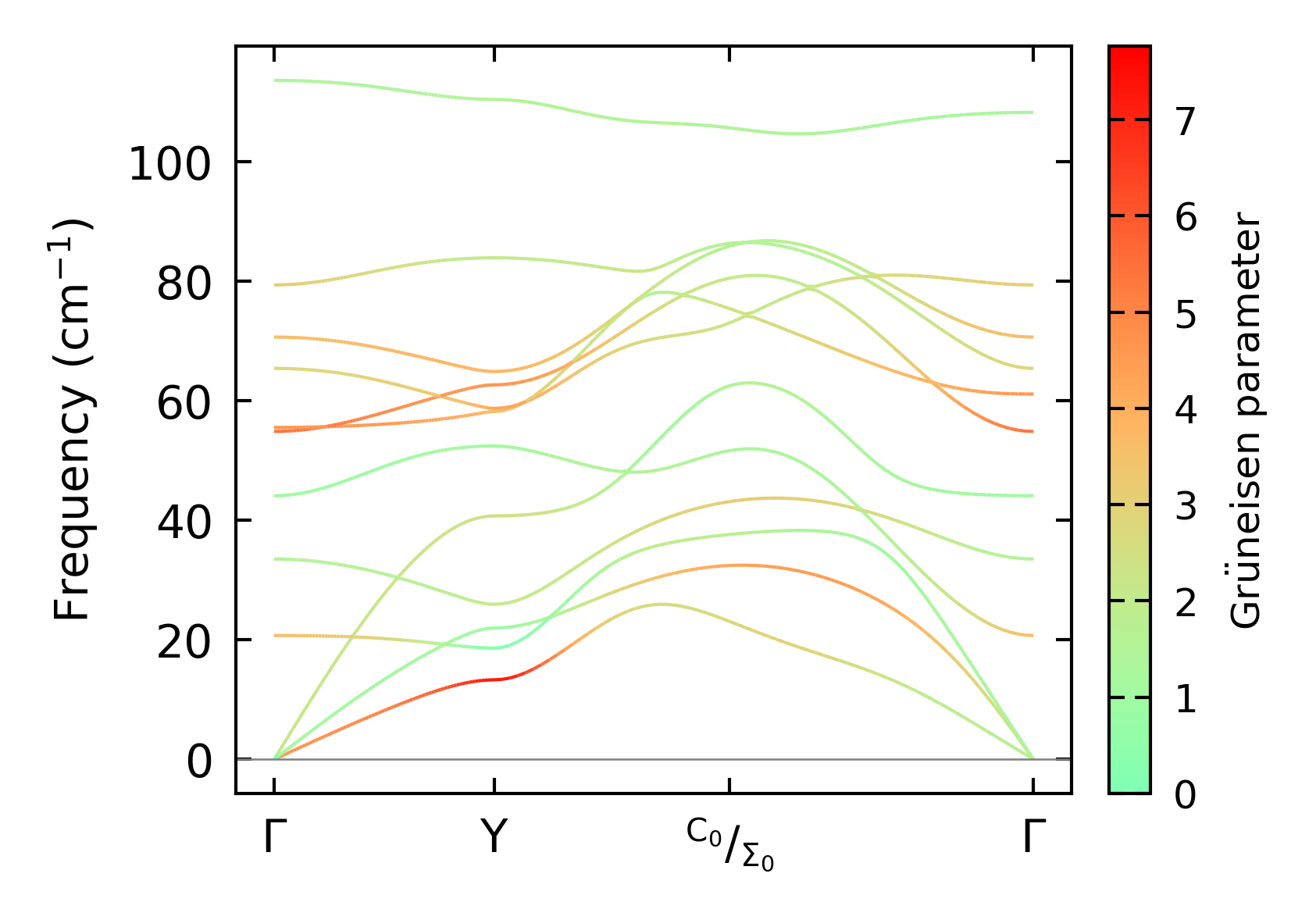

../../_images/fig_gruneisen2892.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x2x3 — q-mesh: 12x12x17, supercell: 4x2x3

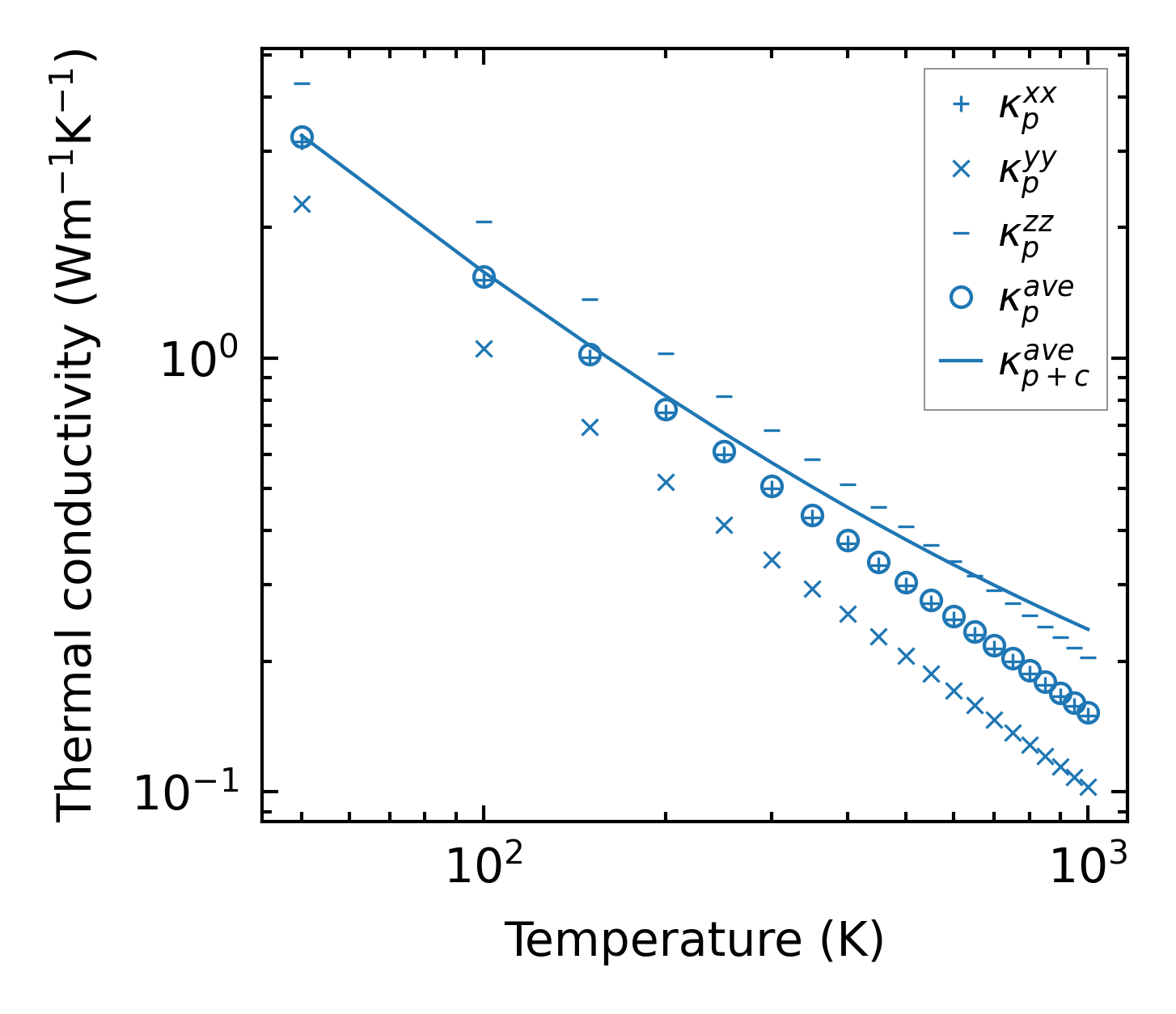

../../_images/fig_kappa5487.png — (a) Temperature-dependent lattice thermal conductivity

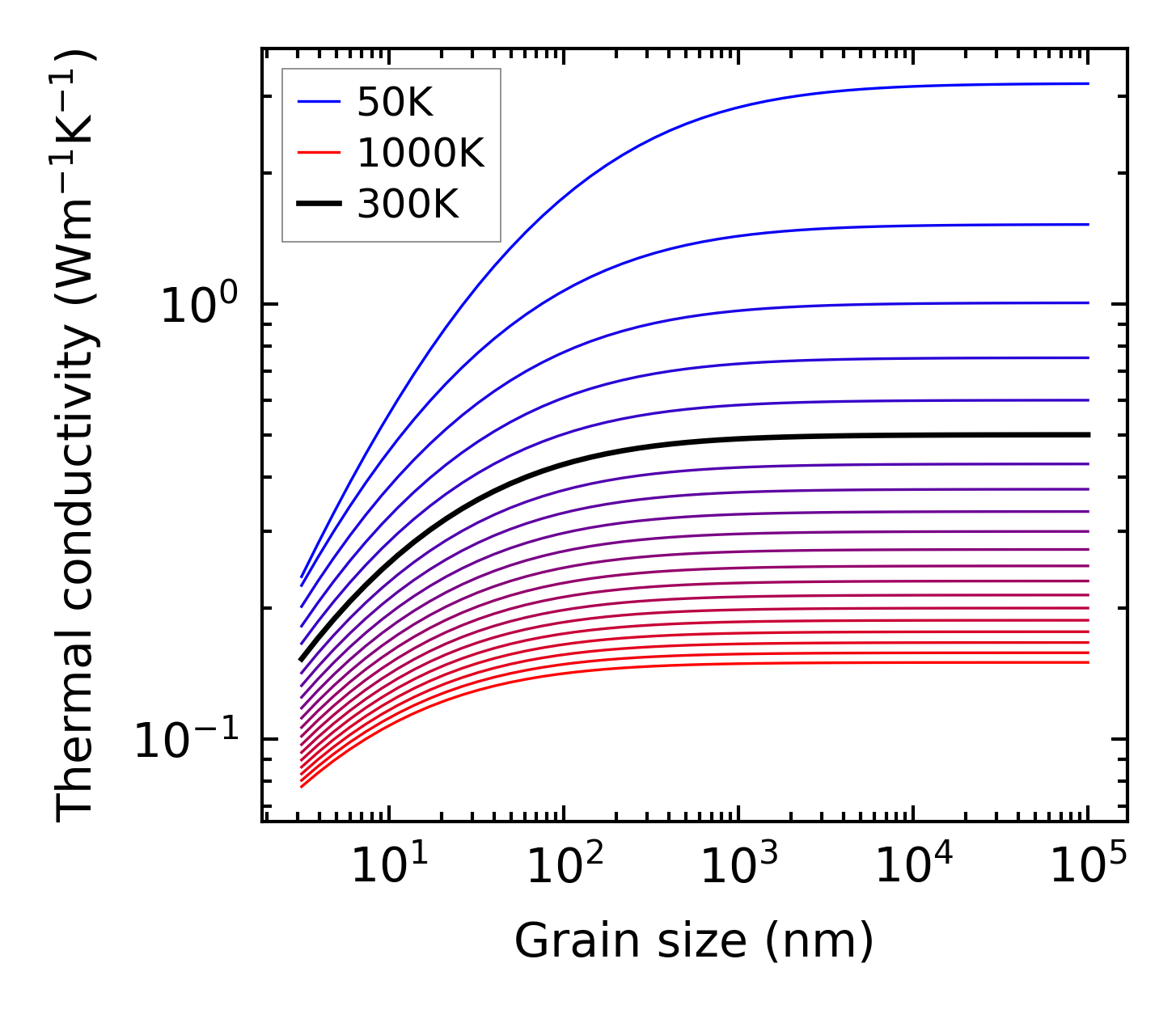

../../_images/fig_kappa_vs_grain_size2934.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

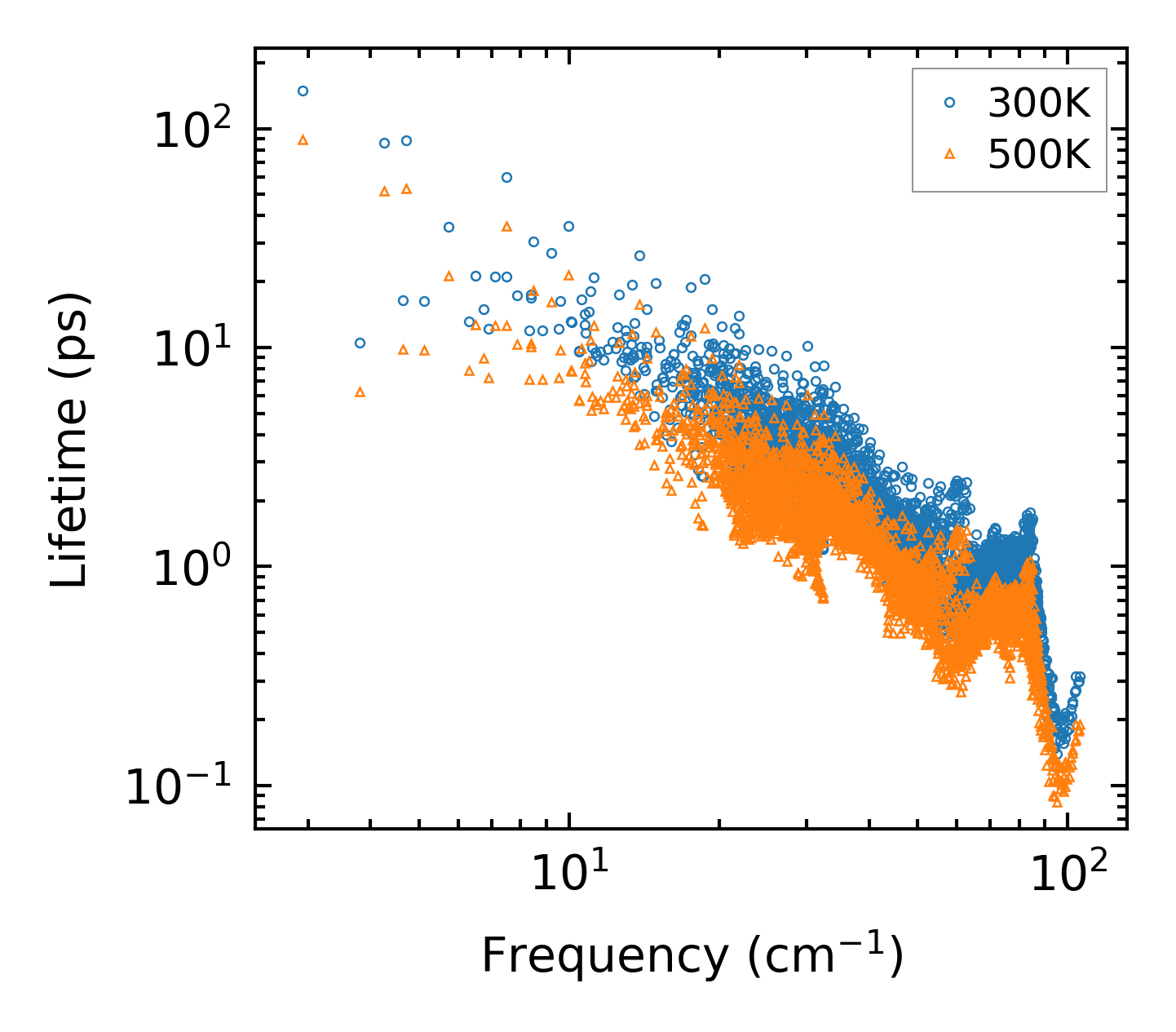

../../_images/fig_lifetime2868.png — (a) Phonon lifetime due to phonon-phonon scattering

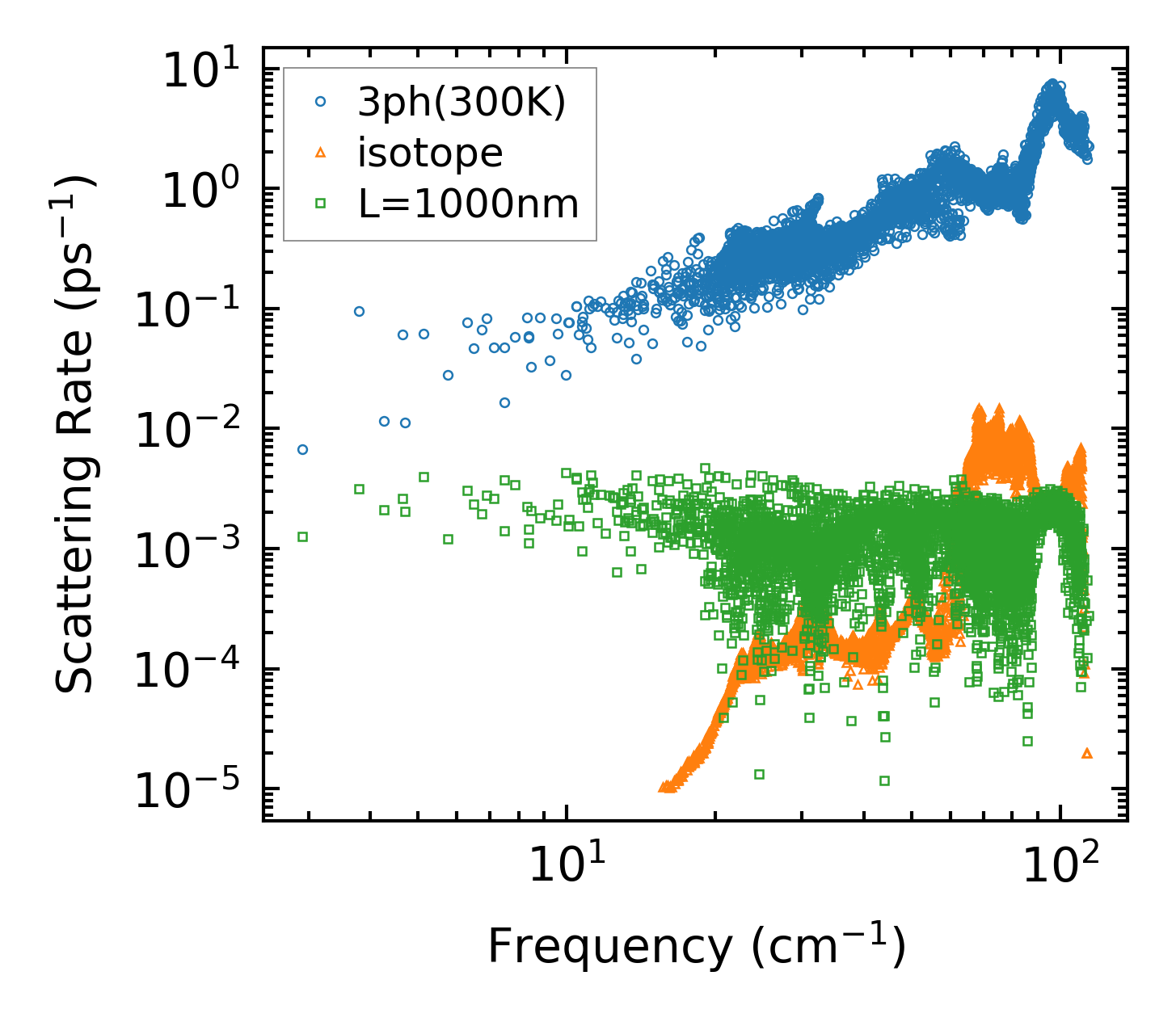

../../_images/fig_scat_rates2867.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

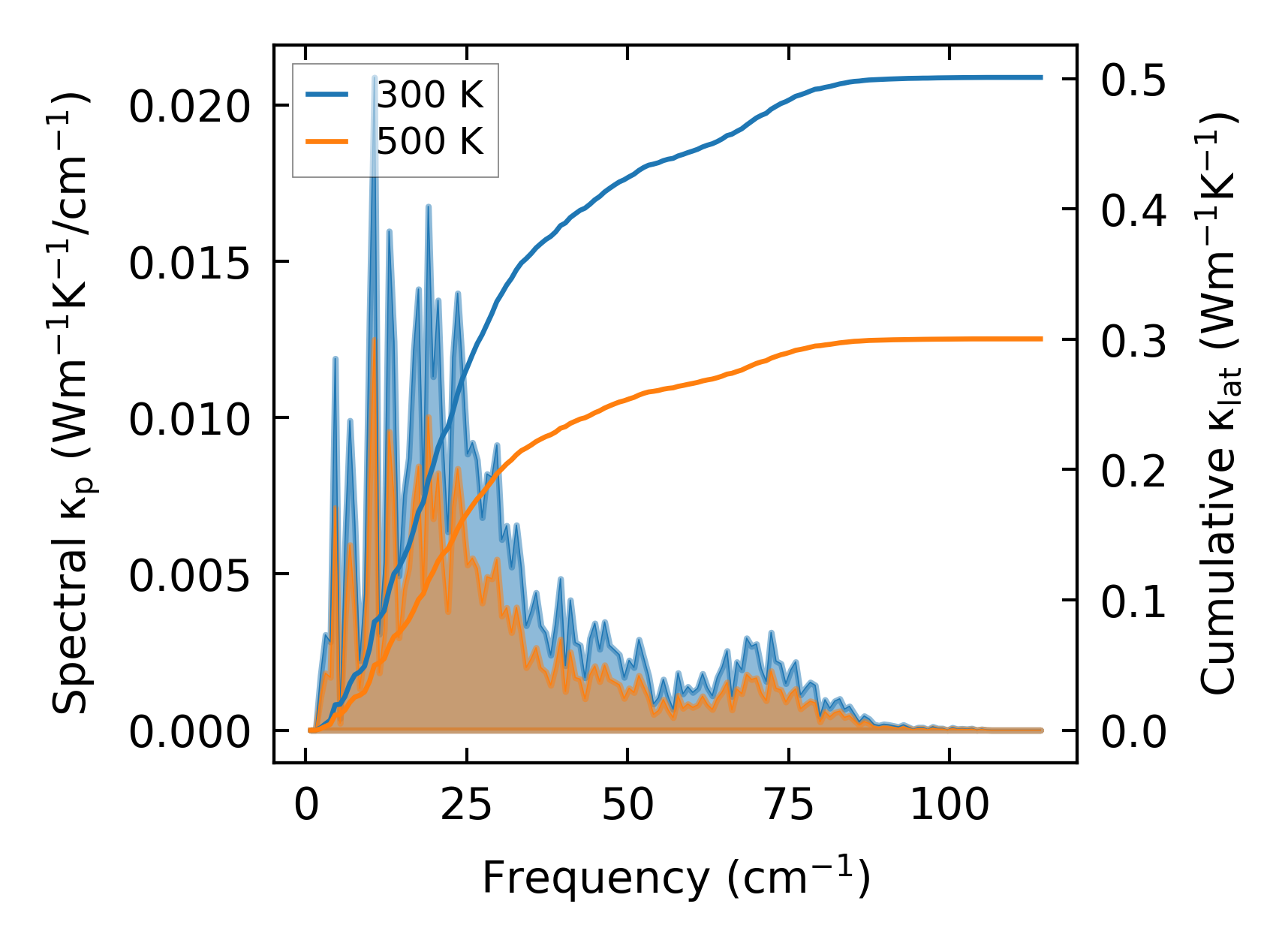

../../_images/fig_cumu_frequency2868.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

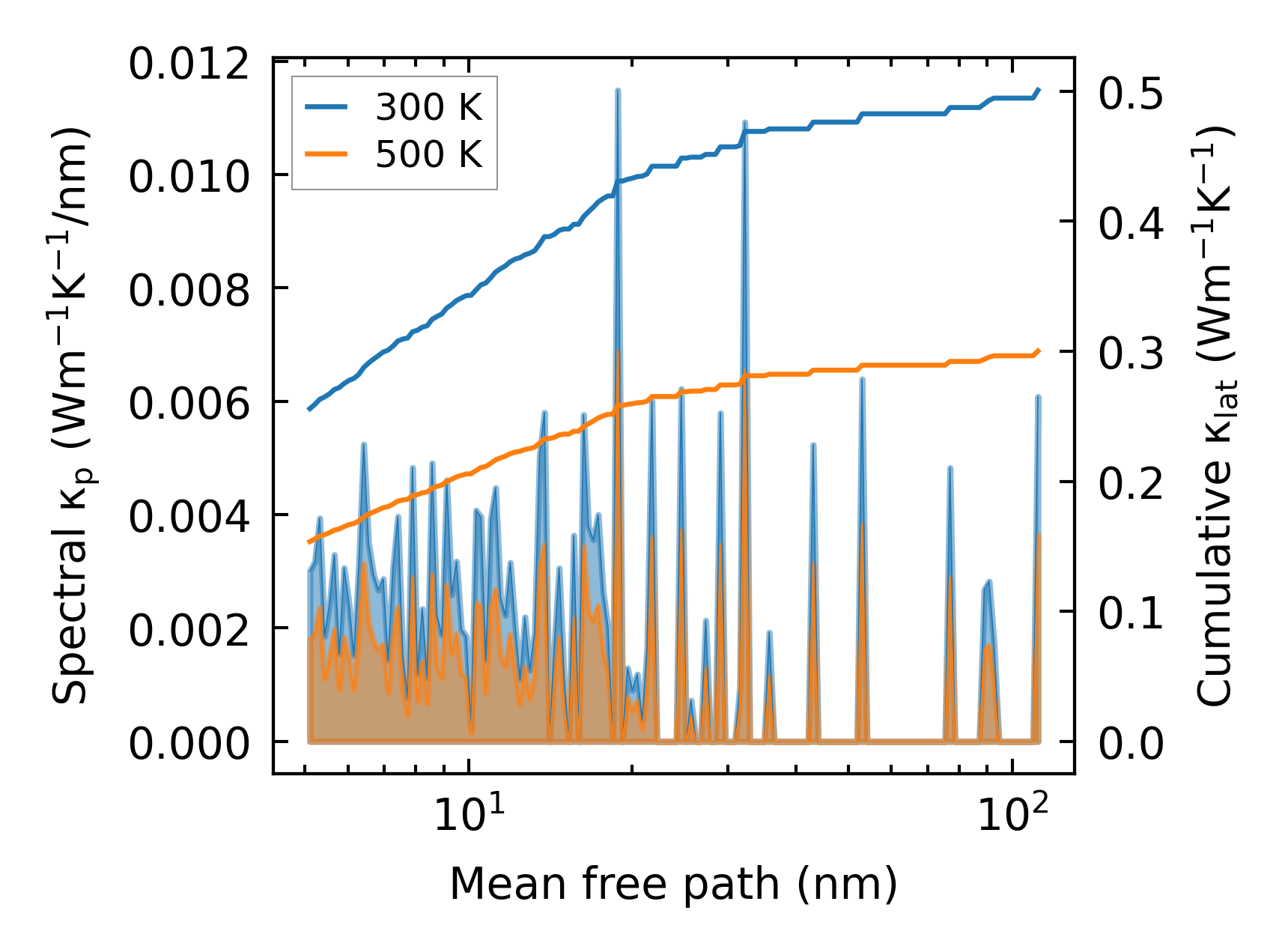

../../_images/fig_cumu_mfp2867.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

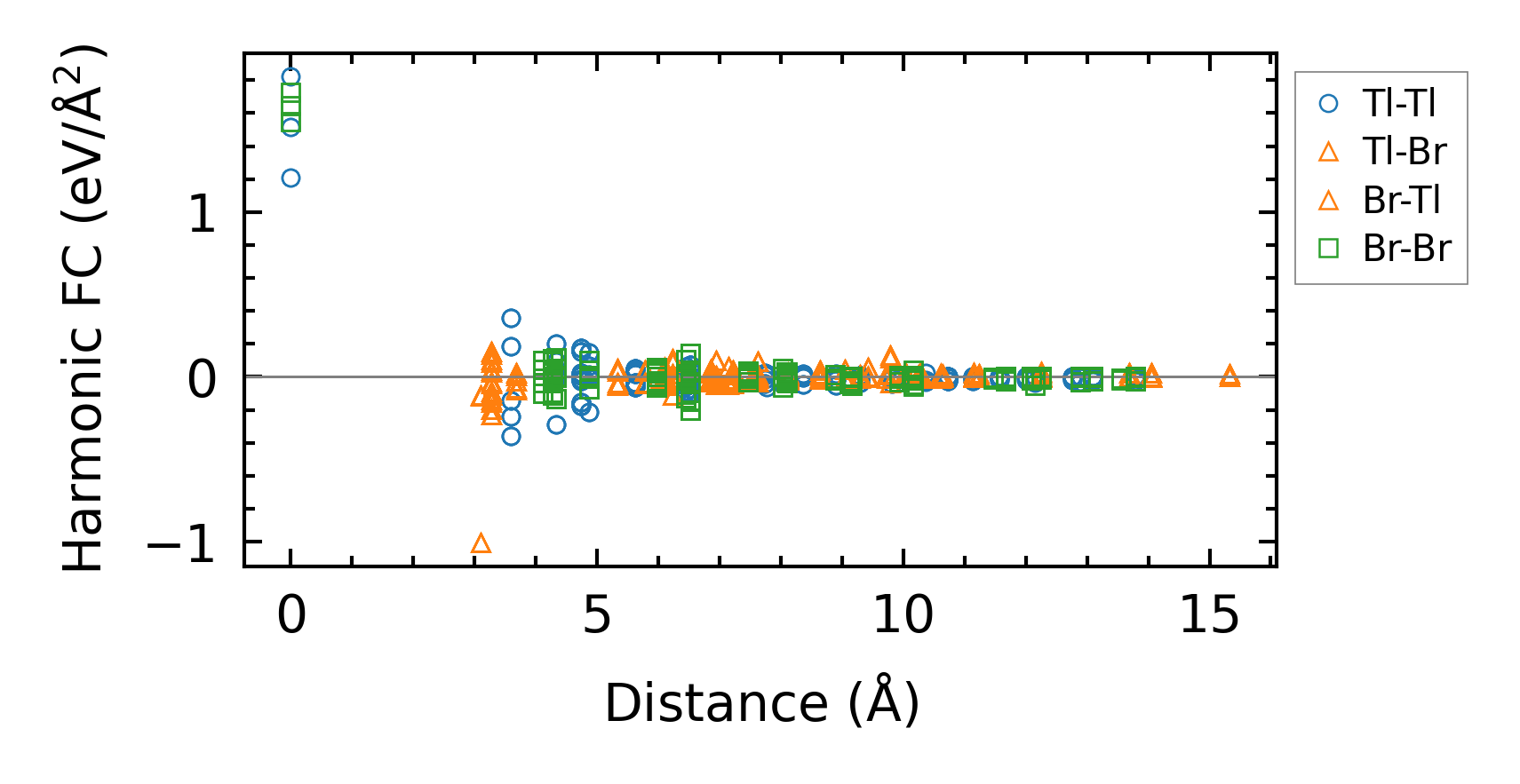

../../_images/fig_fc26751.png — (a) Force constants w.r.t atomic distance

Summary

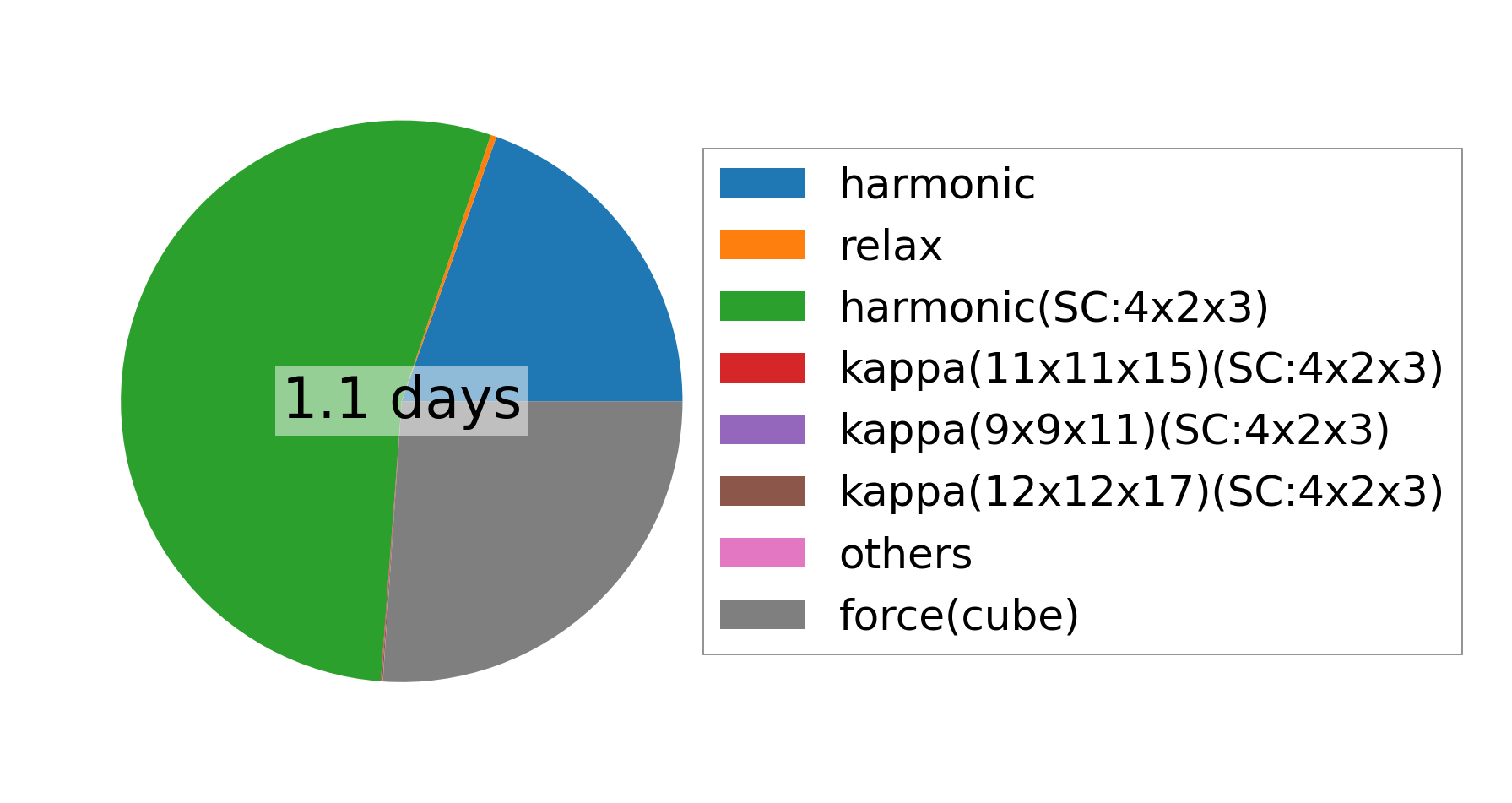

../../_images/fig_times12482.png — (a) Computation time
