mp-568224/Sm3CuSe6/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-568224.tar.gz

Harmonic properties

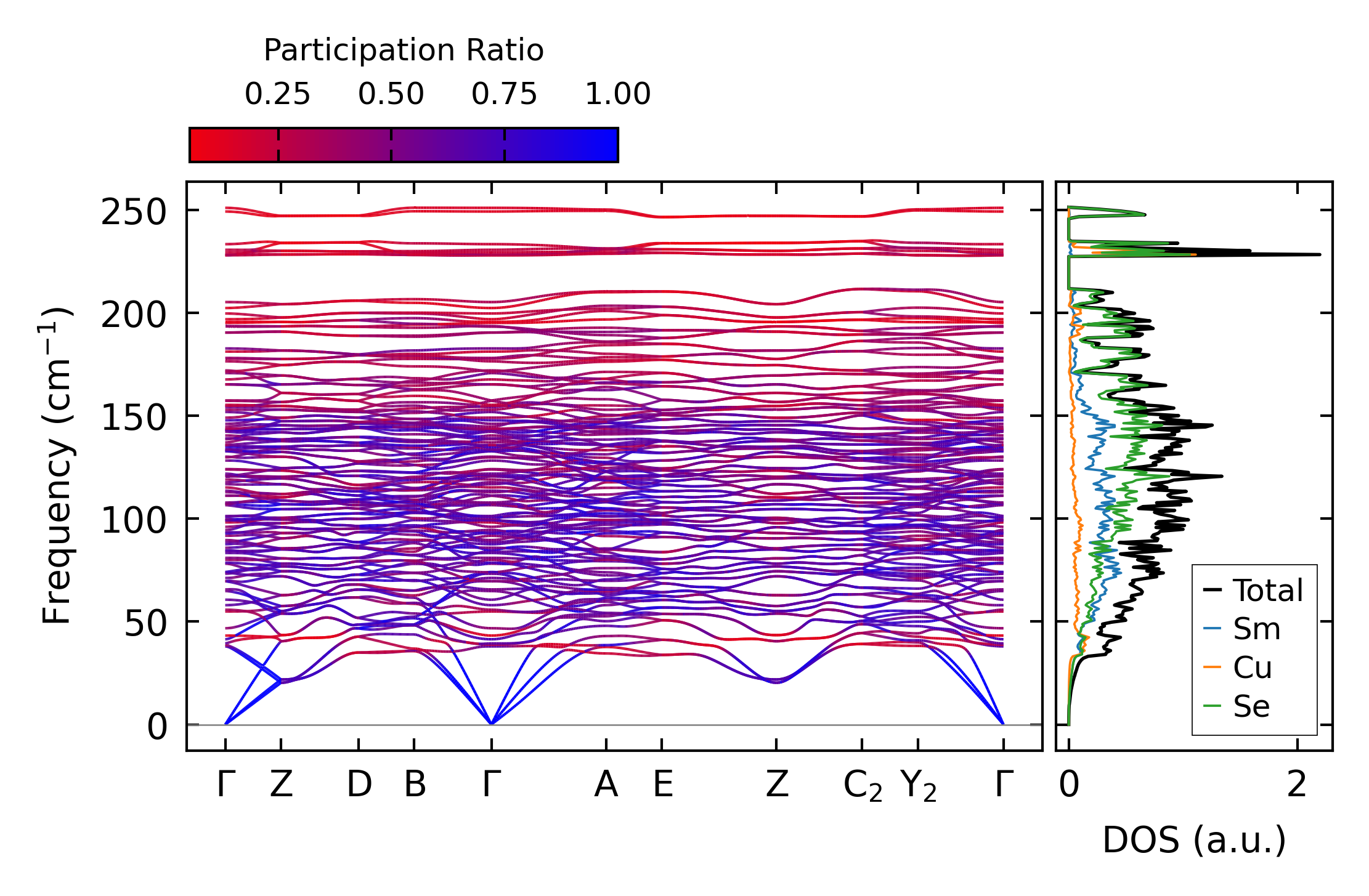

../../_images/fig_bandos_pr7254.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7254.png — (b) Thermodynamic properties

Grüneisen parameters

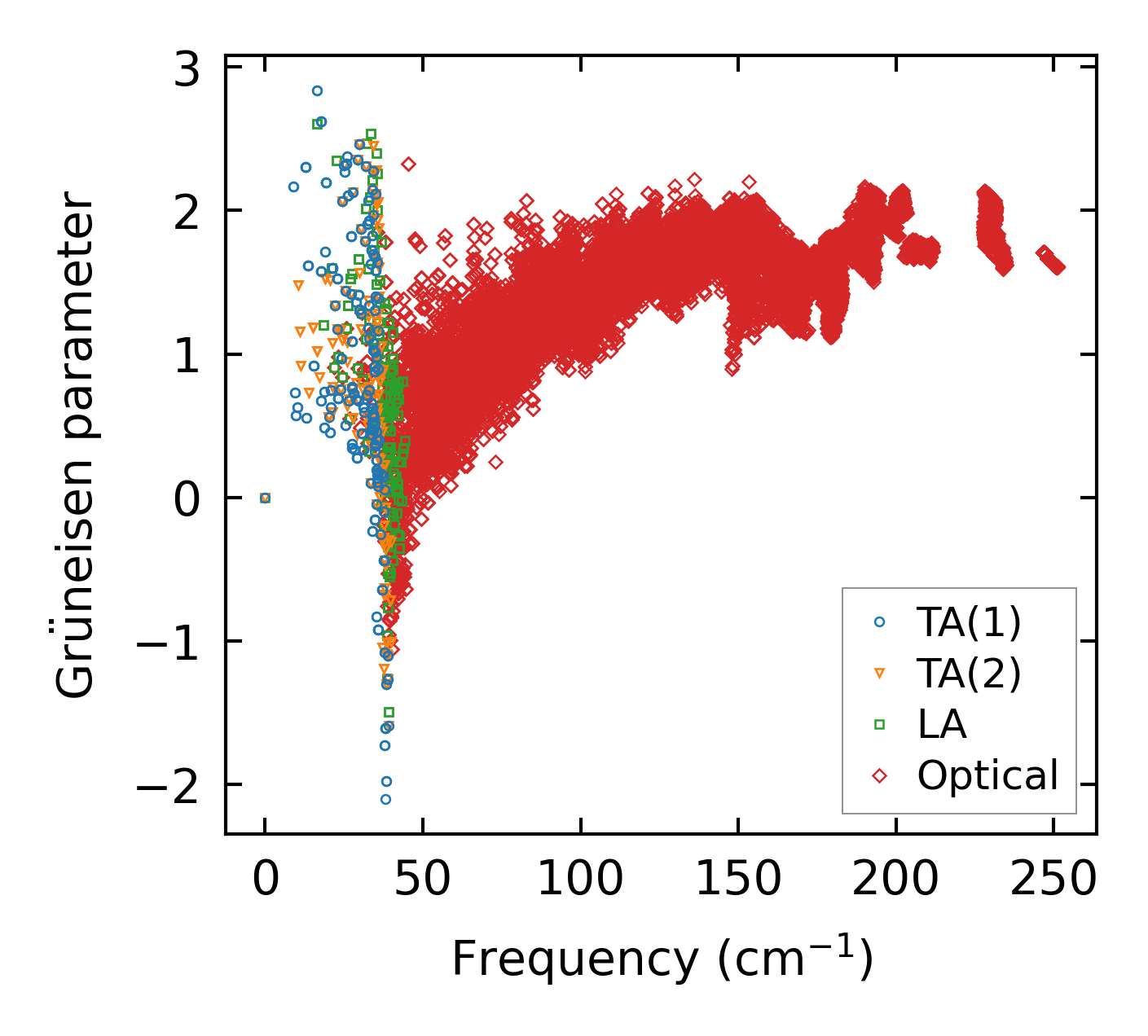

../../_images/fig_gru_all3053.png — (a) Grüneisen parameters

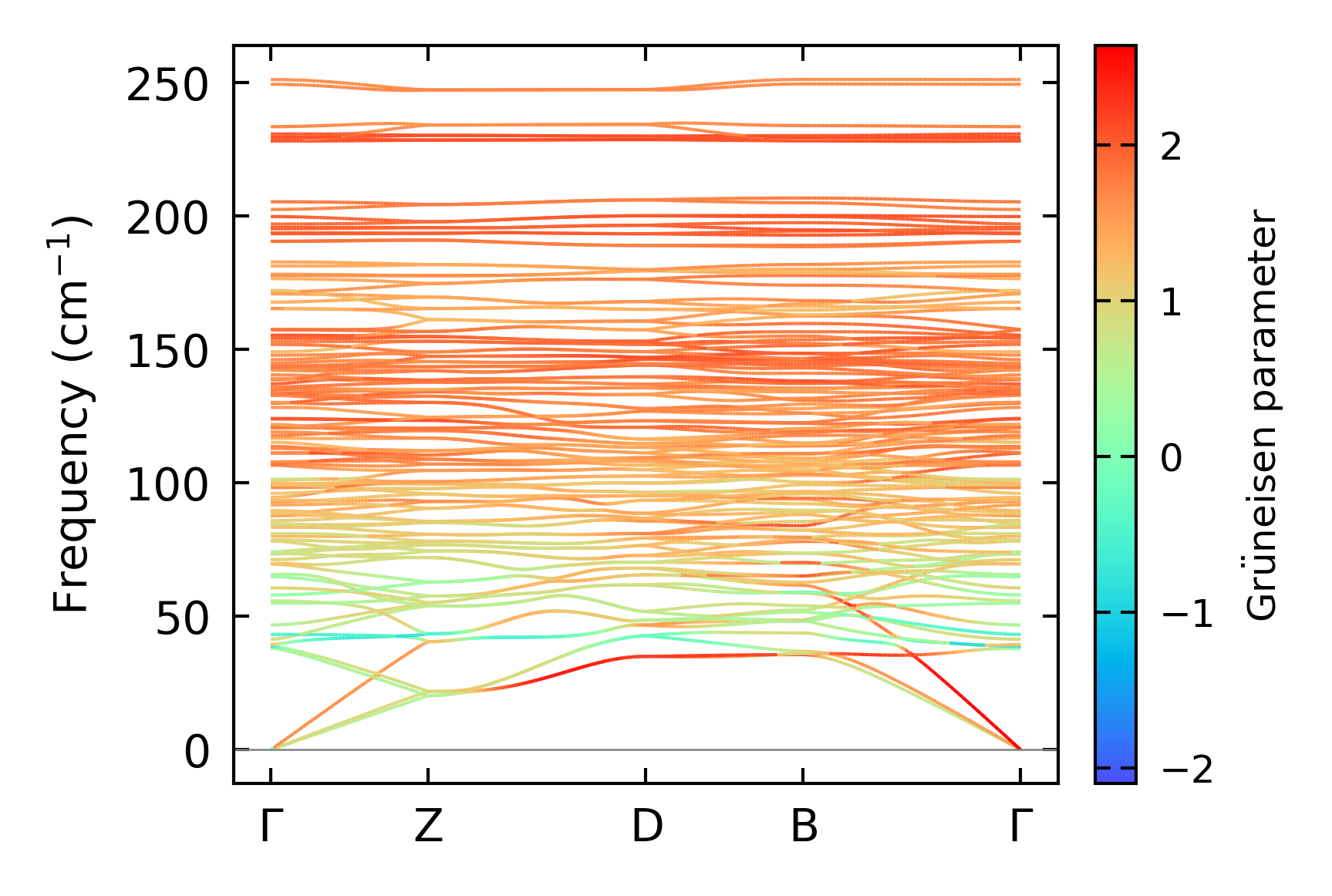

../../_images/fig_gruneisen3053.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x4x9, supercell: 2x1x1

../../_images/fig_kappa5783.png — (a) Temperature-dependent lattice thermal conductivity

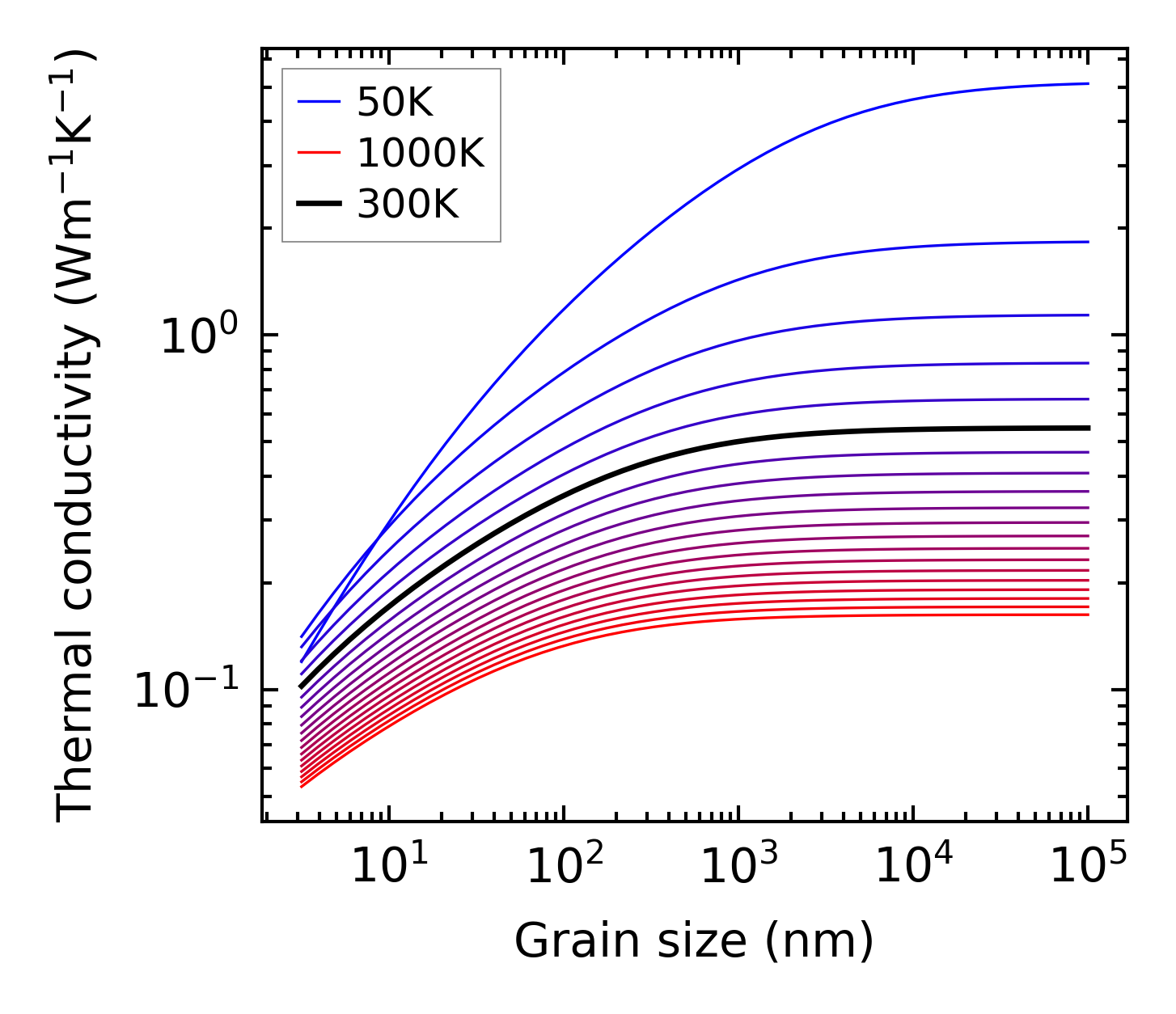

../../_images/fig_kappa_vs_grain_size3096.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3028.png — (a) Phonon lifetime due to phonon-phonon scattering

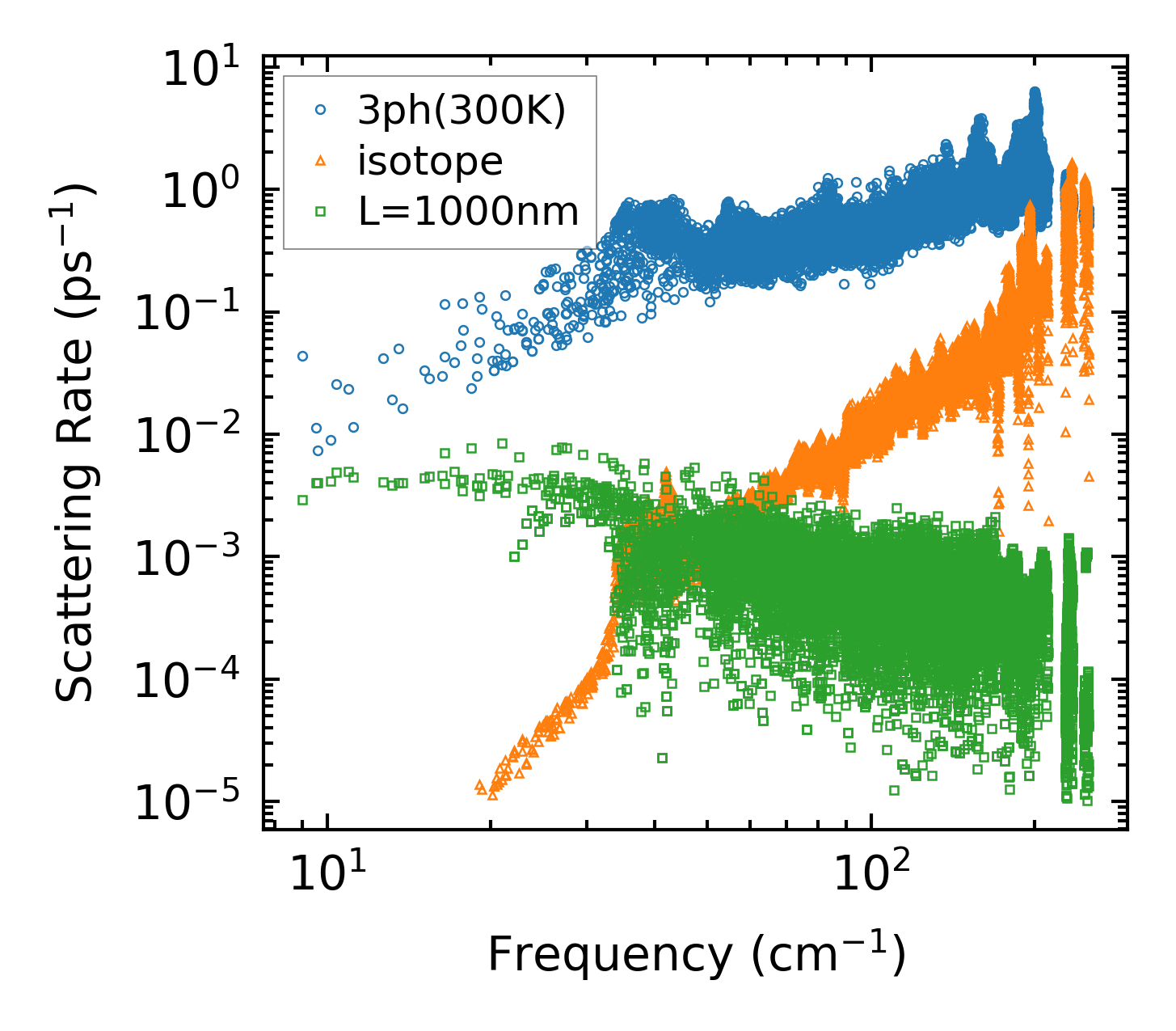

../../_images/fig_scat_rates3027.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

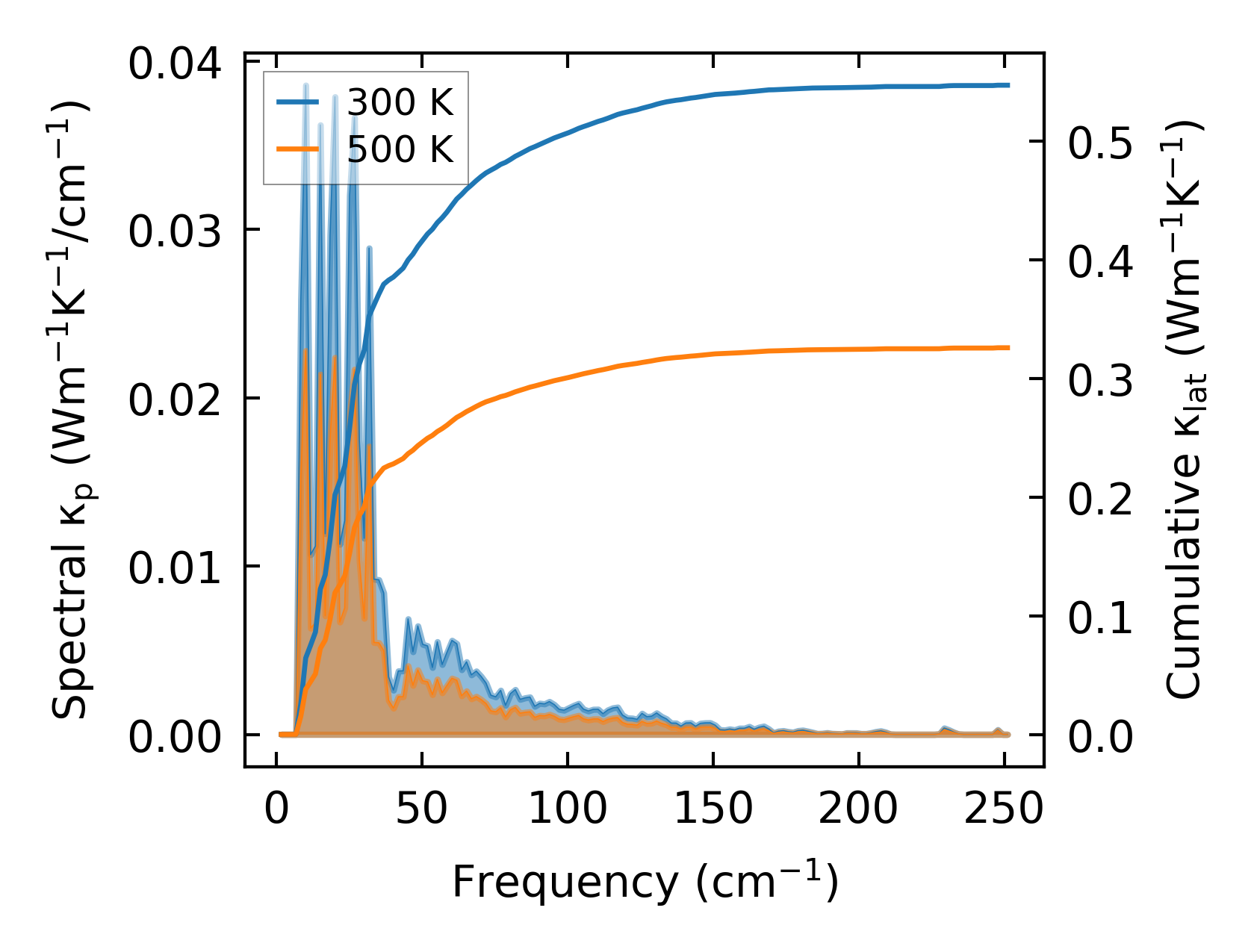

../../_images/fig_cumu_frequency3028.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

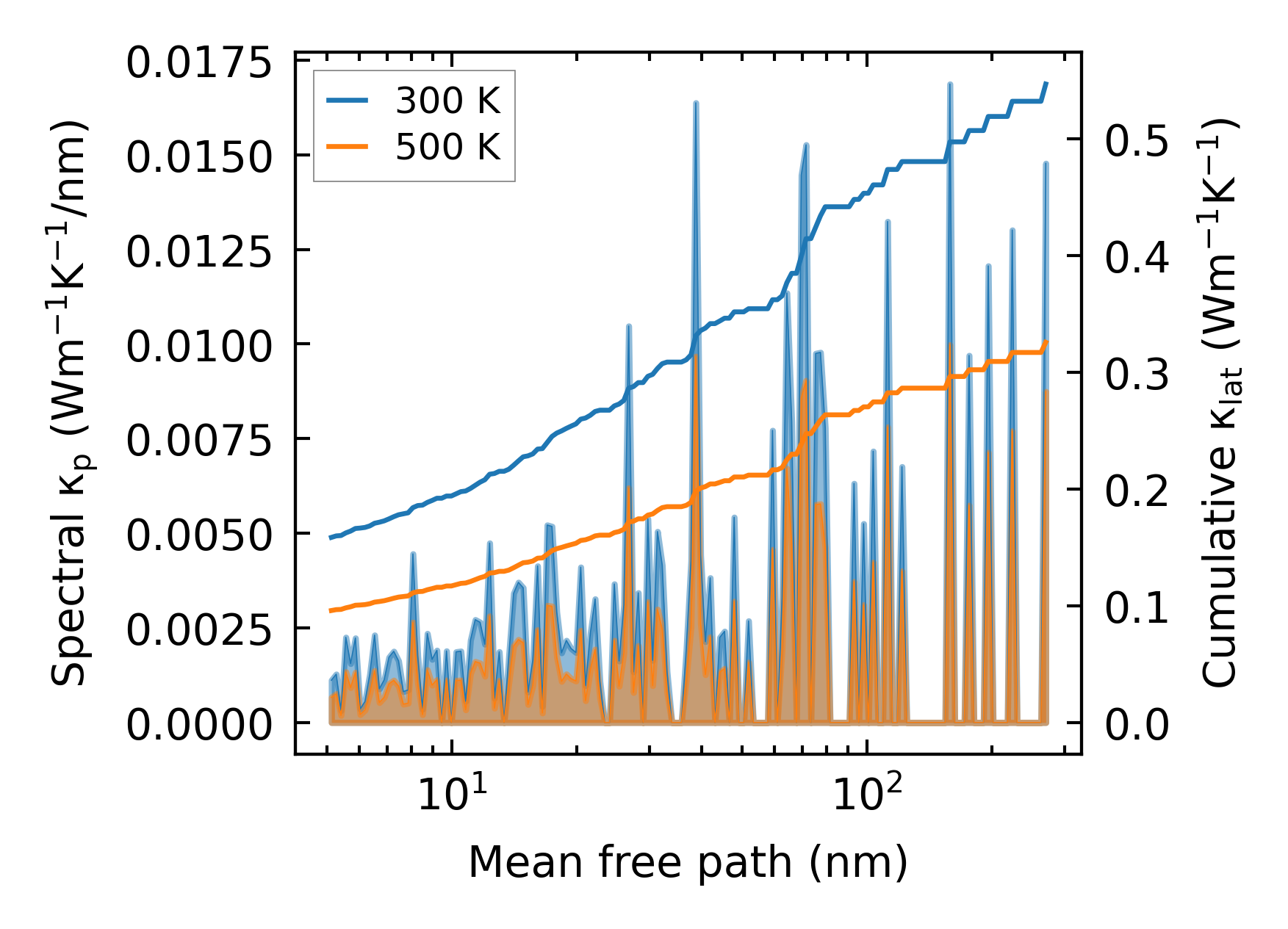

../../_images/fig_cumu_mfp3027.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27021.png — (a) Force constants w.r.t atomic distance

Summary

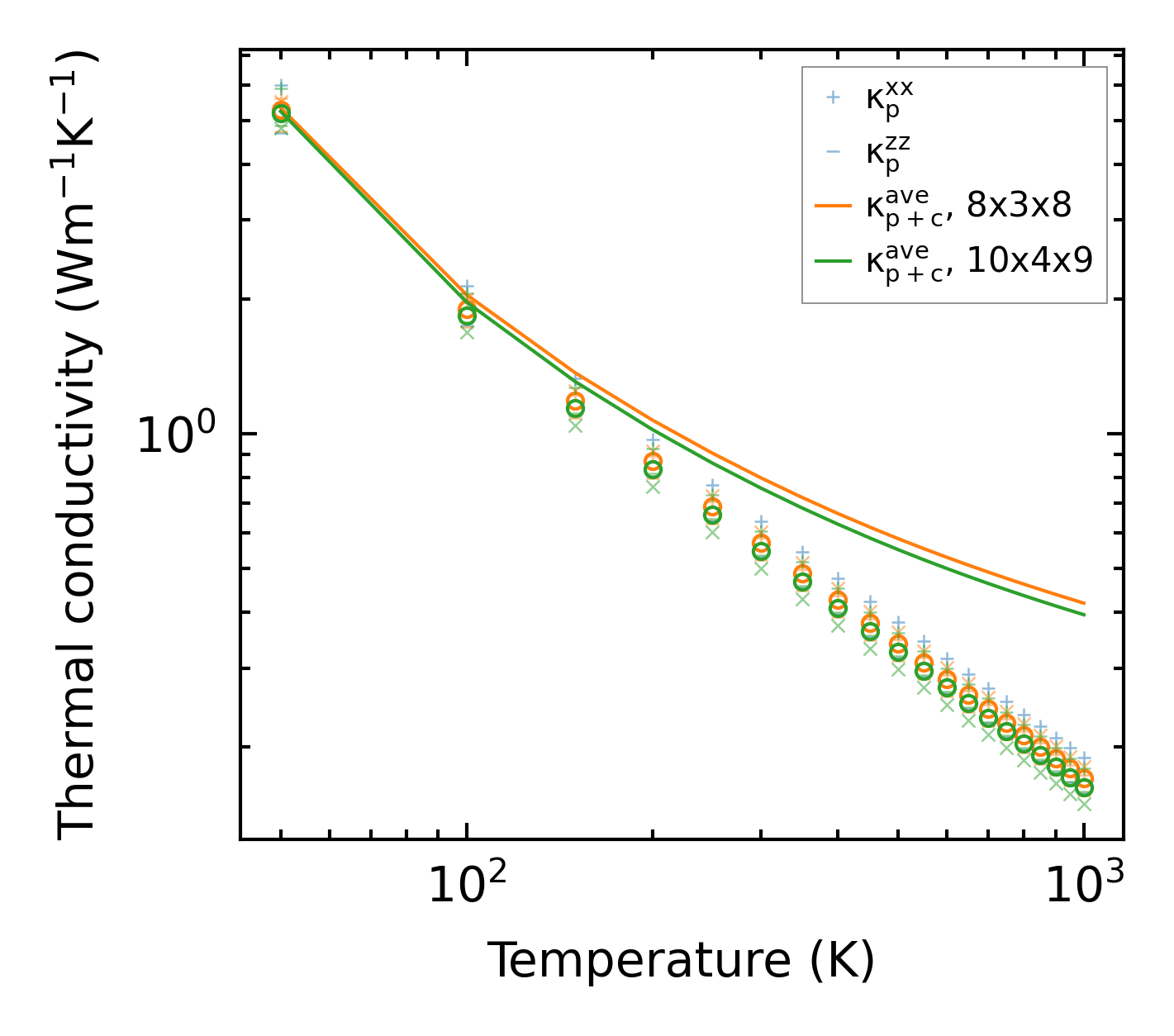

../../_images/fig_kappa5784.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12890.png — (b) Computation time
