mp-568801/Pr3CuSiSe7/anharm

Space group: P6_3 (173)
Link: Materials Project
Download: mp-568801.tar.gz

Equation of state

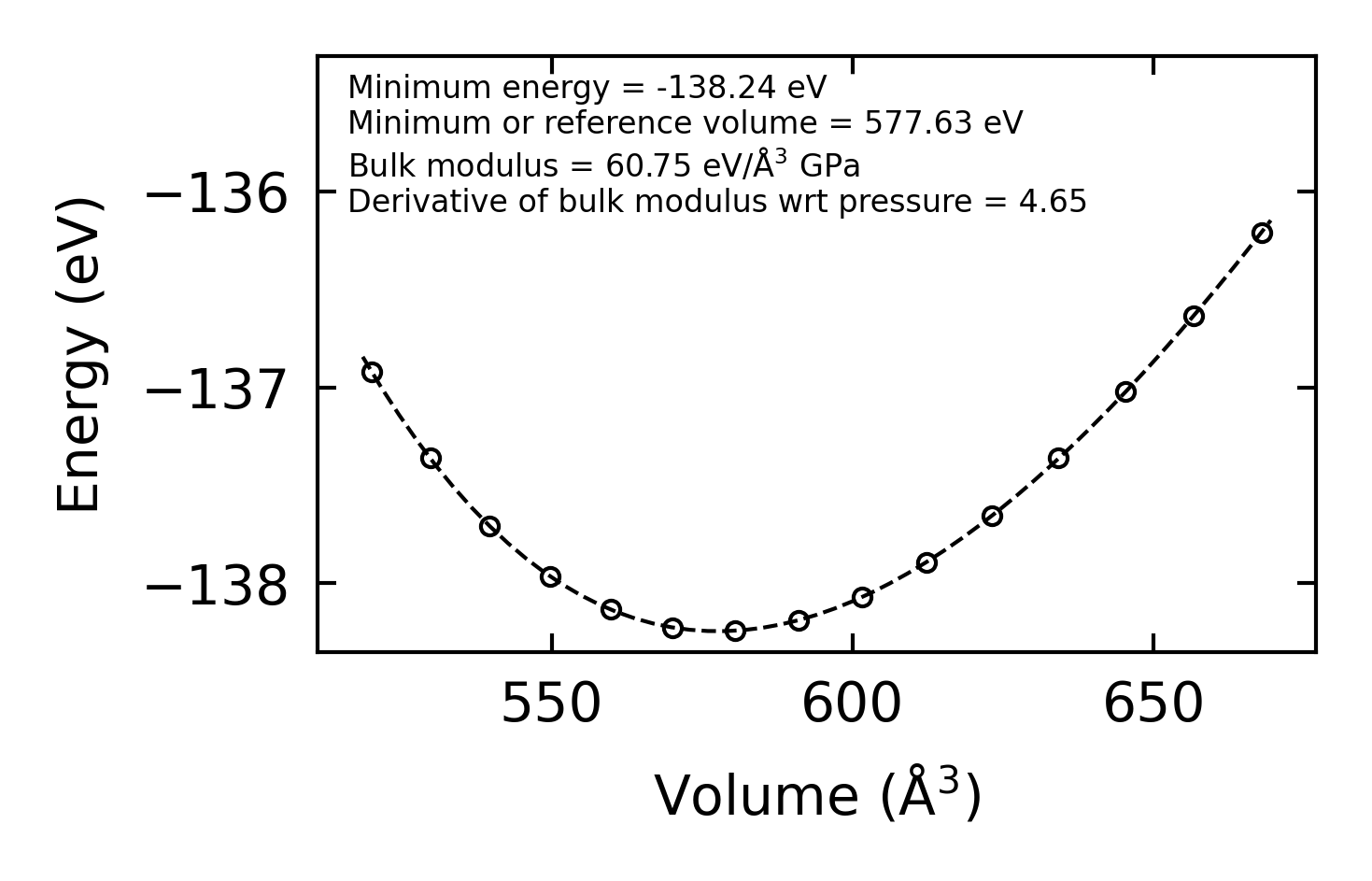

../../_images/fig_bm3720.png — (a) Equation of state

Harmonic properties

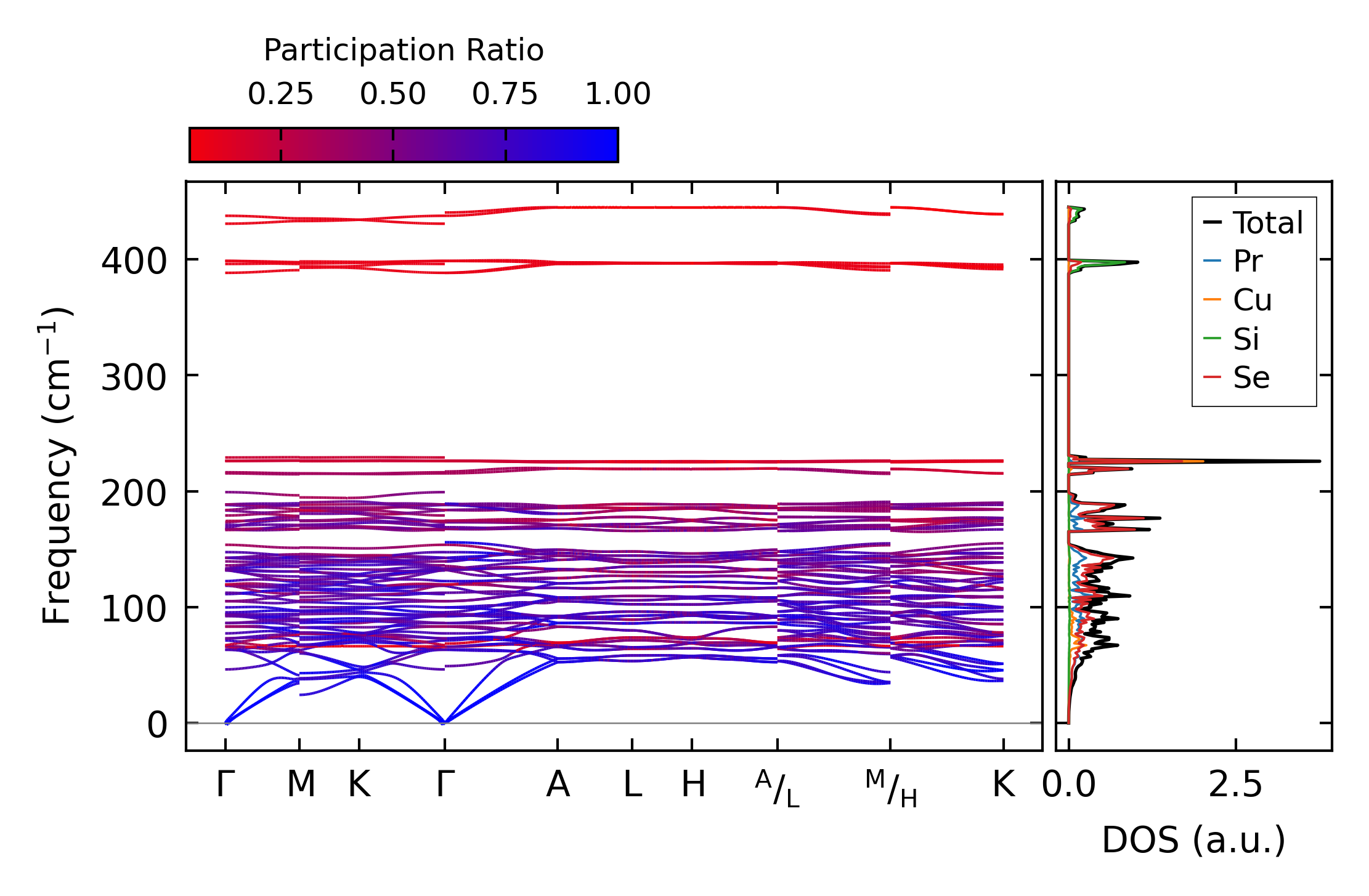

../../_images/fig_bandos_pr6955.png — (a) Phonon dispersion with participation ratio and DOS

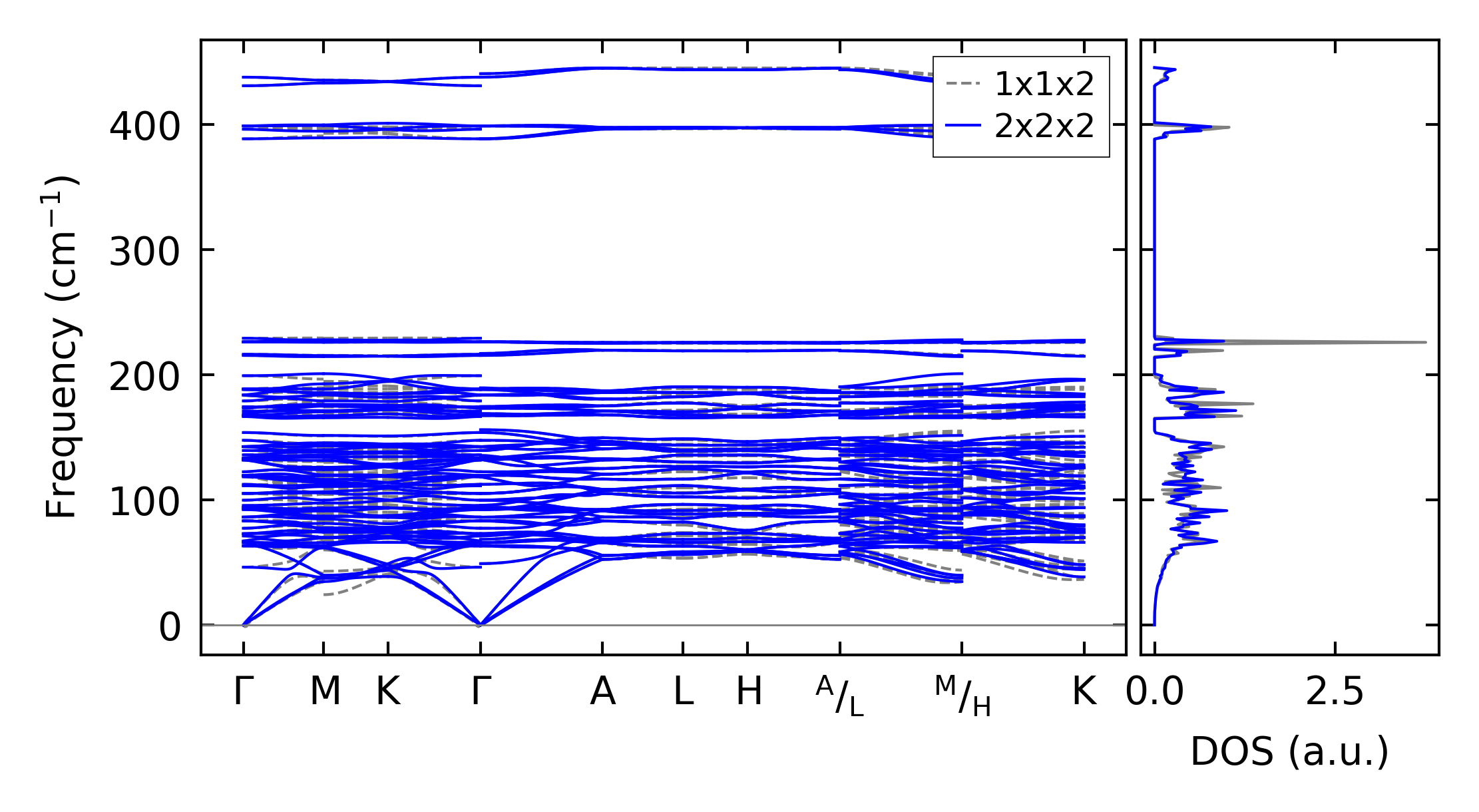

../../_images/fig_bandos9943.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6955.png — (c) Thermodynamic properties

Grüneisen parameters

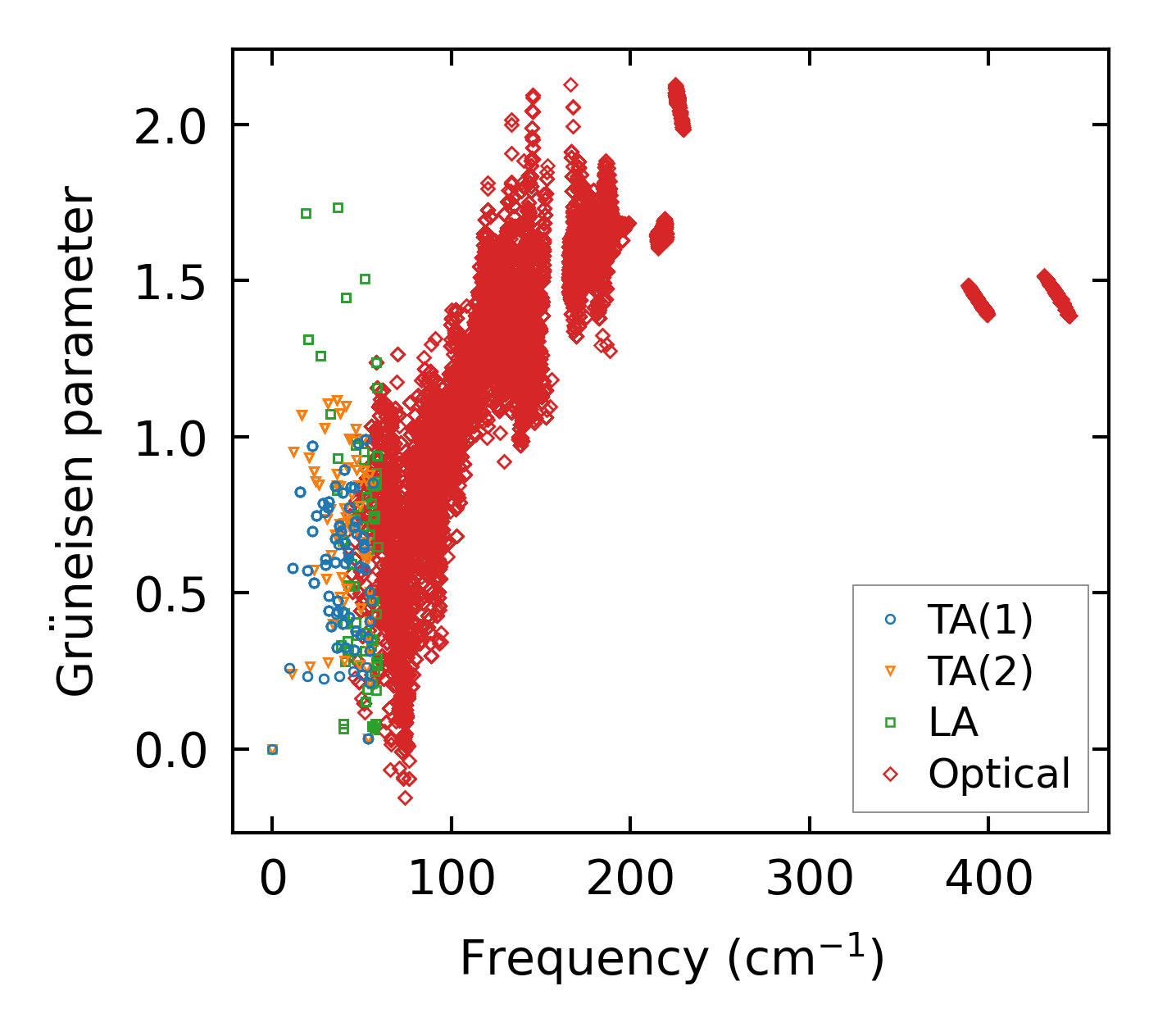

../../_images/fig_gru_all2882.png — (a) Grüneisen parameters

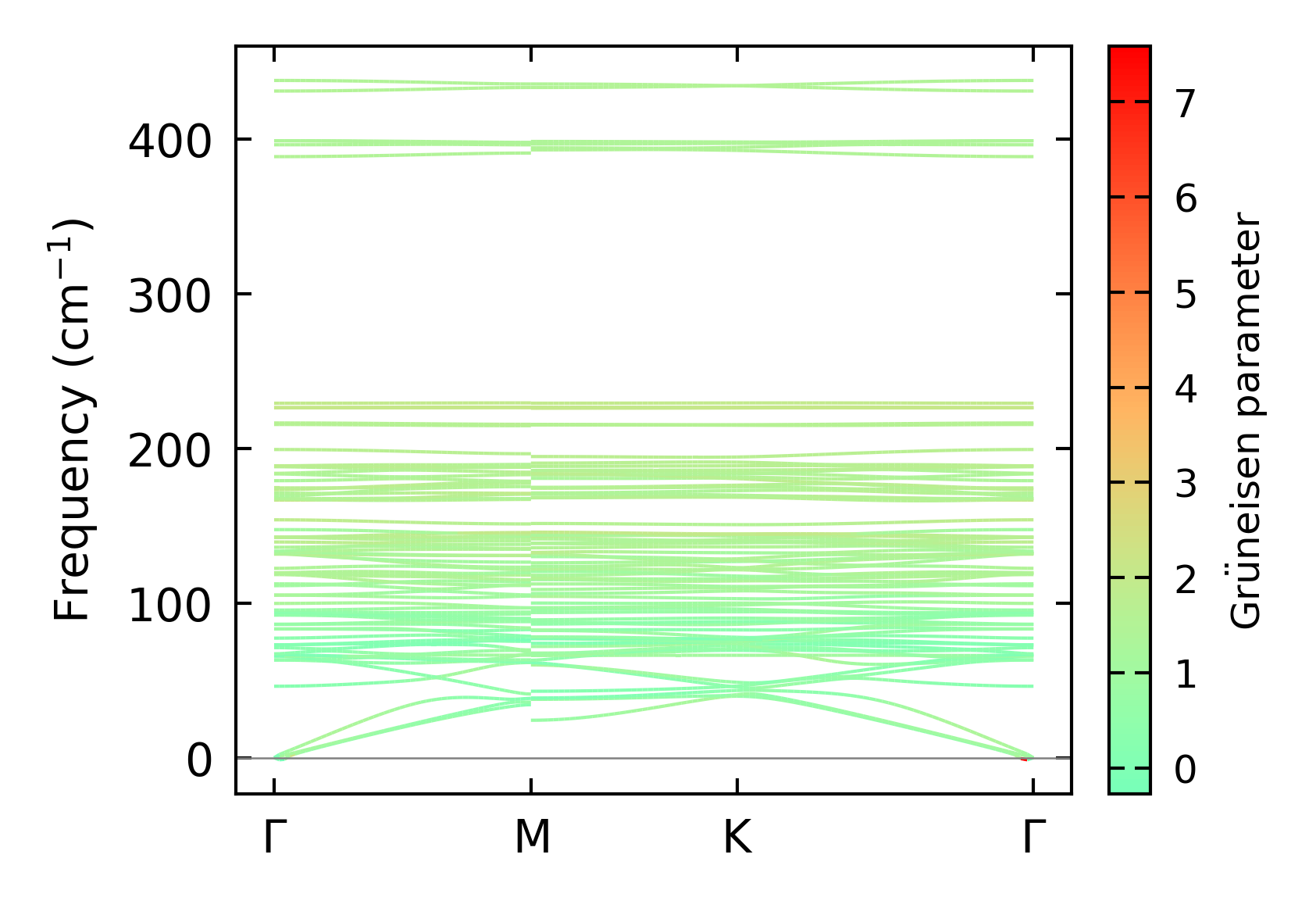

../../_images/fig_gruneisen2882.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 7x7x12, supercell: 2x2x2

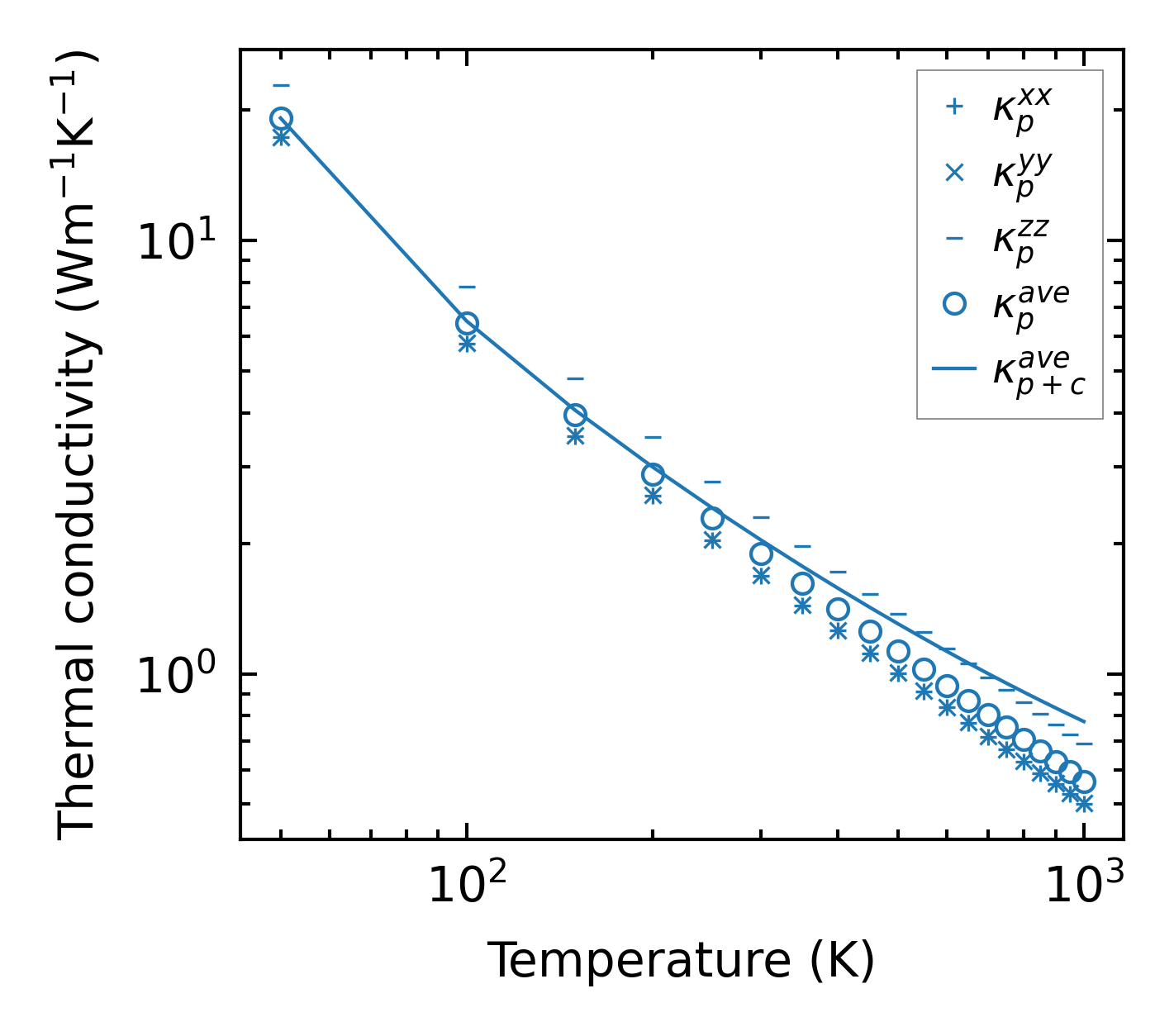

../../_images/fig_kappa5471.png — (a) Temperature-dependent lattice thermal conductivity

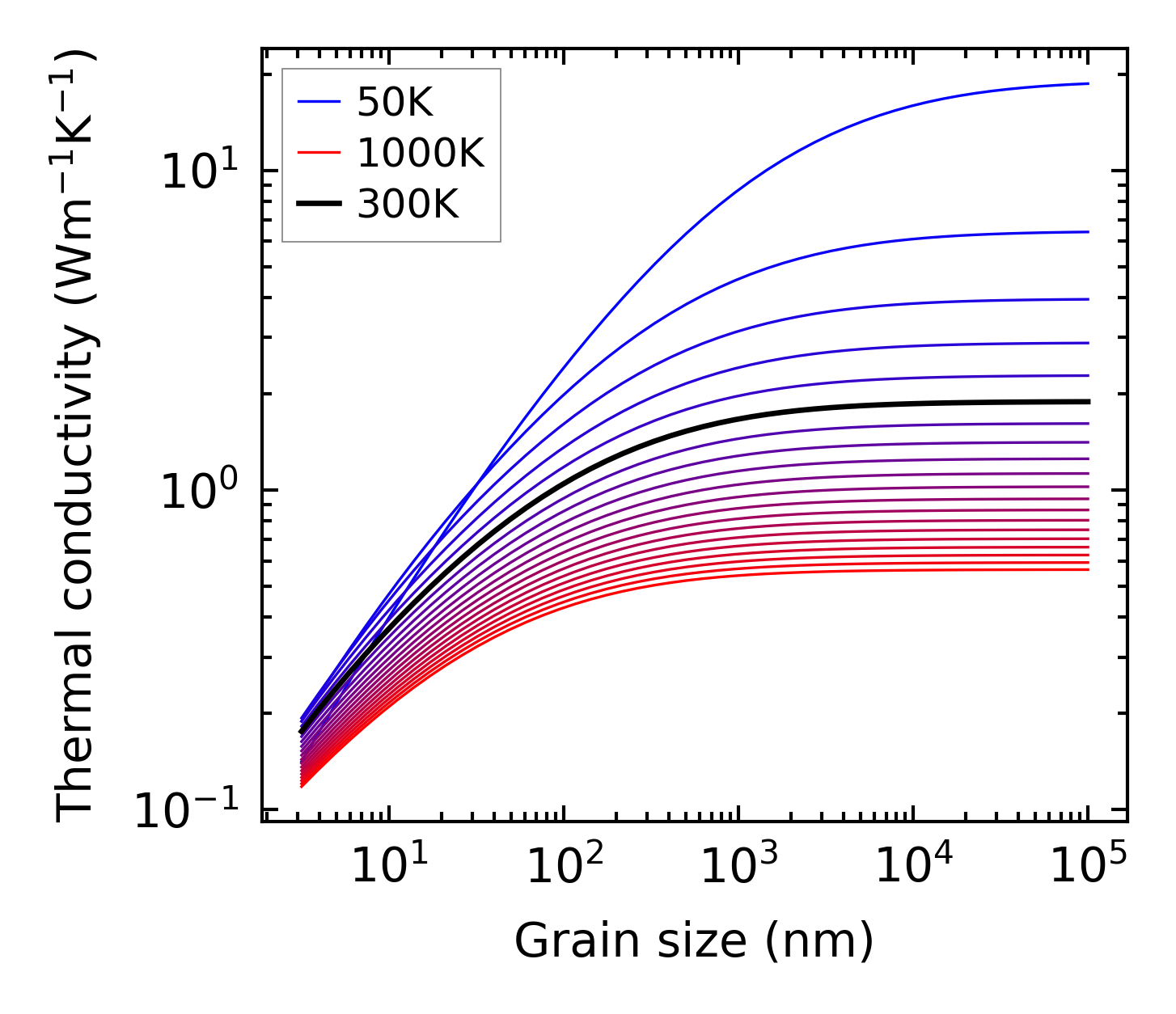

../../_images/fig_kappa_vs_grain_size2924.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

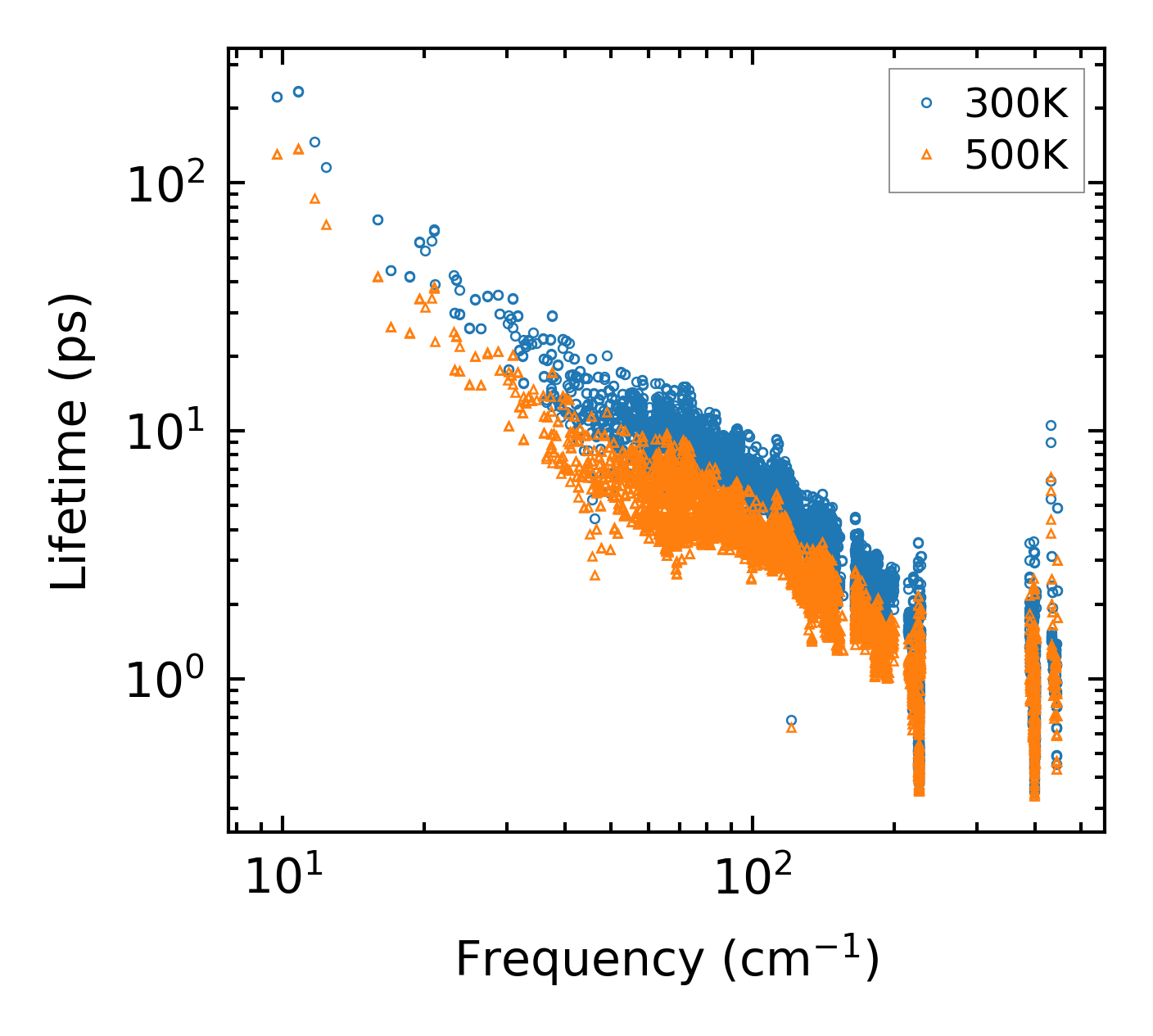

../../_images/fig_lifetime2858.png — (a) Phonon lifetime due to phonon-phonon scattering

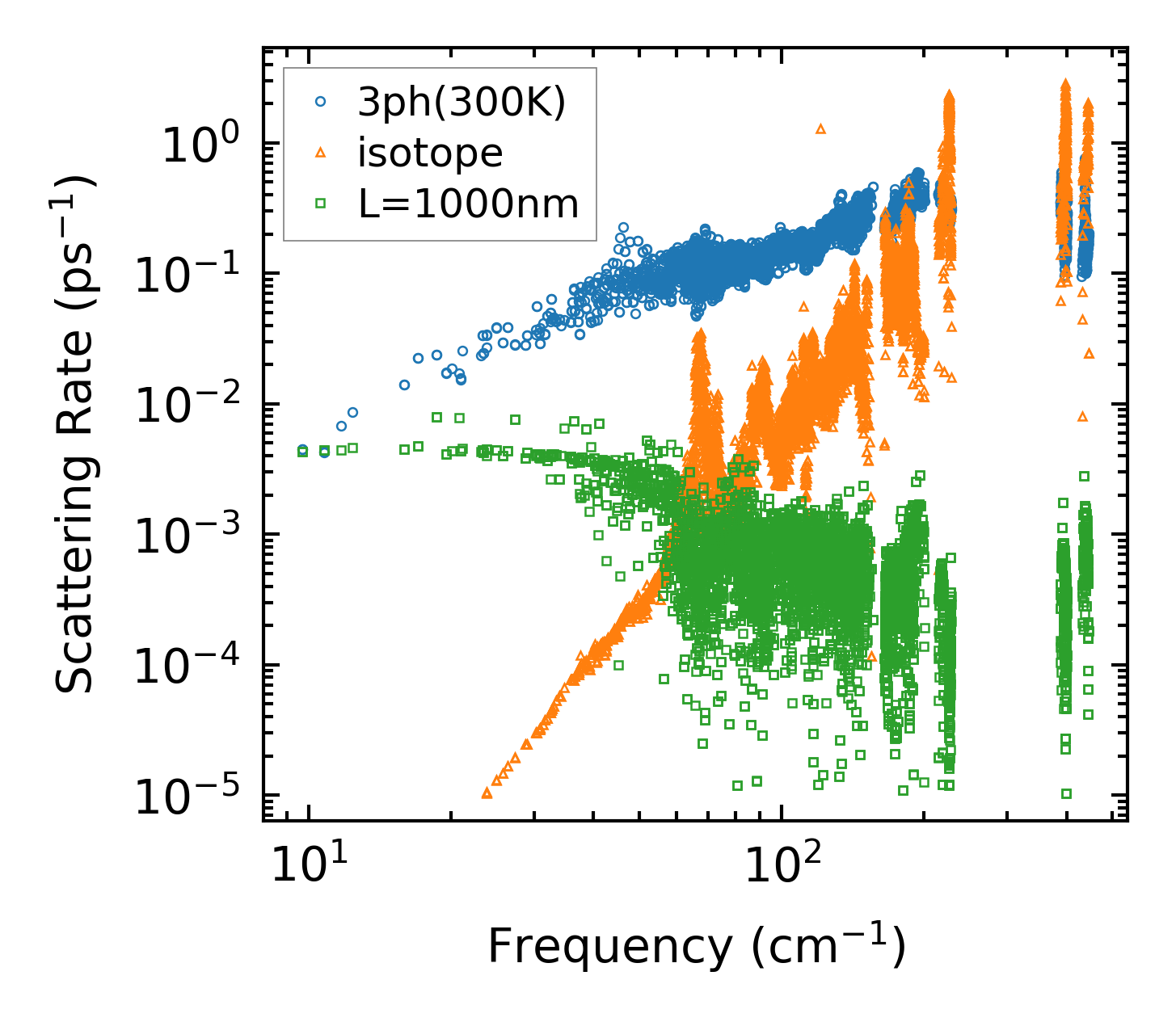

../../_images/fig_scat_rates2857.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

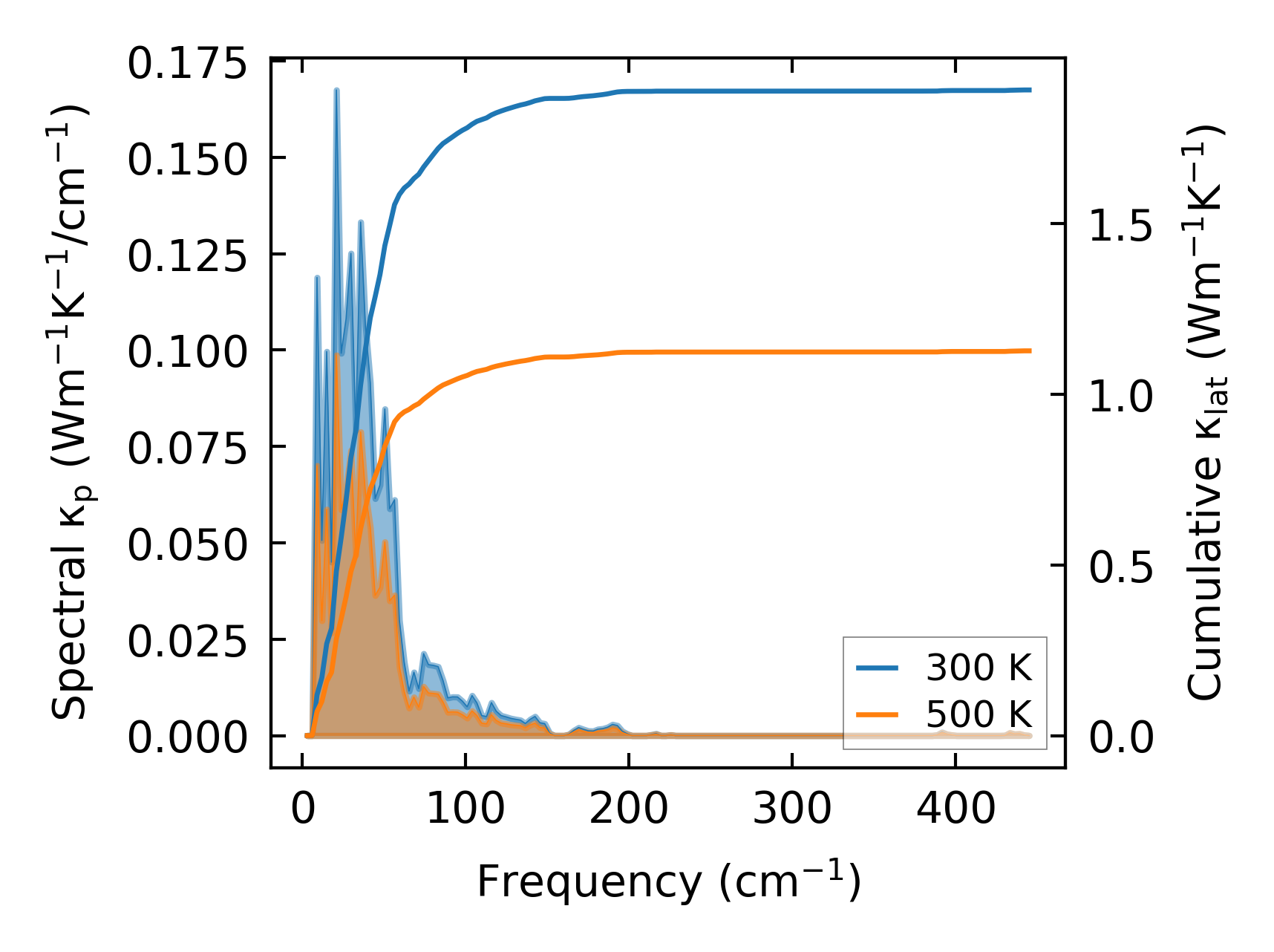

../../_images/fig_cumu_frequency2858.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

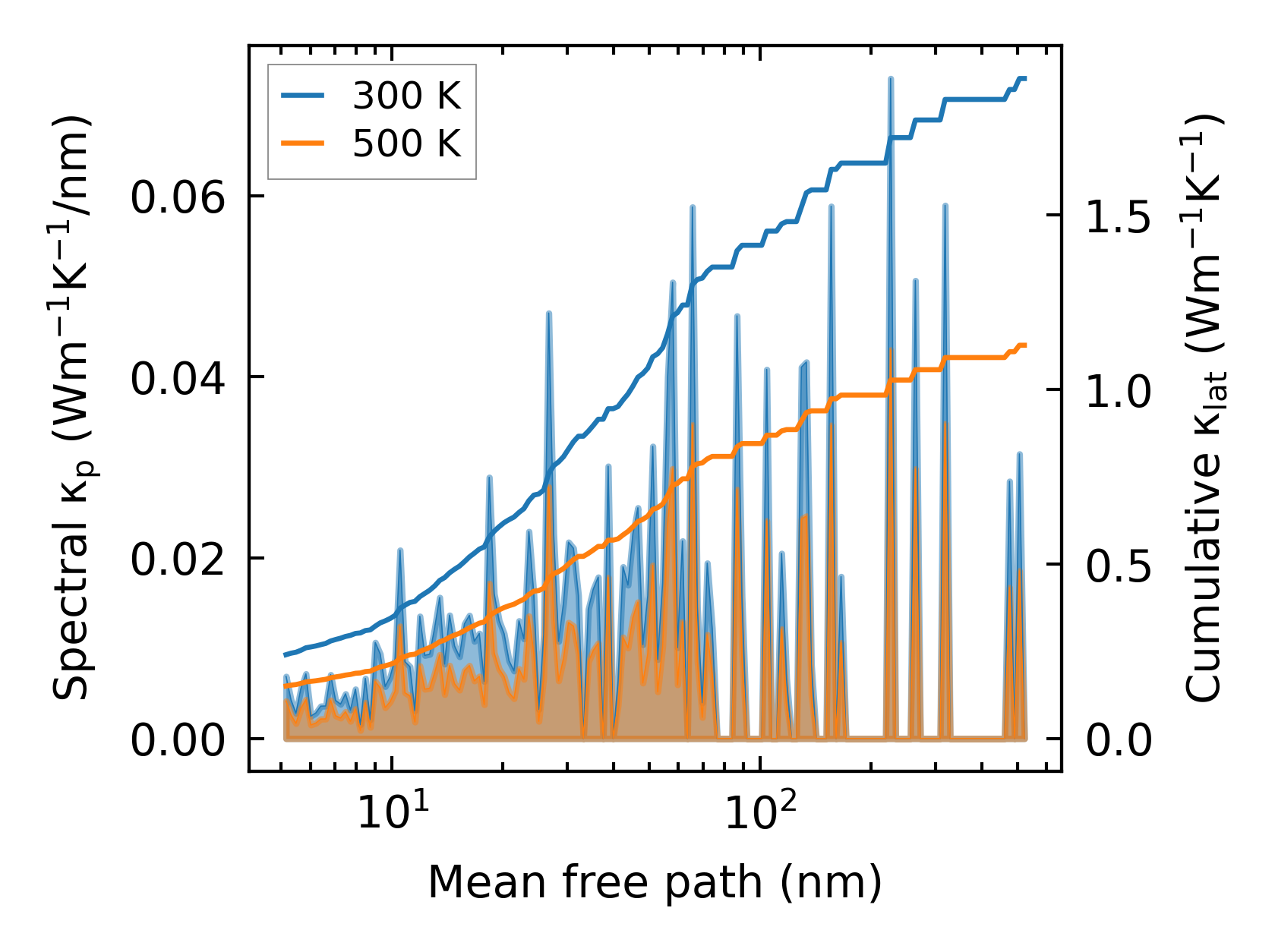

../../_images/fig_cumu_mfp2857.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

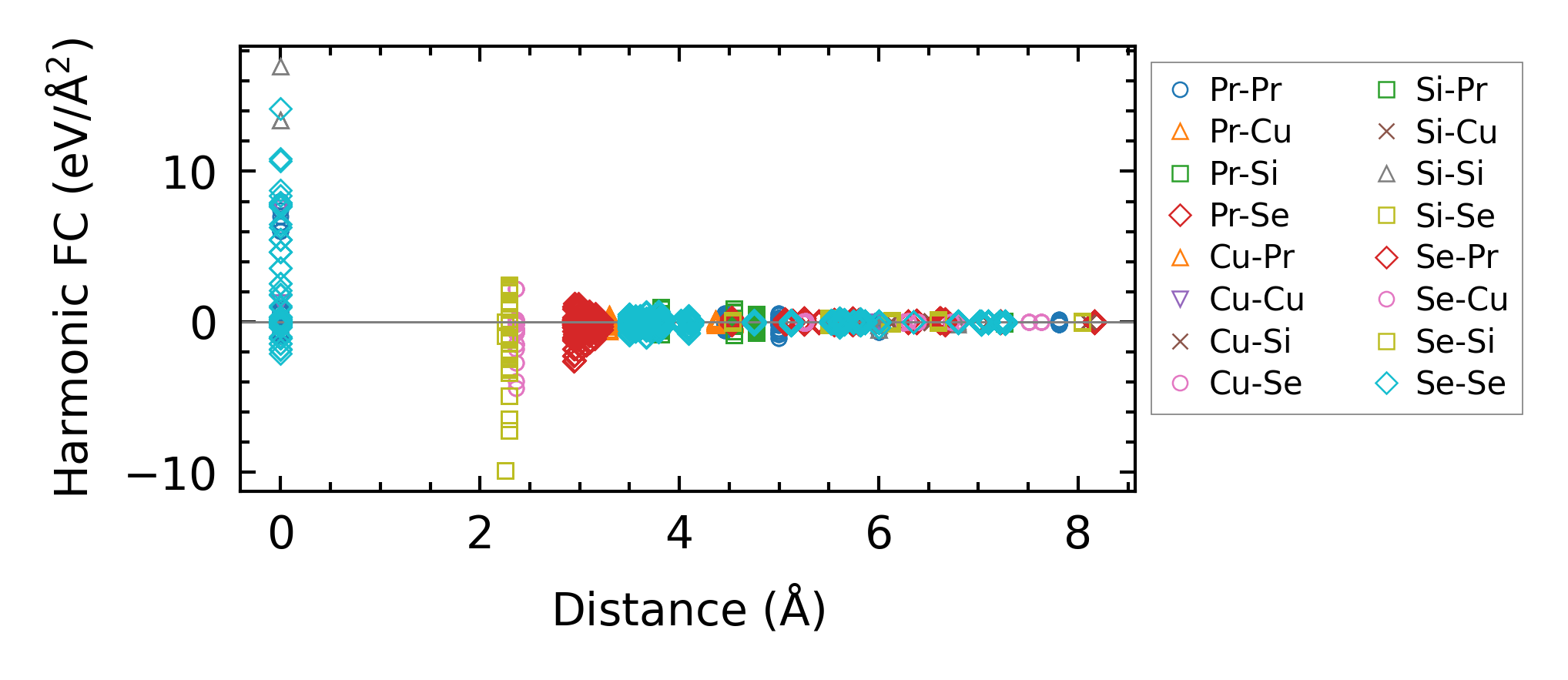

../../_images/fig_fc26733.png — (a) Force constants w.r.t atomic distance

Summary

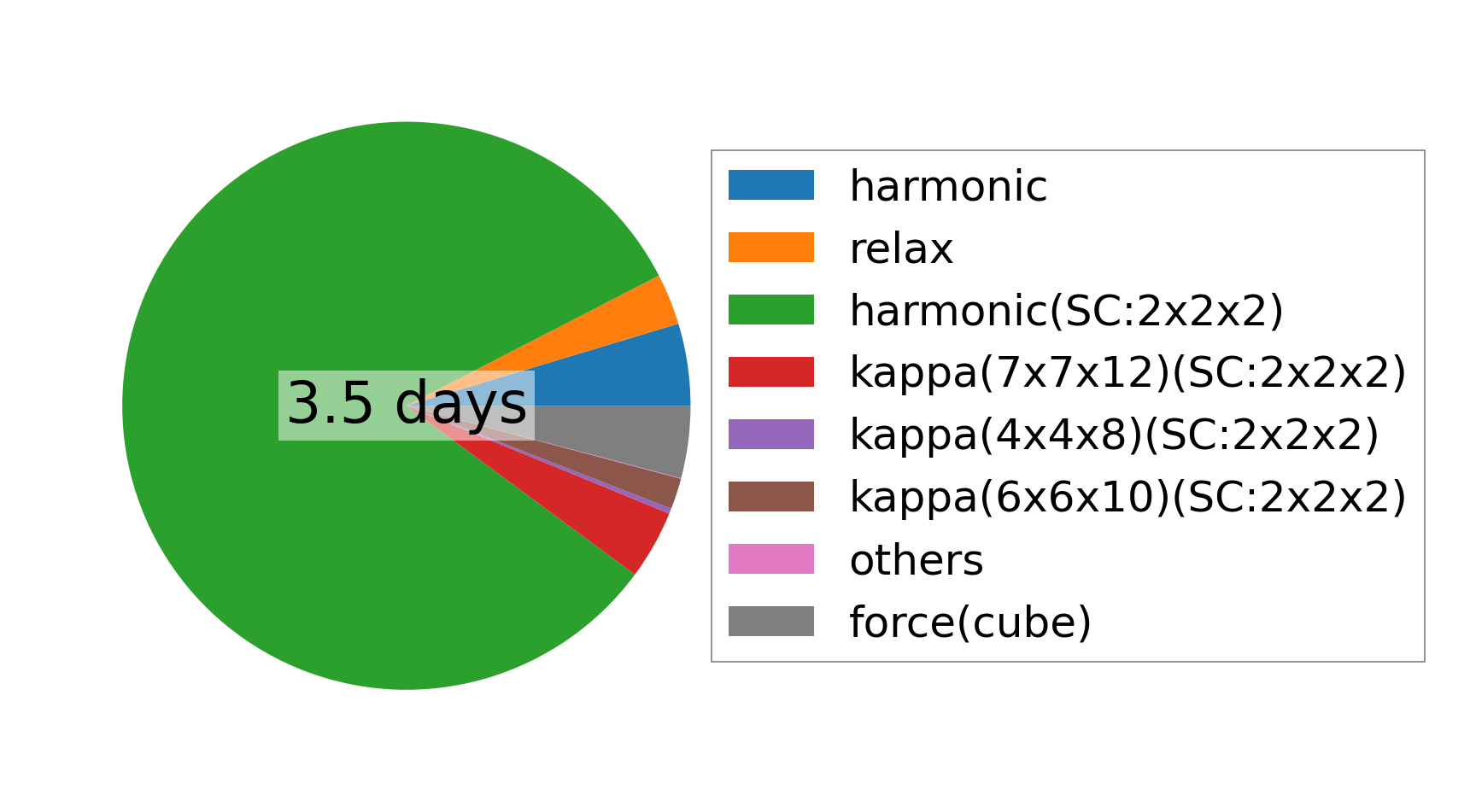

../../_images/fig_times12459.png — (a) Computation time
