mp-568018/RbSb2/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-568018.tar.gz

Harmonic properties

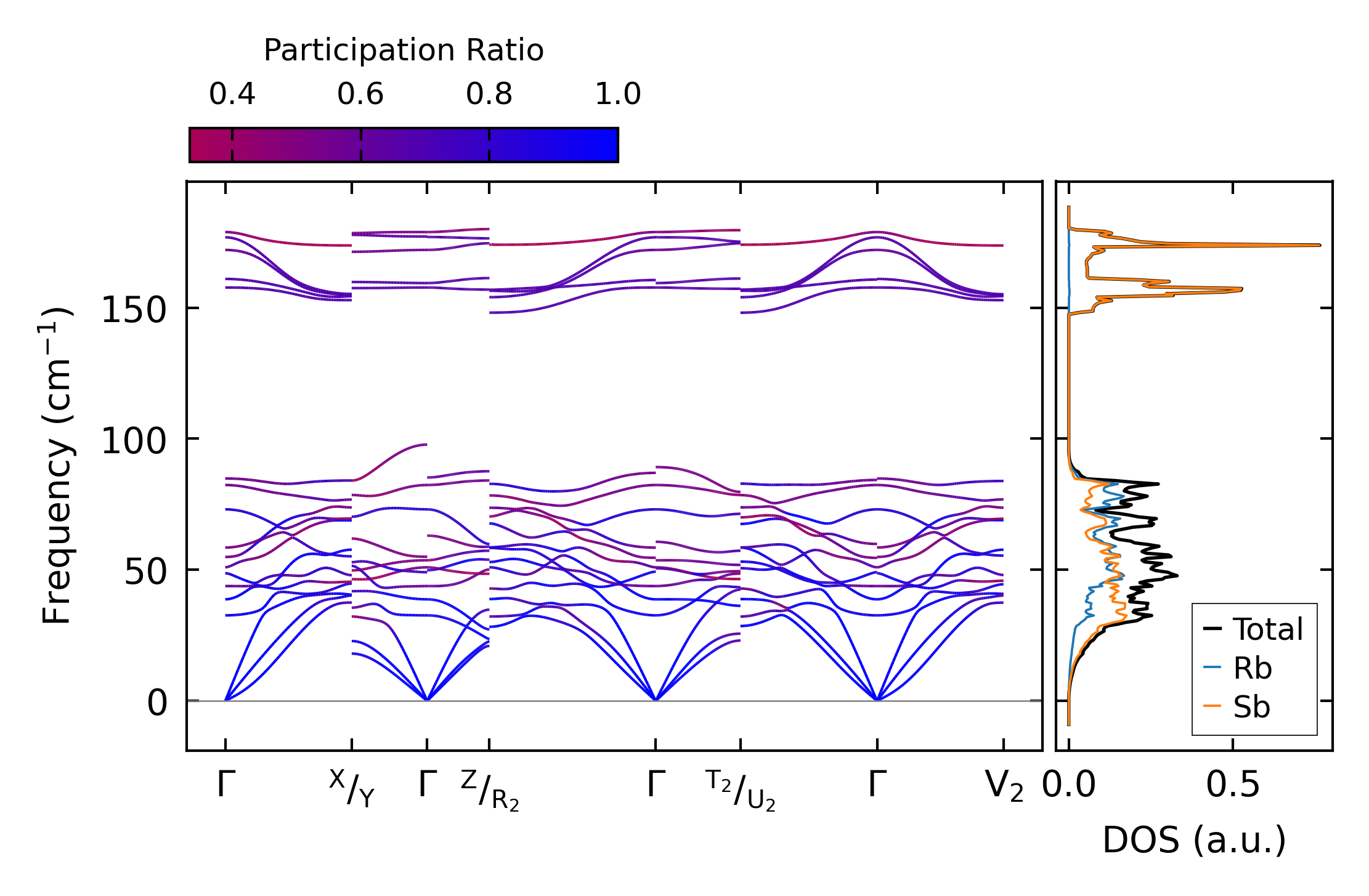

../../_images/fig_bandos_pr7233.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7233.png — (b) Thermodynamic properties

Grüneisen parameters

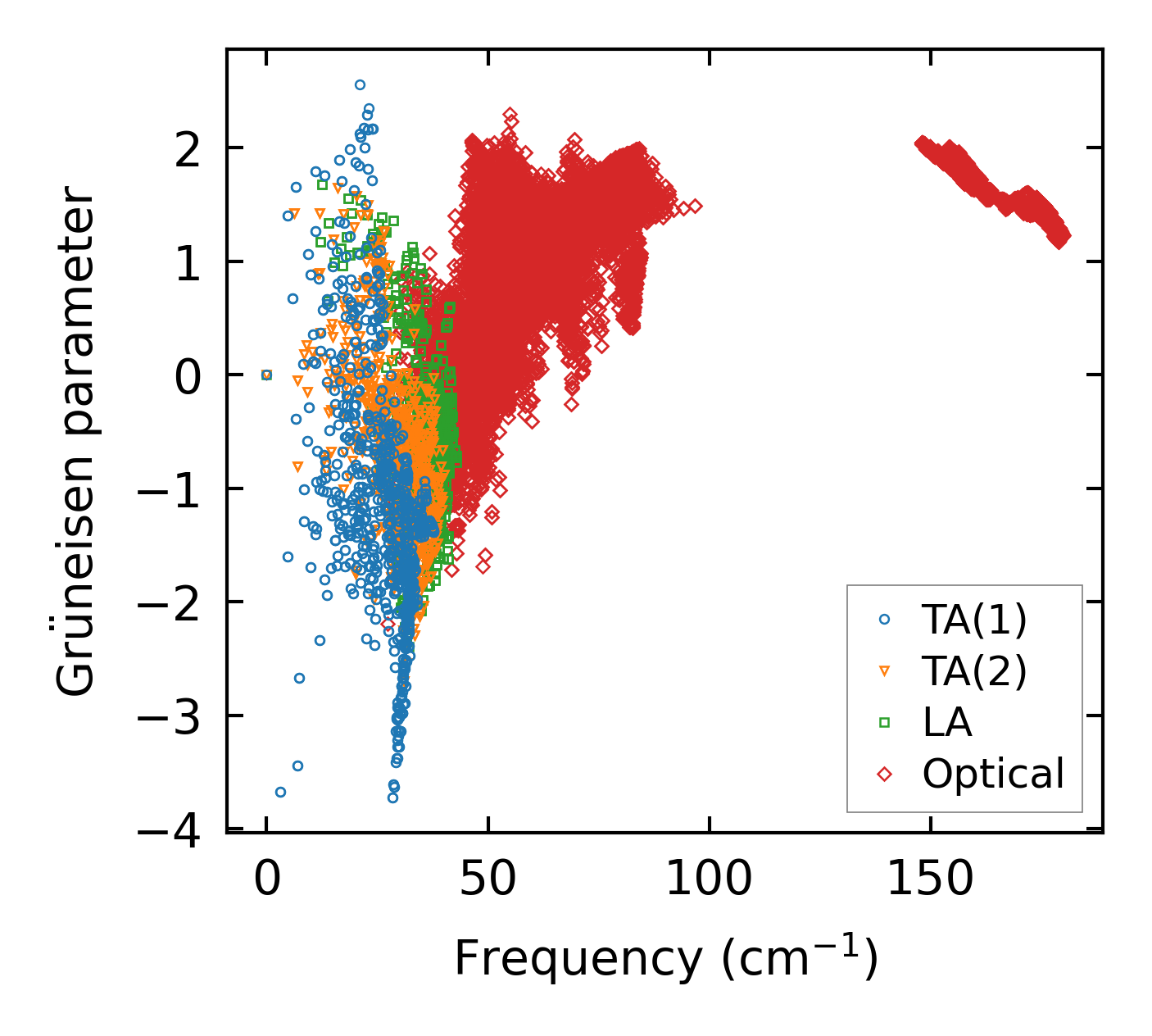

../../_images/fig_gru_all3041.png — (a) Grüneisen parameters

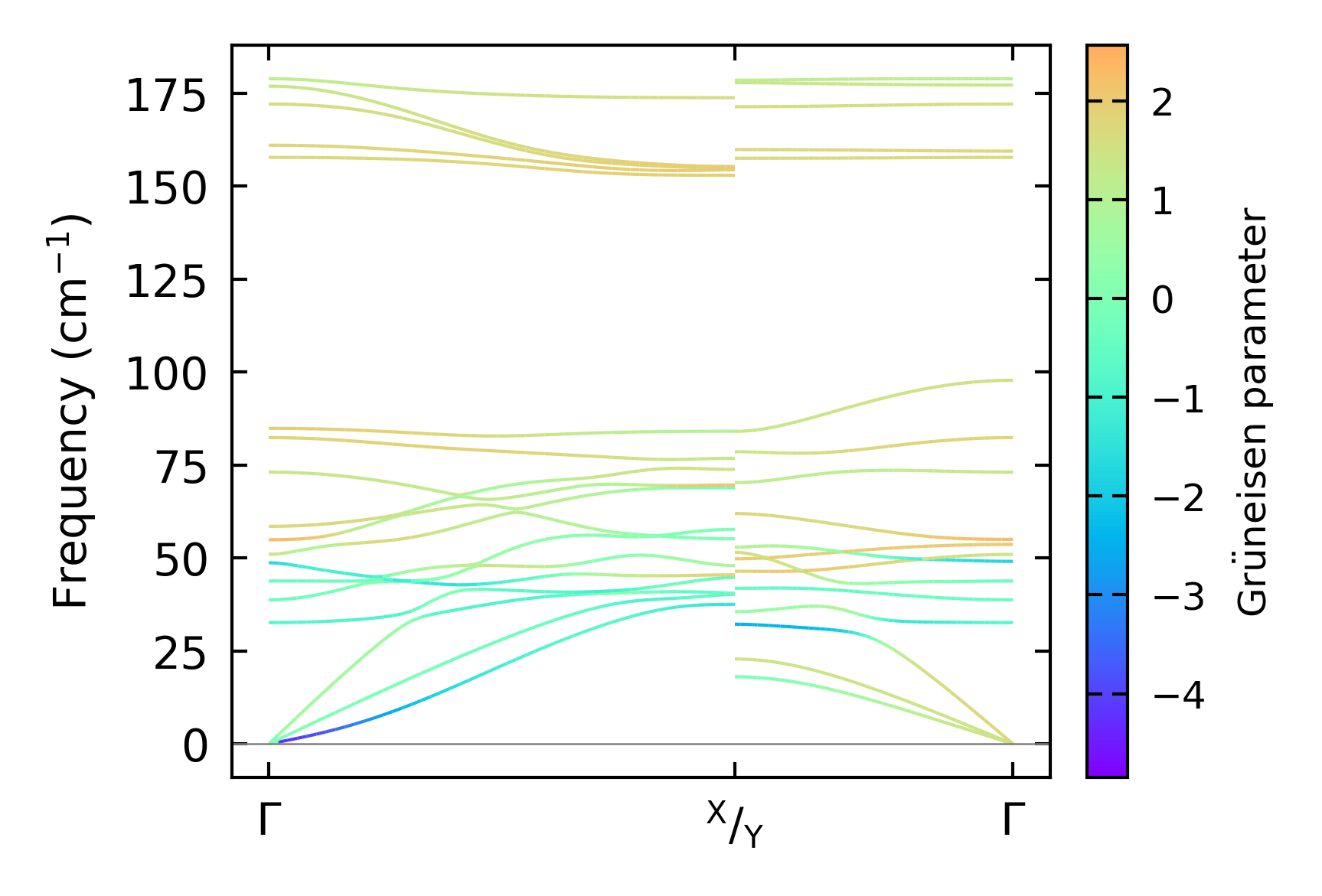

../../_images/fig_gruneisen3041.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x10x8, supercell: 4x3x2

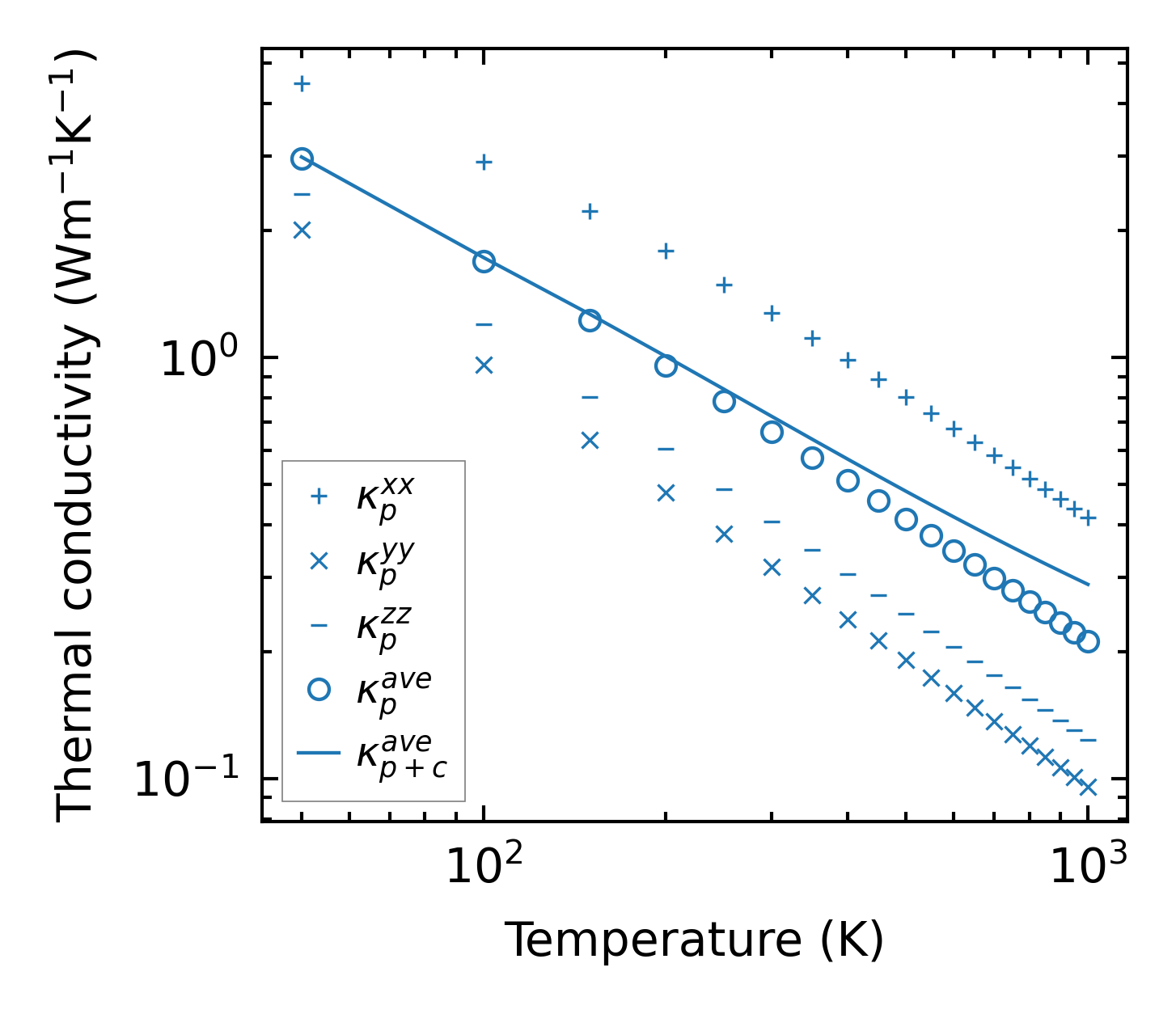

../../_images/fig_kappa5760.png — (a) Temperature-dependent lattice thermal conductivity

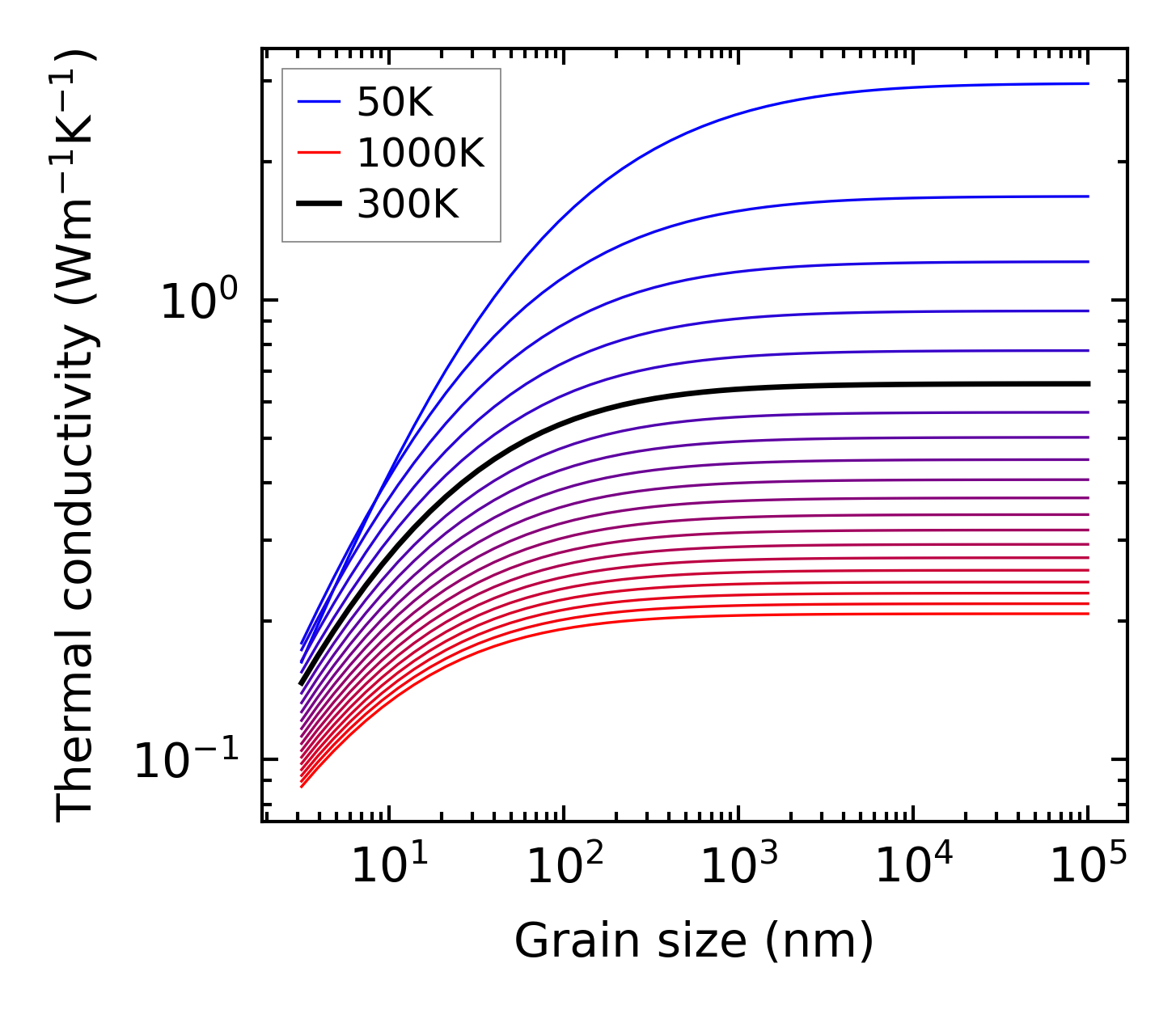

../../_images/fig_kappa_vs_grain_size3084.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3016.png — (a) Phonon lifetime due to phonon-phonon scattering

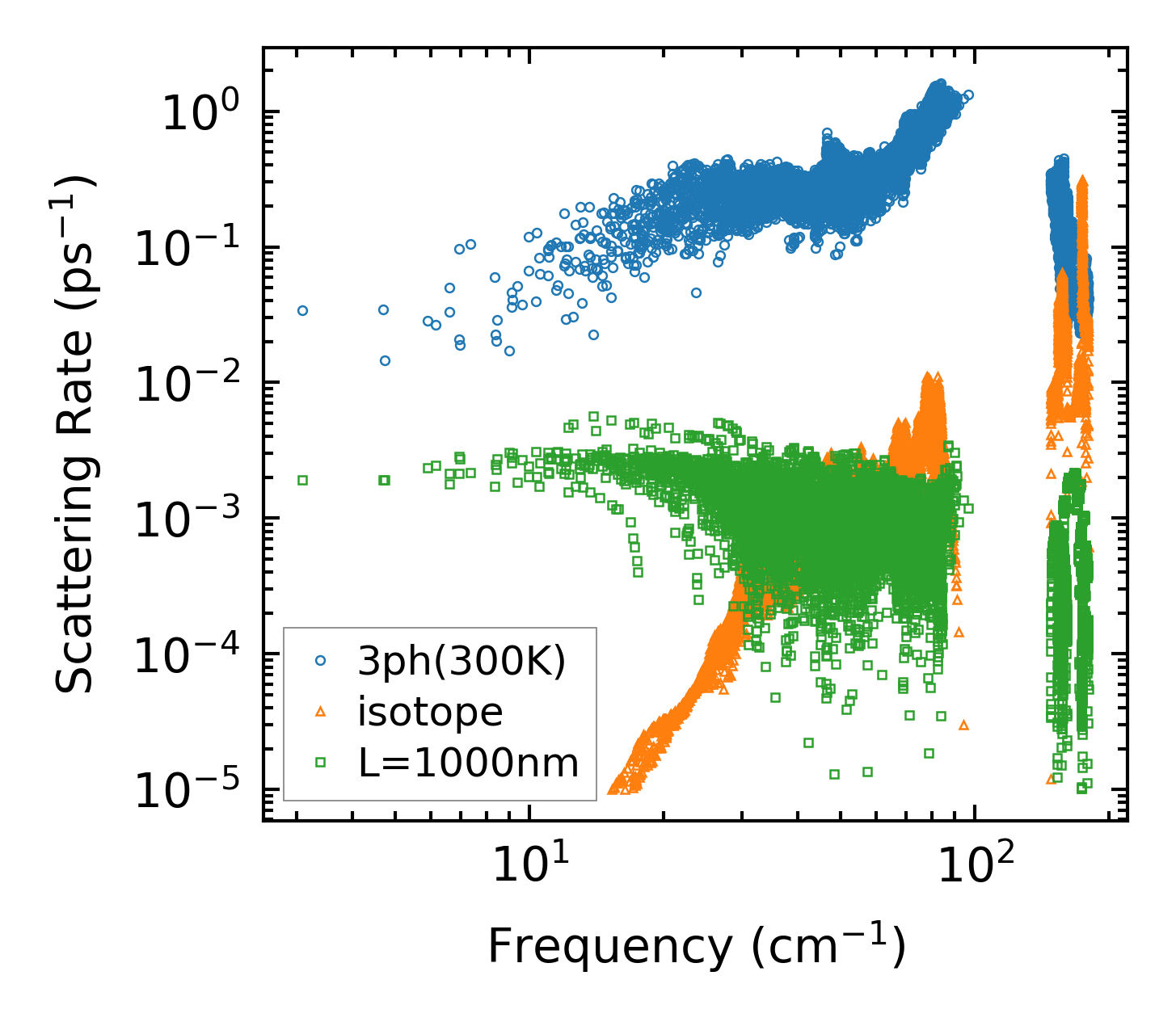

../../_images/fig_scat_rates3015.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3016.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3015.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

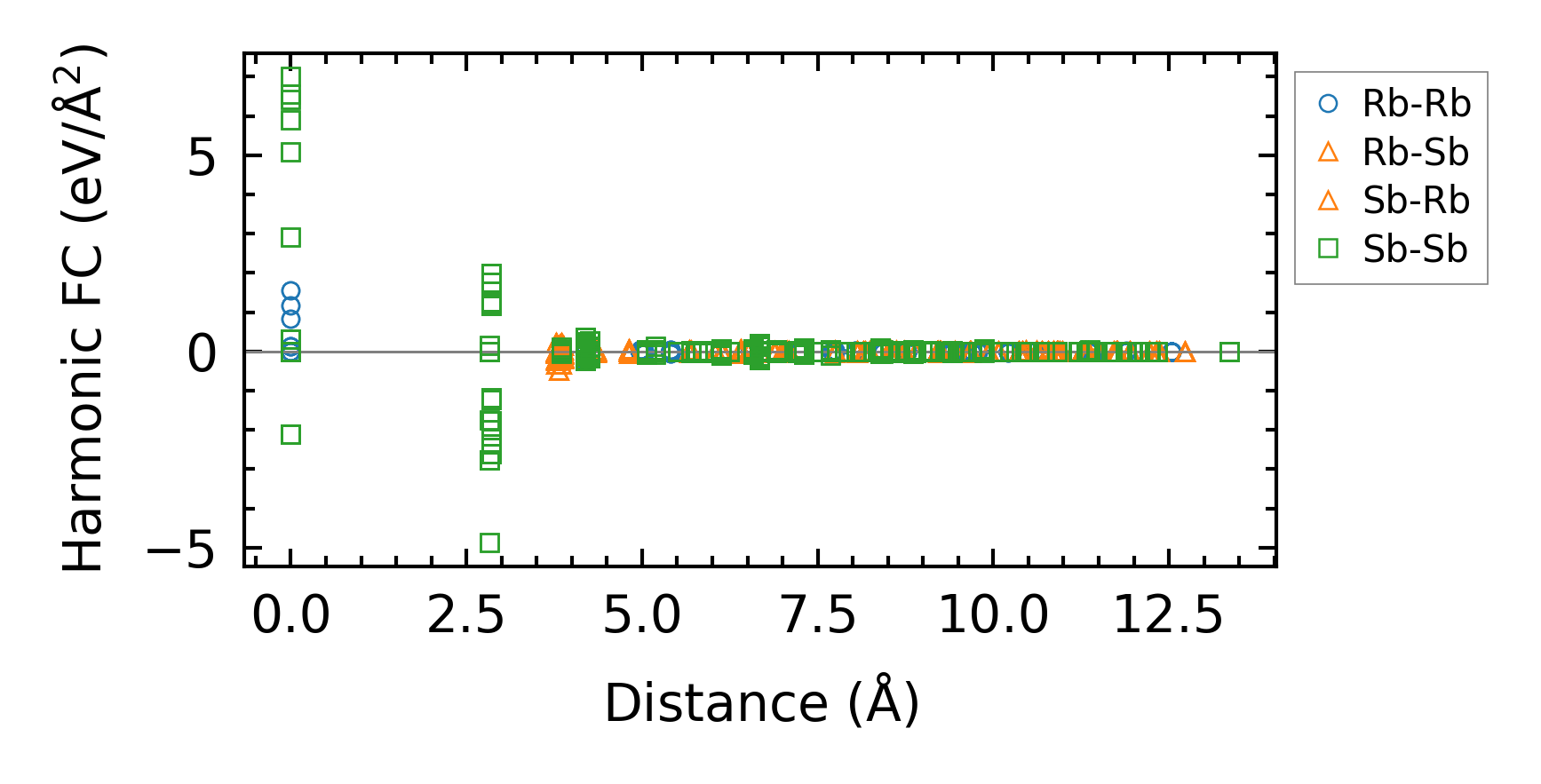

../../_images/fig_fc27000.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5761.png — (a) Temperature-dependent lattice thermal conductivity

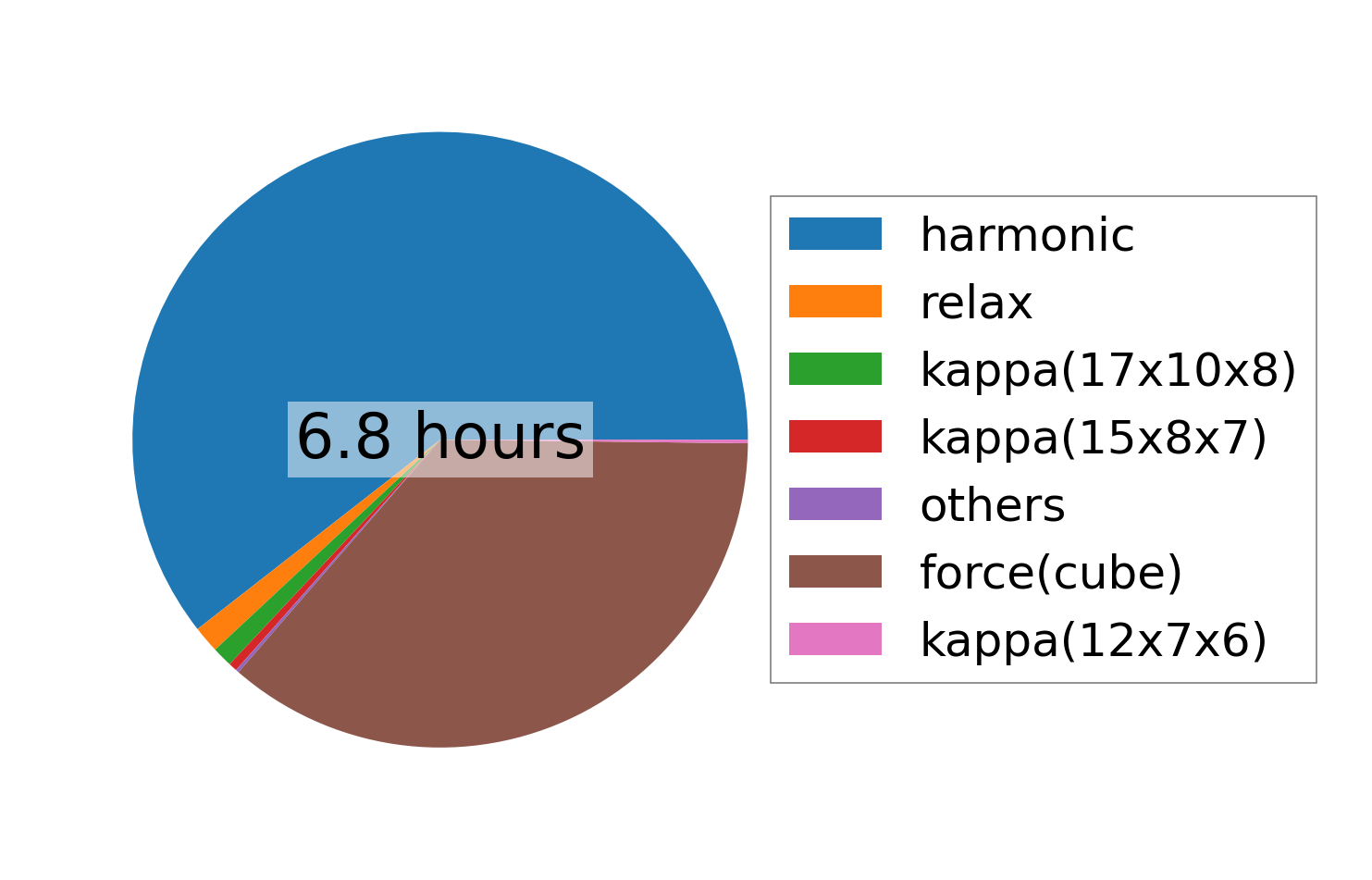

../../_images/fig_times12862.png — (b) Computation time
