mp-568036/La2GaN3/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-568036.tar.gz

Harmonic properties

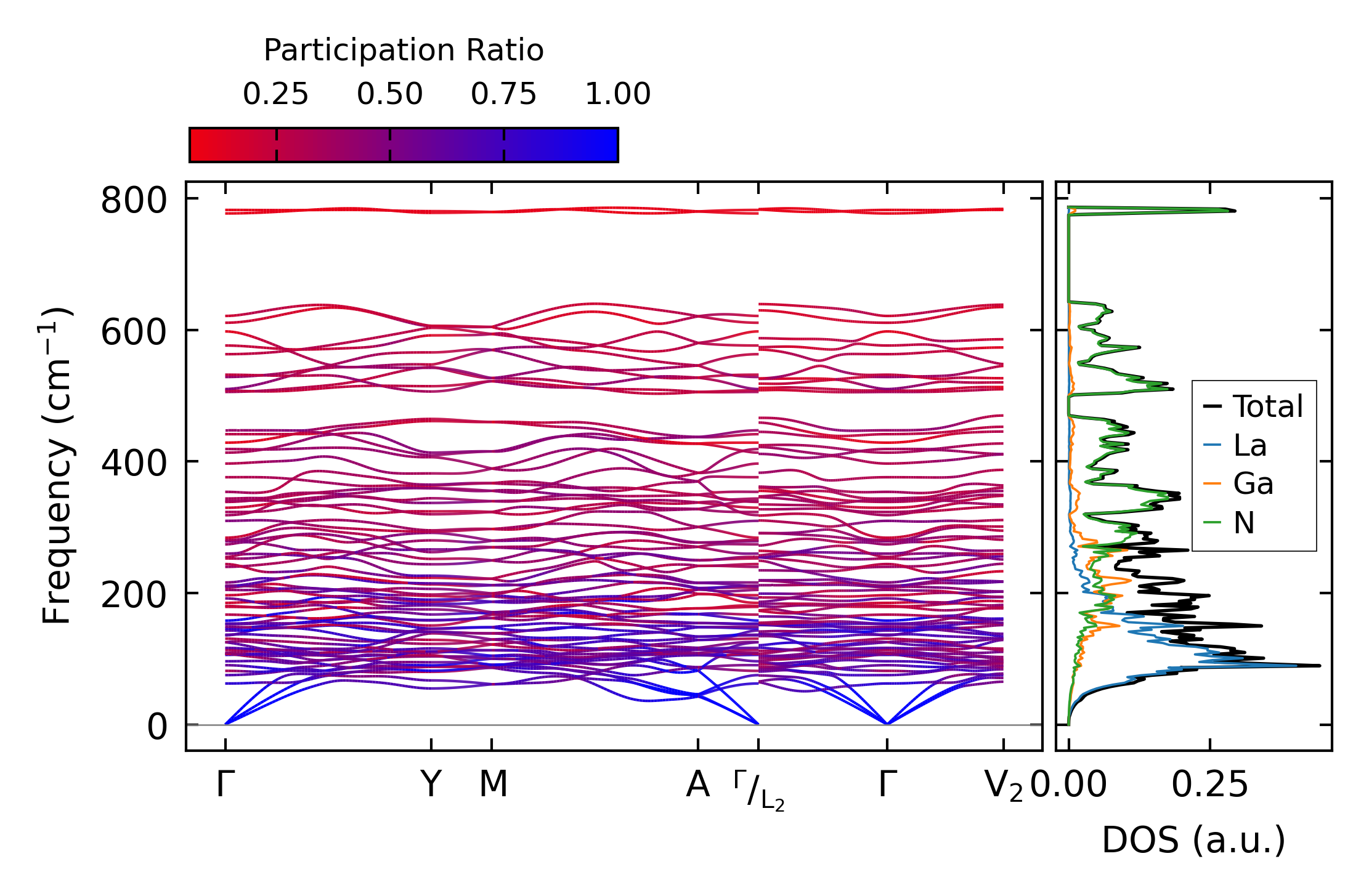

../../_images/fig_bandos_pr7236.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7236.png — (b) Thermodynamic properties

Grüneisen parameters

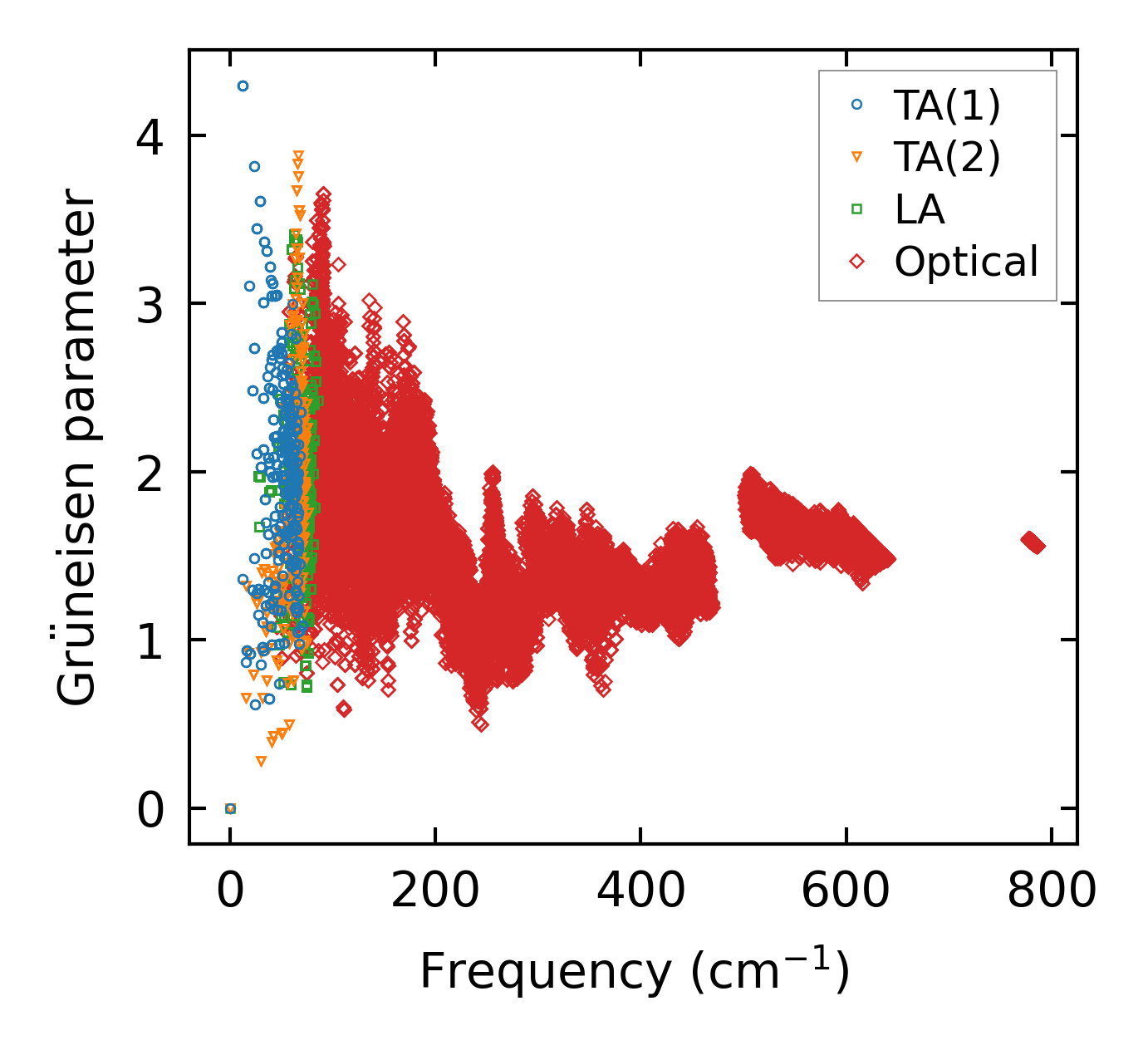

../../_images/fig_gru_all3043.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3043.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x6, supercell: 2x1x1

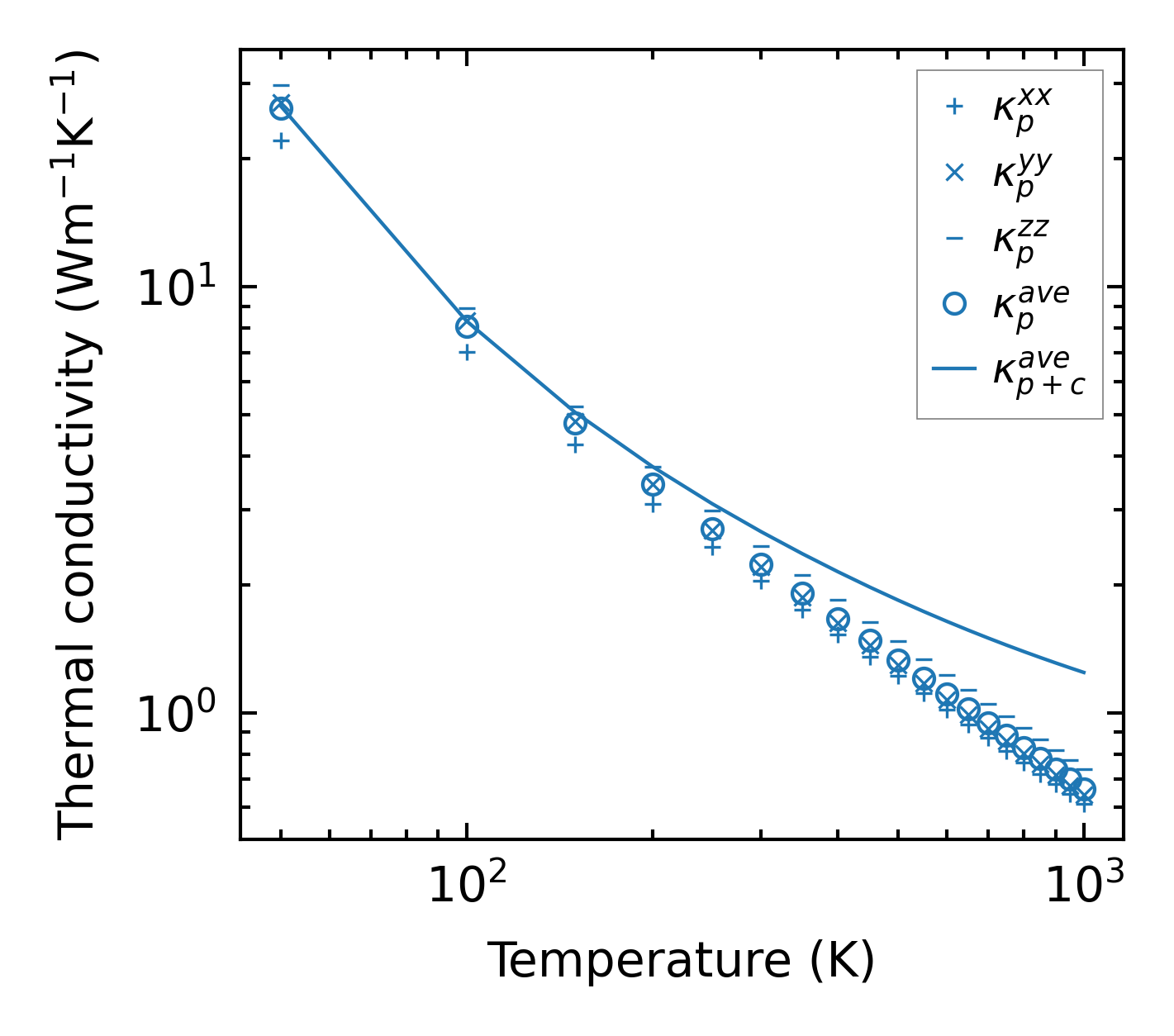

../../_images/fig_kappa5764.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3086.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

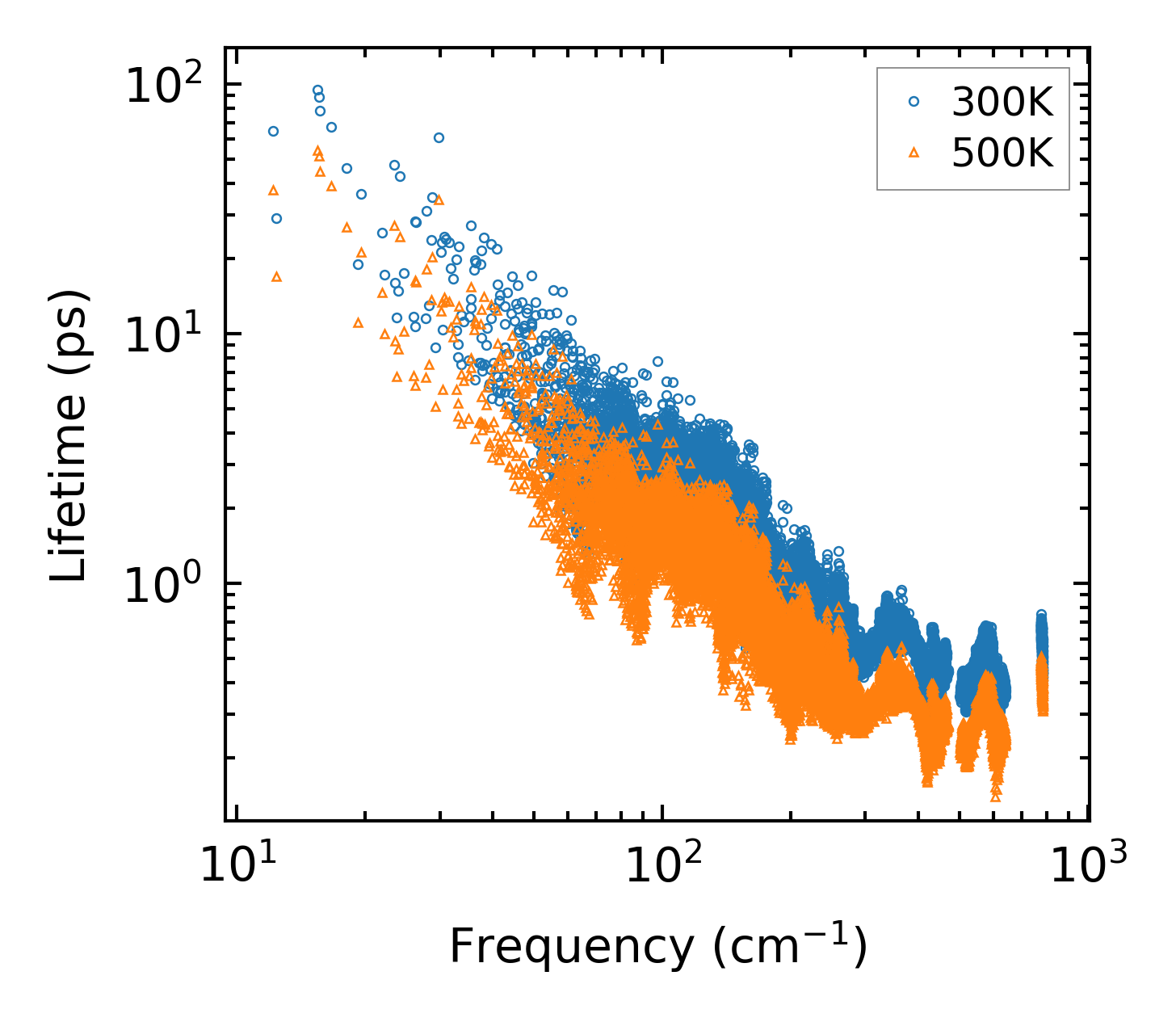

../../_images/fig_lifetime3018.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3017.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

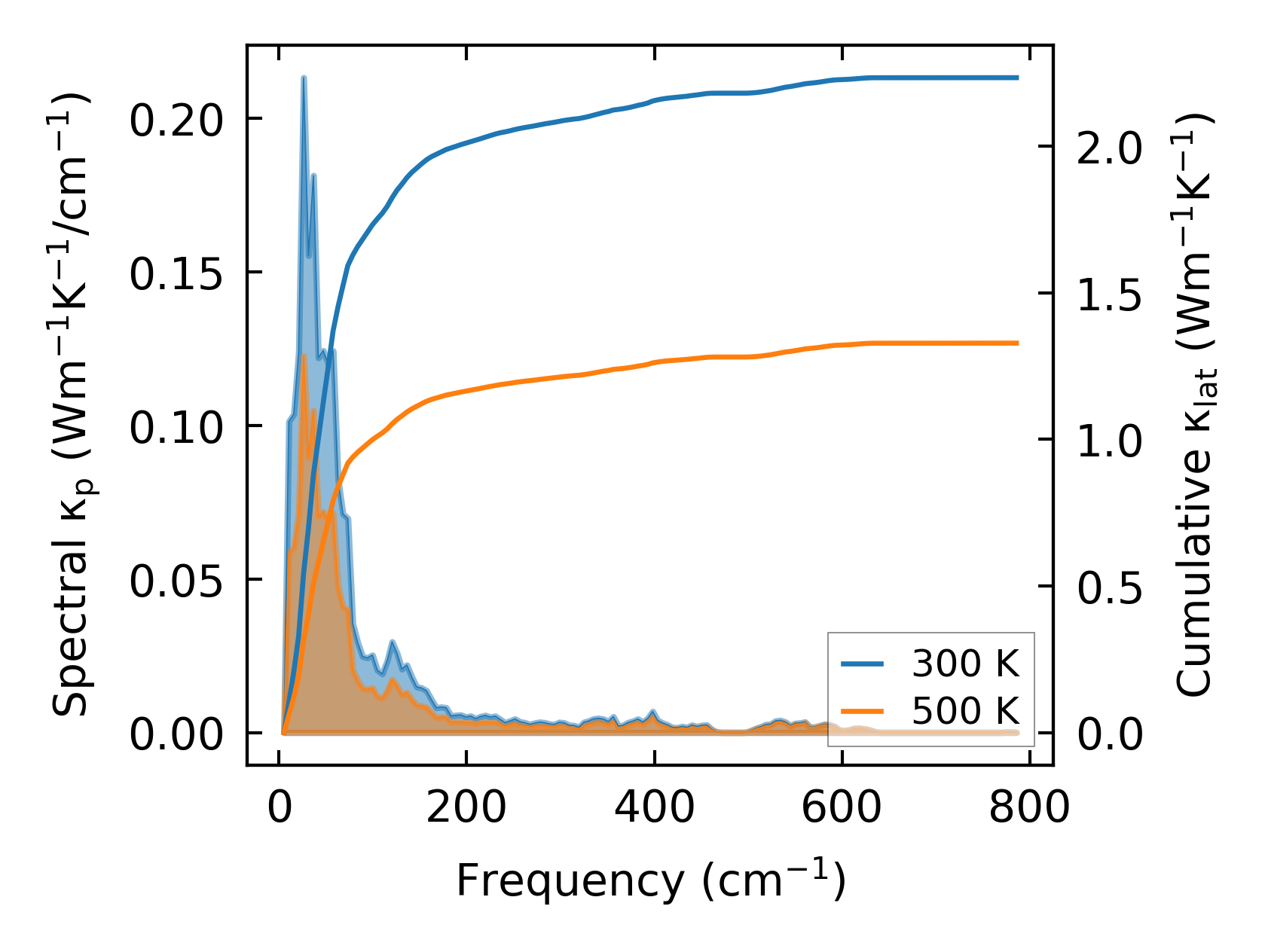

../../_images/fig_cumu_frequency3018.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

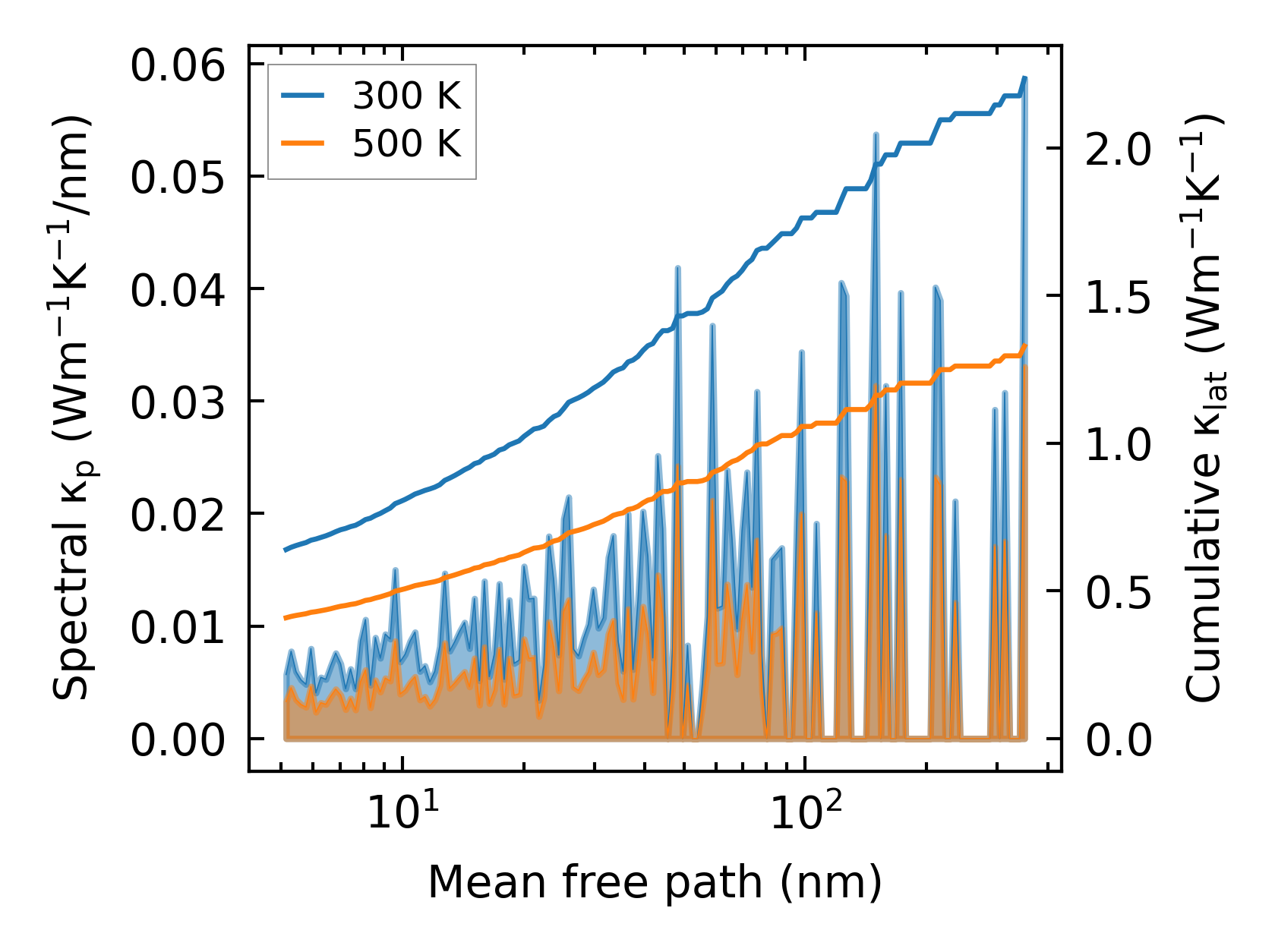

../../_images/fig_cumu_mfp3017.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

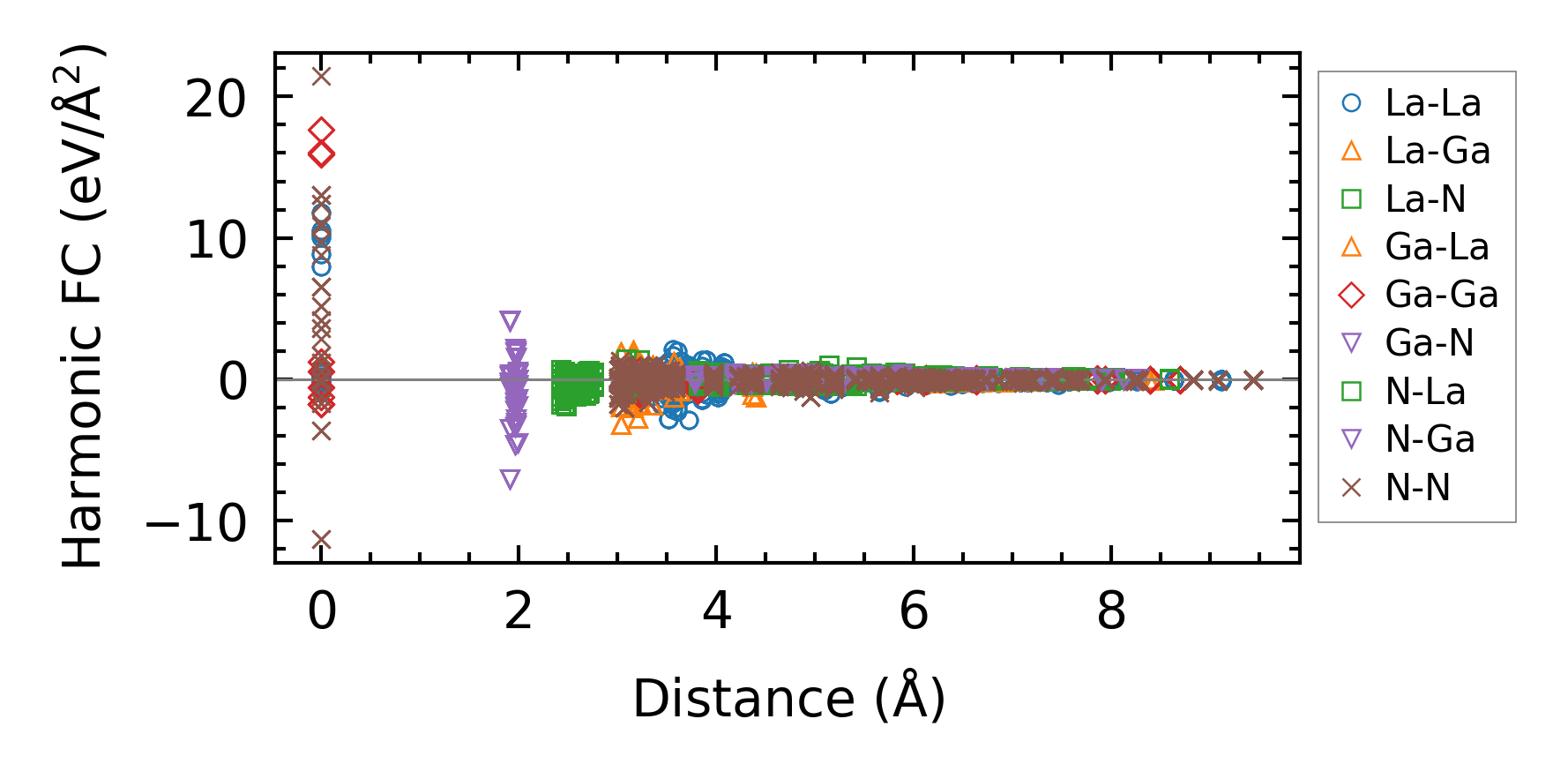

../../_images/fig_fc27003.png — (a) Force constants w.r.t atomic distance

Summary

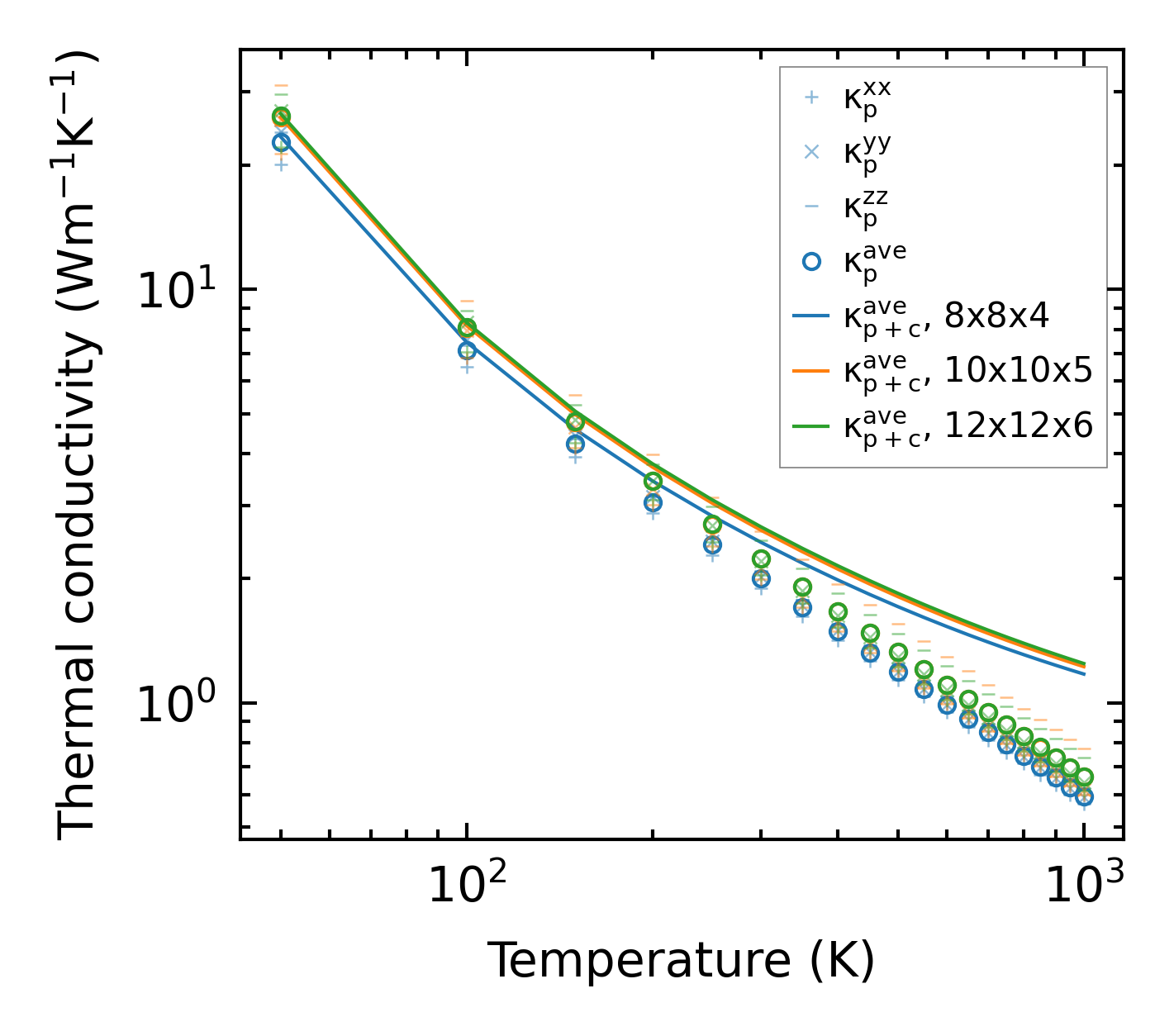

../../_images/fig_kappa5765.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12866.png — (b) Computation time
