mp-568365/Li6Br3N/anharm

Space group: Ibca (73)
Link: Materials Project
Download: mp-568365.tar.gz

Harmonic properties

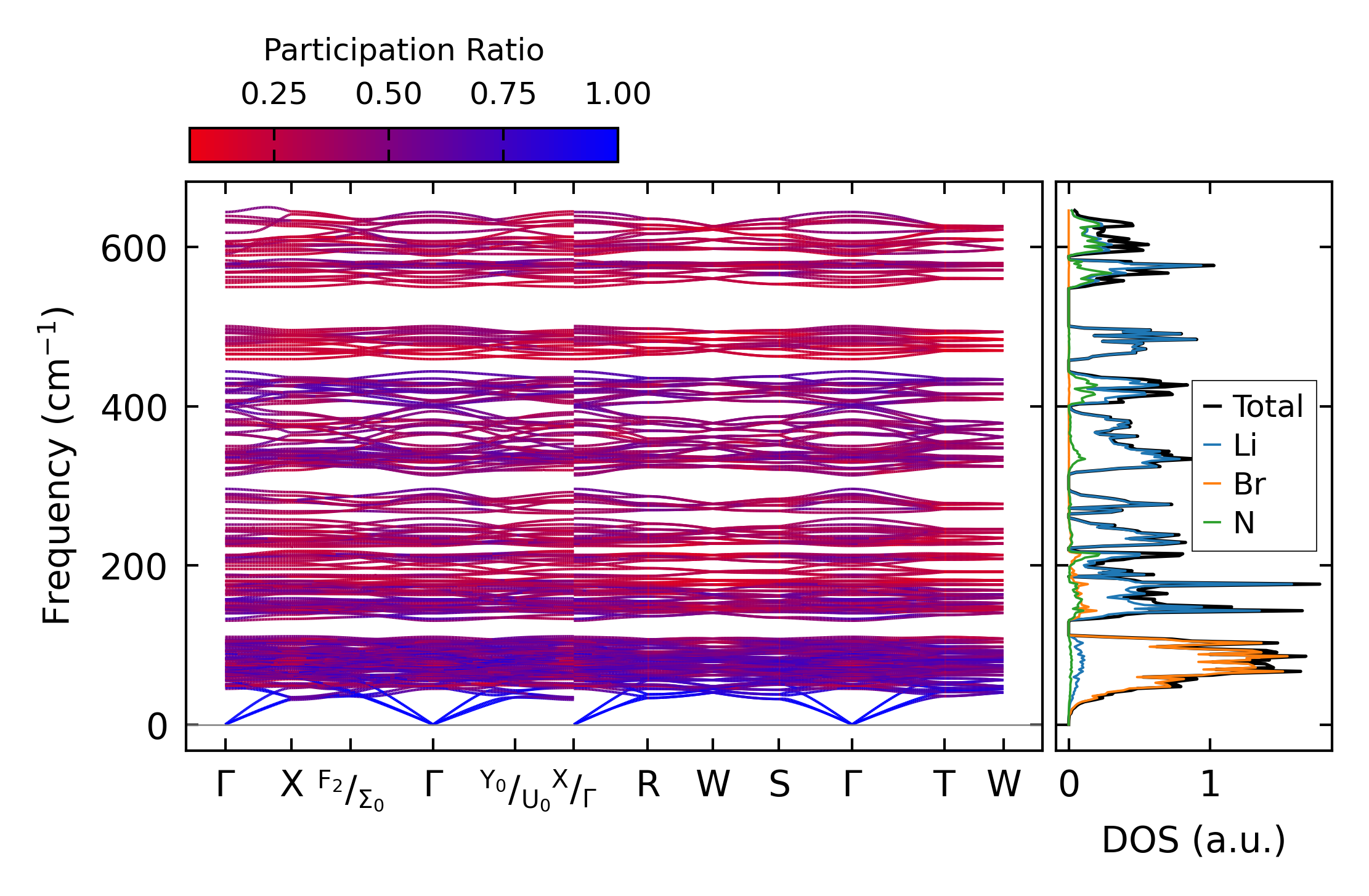

../../_images/fig_bandos_pr7273.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7273.png — (b) Thermodynamic properties

Grüneisen parameters

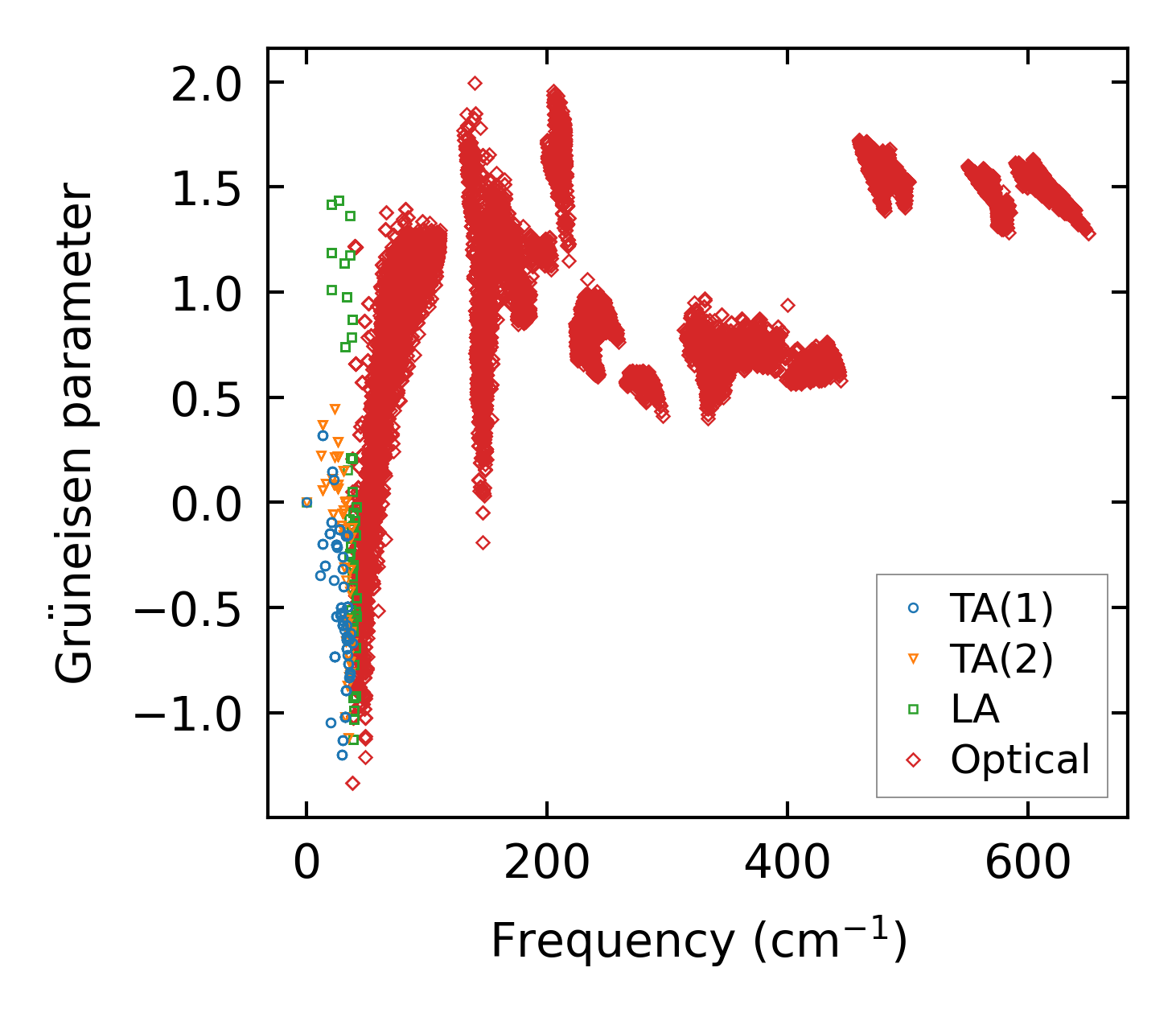

../../_images/fig_gru_all3060.png — (a) Grüneisen parameters

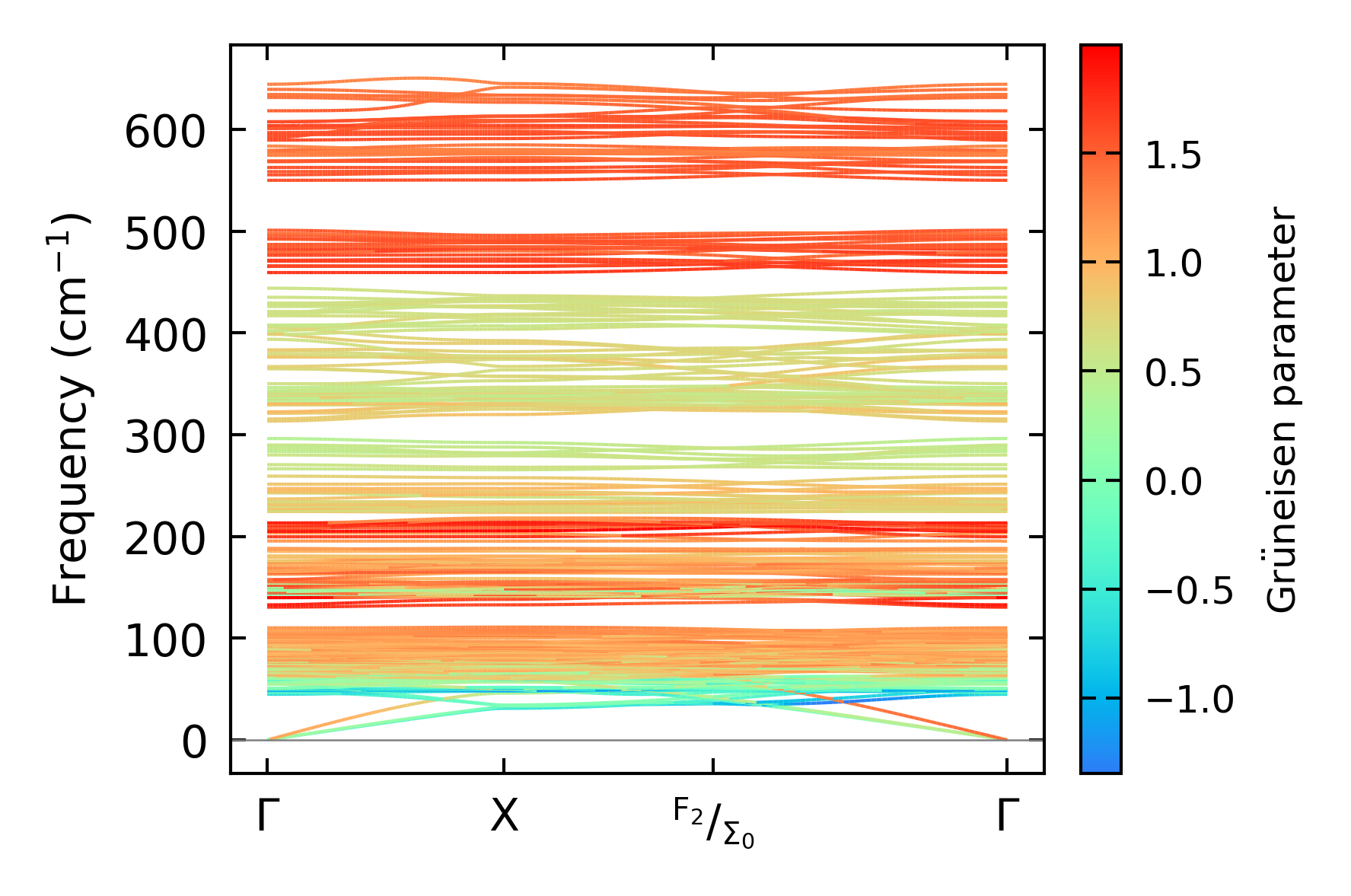

../../_images/fig_gruneisen3060.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

../../_images/fig_kappa5796.png — (a) Temperature-dependent lattice thermal conductivity

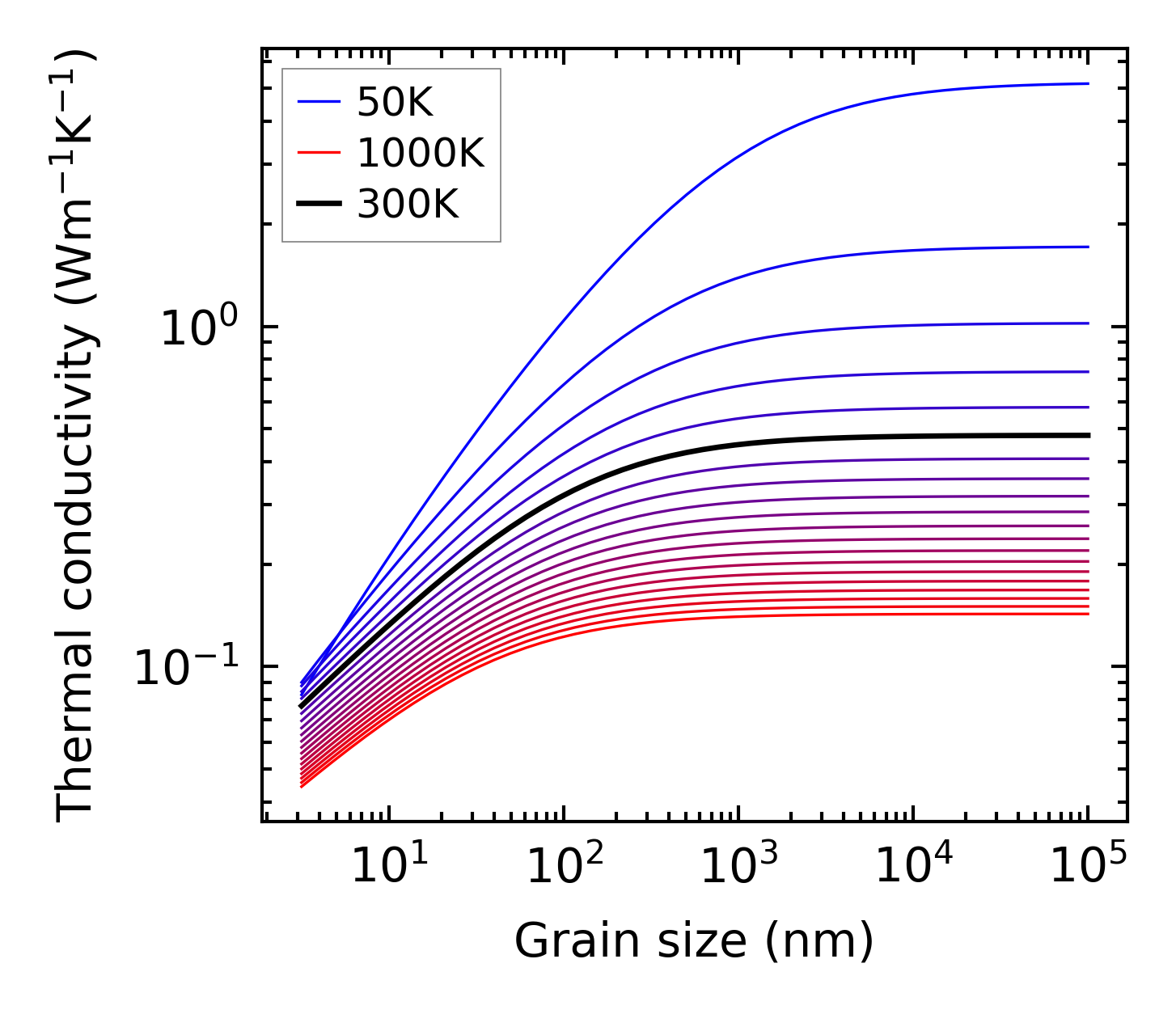

../../_images/fig_kappa_vs_grain_size3103.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

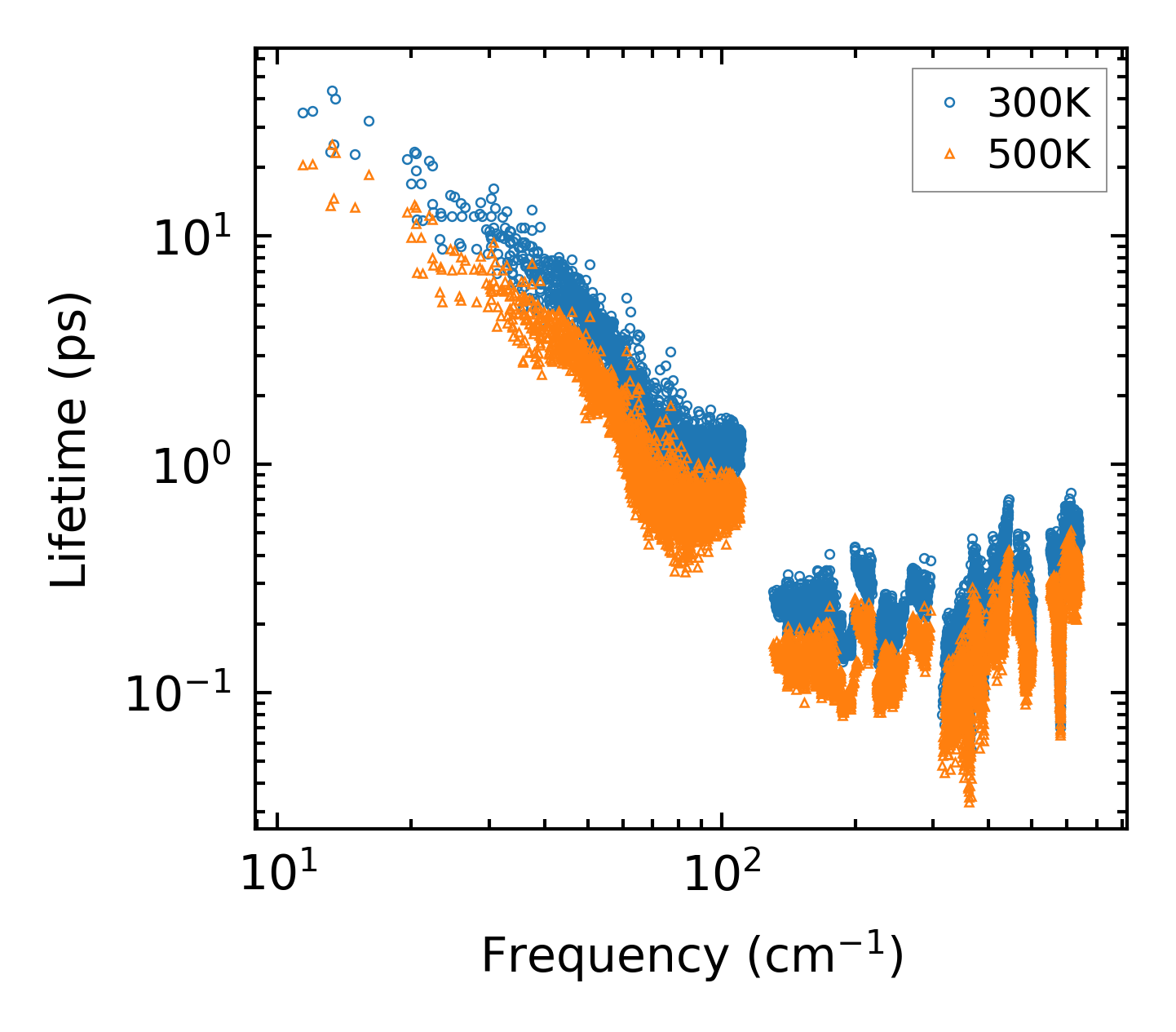

../../_images/fig_lifetime3035.png — (a) Phonon lifetime due to phonon-phonon scattering

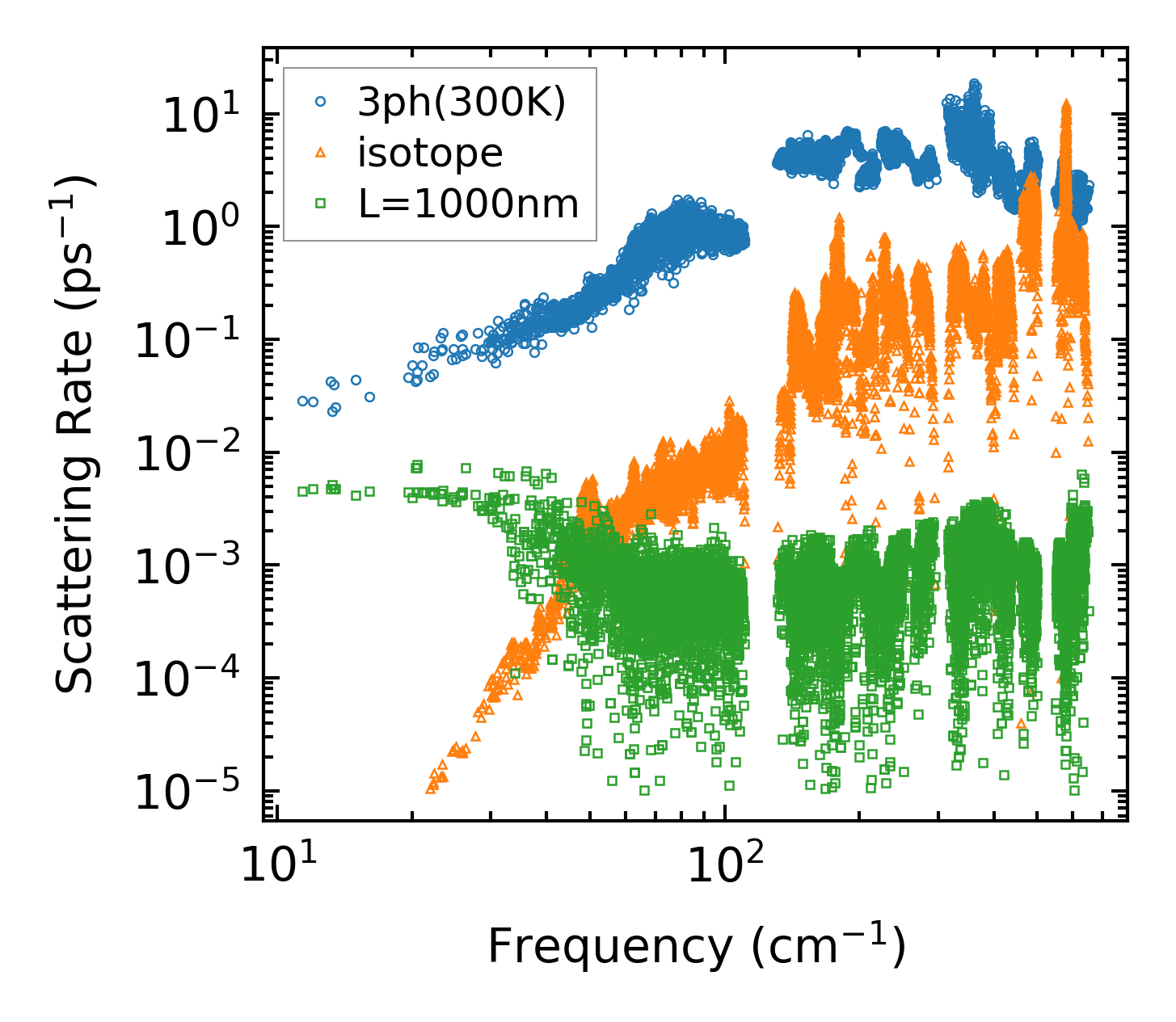

../../_images/fig_scat_rates3034.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

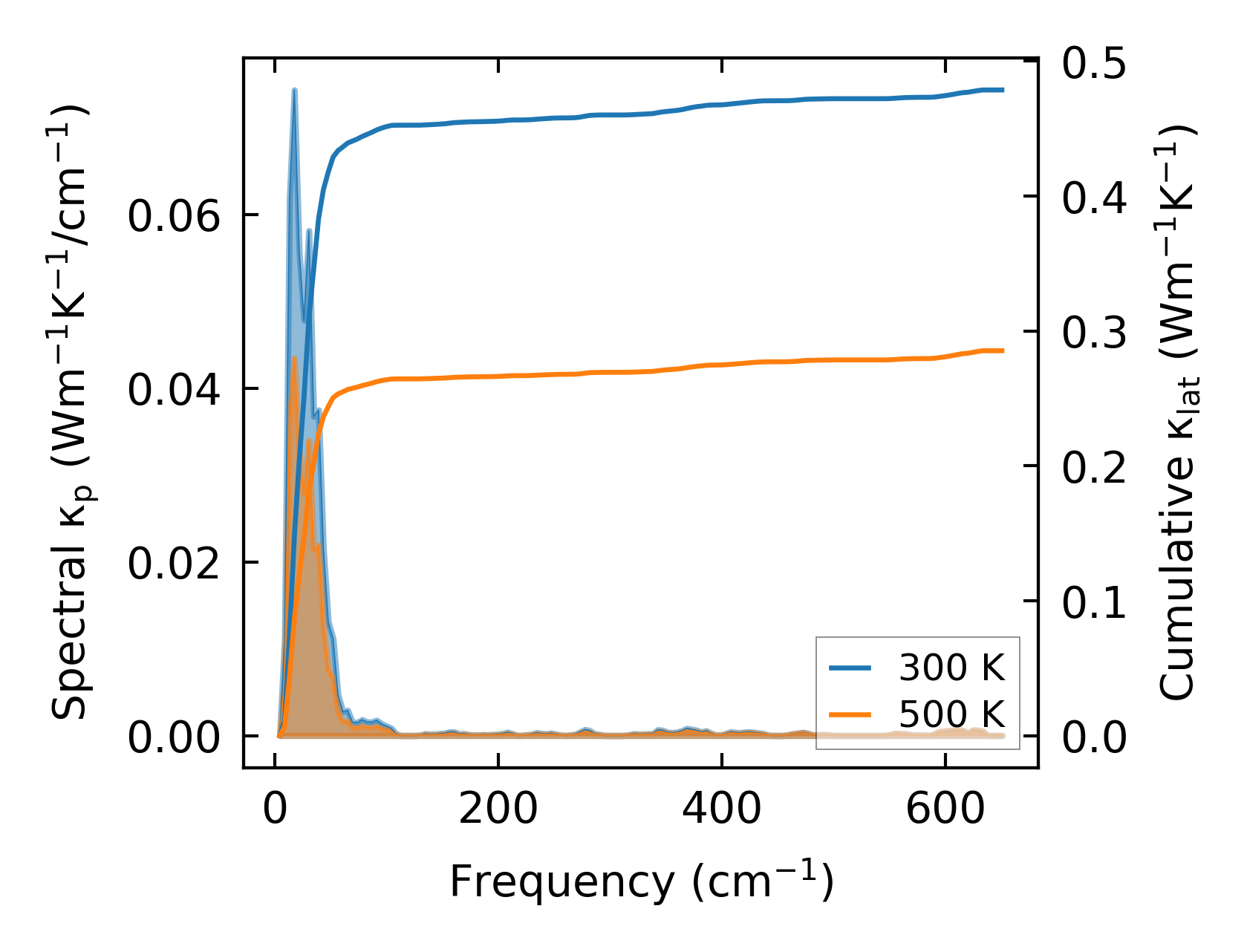

../../_images/fig_cumu_frequency3035.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

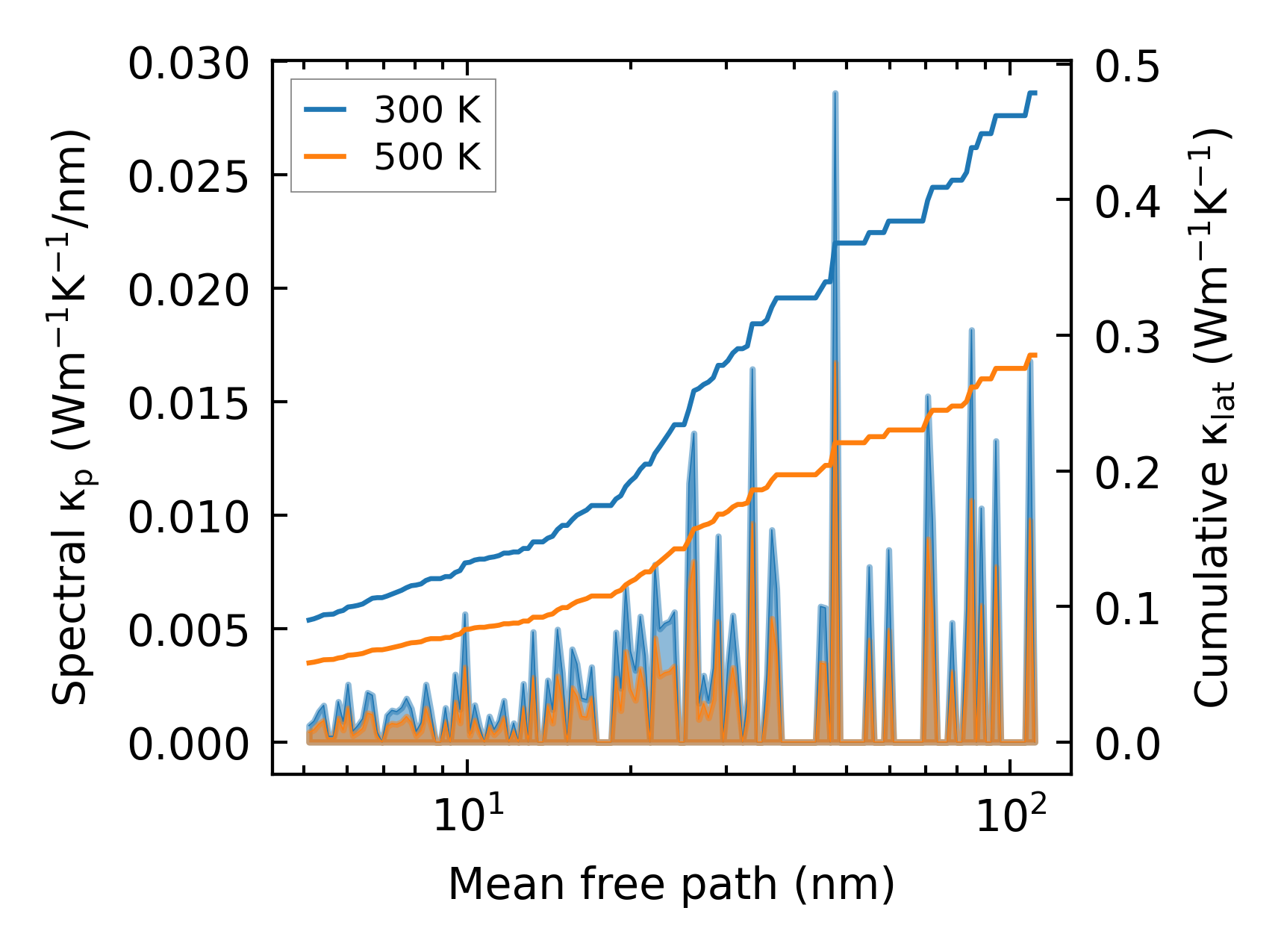

../../_images/fig_cumu_mfp3034.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

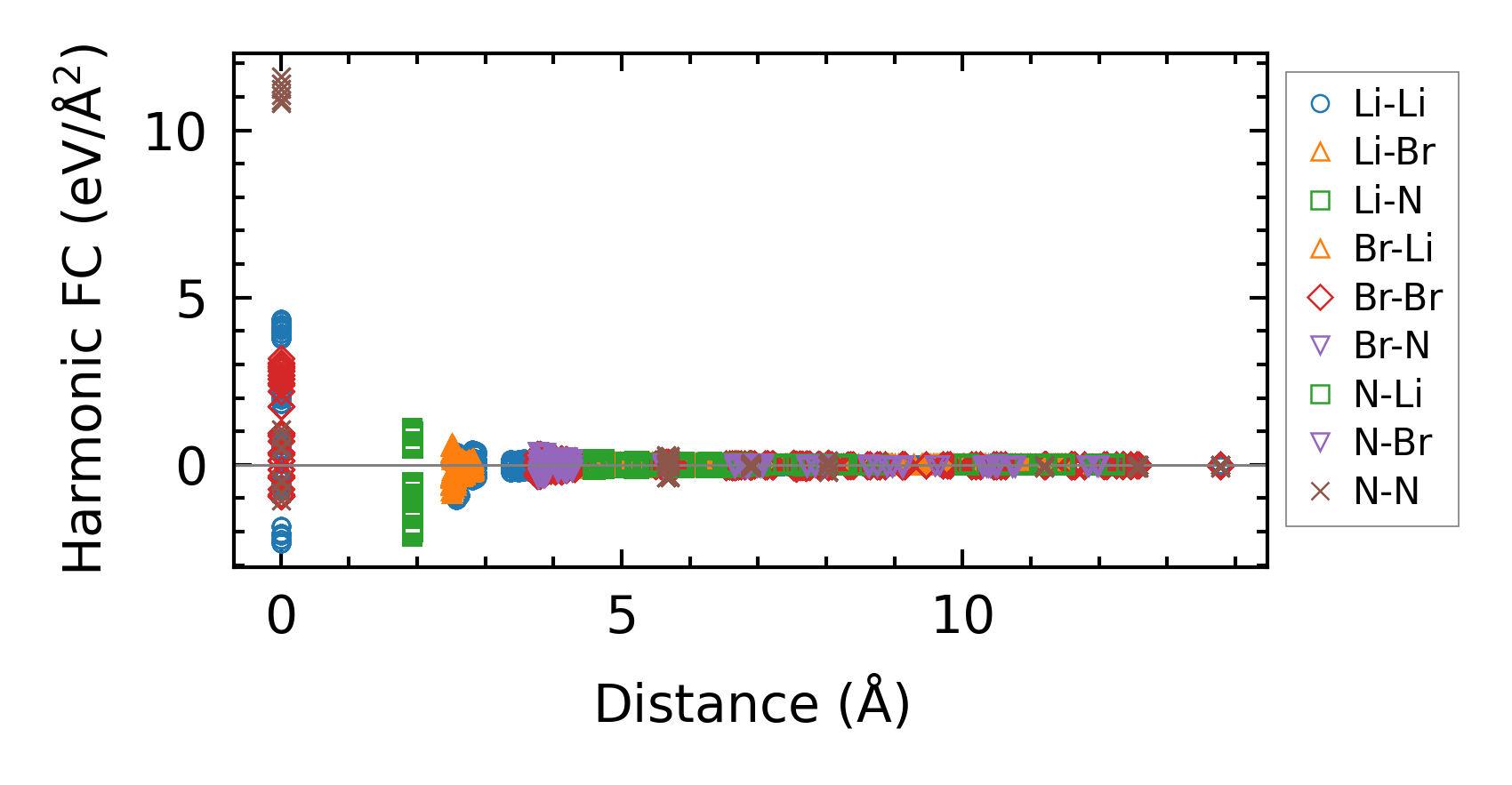

../../_images/fig_fc27039.png — (a) Force constants w.r.t atomic distance

Summary

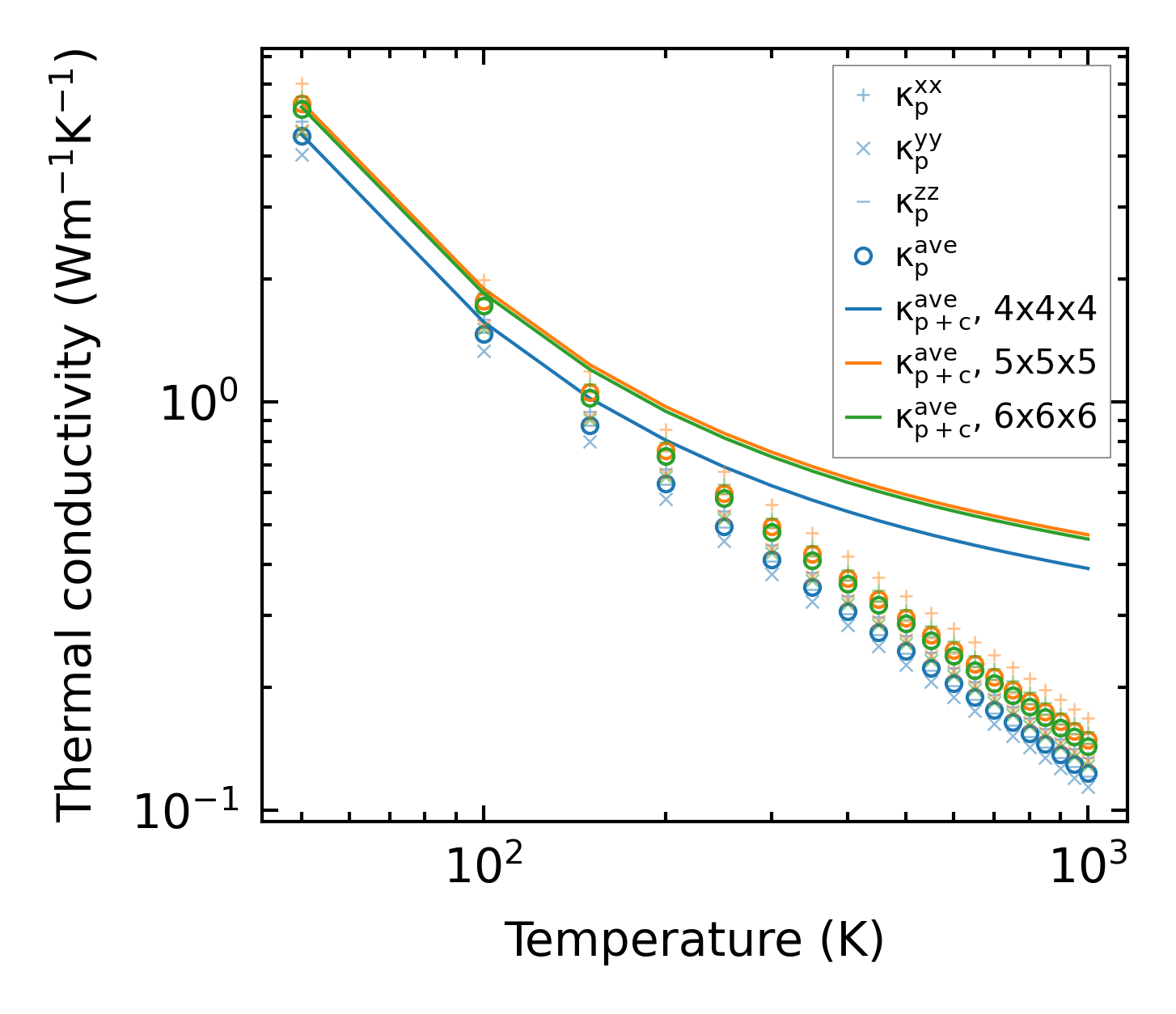

../../_images/fig_kappa5797.png — (a) Temperature-dependent lattice thermal conductivity

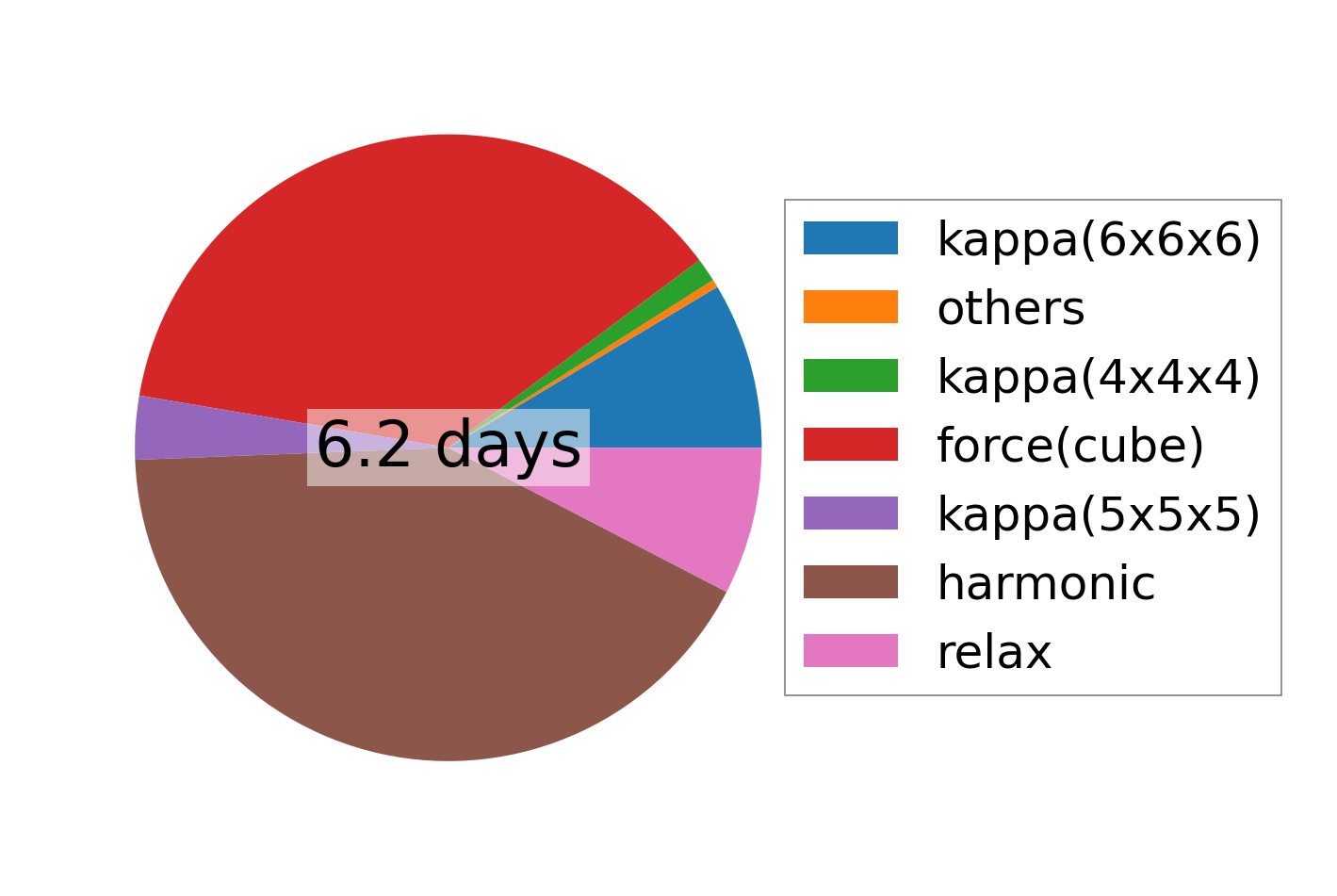

../../_images/fig_times12914.png — (b) Computation time
