mp-568388/BiI/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-568388.tar.gz

Harmonic properties

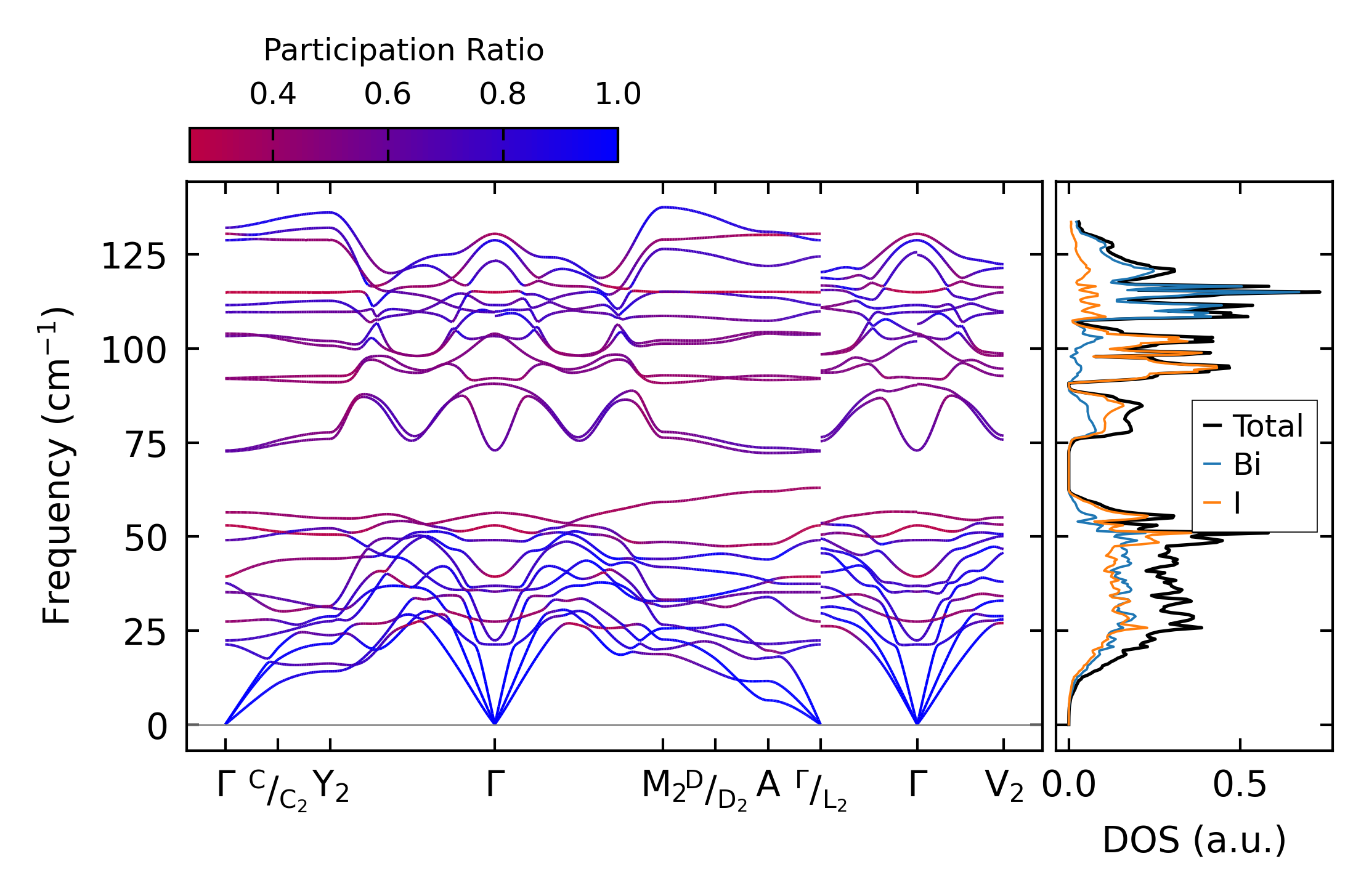

../../_images/fig_bandos_pr7277.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7277.png — (b) Thermodynamic properties

Grüneisen parameters

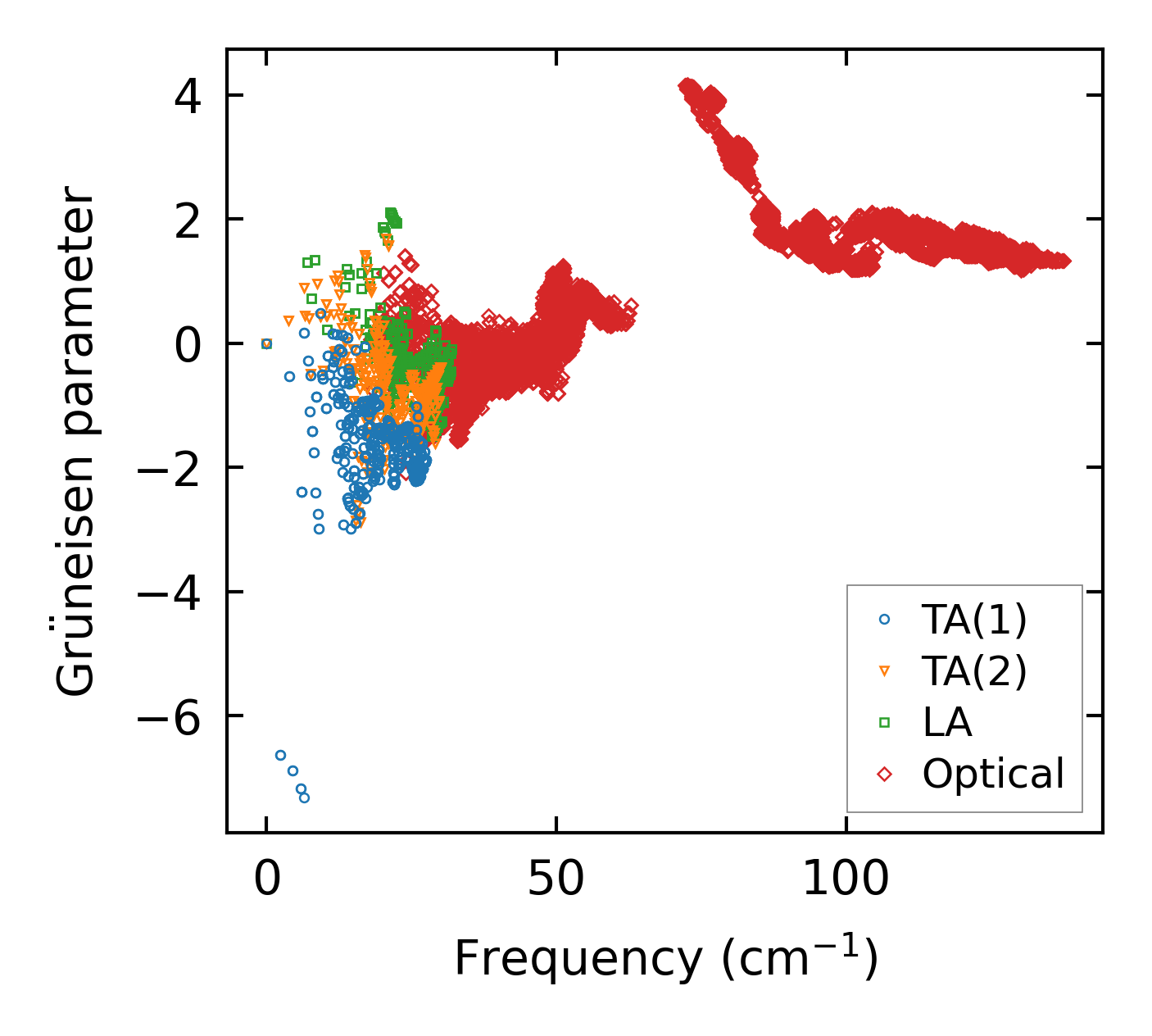

../../_images/fig_gru_all3064.png — (a) Grüneisen parameters

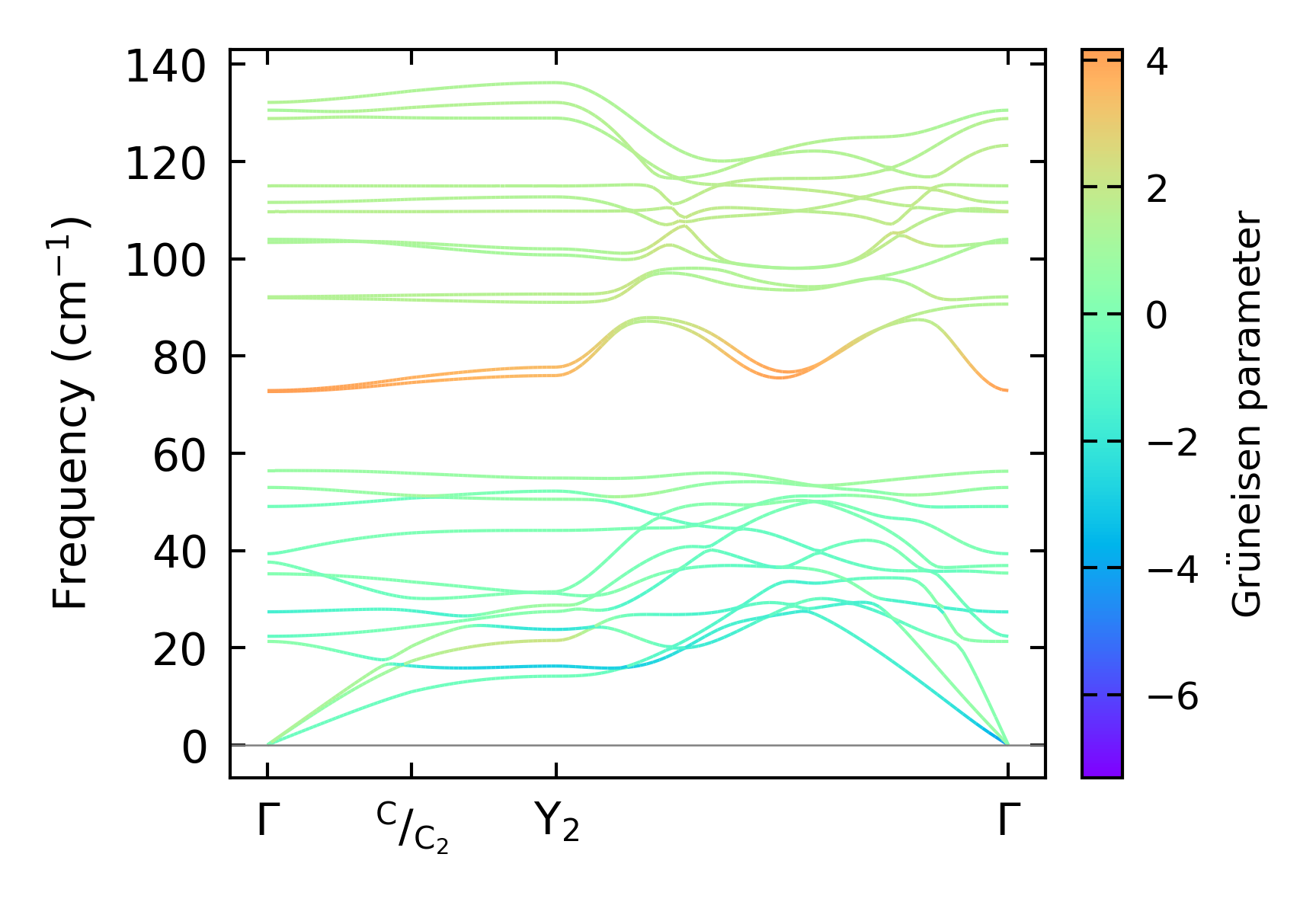

../../_images/fig_gruneisen3064.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x8, supercell: 1x4x2

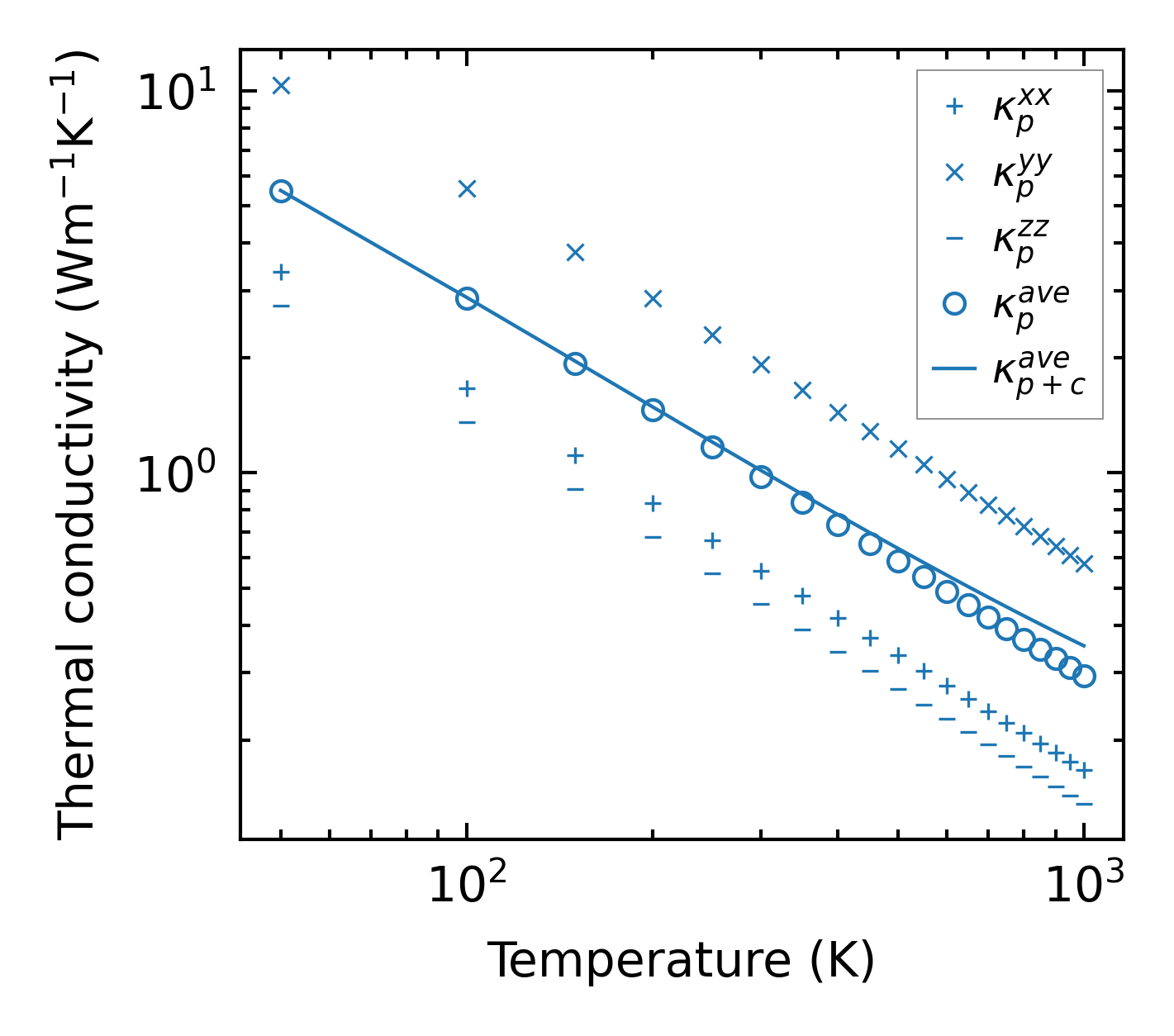

../../_images/fig_kappa5804.png — (a) Temperature-dependent lattice thermal conductivity

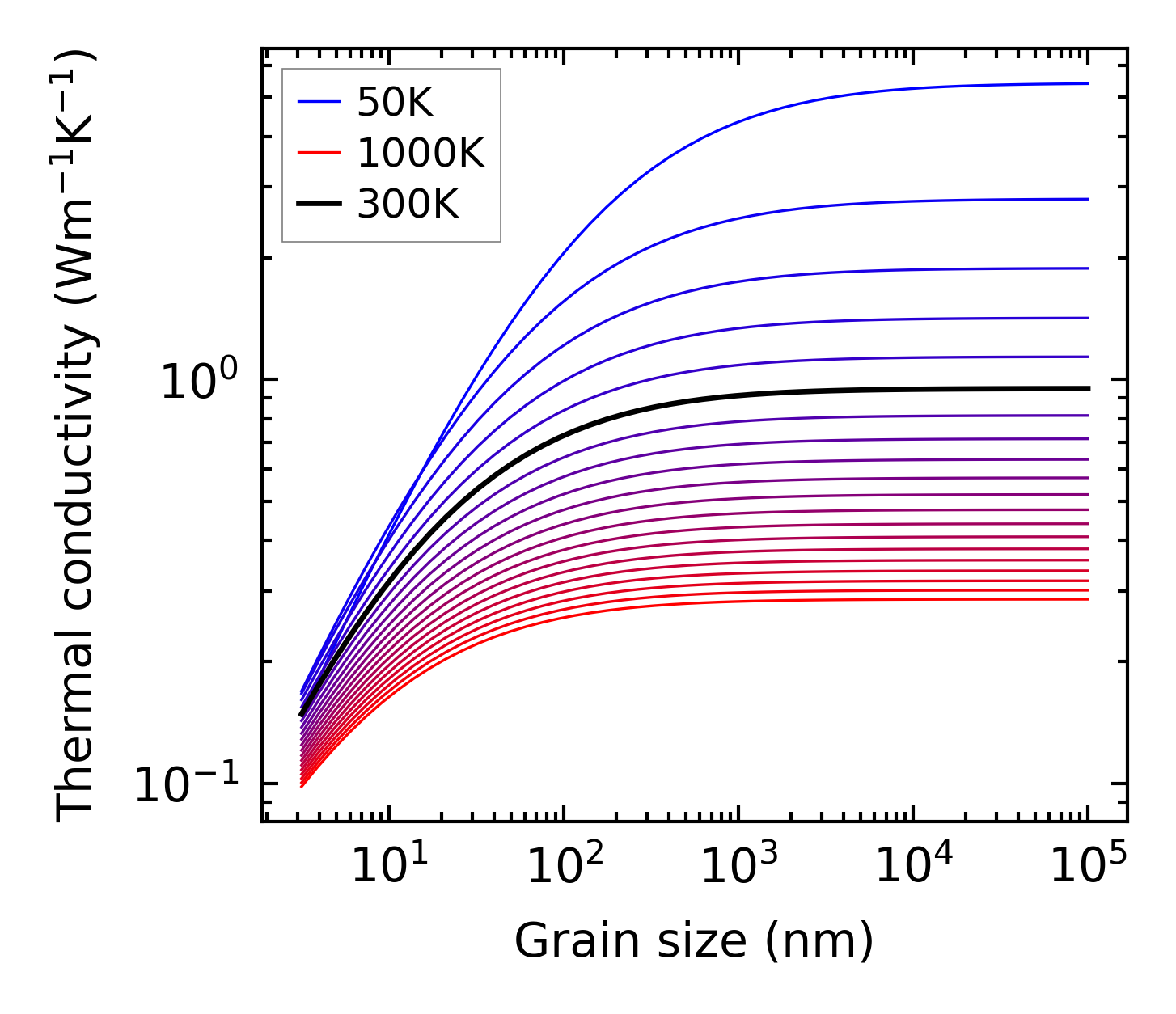

../../_images/fig_kappa_vs_grain_size3107.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

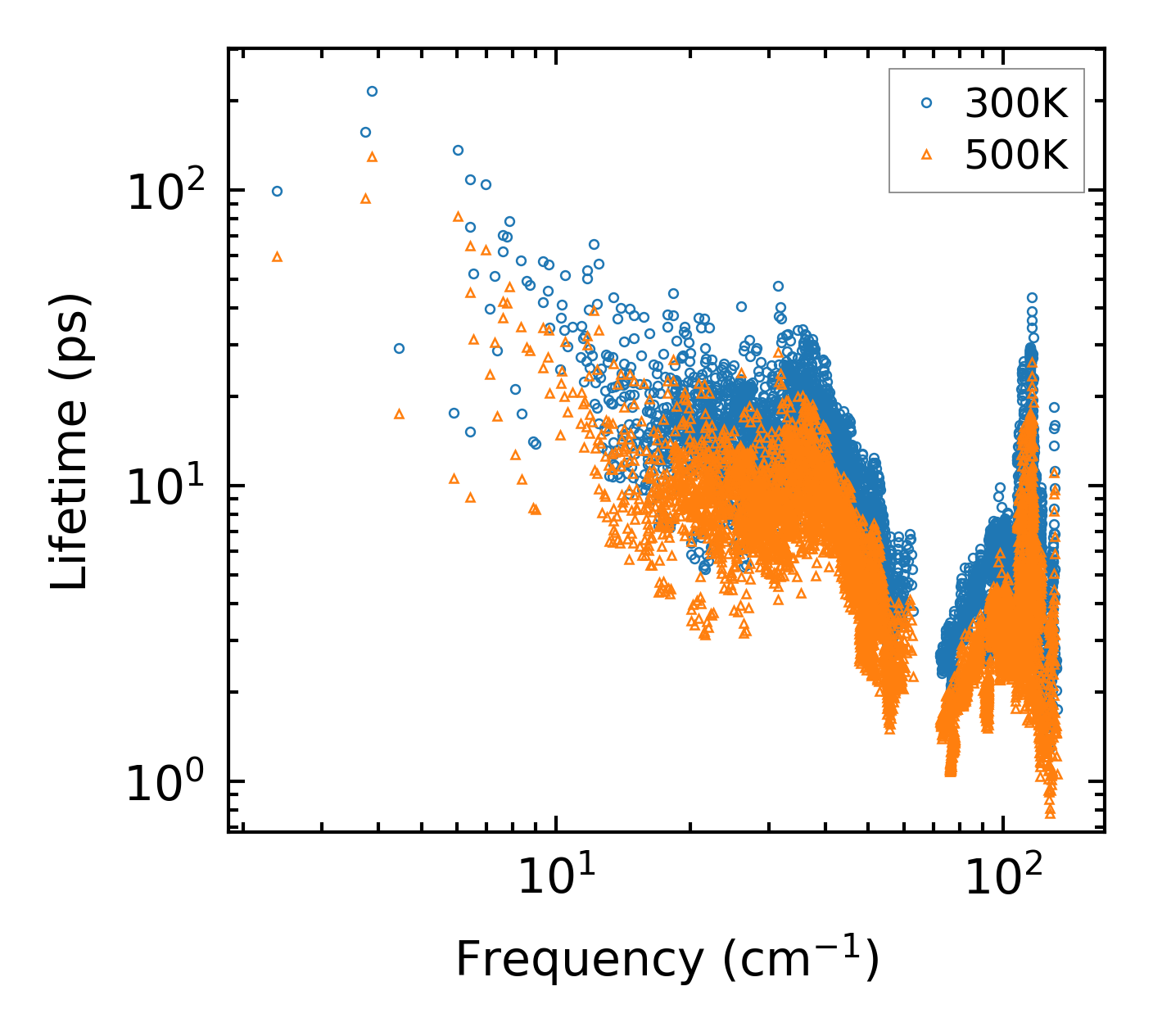

../../_images/fig_lifetime3039.png — (a) Phonon lifetime due to phonon-phonon scattering

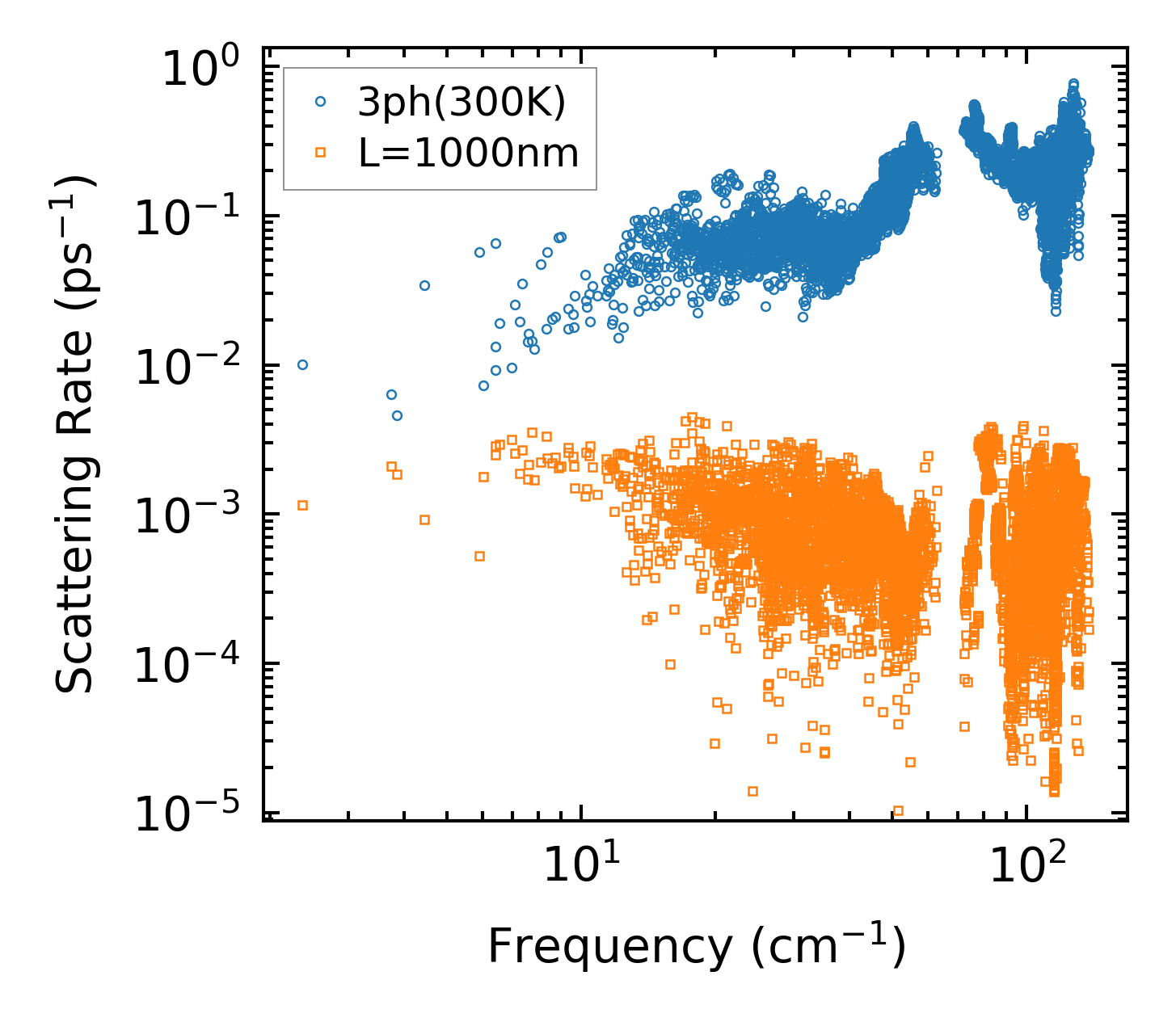

../../_images/fig_scat_rates3038.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

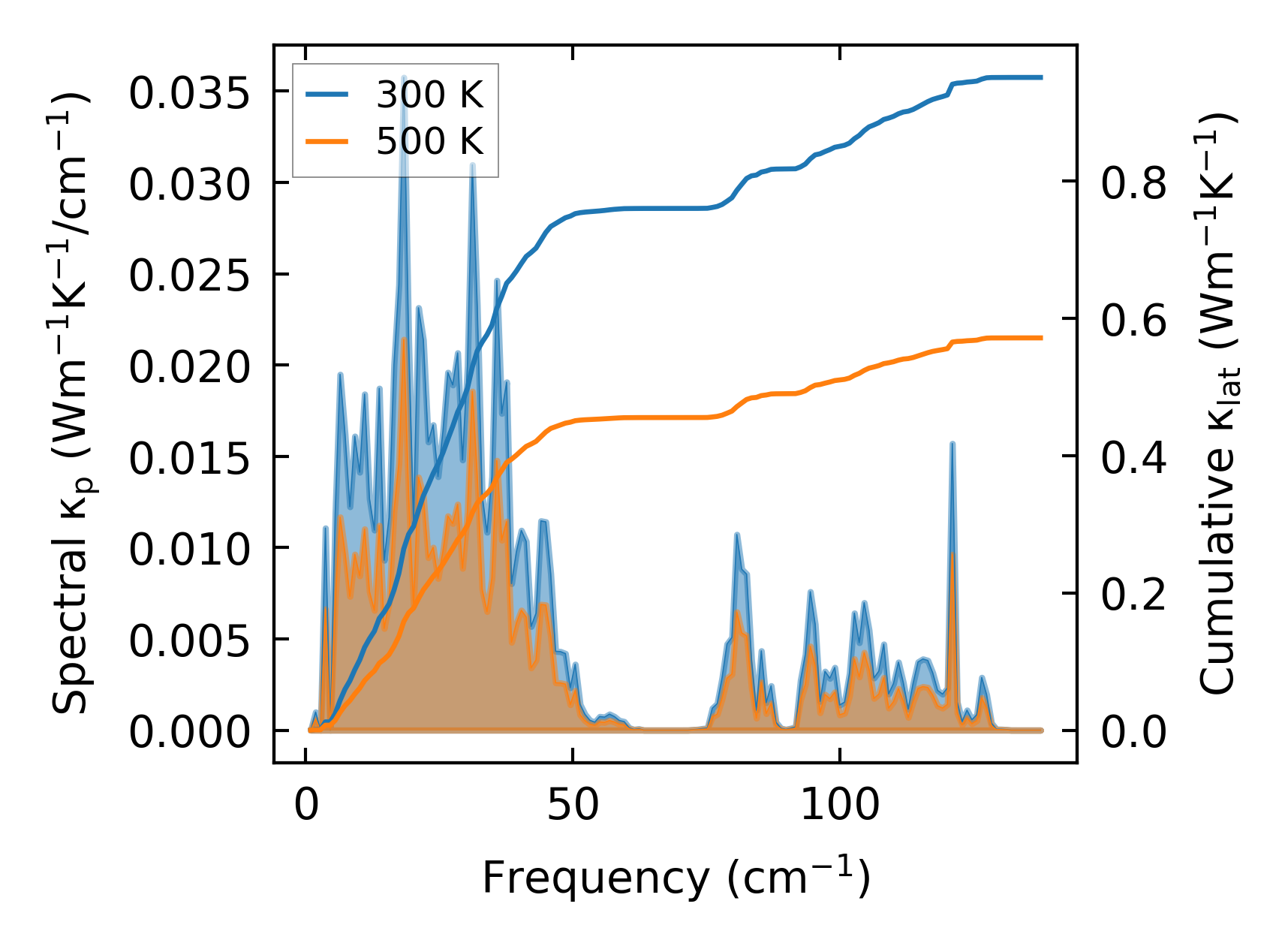

../../_images/fig_cumu_frequency3039.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

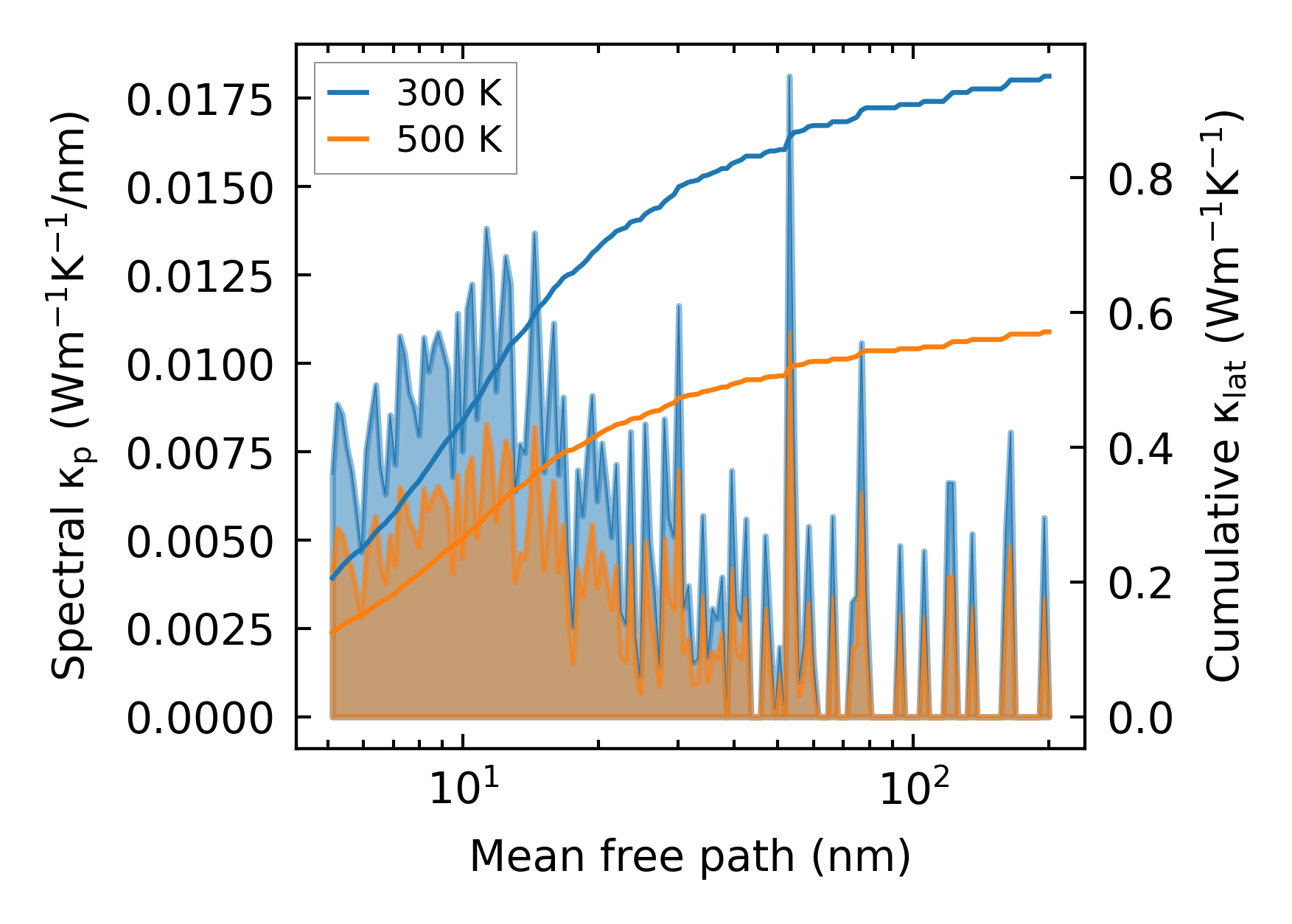

../../_images/fig_cumu_mfp3038.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

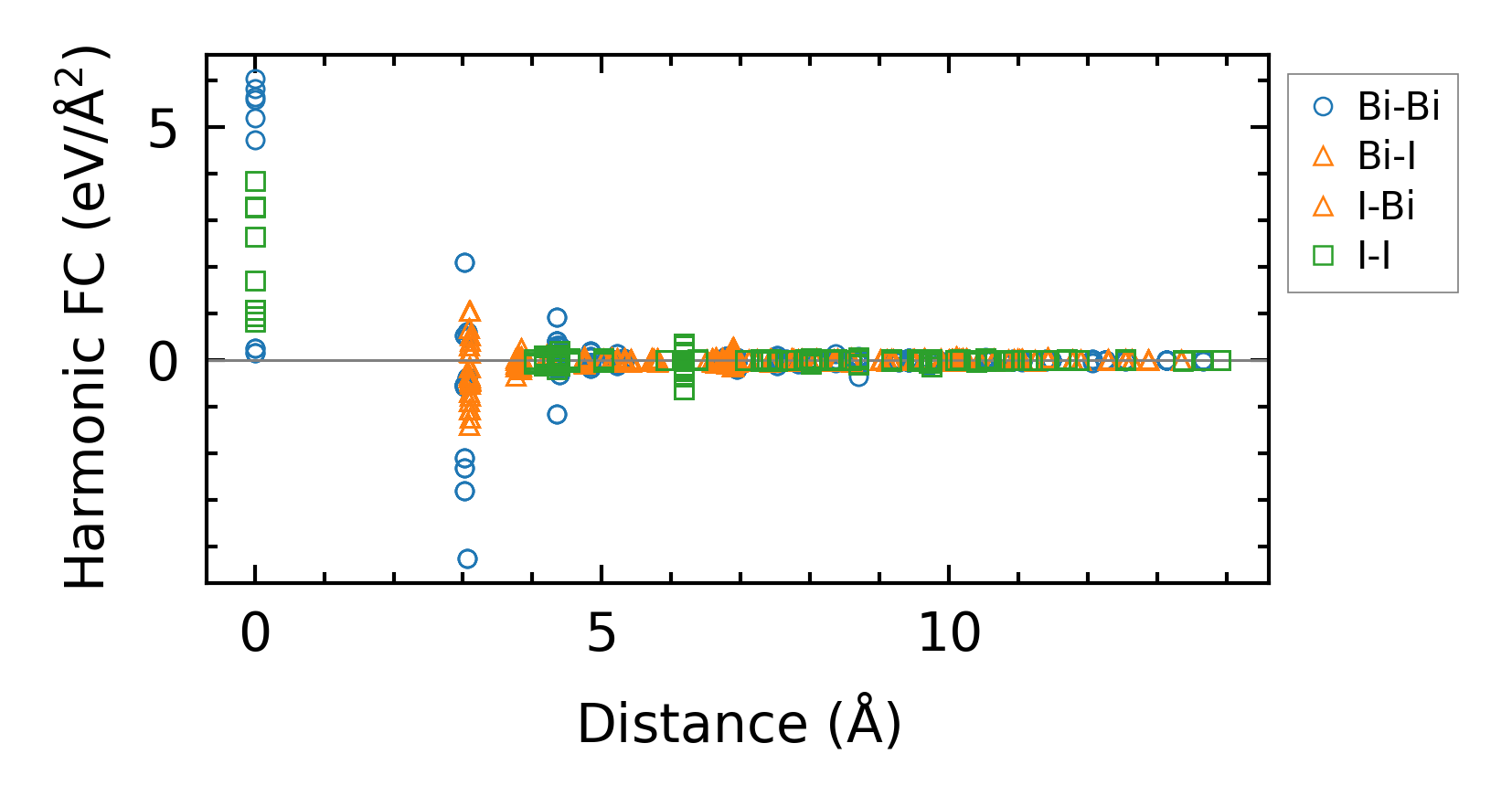

../../_images/fig_fc27043.png — (a) Force constants w.r.t atomic distance

Summary

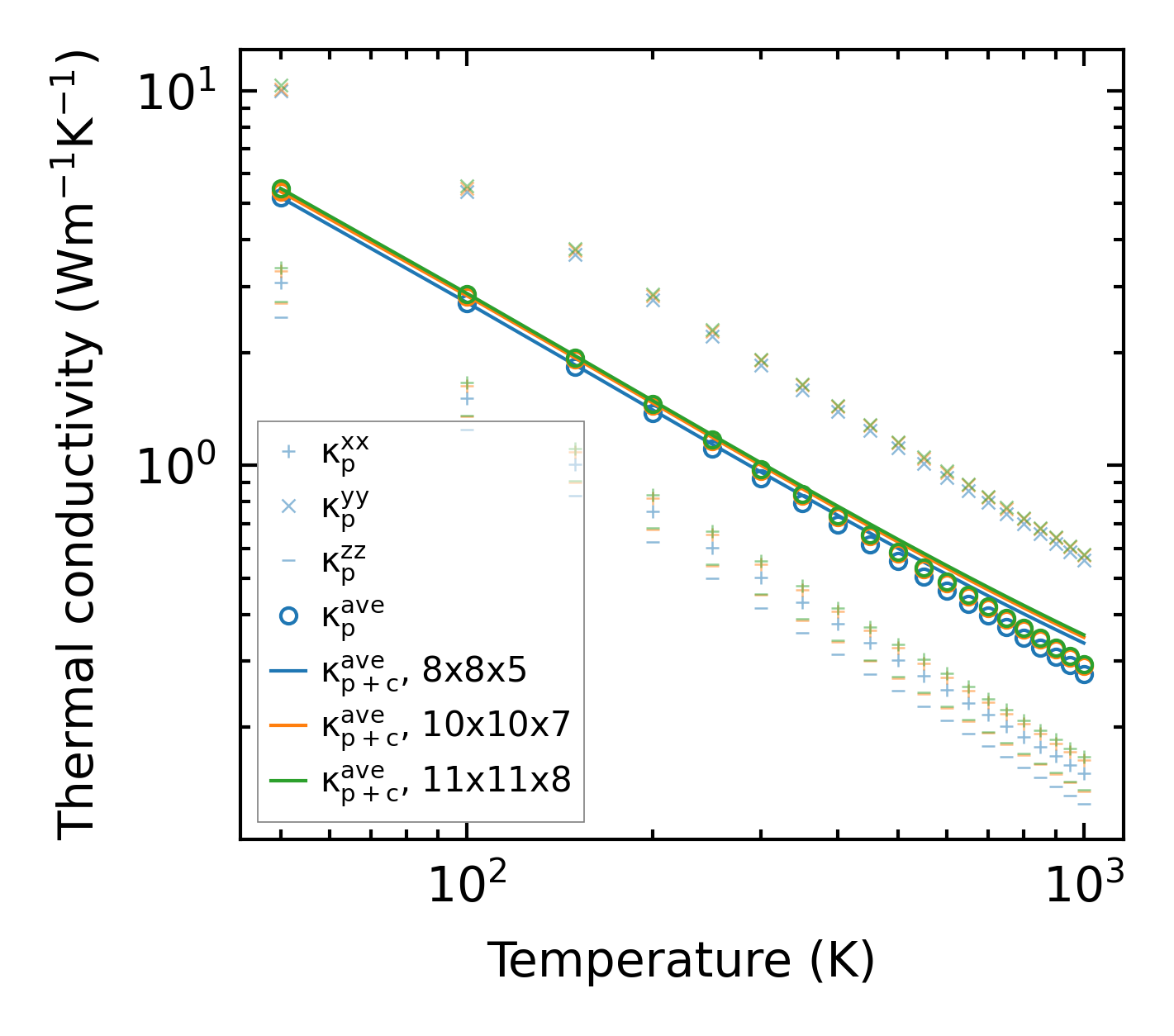

../../_images/fig_kappa5805.png — (a) Temperature-dependent lattice thermal conductivity

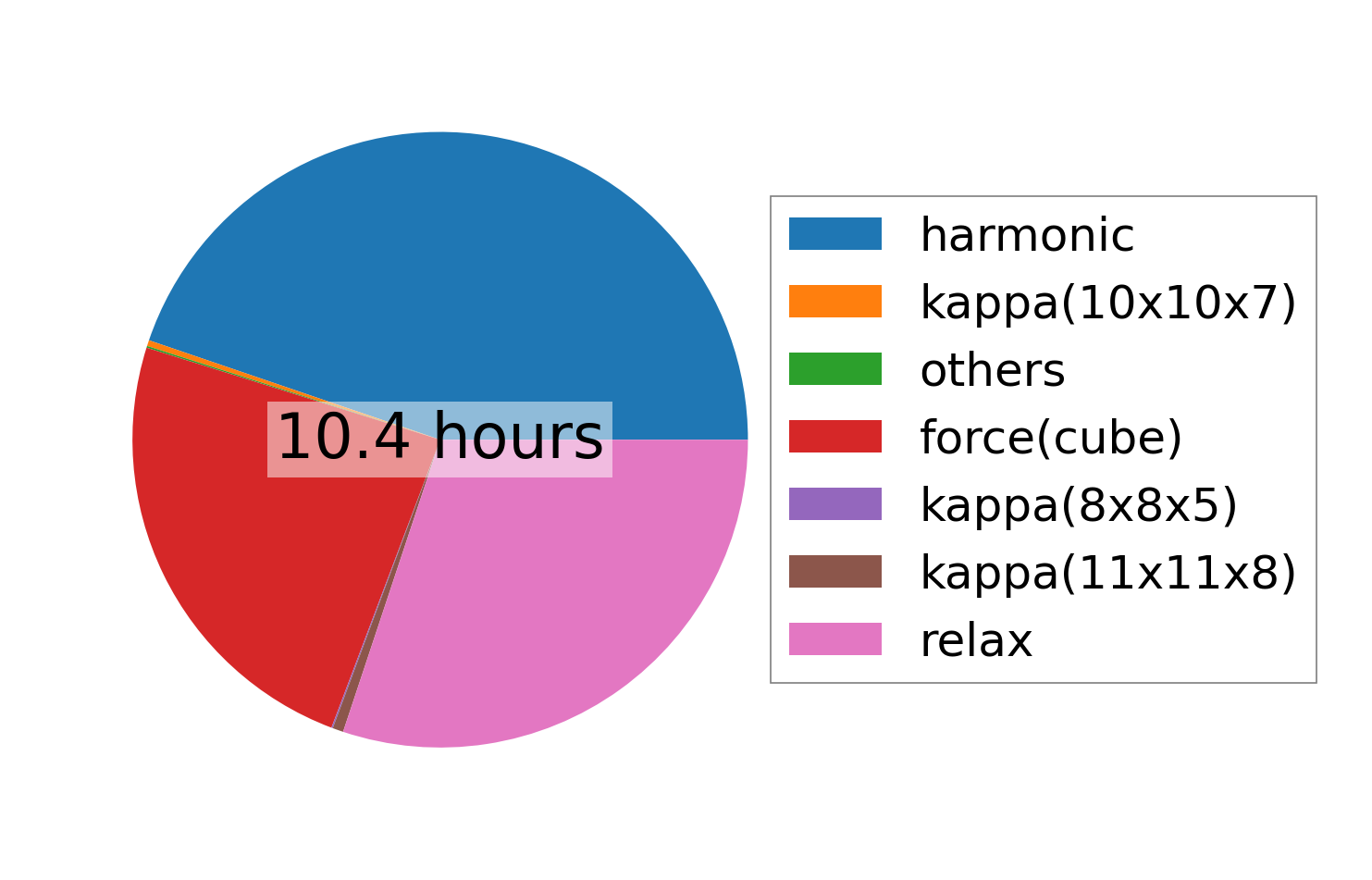

../../_images/fig_times12918.png — (b) Computation time
