mp-568759/NaNd4I7N2/anharm

Space group: Pna2_1 (33)
Link: Materials Project
Download: mp-568759.tar.gz

Equation of state

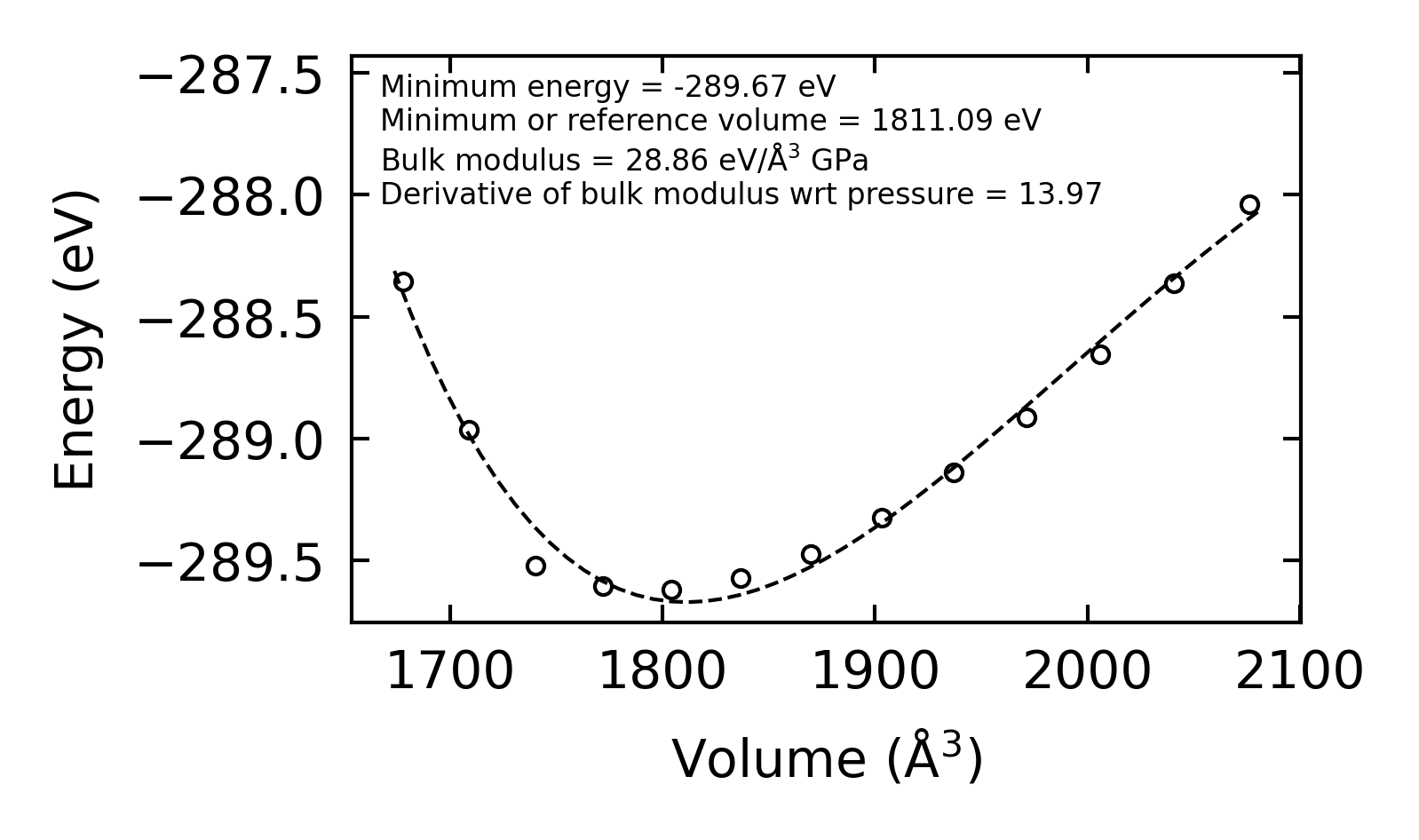

../../_images/fig_bm3717.png — (a) Equation of state

Harmonic properties

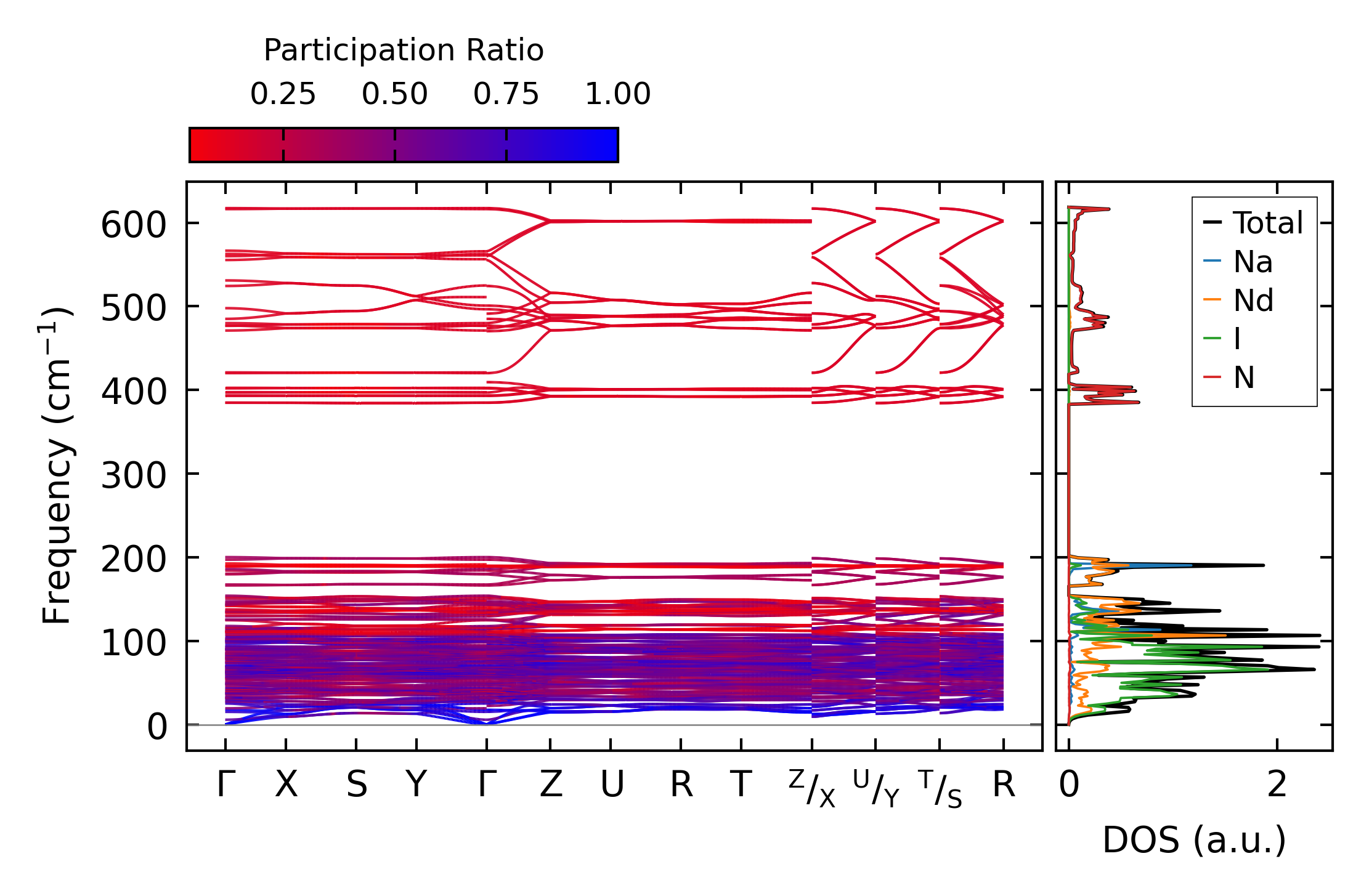

../../_images/fig_bandos_pr6951.png — (a) Phonon dispersion with participation ratio and DOS

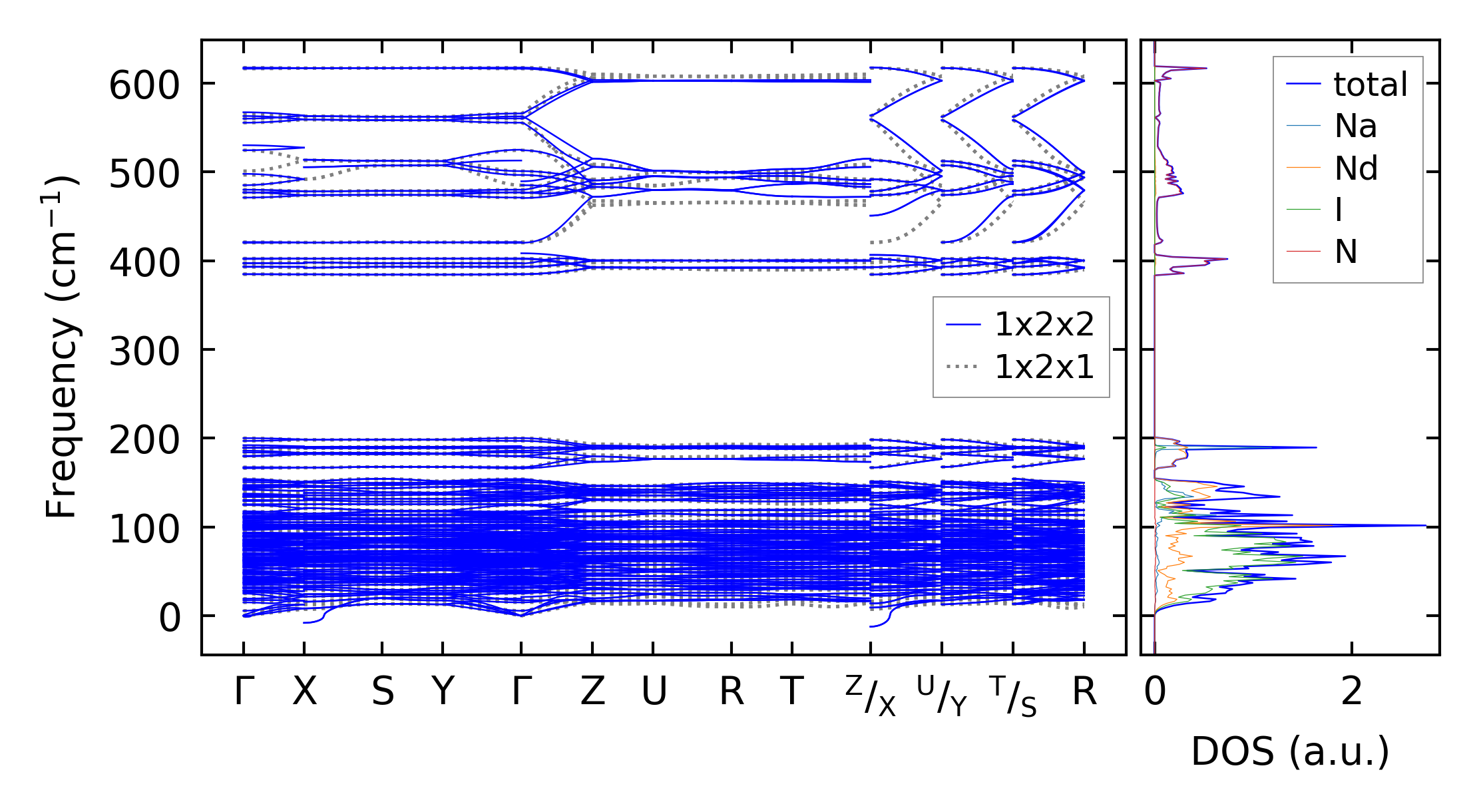

../../_images/fig_bandos9939.png — (b) Phonon dispersion and DOS

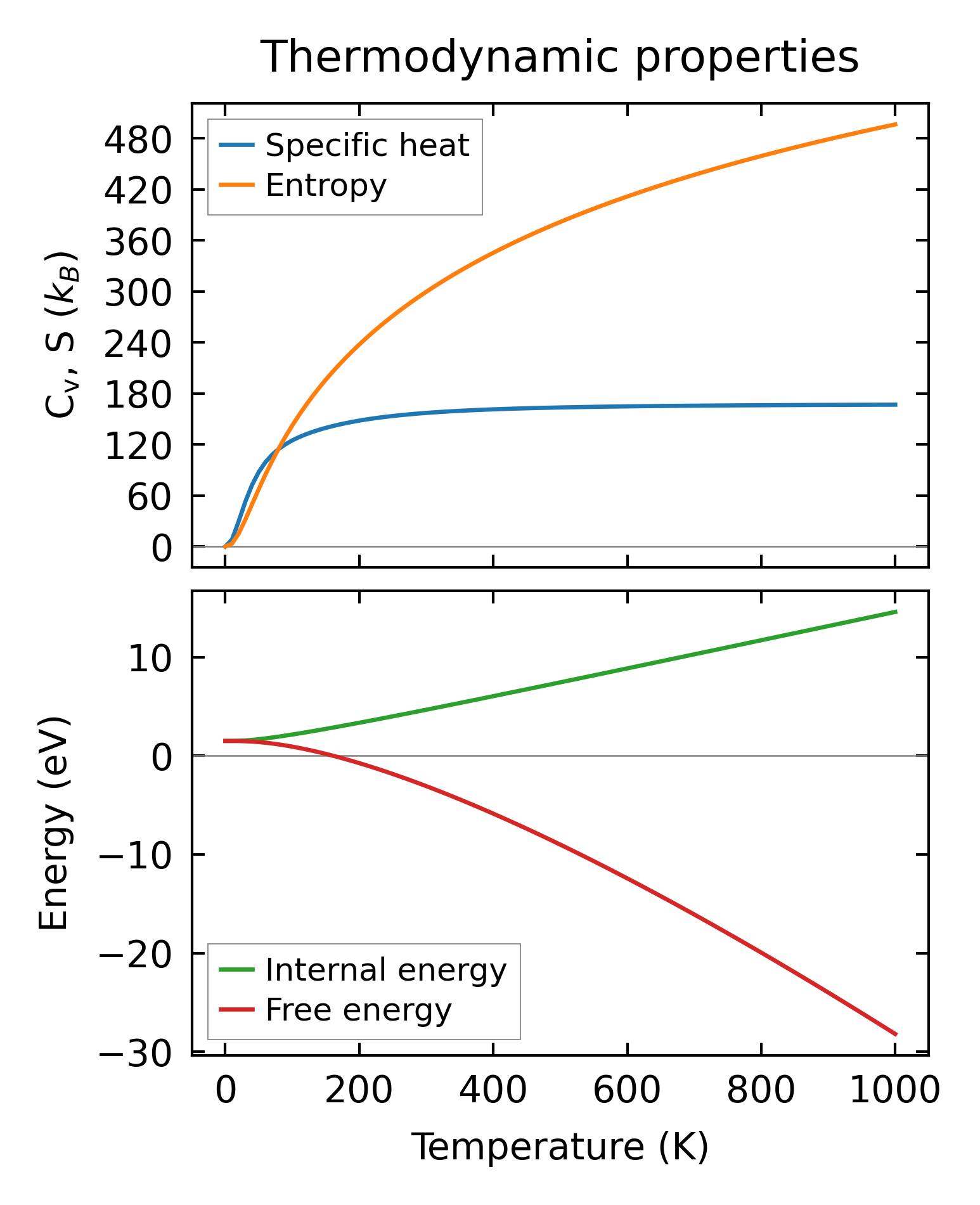

../../_images/fig_thermo6951.png — (c) Thermodynamic properties

Grüneisen parameters

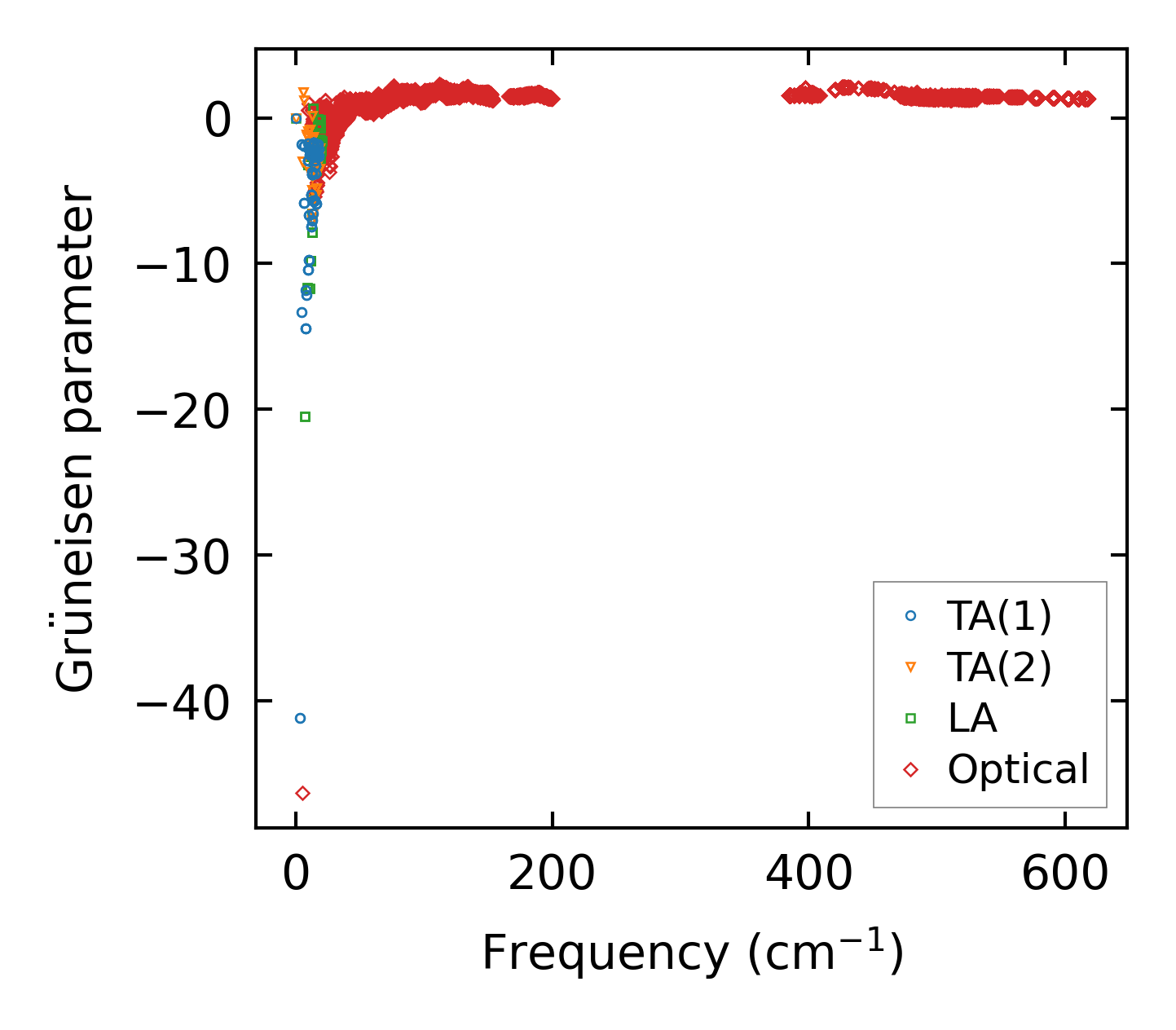

../../_images/fig_gru_all2879.png — (a) Grüneisen parameters

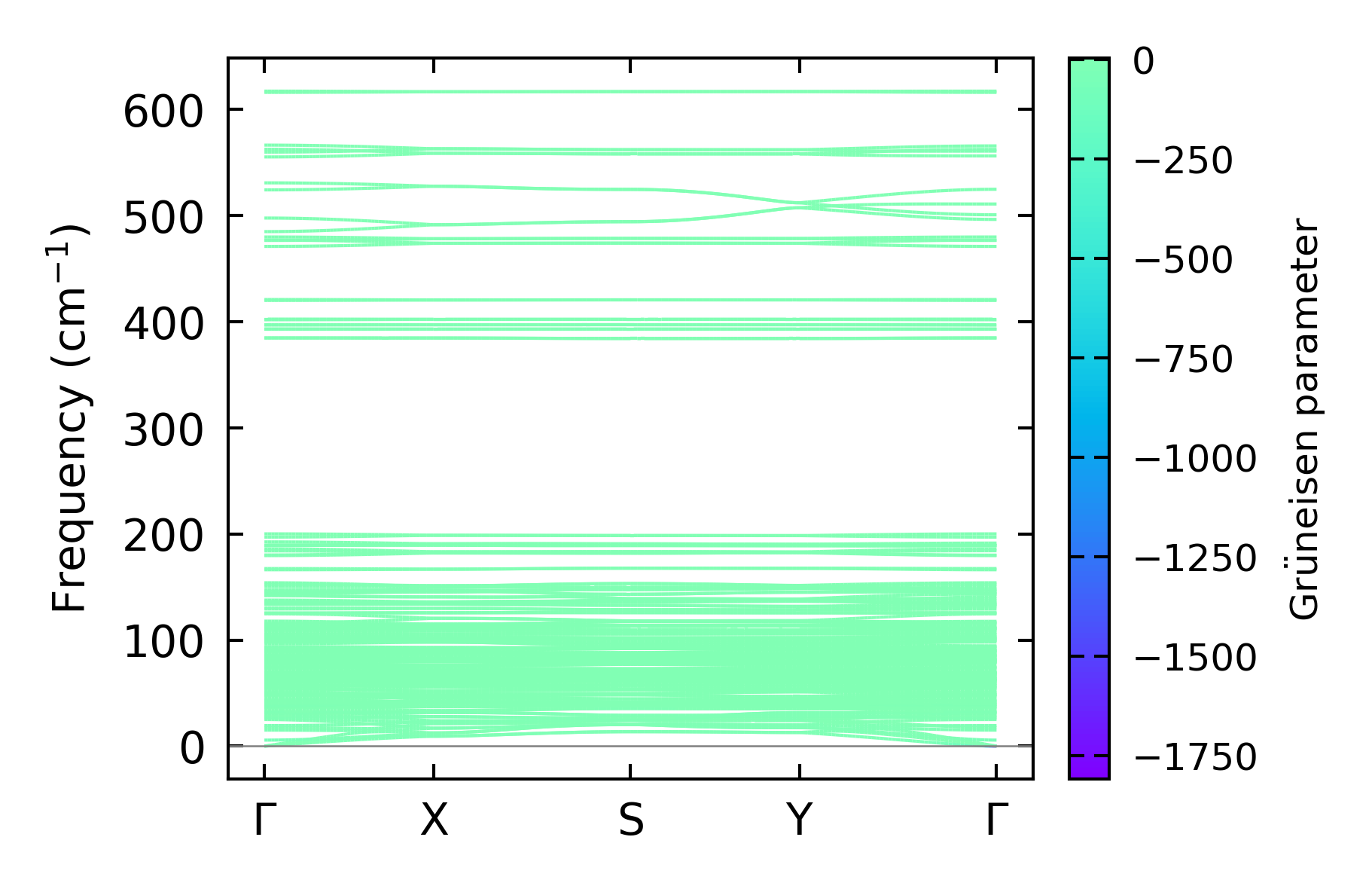

../../_images/fig_gruneisen2879.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x6x6, supercell: 1x2x1

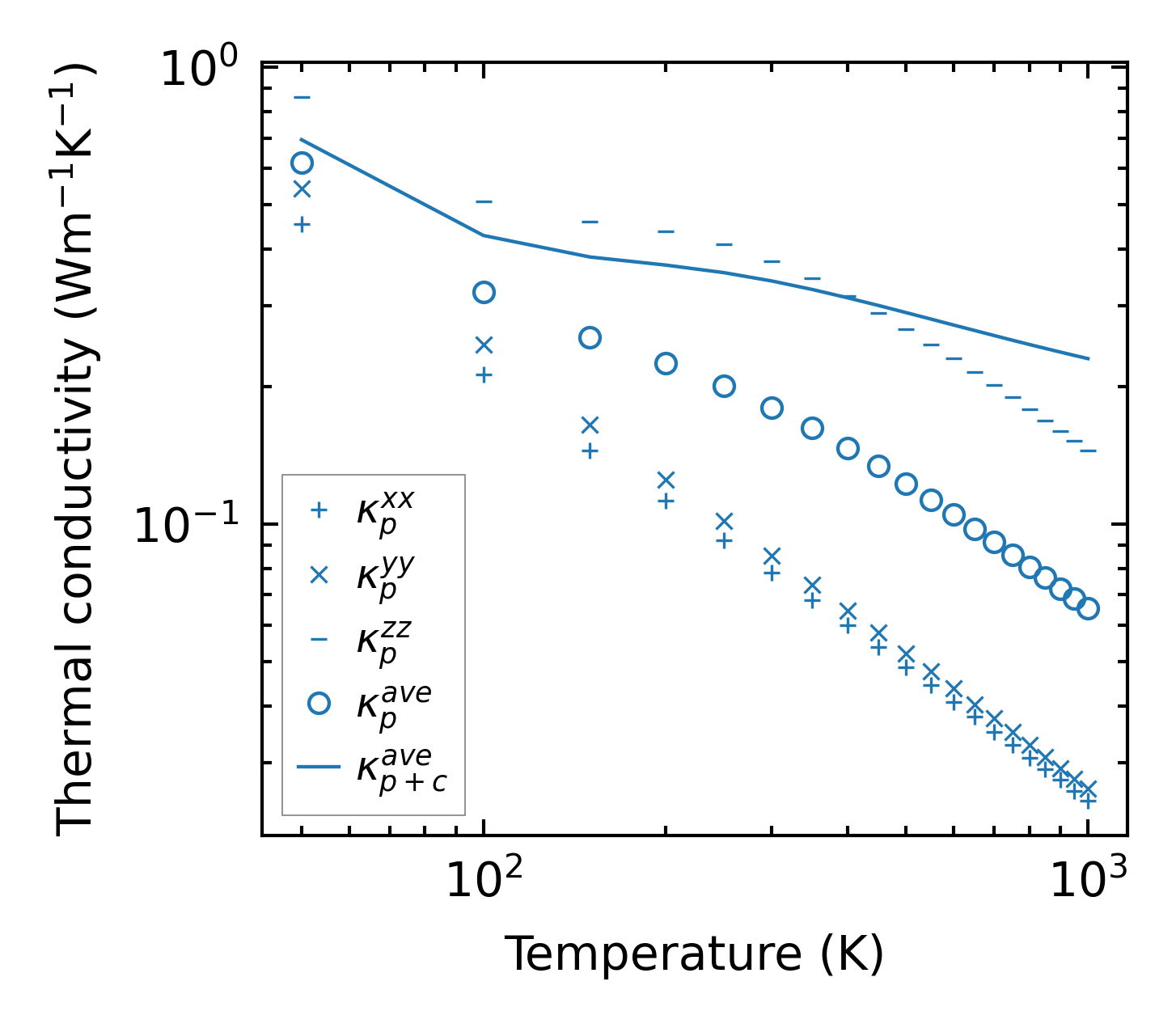

../../_images/fig_kappa5465.png — (a) Temperature-dependent lattice thermal conductivity

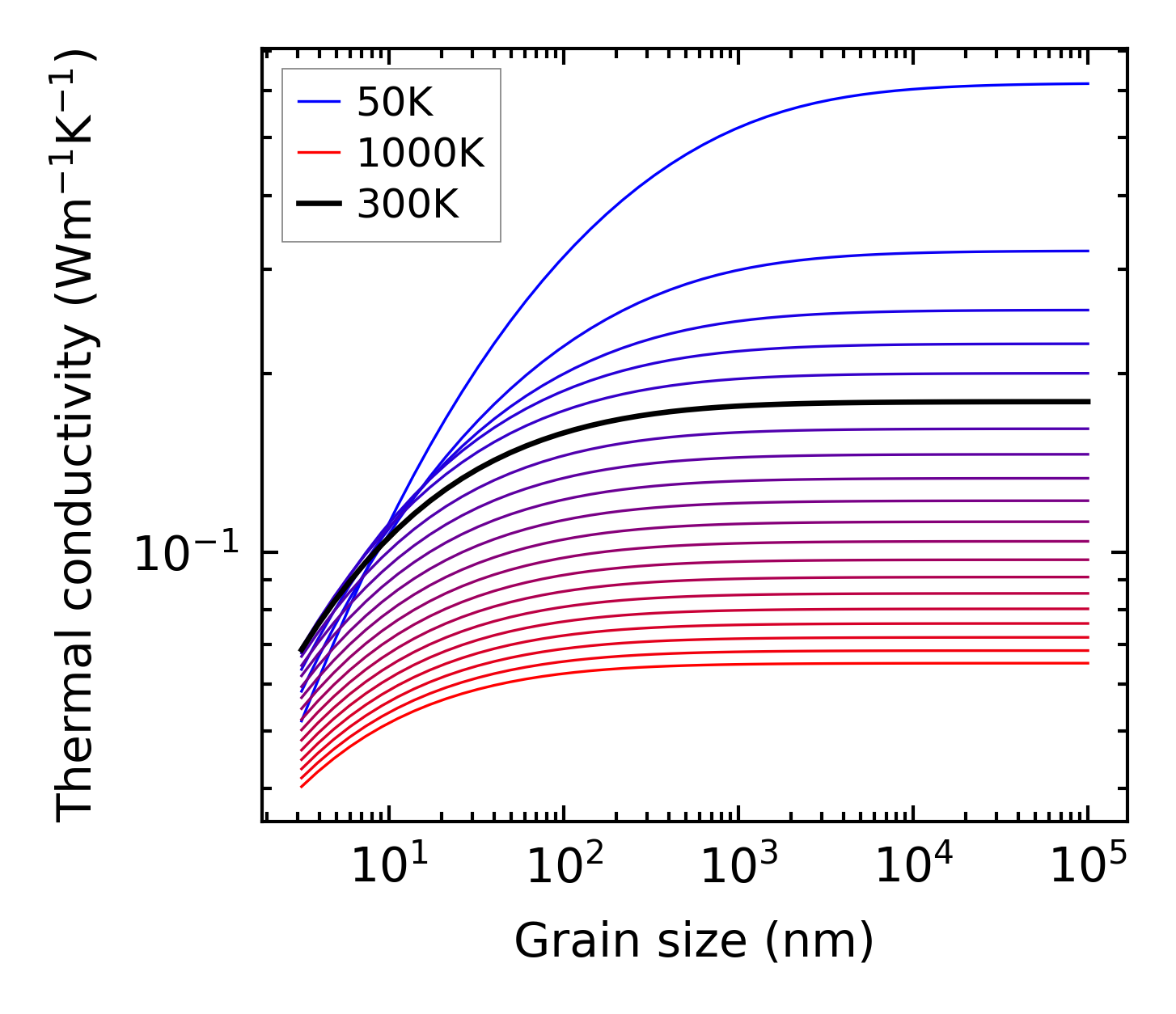

../../_images/fig_kappa_vs_grain_size2921.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

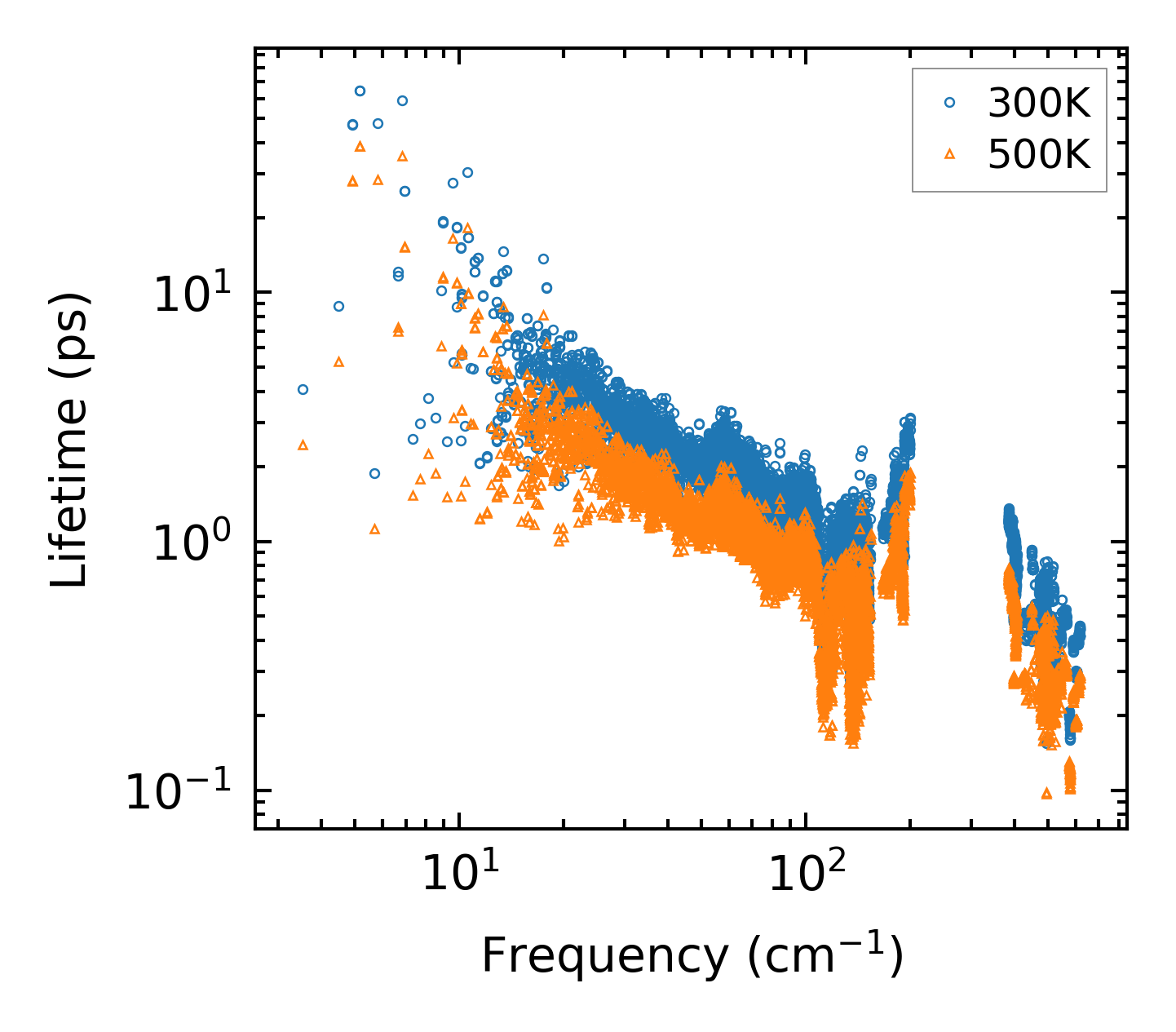

../../_images/fig_lifetime2855.png — (a) Phonon lifetime due to phonon-phonon scattering

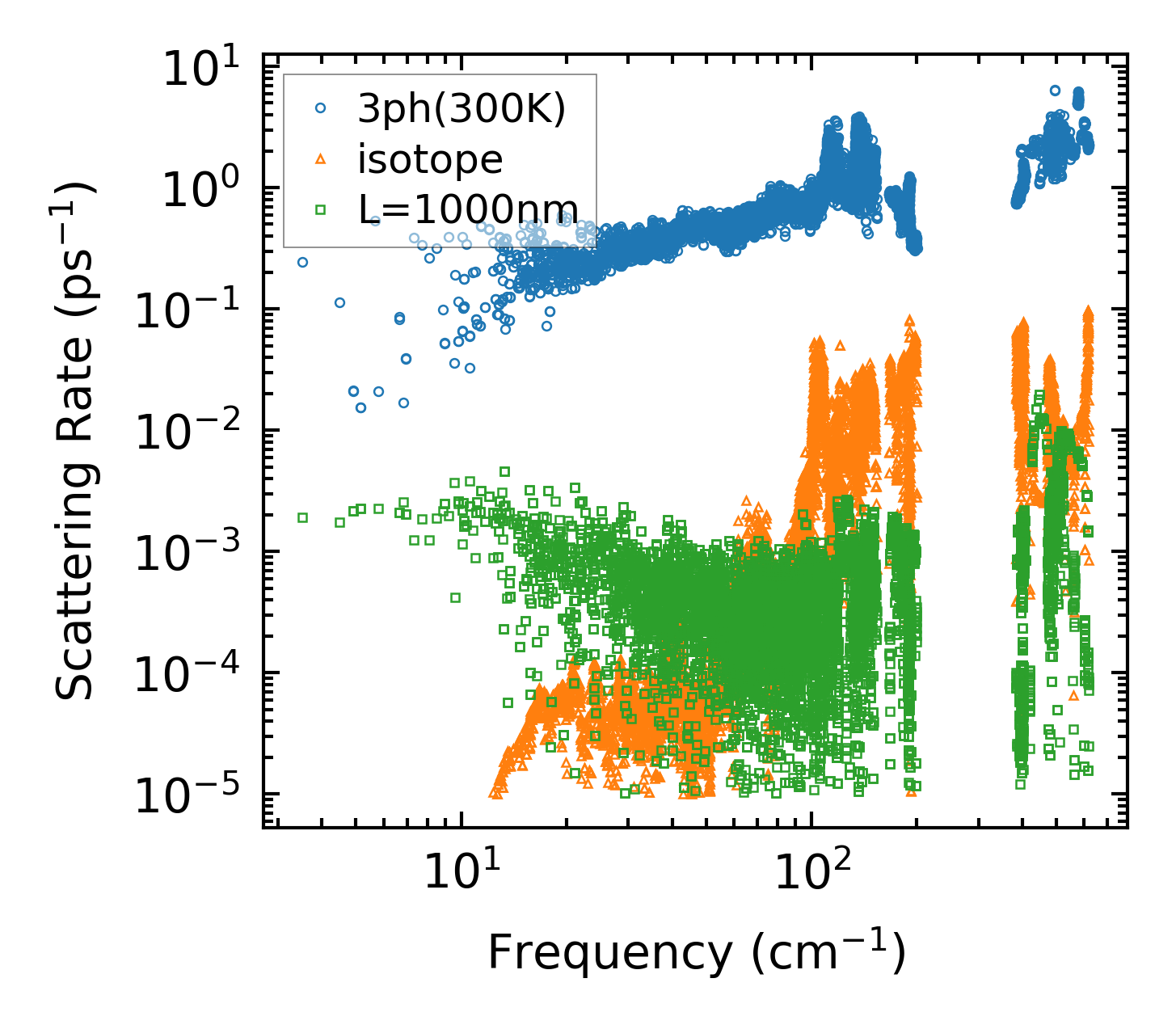

../../_images/fig_scat_rates2854.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

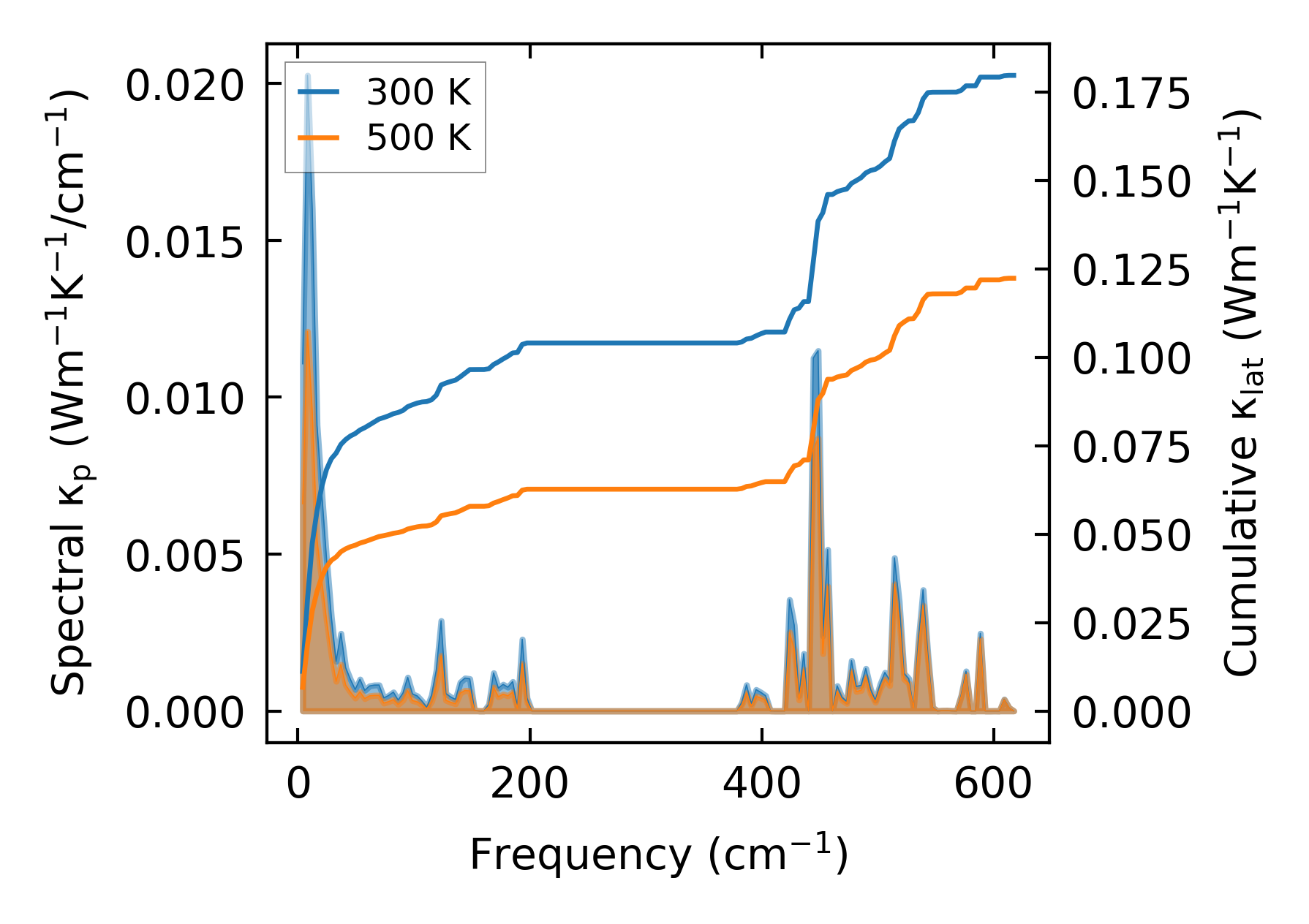

../../_images/fig_cumu_frequency2855.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

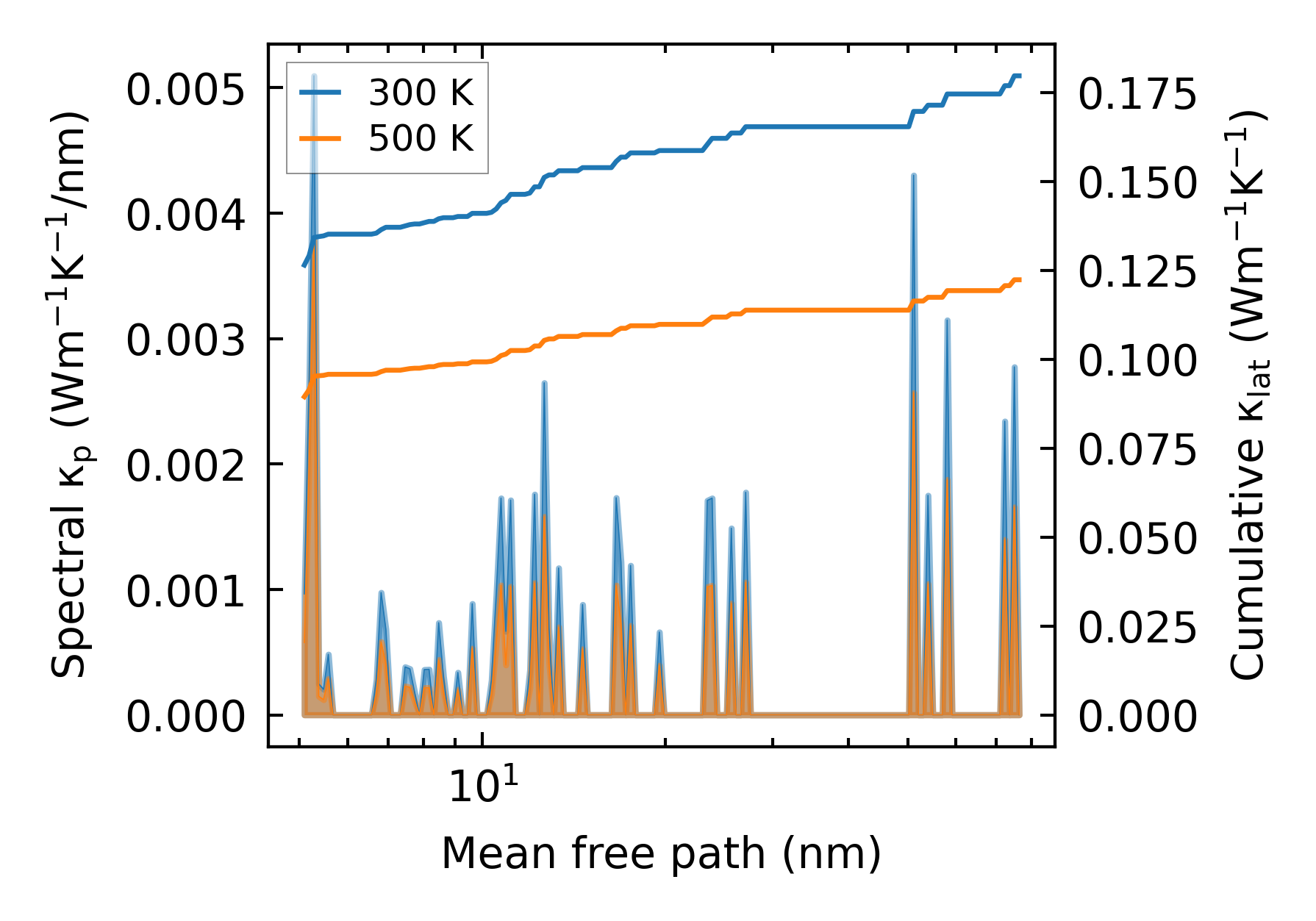

../../_images/fig_cumu_mfp2854.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

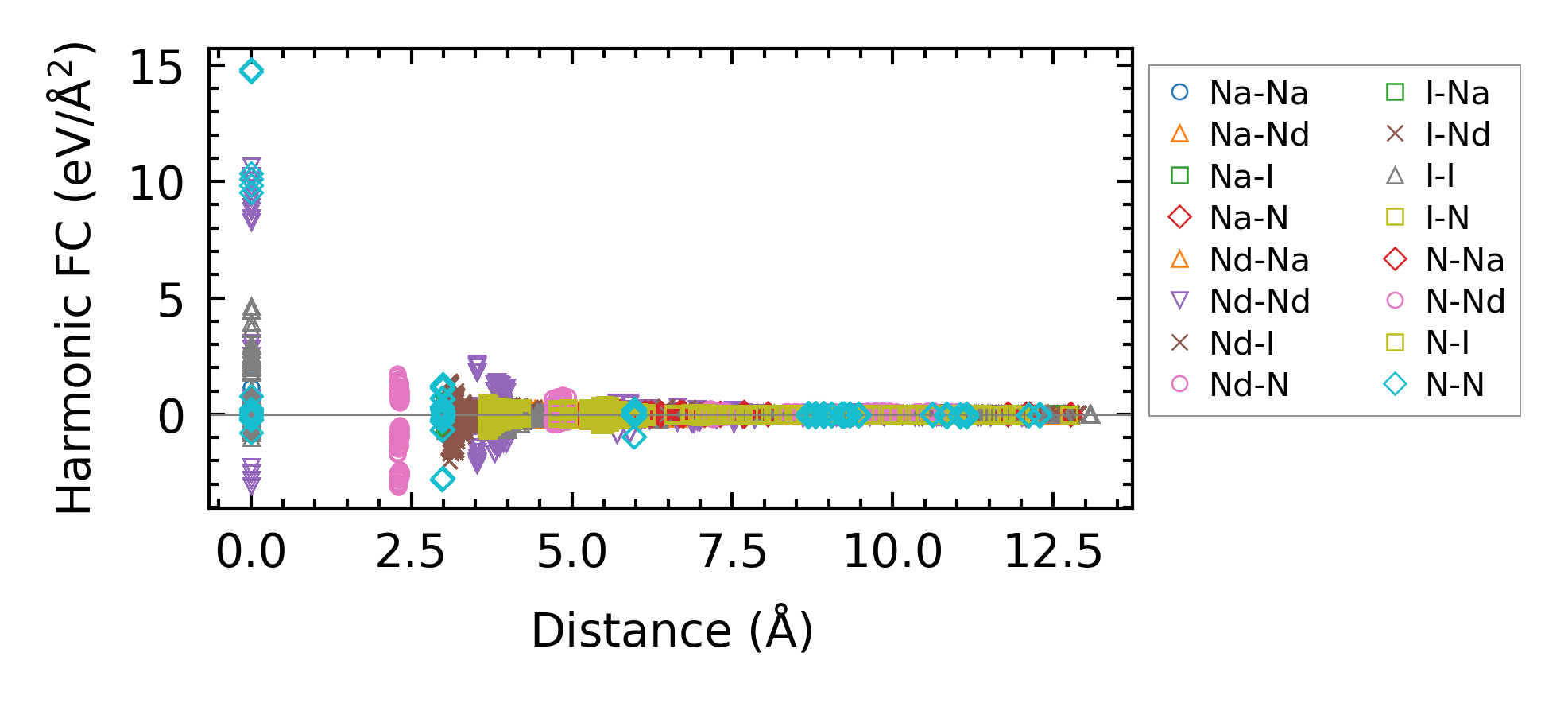

../../_images/fig_fc26729.png — (a) Force constants w.r.t atomic distance

Summary

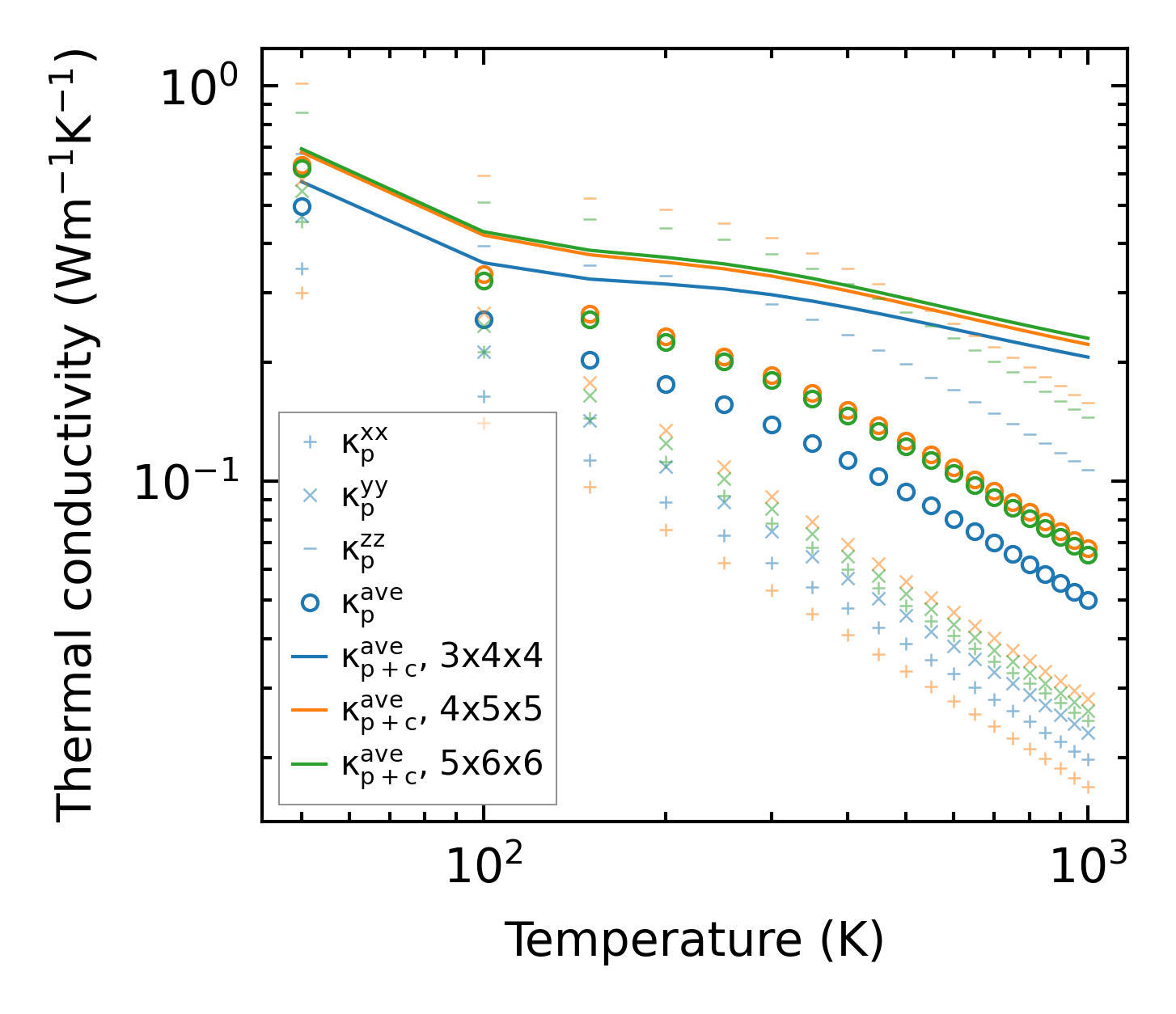

../../_images/fig_kappa5466.png — (a) Temperature-dependent lattice thermal conductivity

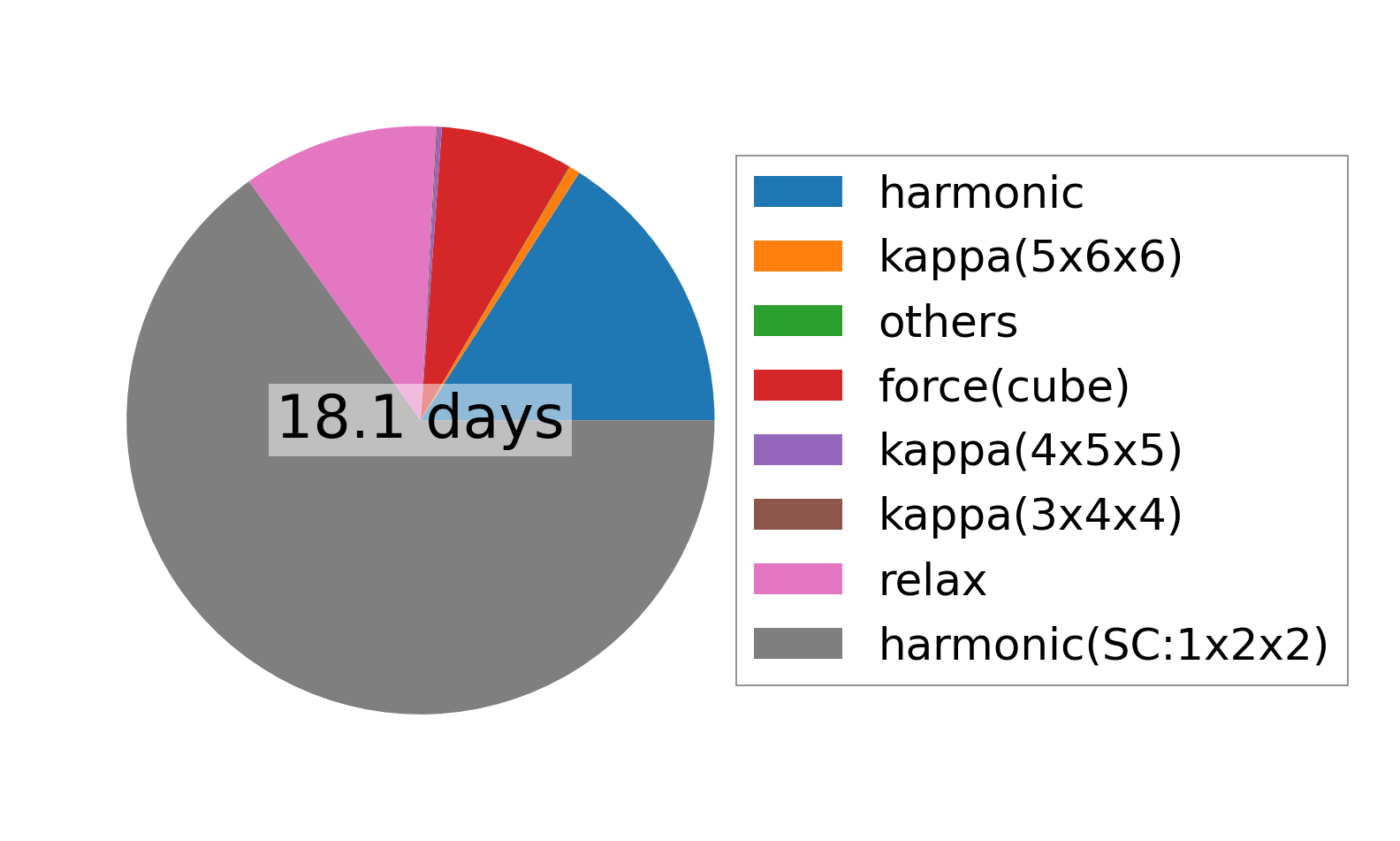

../../_images/fig_times12453.png — (b) Computation time
